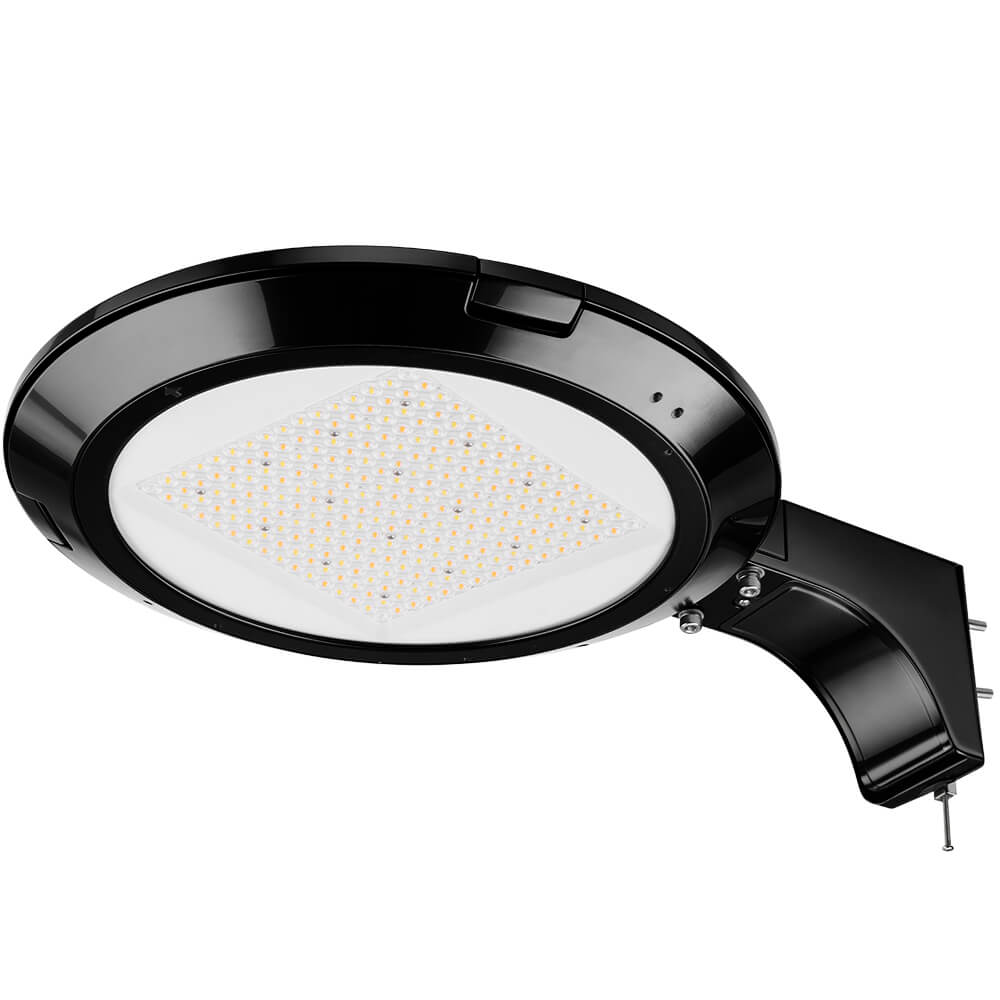

Product Overview
The Konlite Atria Series LED Area Light combines modern architectural styling with high-performance, energy-efficient illumination for parking lots, roadways, pathways, parks, campuses, residential communities, and commercial outdoor spaces. As part of the Atria architectural lighting family, it provides a cohesive appearance across area, post top, canopy, and bollard lighting applications, making it ideal for projects that demand both visual appeal and reliable performance.
Designed for maximum flexibility, the fixture features selectable wattage (125W / 105W / 76W) and selectable color temperature (3000K / 4000K / 5000K), allowing a single fixture to adapt to a wide range of site requirements. Delivering up to 18,710 lumens with efficacy up to 150 lm/W, the Atria Area Light offers an energy-efficient replacement for traditional 400W metal halide and HID fixtures while providing professional-grade optical performance and long-term durability.

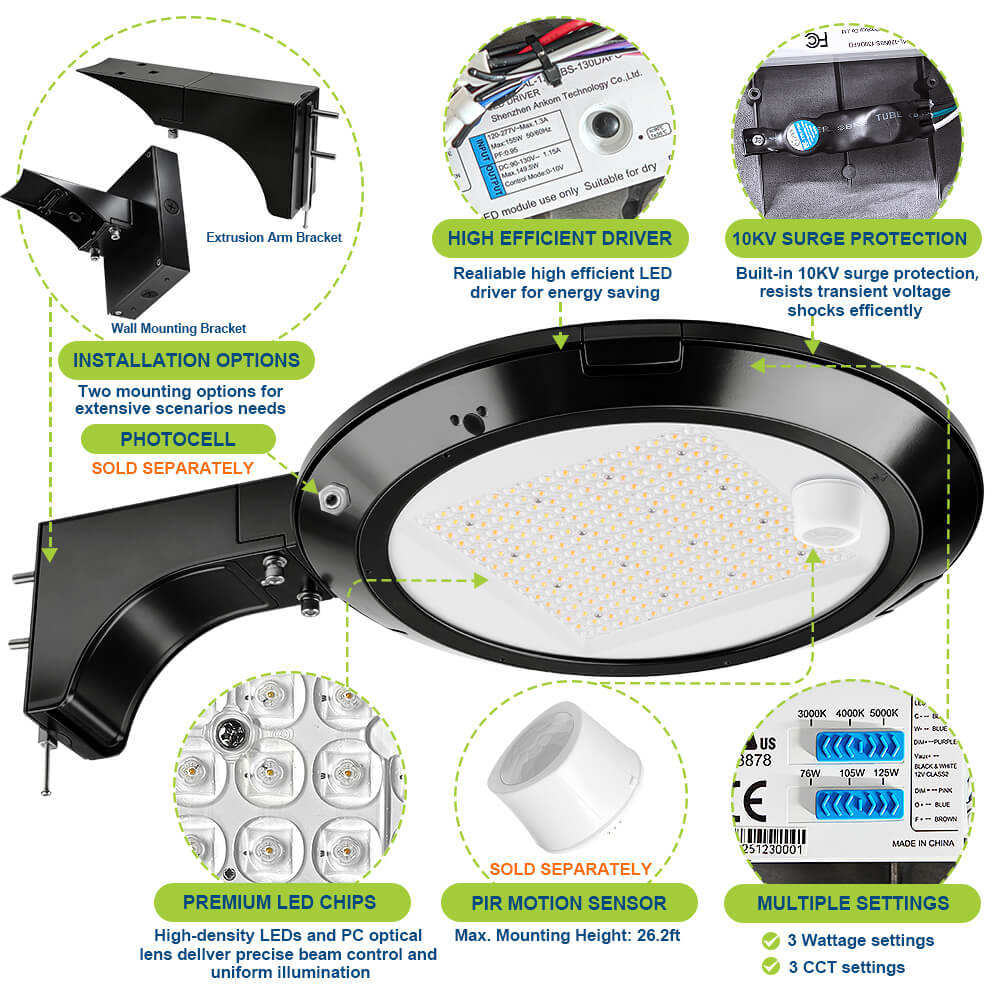

Key Features

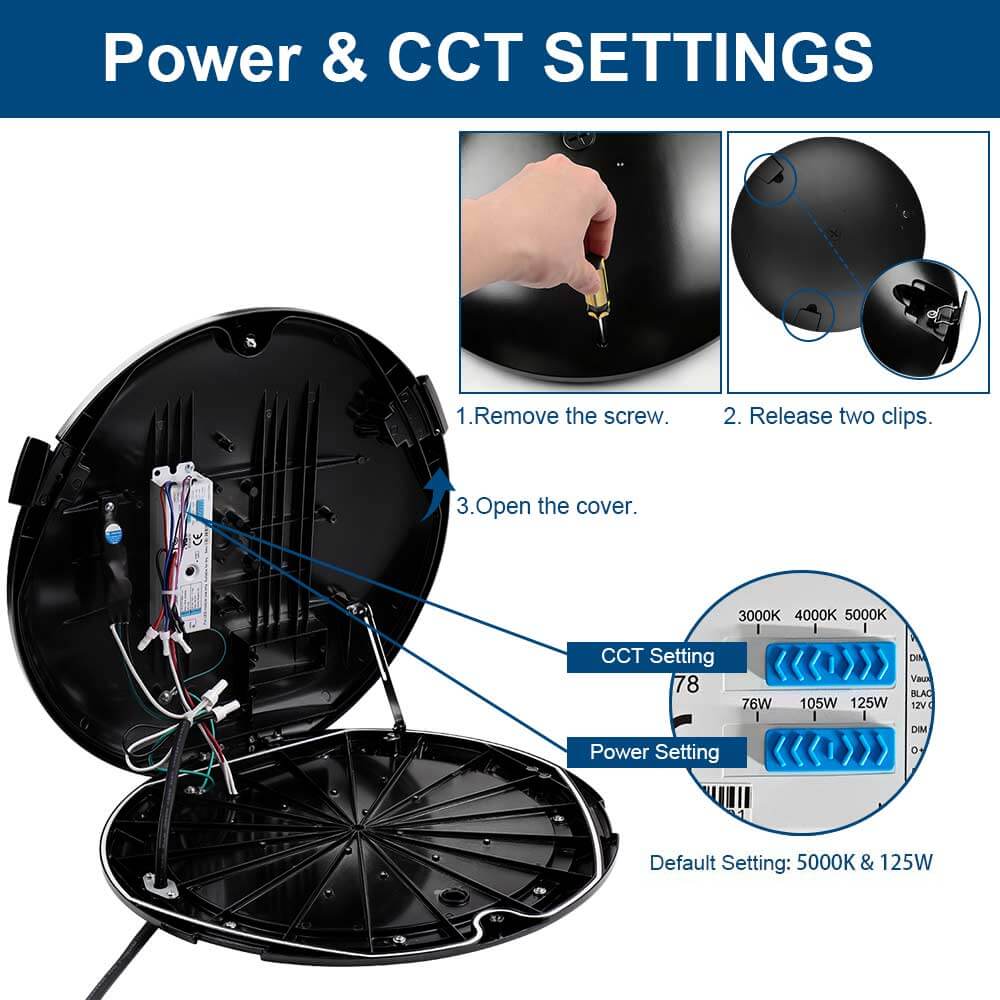

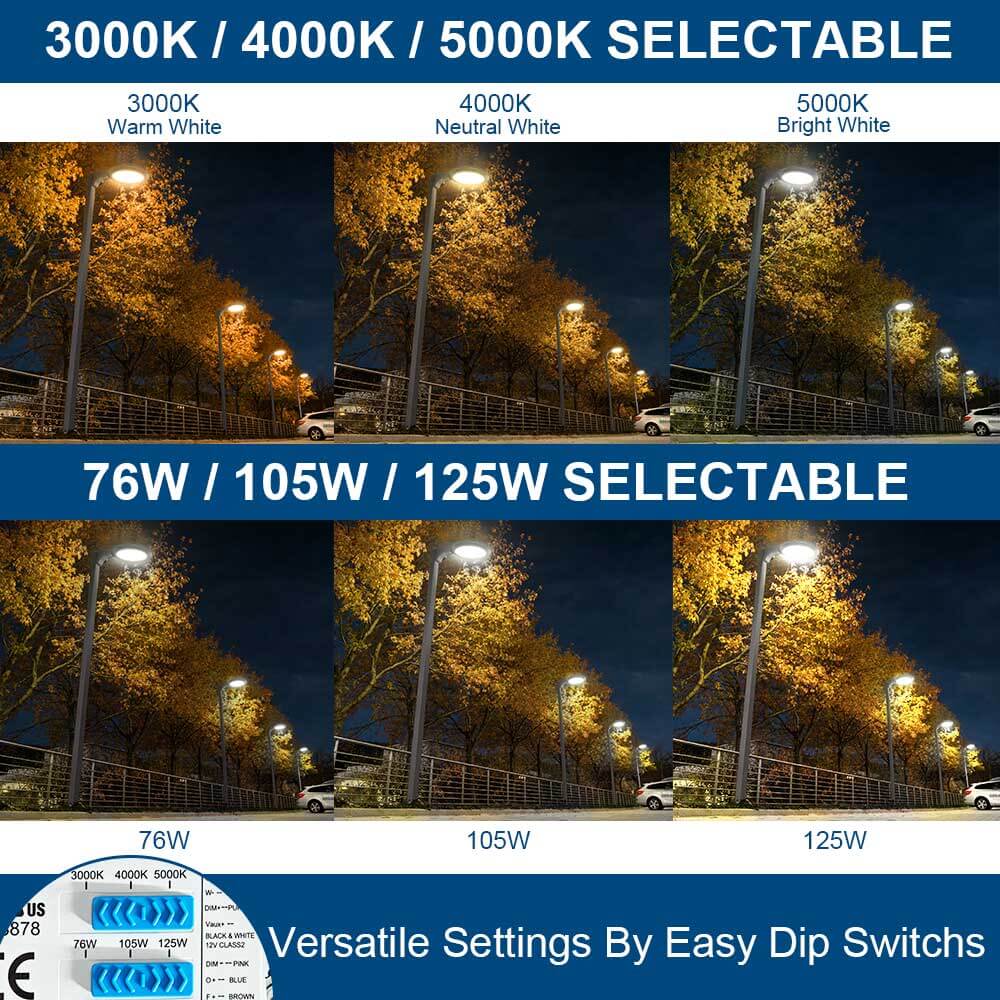

🔹 Selectable Wattage (125W / 105W / 76W)
Adjust the light output in the field to match your project's illumination requirements while reducing energy consumption and simplifying inventory management.
🔹 Selectable Color Temperature (3000K / 4000K / 5000K)
Choose warm, neutral, or daylight white light to achieve the ideal balance of visibility, comfort, and appearance for a wide range of outdoor applications.
🔹 High-Efficiency Performance
Produces up to 18,710 lumens with efficacy reaching 150 lm/W, delivering bright, uniform illumination while reducing operating costs compared to traditional HID lighting.
🔹 Multiple Optical Distributions
Available with Type V, IV, III or II optics to optimize light distribution for parking lots, roadways, pathways, building perimeters, plazas, and general site lighting.
🔹 Architectural Atria Series Design
Features a sleek, low-profile housing that complements modern commercial developments while maintaining a consistent appearance across the Atria family of area, post top, canopy, and bollard fixtures.
🔹 Commercial-Grade Construction

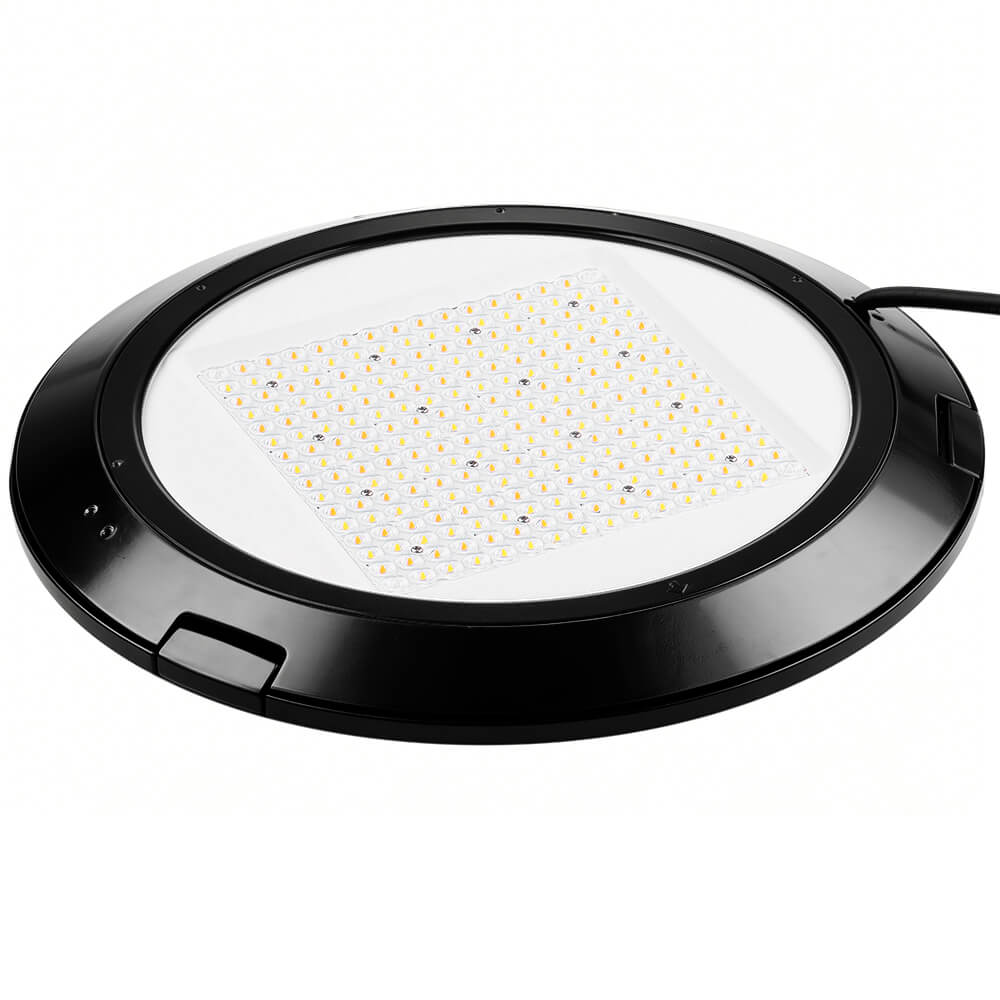

Heavy-duty die-cast aluminum housing with a harsh-environment powder-coated finish, tempered glass diffuser, and precision polycarbonate optical lens for long-lasting outdoor durability.

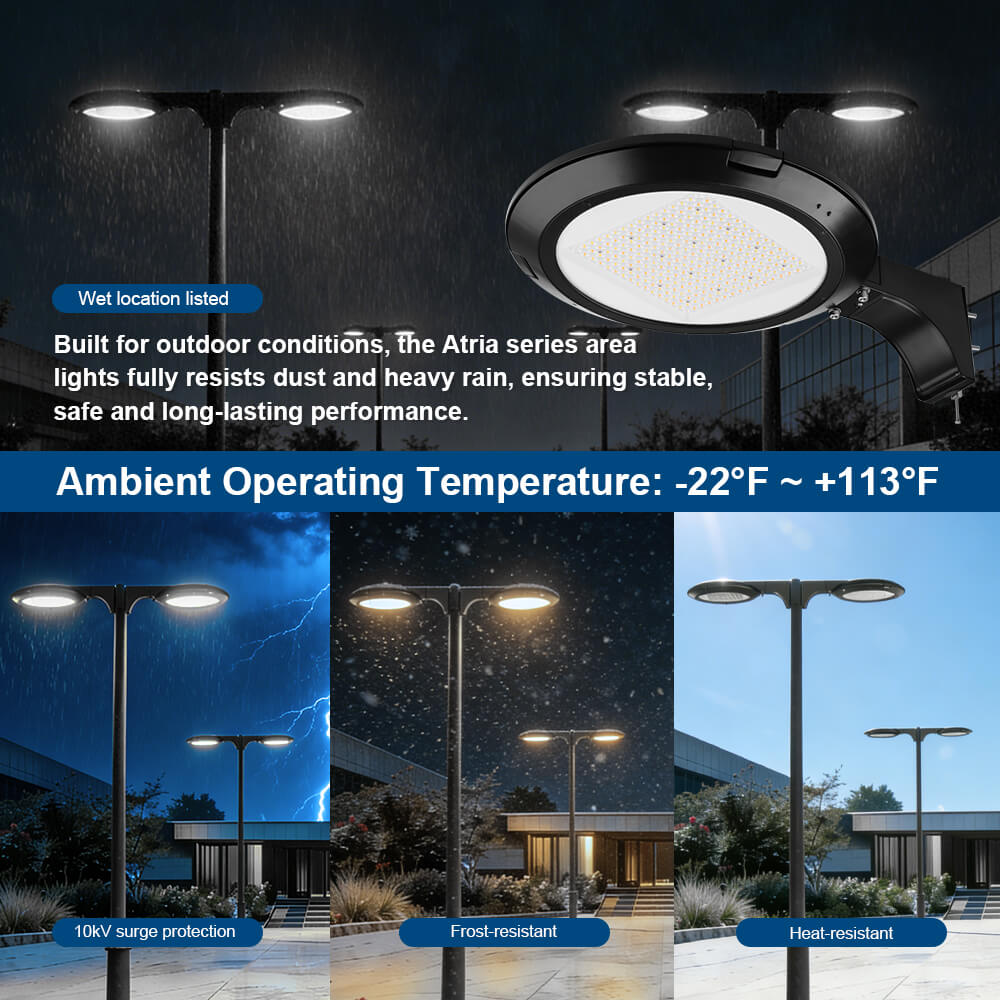

🔹 Fully Sealed & Weather Resistant
Wet Location Rated with a sealed housing that protects against moisture, dust, and environmental contaminants. IK08 impact rated for demanding outdoor installations.
🔹 Reliable Electrical Performance

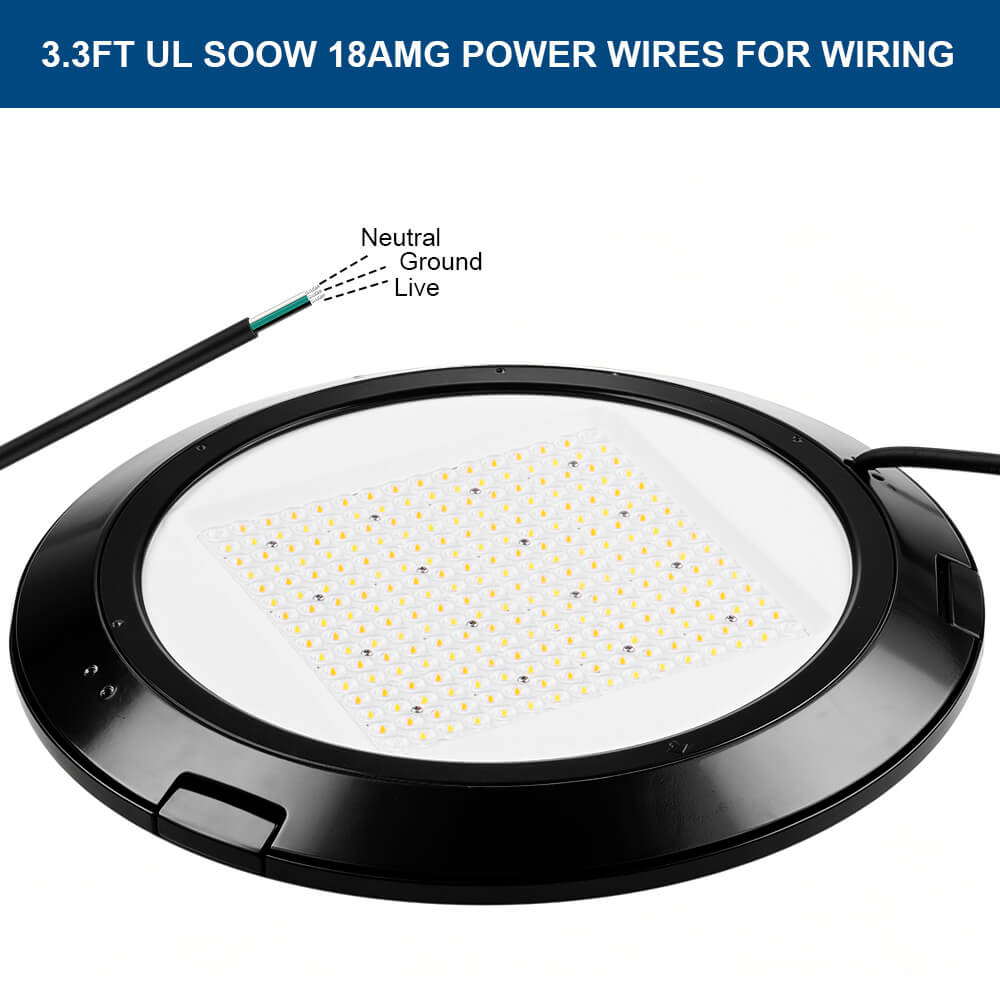

Operates on 120–277V and features built-in 10kV surge protection, power factor ≥0.92, THD ≤10%, and an included 3.3 ft UL-listed power cord for dependable operation.

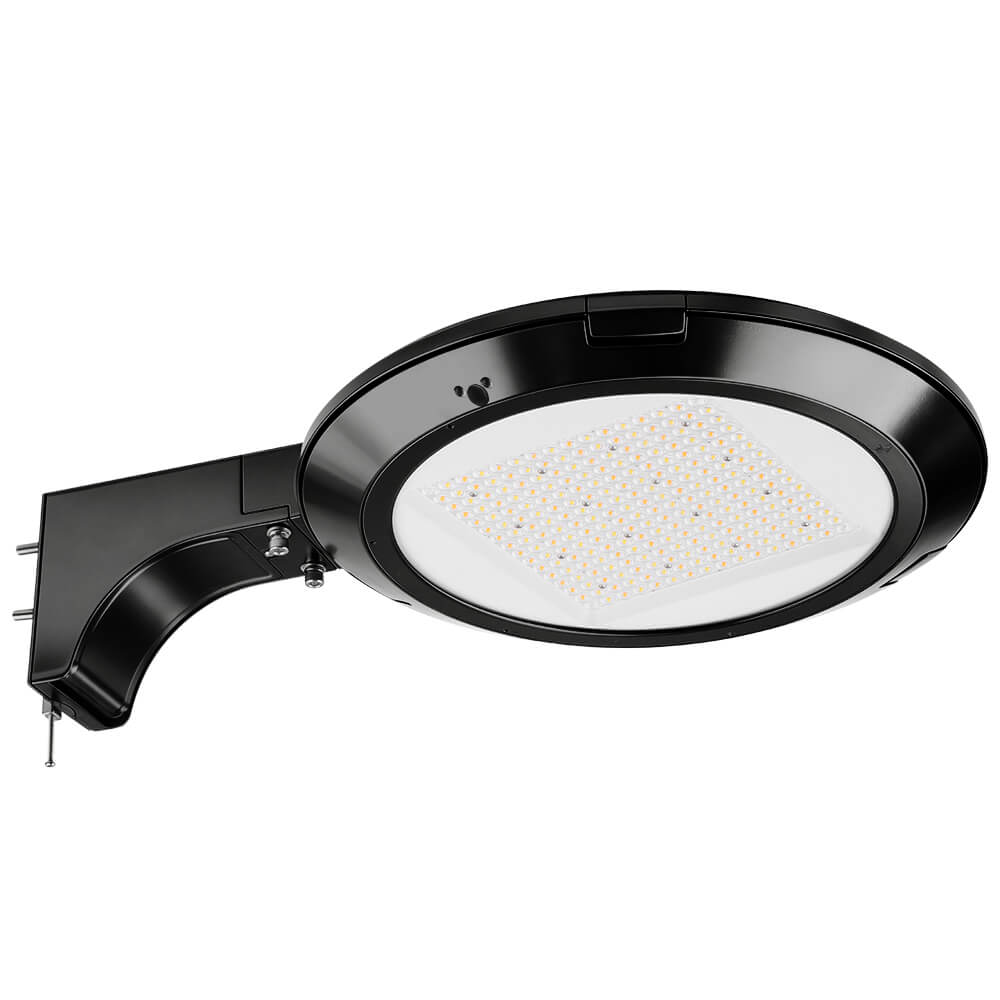

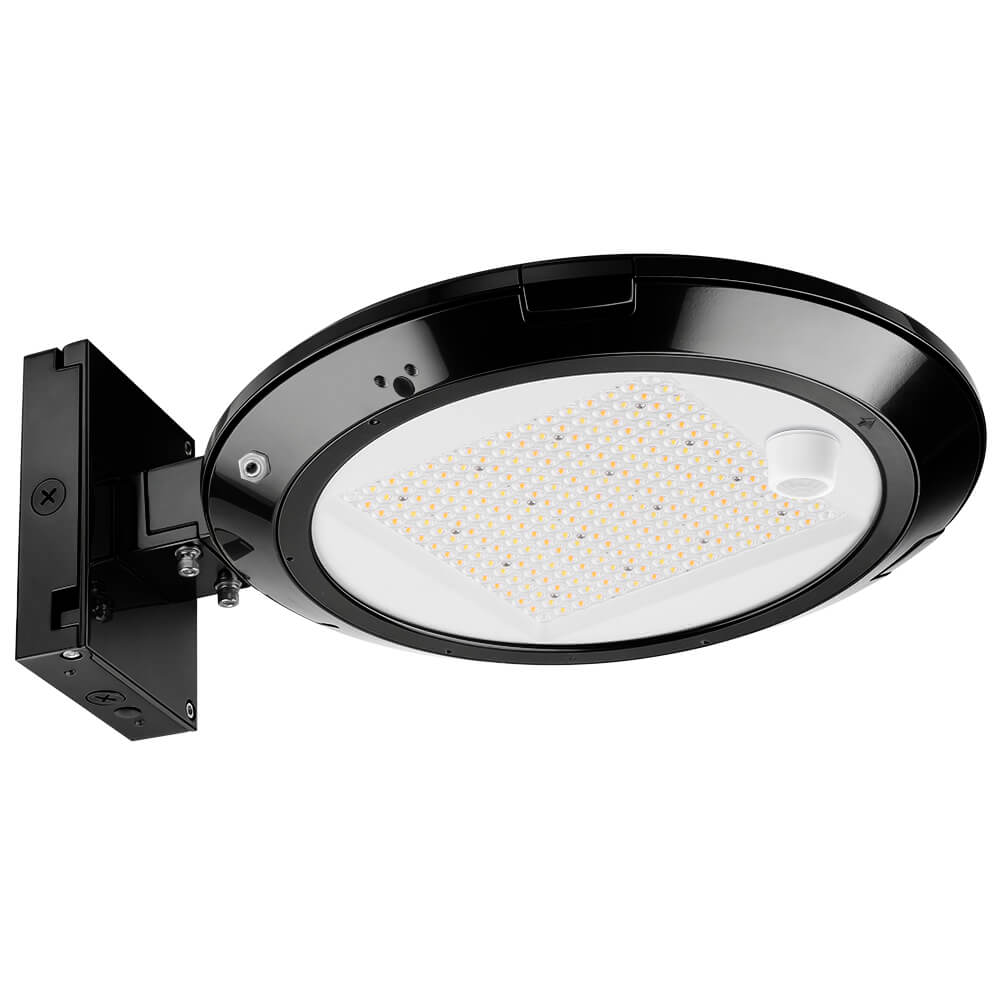

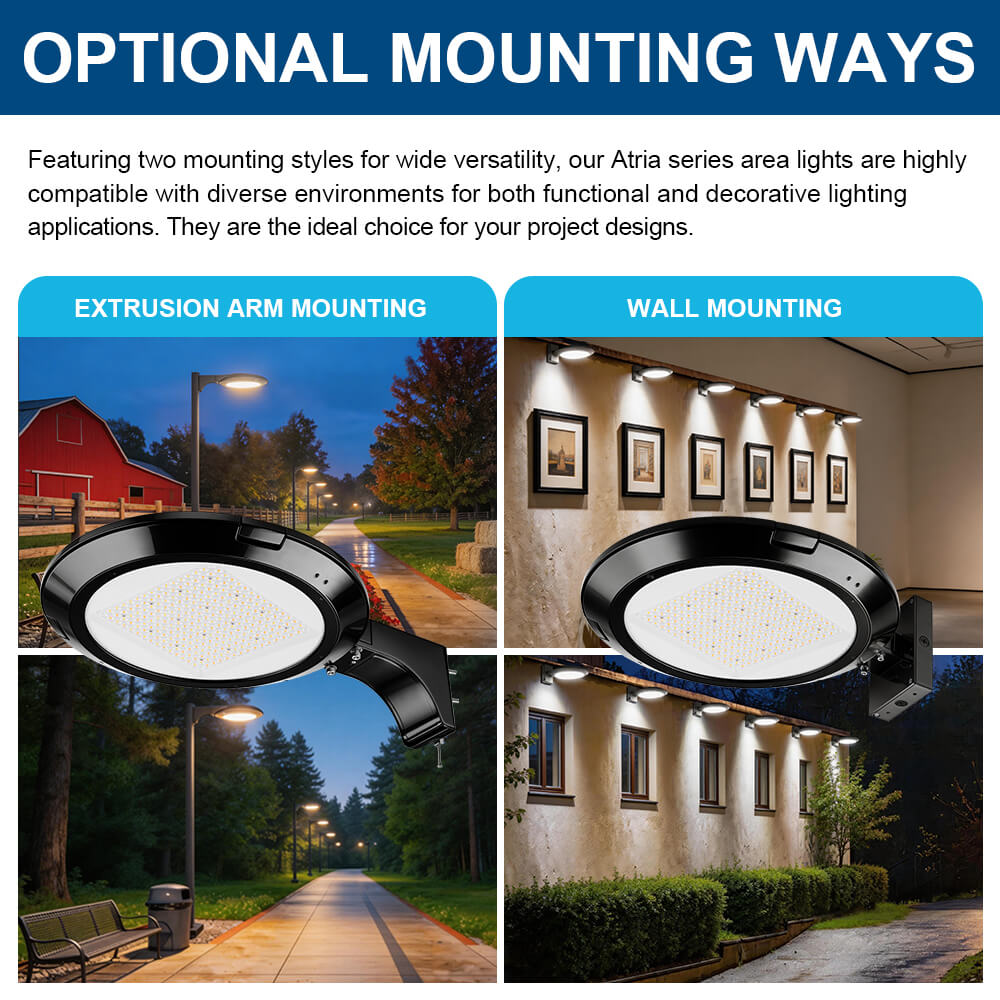

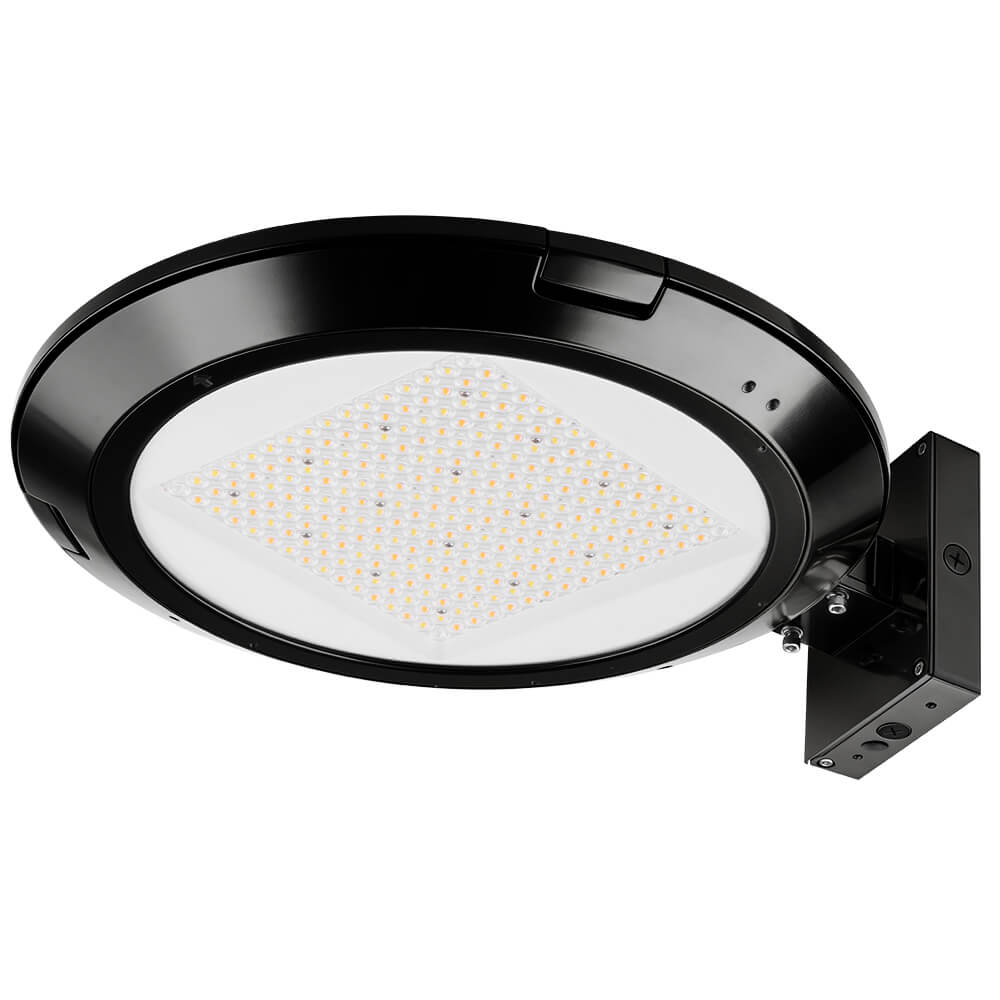

🔹 Flexible Mounting Options
Includes your choice of extrusion arm mounting for square or round poles or wall mounting, making it ideal for both new construction and retrofit projects.
🔹 UL & DLC Premium Certified
UL Listed, DLC Premium 6.0 Listed, and backed by a 5-year limited warranty, making it suitable for commercial projects and utility rebate programs.

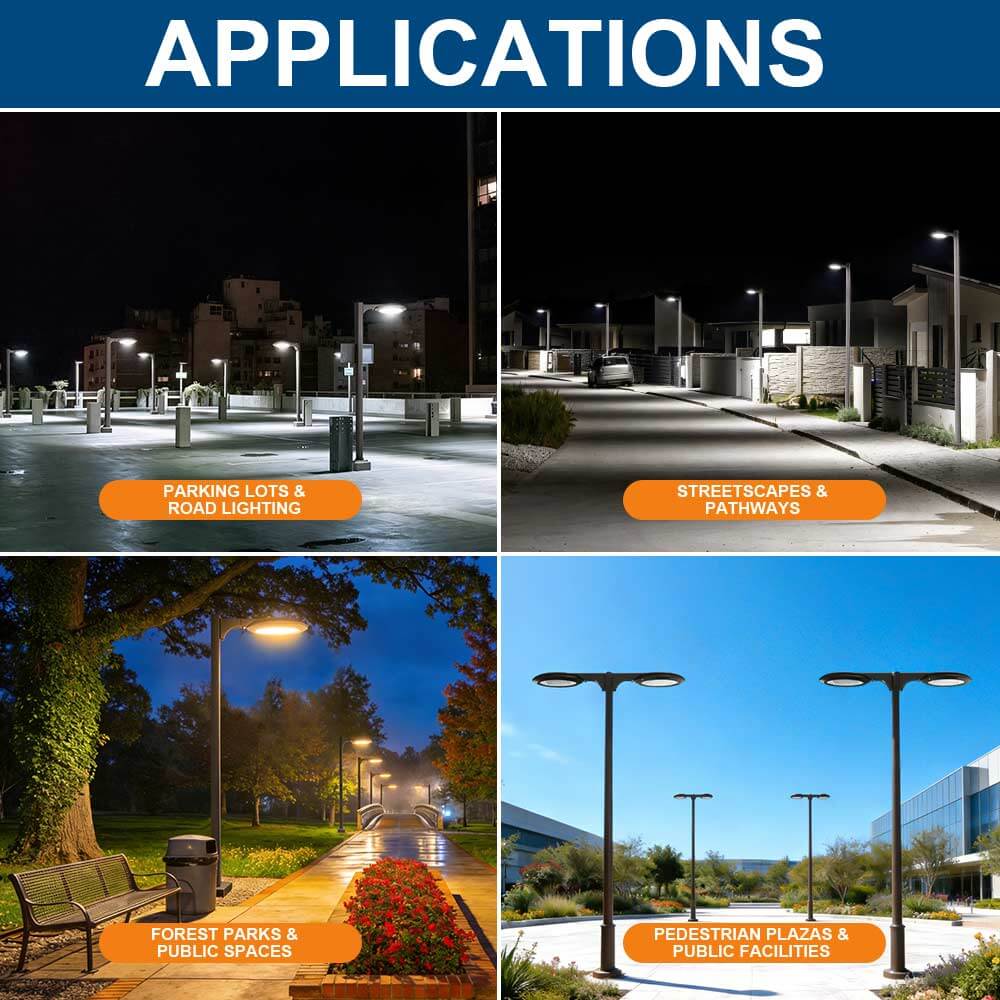

Applications
| • Parking Lots | • Municipal Lighting Projects |
| • Roadways & Streets |
• Commercial Developments |
| • Sidewalks & Pathways | • Office Parks |
| • Parks & Recreation Areas | • Residential Communities & HOAs |
| • Campuses & Schools | • Apartment Complexes |
| • Shopping Centers | • Building Perimeters |
| • Public Plazas & Courtyards | • General Site Lighting |
Specifications
| Brand | Konlite | MPN | KARHWMCLT5EXB |
| Warranty | Limited 5 Years | UPC | |
| Input Voltage | 120-277V | Beam | Type V |
| Input Wattage | 125W/105W/7W | Equal to | 1000W MH |
| Lumens | 18,710 Max. | CRI | >70 |
| Efficacy | 150 LM/W | Available CCT | 5000K/4000K/3000K |
| Rated Life | >50,000 hrs | THD | <10% |
| Power Factor | >0.92 | IP Rating | IP65 |
| Dimmable | No | Controls | Optional Dusk to Dawn Photocell |

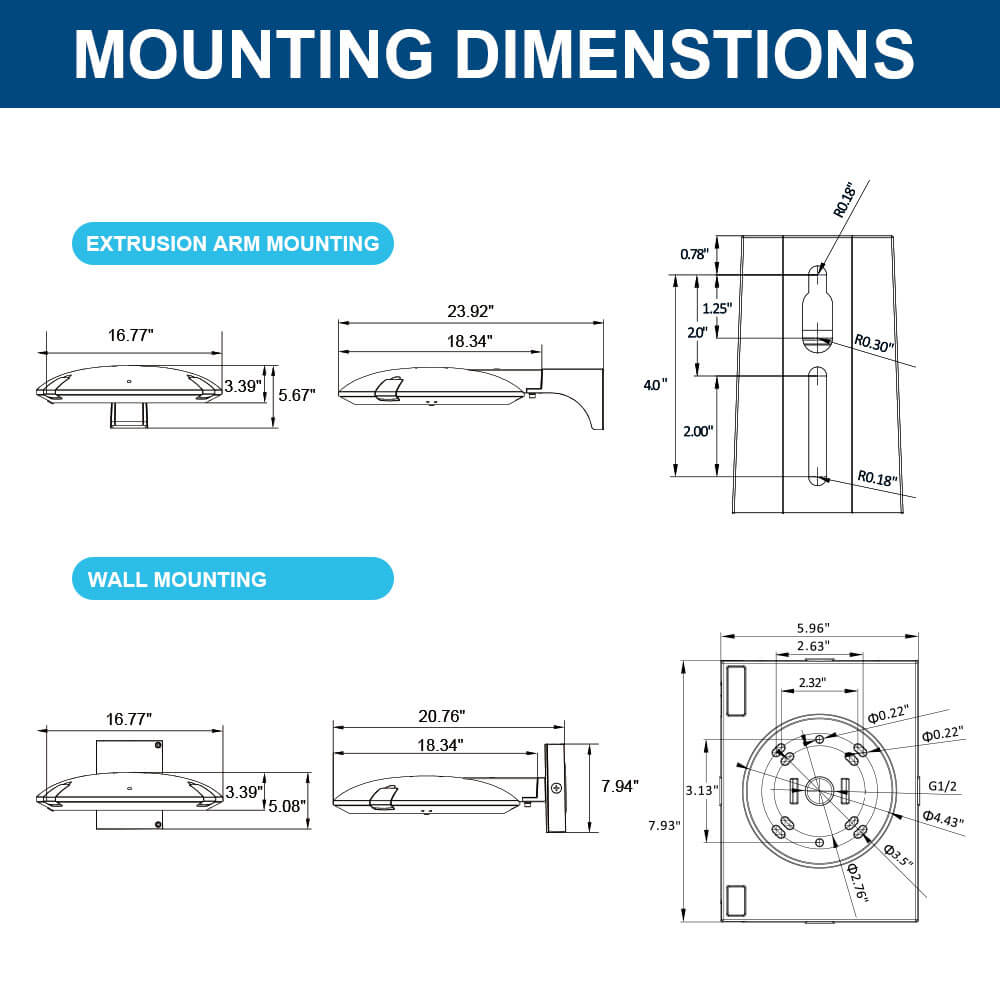

| Operating Temperature | -22 to 113 F | Dimensions | Ø16.77" x 3.99"H ( Light Head ) |
| Certifications | UL, Damp Locations, DLC Premium | Weight | 13.6 lbs |
