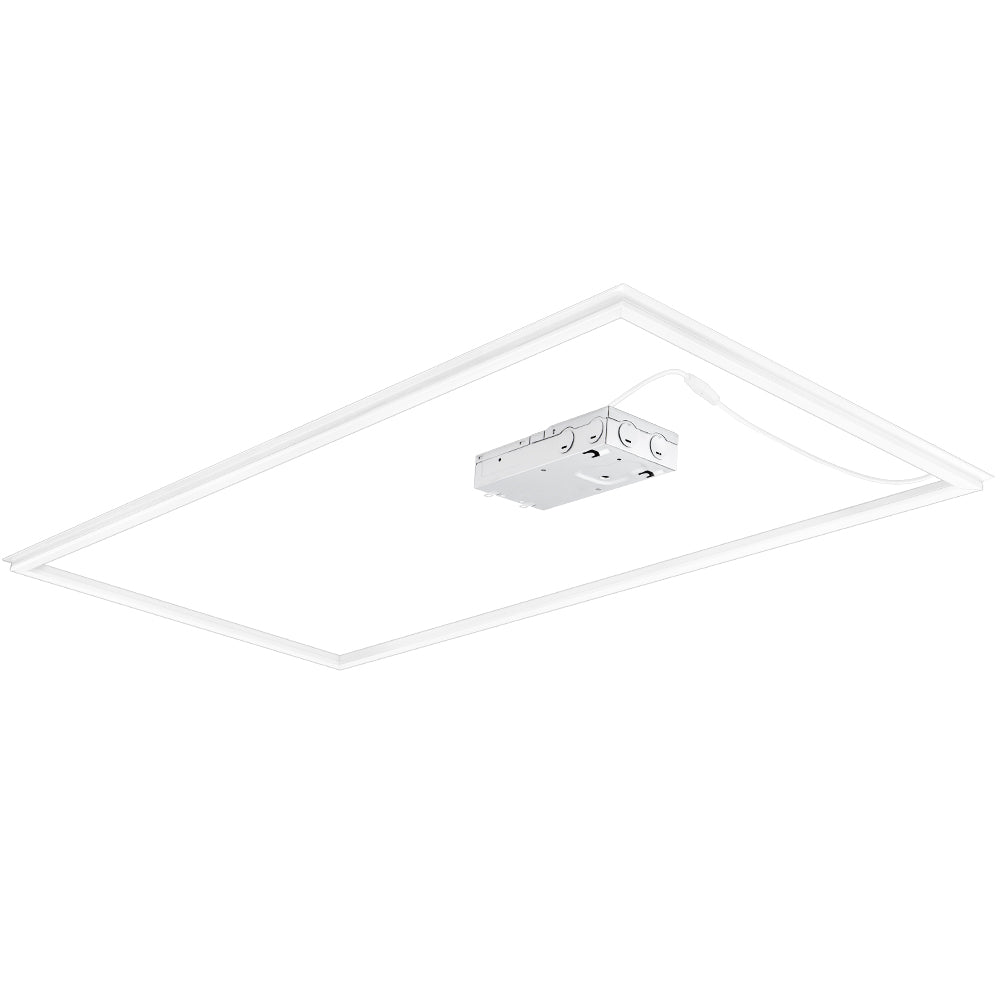

2x4 ft. LED Grid Frame Light - 8000 Lumens - 60W/50W/40W - 5 CCT Selectable - 120-277V
- No Tile Cutting Required
- Lumens: 5,000 - 8,000 Selectable
- Watts: 60W, 50W, 40W Selectable
- CCT: 6500K, 5000K, 4000K, 3500K or 3000K
- Dimensions: 47.76" x 23.75"
- 0-10V Dimmable
- Voltage: 120-277V
- 5 Years Warranty
- No Tile Cutting Required
- Lumens: 5,000 - 8,000 Selectable
- Watts: 60W, 50W, 40W Selectable
- CCT: 6500K, 5000K, 4000K, 3500K or 3000K
- Dimensions: 47.76" x 23.75"
- 0-10V Dimmable
- Voltage: 120-277V
- 5 Years Warranty

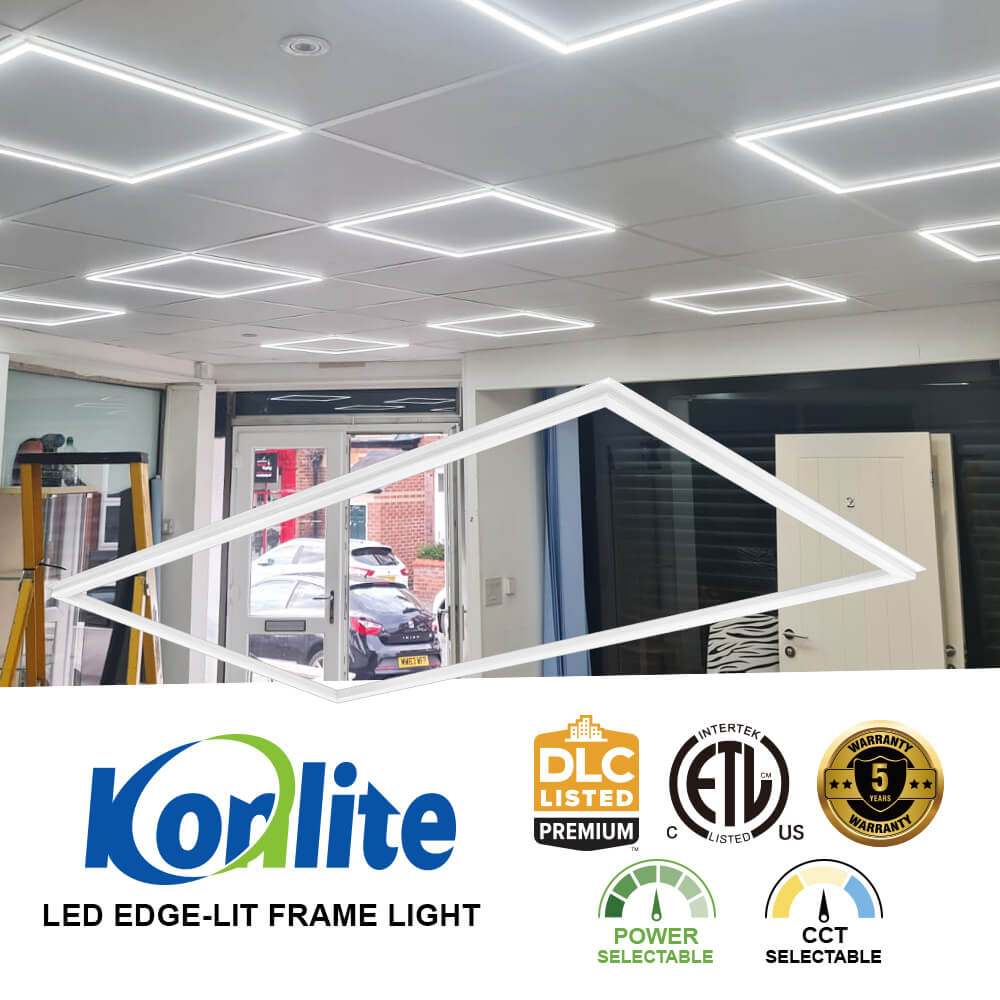

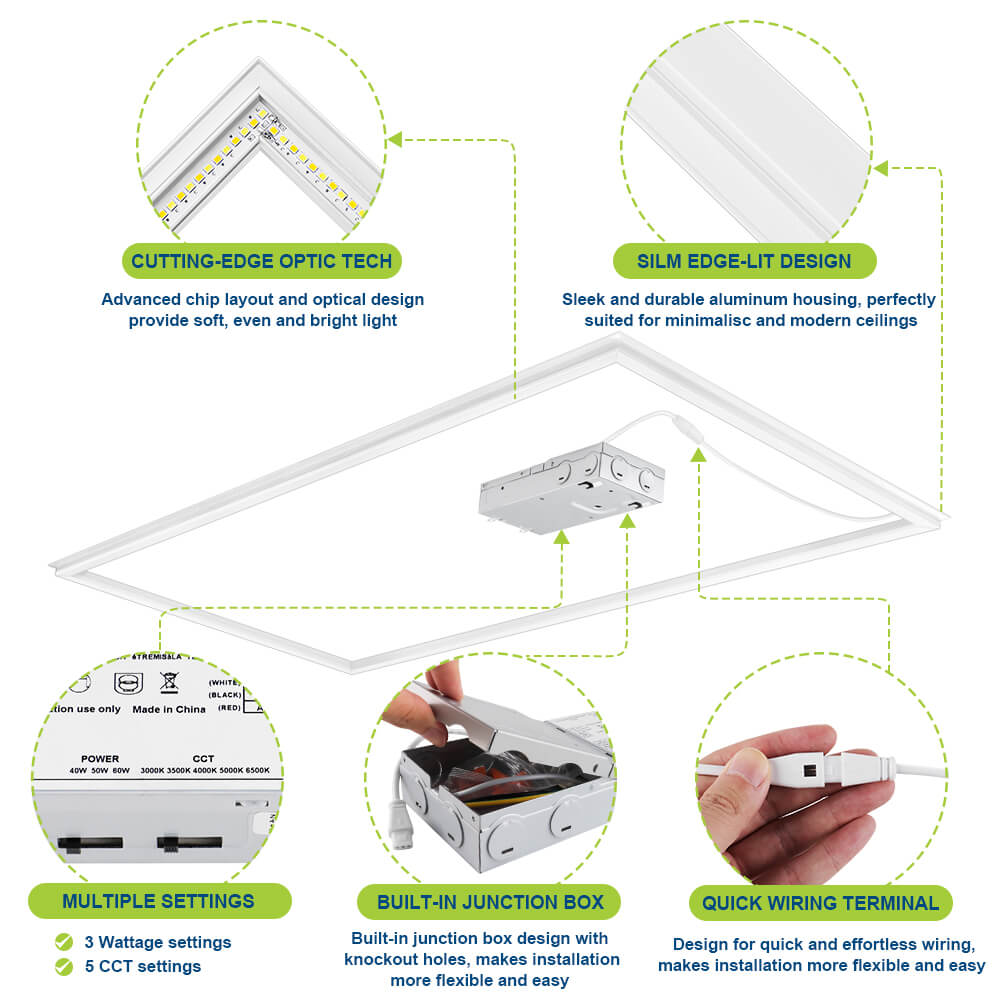

Konlite DLC Premium 2x4 LED Grid Frame light is ideal for drop ceilings also known as grid or t-bar ceilings.
- High Luminaire efficiency of 130Lm/W
- A Slim design Edge-Lit light Fixture
- Control ready with 0-10V dimming
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview
Upgrade your commercial or office lighting with this modern 2x4 LED Grid Frame light, designed for T-bar grid ceilings. This high-performance fixture offers adjustable wattage and color temperature, giving you flexibility in both brightness and ambiance. Its slim, low-profile design provides a clean and professional look, while 0–10V dimming capabilities allow for greater lighting control.
Perfect for offices, schools, retail, healthcare, and other indoor environments, this panel is energy-efficient, easy to install, and backed by a 5-year warranty for long-term reliability.
Key Features

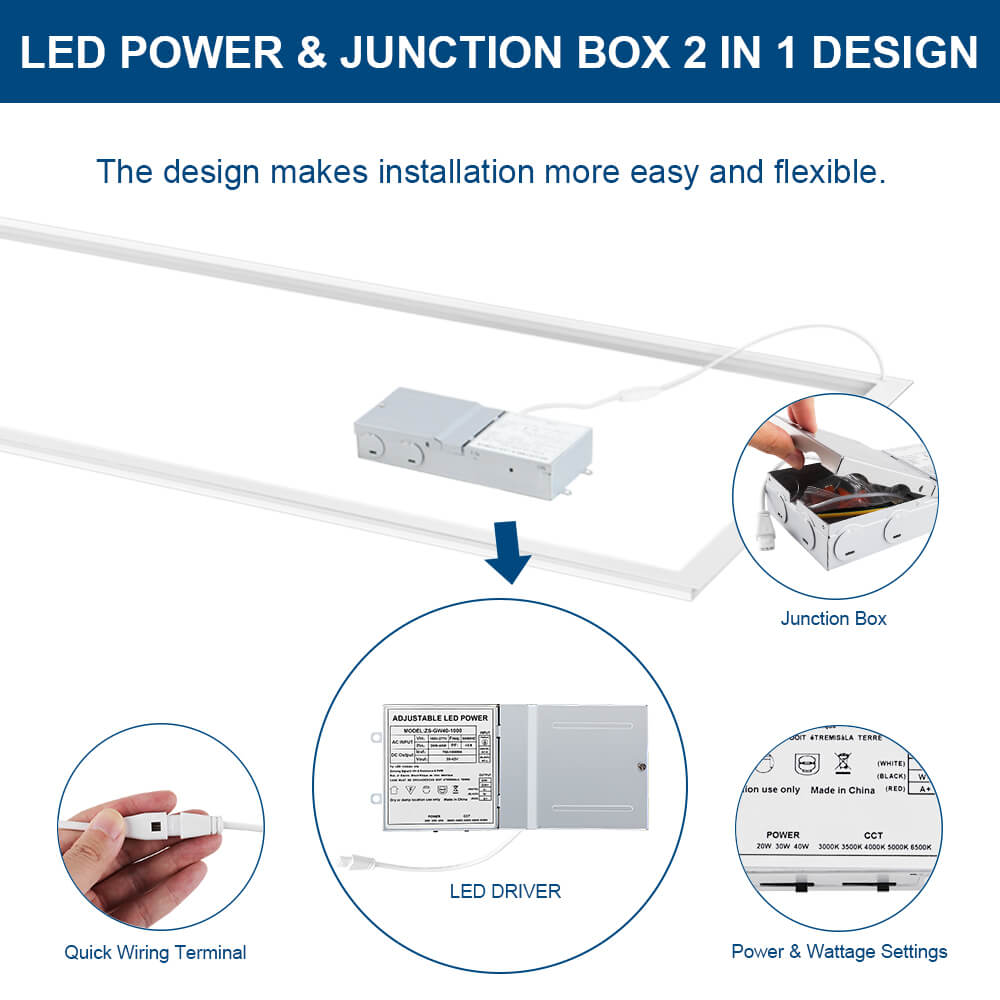

- Selectable Wattage (Switchable). Choose from 40W / 50W / 60W to meet your preferred brightness level:
- 40W = 5,500 lumens (5000K)
- 50W = 6,750 lumens (5000K)
- 60W = 8,000 lumens (5000K)

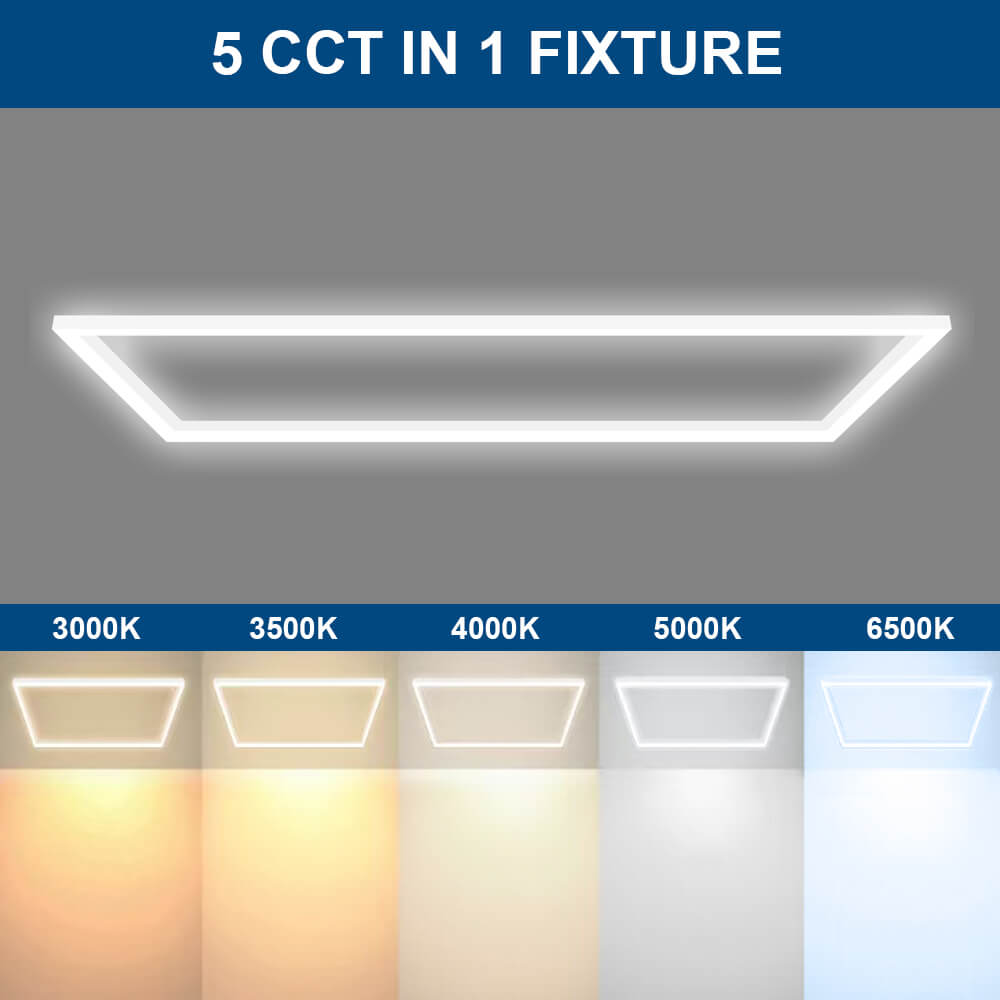

- 5 Selectable Color Temperatures. Easily switch between:
- 3000K (Warm White)
- 3500K (Neutral White)
- 4000K (Cool White)
- 5000K (Daylight)
- 6500K (True White)

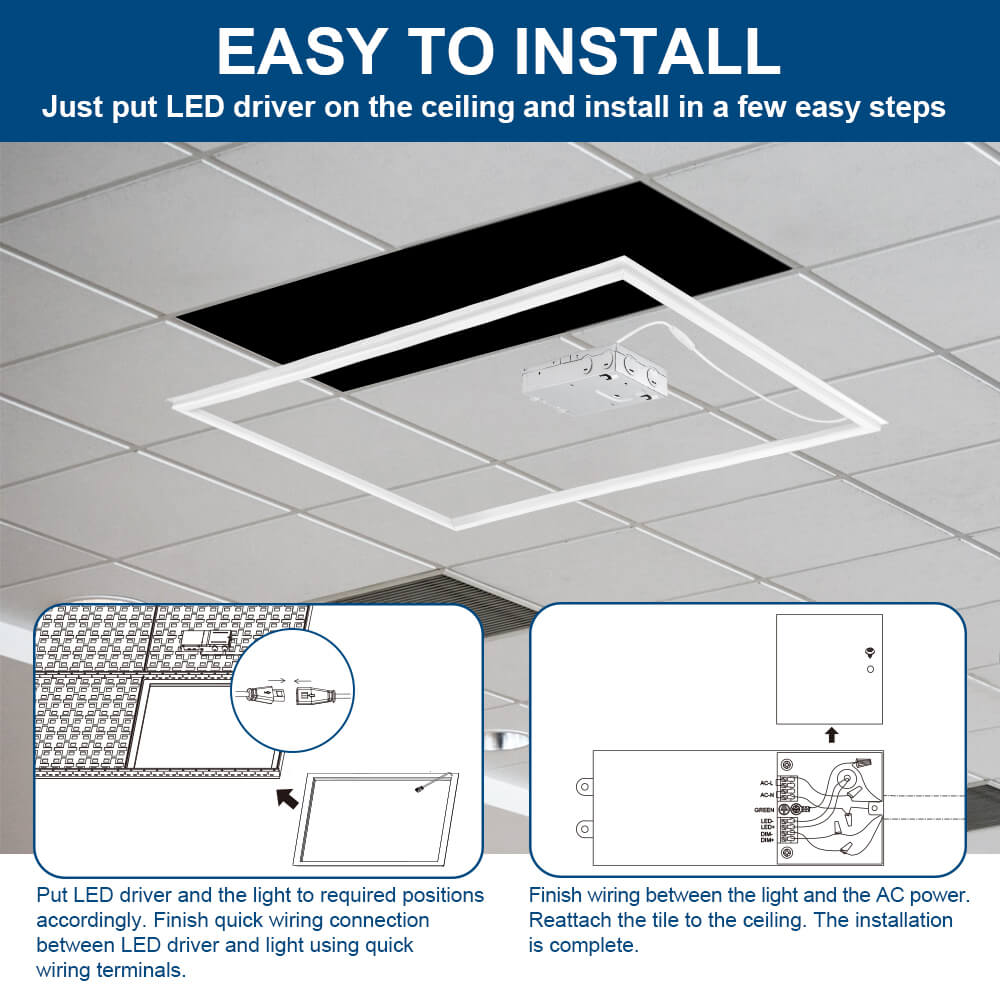

- Recessed T-Bar Installation – Ideal for standard grid ceilings
- 0–10V Dimmable – For full lighting control
- IP40 Rated – Protection against dust intrusion
- ETL Listed & DLC Premium Qualified – For safety, performance, and rebate eligibility
- 5-Year Manufacturer’s Warranty – Peace of mind with long-term support

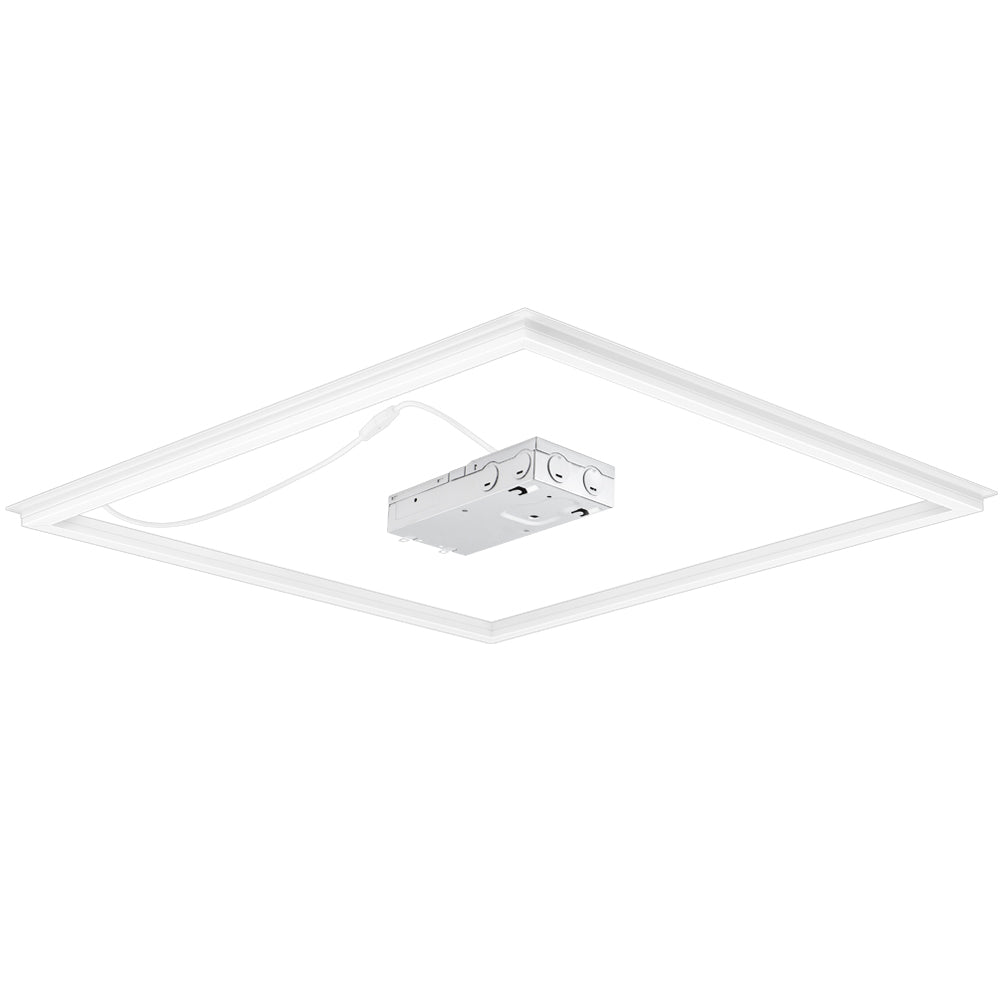

See similar 2X2 LED Grid Frame Light version.
Applications
| •Office Lighting | •Retrofit Installation |
| •Commercial & Industrial Lighting | •New Constructions |
| •Hospitals | •Schools |
| •Retail | •Healthcare |
Specification
| Brand | Konlite | MPN | JEN-F4-K60-3065 |
| Warranty | 5 Years | UPC | 752480738460 |
| Input Voltage | 120-277V,50/60Hz | Dimmable | 0-10V, additional 2 dimming wires required to connect fixture to dimmer switch. |
| Input Wattage | 60W/50W/40W Selectable | Equal To | 4 lamps T8/T12 |
| Delivered Lumens | 8,000LM/6,800LM/5,500LM Selectable | CRI | >80 |
| Efficacy | 130 LM/W | Available CCT | 6500K/5000K/4000K/3500K/3000K |
| Rated Life | >50,000 hrs | Power Factor | >0.9 |
| THD | 15% | IC Rated | Yes |
| Operating Temperature | -4°F ~ +113°F | Mounting | Chain, Surface |

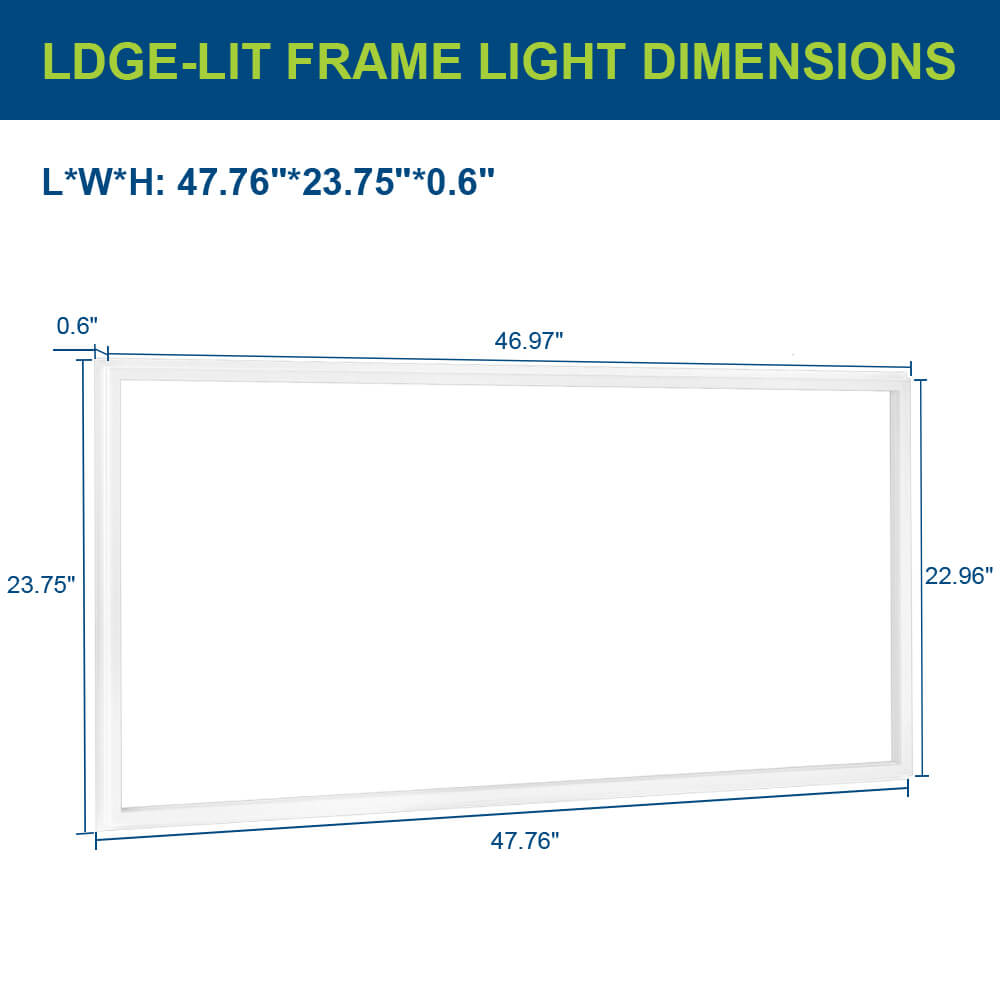

| Certifications | UL, DLC Premium | Dimensions and Weight | 47.76"x23.76"x0.6". 2.25 Lbs |
