2x2 ft. LED Grid Frame Light - 5000 Lumens - 40W/30W/20W - 5 CCT Selectable - 120-277V
- No Tile Cutting Required
- Lumens: 2,500 - 5,000 Selectable
- Watts: 40W, 30W, 20W Selectable
- CCT: 6500K, 5000K, 4000K, 3500K or 3000K
- Dimensions: 23.75" x 23.75"
- 0-10V Dimmable
- Voltage: 120-277V
- 5 Years Warranty
- No Tile Cutting Required
- Lumens: 2,500 - 5,000 Selectable
- Watts: 40W, 30W, 20W Selectable
- CCT: 6500K, 5000K, 4000K, 3500K or 3000K
- Dimensions: 23.75" x 23.75"
- 0-10V Dimmable
- Voltage: 120-277V
- 5 Years Warranty

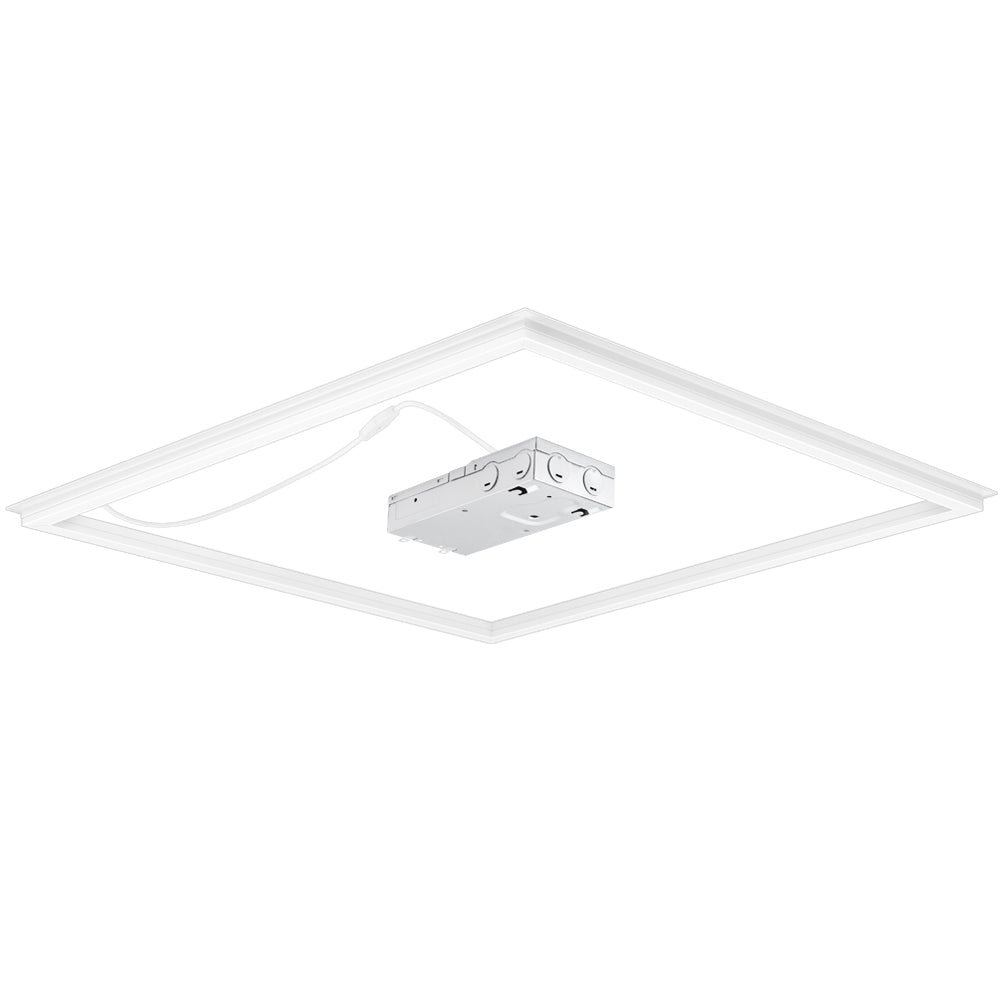

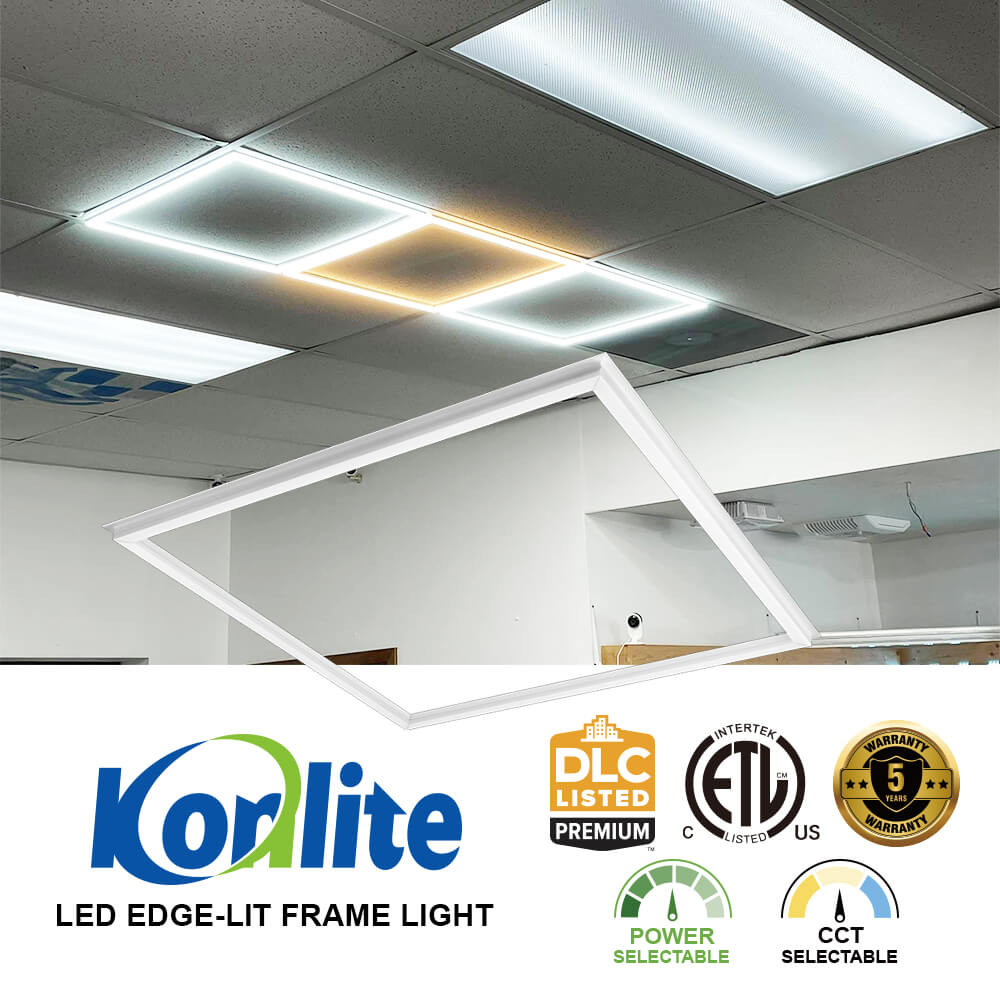

Konlite 2x2 LED Grid Frame Light is ideal for drop ceilings also known as grid or t-bar ceilings.

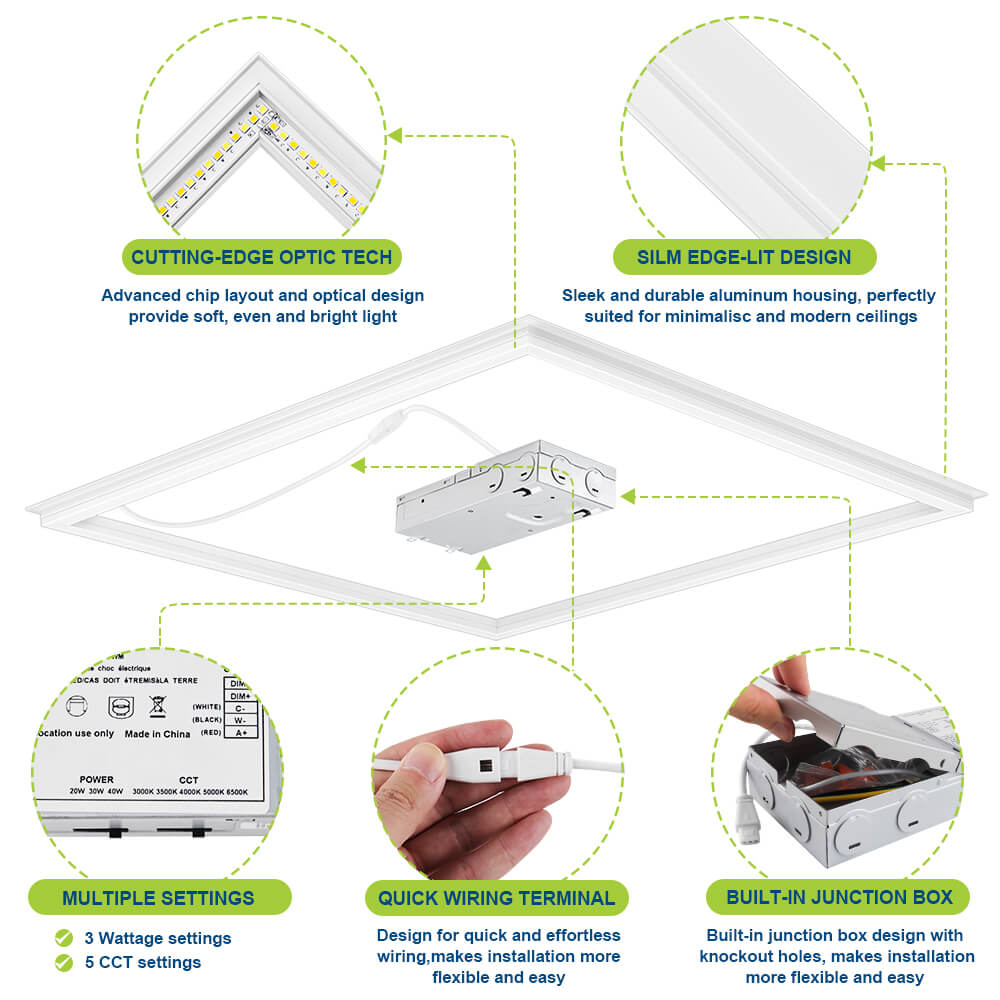

- A Slim design Edge-Lit Panel light
- Control ready with 0-10V dimming
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview

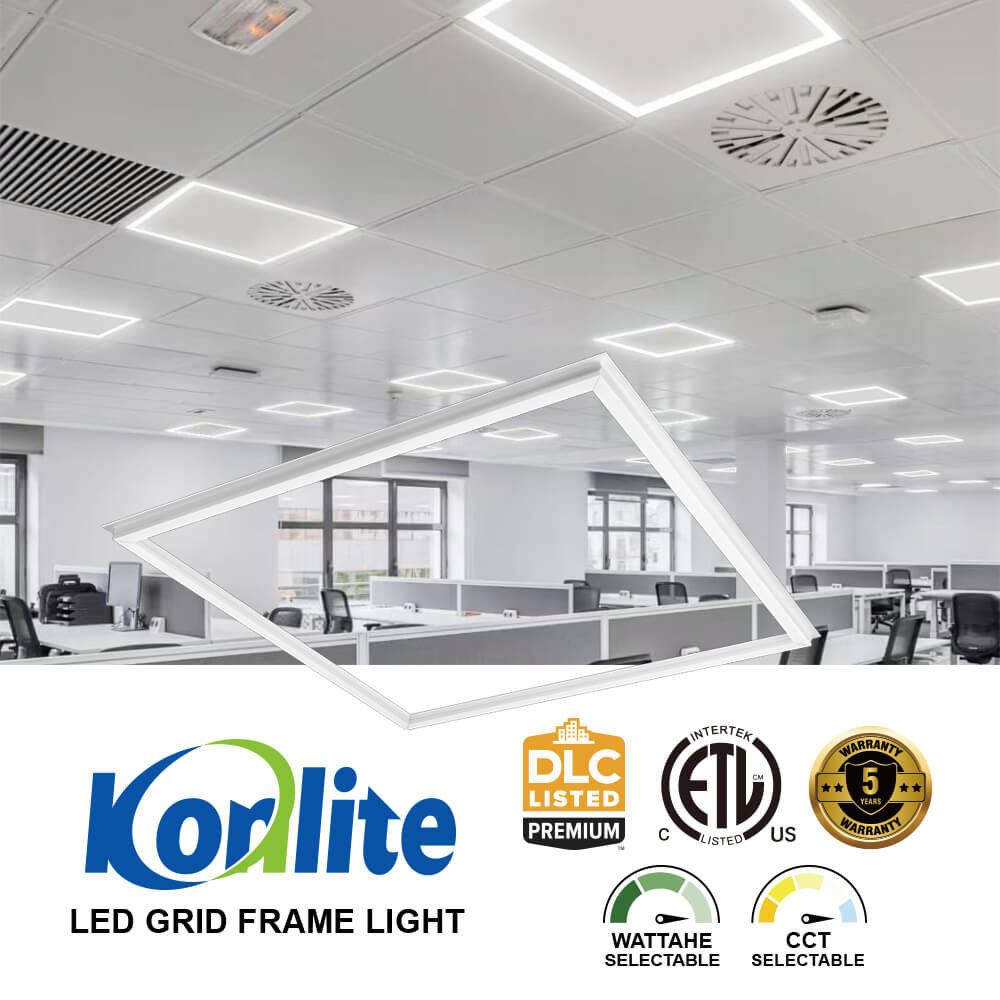

Upgrade your commercial or office lighting with this modern 2x2 LED Grid Frame light, designed for T-bar grid ceilings. This high-performance fixture offers adjustable wattage and color temperature, giving you flexibility in both brightness and ambiance. Its slim, low-profile design provides a clean and professional look, while 0–10V dimming capabilities allow for greater lighting control.
Perfect for offices, schools, retail, healthcare, and other indoor environments, this panel is energy-efficient, easy to install, and backed by a 5-year warranty for long-term reliability.
Key Features

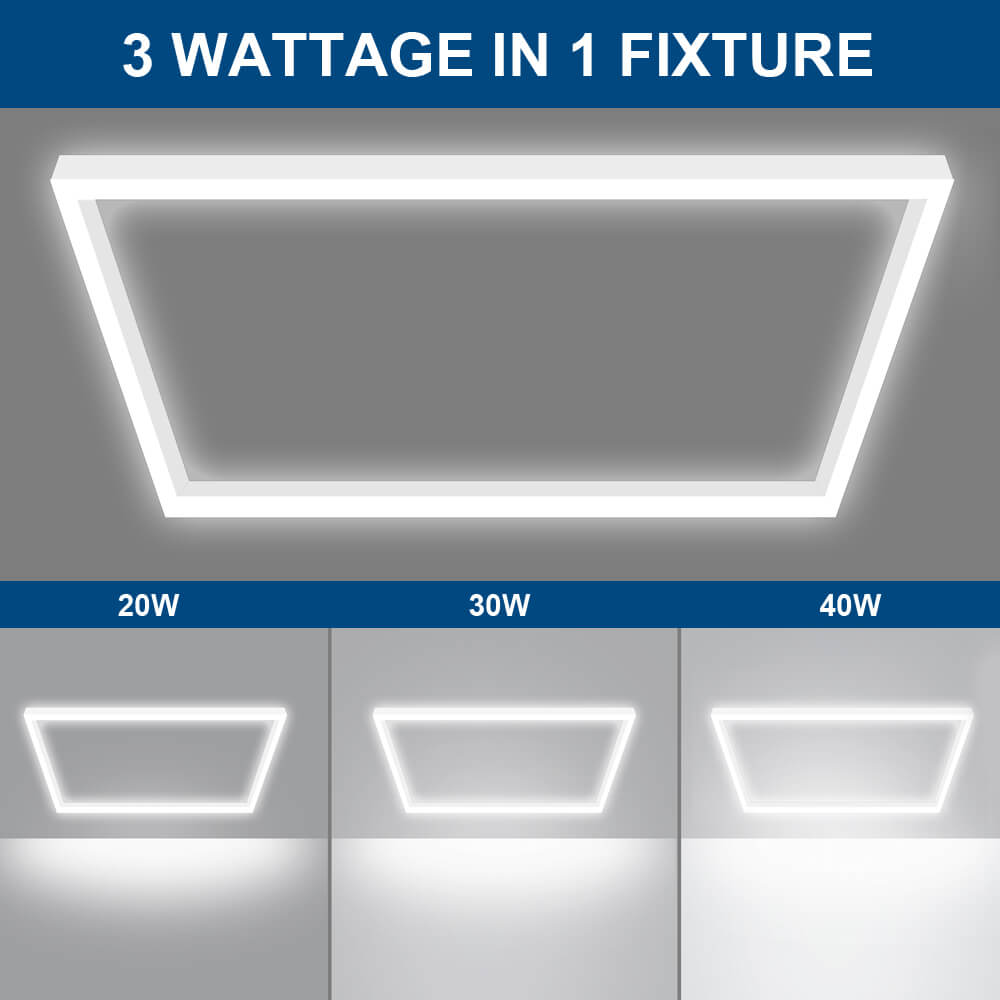

- Selectable Wattage (Switchable). Choose from 40W / 30W / 20W to meet your preferred brightness level:
- 40W = 5,025 lumens (5000K)
- 30W = 3,840 lumens (5000K)
- 20W = 2,600 lumens (5000K)

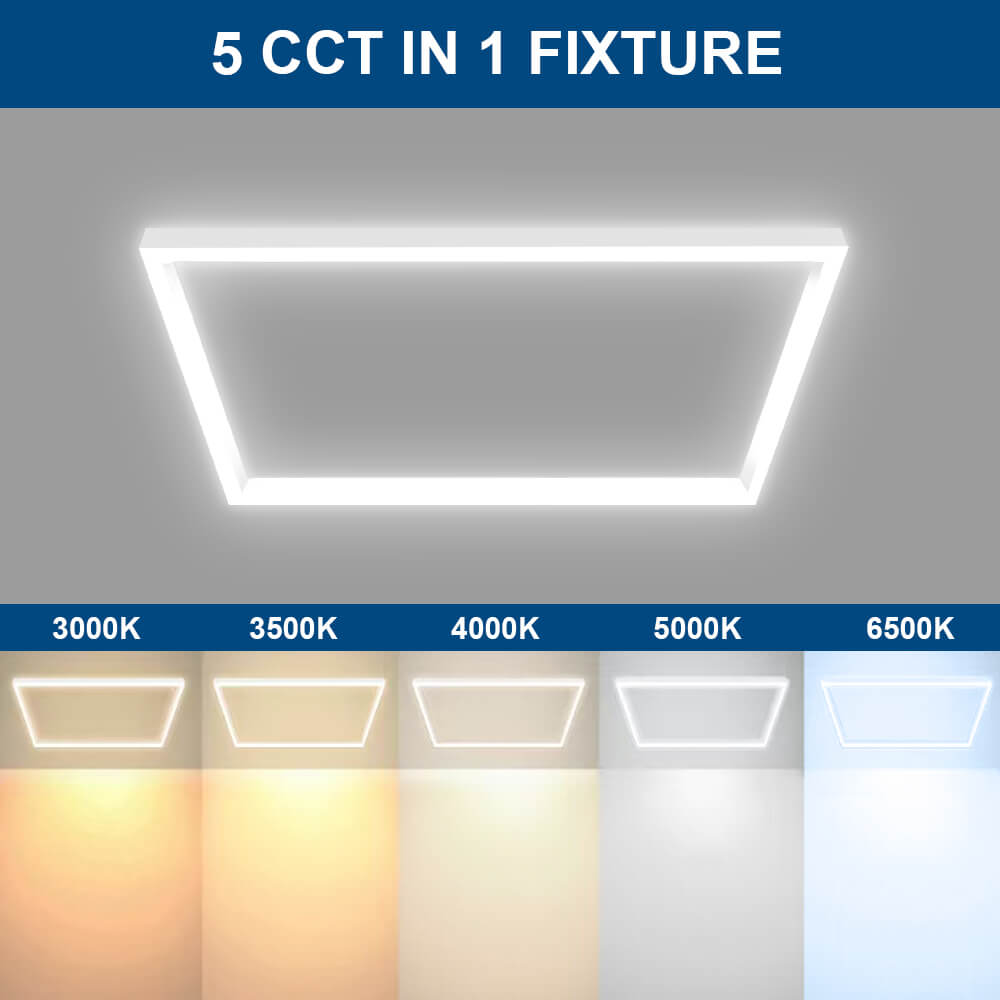

- 5 Selectable Color Temperatures. Easily switch between:
- 3000K (Warm White)
- 3500K (Neutral White)
- 4000K (Cool White)
- 5000K (Daylight)
- 6500K (True White)

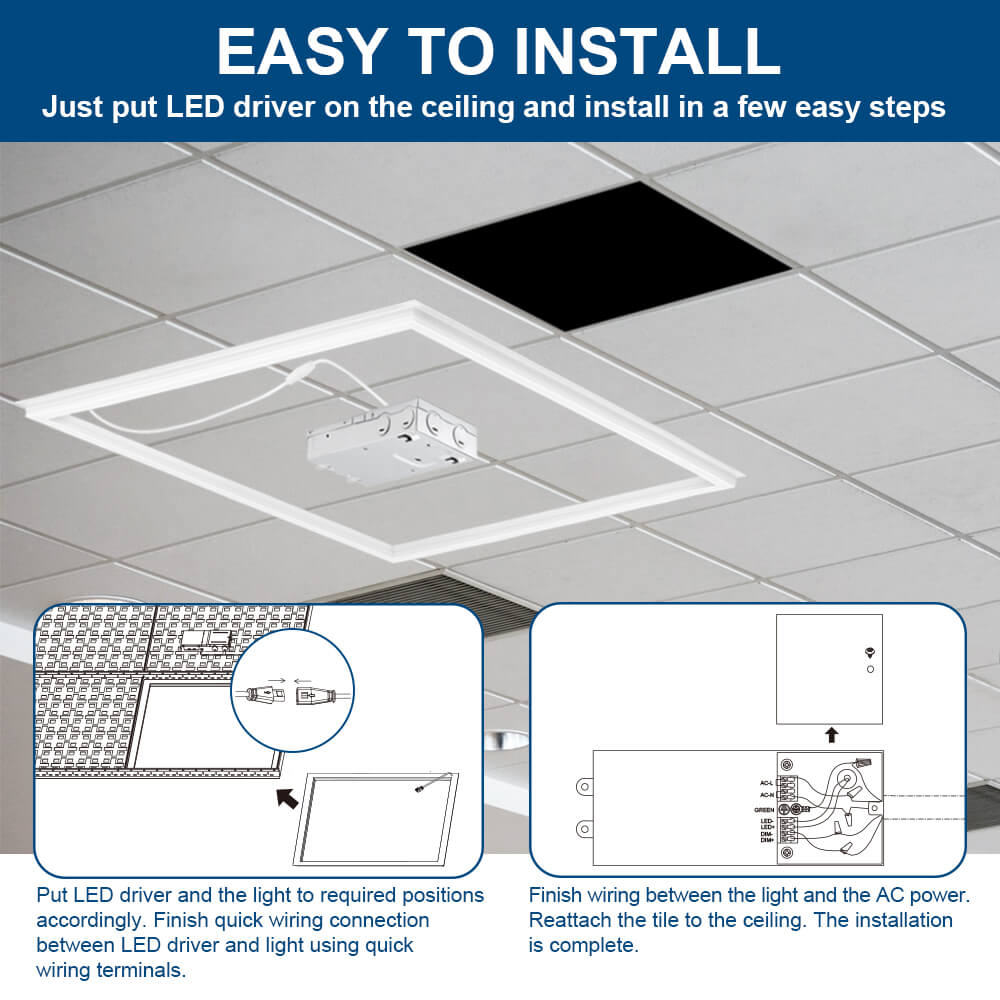

- Recessed T-Bar Installation – Ideal for standard grid ceilings
- 0–10V Dimmable – For full lighting control
- IP40 Rated – Protection against dust intrusion
- ETL Listed & DLC Premium Qualified – For safety, performance, and rebate eligibility
- 5-Year Manufacturer’s Warranty – Peace of mind with long-term support
See similar 2X4 LED Grid Frame Light version.
Applications
| •Office Lighting | •Retrofit Installation |
| •Commercial & Industrial Lighting | •New Constructions |
| •Hospitals | •Schools |
| •Retail | •Healthcare |
Specifications
| Brand | Konlite | MPN | RD-JEN-F2-K40-3065 |
| Warranty | Limited 5 Years | UPC | 752480735445 |
| Input Voltage | 120-277V | Beam Angle | 120° |
| Input Wattage | 40W/30W/20W | Efficacy | 130 LM/W |
| Lumens | 5,025LM/3,844LM/2,600LM | CRI | >80 |
| Dimmable | 0-10V, additional 2 dimming wires required to connect fixture to dimmer switch. | Available CCT | 6500K/5000K/4000K/3500K/3000K |
| Rated Life | >L70@100,000 hrs | THD | <20% |
| Power Factor | >0.9 | Environment | Indoor Dry |

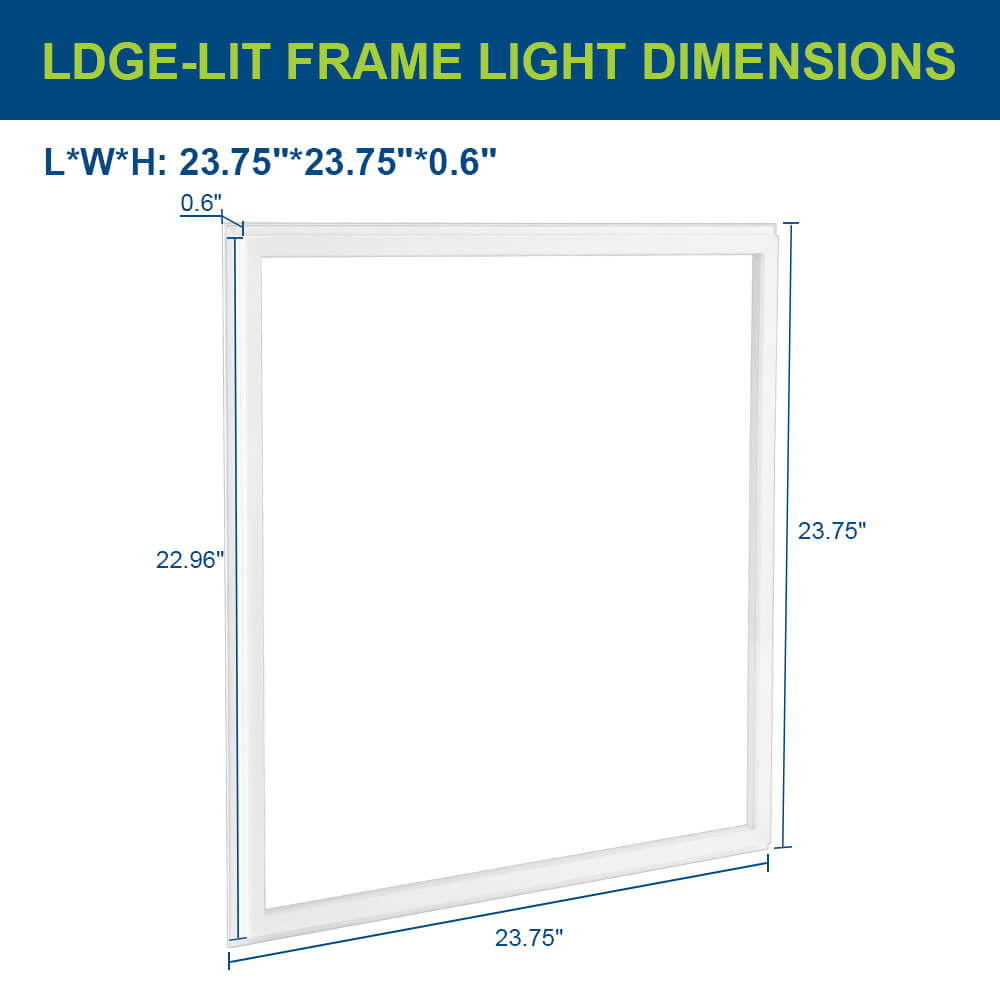

| Operating Temperature | -4 to 113 F | Dimensions | 23.75" x 23.75" x 0.6" |
| Certifications | DLC, UL | Weight | 1.83 lbs |
