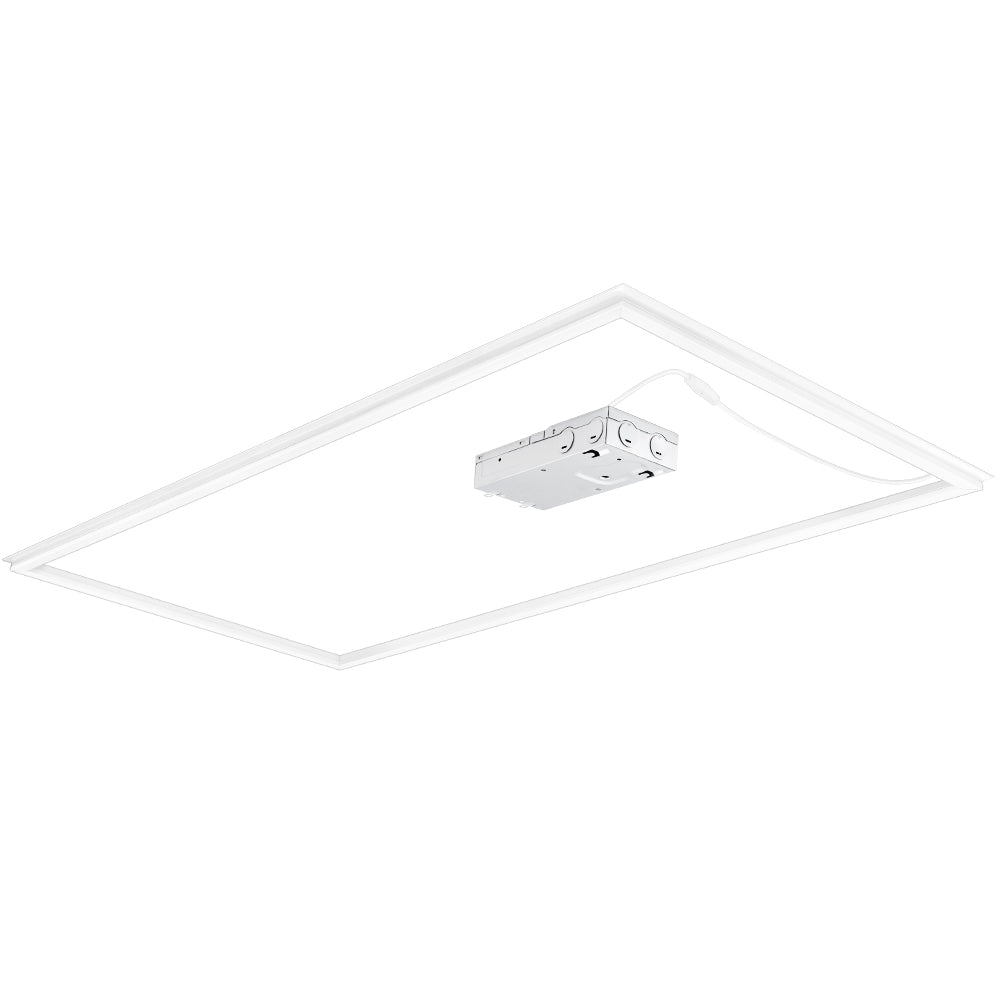

Konlite LED Frame light fixture on a white background

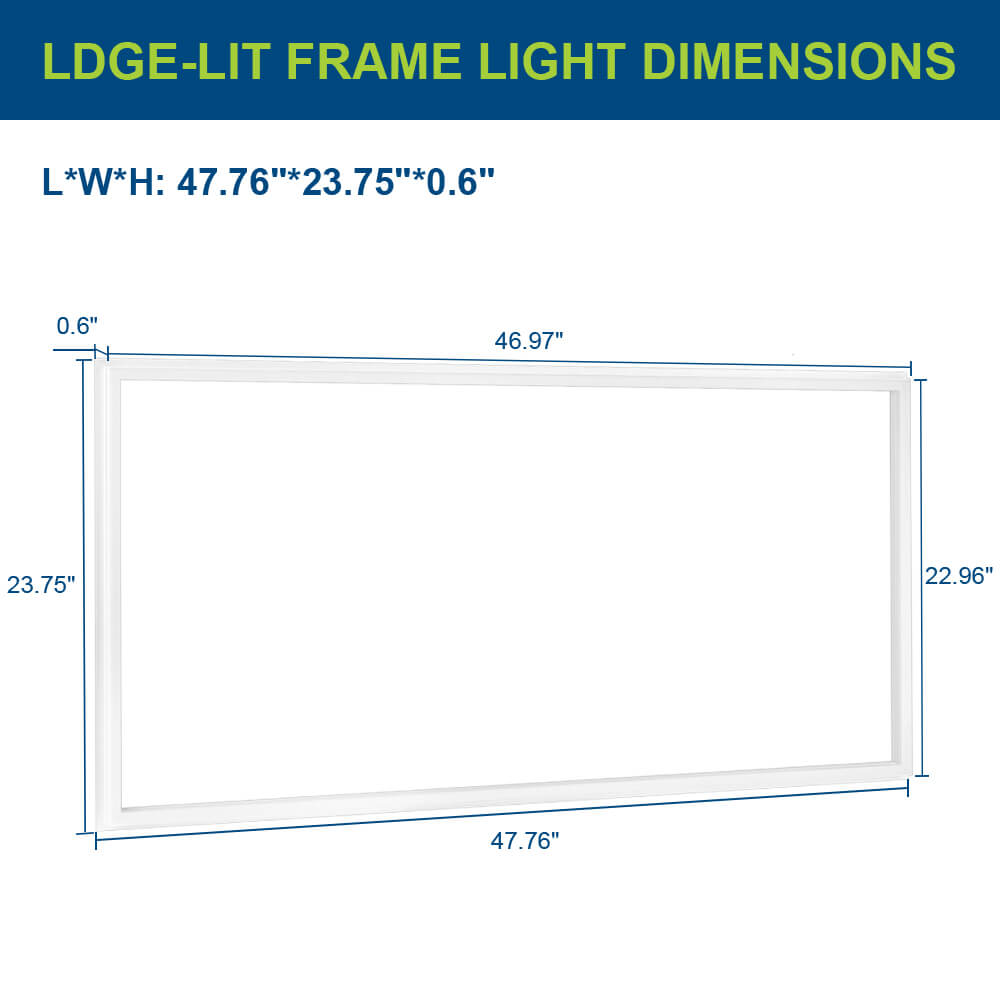

Diagram of a ledge-lit frame light with dimensions labeled

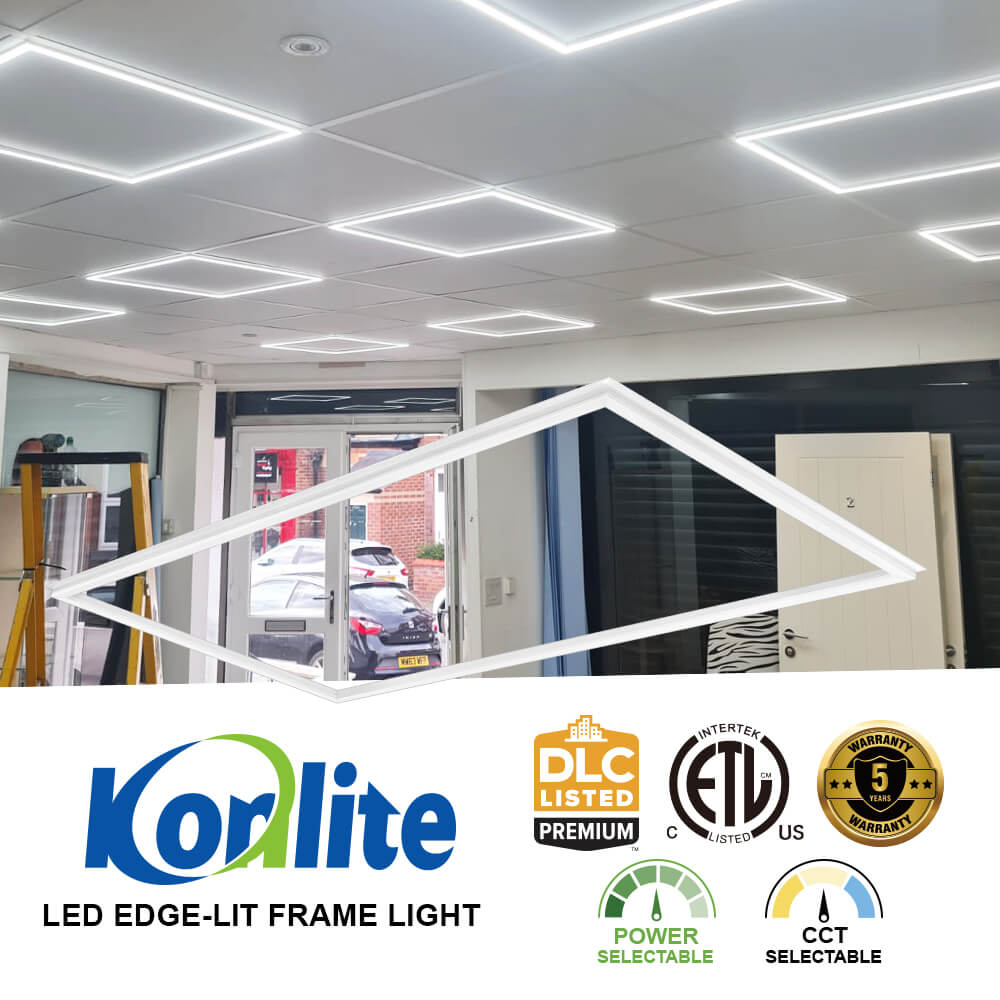

Konlite LED Frame light fixture on a ceiling

Roll over image to zoom in Click on image to zoom

Konlite DLC Premium 2x4 LED Grid Frame light is ideal for drop ceilings also known as grid or t-bar ceilings.

High Luminaire efficiency of 130Lm/W
A Slim design Edge-Lit light Fixture
Control ready with 0-10V dimming

2x4 ft. LED Grid Frame Light - 8000 Lumens - 60W/50W/40W - 5 CCT Selectable - 120-277V

Konlite SKU: RD-JEN-F4-K60-3065 SEARCH CODE: 11-0108

No Tile Cutting Required
Lumens: 5,000 - 8,000 Selectable
Watts: 60W, 50W, 40W Selectable
CCT: 6500K, 5000K, 4000K, 3500K or 3000K
Dimensions: 47.76" x 23.75"
0-10V Dimmable
Voltage: 120-277V
5 Years Warranty

$78.65

Pack Size: 1 Pack

Variant

Quantity:

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Konlite DLC Premium 2x4 LED Grid Frame light is ideal for drop ceilings also known as grid or t-bar ceilings.

High Luminaire efficiency of 130Lm/W
A Slim design Edge-Lit light Fixture
Control ready with 0-10V dimming

2x4 ft. LED Grid Frame Light - 8000 Lumens - 60W/50W/40W - 5 CCT Selectable - 120-277V

$78.65

Product Overview

Upgrade your commercial or office lighting with this modern 2x4 LED Grid Frame light, designed for T-bar grid ceilings. This high-performance fixture offers adjustable wattage and color temperature, giving you flexibility in both brightness and ambiance. Its slim, low-profile design provides a clean and professional look, while 0–10V dimming capabilities allow for greater lighting control.

Perfect for offices, schools, retail, healthcare, and other indoor environments, this panel is energy-efficient, easy to install, and backed by a 5-year warranty for long-term reliability.

Key Features

Selectable Wattage (Switchable). Choose from 40W / 50W / 60W to meet your preferred brightness level:
- 40W = 5,500 lumens (5000K)
- 50W = 6,750 lumens (5000K)
- 60W = 8,000 lumens (5000K)
5 Selectable Color Temperatures. Easily switch between:
- 3000K (Warm White)
- 3500K (Neutral White)
- 4000K (Cool White)
- 5000K (Daylight)
- 6500K (True White)
Recessed T-Bar Installation – Ideal for standard grid ceilings
0–10V Dimmable – For full lighting control
IP40 Rated – Protection against dust intrusion
ETL Listed & DLC Premium Qualified – For safety, performance, and rebate eligibility
5-Year Manufacturer’s Warranty – Peace of mind with long-term support

See similar 2X2 LED Grid Frame Light version.

Applications

•Office Lighting	•Retrofit Installation
•Commercial & Industrial Lighting	•New Constructions
•Hospitals	•Schools
•Retail	•Healthcare

Color Temperature

Certifications

Specification

Brand	Konlite	MPN	JEN-F4-K60-3065
Warranty	5 Years	UPC	752480738460
Input Voltage	120-277V,50/60Hz	Dimmable	0-10V, additional 2 dimming wires required to connect fixture to dimmer switch.
Input Wattage	60W/50W/40W Selectable	Equal To	4 lamps T8/T12
Delivered Lumens	8,000LM/6,800LM/5,500LM Selectable	CRI	>80
Efficacy	130 LM/W	Available CCT	6500K/5000K/4000K/3500K/3000K
Rated Life	>50,000 hrs	Power Factor	>0.9
THD	15%	IC Rated	Yes
Operating Temperature	-4°F ~ +113°F	Mounting	Chain, Surface
Certifications	UL, DLC Premium	Dimensions and Weight	47.76"x23.76"x0.6". 2.25 Lbs
