Product Overview

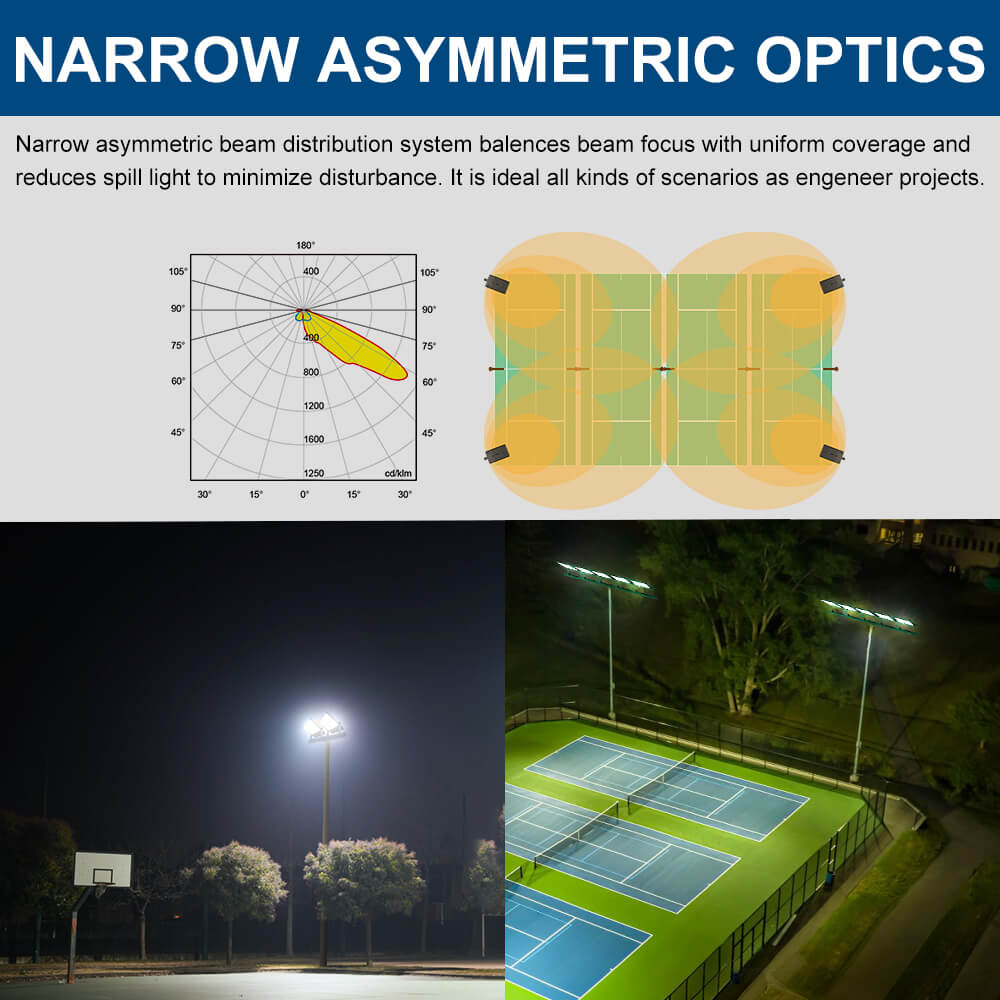

Engineered for long-throw precision, the Konlite Spica Series with Narrow Asymmetric optics is the ideal solution for medium or large sports fields such as soccer, baseball, football, Tennis courts and multi-use athletic fields. The Narrow Asymmetric photometric distribution (shown on page 2 of the spec sheet) directs light further and more tightly, enabling high-mast installations to project illumination deep across wide playing areas.
This controlled beam minimizes spill light, reduces wasted output, and ensures that field zones—far corners, bases, goalkeeper areas, and sideline edges—receive strong, consistent illumination. With selectable wattage options up to 600W and output reaching 103,800 Lumens, this fixture delivers the high-performance lighting required for fast-paced competitive sports.

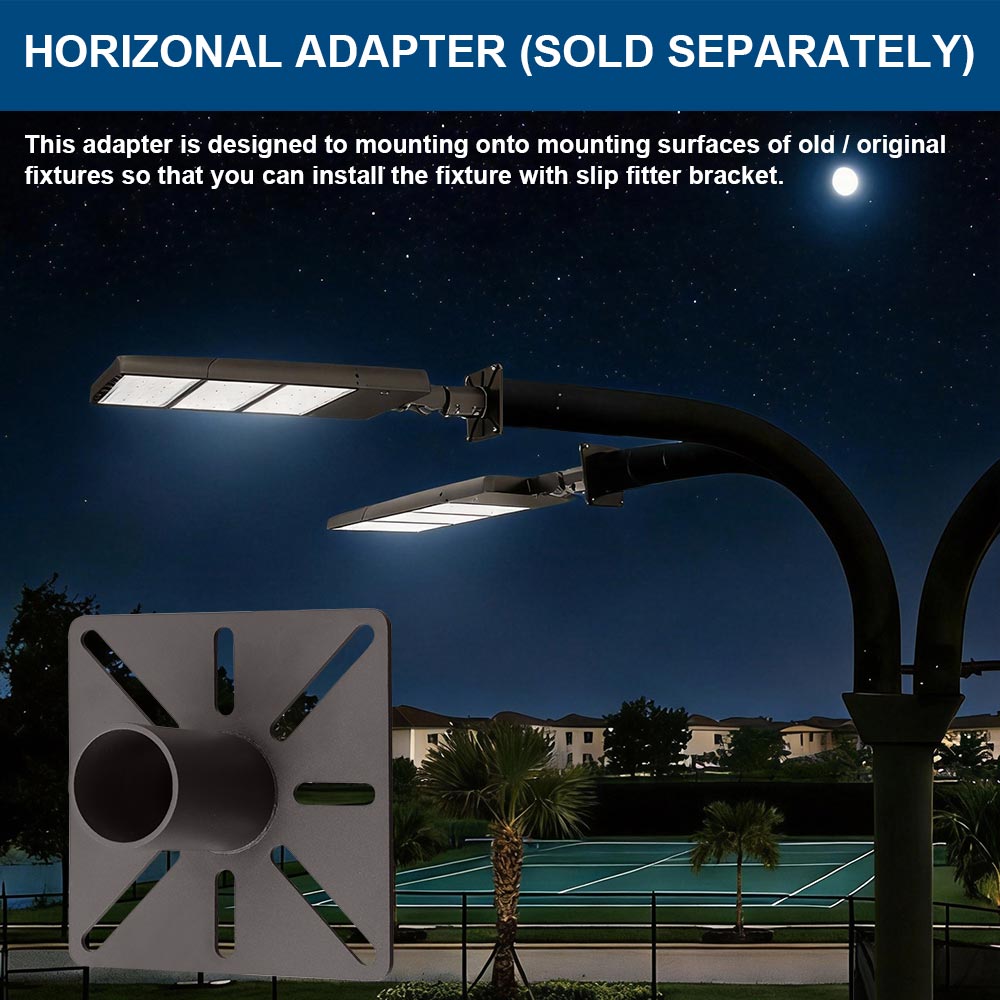

Built for demanding outdoor environments, the fixture includes an wet location sealed housing, heavy-duty die-cast construction, 20kV surge protection, and UL/DLC 5.1 Premium certification. Mounting flexibility (slip fitter, yoke, extrusion arm, universal mount) allows installers to aim the light precisely for each field application.
For municipal parks, school fields, community athletic complexes, or club-level sports venues, the Narrow Asymmetric Spica Series provides professional-grade lighting for safe, high-visibility gameplay.
Key Features
-
Narrow Asymmetric beam ideal for long-throw illumination
-
Minimizes spill light and increases efficiency
-
Reduced glare for athletes and spectators
-
Wattage selectable for tailored brightness
-
Up to 103,800 lumens max output
-
IP66 weatherproof + 20kV surge protector
-
UL Listed, DLC 5.1 Premium
-
Multiple mounting options for precise aiming
Free Lighting Design
Not sure how many fixtures you need or what wattage or lighting distribution to select?
Contact us for a free professional lighting layout—we’ll design the perfect package for your court and ensure optimal performance.
Applications
| • Tennis Courts | • Football Fields |
| • Paddle Courts | • Training Centers & Clubs |
| • Soccer Fields | • Baseball Fields |
| • Speedway | • Stadium Lighting |
| • Sports Complex | • Community Parks |
| • Arenas | • Open area High Mast lighting |
| • Schools & Universities | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | KSPHW5KNLDXX |
| Warranty | Limited 10 Years | UPC | 659675444918 |
| Input Voltage | 120-277V or 277-480V | Optical | Narrow Asymmetric |
| Input Wattage | 600W/480W/360W | Equal to | 1500W MH |
| Delivered Lumens | 103,800/84,950/64,800 | CRI | >70 |
| Efficacy | 170 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP66 |
| Dimmable | N/A | Controls | N/A |
| Operating Temperature | -40 F to 113 F | Fixture Dimensions | 31''x18.2''x2.3'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 23.15 lbs |
 | Download Specifications |
| Installation Guide |
| Download IES files: 600W-5000K, 480W-5000K, 360W-5000K. |
