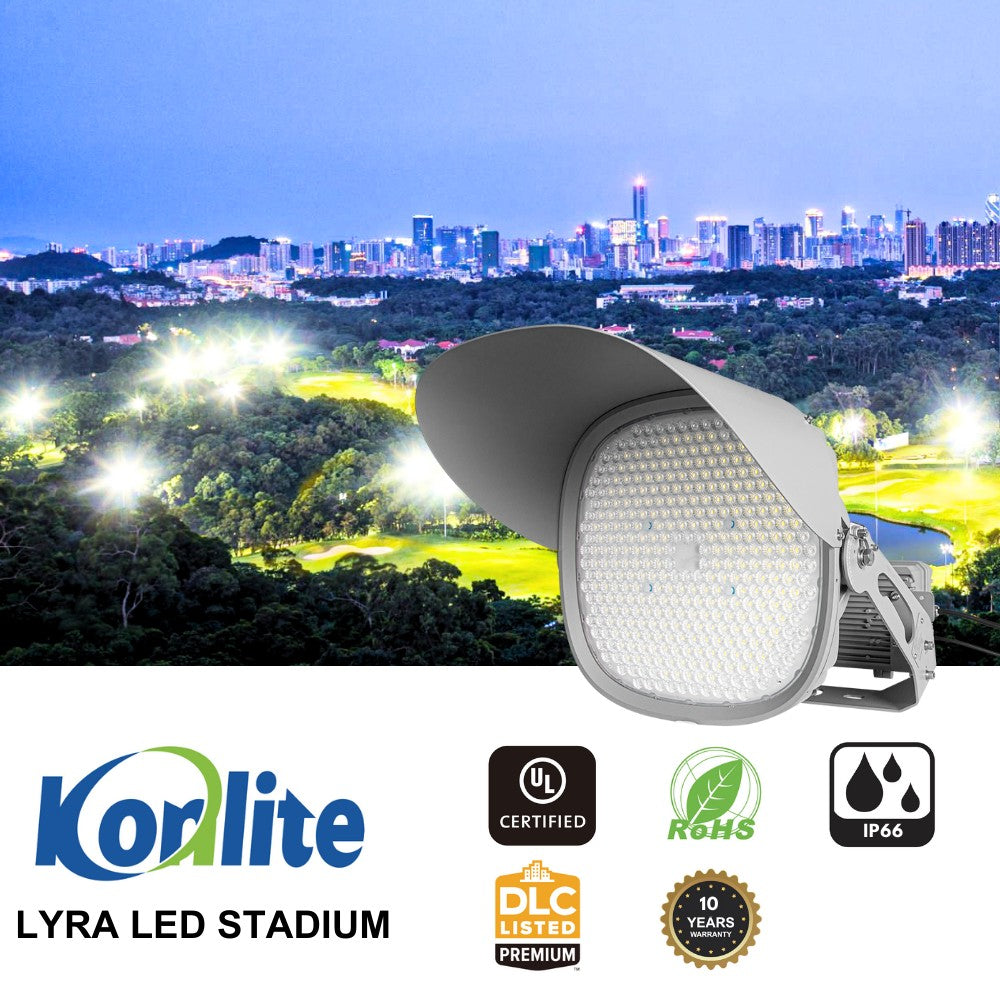

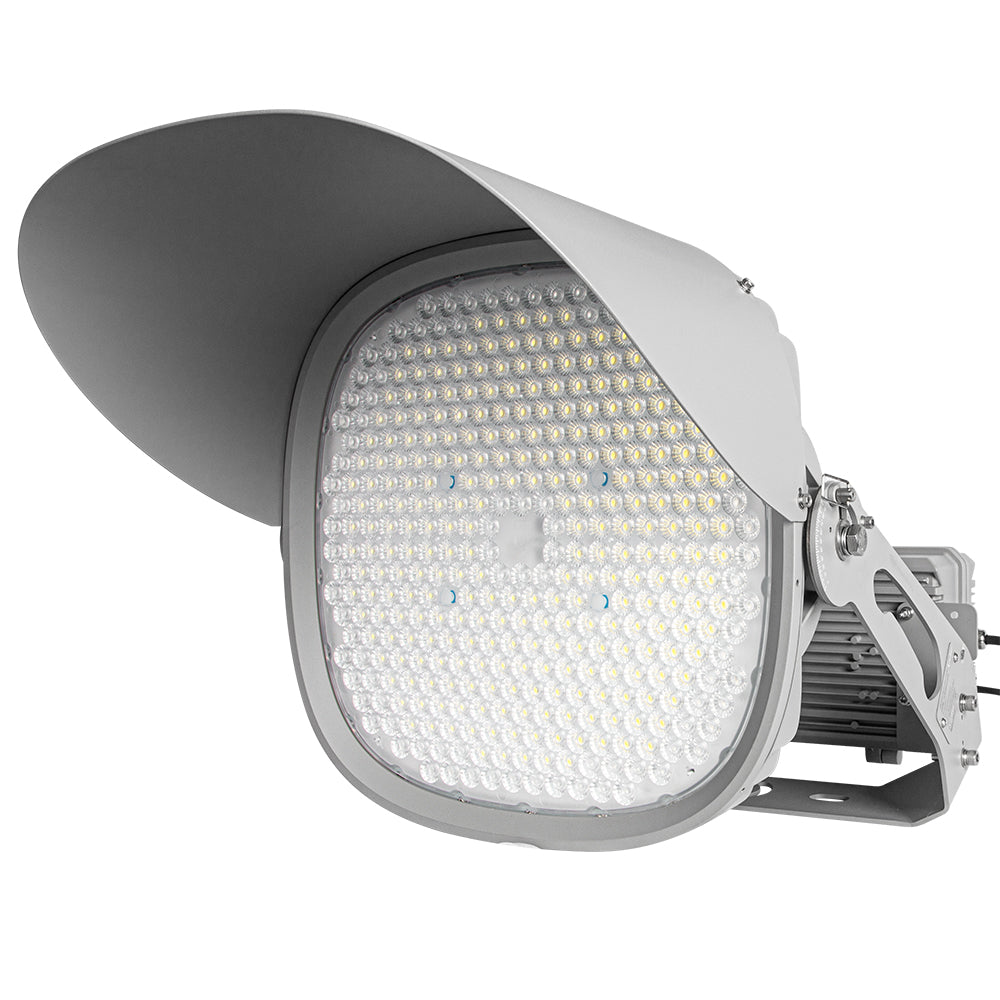

LYRA LED Stadium Light - 680W - 102,000lm - 5700K - 200-480V - 2000W Equal

Product Search Code: 21-0115
KonliteSKU: KLR68057KHVWTR
$889.65

    • 5700K Daylight White
    • Voltage: 200-480V
    • Certificates: UL, DLC Premium Pending
    • 10 Years Warranty
    • 4 Ft Power Cord
    • NEMA 5Hx5V (40º) wide beam spread
    • Replaces 1500-2000W Metal Halide
    • Contact us for Free Lighting Layouts

    • 5700K Daylight White
    • Voltage: 200-480V
    • Certificates: UL, DLC Premium Pending
    • 10 Years Warranty
    • 4 Ft Power Cord
    • NEMA 5Hx5V (40º) wide beam spread
    • Replaces 1500-2000W Metal Halide
    • Contact us for Free Lighting Layouts

The Konlite LYRA LED Sport light combines optical uniformity, energy efficiency and long term reliability.

  • NEMA type: 5H x 5V wide (40º) beam spread
  • Built-in 20KV Surge Protection
  • 100,000 hour lifespan
show more
$889.65


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

The Konlite LYRA LED Sport light combines optical uniformity, energy efficiency and long term reliability.

  • NEMA type: 5H x 5V wide (40º) beam spread
  • Built-in 20KV Surge Protection
  • 100,000 hour lifespan

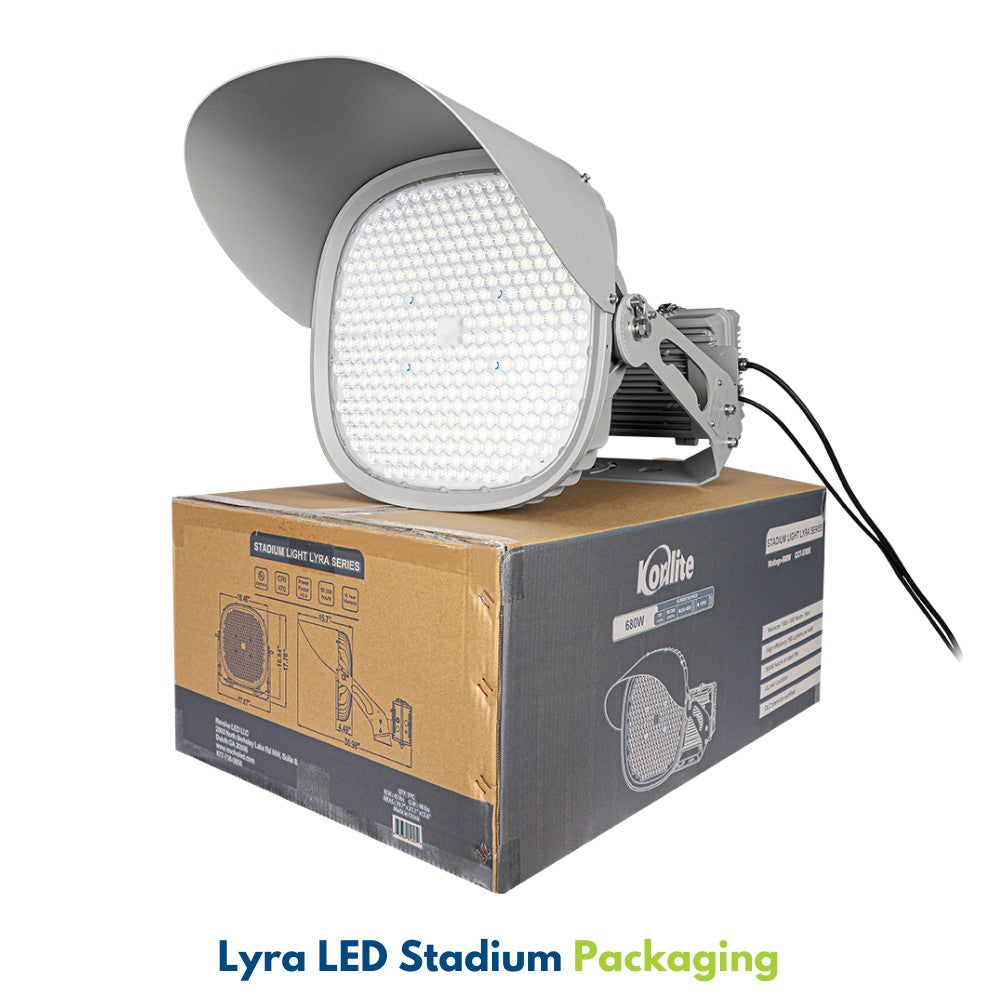

What's in the box
Lighting Fixture - Installation Guide - Visor
Product Details
Downloads
Reviews
Reviews
Q&A
Lighting Fixture - Installation Guide - Visor

Product Overview

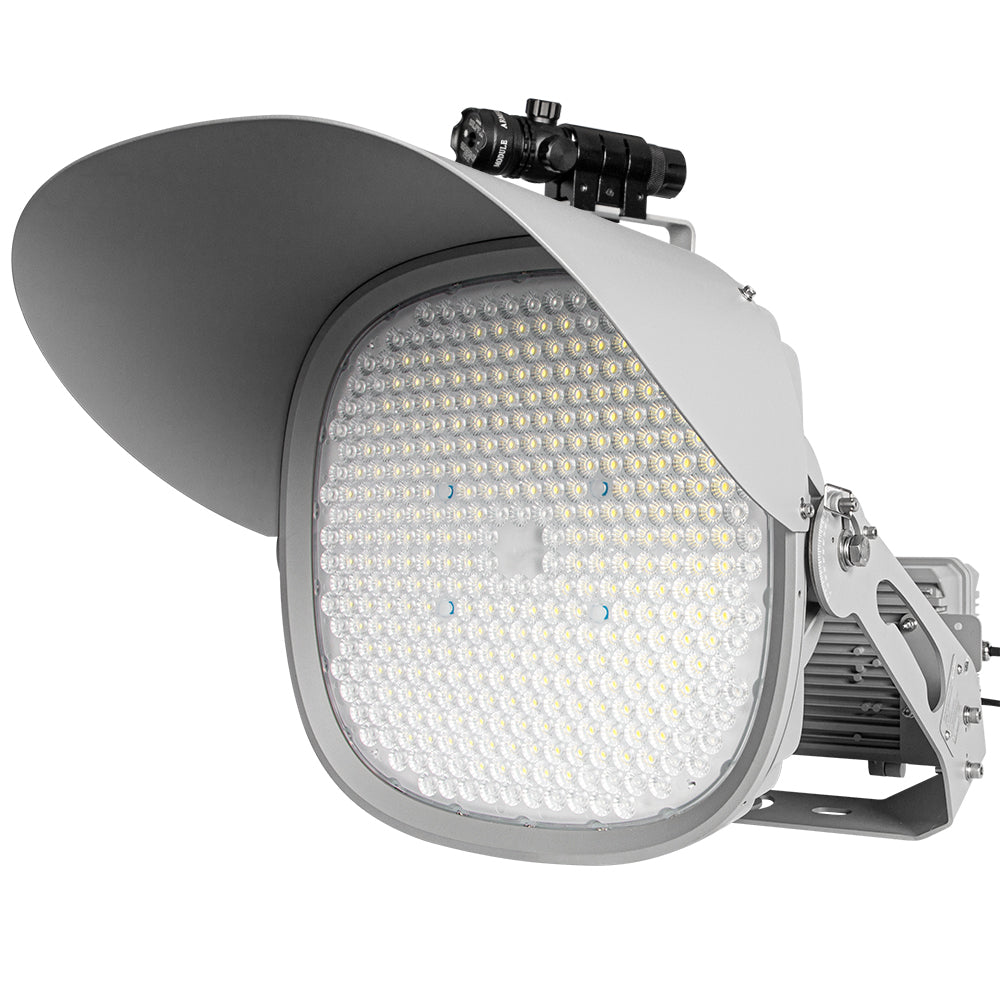

Introducing the Konlite LYRA Series LED Stadium Light, a powerhouse in outdoor illumination, designed to transform stadiums, ballparks, and expansive outdoor areas into well-lit spaces. The latest addition to the series, featuring a formidable 680 Watts of power, casts a staggering 102,000 lumens across any area, ensuring brightness and visibility. This model, specifically engineered with a Color Temperature (CCT) of 5700K, delivers daylight-like clarity, making it perfect for high-performance sports fields, expansive municipal areas, vast parking lots, and golf ranges requiring precision lighting with minimal glare.

Built to endure and excel, the Konlite Lyra LED flood light stands up to challenging outdoor conditions with grace and durability. Its refined design not only complements the aesthetics of any space but also promotes superior heat dissipation, allowing the LEDs and driver circuitry to operate cooler, extending their lifespan. The light's innovative design boasts impressively low Effective Projected Area (EPA) values—Front: 1.93ft² and Side: 0.8ft²—significantly reducing wind resistance and facilitating easier installation, even at heights of up to 120 feet.

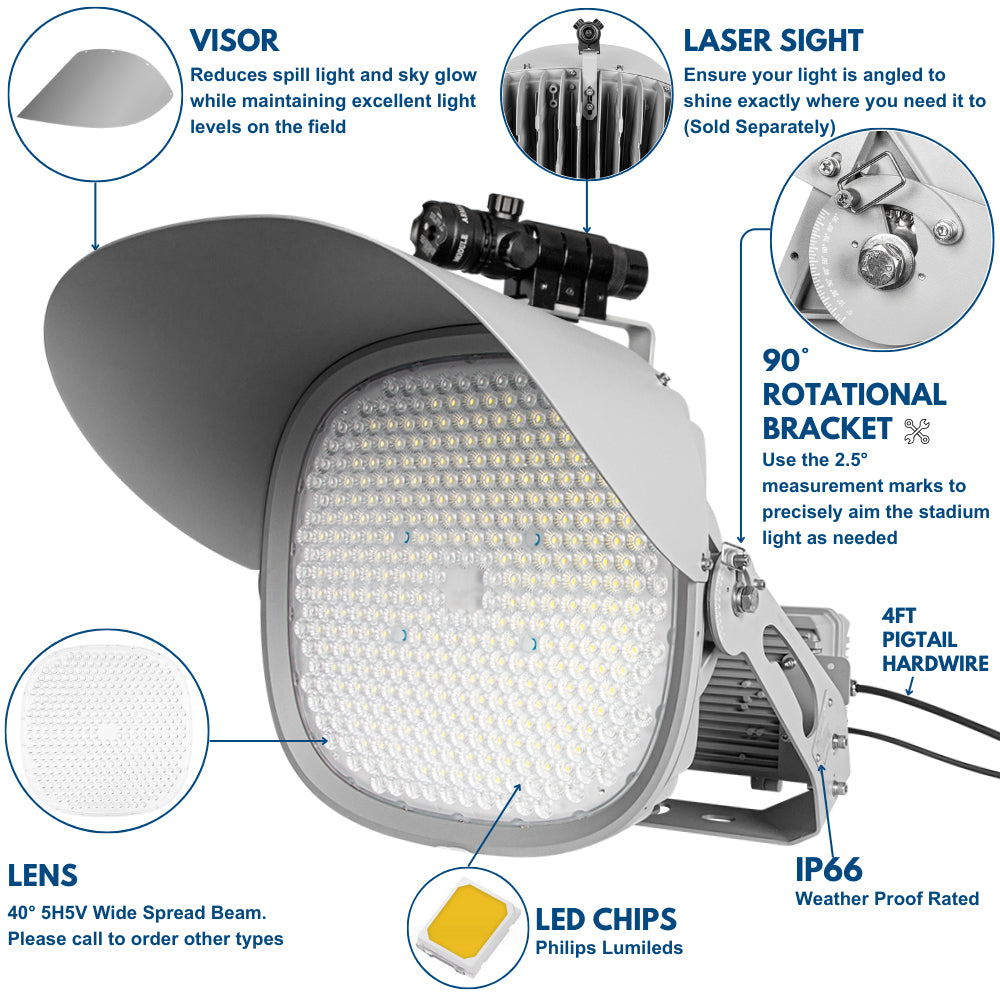

Key Features of the Konlite Lyra Series LED Flood Light:

  • Powerful Illumination: 680 Watts delivering a brilliant 102,000 lumens for unparalleled brightness.

  • Optimal Color Temperature: CCT of 5700K for crisp, daylight-like lighting.

  • Low EPA: Front: 1.93ft², Side: 0.8ft², minimizing wind resistance.

  • Focused Beam Angle: A 40° beam angle ensures targeted, efficient lighting.

  • High Voltage Compatibility: Accommodates a wide range of electrical systems with 200-480V high voltage input.

  • Built-in Surge Protection: An integrated 20KV Surge Protector guards against electrical spikes.

  • Durable and Weatherproof: IP66 rated to withstand dust and high-pressure water jets from any direction.

  • Energy Efficient: Features 0-10V dimming capabilities for enhanced energy savings.

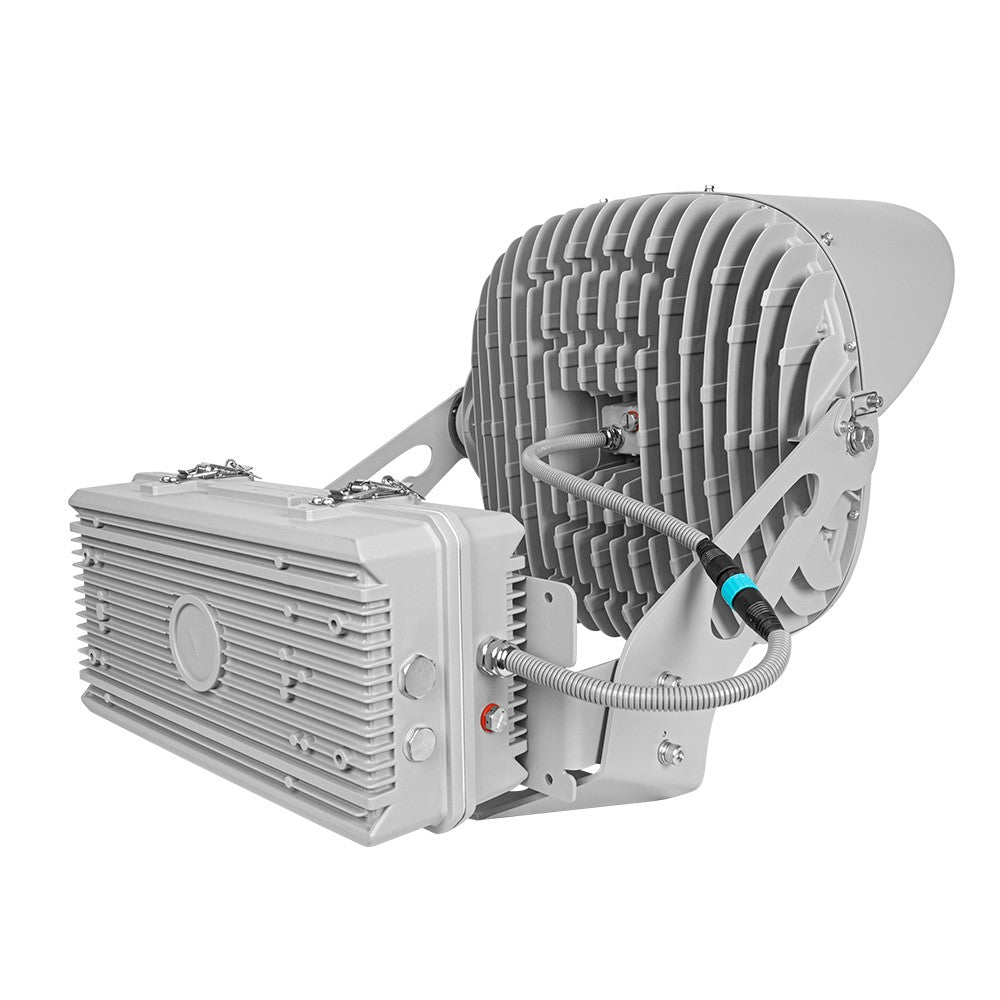

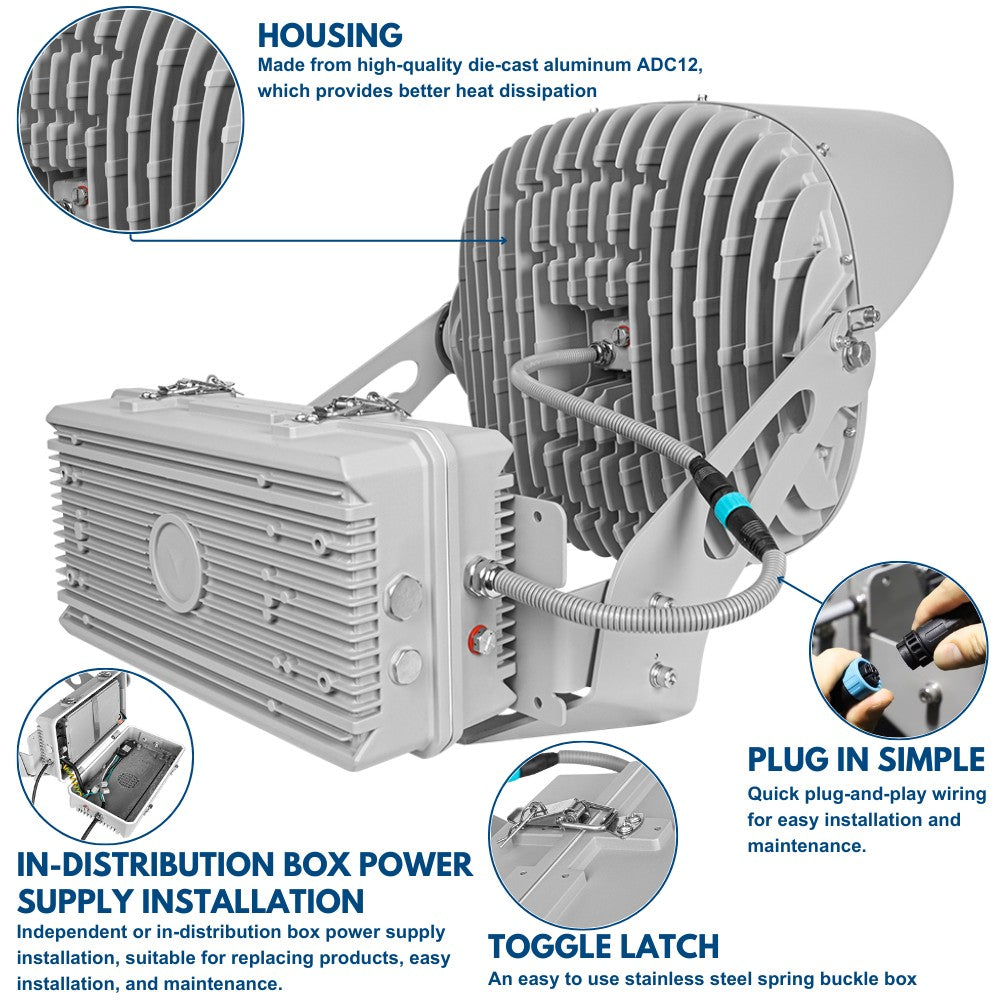

  • Aesthetic and Functional Design: Sleek housing enhances heat dissipation and extends operational life.

  • Certified and Rebate-Eligible: UL and DLC certifications ensure safety and eligibility for energy rebates.

The Konlite Lyra Series is designed for longevity and performance, adhering to the highest standards with a robust build and corrosion-resistant die-cast aluminum housing. Its visual comfort optics are engineered to reduce glare, offering a pleasant lighting appearance that enhances the overall ambiance of the illuminated space.

Elevate your outdoor lighting infrastructure with the Konlite Lyra Series LED Flood Light, the definitive choice for those seeking efficient, durable, and high-performing lighting solutions. Experience daylight clarity and precision illumination tailored to meet the demands of expansive outdoor venues, all backed by a comprehensive warranty and an impressive lifespan.

See similar  500-watt, and 800-watt versions.

Applications

•Baseball Fields •Football Fields Lighting
•Tennis Courts •Transportation and infrastructure lighting
•Soccer Fields •Golf Range
•Basketball •Stadium Lighting
•Shooting Range •Speedway and Racetracks
•Schools & Universities •Community Parks
•Sports Complex •Open area high master lighting
•Arenas •Natatoriums
Color Temperature 5700K color temperature
Certifications
US company10 years warrantyUL listedDLC PremiumRoHS compliance FCC certification

Specifications:

BrandKonliteDLC Part #KLR68057KHVWTR
WarrantyLimited 10 YearsUPC659359816079
Input Voltage200-480VOpticalNEMA 5H5V
Input Wattage680WEqual to1000-1500W
Delivered Lumens102,000CRI>70
Efficacy150 LM/WAvailable CCT5700K
Rated Life>100,000 hrsTHD<15%
Power Factor>0.9IP RatingIP66
Dimmable0-10VControlsN/A

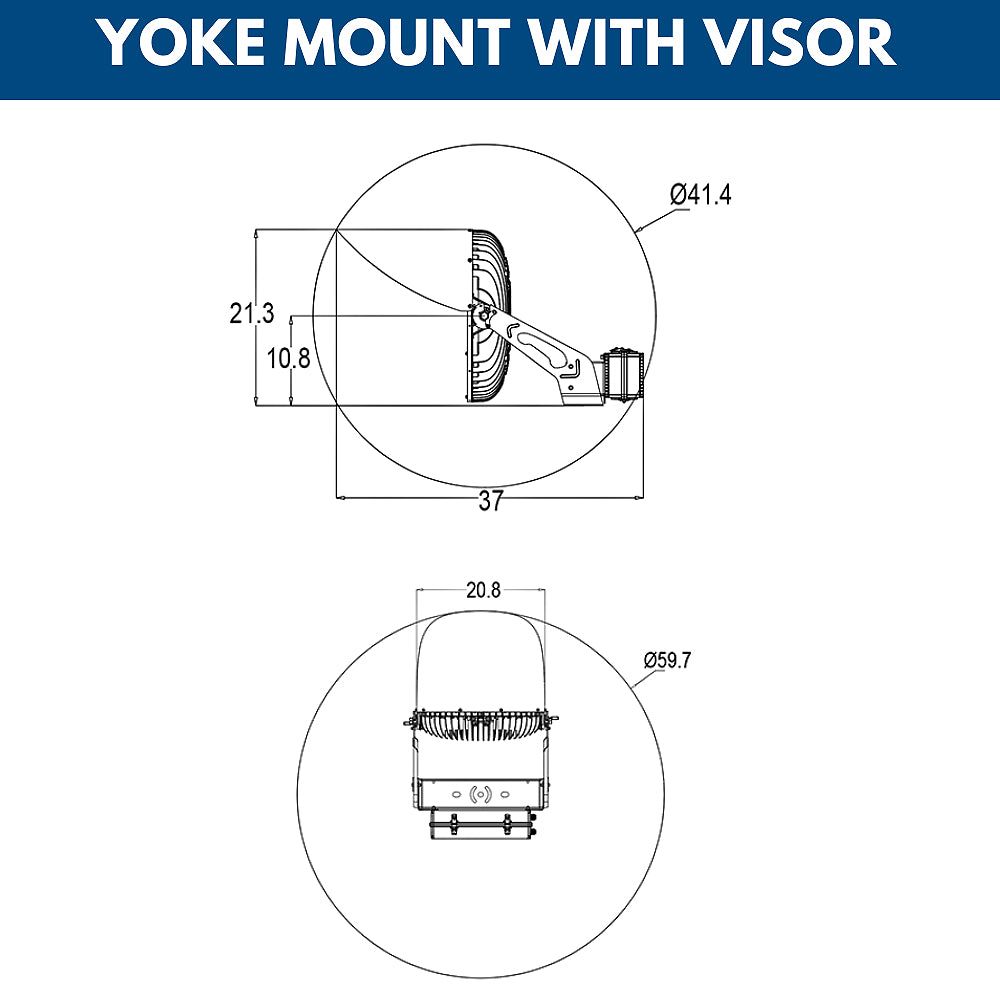

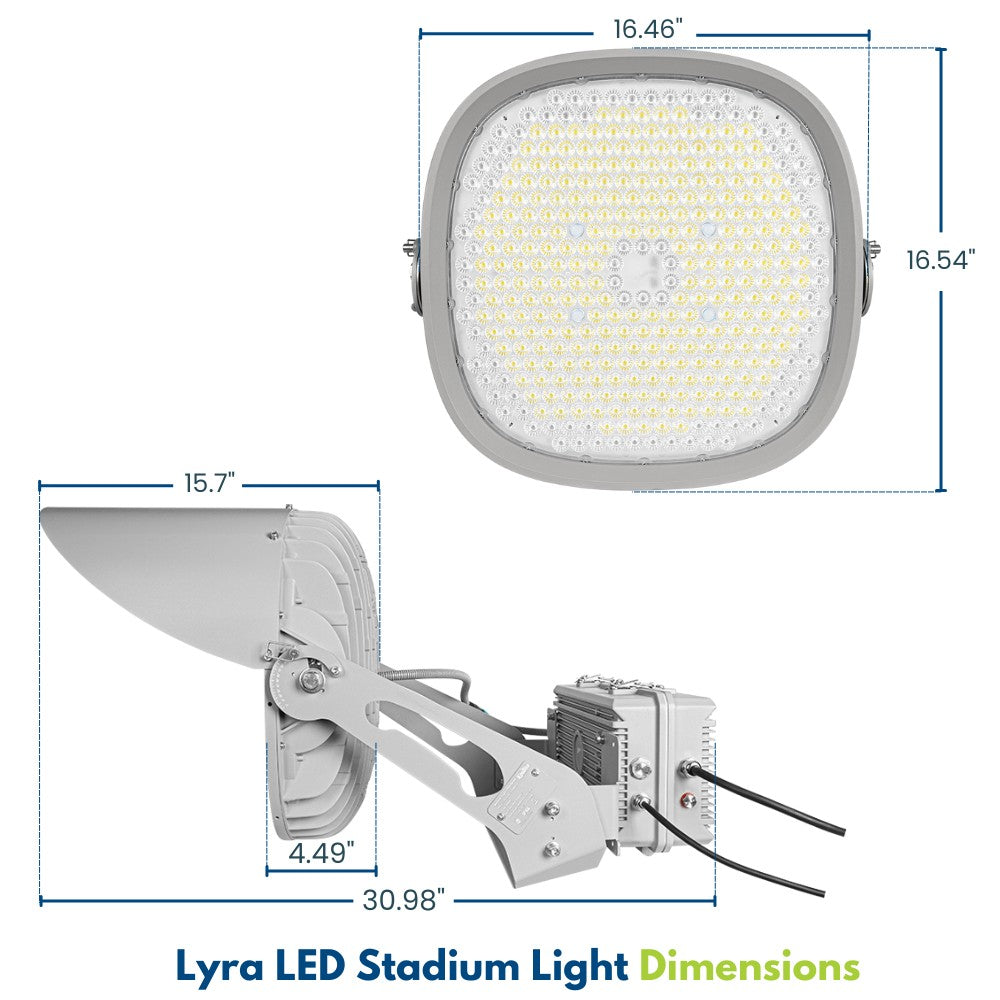

Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumUnit Weight44 lbs
