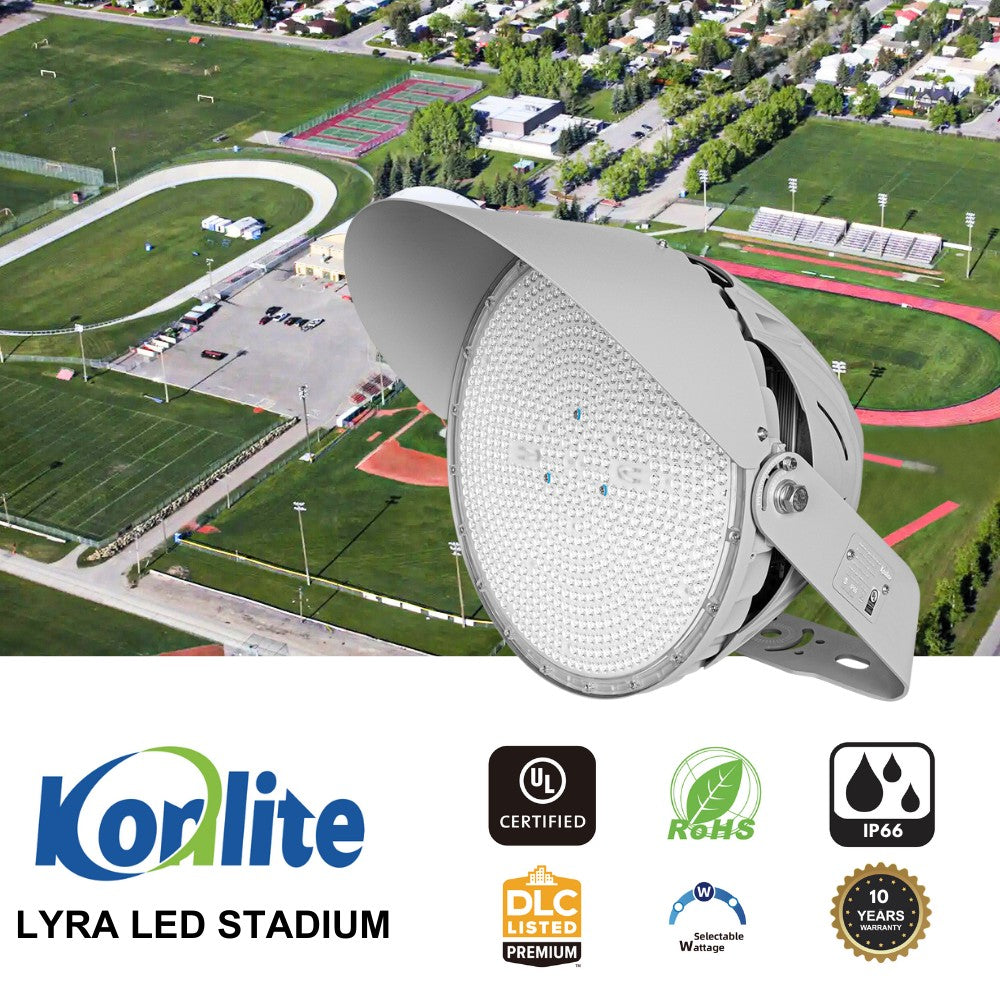

LYRA LED Stadium Light - 500W/400W/300W Selectable - Up to 75,000lm - 5000K - 200-480V - 4H4V - 1500W Equal - 10 Year Warranty

Product Search Code: 21-0114
KonliteSKU: KLR50050KHVNTR
$619.65

    • 5000K Daylight White
    • Voltage: 200-480V
    • Certificates: UL, DLC Premium
    • 10-Year Warranty
    • 4 Ft Power Cord
    • NEMA 4Hx4V wide beam spread
    • Replaces 1,000-1,500W Metal Halide
    • Contact us for Free Lighting Layouts

    • 5000K Daylight White
    • Voltage: 200-480V
    • Certificates: UL, DLC Premium
    • 10-Year Warranty
    • 4 Ft Power Cord
    • NEMA 4Hx4V wide beam spread
    • Replaces 1,000-1,500W Metal Halide
    • Contact us for Free Lighting Layouts

The Konlite Lyra LED Sport light combines optical uniformity, energy efficiency and long term reliability.

  • NEMA type: 4H x 4V wide beam spread
  • Built-in 20KV Surge Protection
  • 100,000 hour lifespan
show more
$619.65


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

The Konlite Lyra LED Sport light combines optical uniformity, energy efficiency and long term reliability.

  • NEMA type: 4H x 4V wide beam spread
  • Built-in 20KV Surge Protection
  • 100,000 hour lifespan

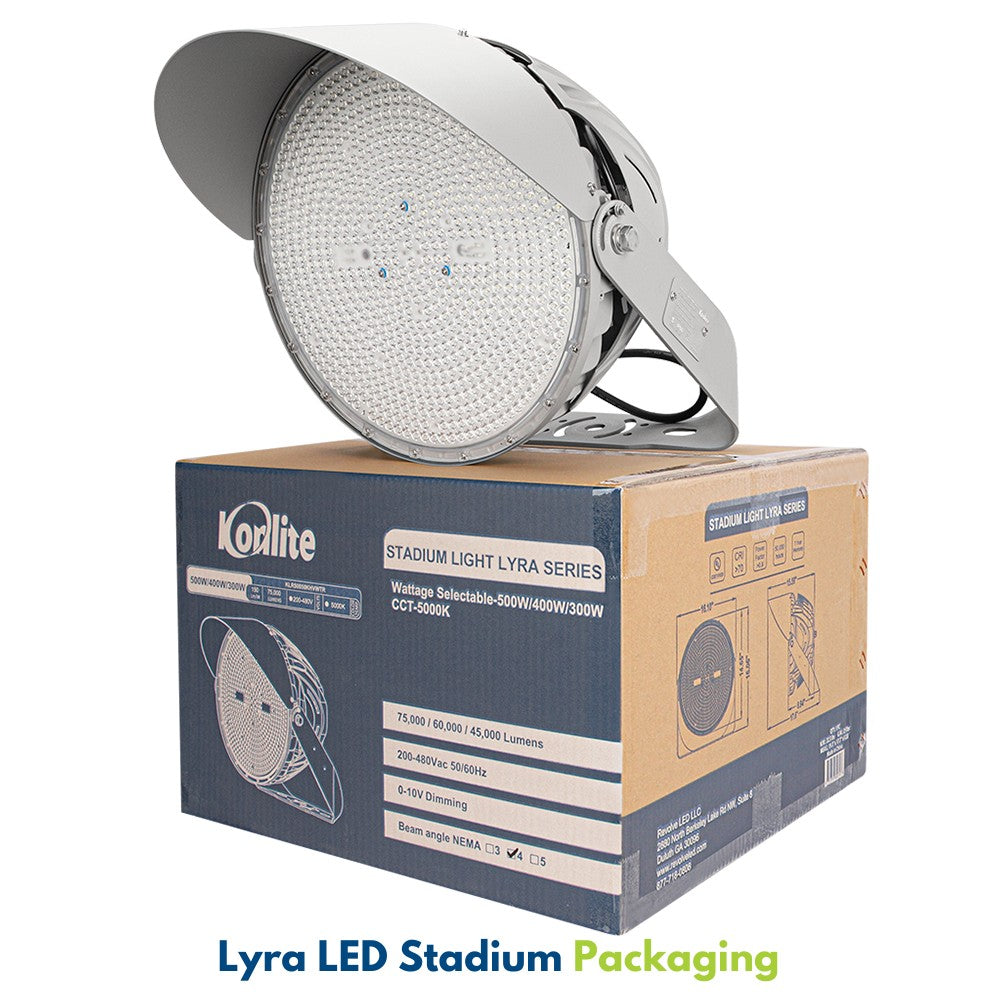

What's in the box

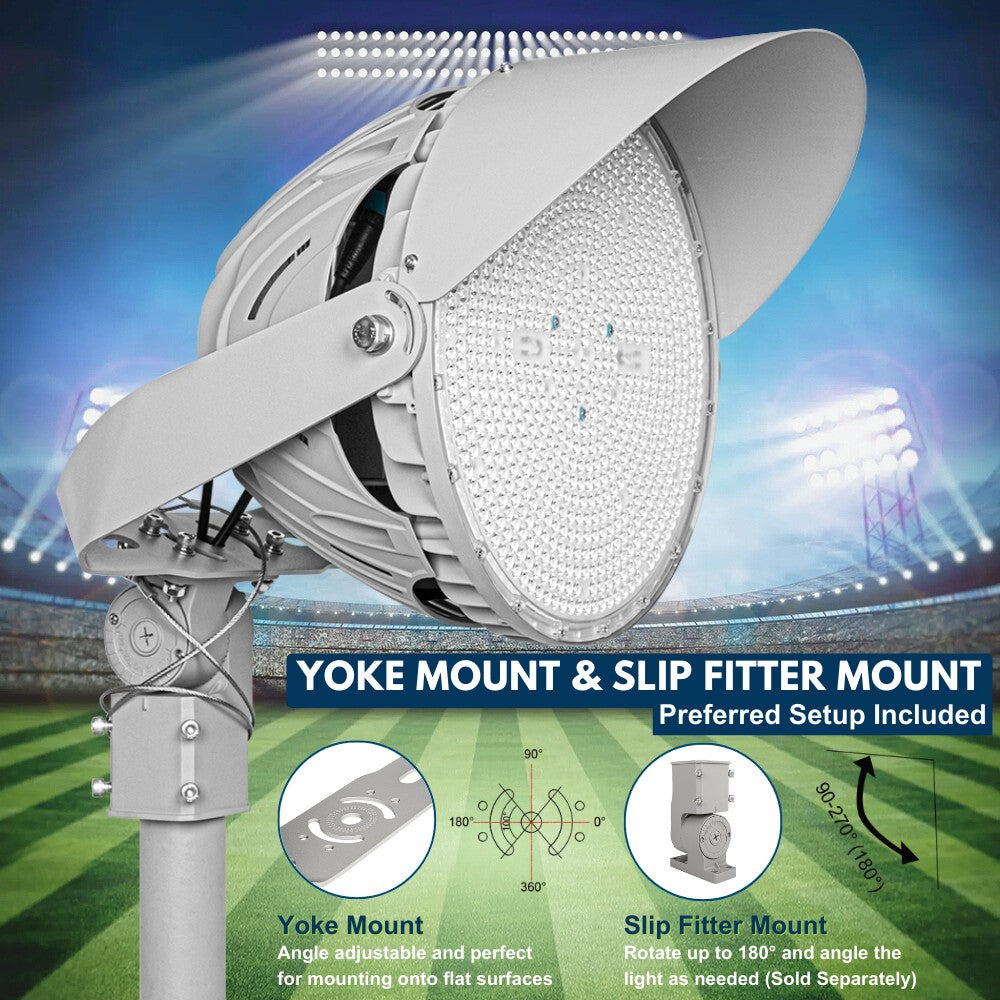

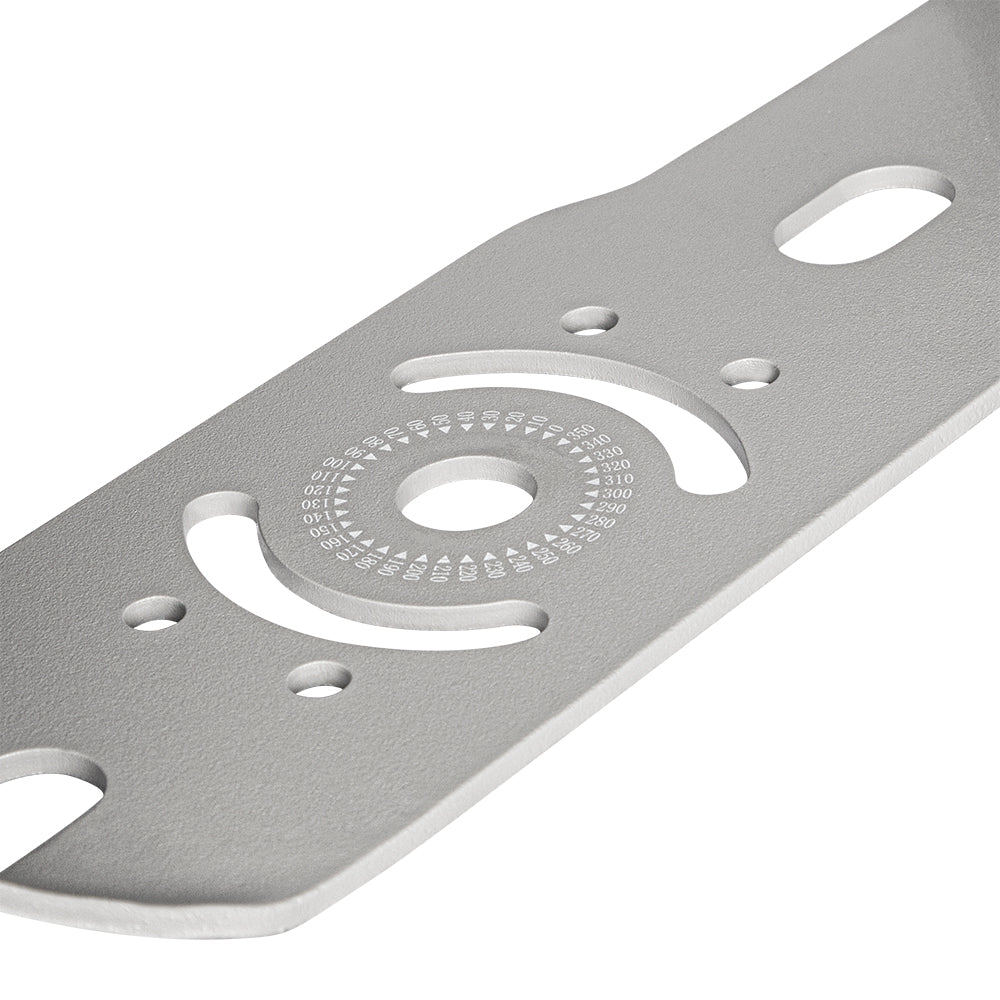

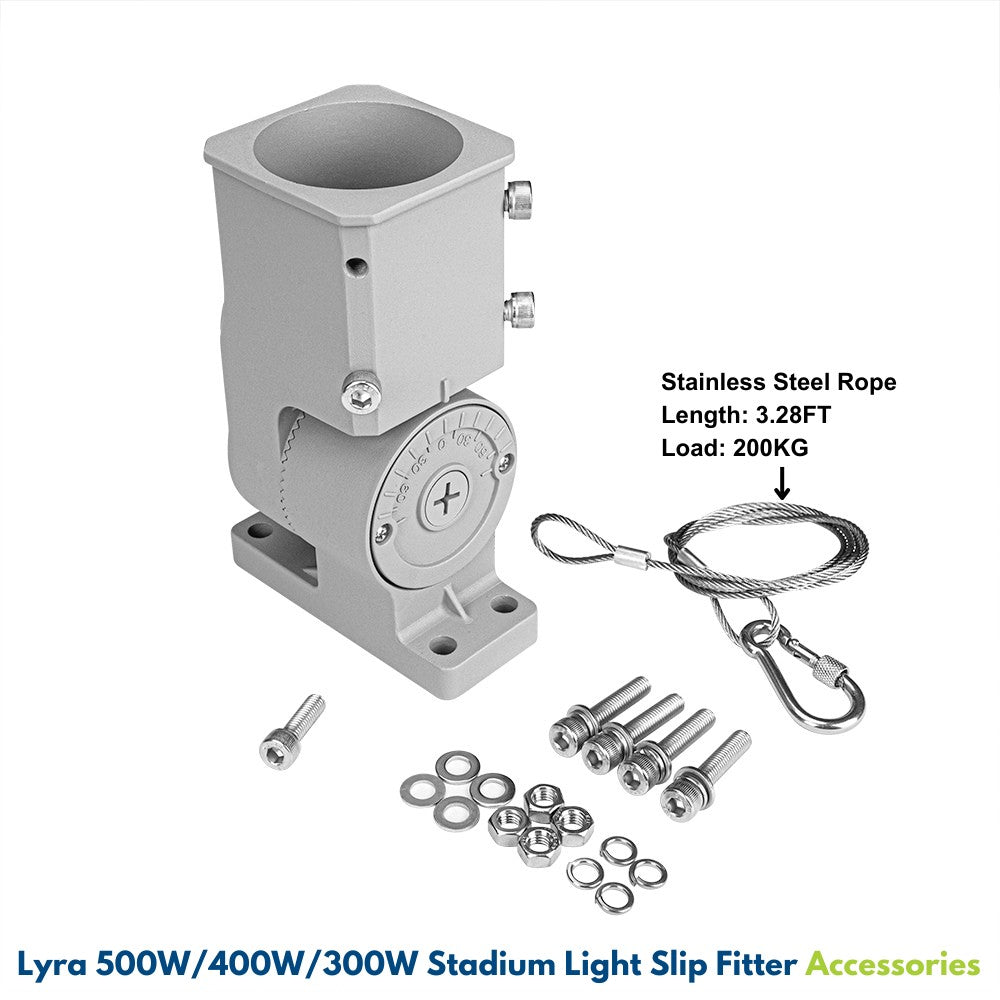

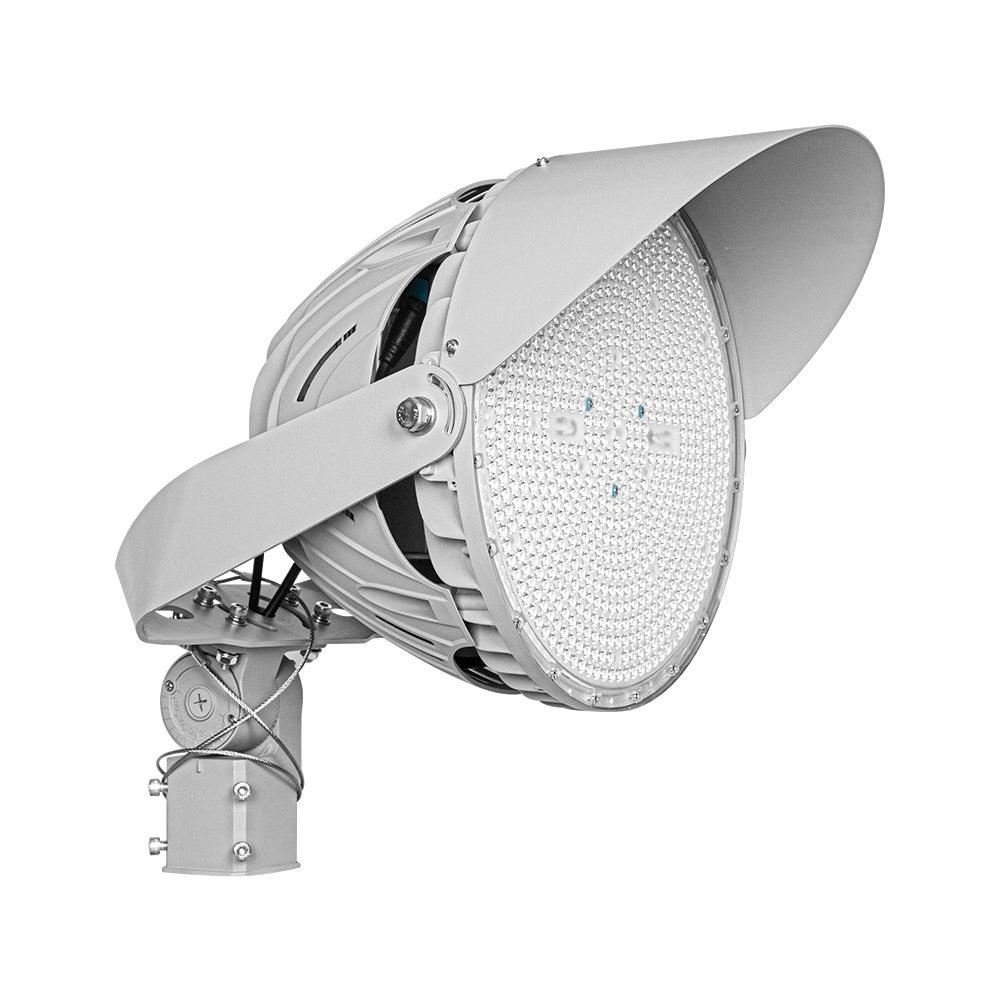

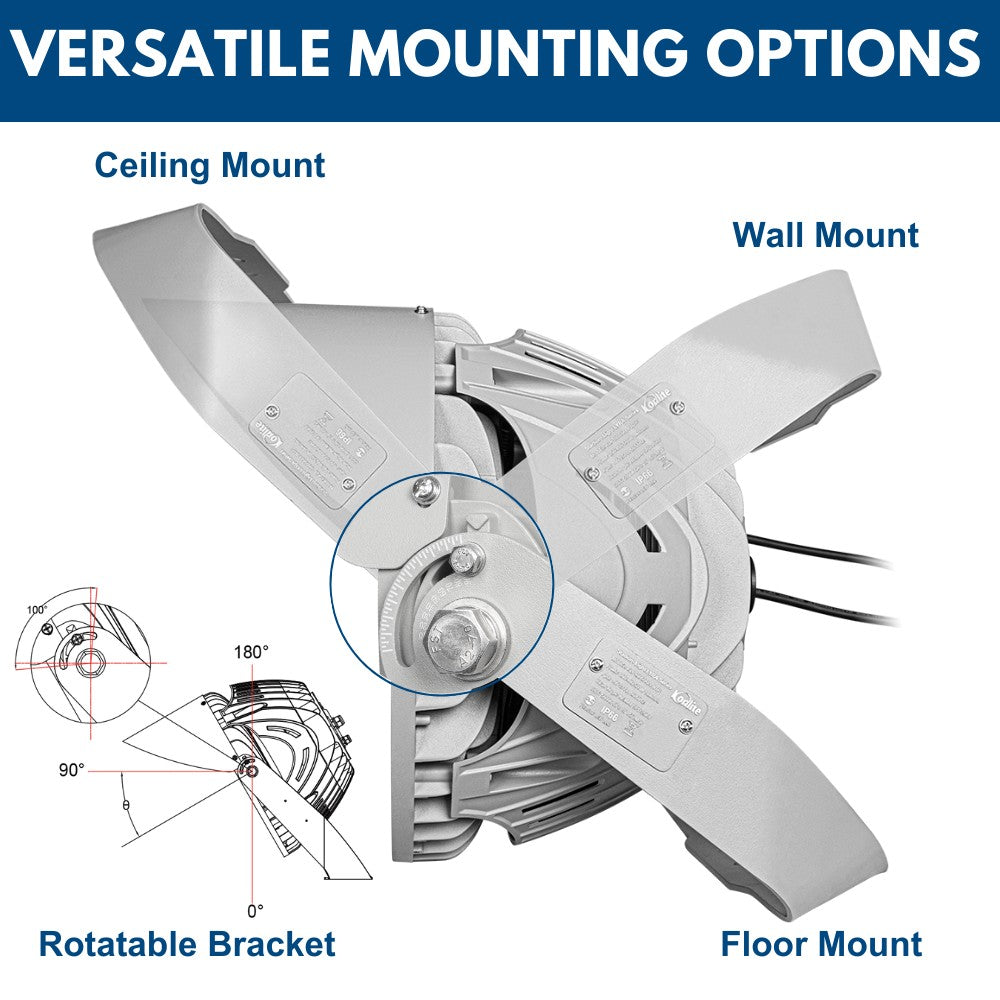

Lighting Fixture - Installation Guide - Visor -Mounting Bracket with Screws - Tenon adaptor ( See Mounting Options )
Product Details
Downloads
Reviews
Reviews
Q&A
Lighting Fixture - Installation Guide - Visor -Mounting Bracket with Screws - Tenon adaptor ( See Mounting Options )

Product Overview

Elevate your outdoor lighting with the advanced Konlite Lyra LED flood light, designed to transform stadiums, ballparks, and other outdoor large areas. The Konlite Sports Light delivers unmatched performance, offering adjustable wattage and lumens to suit diverse lighting needs. Its superior design minimizes glare and maximizes visibility, ideal for lighting sports fields, municipal areas, parking lots, and golf ranges with unmatched precision and clarity.

Constructed for durability and extended service life, the Konlite Lyra withstands outdoor conditions with ease. Its sleek design not only looks good but also enhances heat dissipation, ensuring that both LEDs and driver circuitry operate at cooler temperatures for longer. The flood light's compact and lightweight design, coupled with its low Effective Projected Area (EPA), allows for straightforward installation at up to 60 feet, broadening its application range significantly.

Enhanced features of the Konlite Lyra include:

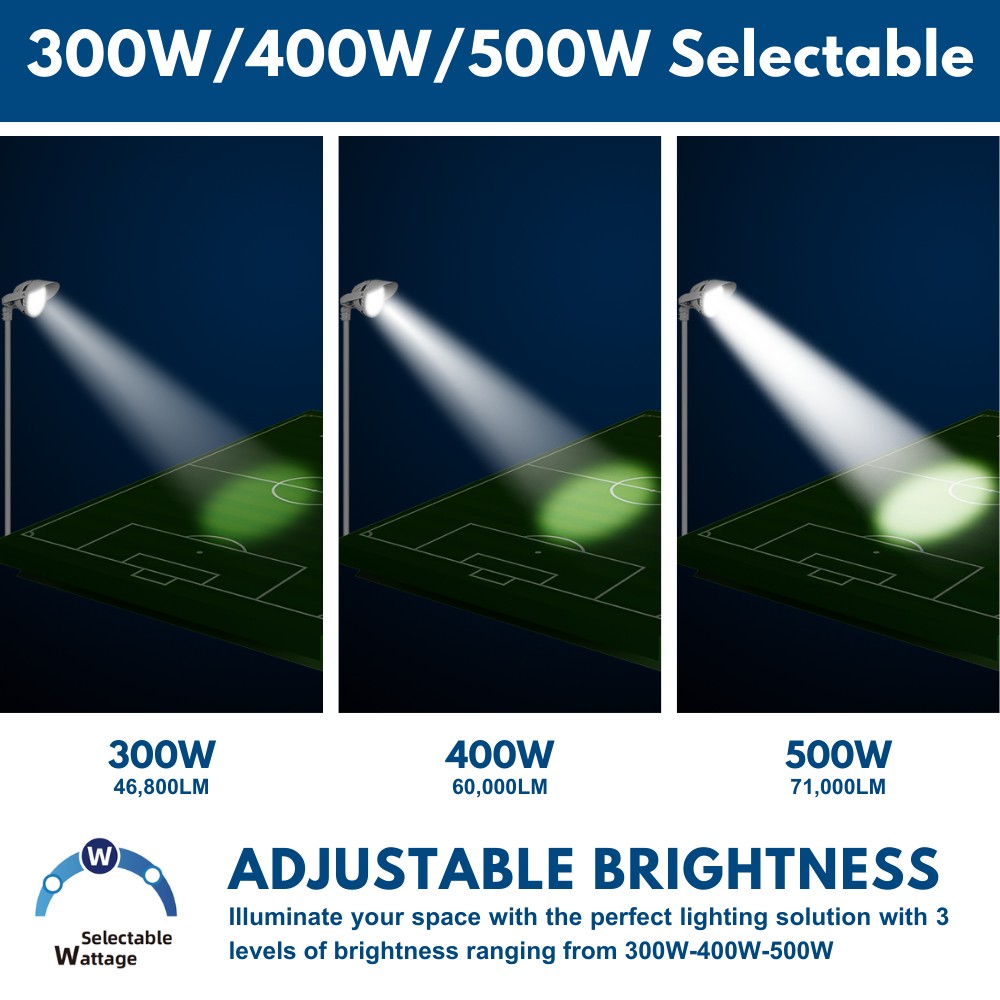

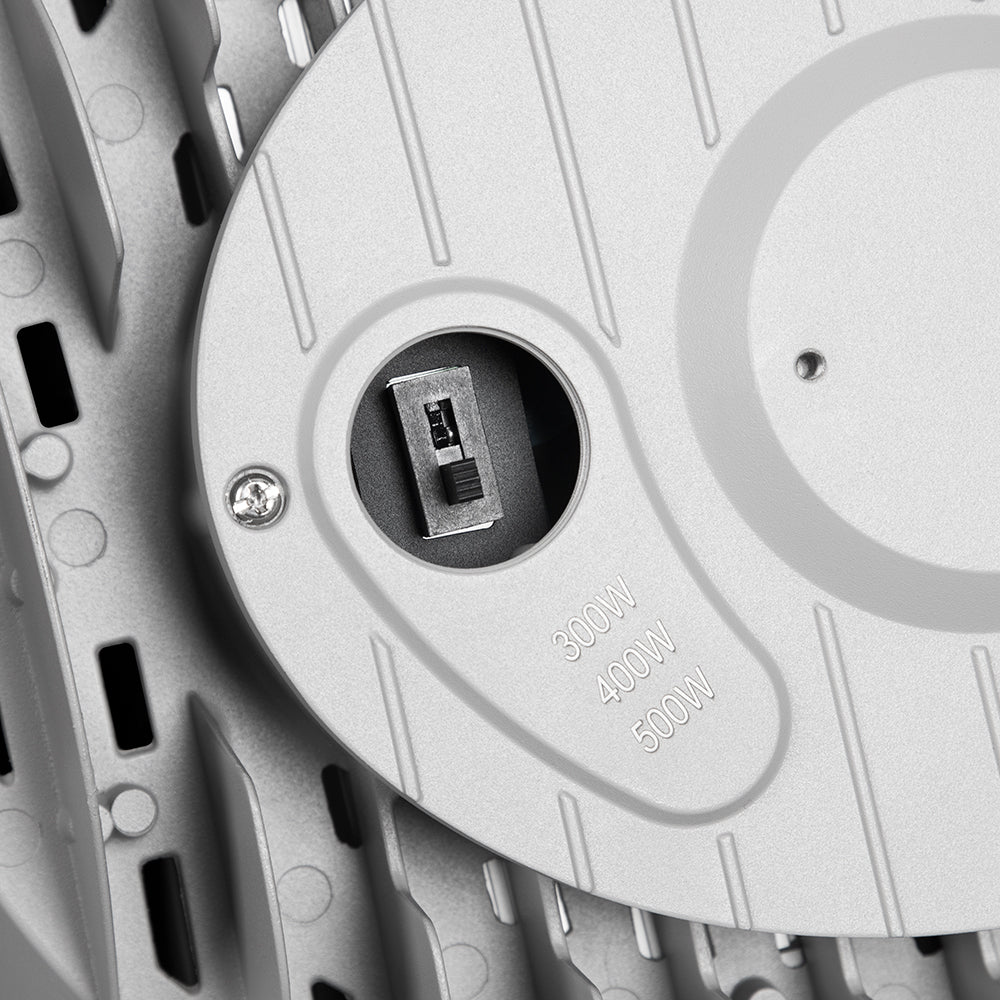

  • Adjustable wattage and lumens: Select from 300W (47,100 Lumens), 400W (60,800 Lumens), or 500W (75,000 Lumens) for customized lighting solutions.

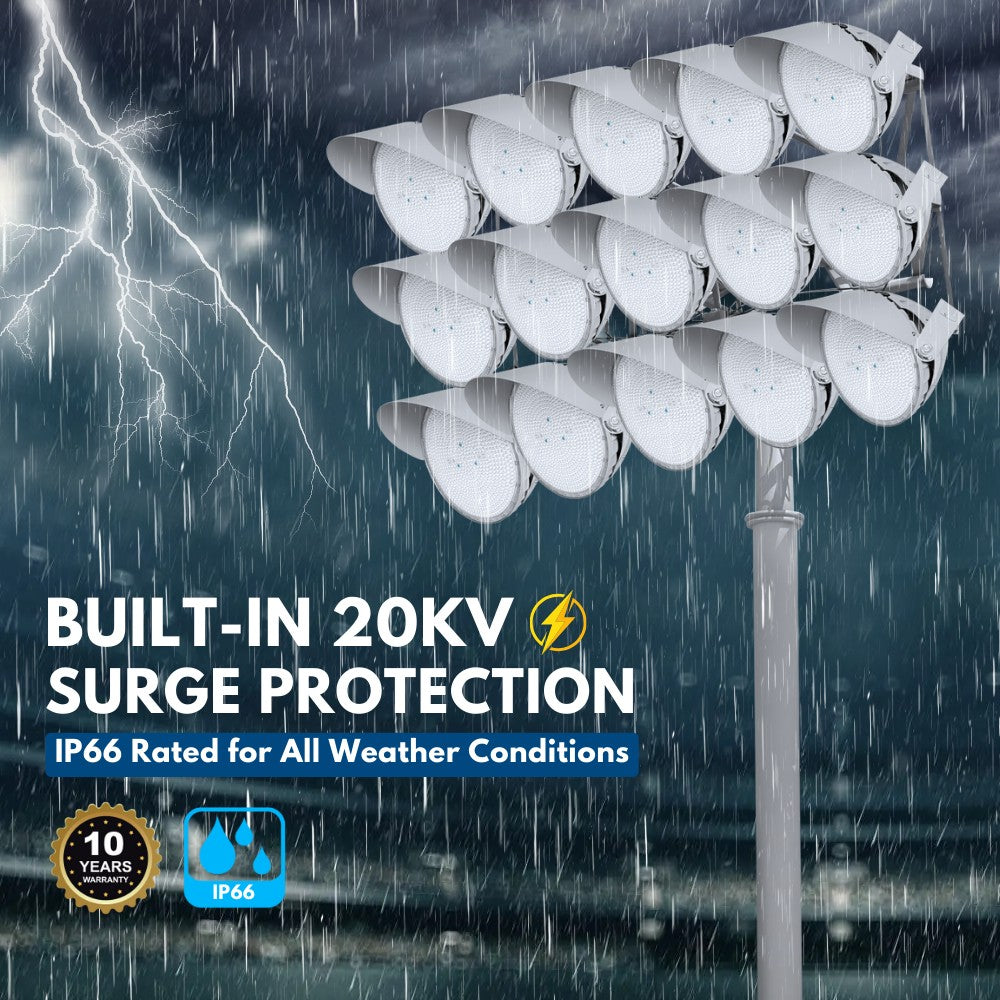

  • Built-in 20KV Surge Protector for superior electrical spike protection.
  • IP66 rating, guaranteeing protection against dust entry and high-pressure water jets from any direction.
  • Compatibility with high voltage inputs from 200-480V, accommodating a wider range of electrical systems.

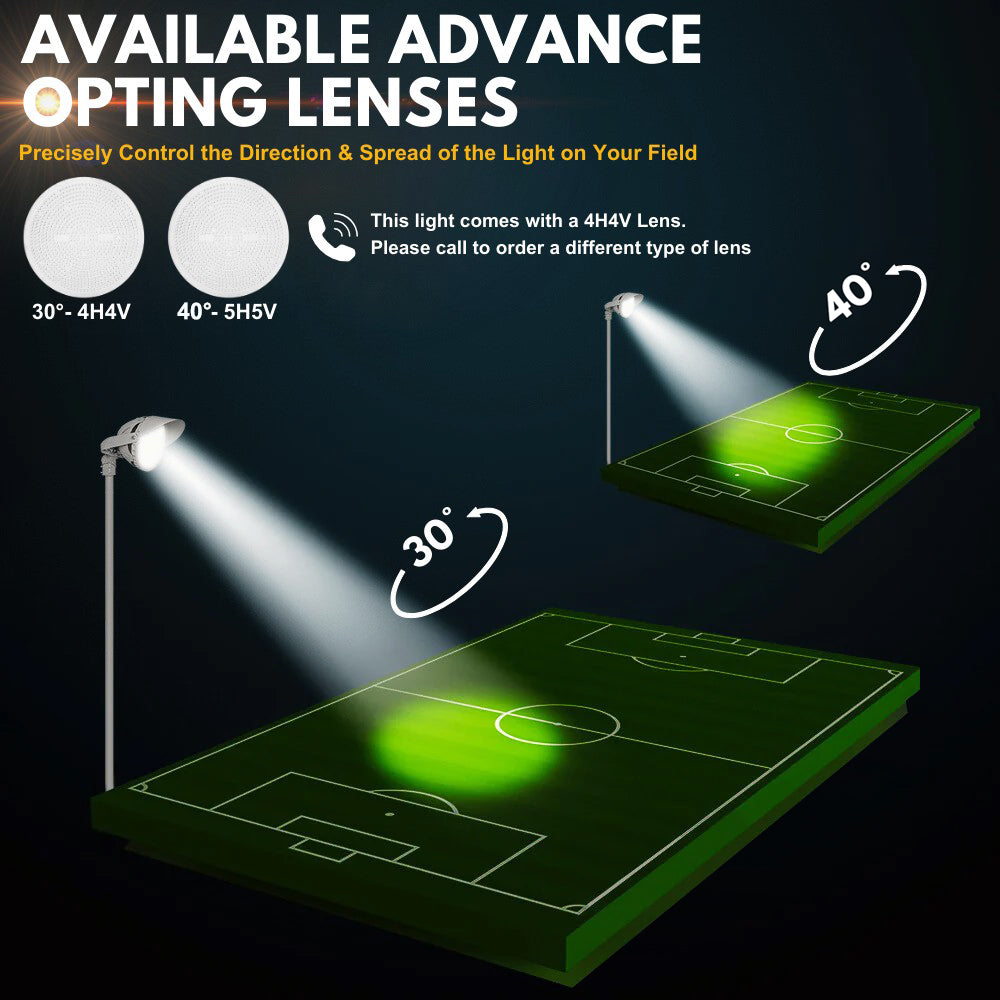

  • A beam angle of 40° ensures focused illumination.
  • Exceptionally Low EPA values: Front: 1.28ft², Side: 0.85ft², minimizing wind resistance and easing installation.

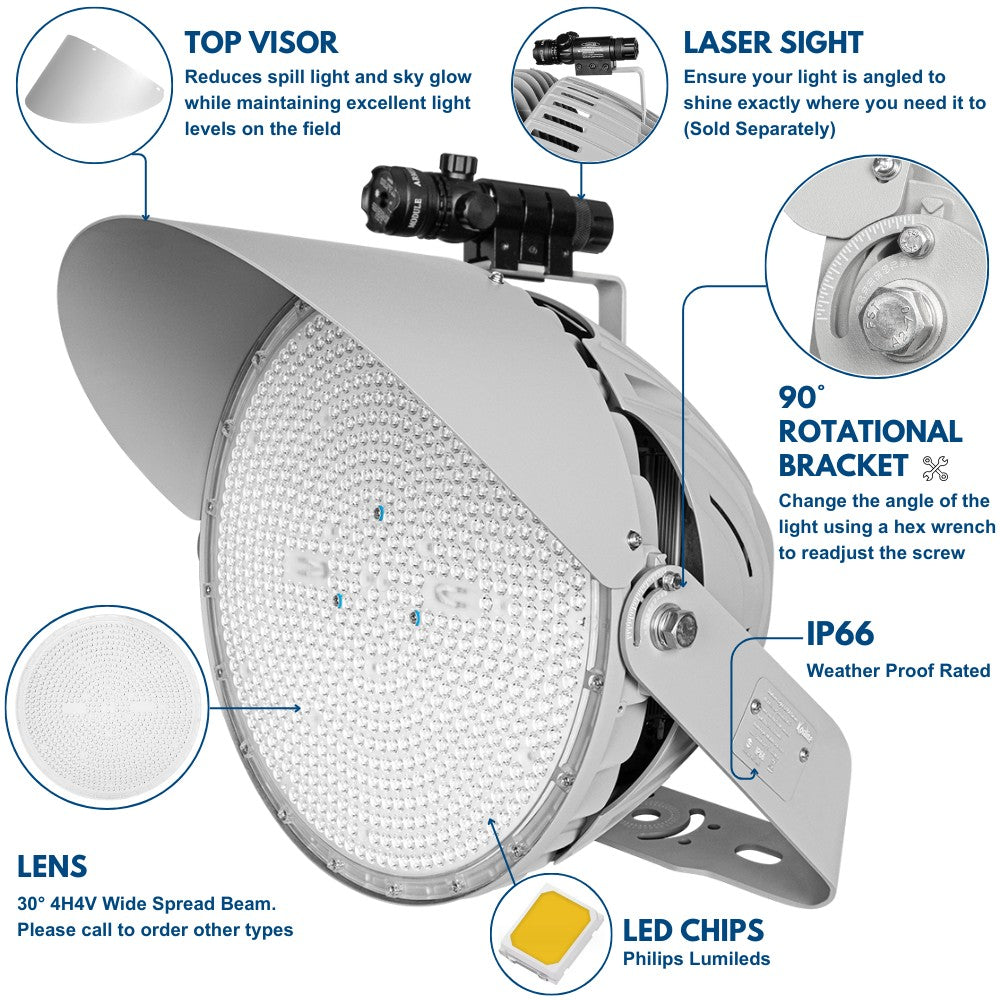

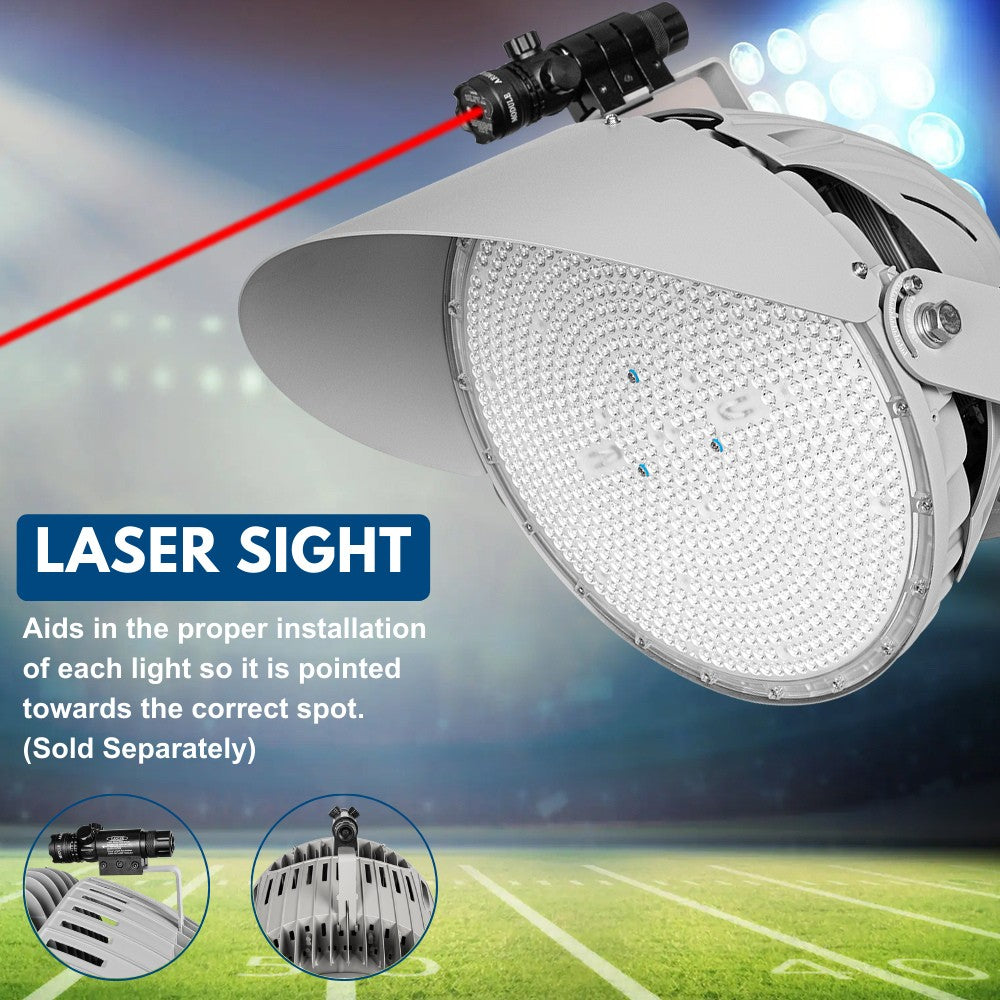

  • An integrated laser pointer simplifies accurate directional setup.
  • A light shield (Visor) to reduce light pollution and maintain ambient quality.

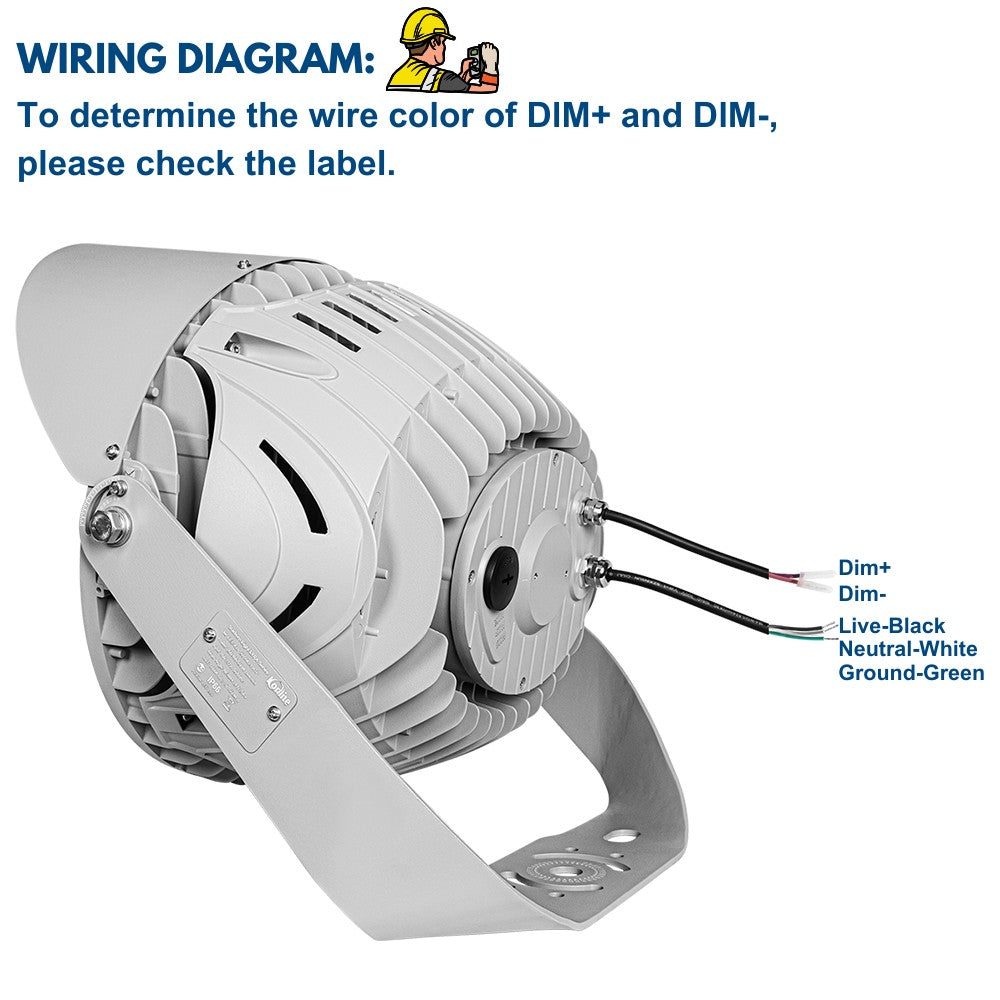

  • 1-10V dimming capabilities for exceptional energy efficiency.
  • Crisp, natural 5000K color temperature light output.
  • NEMA 4H4V distribution for comprehensive area coverage.

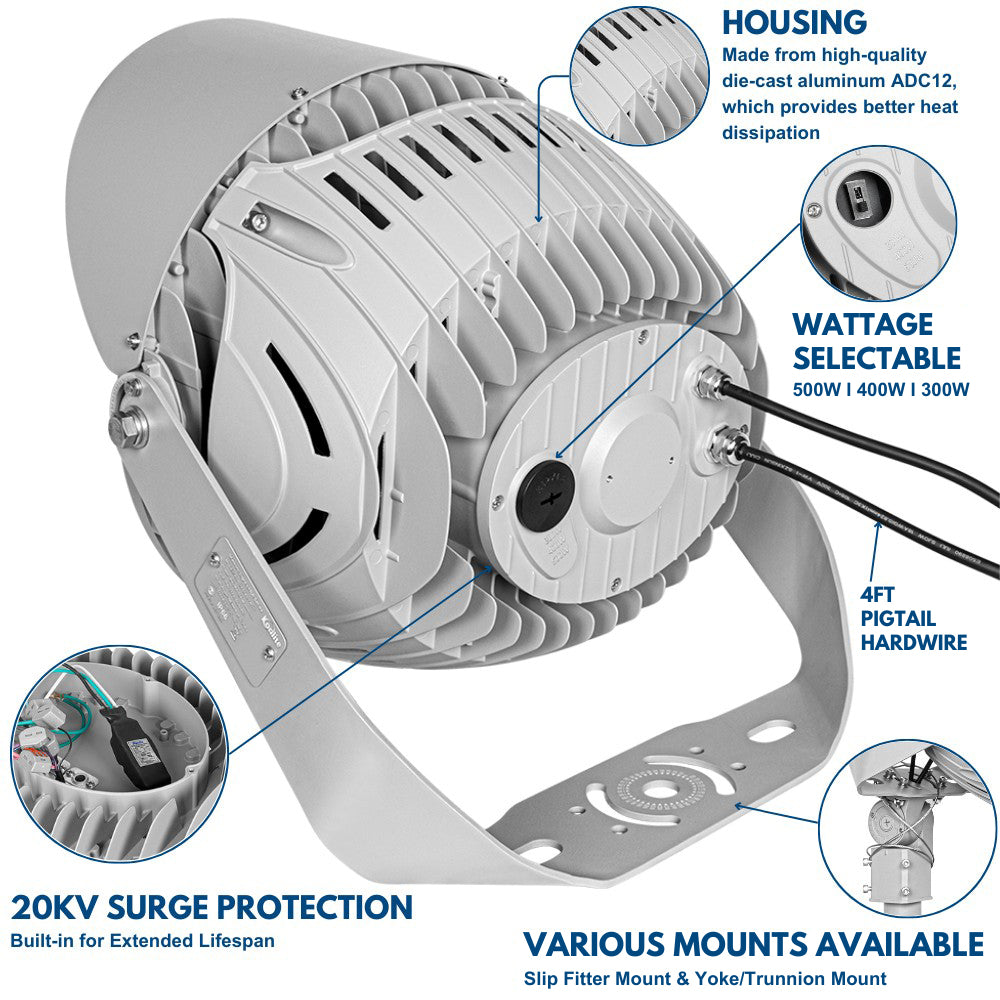

  • Designed to endure, with a 3G vibration rating and corrosion-resistant die-cast aluminum housing finished with powder coat paint.
  • Visual comfort optics to diminish glare and enhance light appearance.

This robust product meets the highest standards for safety and performance, backed by UL and DLC certifications for rebate eligibility. Offering a generous warranty and boasting an impressive lifespan, the Konlite Lyra LED flood light stands as a reliable, versatile, and cost-effective solution to upgrade your outdoor lighting infrastructure.

Discover unparalleled lighting quality with the Konlite Sports Light, the premier choice for venues demanding efficient, durable, and high-performance lighting solutions that cater specifically to their needs.

See similar LYRA  680-watt, and 800-watt versions.

Applications

• Baseball Fields • Football Fields Lighting
• Tennis Courts • Cricket Fields
• Soccer Fields • Golf Range
• Basketball • Stadium Lighting
• Shooting Range • Speedway and Racetracks
• Schools & Universities • Community Parks
• Sports Complex • Open area high master lighting
• Arenas • Natatoriums
Color Temperature 5000K color temperature
Certifications
US company10 years warrantyUL listed0-10v dimmableDLC PremiumRoHS compliance FCC certificationIP66 enclosures offer the highest protection against particles

Specifications:

BrandKonliteDLC Part #KLR50050KHVWTR
WarrantyLimited 10 YearsUPC659359575082
Input Voltage200-480VOpticalNEMA 4H4V
Input Wattage500W/400W/300WEqual to1000W/1500W MH
Delivered Lumens75,000/60,800/47,100CRI>70
Efficacy160 LM/WAvailable CCT5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
Dimmable1-10VControlsN/A

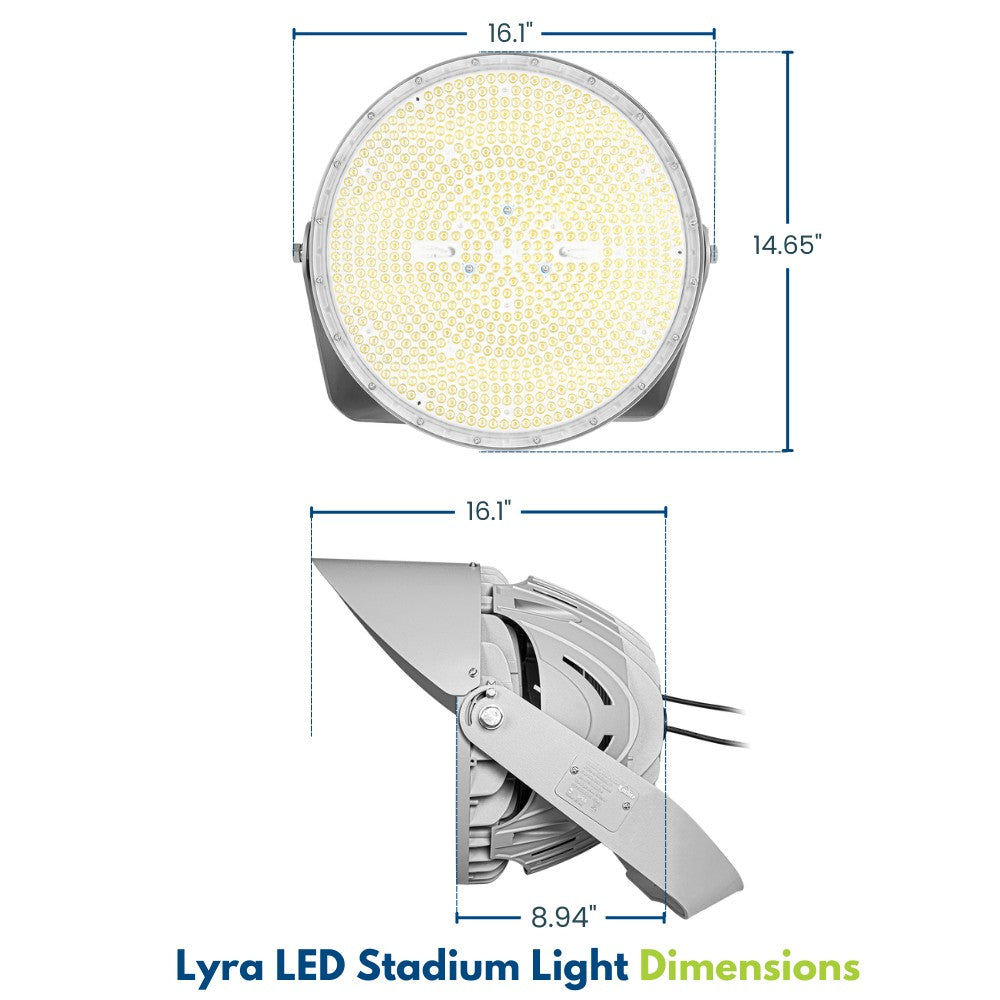

Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumUnit Weight22.78 lbs
