Linear LED Highbay Light - LH0203 Series - 300W - 2X4FT- 120-277V - 41500 Lumens - 5000K - 1000W Equal

Product Search Code: 10-0205
KonliteSKU: RDLH02033005KDN24LC

The Konlite 300W LH0203 high bay ceiling fixture delivers versatility and durability. Replaces 750-1000W HID, T5, or T8 lamps.

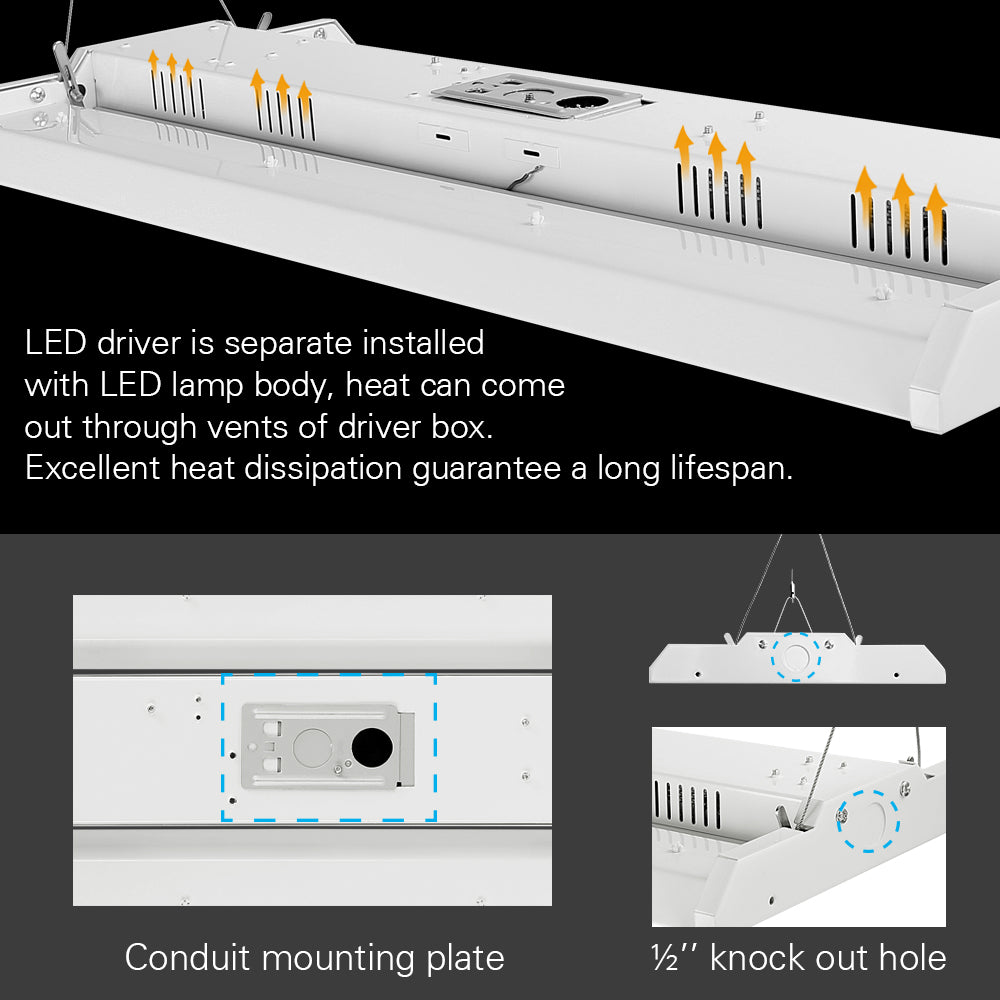

  • Superior performance with advanced thermal management
  • Reduces energy costs by up to 65% compared to high wattage traditional

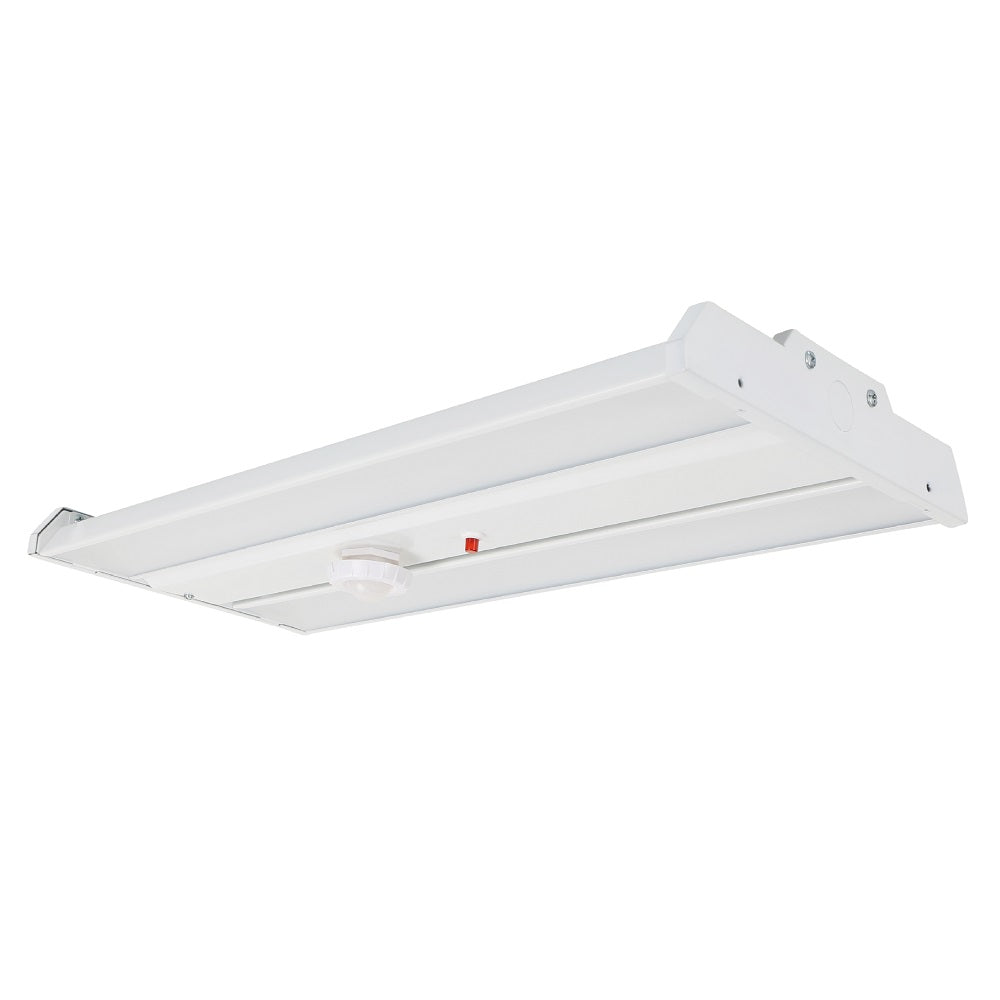

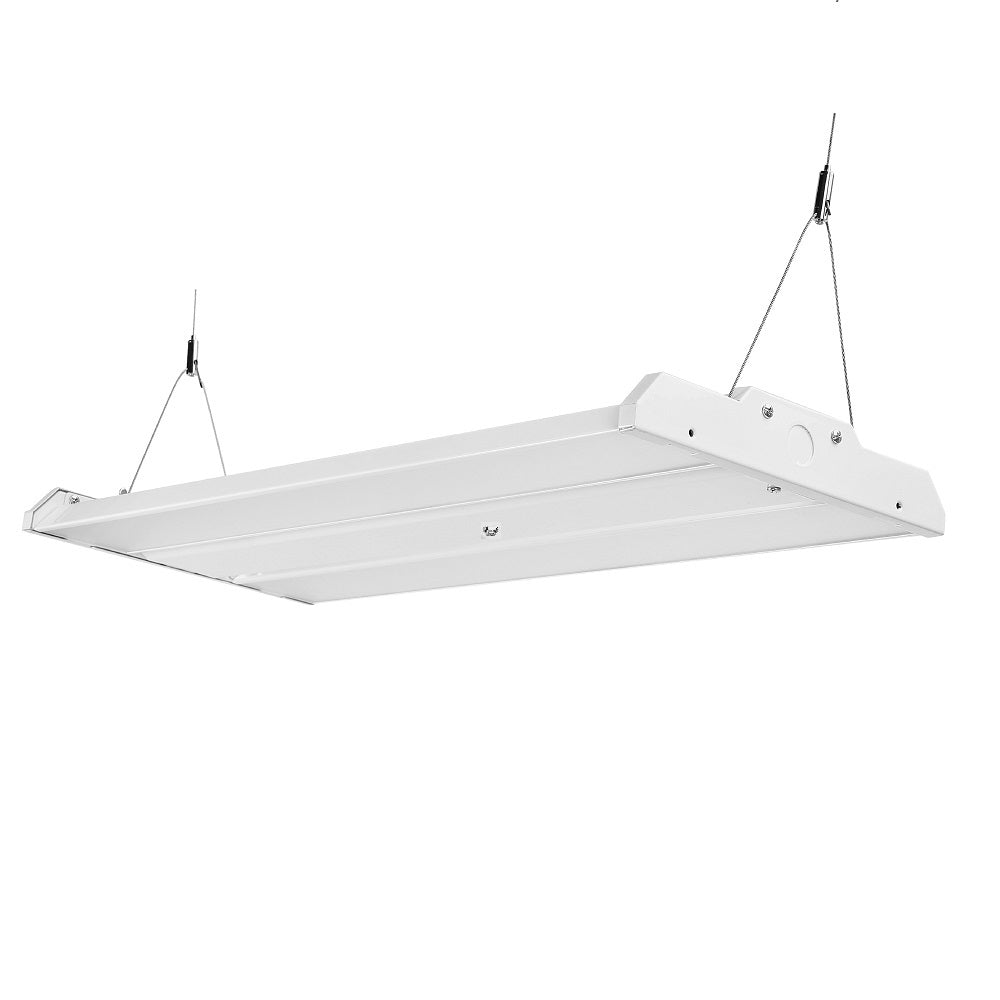

  • Optional Pre-installed Motion Sensor or Emergency Battery
$289.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

The Konlite 300W LH0203 high bay ceiling fixture delivers versatility and durability. Replaces 750-1000W HID, T5, or T8 lamps.

  • Superior performance with advanced thermal management
  • Reduces energy costs by up to 65% compared to high wattage traditional
  • Optional Pre-installed Motion Sensor or Emergency Battery
Product Details
Downloads
Reviews
Reviews
Q&A

Product Overview

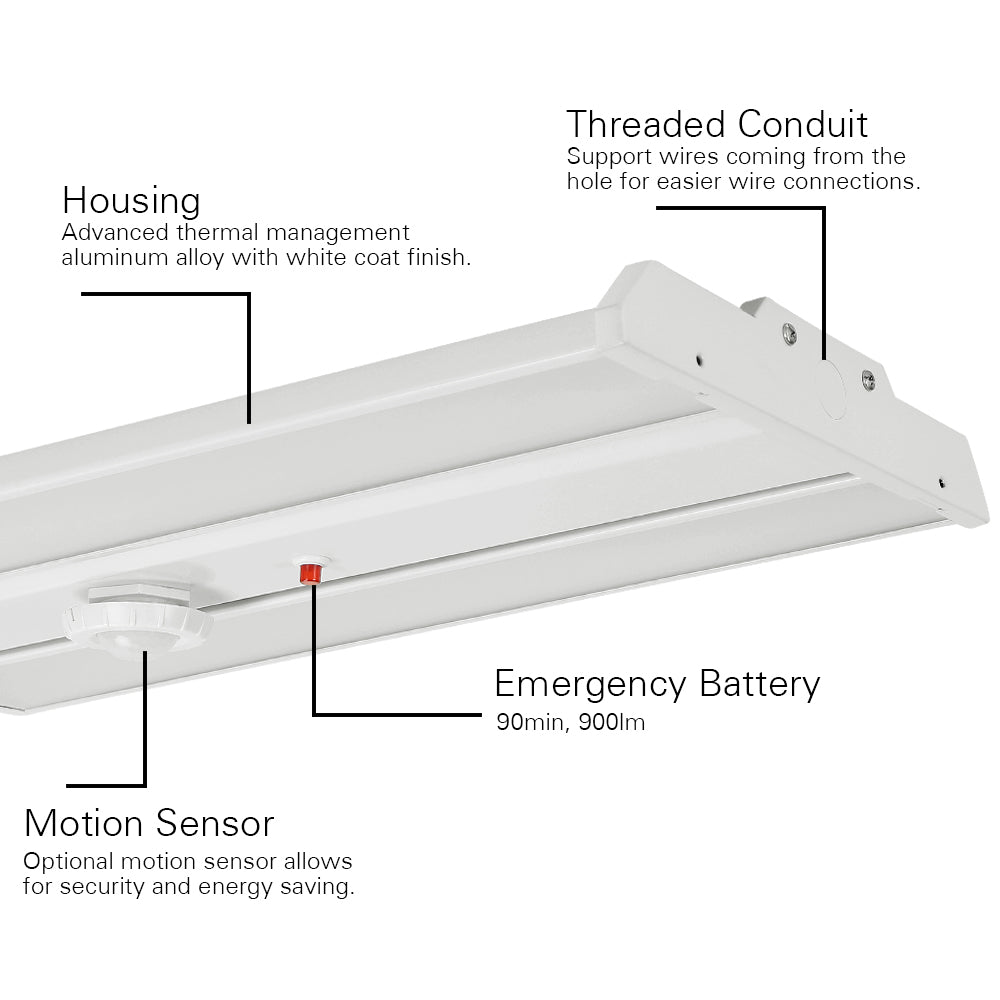

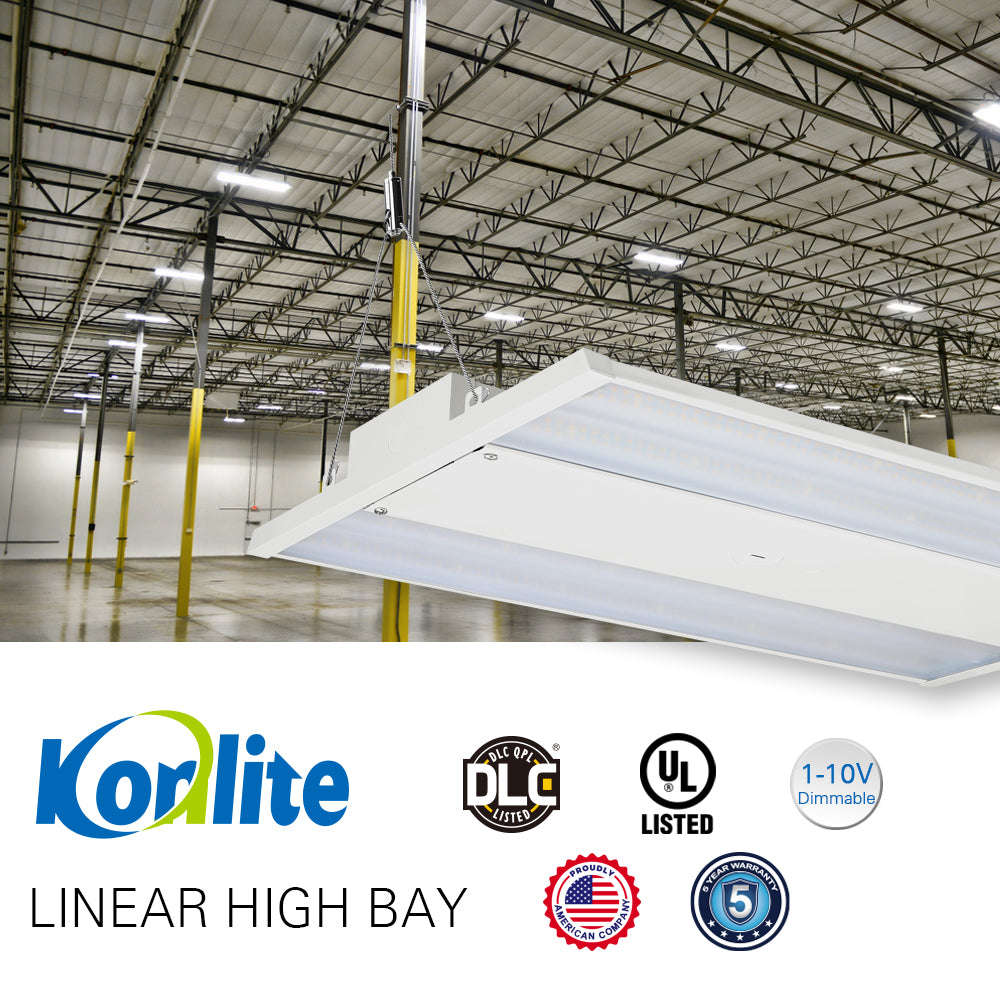

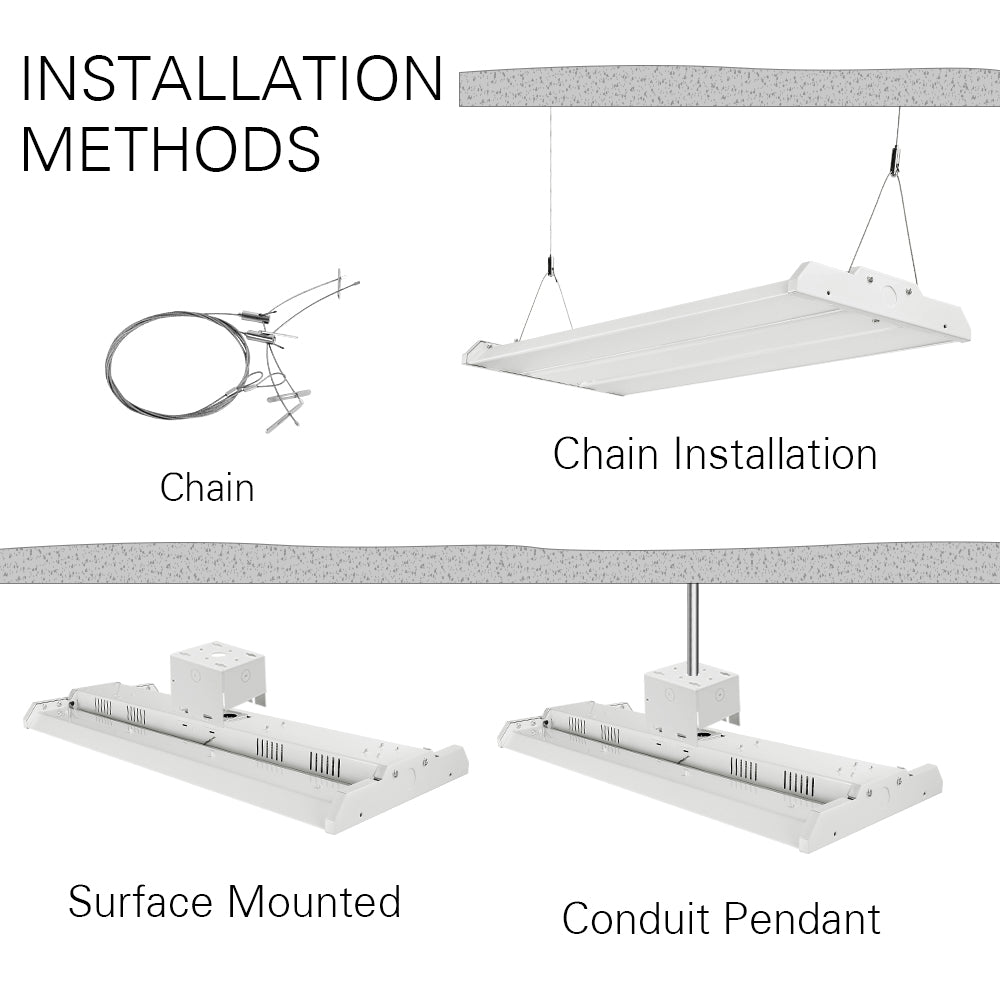

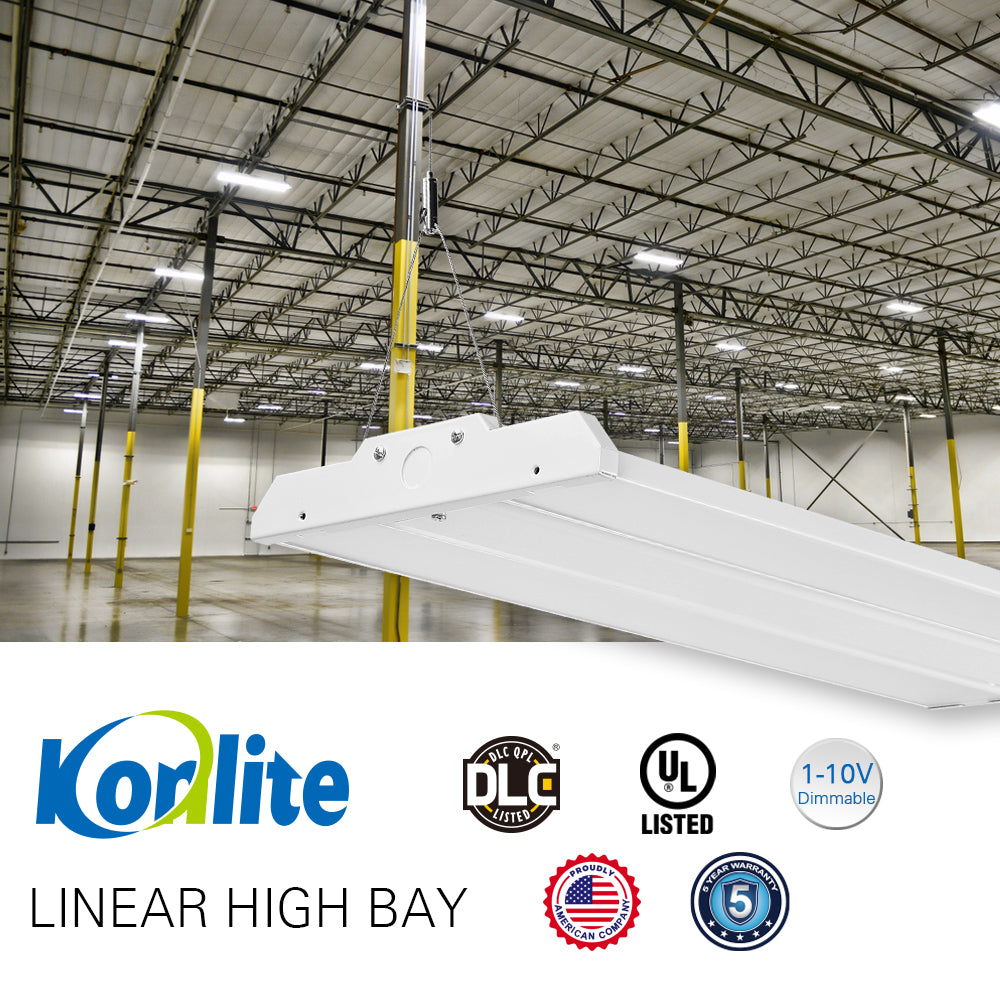

The RDLH0203 Linear LED bay light is a one to one replacement for Fluorescent T8, T5 or HID fixtures or new construction. Avoid safety concerns and maintenance cost of changing traditional bulbs, ballasts and disposal fees over the lifetime of this LED fixture. Extremely durable, constructed from advanced thermal management aluminum alloy with white coat finish. Low profile, seamless fit for bay rafters. Clear Lens, 1-10V Dimming. Easy to install, ships with steel suspension cables. This unit provides high efficiency, excellent color rendering, instant on, and consistent uniform light distribution for warehouse & storage, manufacturing, sports facilities, gyms and retail centers. DLC Energy rebate certified, 5 yr. warranty. Customize your space and increase security and energy savings with a PIR sensor for occupancy and daylight controls. Need to meet code or want another layer of protection? Pre-installed Emergency Battery backup is available.

Equivalent to: 750-1000W HID, 8 pcs T5 or T8 lamps

See similar 130-watt, 180-watt210-watt and 270-watt Highbay versions.

Applications

•Warehouses •Workshops
•Convention Centers •Low Bays
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retails •Gymnasiums
Color Temperature5000K color temperature
Certifications
US company5 years warrantyUL listedFCC certification

Specifications

BrandKonliteDLC Product IDPHPG4EY3
Warranty 5 YearsUPC717360775492
Input Voltage120-277VDimmable1-10V
Input Wattage300WEqual to 750-1000W HID
Delivered Lumens41,500LMCRI>80
Efficacy138 LM/WAvailable CCT5000K/4000K
Rated Life>50,000 HrsTHD<20%
Power Fact>0.9ControlMotion Sensor Optional

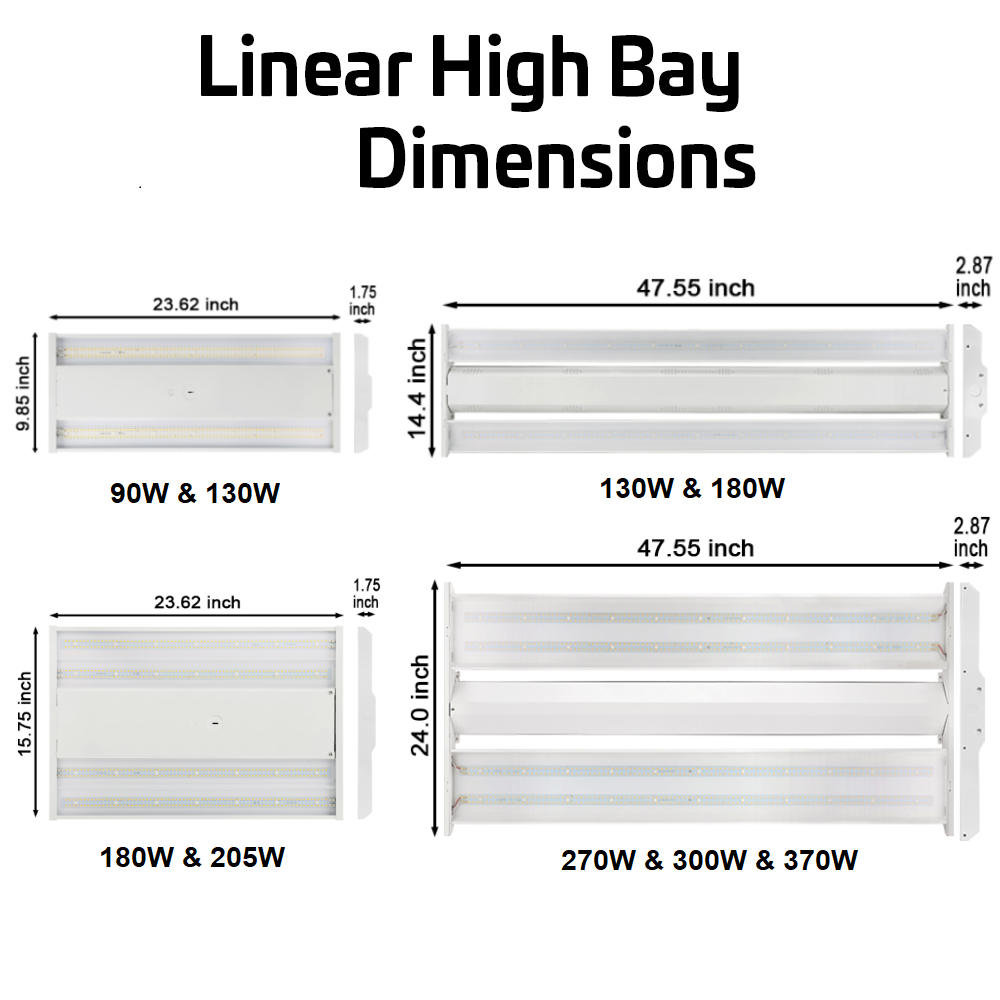

Operating Temp-40°F to 131°FDimension47.55”x24.01”x2.87
CertificationsUL, Damp Locations, DLC PremiumWeight22.49 lbs
