LED Canopy Light - White - 63W/45W/30W Selectable - 5000K/4000K - 9,360 LM - Dimmable - 120-277V - 150W Equal
- Replaces 100W-150W HID/MH luminaires
- 0-10V Dimmable
- CCT Selectable: 4000K/5000K(Preset)
- Certificates: UL, DLC 5.1
- 5-Year Warranty
- Watts and Brightness Selectable (4000K):
- 63W = 9,360Lm
- 45W = 7,100Lm
- 30W = 4,850Lm
- Replaces 100W-150W HID/MH luminaires
- 0-10V Dimmable
- CCT Selectable: 4000K/5000K(Preset)
- Certificates: UL, DLC 5.1
- 5-Year Warranty
- Watts and Brightness Selectable (4000K):
- 63W = 9,360Lm
- 45W = 7,100Lm
- 30W = 4,850Lm
- Easy installation, quick mount to junction box
- Acrylic lens for uniform light distribution
- Die cast aluminum housing
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview

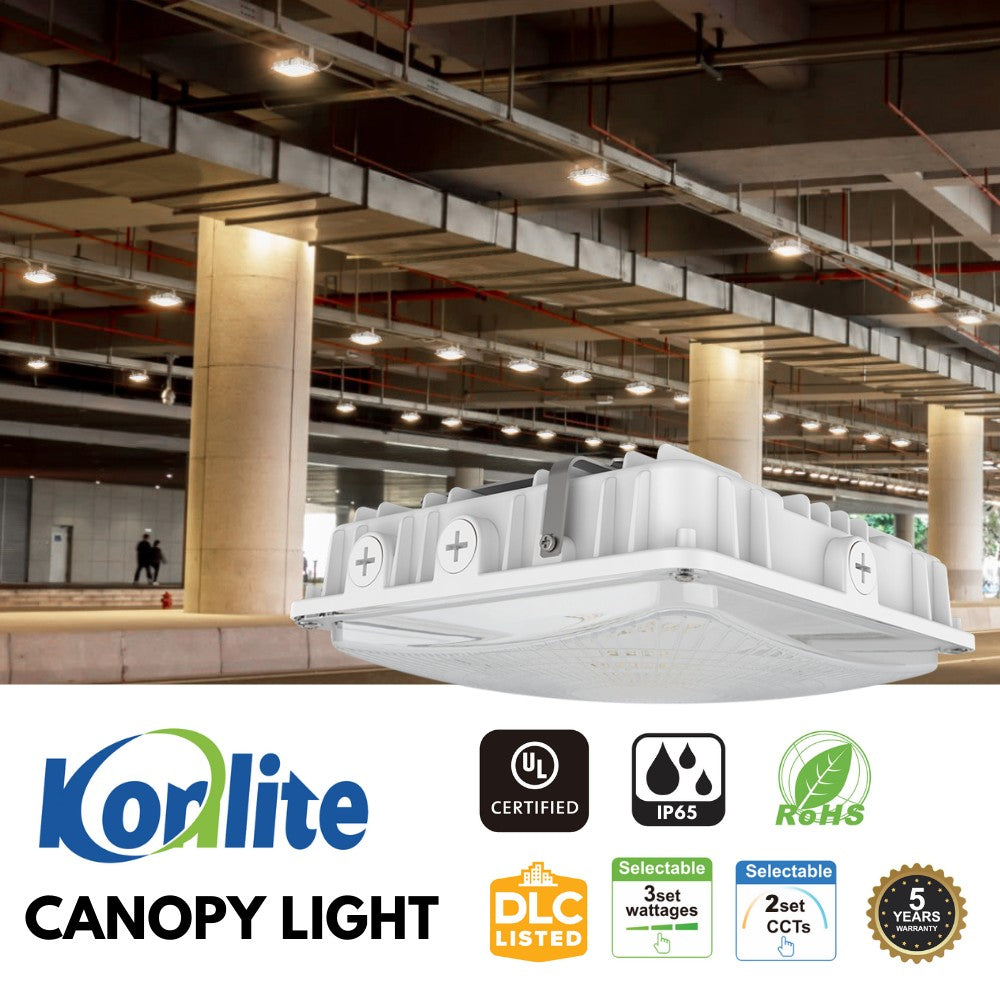

Provide safety and better visibility while reducing operating and maintenance costs with the energy efficient Konlite LED Canopy Area Light. It is a popular choice for retrofit of HID or HPS and new construction.

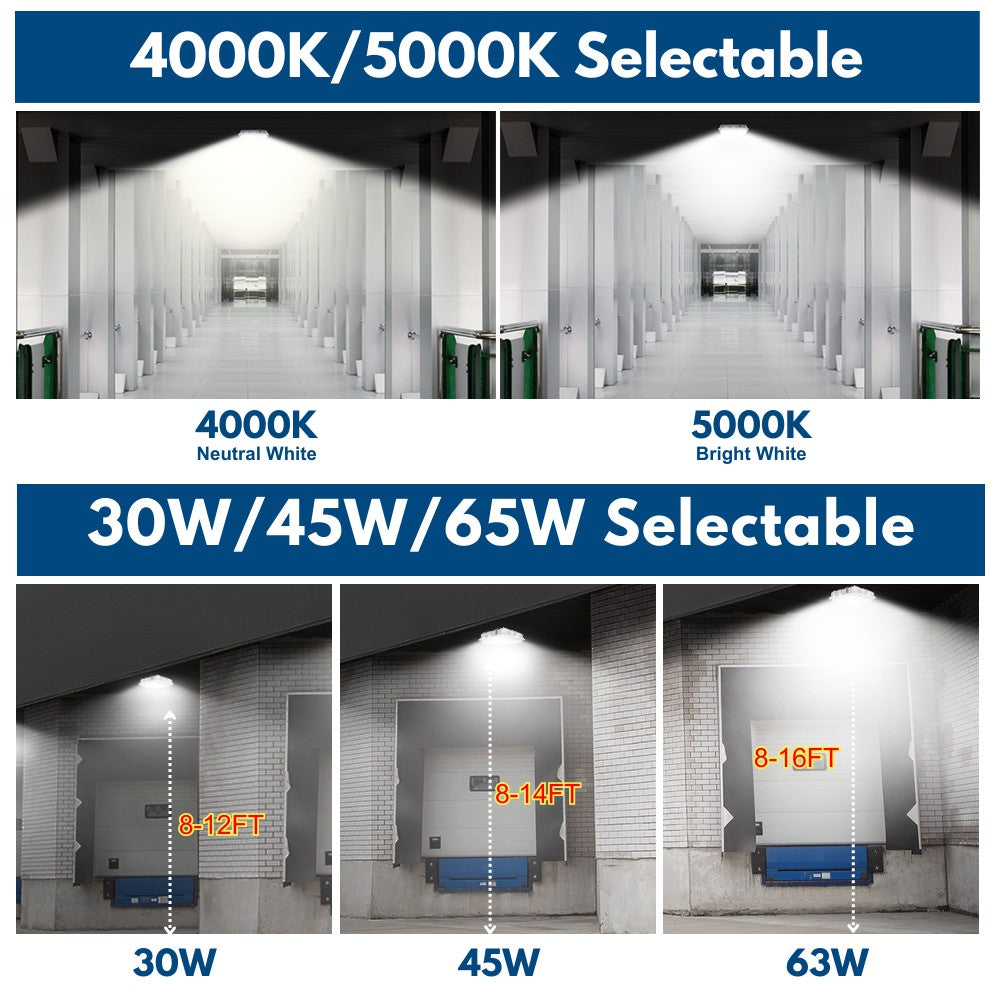

*Three wattage selectable
Wattage/Lumens (4000K): 63W/9360, 45W/7100, 30W/4850
Wattage/Lumens (5000K): 63W/8500, 45W/6850, 30W/4720
*Two Color CCT switches:
4000K Neutral White
5000K Daylight White

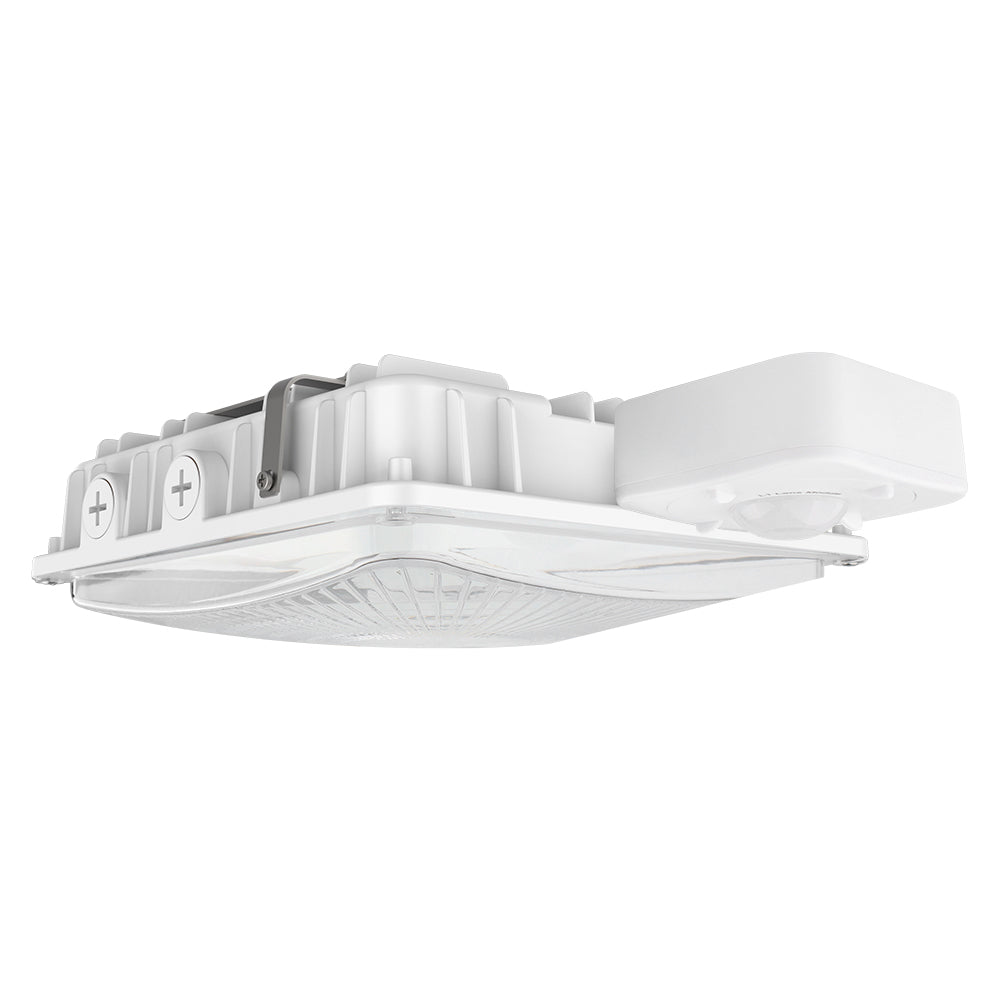

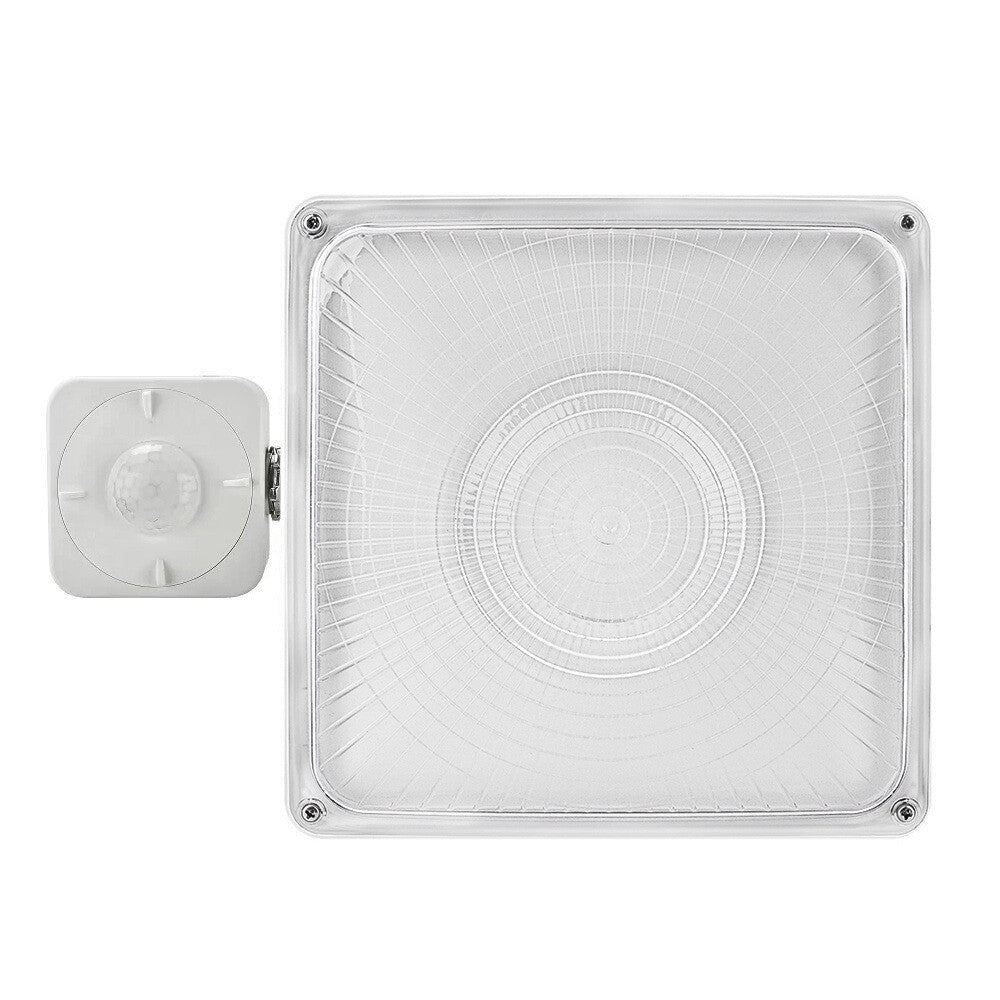

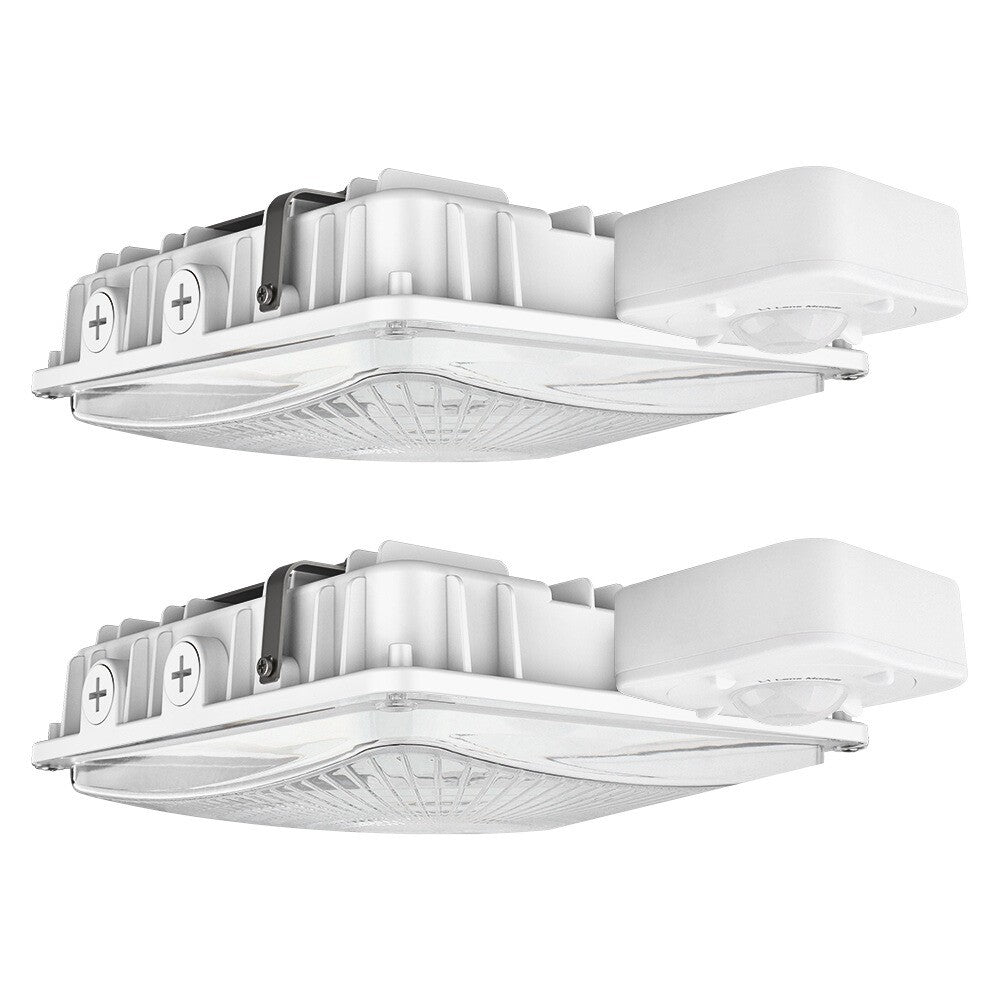

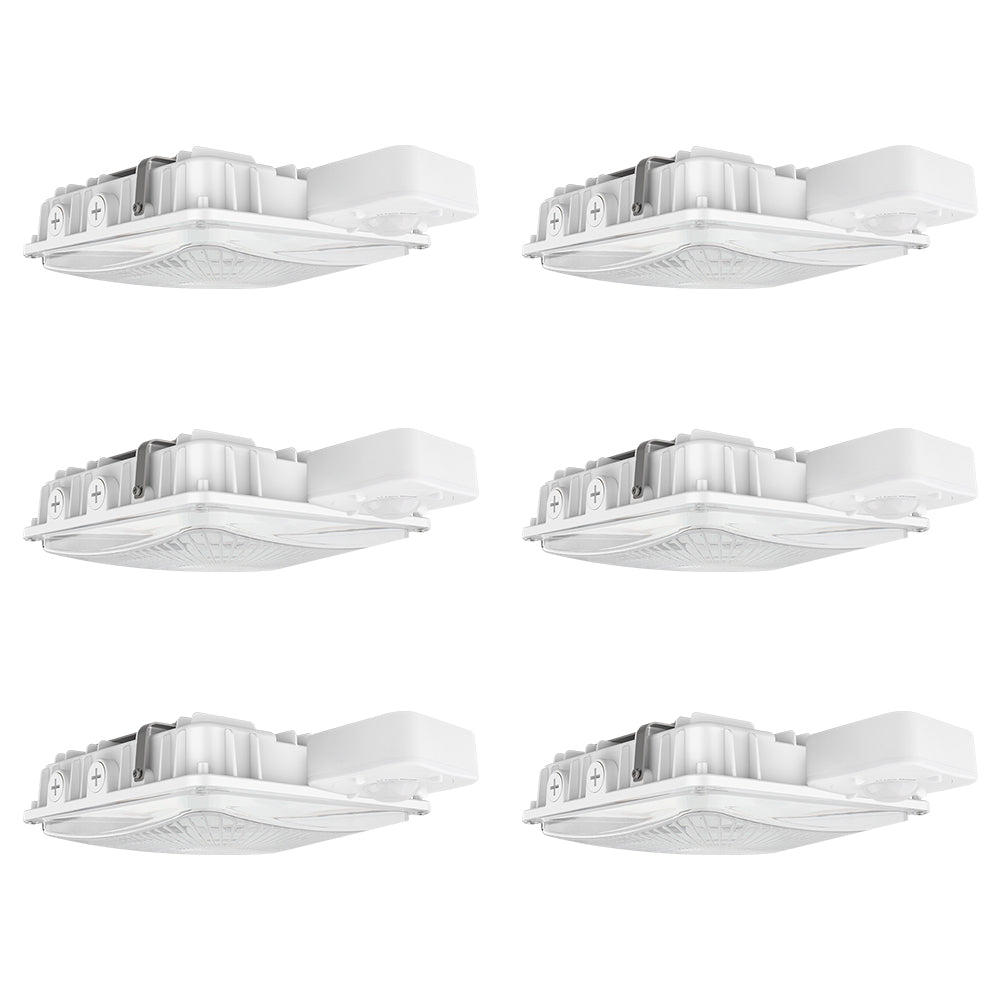

Increase savings with the optional motion sensor and photoelectric dusk To dawn Sensor ( Photocell part # JL-404C for outdoor applications only ).

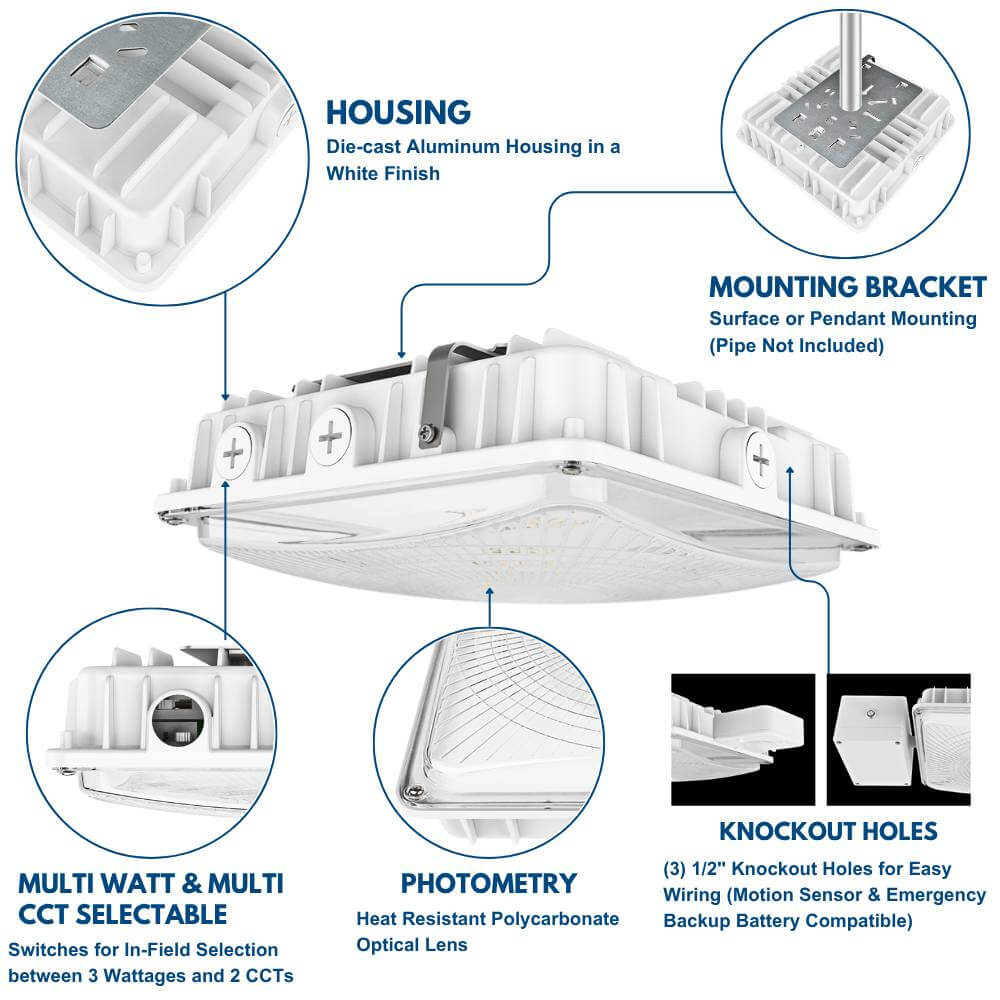

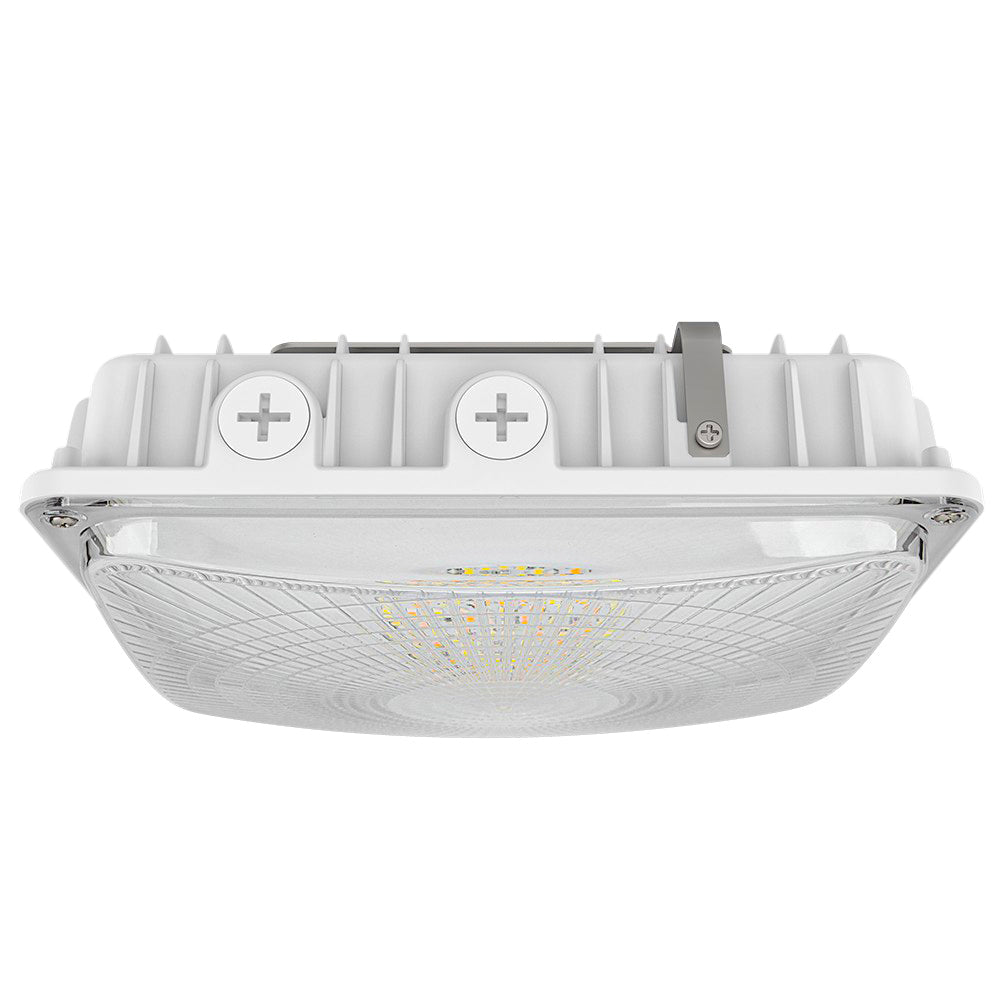

Quick Surface Mount Installation- no need to open fixture, the low profile square shape die-cast aluminum housing and bronze finish is similar to traditional HID canopy lights for retrofit. Will also support pendant mounting.

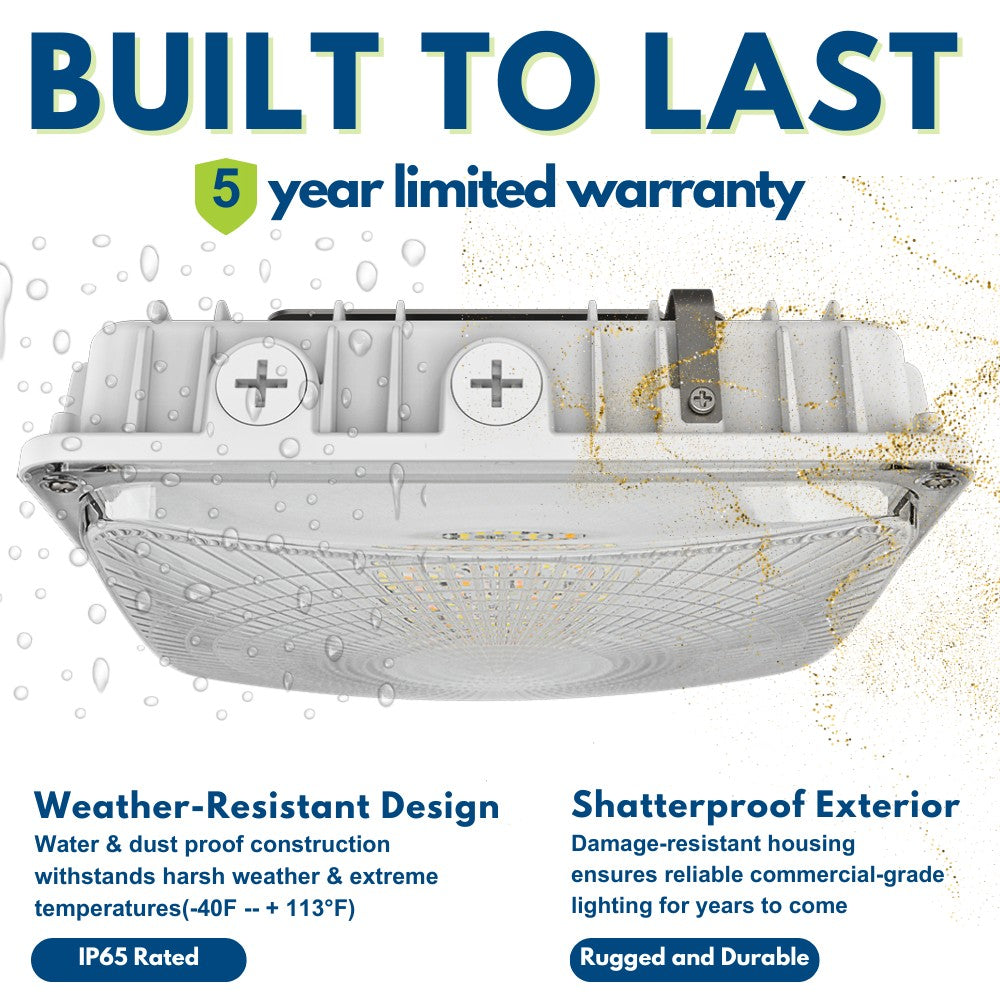

IP65 wet rated, Sealed and gasketed to withstand insects, dust and harsh weather environments. UV stabilized clear polycarbonate lens that will not discolor with age.
Designed for general illumination for both indoor and outdoor applications. The LED design ensures long-lasting use and reduces the need for bulb changing maintenance.
UL, DLC for eligible rebates, 50,000>hours L70 lifespan use, 5-year warranty.

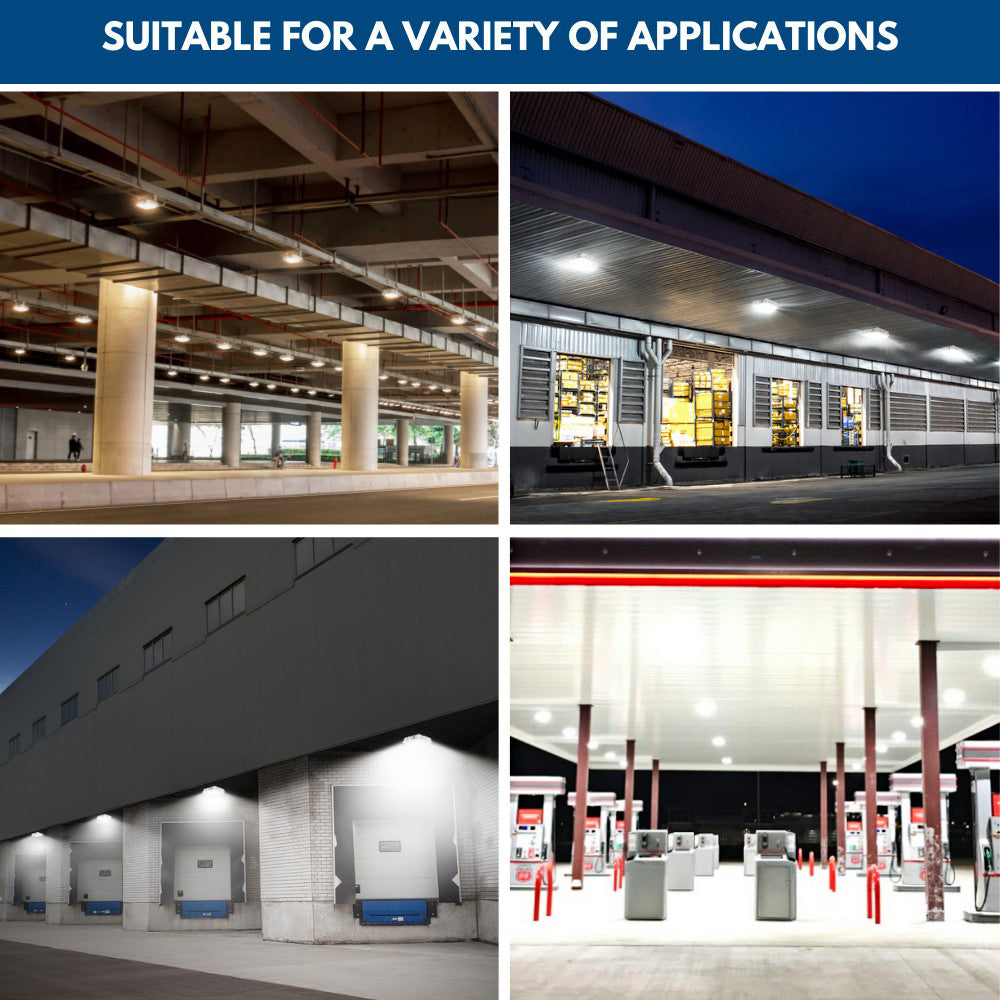

Applications
| • Workshop | • Walkways |
| • Garage | • Store Front |
| • Parking Garage | • Gas Stations |
| • Low Bays | • Cover Docks |
| • General Site Lighting | • Doorway and Pathway |
Specifications
| Brand | Konlite | MPN | KCPLMWMCLVW |
| Warranty | Limited 5 Years | UPC | 659359846847 |
| Input Voltage | 120-277V | Dimmable | 0-10V |
| Input Wattage | 63W/45W/30W | Equal to | 100W/150W MH |
| Delivered Lumens | 9360 Max. | CRI | >80 |
| Efficacy | Up to 160 LM/W | Available CCT | 5000K/4000K Selectable |
| Rated Life | >50,000 hrs | THD | <17% |
| Power Factor | >0.9 | IP Rating | IP65 |

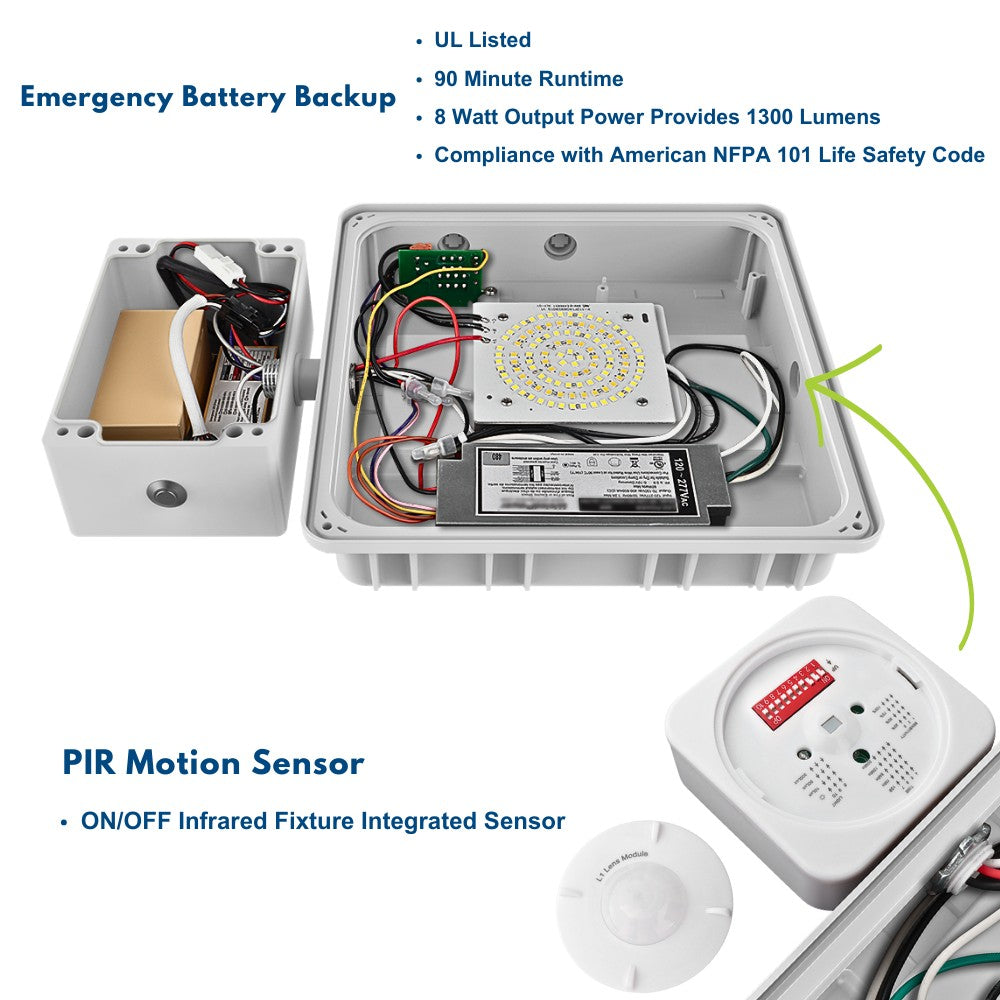

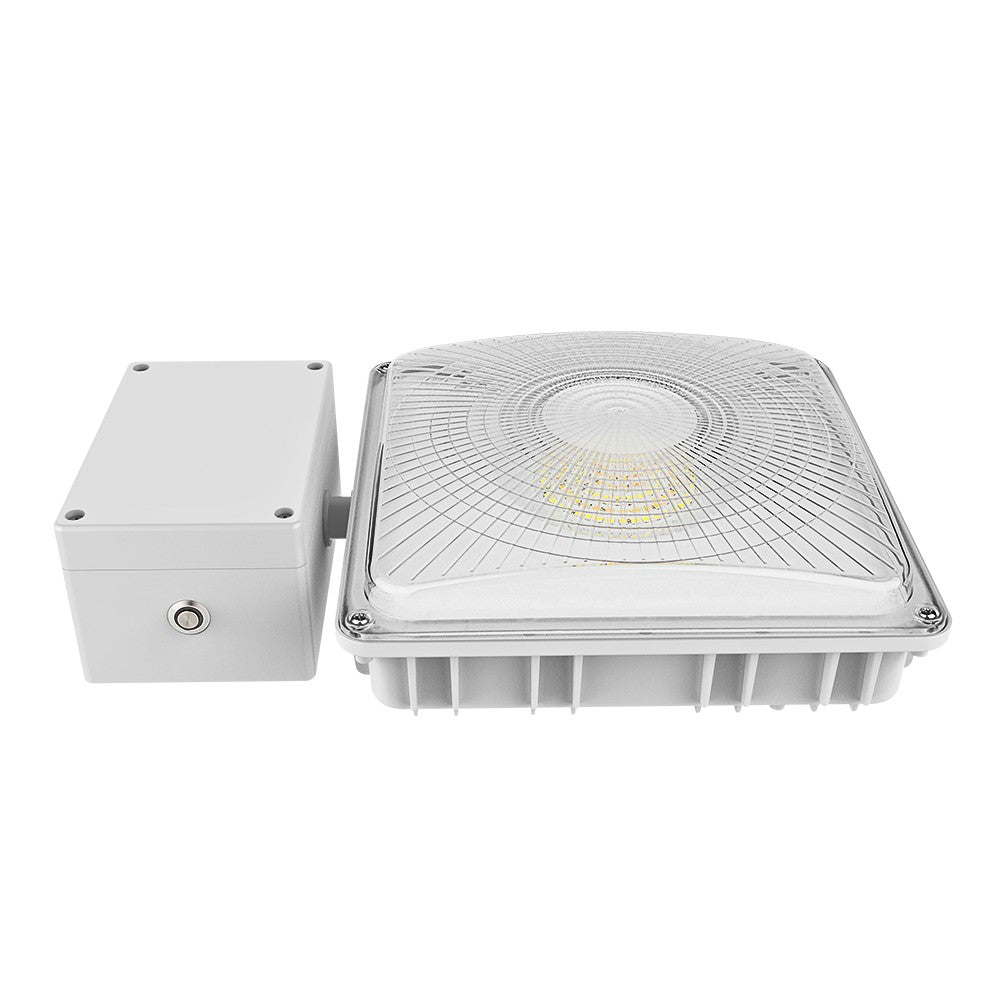

| Operating Temp | -40°F to 113°F | Controls | Motion Sensor or Emergency Battery Back Up |
| Certifications | UL, Wet Locations, DLC | Weight | 3.62 lbs |
Video
Video of LED Canopy Light - White - 63W/45W/30W - 5000K/4000K - Up To 9360 LM - Dimmable - 120-277V - 250W Equal
 | Download Specifications |
| Download Sensor Specifications |
| Download IES 63W, 45W & 30W |
