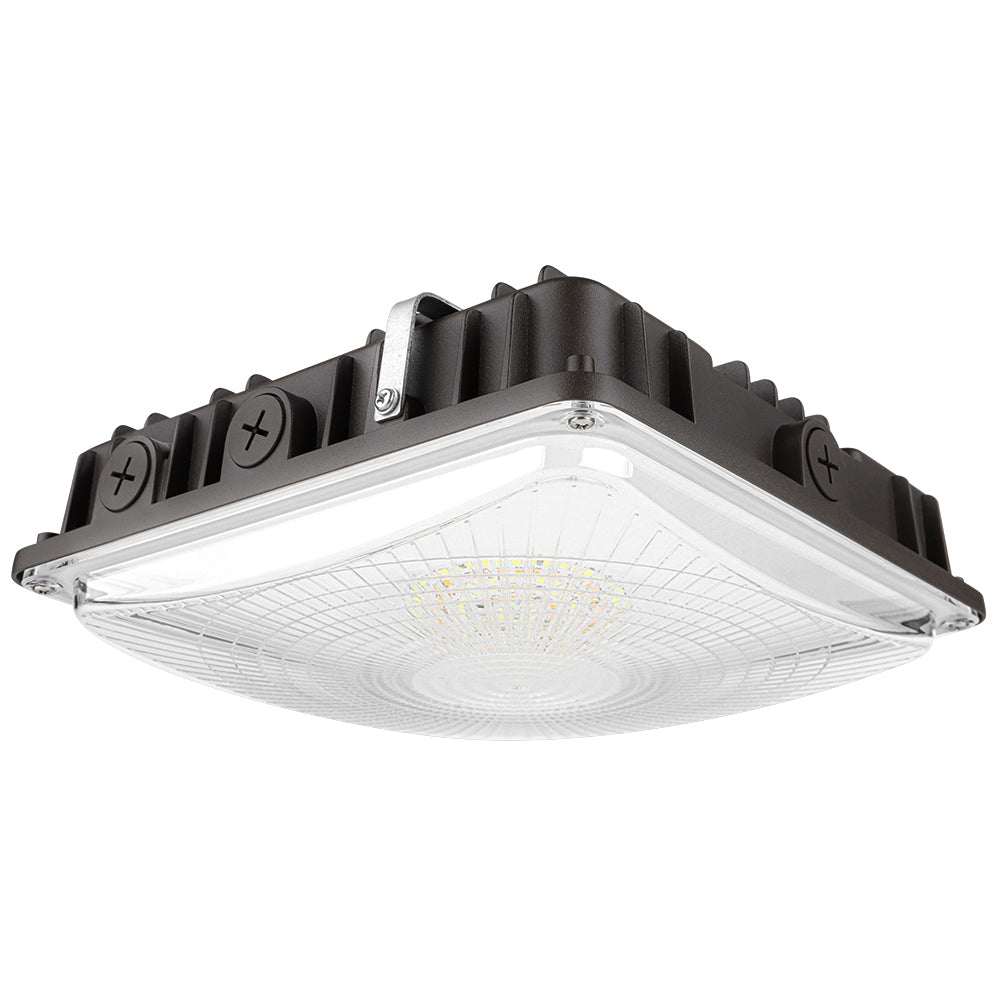

LED Canopy Light - 63W/45W/30W Selectable - 5000K/4000K - Up to 9,360 LM - Dimmable - 120-277V - 150W Equal

Product Search Code: 23-0220
KonliteSKU: KCPLMWMCLVB
$98.99 $59.65

    • Replaces 100W-150W HID/MH luminaires
    • 0-10V Dimmable
    • CCT Selectable: 4000K-5000K(Preset)
    • Certificates: UL, DLC 5.1
    • 5-Year Warranty
    • Watts and Brightness Selectable (4000K):
      • 63W = 9,360Lm
      • 45W = 7,100Lm
      • 30W = 4,850Lm

    • Replaces 100W-150W HID/MH luminaires
    • 0-10V Dimmable
    • CCT Selectable: 4000K-5000K(Preset)
    • Certificates: UL, DLC 5.1
    • 5-Year Warranty
    • Watts and Brightness Selectable (4000K):
      • 63W = 9,360Lm
      • 45W = 7,100Lm
      • 30W = 4,850Lm

  • Easy installation, quick mount to junction box
  • Acrylic lens for uniform light distribution
  • Die cast aluminum housing
show more
$98.99 $59.65


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.
  • Easy installation, quick mount to junction box
  • Acrylic lens for uniform light distribution
  • Die cast aluminum housing

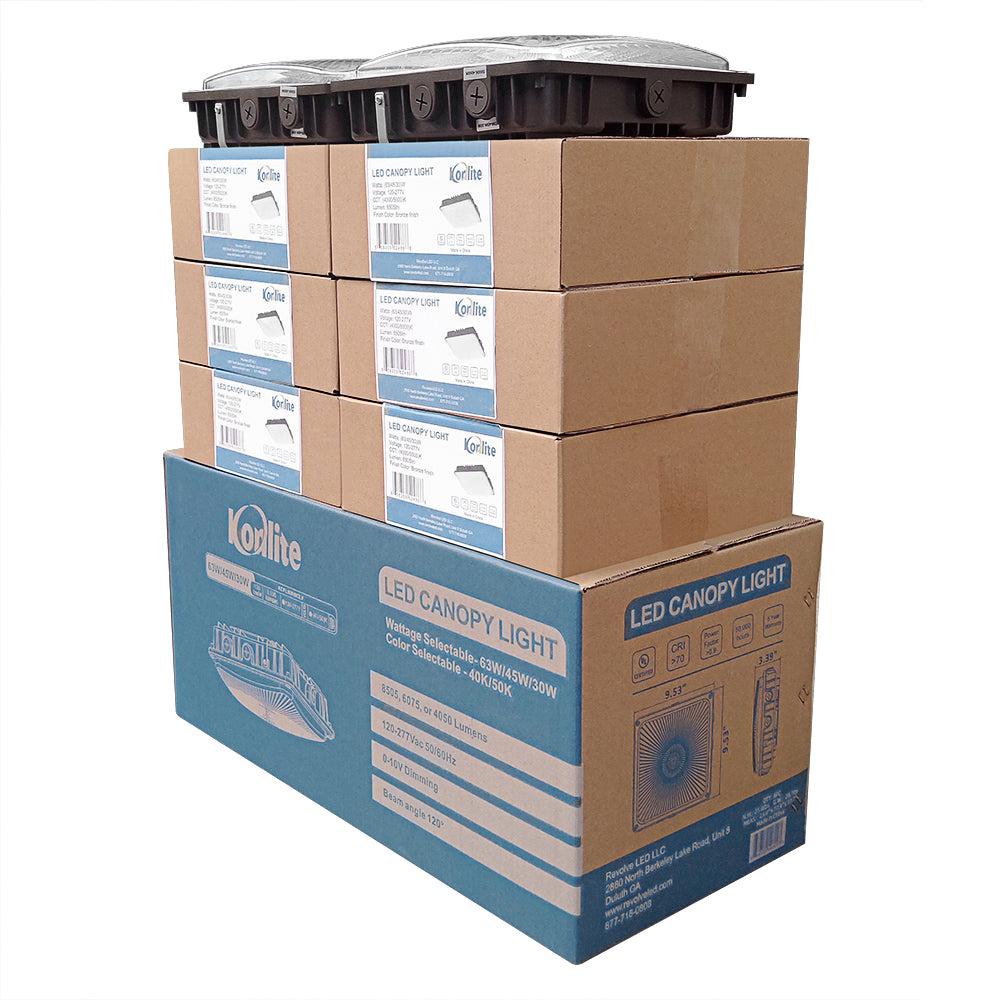

What's in the box

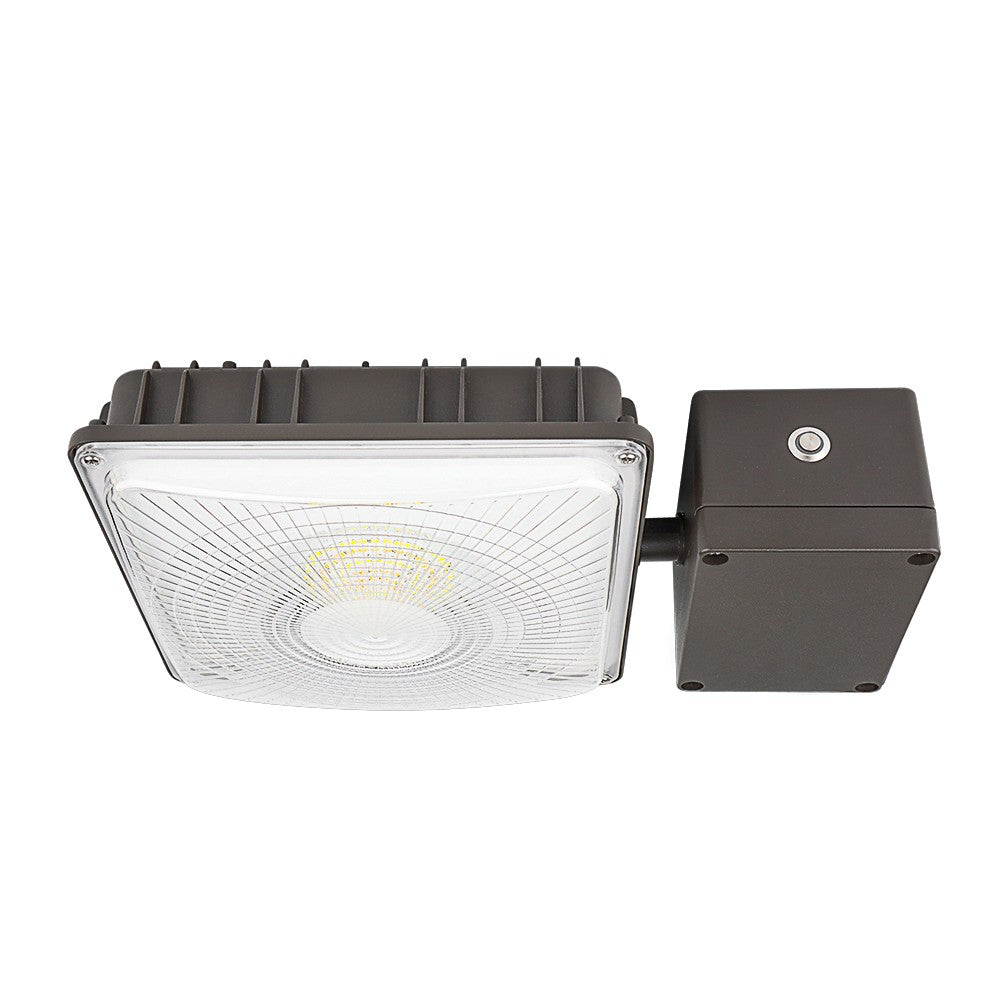

2 Lighting Fixture with J-Junction - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
2 Lighting Fixture with J-Junction - 1 Installation Guide

Product Overview

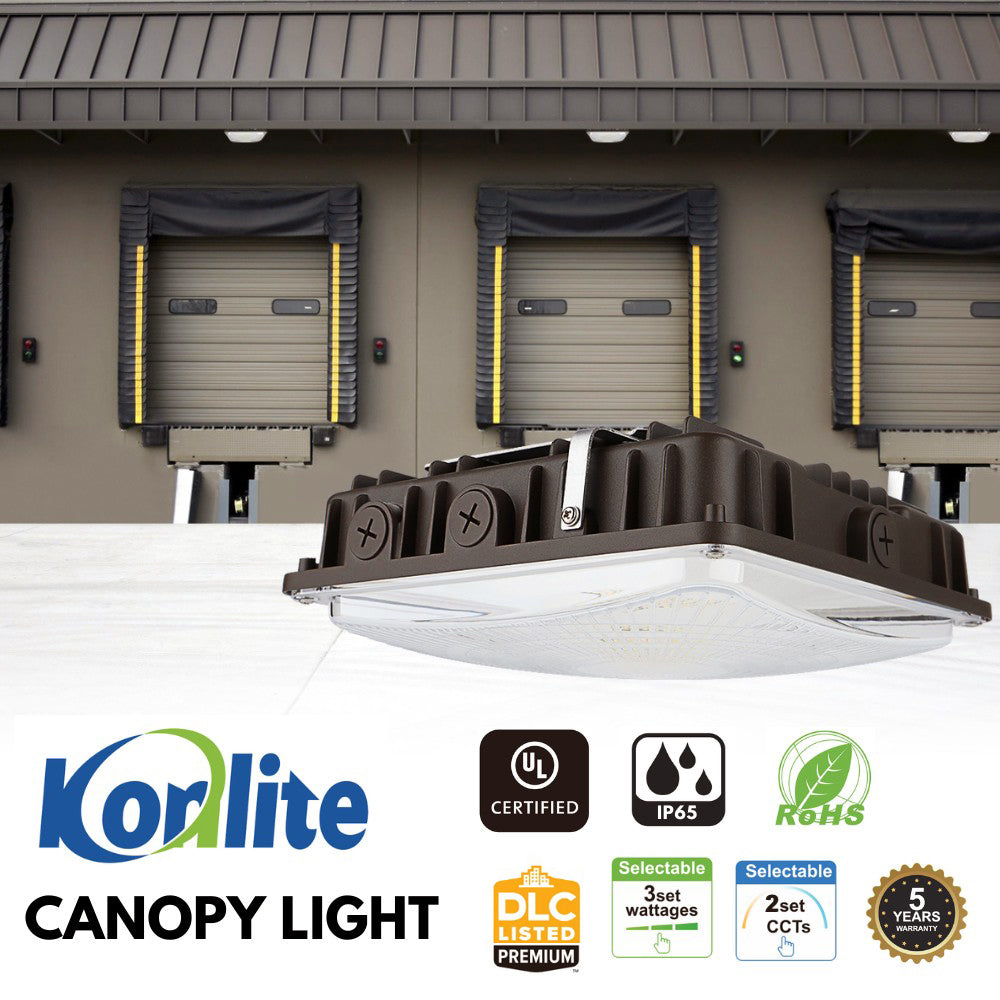

Provide safety and better visibility while reducing operating and maintenance costs with the energy efficient Konlite LED Canopy Area Light. It is a popular choice for retrofit of HID or HPS and new construction.

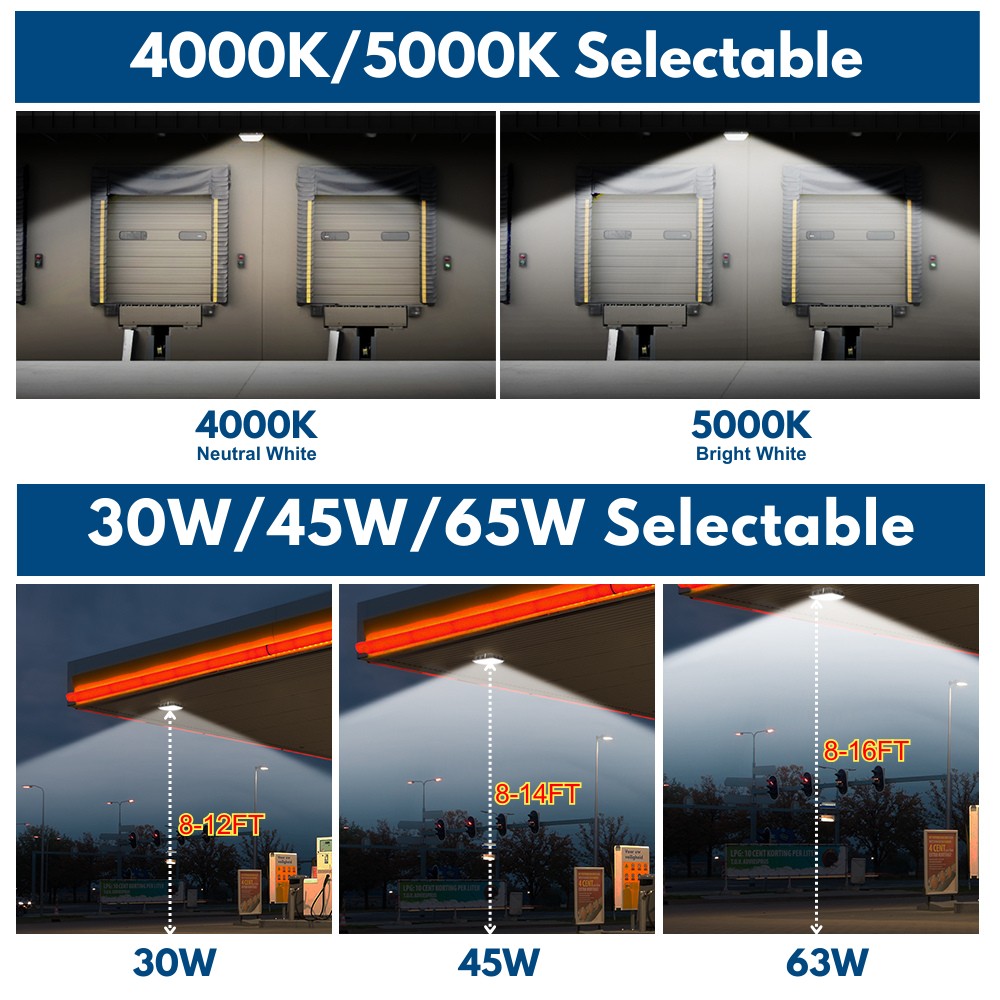

*Three wattage selectable

Wattage/Lumens (4000K): 63W/9360, 45W/7100, 30W/4850

Wattage/Lumens (5000K): 63W/8500, 45W/6850, 30W/4720

*Two Color CCT switches:

4000K Neutral White

5000K Daylight White

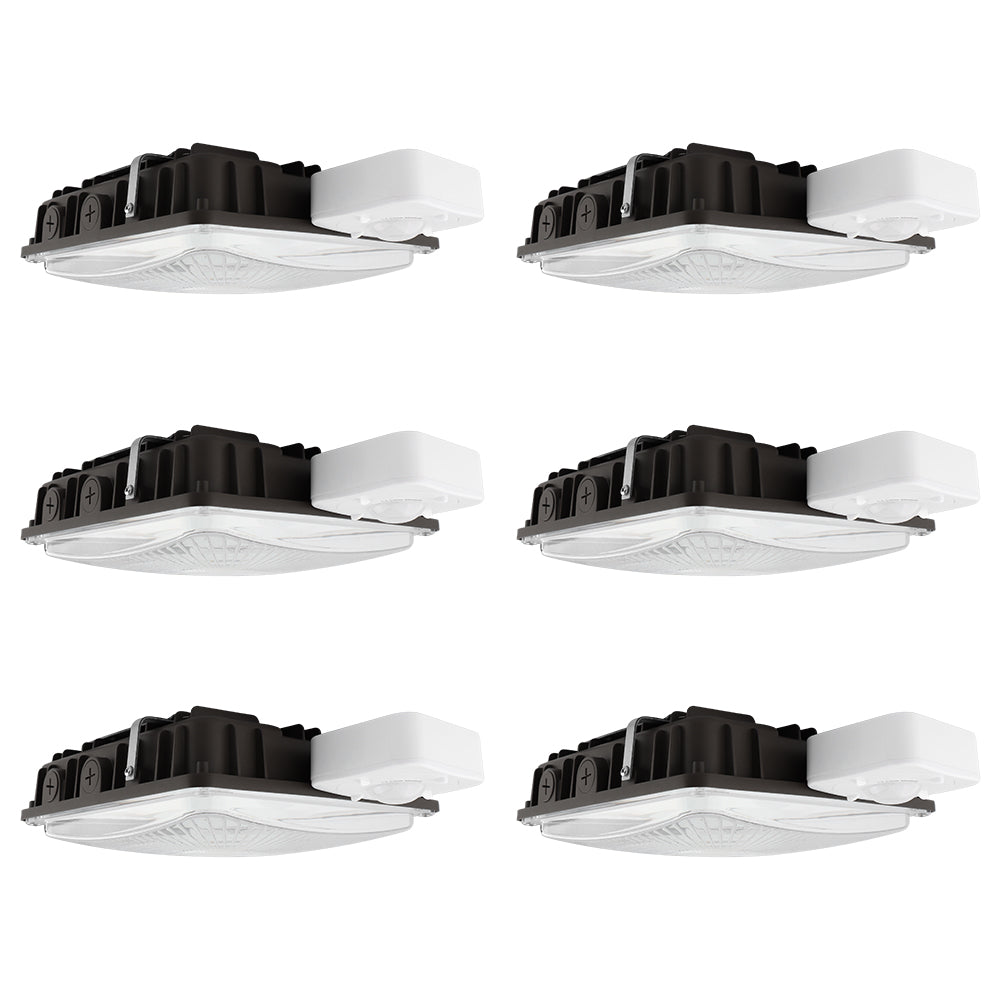

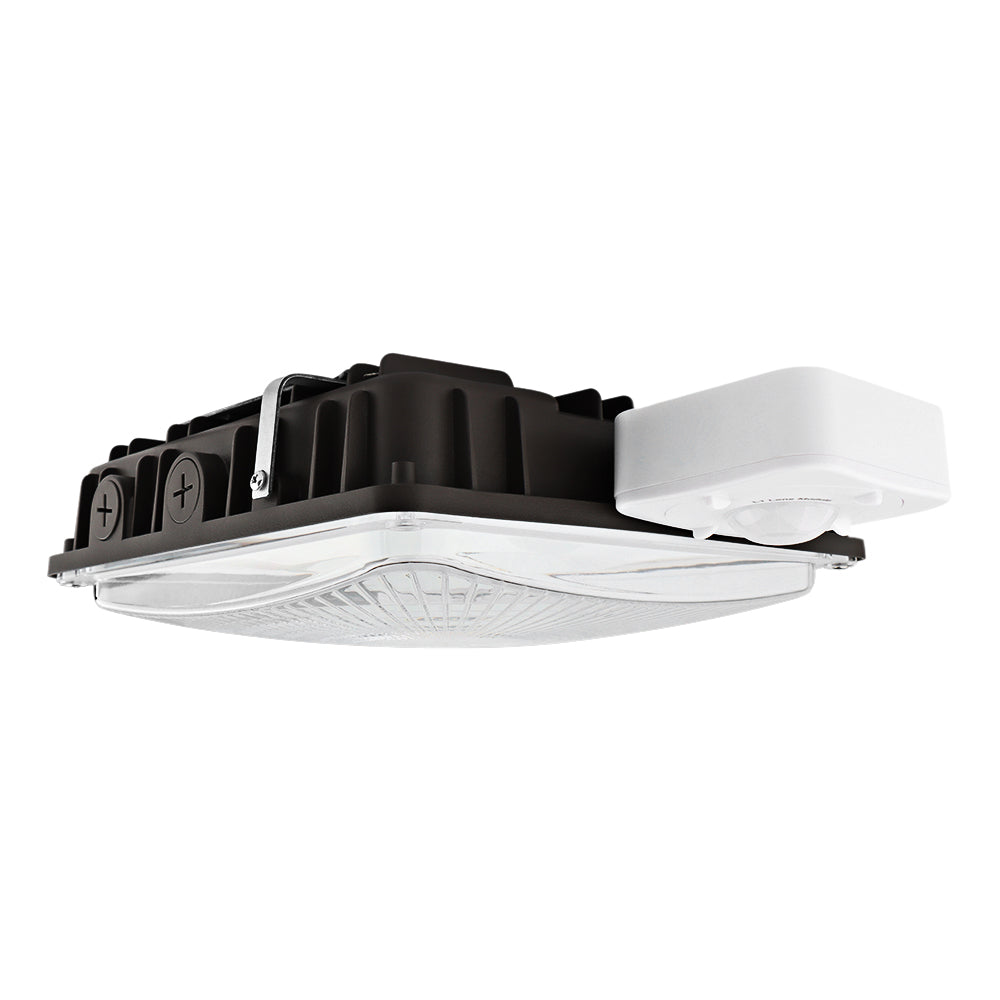

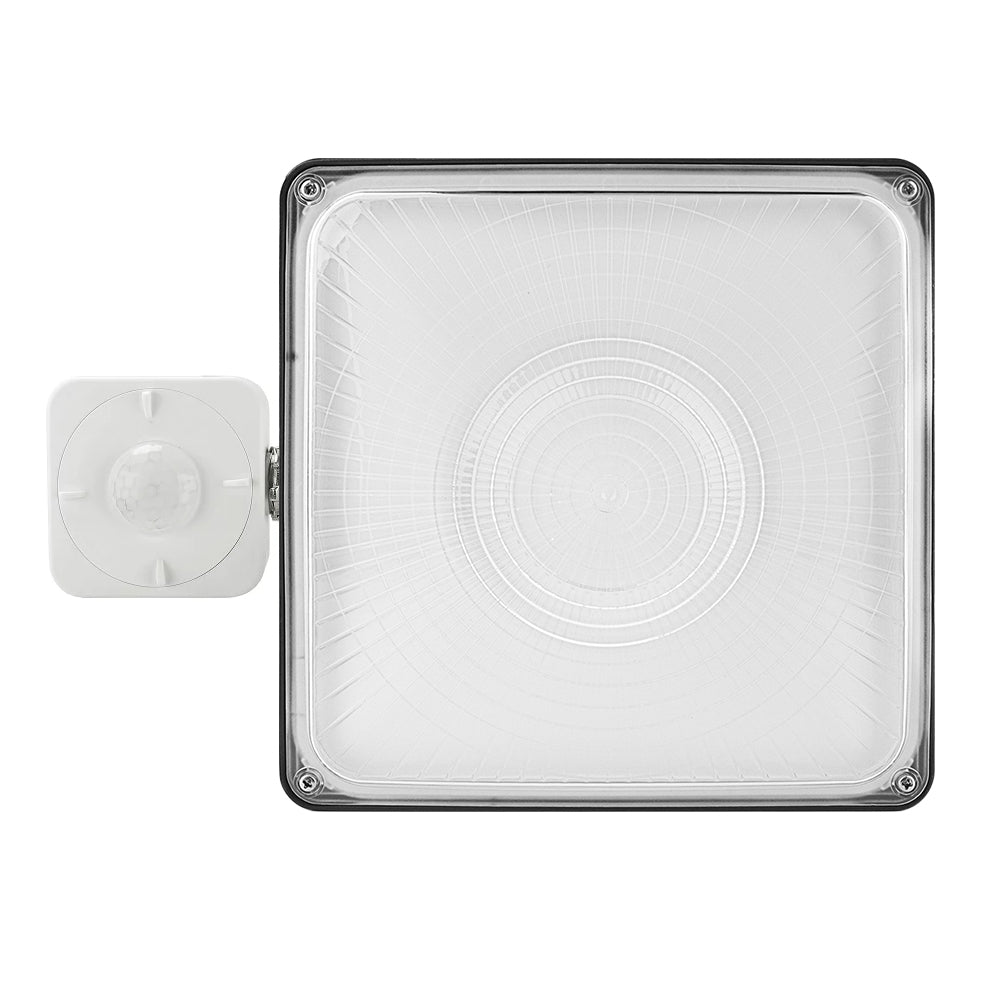

Increase savings with the optional motion sensor and photoelectric dusk To dawn Sensor ( Photocell part #  JL-404C for outdoor applications only )

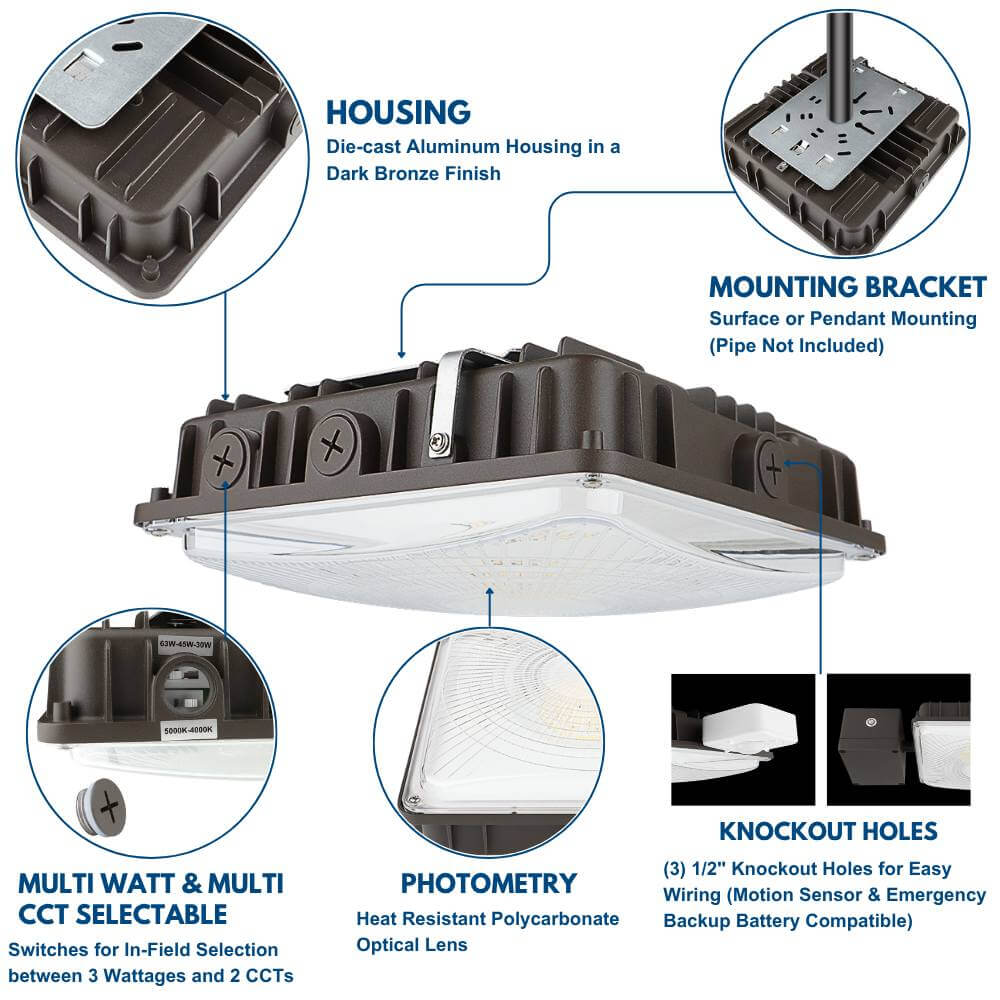

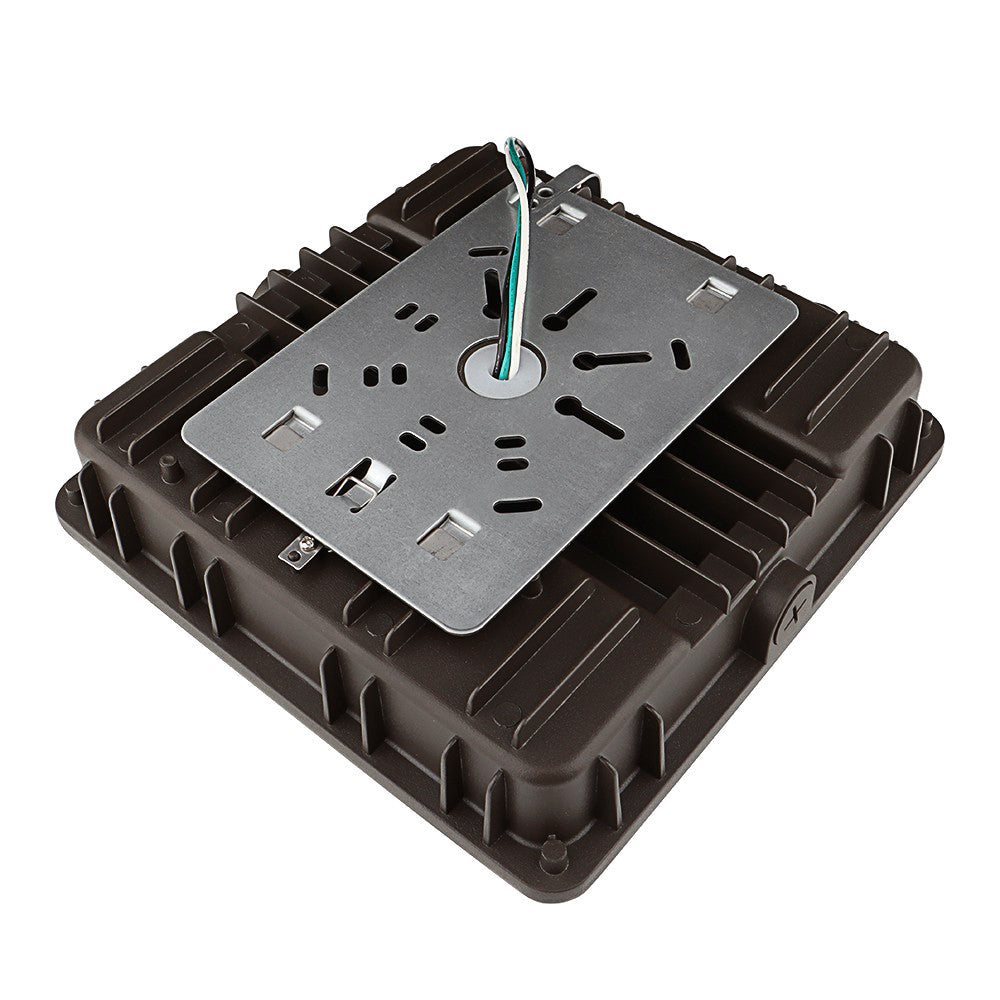

Quick Surface Mount Installation- no need to open fixture, the low profile square shape die-cast aluminum housing and bronze finish is similar to traditional HID canopy lights for retrofit. Will also support pendant mounting.

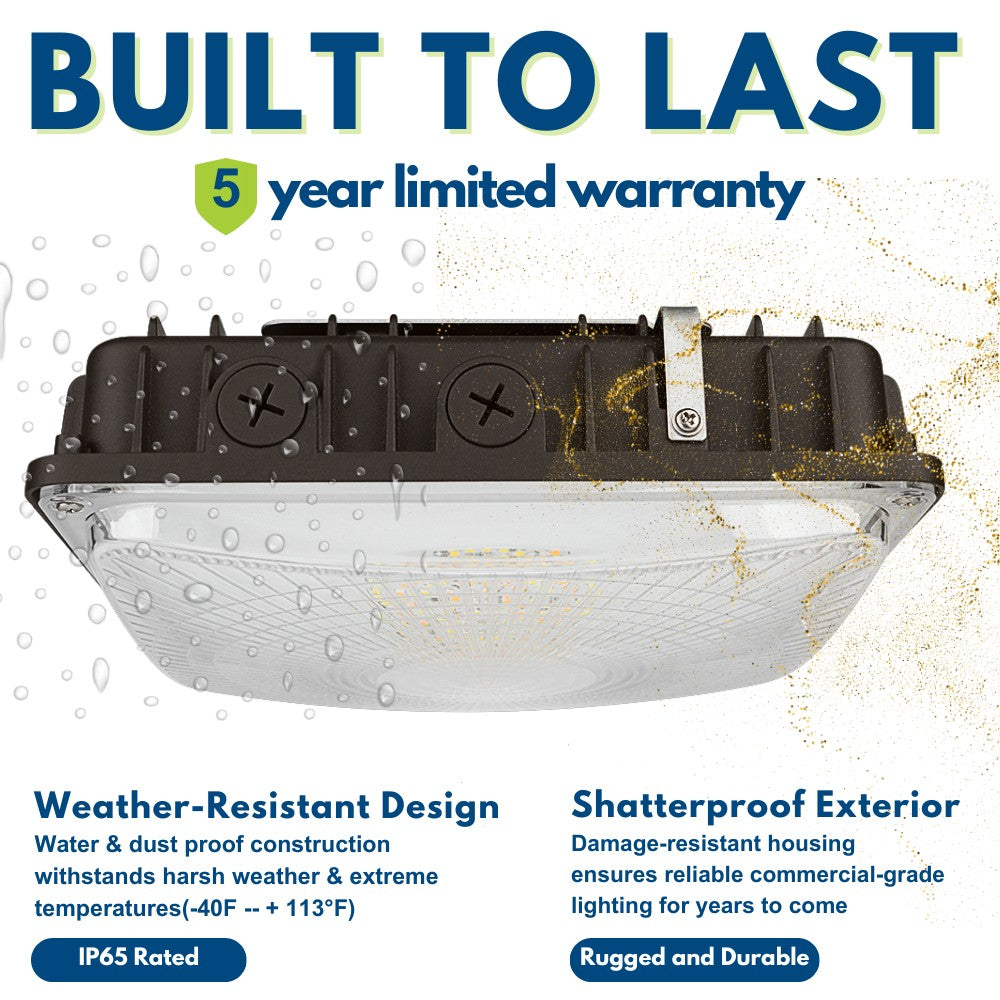

IP65 wet rated, Sealed and gasketed to withstand insects, dust and harsh weather environments. UV stabilized clear polycarbonate lens that will not discolor with age.

Designed for general illumination for both indoor and outdoor applications. The LED design ensures long-lasting use and reduces the need for bulb changing maintenance.

UL, DLC for eligible rebates, 50,000>hours L70 lifespan use, 5-year warranty.

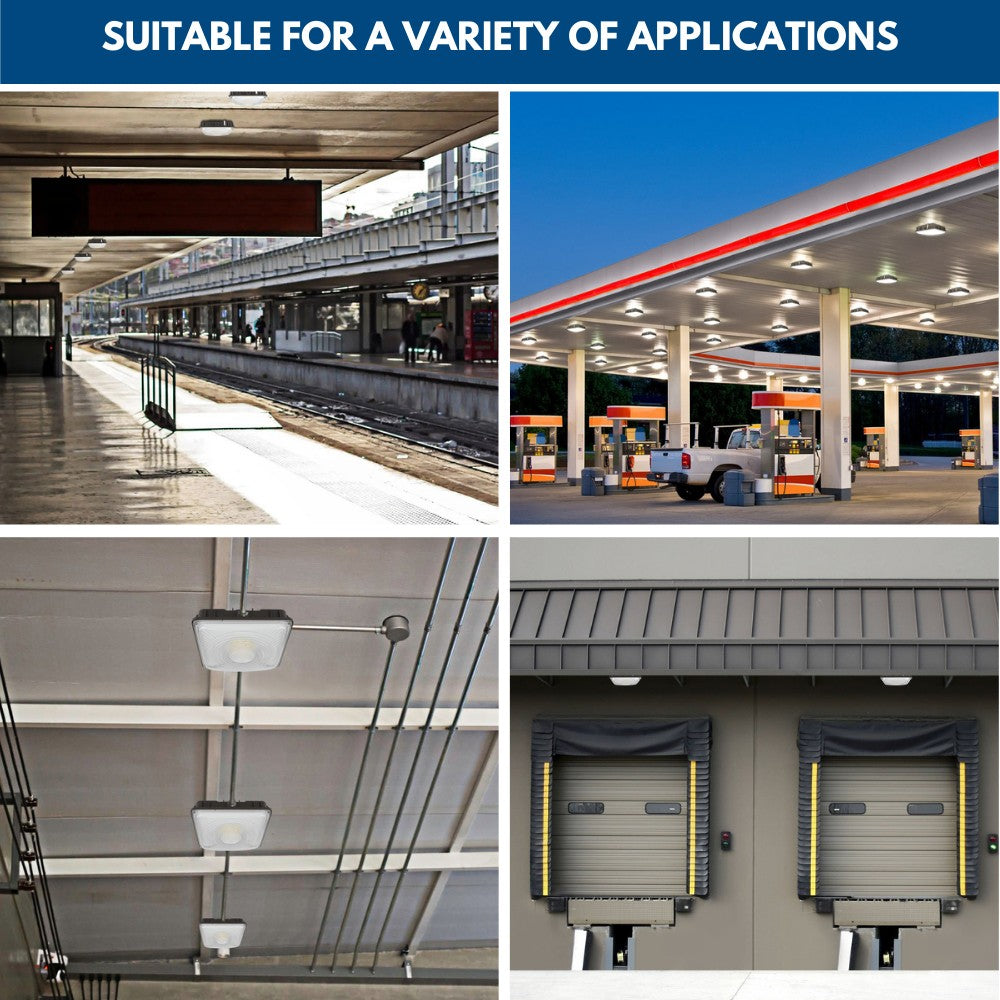

Applications

• Workshop • Walkways
• Garage • Store Front
• Parking Garage • Gas Stations
• Low Bays • Cover Docks
• General Site Lighting • Doorway and Pathway
Color Temperature Selectable 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableFCC certificationIP65 rating

Specifications

BrandKonliteMPNKCPLMWMCLV
WarrantyLimited 5 YearsUPC659359524868
Input Voltage120-277VDimmable0-10V
Input Wattage63W/45W/30WEqual to100W/150W MH
Delivered Lumens9360 Max.CRI>80
EfficacyUp to 160 LM/WAvailable CCT5000K/4000K Selectable
Rated Life>50,000 hrsTHD<17%
Power Factor>0.9IP RatingIP65

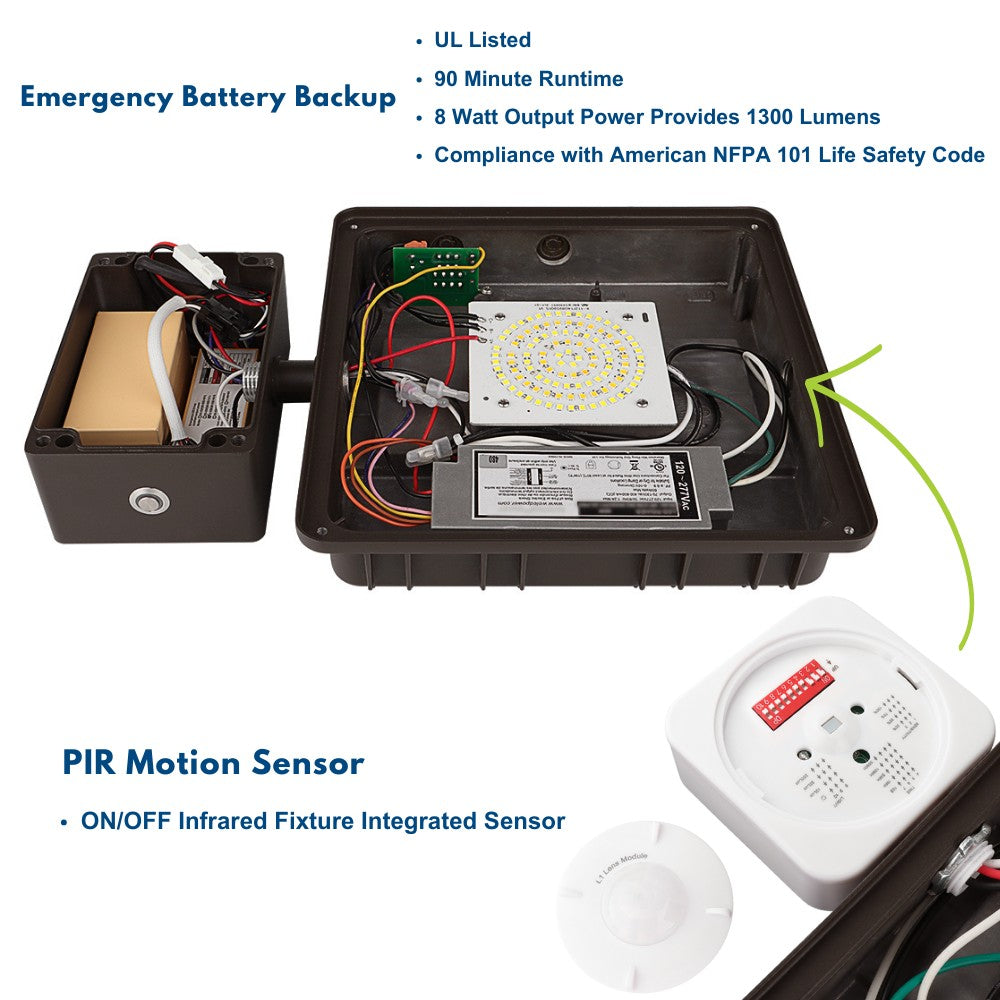

Operating Temp-40°F to 113°FControlsMotion Sensor or Emergency Battery Back Up
CertificationsUL, Wet Locations, DLCWeight3.62 lbs

Video

Video of LED Canopy Light - 63W/45W/30W - 5000K/4000K - Up To 9360 LM - Dimmable - 120-277V - 250W Equal

Accessories

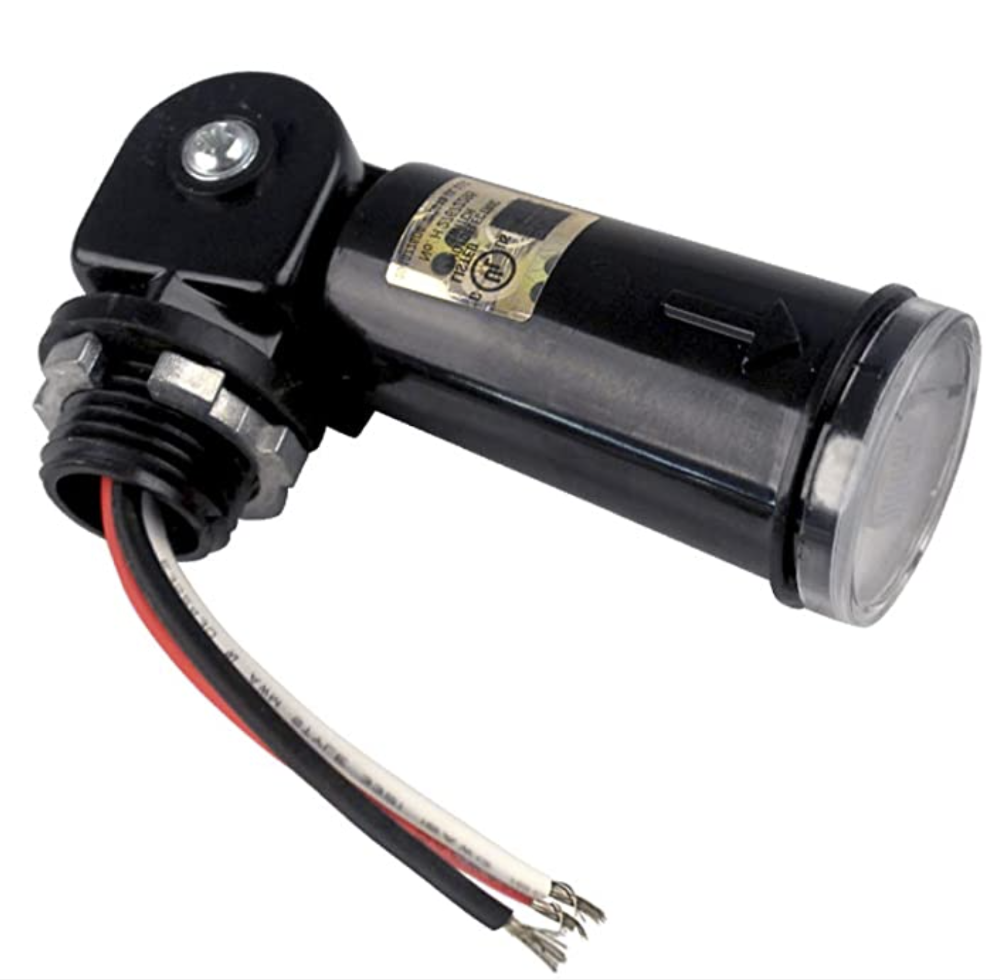

Photocell Sensor with Swivel Mount
