Product Overview

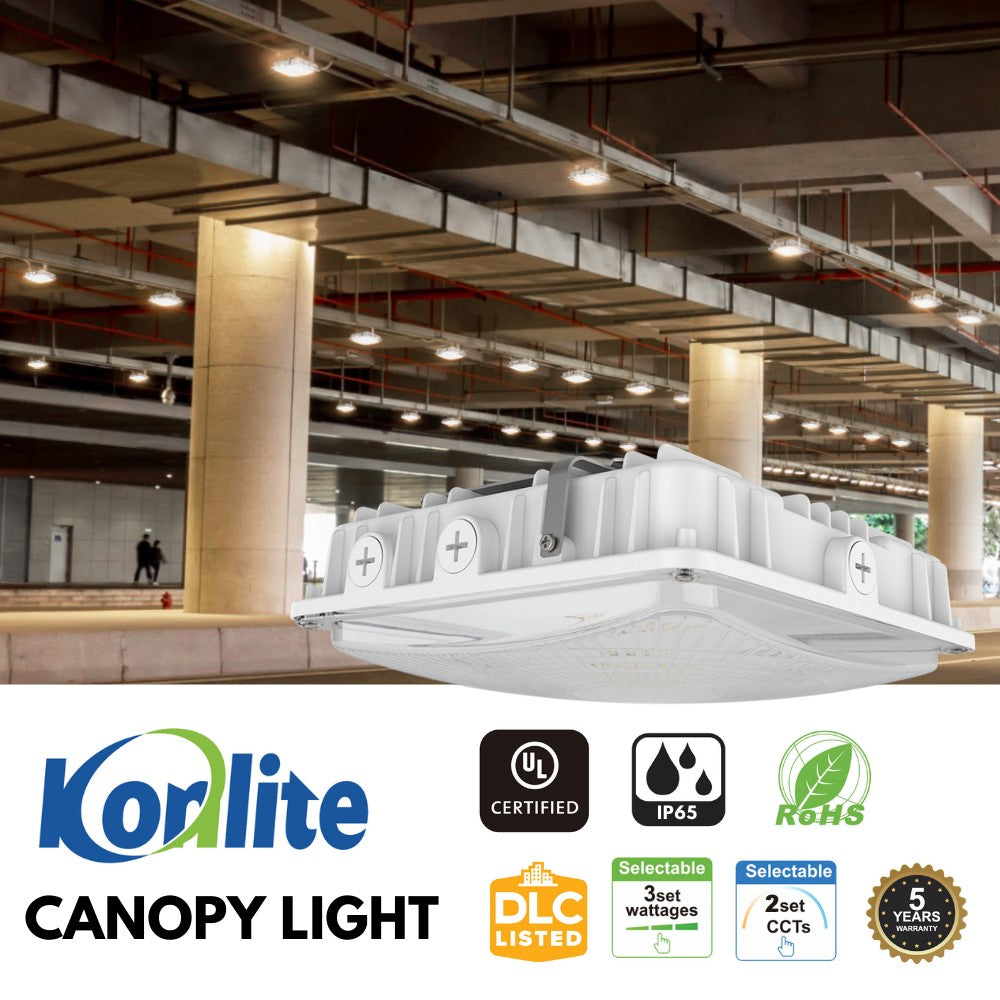

Illuminate your spaces with reliability and efficiency with our White LED Canopy Light featuring Emergency Battery Backup. Designed to deliver superior lighting performance and energy savings, this canopy light is perfect for a variety of applications including parking garages, gas stations, and walkways.
Key Features:
- High Lumen Output: With a high efficacy up to 162 LM/W, the fixture provides bright and clear illumination, ensuring safety and visibility in all conditions.
- Emergency Battery Backup: Equipped with a 8 Watt robust battery backup system, our LED canopy light guarantees up to 90 minutes of uninterrupted light during power outages, ensuring continuous operation and safety.
- Energy-Efficient: With advanced LED technology, this light consumes significantly less power compared to traditional lighting solutions, reducing your energy costs up to 60% and environmental footprint.
- Durable Construction: Made from high-quality die-casting aluminum housing, this light is built to withstand harsh weather conditions and daily wear and tear, ensuring long-lasting performance.
- Easy Installation: Designed for hassle-free installation - no need to open fixture, this canopy light comes with all necessary mounting hardware and detailed instructions, making it a perfect choice for both new constructions and retrofit projects.
- Versatile Applications: Ideal for use in commercial, industrial, and public spaces, offering a wide range of mounting options to suit your specific needs.
- Modern Design: Sleek and modern design seamlessly integrates into any architectural style, enhancing the aesthetic appeal of your property.
-
Wattage and CCT Selections: Features selectable wattage and CCT options to meet your specific lighting needs:
-
Three Wattage Selections:
- 63W/9360 lumens (4000K) or 8500 lumens (5000K)
- 45W/7100 lumens (4000K) or 6850 lumens (5000K)
- 30W/4850 lumens (4000K) or 4720 lumens (5000K)
- Two CCT Switches: Choose between 4000K Neutral White or 5000K Daylight White to achieve the desired lighting ambiance.
-
Three Wattage Selections:
Increase savings with the optional motion sensor and photoelectric dusk To dawn Sensor ( Photocell part # JL-404C for outdoor applications only ).
IP65 wet rated, Sealed and gasketed to withstand insects, dust and harsh weather environments. UV stabilized clear polycarbonate lens that will not discolor with age.
Designed for general illumination for both indoor and outdoor applications. The LED design ensures long-lasting use and reduces the need for bulb changing maintenance.
UL, DLC for eligible rebates, 50,000>hours L70 lifespan use, 5-year warranty.
Upgrade your lighting system with our LED Canopy Light with Emergency Battery Backup and experience the perfect blend of efficiency, durability, and reliability. Trust in a lighting solution that not only brightens your spaces but also provides peace of mind with its emergency backup capabilities. Illuminate with confidence, even when the unexpected happens.
Applications
• Workshop | • Walkways |
• Garage | • Store Front |
• Parking Garage | • Gas Stations |
• Low Bays | • Cover Docks |
• General Site Lighting | • Doorway and Pathway |
![Selectable 4,000k & 5,000k color temperature](https://cdn.shopify.com/s/files/1/0377/8933/5692/files/color-temperature_4k_5k.jpg?v=1692338082)
Specifications
Brand | Konlite | MPN | KCPLMWMCLVWEB |
Warranty | Limited 5 Years | UPC | 659675250373 |
Input Voltage | 120-277V | Dimmable | 0-10V |
Input Wattage | 63W/45W/30W | Equal to | 100W/150W MH |
Delivered Lumens | 9360 Max. | CRI | >80 |
Efficacy | Up to 160 LM/W | Available CCT | 5000K/4000K Selectable |
Rated Life | >50,000 hrs | THD | <17% |
Power Factor | >0.9 | IP Rating | IP65 |
Operating Temp | -40°F to 113°F | Controls | Emergency Battery Back Up |
Certifications | UL, Wet Locations, DLC | Weight | 6 lbs |
Video
Video of White LED Canopy Light with Emergency Battery Backup - 63W/45W/30W - 5000K/4000K - 9360 LM - Dimmable - 120-277V - 250W Equal
![]() | Download Specifications |
![]() | Download Sensor Specifications |
![]() | Download IES 63W, 45W & 30W |
