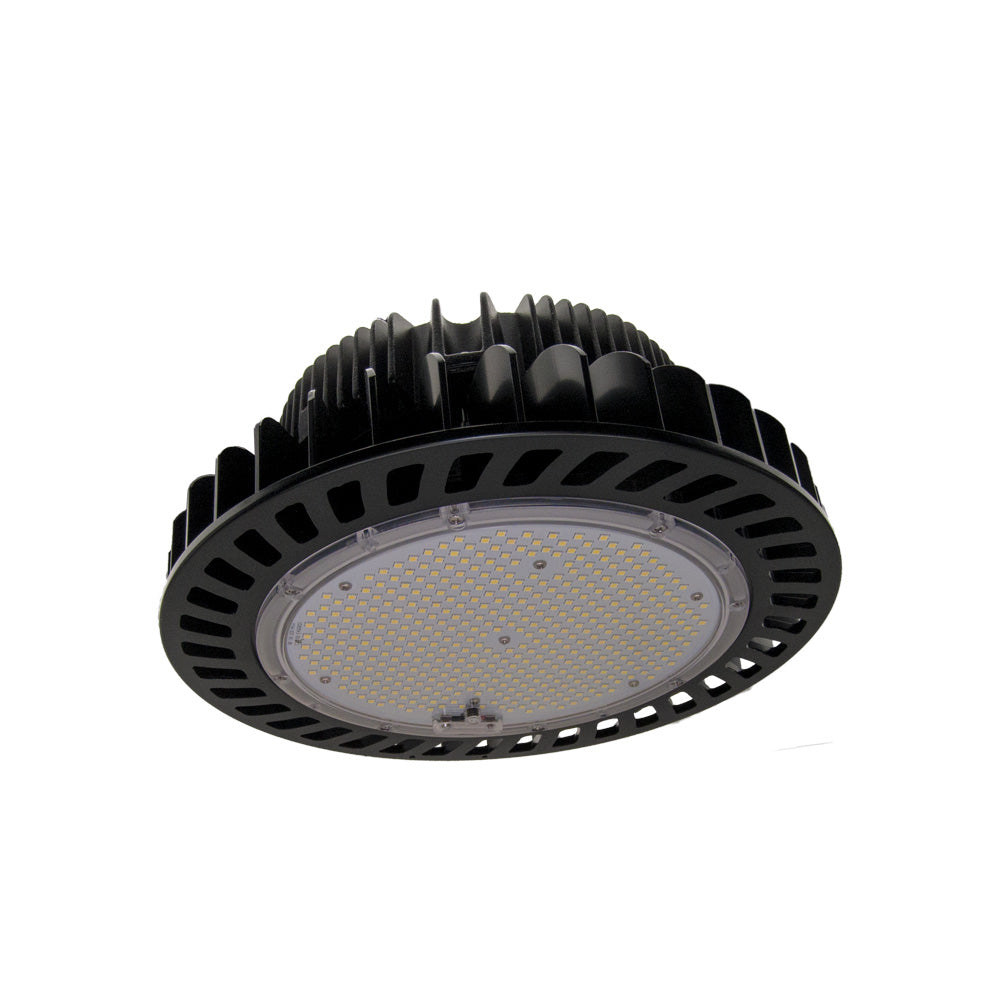

Konlite HB01 series Black UFO LED High Bay Light

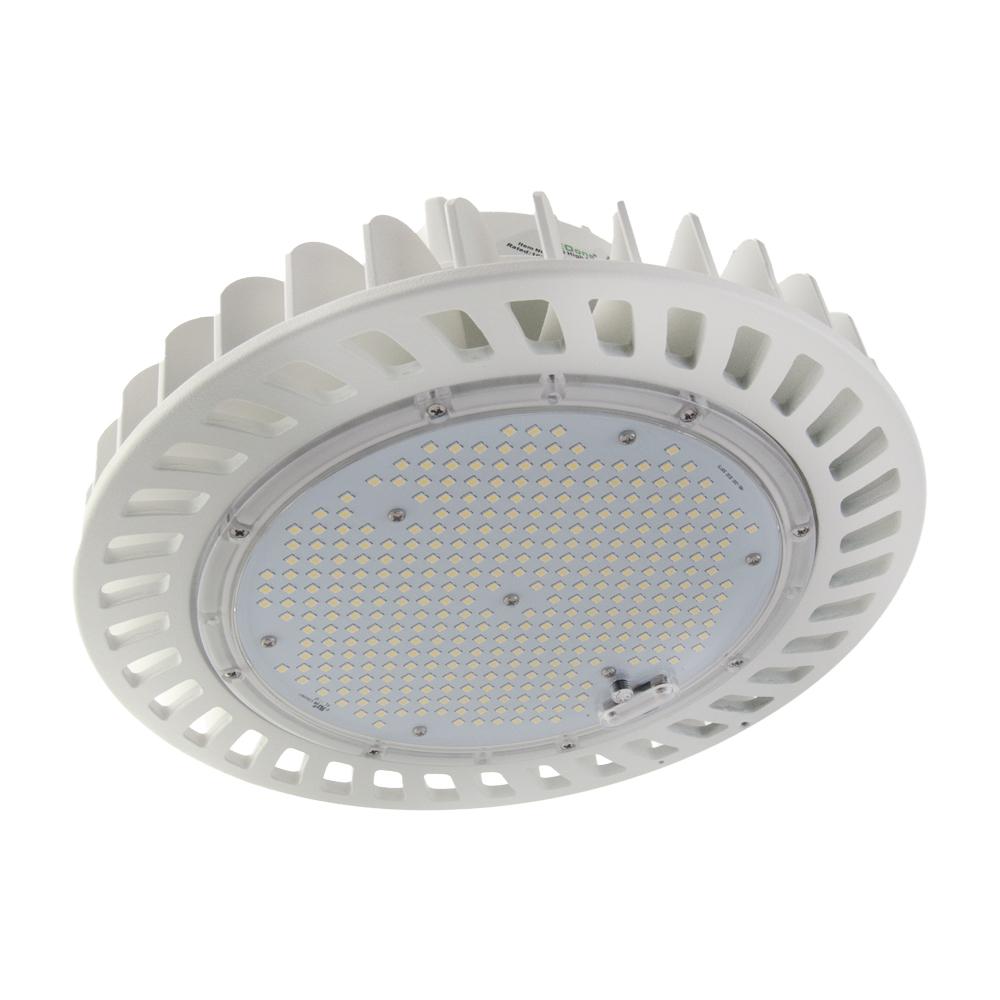

Konlite HB01 series White UFO LED High Bay Light

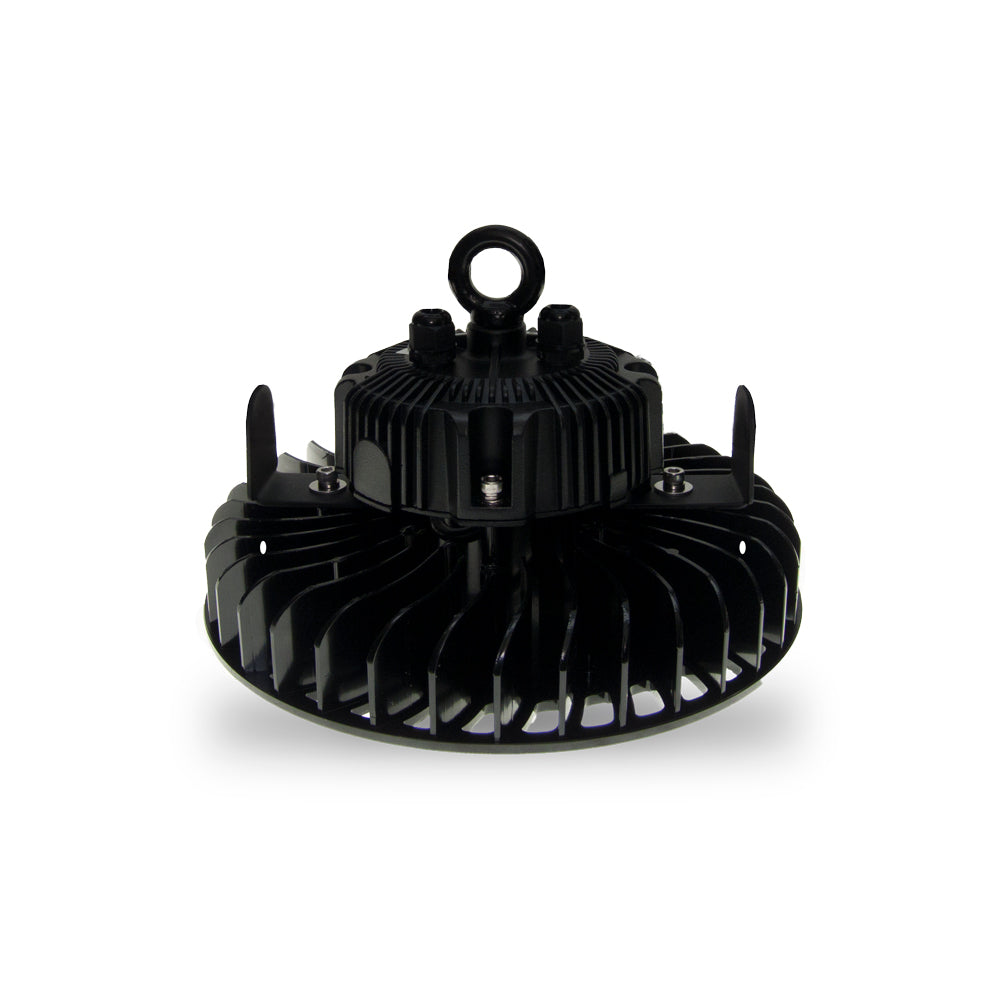

Konlite HB01 series Black UFO LED High Bay Light sideview

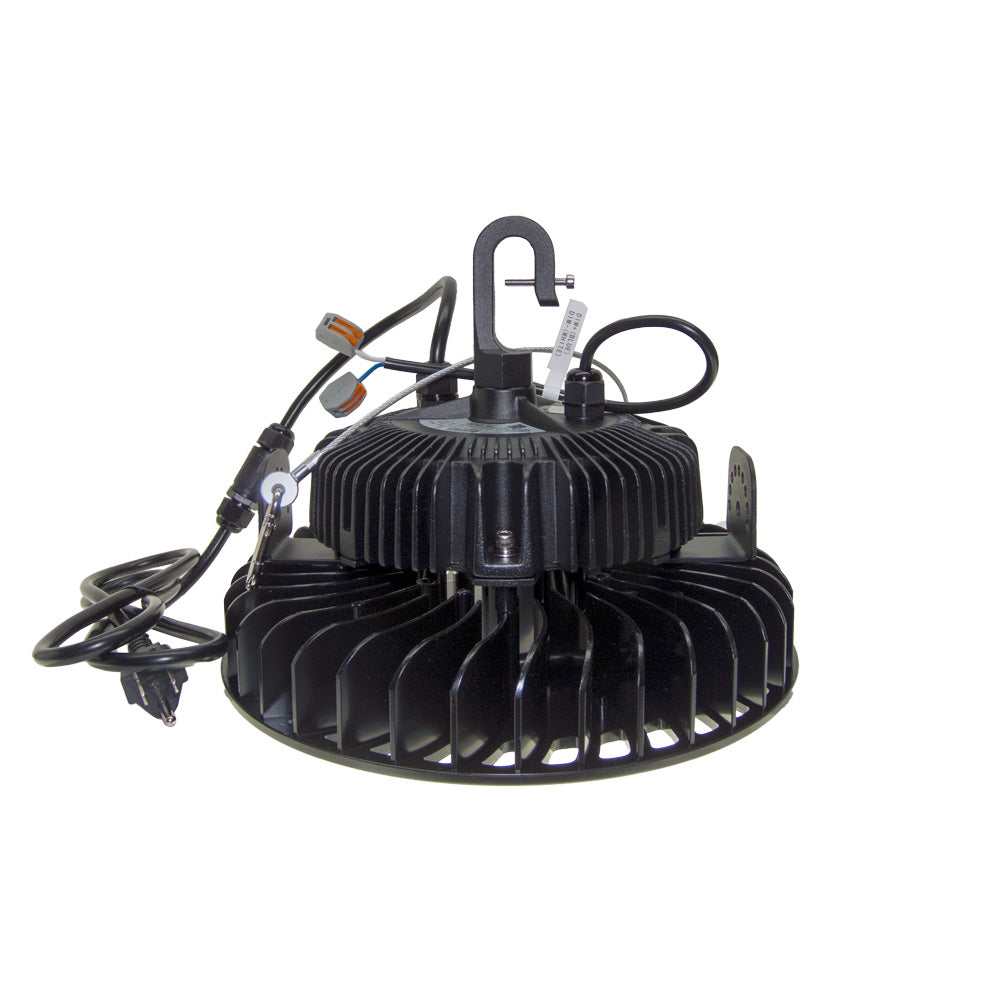

Konlite HB01 series Black UFO LED High Bay Light with cord and plug

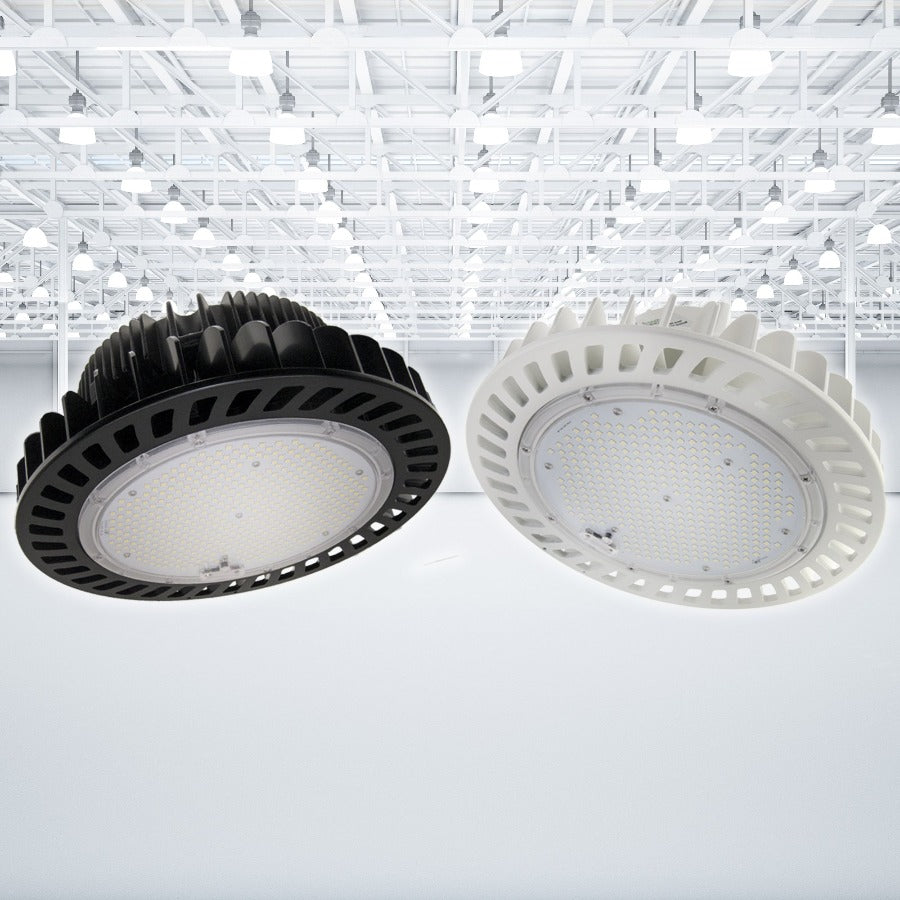

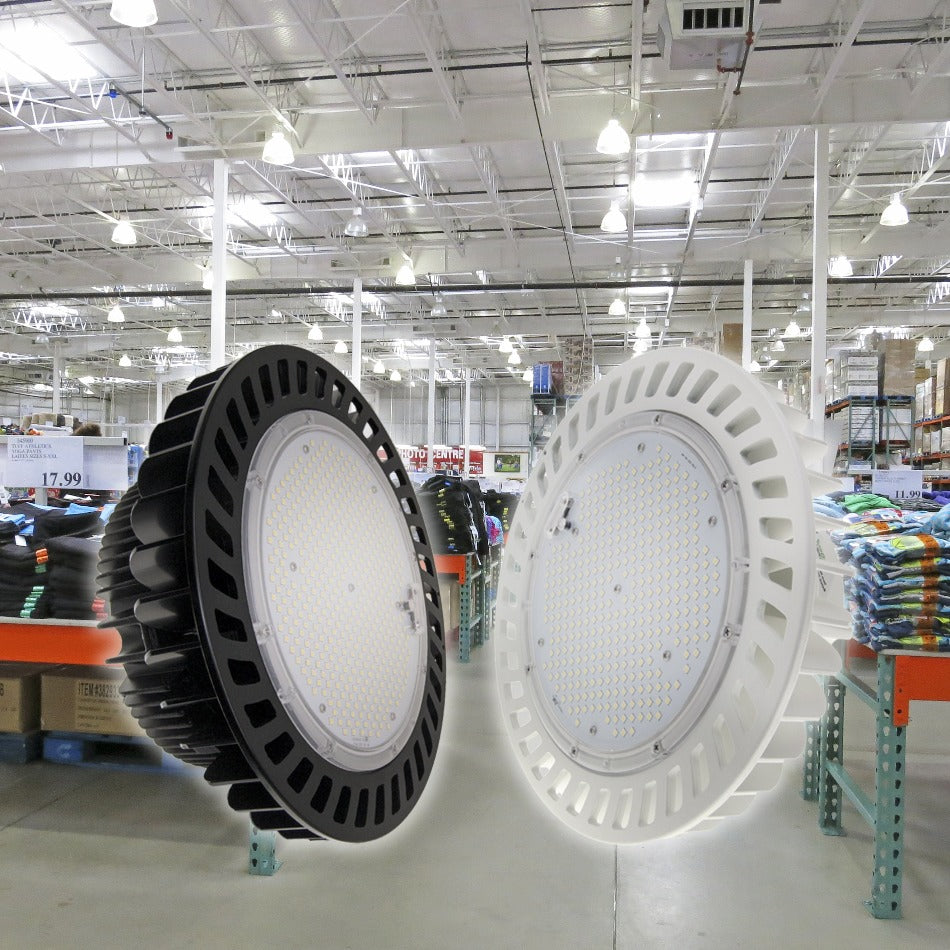

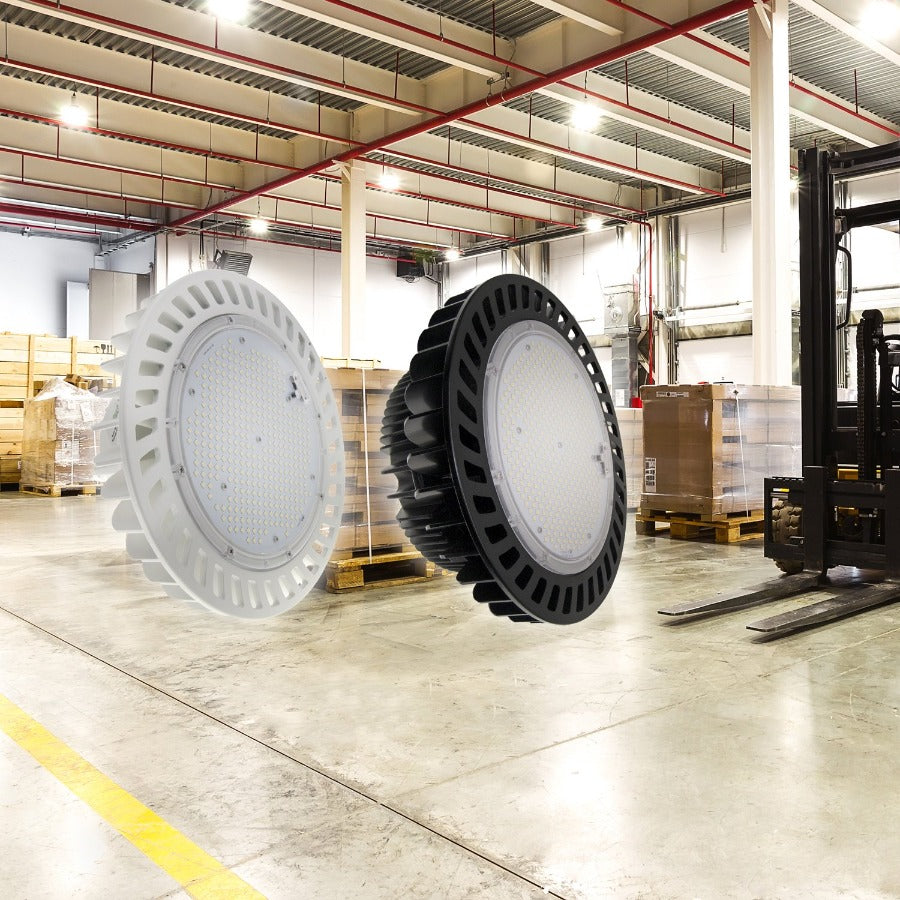

Black and white KONLITE HIGHBAY in a warehouse

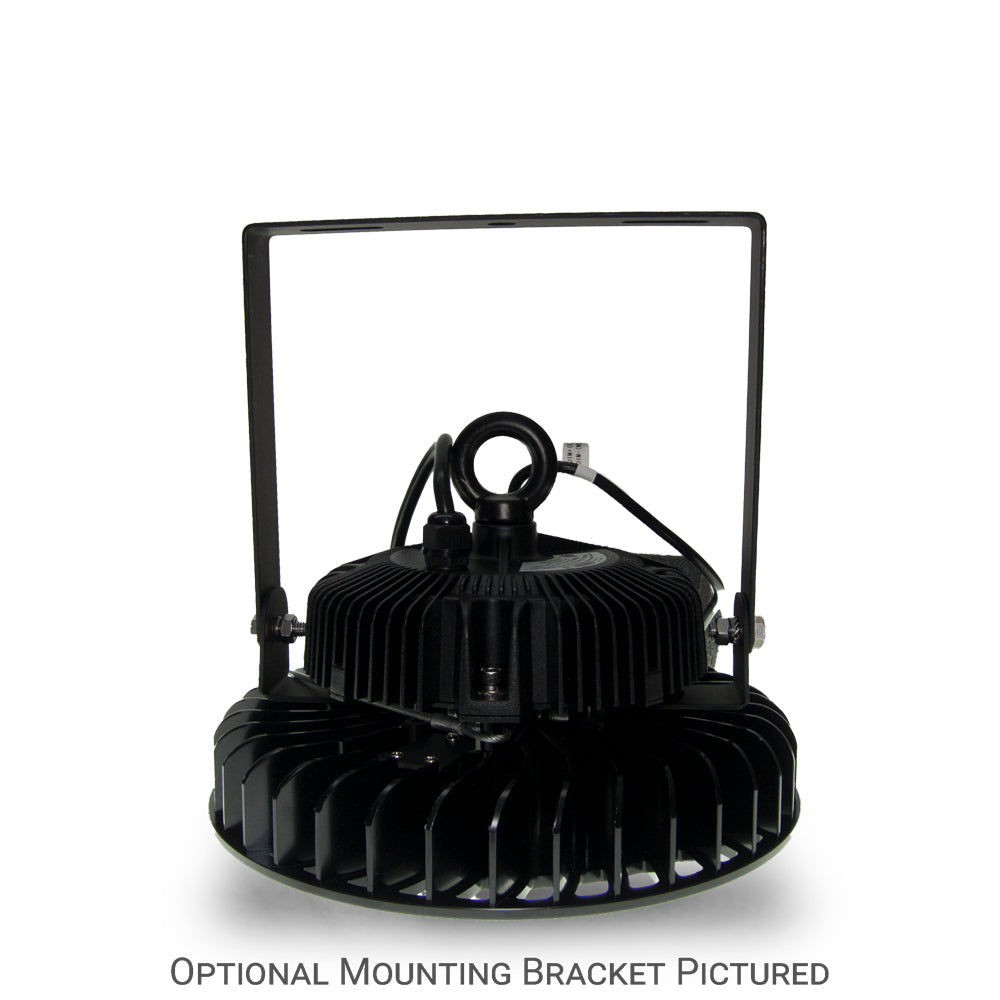

Black UFO LED High Bay Light with bracket

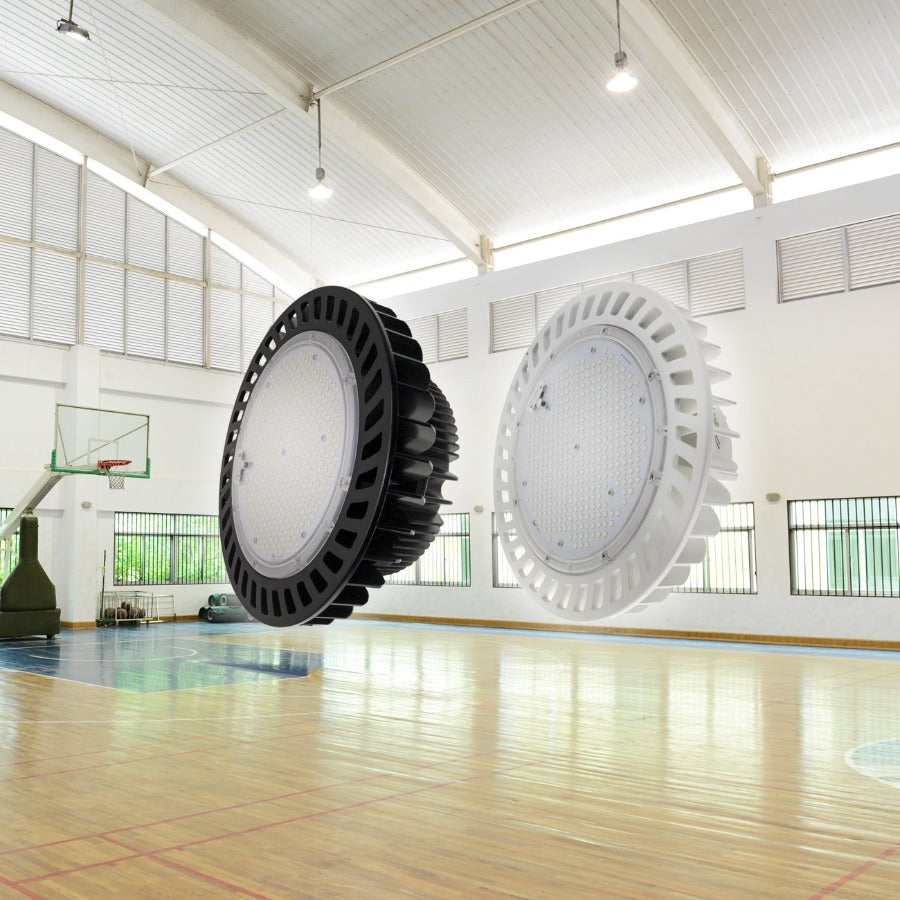

Black and white KONLITE HIGHBAY in a Gymnasium

Roll over image to zoom in

Same day shipping from Atlanta Warehouse

IN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Konlite HB01 series UFO LED High Bay Light - 150W - 120-277V - 22500 lumens - 5000K - 0-10V Dimmable - 400W Equal

Name: Konlite HB01 series UFO LED High Bay Light - 150W - 120-277V - 22500 lumens - 5000K - 0-10V Dimmable - 400W Equal
Brand: Konlite
SKU: GL-HB01-150W50K-B
Price: 116.95 USD
Availability: OutOfStock

Product Search Code: 10-0902

KonliteSKU: GL-HB01-150W50K-B

$139.99 $116.95

(2)

The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.

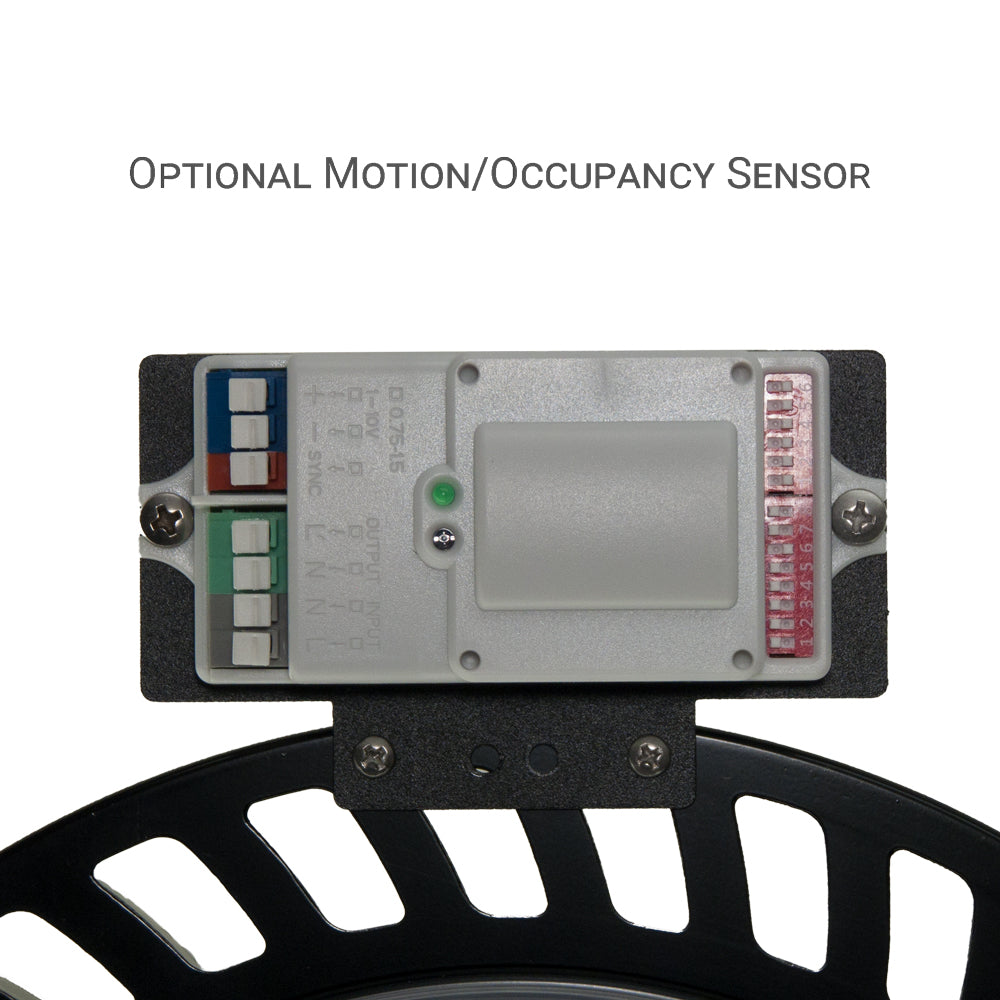

The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.

$139.99 $116.95

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.
The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.

What's in the box

1 Fixture, 1 Eye Hook, 1 Installation Guide

Product Details

Downloads

Reviews

Q&A

1 Fixture, 1 Eye Hook, 1 Installation Guide

Product Overview

Upgrade your space and reduce operating costs with the HB01 high bay. This compact design is easy to install, meets any budget and a Contractor favorite. Excellent efficacy, maintenance free and 120° beam provides broad even illumination. IP65 rated and sealed for dust and moisture intrusion, 0-10V dimming. A smart DLC certified value choice, that will save big compared to HID.

Color Temperature 5000K color temperature

Certifications

Specifications

Warranty	Limited 5 Years	MPN	GL-HB01-150W50K-W
Input Voltage	120-277V	Equal to	400W
Input Wattage	150W	Dimmable	0-10V
Lumens	22,500	CRI	>71.5
Efficacy	150 LM/W	Available CCT	5000K
Rated Life	>50,000 hrs	THD	<19.14%
Power Factor	>0.91	IP Rating	IP65
Operating Temperature	-40° to 122° F	Dimensions	11" x 7.5"
Certifications	UL, Damp Locations, DLC Premium	Weight	9 lbs
