Product Overview

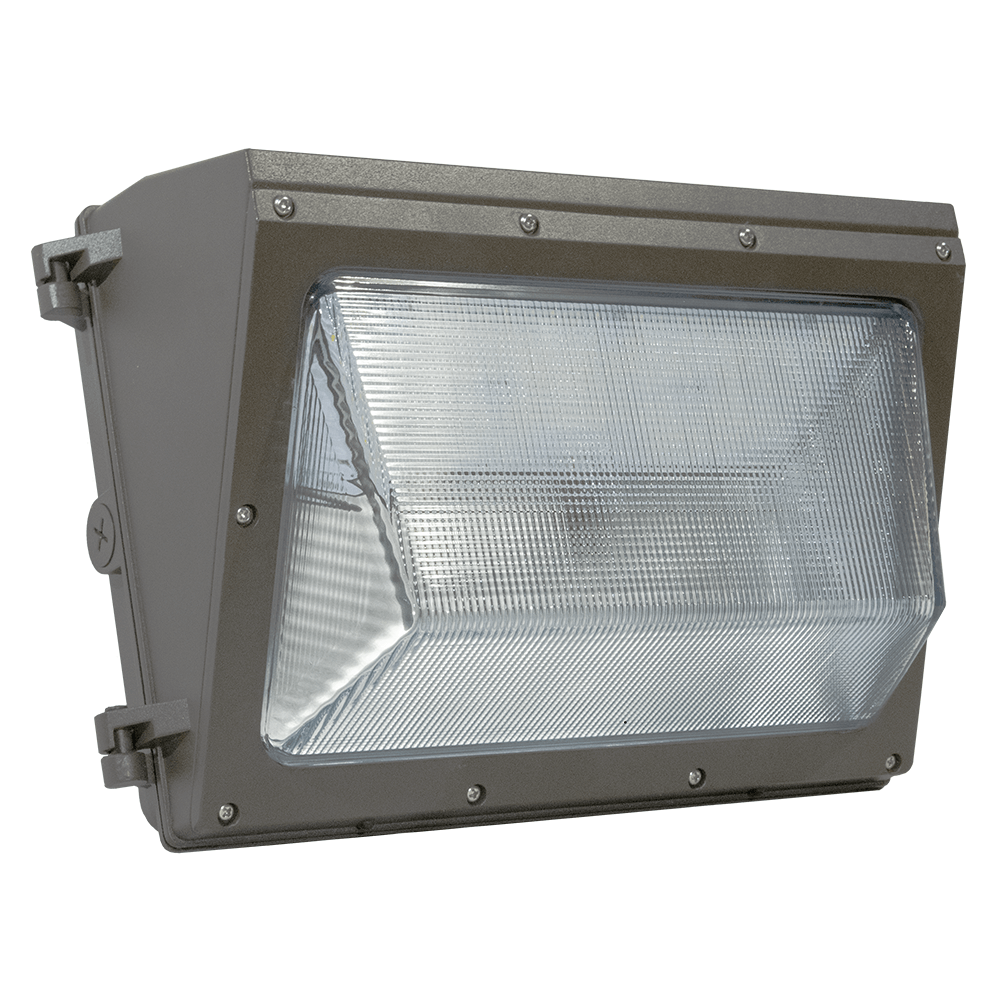

Brighten dark exteriors while adding perimeter security with this modern take on a traditional design.

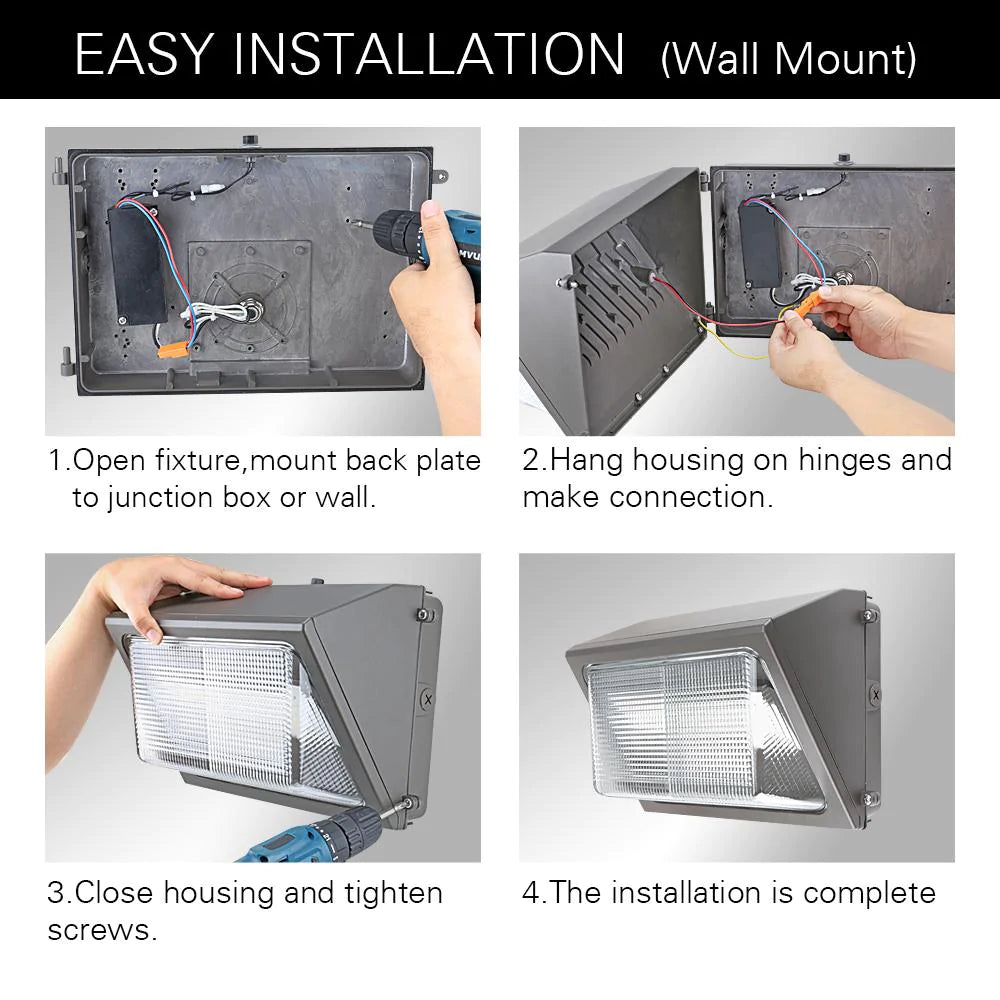

A top Contractor pick, the energy efficient upgraded Konlite WP05 LED Wall Pack will enhance any building exterior while reducing power consumption by 65% compared to Metal Halide or HPS. Designed for a Quick- 1 man installation.
120-277 Volts, 5000K Commercial Bright White, 0-10V Dimmable and preinstalled integrated Dusk to Dawn Photocell

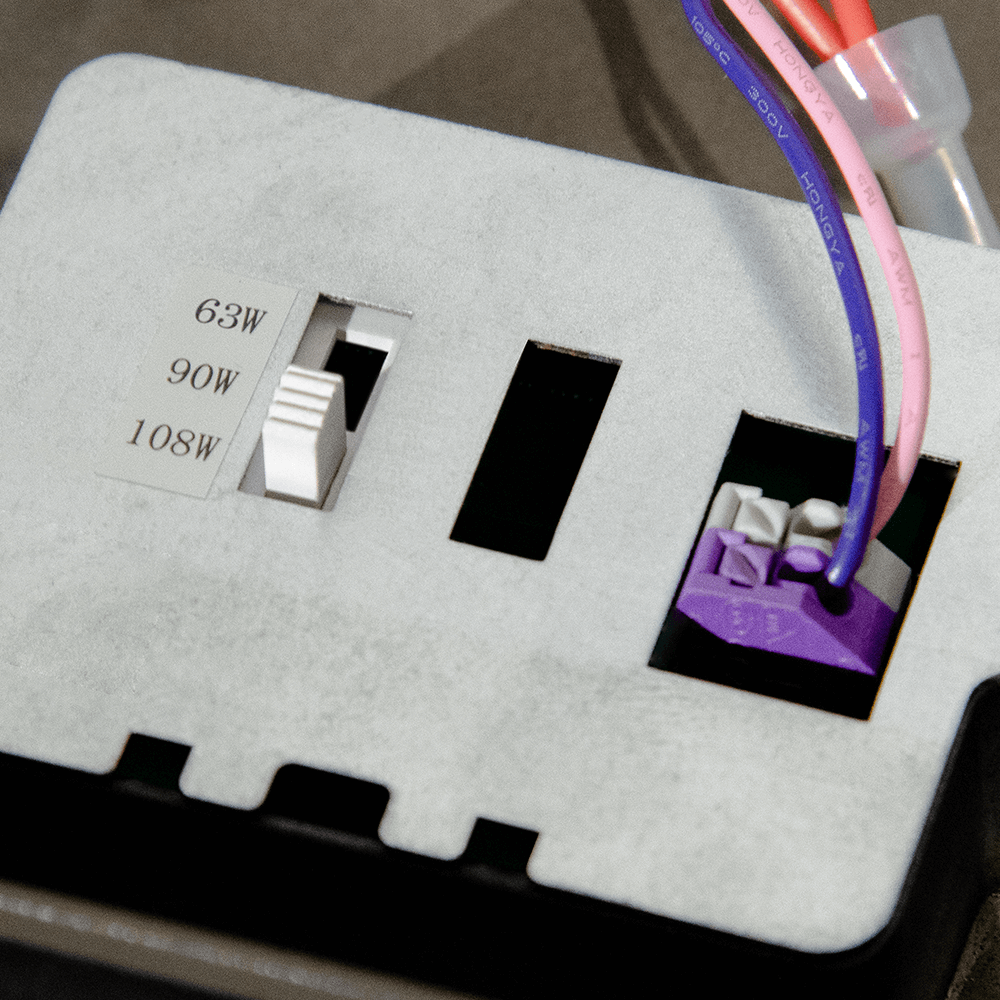

Three Field Selectable brightness Settings:
108w / 14,040 Lumens, 90w / 11,700 Lumens, 63w / 8,190 Lumens Preset at: 108 watts.

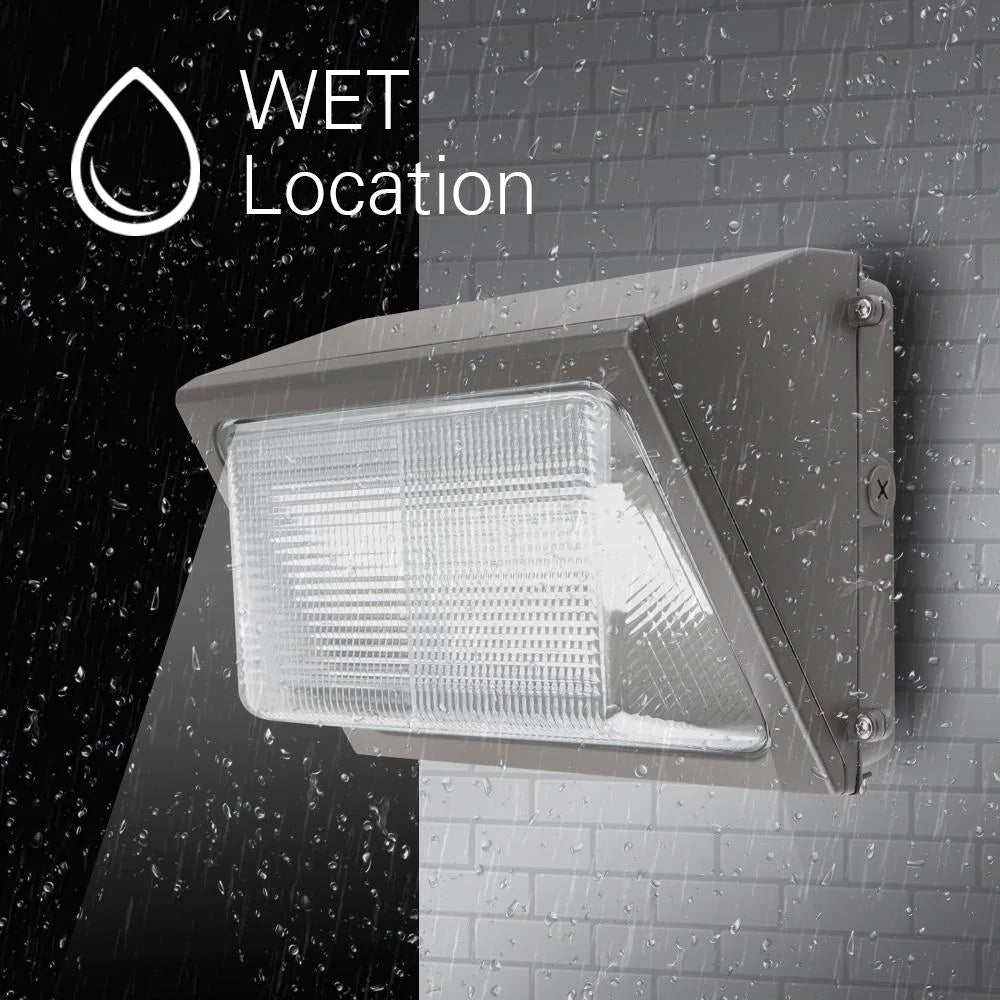

Constructed of dark bronze corrosion resistant die-cast aluminum housing, IP65 wet rated and UV stabilized prismatic borosilicate glass lens that will not discolor with age. 110° Beam angle for wide distribution. The LED design ensures long-lasting use and reduces the need for bulb changing maintenance.
ETL, DLC for eligible rebates, 50,000>hours L70 lifespan use, 5 year warranty.
See similar Low Wattages version.
Applications
•Warehouses | •Schools & Universities |
•Boat Docks & Marinas |
•Building façade |
•Security Lighting | •Underpasses |
•Parking Facilities | •Loading Areas |
•Gas Stations | •Metal Buildings |

Specifications
Warranty | Limited 5 Years | MPN | RKWP05011085KDSWMLCD |
Input Voltage | 120-277V | UPC | 672975367961 |
Input Wattage | 108W/90W/63W | Equal to | 500W/400W/250W |
Lumens | 14,040/11,700/8,190 | CRI | >80 |
Efficacy | 130 LM/W | Available CCT | 5000K |
Rated Life | >50,000 hrs | THD | <15% |
Power Factor | >0.9 | IP Rating | IP65 |
Dimmable | 0-10V | Controls | Built-in Dusk to Dawn Photocell |
Operating Temperature | -30 to 122 F | Dimensions | 14.33" x 9.26" x 5.87" |
Certifications | ETL, Damp Locations | Weight | 7 lbs |
Video
Video of Konlite LED Wall Pack Light With Photocell, 100 watts, 14500 lumens, 5000K
