Product Overview
Illuminate dark exteriors and enhance perimeter security with our state-of-the-art LED wall pack light, featuring a modern twist on a traditional design. Our energy-efficient Konlite LED Wall Pack Light reduces power consumption by 65% compared to conventional Metal Halide or HPS lights, making it a top pick among contractors. Experience effortless one-person installation and upgrade your building's exterior with ease.
Our Wattage Selectable LED Wall Pack Light operates on 120-277 volts and emits a 5000K commercial bright white light. With a preinstalled integrated dusk to dawn feature, 0-10V dimmability, and three field-selectable brightness settings, you can customize your lighting experience to fit your individual needs:
30W / 3,900 Lumens
45W / 5,850 Lumens
63W / 8,190 Lumens
(Preset at 60 Watts)

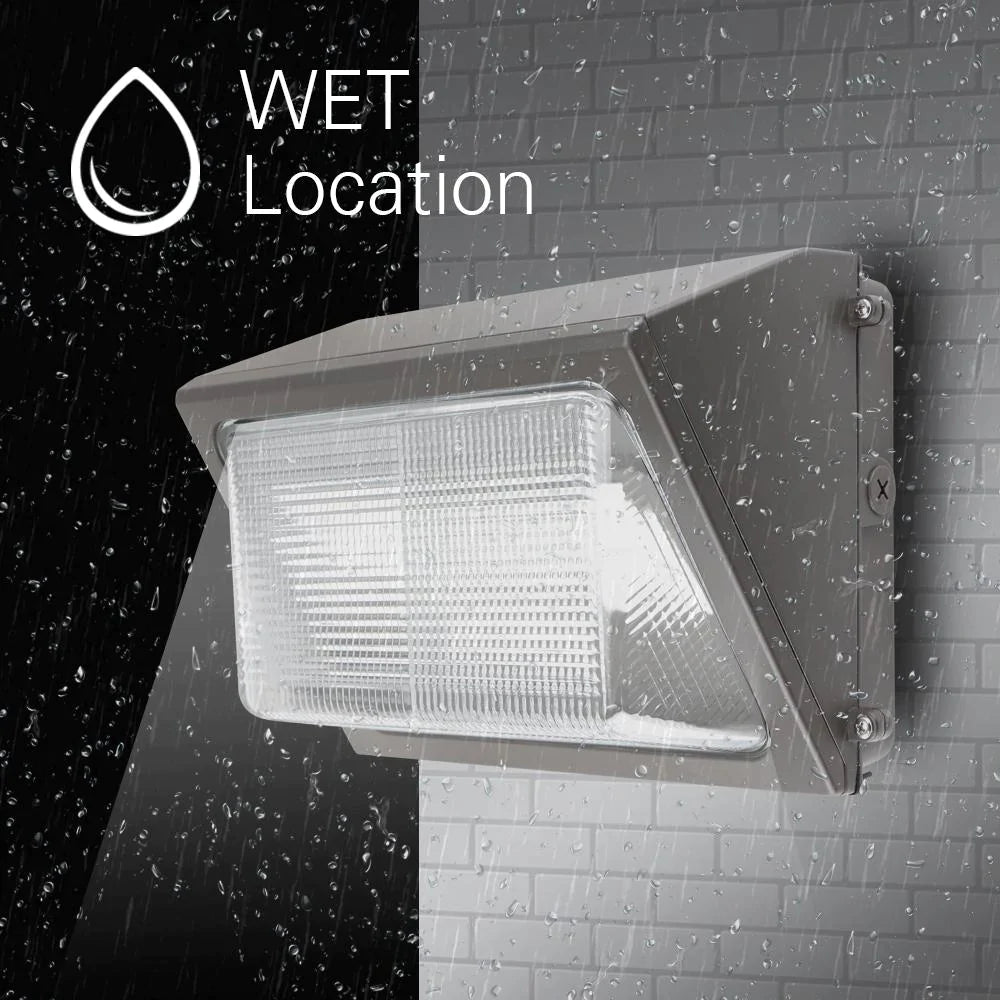

Built with dark bronze corrosion-resistant die-cast aluminum housing, this LED wall pack light is IP65 wet-rated and features a UV stabilized prismatic borosilicate glass lens that will not discolor with age. The 110° beam angle ensures wide light distribution, while the LED technology guarantees long-lasting performance and minimal maintenance.
For the Konlite LED Wall Pack Light, you can consider integrating an 8-Watt emergency battery backup option. This optional backup ensures that the fixture continues to operate during power outages by providing up to 90 minutes of emergency lighting.
Our wall pack is UL and DLC certified, making it eligible for rebates. With a >50,000-hour L70 lifespan and a 5-year warranty, you can trust in the reliability and durability of our Wattage Selectable LED Wall Pack Light.

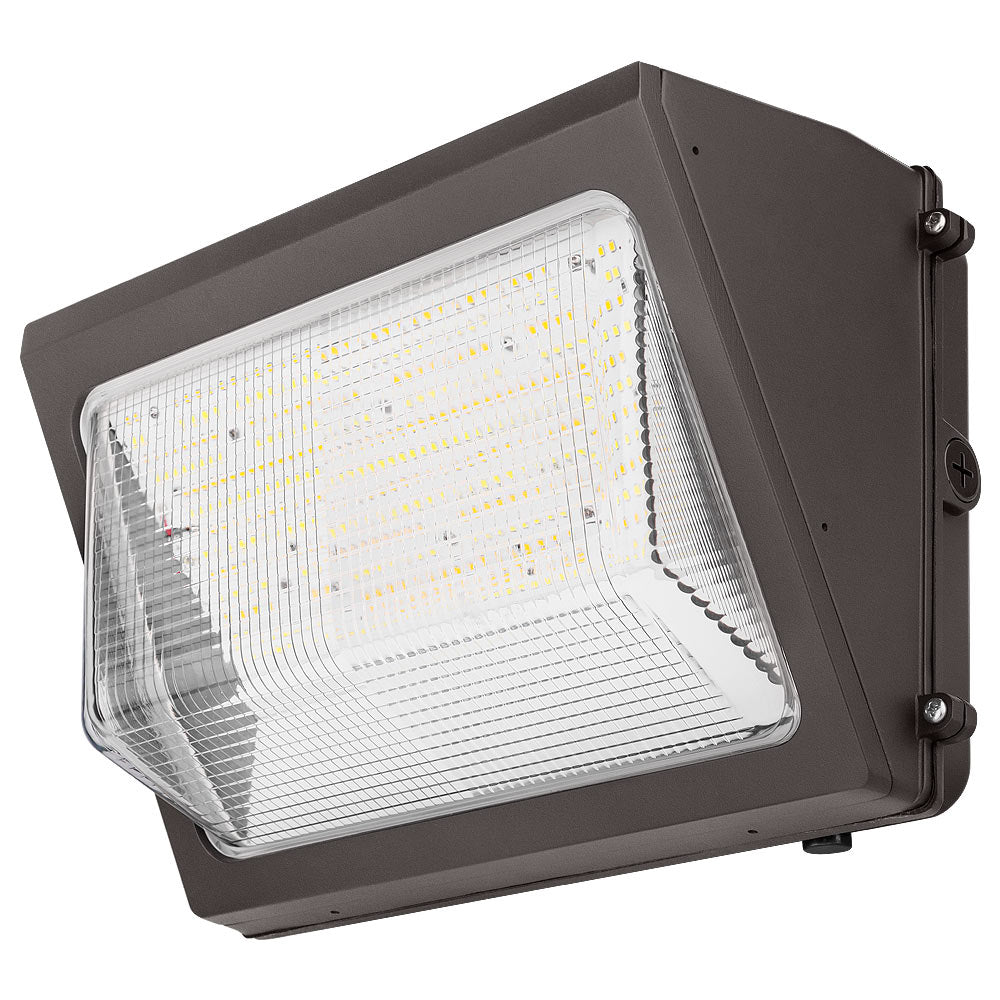

See our High Wattage model.
Applications
• Warehouses | • Schools & Universities |
• Boat Docks & Marinas |
• Building façade |
• Security Lighting | • Underpasses |
• Parking Facilities | • Loading Areas |
• Gas Stations | • Metal Buildings |
Specifications
Warranty | Limited 5 Years | MPN | RKWP05010635KDSWMLCD |
Input Voltage | 120-277V | UPC | 672975367961 |
Input Wattage | 63W/45W/30W | Equal to | 150W/100W/70W |
Lumens | 8,190/5,850/3,900 | CRI | >80 |
Efficacy | 130 LM/W | Available CCT | 5000K |
Rated Life | >50,000 hrs | THD | <15% |
Power Factor | >0.9 | IP Rating | IP65 |
Dimmable | 0-10V | Controls | Built-in Dusk to Dawn Photocell |

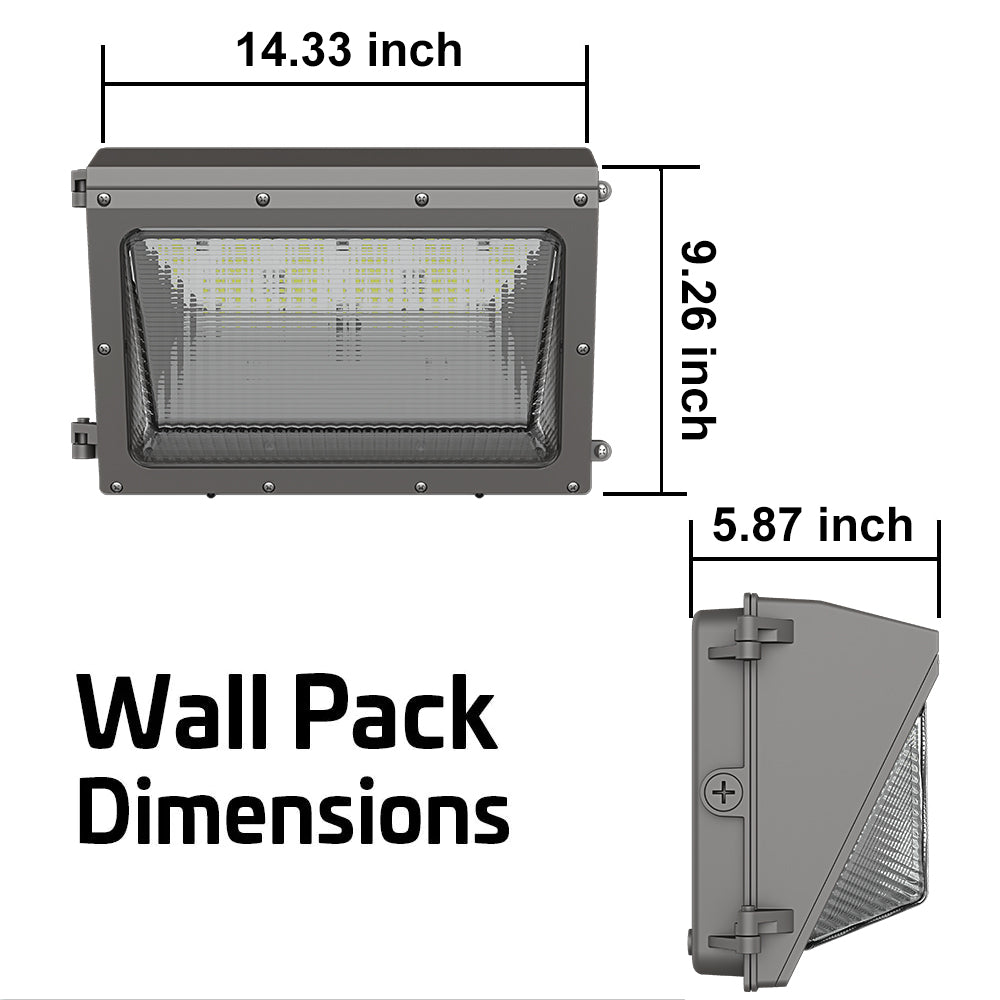

Operating Temperature | -30 to 122 F ( 40° to 113° F Powered by EBB ) | Dimensions | 14.33" x 9.26" x 5.87" |
Certifications | UL, Damp Locations | Weight | 7 lbs |
Video
Video of Konlite LED Wall Pack Light With Photocell, 100 watts, 14500 lumens, 5000K
Download Specifications | |
Installation Guide | |
Download IES: 63W | 45W | 30W |
