Product Overview

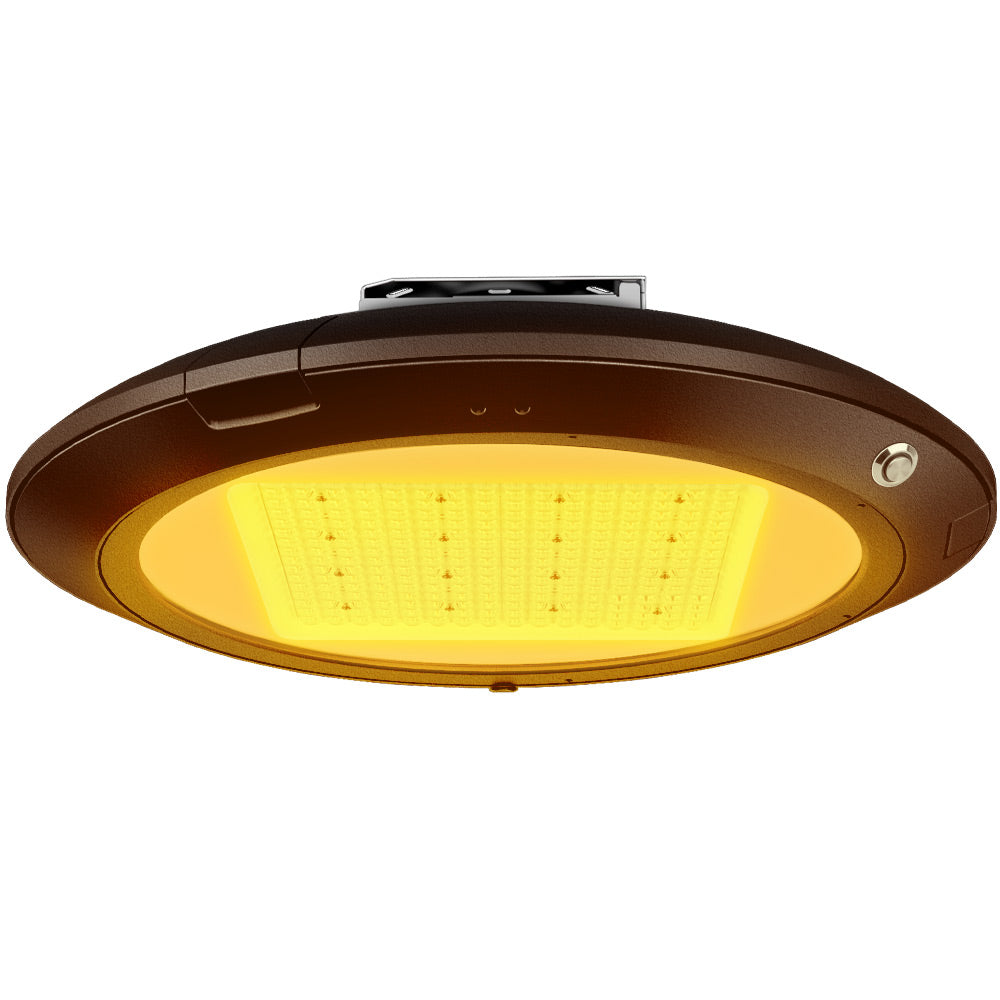

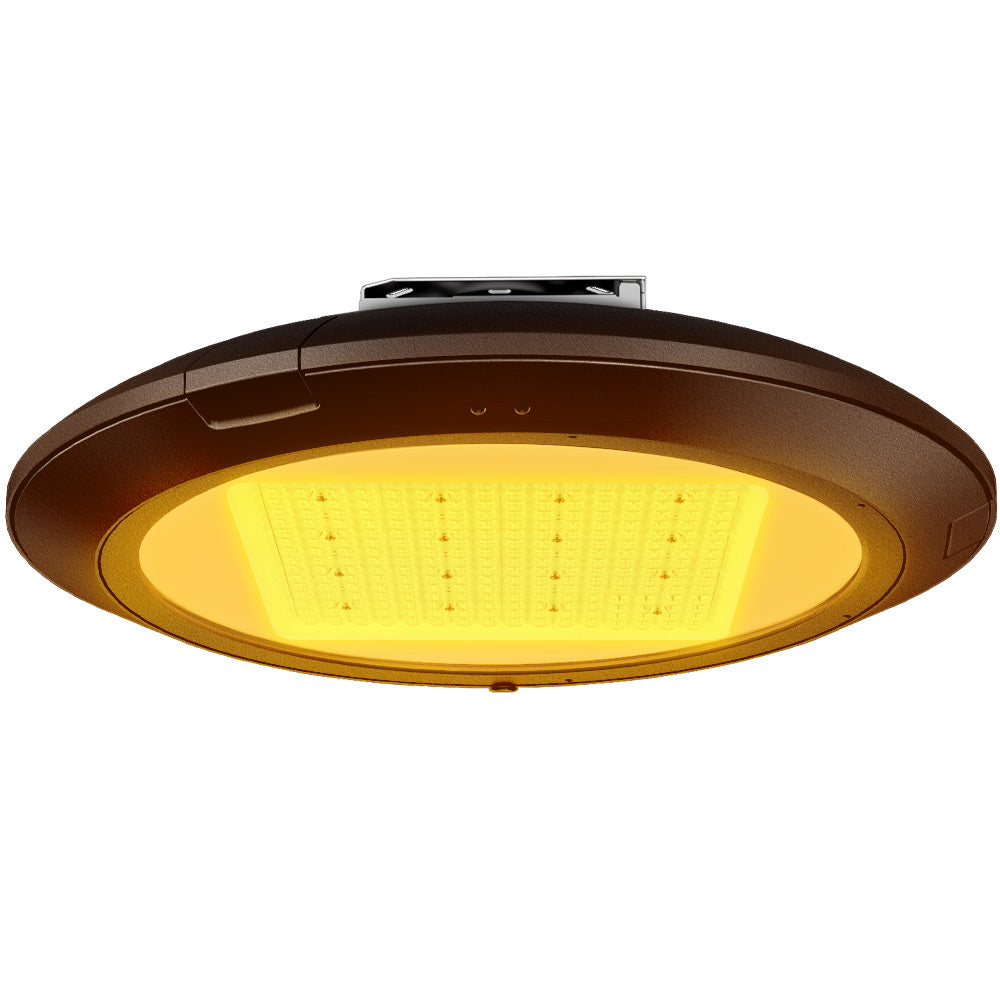

The Konlite Atria Amber LED Canopy Light combines modern architectural styling with specialized 590nm amber LED technology for coastal, wildlife-sensitive, and environmentally conscious outdoor lighting applications.

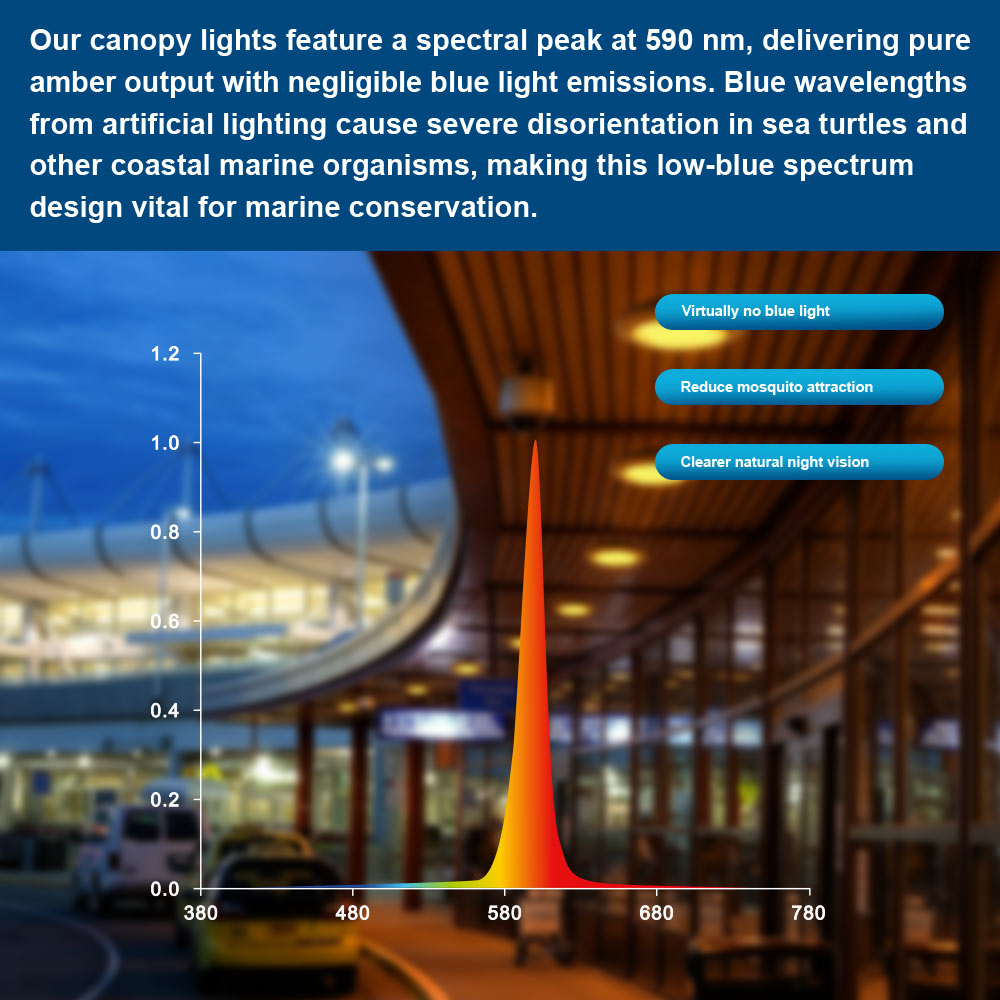

Designed to minimize disruptive short-wavelength light while maintaining functional illumination for people, the fixture produces a warm amber light that is well suited for properties near beaches, coastal communities, wildlife-sensitive areas, dark-sky environments, and other locations where conventional white outdoor lighting may be undesirable. The specification identifies the fixture as using a precise 590nm amber spectrum intended to reduce blue-rich light and minimize disturbance to wildlife.

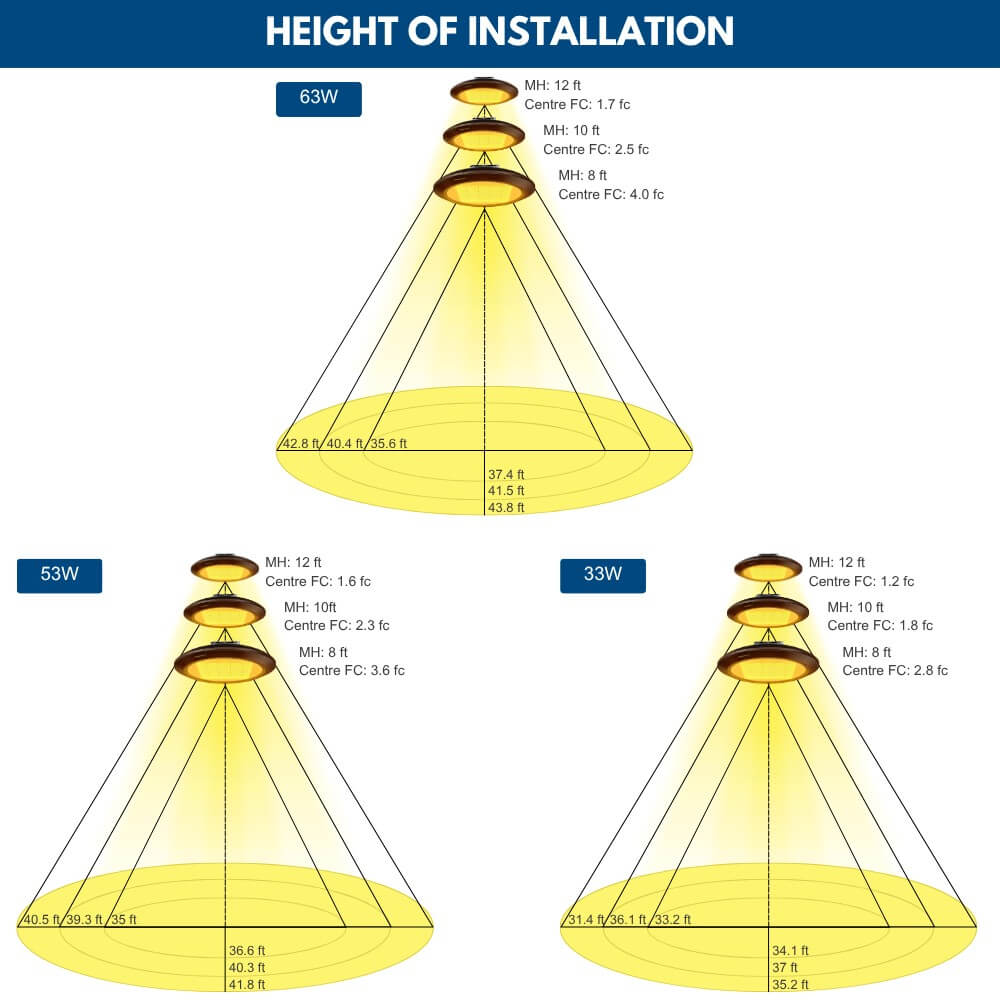

With 63W/53W/33W selectable wattage, one fixture provides three field-adjustable light-output levels to accommodate different mounting heights and lighting requirements. It delivers up to 1,800 lumens at 63W, with approximately 1,510 lumens at 53W and 940 lumens at 33W.
A professional Type V optical distribution provides broad, balanced illumination around the fixture, making the Atria Amber Canopy Light ideal for building entrances, covered walkways, drop-off canopies, public transit shelters, hospitality properties, coastal facilities, and other covered outdoor spaces.

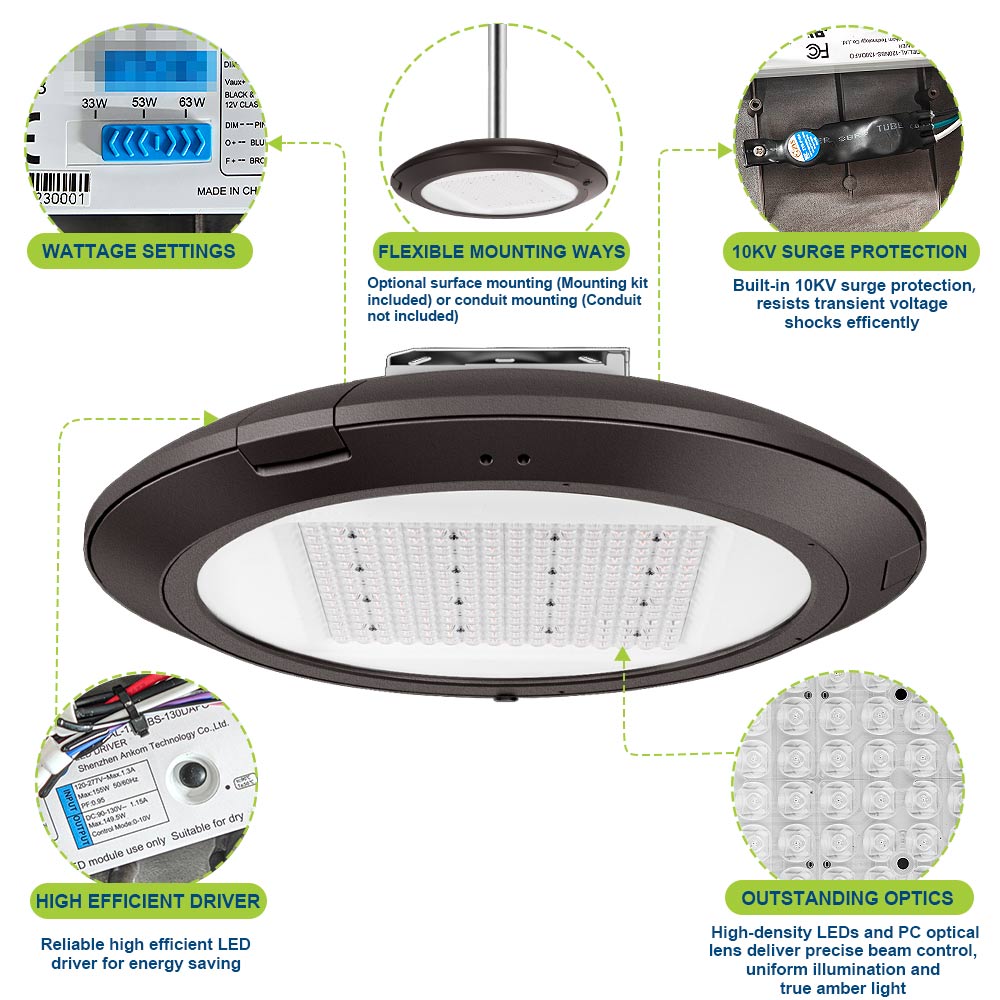

The streamlined low-profile housing is constructed from durable die-cast aluminum with a corrosion-resistant powder-coated finish. Its fully sealed construction helps protect internal components from moisture and environmental contaminants, while a tempered glass diffuser and polycarbonate optical lens provide durability for demanding commercial applications.
Additional commercial-grade features include 120–277V universal voltage, built-in 10kV surge protection, IK08 impact resistance, UL listing, and an included surface-mounting kit. The fixture is backed by a 5-year limited warranty.
The Atria Amber Canopy Light shares the same modern architectural platform as Konlite’s standard Atria canopy fixture, but replaces selectable white CCTs with a dedicated 590nm amber light source for specialized wildlife-friendly applications. The standard Atria platform also uses the same 16.77-inch low-profile architectural form and selectable 63W/53W/33W design.

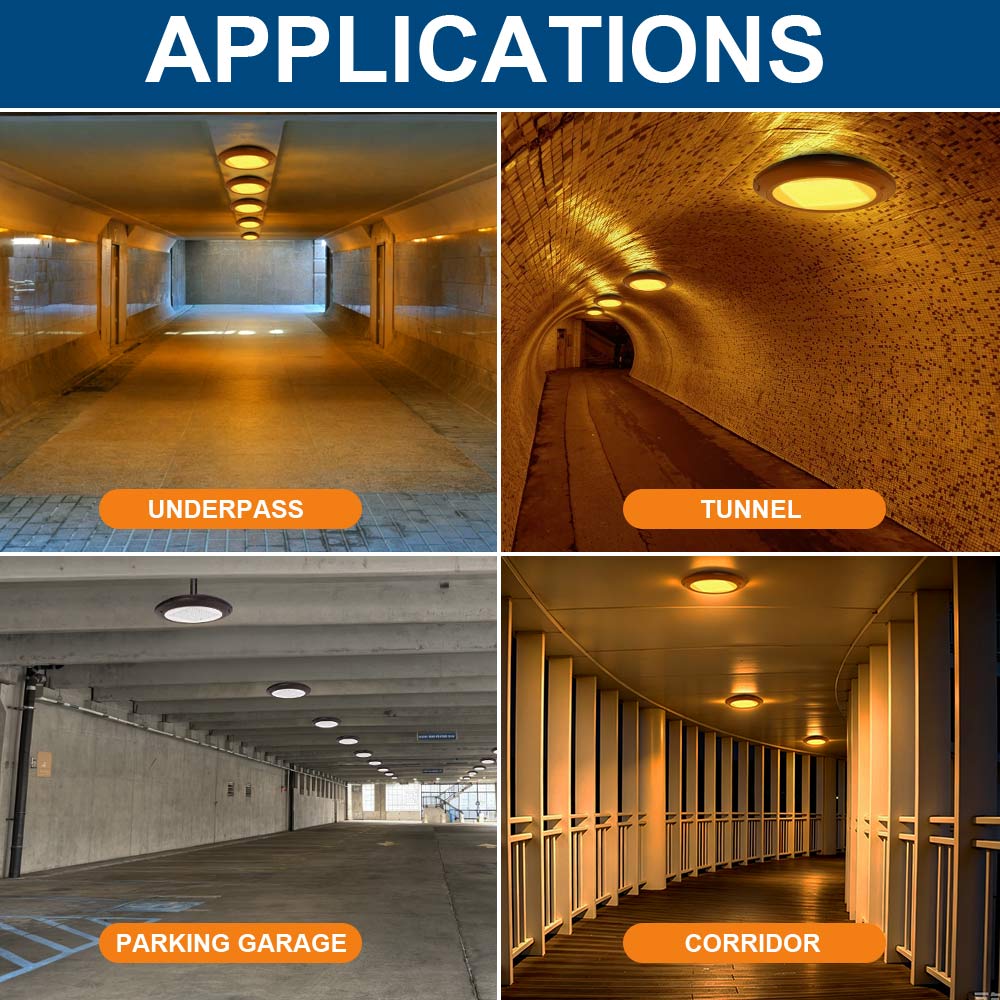

Applications
| • Hotel and resort canopies | • Commercial building entrances |
| • Parking garages and parking structures | • Coastal properties |
| • Covered walkways | • Public transit waiting shelters |
| • School and university covered areas | • Public transportation platforms |
| • Beachfront facilities | • Building overhangs |
| • Covered walkways and breezeways | • Architectural outdoor lighting applications |

Specification:
| Brand | Konlite | MPN | KARLWAMLT5SMD |
| Warranty | 5 Years | UPC | 763532384092 |
| Input Voltage | 120-277V | Dimmable | N/A |
| Input Wattage | 65W/53W/33W | Equal to | N/A |
| Delivered Lumens | 1,800LM Max. | CRI | N/A |
| Efficacy | 30 LM/W | Available CCT | 5000K/4000K/3000K |
| Rated Life | >50,000 hrs | THD | <10% |
| Power Factor | >0.92 | Controls | N/A |
| Operating Temp | -22°F to 113°F | EBB Option | 8W, Operate time 90 Minutes |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 11 Lbs |
| Download Specifications | |
| Download Installation Guide | |
| Download IES, 63W, 53W, 33W |
