Product Overview

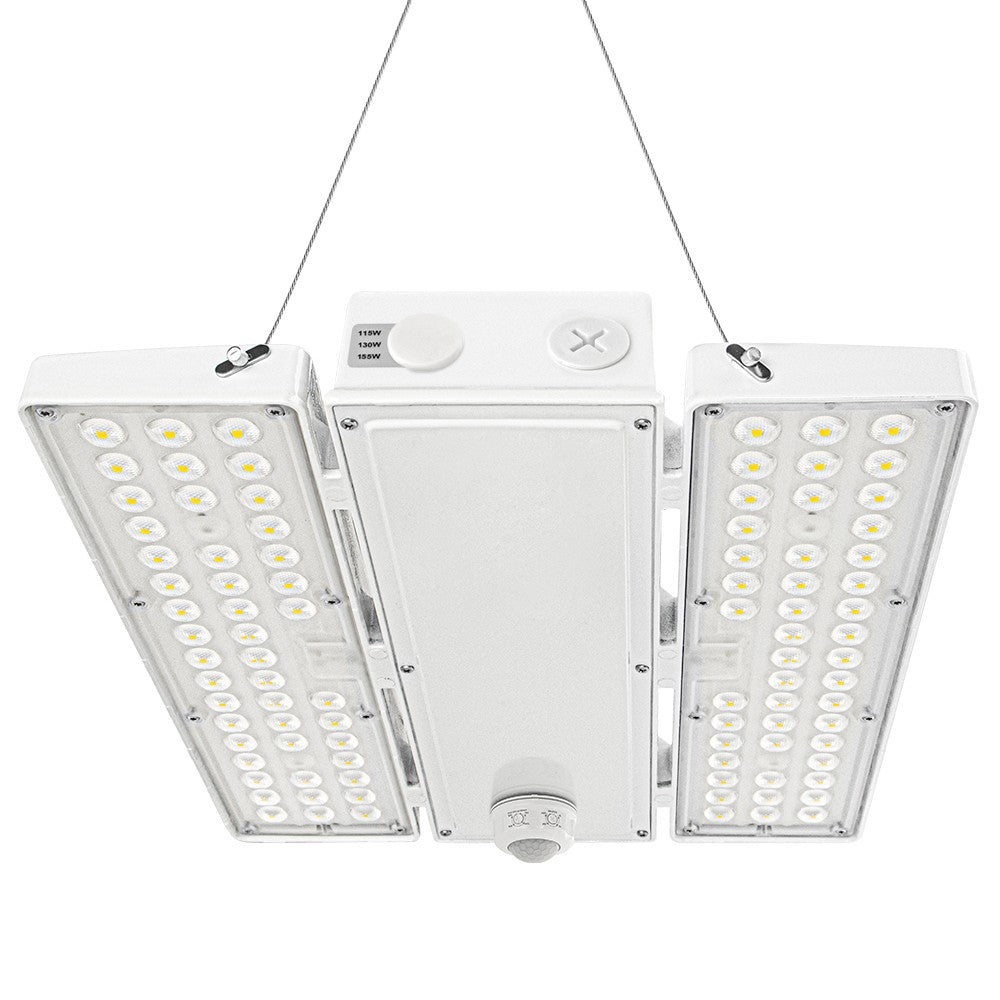

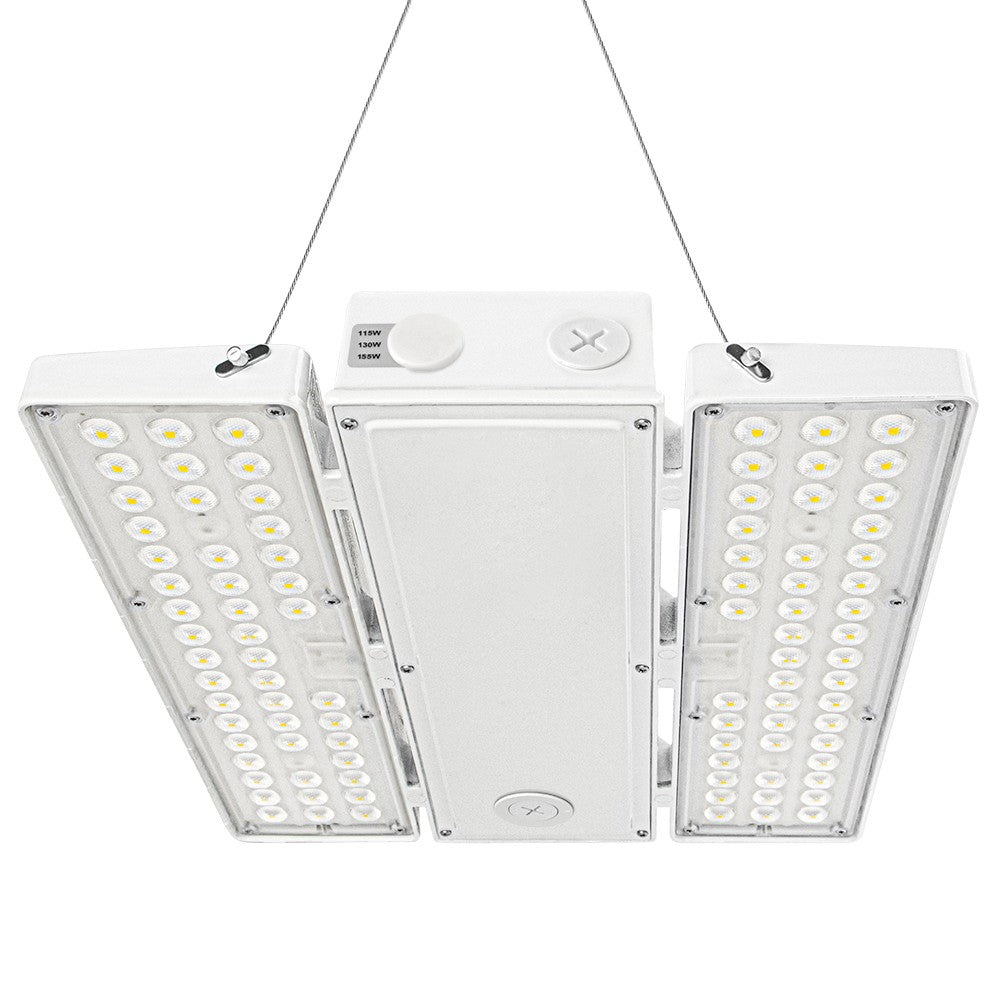

Discover the cost-effective and high-performing Konlite PAVO series LED High Bay Light, designed with a compact and robust housing that delivers industry-leading performance. This 400-watt Metal Halide or HID replacement provides significant energy savings and improved efficiency. The streamlined design allows for easier handling and faster installation, making it the go-to choice for modern lighting upgrades.

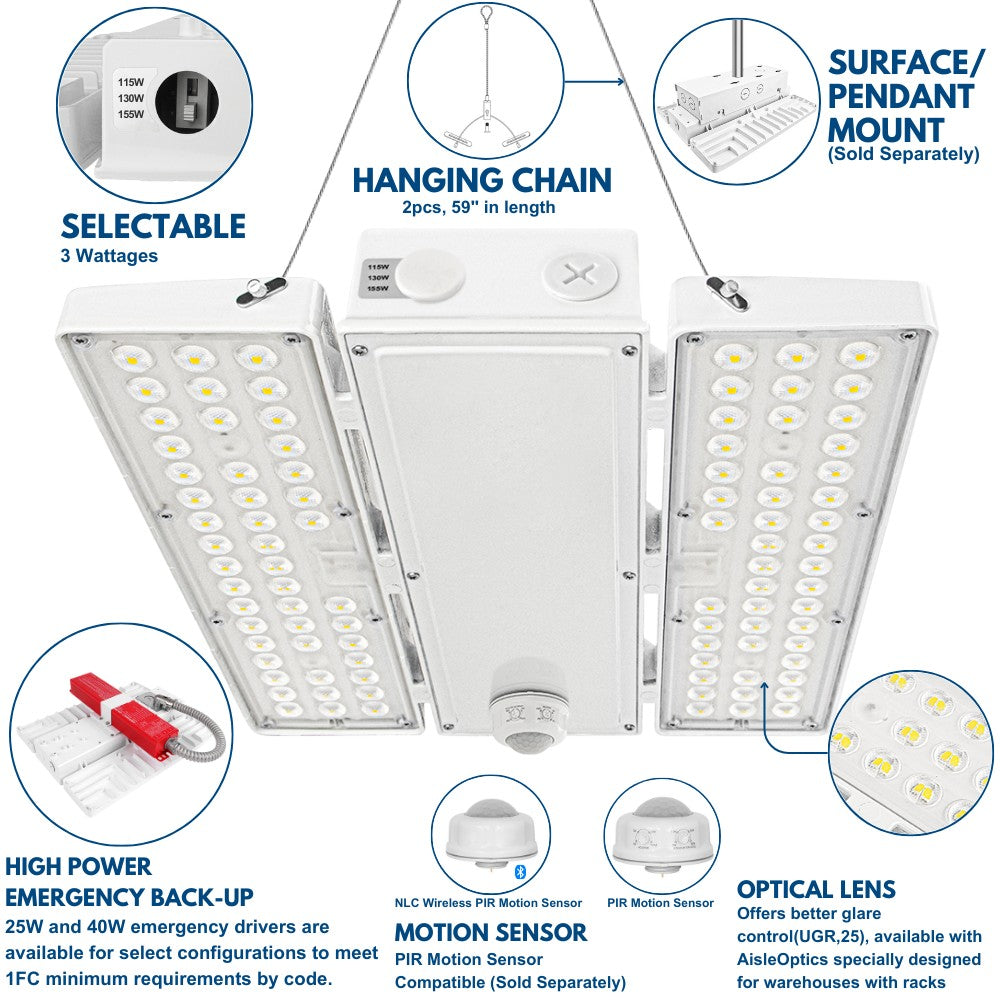

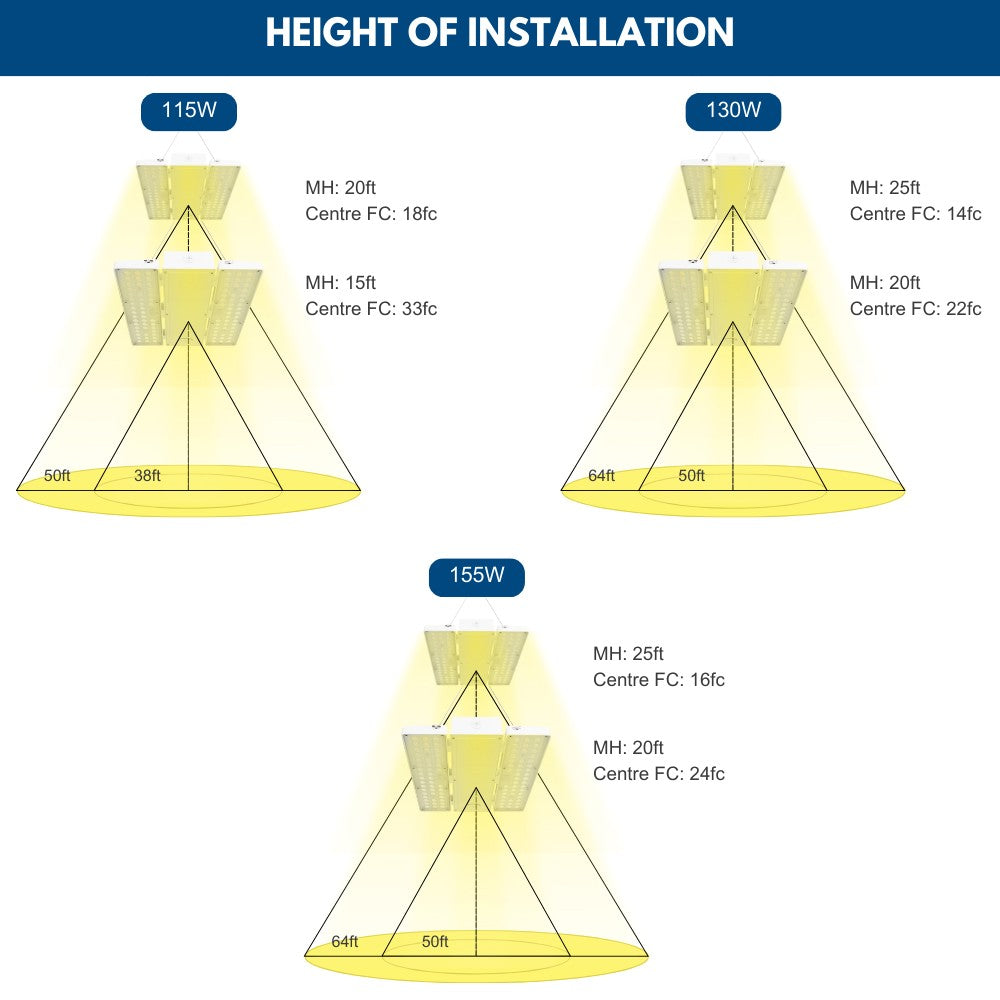

The PAVO II high bay light features wattage-selectable flexibility, which can be adjusted on-site using a 3-step switch located on the side of the fixture. Operating on 120-277V, it emits a 5000K commercial bright white light with three field-selectable brightness settings:
- 155w / 23,250 Lumens
- 130w / 20,150 Lumens
- 115w / 17,480 Lumens
(Preset at 155 watts)

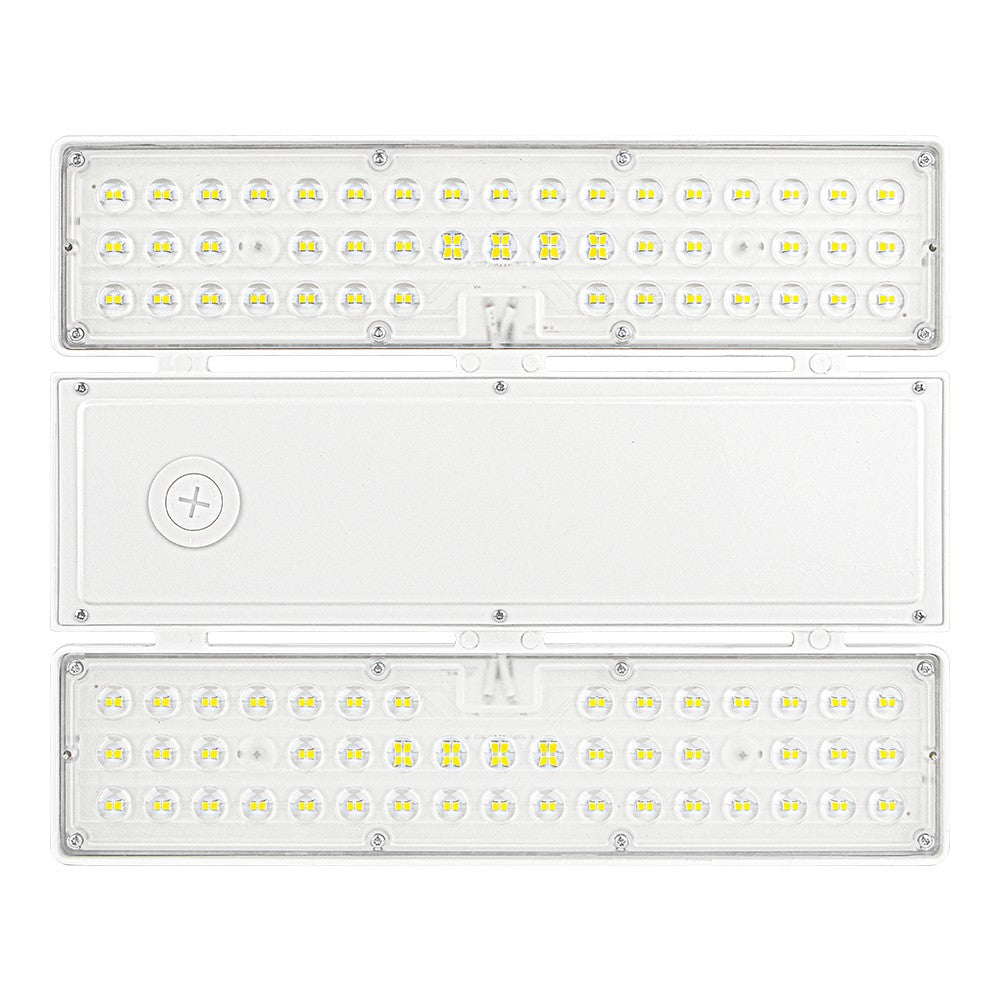

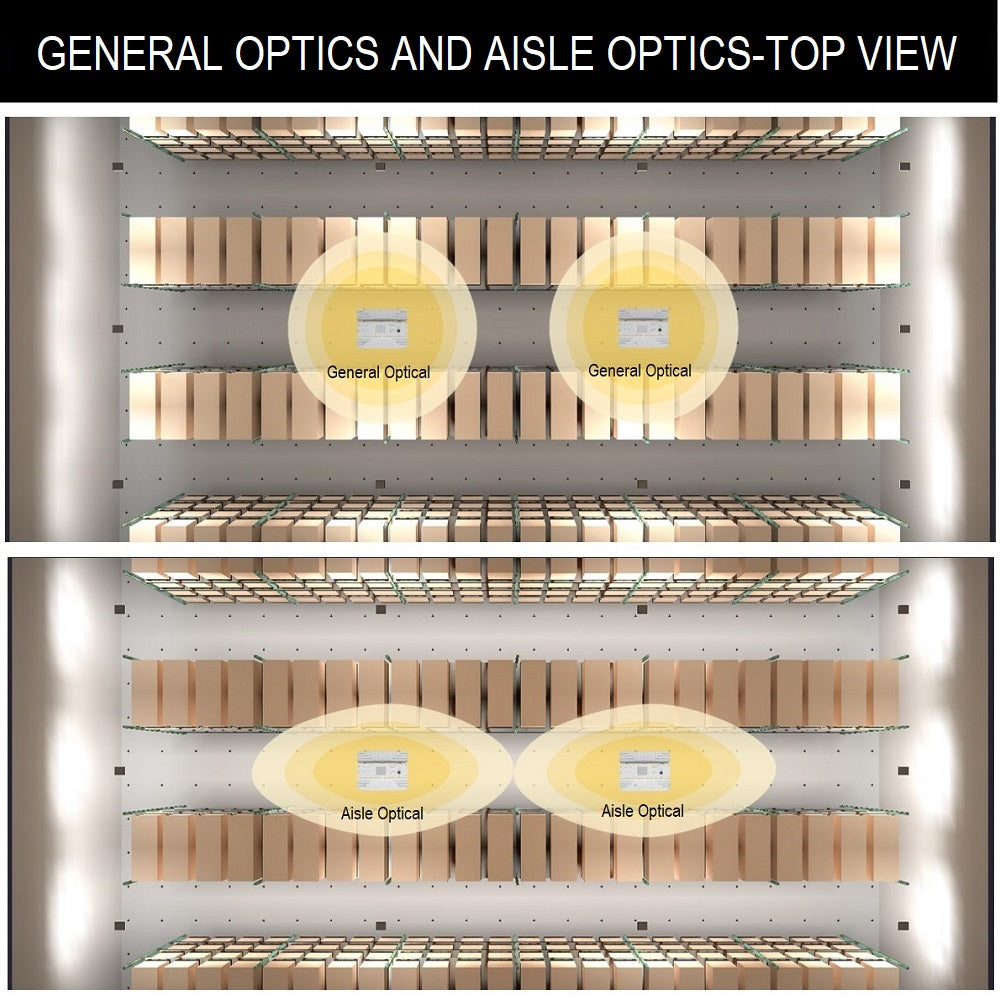

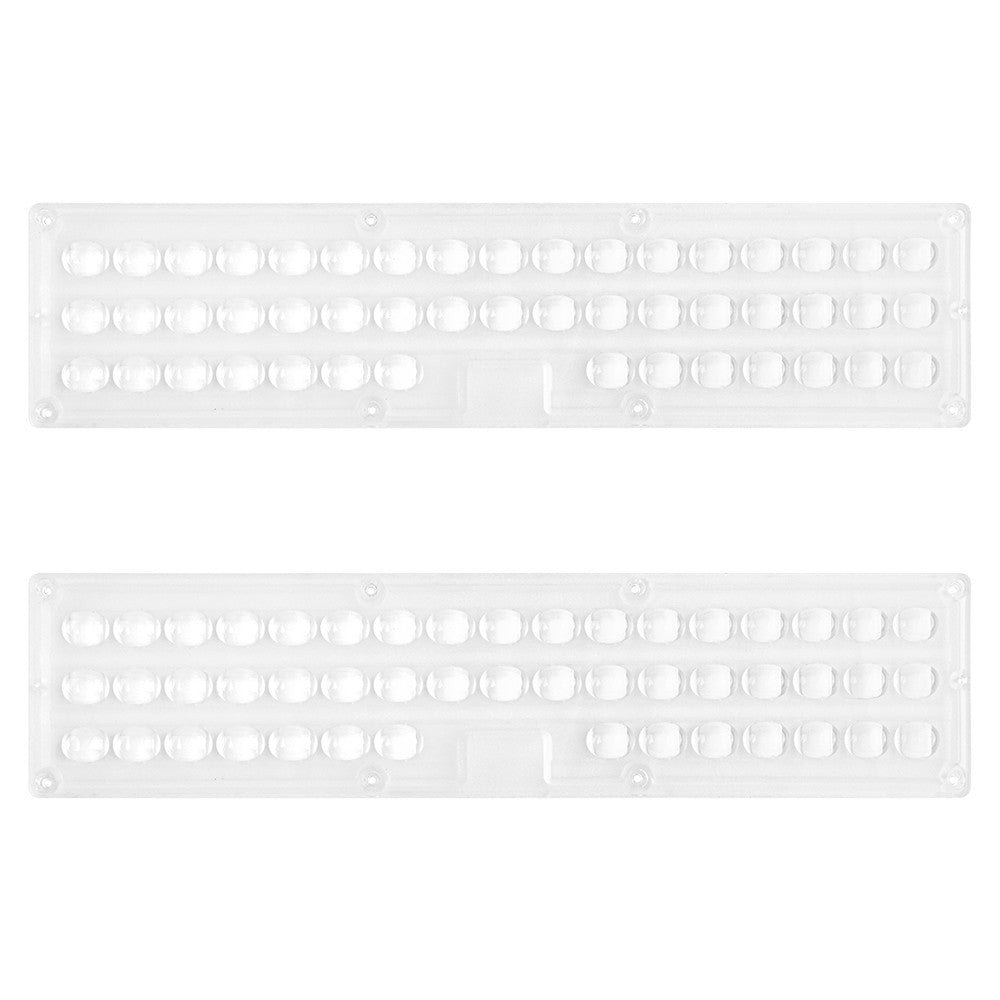

Our LED High Bay Light is equipped with an optical lens, offering improved glare control and higher efficacy compared to ordinary diffusers. For warehouse applications with tall racks, the optional Aisle Optic is the perfect solution to maximize light usage efficiency and achieve substantial energy savings.

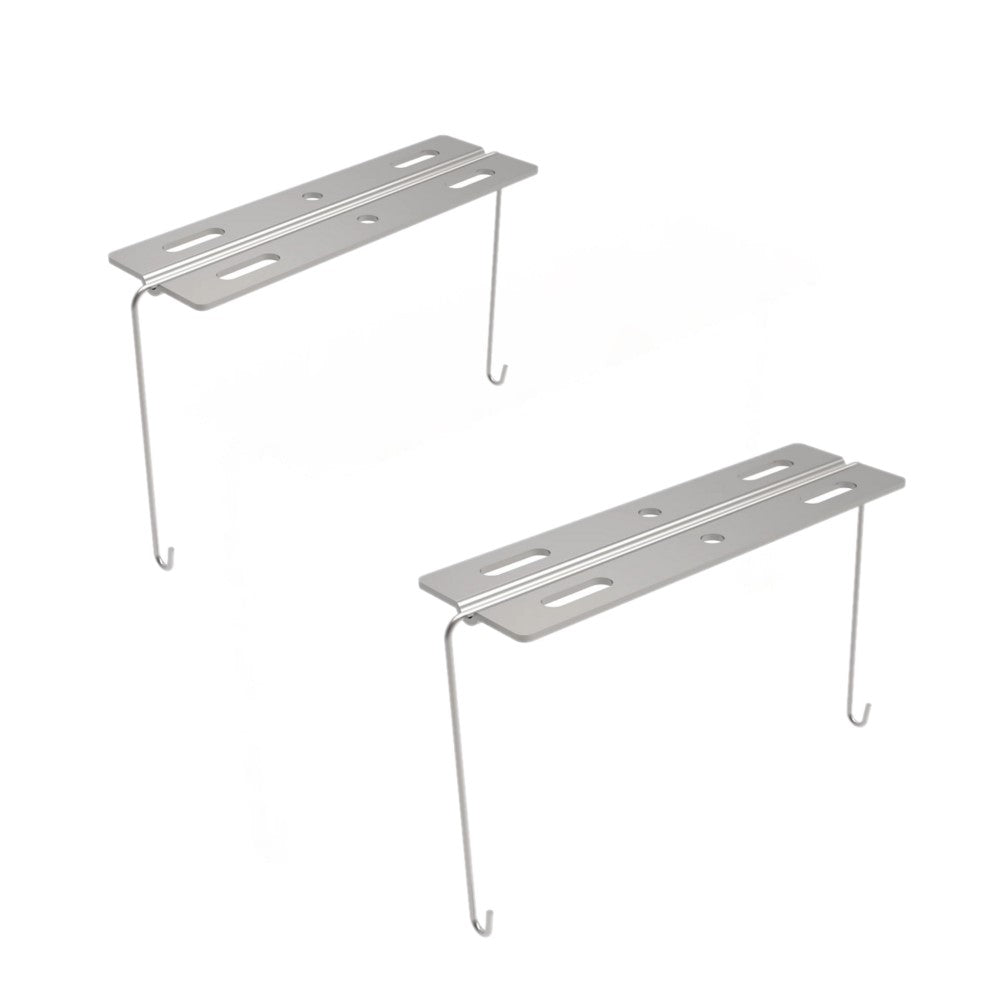

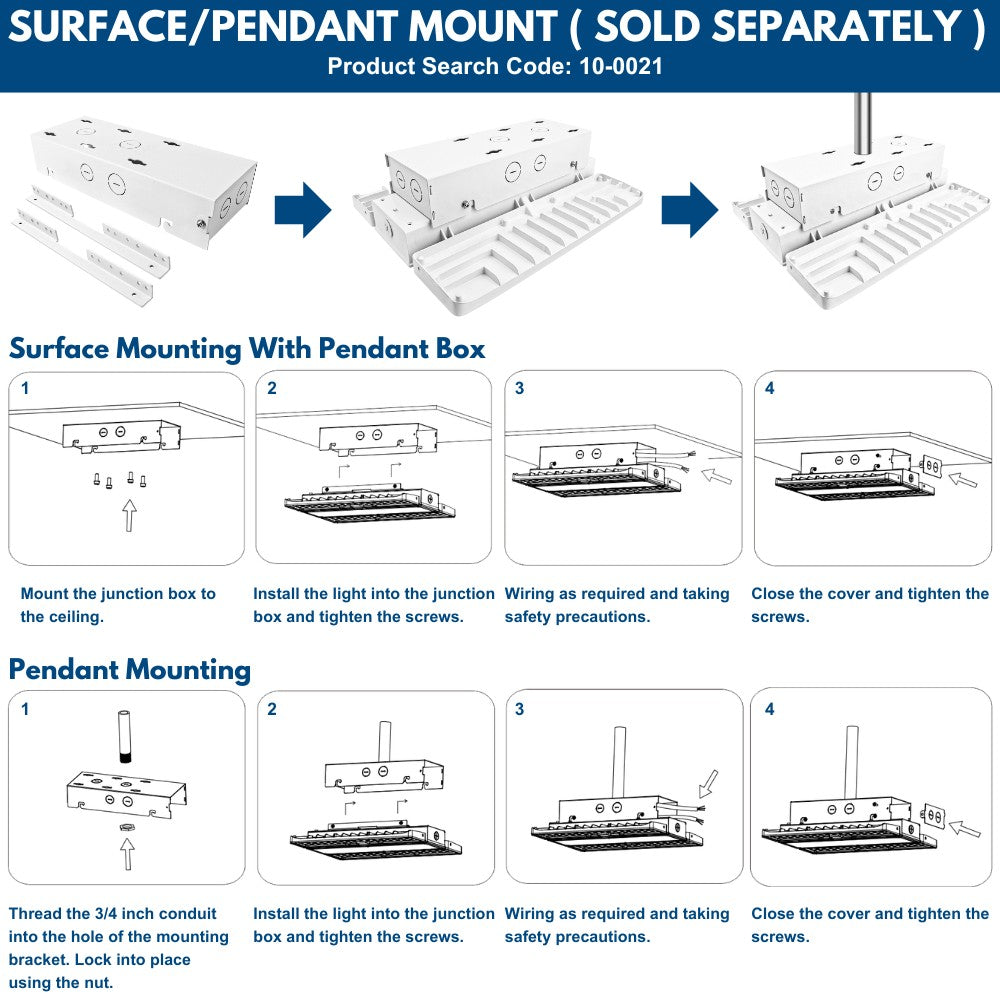

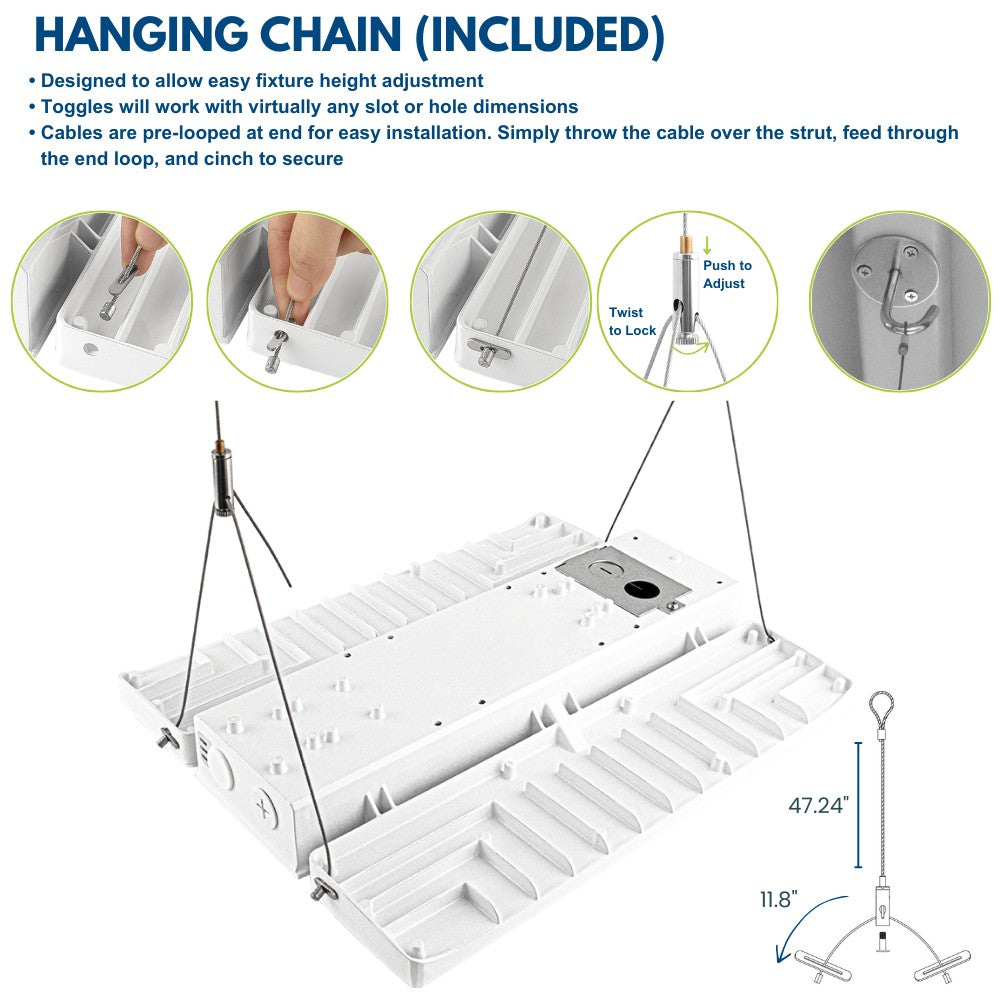

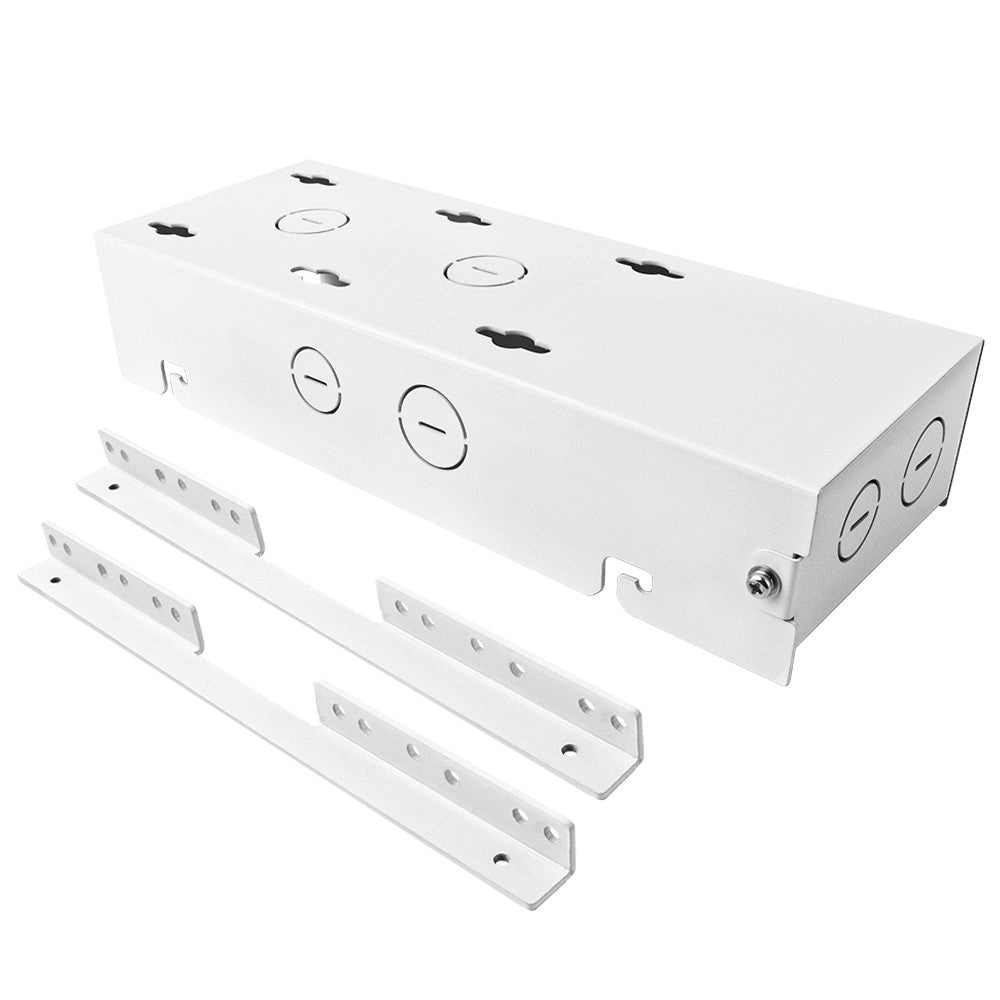

One set of three foot suspension chains are included, with optional Surface Mount and Pendant Mount available for a versatile range of installation options. Upgrade your industrial or commercial space with the Konlite PAVO series LED High Bay Light, providing exceptional performance, energy efficiency, and advanced lighting technology to meet all your illumination needs while serving as a reliable 400-watt Metal Halide or HID replacement.

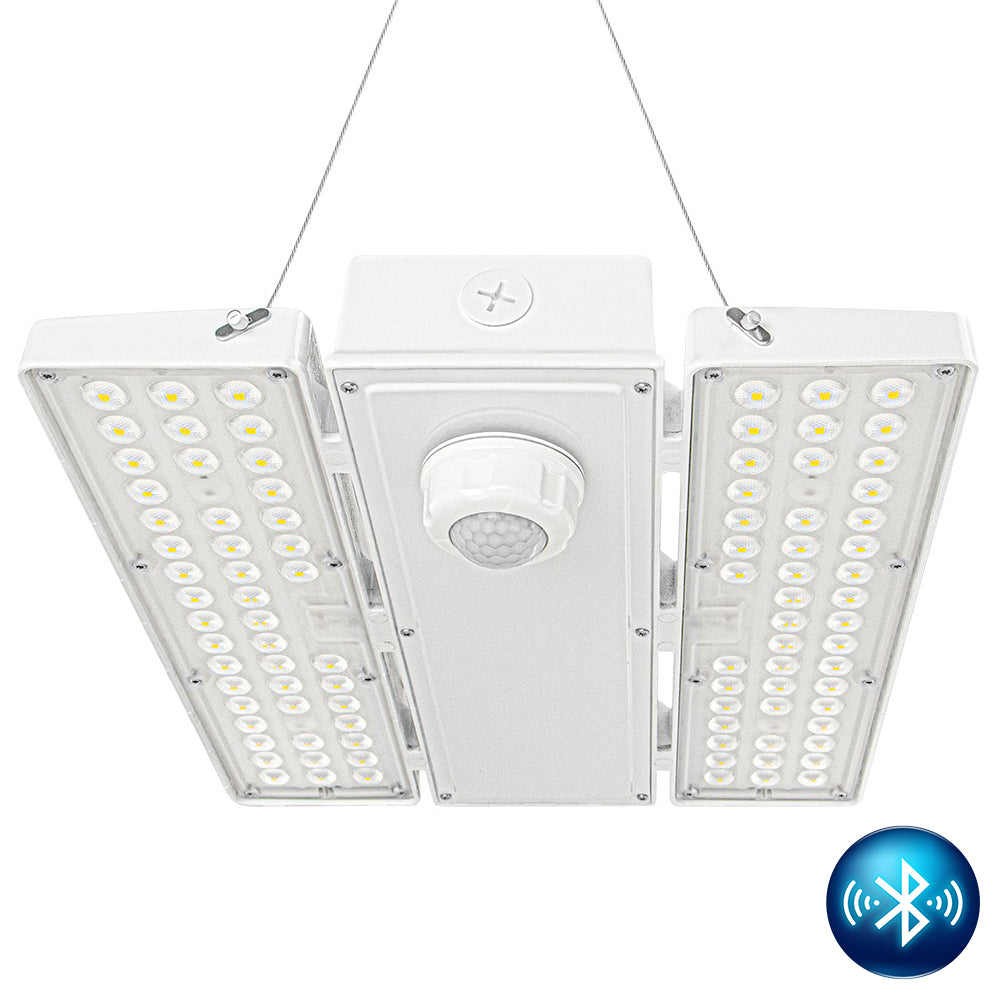

Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with PAVO High Bay Lights, ensuring a smooth and efficient control experience right out of the box.

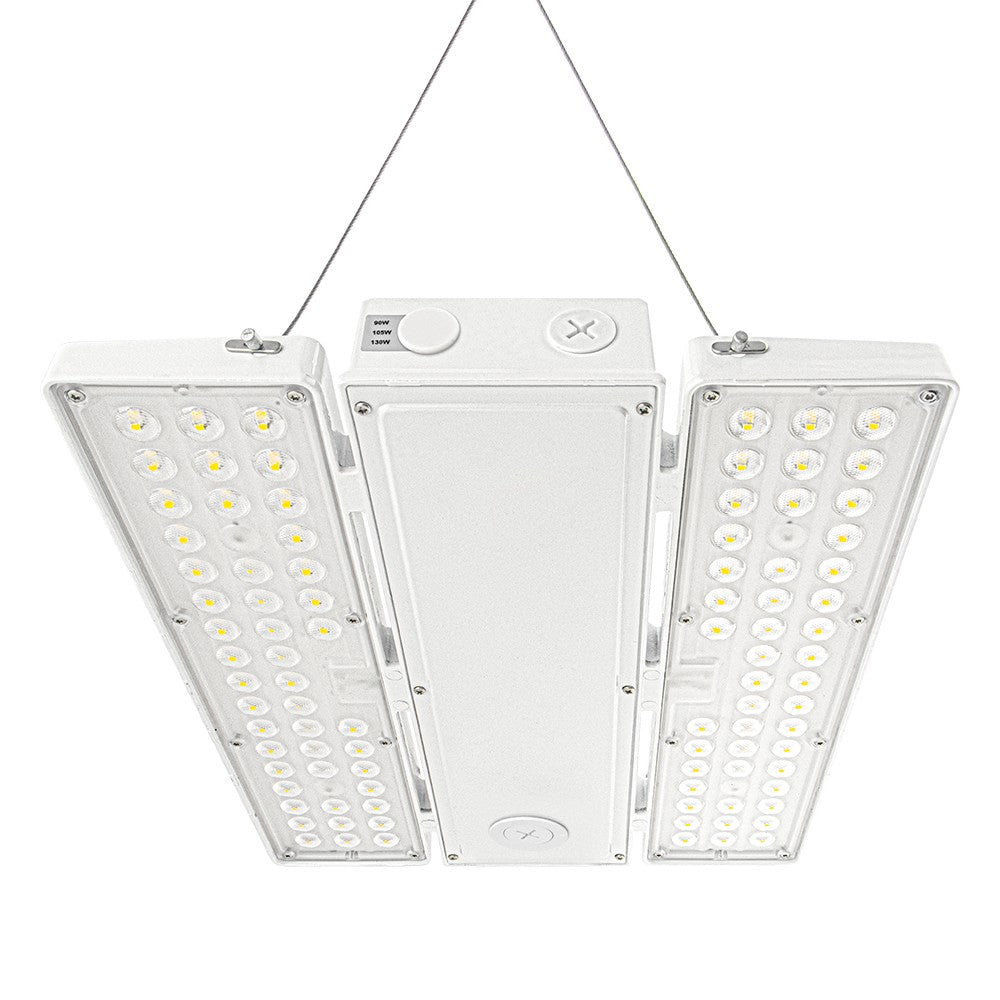

See similar 130W/105W/90W, 210W/180W/155W and 310W/270W/240W versions.
*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity. Optional remote control is required to program the motion sensor.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KPVMW1550KLV |
| Warranty | Limited 5 Years | UPC | 659675144177 |
| Input Voltage | 120-277V | Beam | 106° |
| Input Wattage | 155W/130W/115W | Equal To | 400W MH or 6x32-T8/4x54-T5 |
| Delivered Lumens | 23,250lm/20,150lm/17,480lm | CRI | ≥80 |
| Efficacy | Up to 156 LM/W | Available CCT | 5000K |
| Rated Life | >50,000 hrs | Power Factor | ≥0.95 |
| THD | ≤15% | IP Rating | N/A |
| Dimmable | 0-10V(Dimmer NOT included, Separate Wiring Required) | Mounting | Suspension Chain, Surface, Pendant |

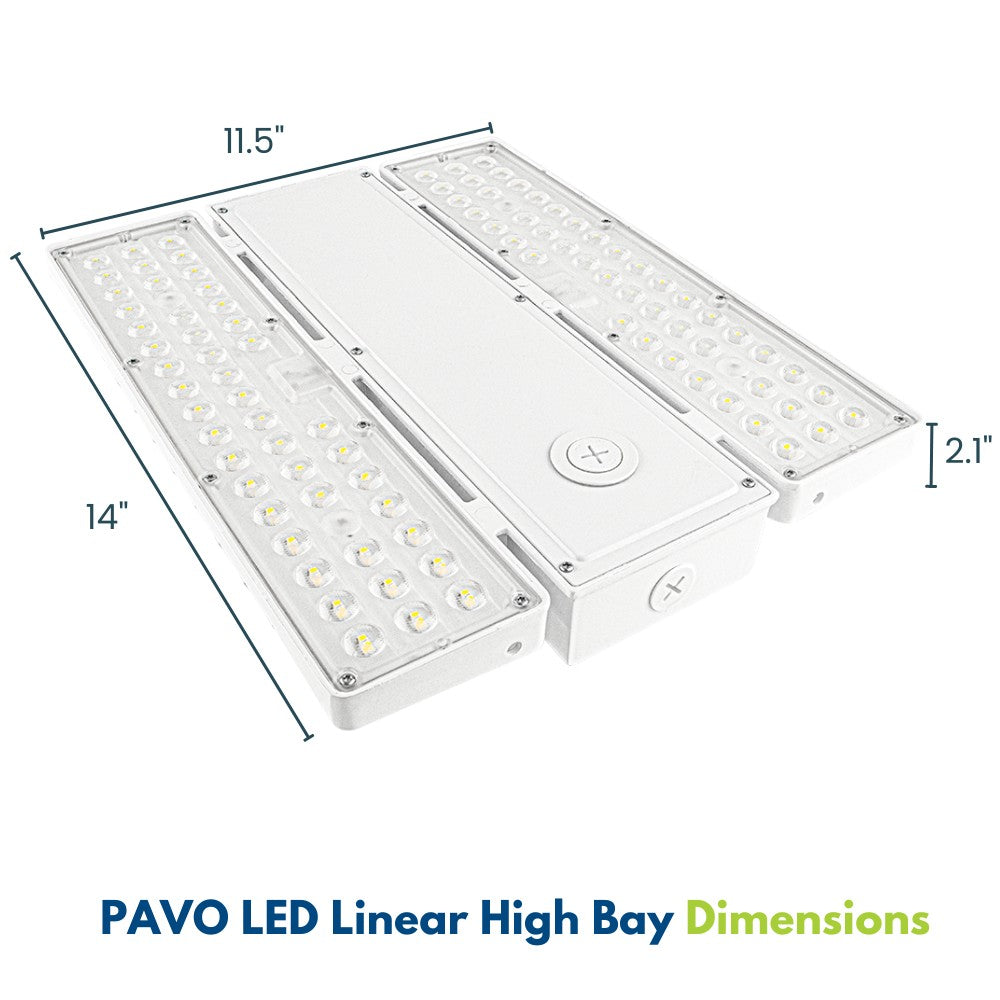

| Operating Temperature | -40° F to 122° F | Dimensions | 14''X11.5''X2.1'' |
| Certifications | UL, Dry Locations, DLC Premium | Weight | 6 Lbs |

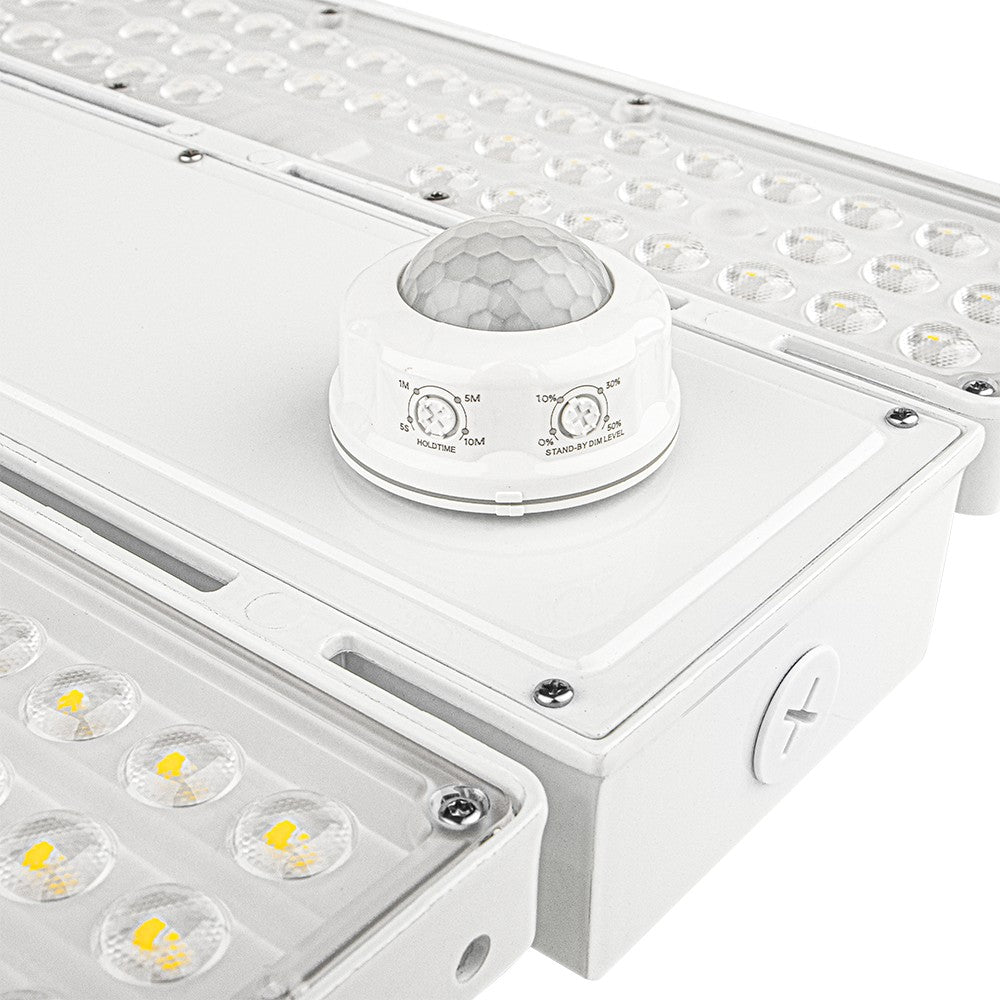

Occupancy Sensor Specification
| Brand | Haisen | MPN | HD09VCR-PH / HD09VCR-PHB ( Network Lighting Controls ) |
| Control | On/off / 1-10V Dimming | Setting tools | Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones |
| Detection area | 25%/50%/75%/100% (R.C) | Hold time | 5s/1min/5min/10min (Rotating Switch) 5s/30s/1min/3min/5min/10min/20min/30min (R.C) |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ (R.C) | Stand-by dimming level | 0%/10%/30%/50% (Rotating Switch) 10%/20%/30%/50% (R.C) |
| Input Range | 12VDC | Daylight threshold | Disable / 11 settings from 2Lux to 400Lux (R.C) |
| Operating Voltage | 10.5-15V DC | Detection range | Max. 45.92ft |
| Mounting height | Max. 39.37 ft | IP rating | IP65 |
