ALTA LED High Bay Light - 4FT - 277-480V - 225W/195W/175W - 37,600 Lumens - 5000K/4000K Selectable - 600W Equal
- Replaces 400-600W Metal Halide
- Input Voltage: 277-480V
- 0-10V Dimmable
- CCT: 5000K or 4000K
- Lumen: 26,600/32,400/29,940
- Light Dimensions: 44.29"x12.6"x2.95"
- Certificates: UL, DLC Premium
- Hanging Chain Included
- 5 Years Warranty
- Replaces 400-600W Metal Halide
- Input Voltage: 277-480V
- 0-10V Dimmable
- CCT: 5000K or 4000K
- Lumen: 26,600/32,400/29,940
- Light Dimensions: 44.29"x12.6"x2.95"
- Certificates: UL, DLC Premium
- Hanging Chain Included
- 5 Years Warranty
This high-performance Konlite LED Linear High Bay Light Series is ideal for new construction or replacement of 1000W. Delivers top energy savings and maintenance free durability for a wide range of applications.

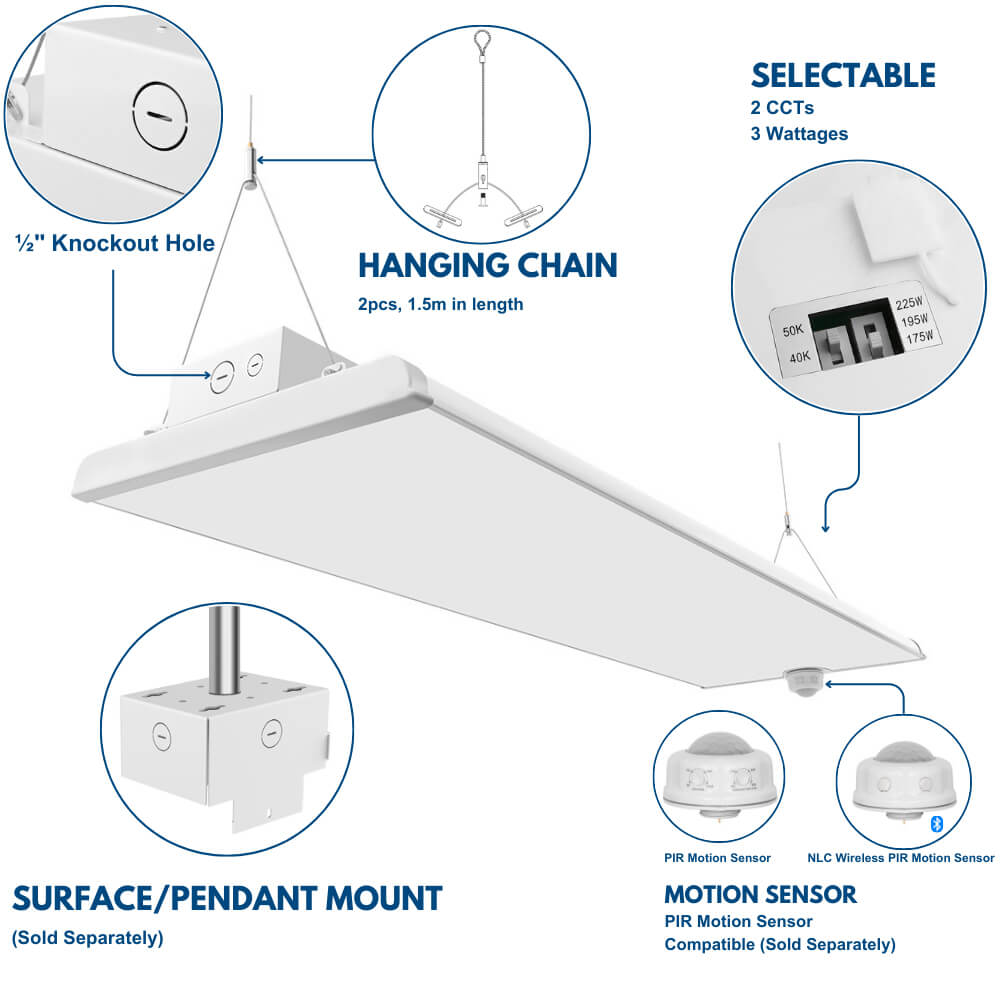

- Designed for quick, easy installation-Each unit comes with V Hook and hanging chain
- Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
- Optional motion sensor with daylight sensing function to maximize power savings
- DLC Premium certified for maximum rebates where applicable
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview
Upgrade outdated HID and fluorescent fixtures with this 4ft LED Linear High Bay Light (277–480V)—a powerful, energy-efficient solution for warehouses, gyms, manufacturing plants, retail centers, and other large indoor spaces. Designed as a direct replacement for 600–1000W HID, T5, and T8 systems, this high-performance fixture delivers superior brightness, long-lasting durability, and reduced maintenance costs.
Key Features:
-
Wide Voltage Range: 277–480V input, perfect for industrial and commercial facilities
-
Selectable Wattage & Lumens (at 5000K):
-
225W / 36,650 lm
-
195W / 32,400 lm
-
175W / 29,400 lm
-
-
Selectable CCT: 4000K Neutral White or 5000K Daylight White
-
High Efficiency: Even illumination with frosted polycarbonate diffuser for glare-free 120° beam angle
-
0–10V Dimming: Smooth control for energy management
-
Mounting: Hanging Chain included; Use Use Surface Mounting Kit for secure surface installation
-
Optional Controls: Plug-n-Play motion sensor with rotating switch and built-in daylight harvesting capability
Performance & Benefits:
-
Significant energy savings compared to HID and fluorescent fixtures
-
Maintenance-free design reduces downtime and service costs
-
Improves visibility and safety in high-ceiling environments
-
Rugged and compact housing for reliable operation in demanding applications
See similar 300-watt versions.
Applications
| •Warehouses | •Workshops |
| •Convention Centers |
•High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retail | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KAT225MCLV4F |
| Warranty | Limited 5 Years | UPC | 659675182315 |
| Input Voltage | 120-277V | Beam | 120° |
| Input Wattage | 225W/195W/175W | Equal To | 400-600W or 6 lamp T8/T5 |
| Delivered Lumens | 36,650/32,400/29,400 (5000K) 37,600/33,200/30,100 (4000K) | CRI | 80 |
| Efficacy | 160-170 LM/W | Available CCT | 5000K/4000K |
| Rated Life | >50,000 hrs | Power Factor | 0.9 |
| THD | 15% | IP Rating | IP20 |
| Dimmable | 0-10V(Dimmer NOT included, Separate Wiring Required) | Mounting | Chain, Surface, Pendant |
| Operating Temperature | -40F to 113F | Dimensions | 44.29”X12.6”X2.95" |
| Certifications | UL, Damp Locations, DLC Premium |
Motion Sensor Specification
| Brand | Haisen | MPN | HD09VR-PH |
| Control | On/off / 1-10V Dimming | Setting tool | Rotating Switch or Remote Control (HD05R). |
| Detection area | 25%/50%/75%/100% | Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/30s/1m/5m/10m/30m/60m/+∞ | Stand-by dimming level | 10%/20%/30%/50% |
| Motion detection | 0.5~1.5m/s | Daylight threshold | Disable / 8 settings from 2Lux to 400Lux |
| Mounting height | Max. 39ft | Detection range | Max. 45ft |
| Operating Voltage | 10-15V DC | IP rating | IP65 |
| Current | <15mA | Warranty | 3 Years |
*Stand-By Period need to be set to 0s while using with dimmer switch.
*Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
