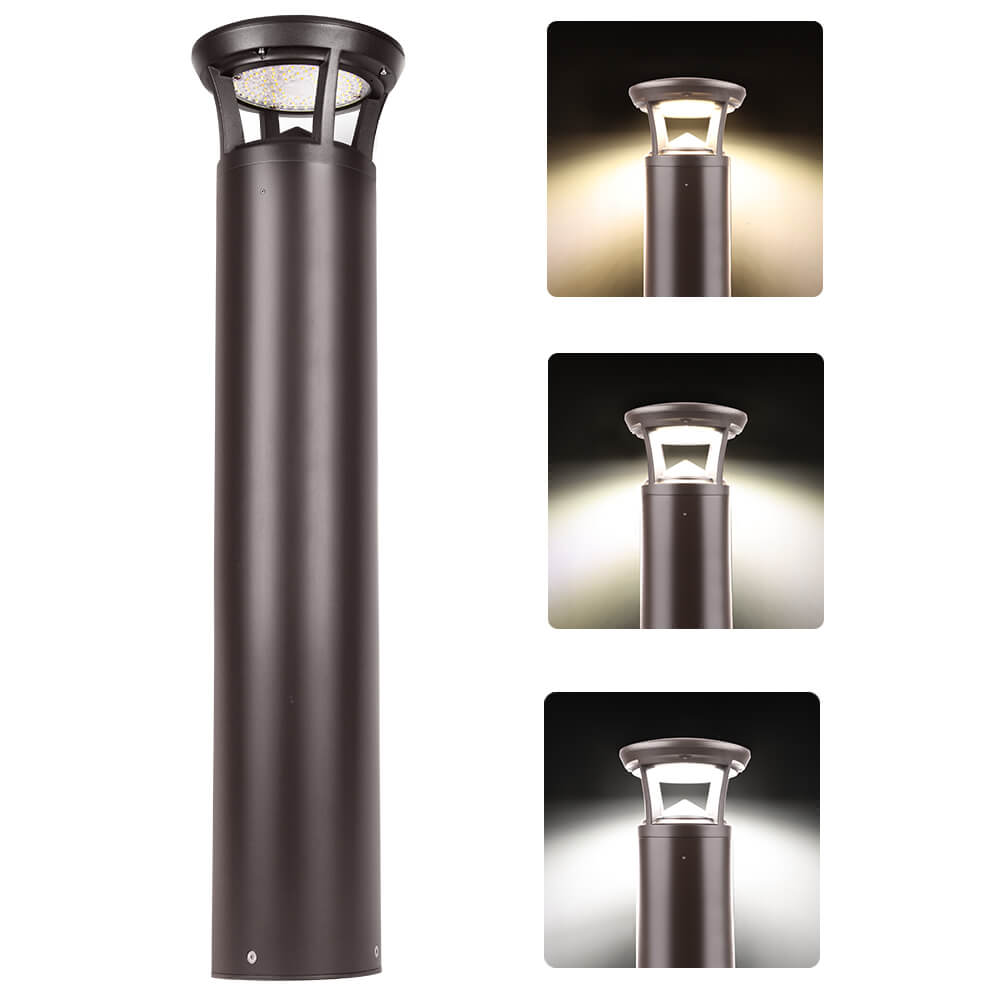

Outdoor lamp post with close-up insets showing light emission on a white background
Three height models of a cylindrical light fixture with measurements on a blue and white background.

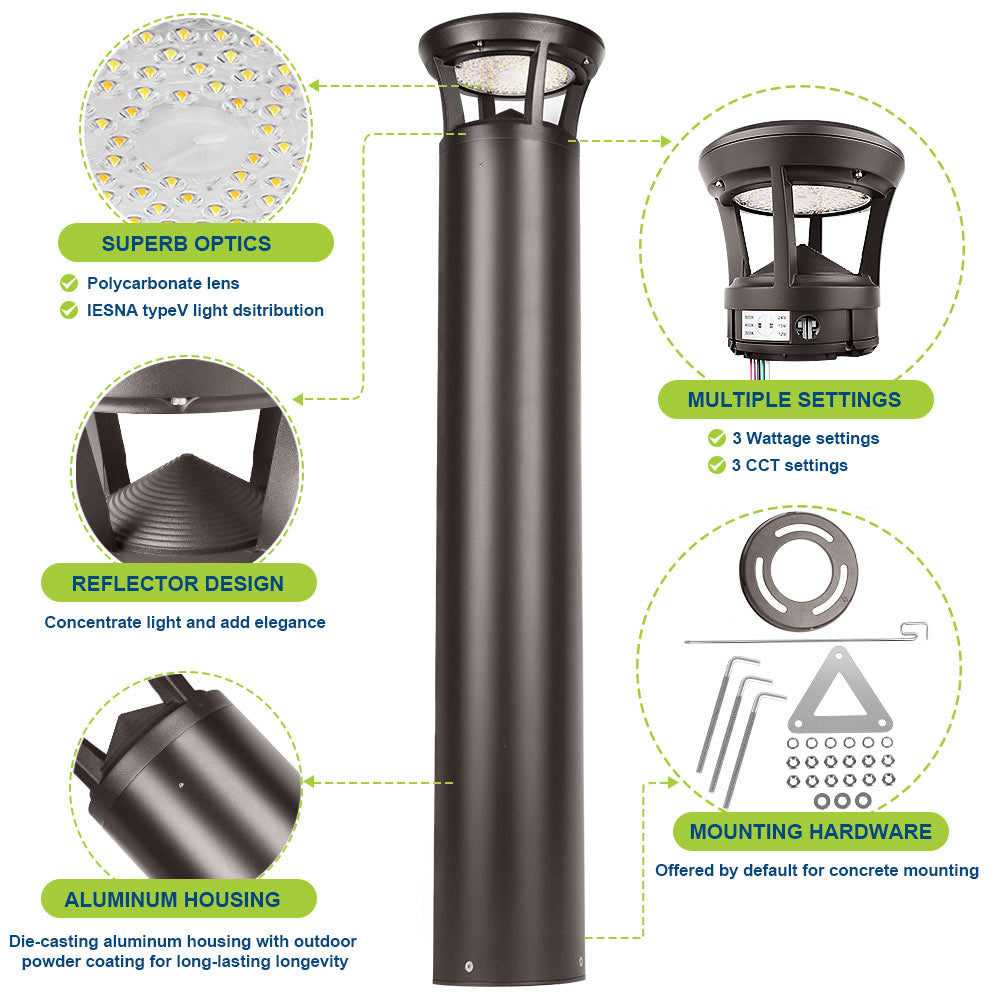

4ft Konlite LED Bollard Light with features highlighted
Instructions for adjusting wattage and CCT settings on a 4ft Konlite LED Bollard Light
Konlite LED Bollard Light with features highlighted with specifications on a blue background
Konlite LED Bollard Light with features highlighted in various weather conditions with text highlighting performance features.
Konlite LED Bollard Light with color temperature and wattage options displayed on a black background
Koralite LED bollard light on a pathway with greenery at night, featuring the brand logo and product features.
Included hardware kit for LED bollard light on a white background
LED light fixture with wiring diagram and color-coded wires on a white background
Diagram of 4ft Konlite LED Bollard Light with labeled parts on a light blue background
Dark brown 4ft Konlite LED Bollard Light head
Brown 4ft Konlite LED Bollard Light head
Brown 4ft Konlite LED Bollard Light head with 4W Emergency Battery
Roll over image to zoom in Click on image to zoom
Bronze outdoor 3ft LED bollard light on a white background LED Bollard Light video konlite led bollard 4ft light photometricsOutdoor lamp post with close-up insets showing light emission on a white backgroundThree height models of a cylindrical light fixture with measurements on a blue and white background.4ft Konlite LED Bollard Light with features highlightedInstructions for adjusting wattage and CCT settings on a 4ft Konlite LED Bollard LightKonlite LED Bollard Light with features highlighted with specifications on a blue backgroundKonlite LED Bollard Light with features highlighted in various weather conditions with text highlighting performance features.Konlite LED Bollard Light with color temperature and wattage options displayed on a black backgroundKoralite LED bollard light on a pathway with greenery at night, featuring the brand logo and product features.Included hardware kit for LED bollard light on a white backgroundLED light fixture with wiring diagram and color-coded wires on a white backgroundDiagram of 4ft Konlite LED Bollard Light with labeled parts on a light blue backgroundDark brown 4ft Konlite LED Bollard Light headBrown 4ft Konlite LED Bollard Light headBrown 4ft Konlite LED Bollard Light head with 4W Emergency Battery
What's in the box
1 LED WallPack Fixture - 1 Instllation Guide - Anchor Bolts and Installation hardwires

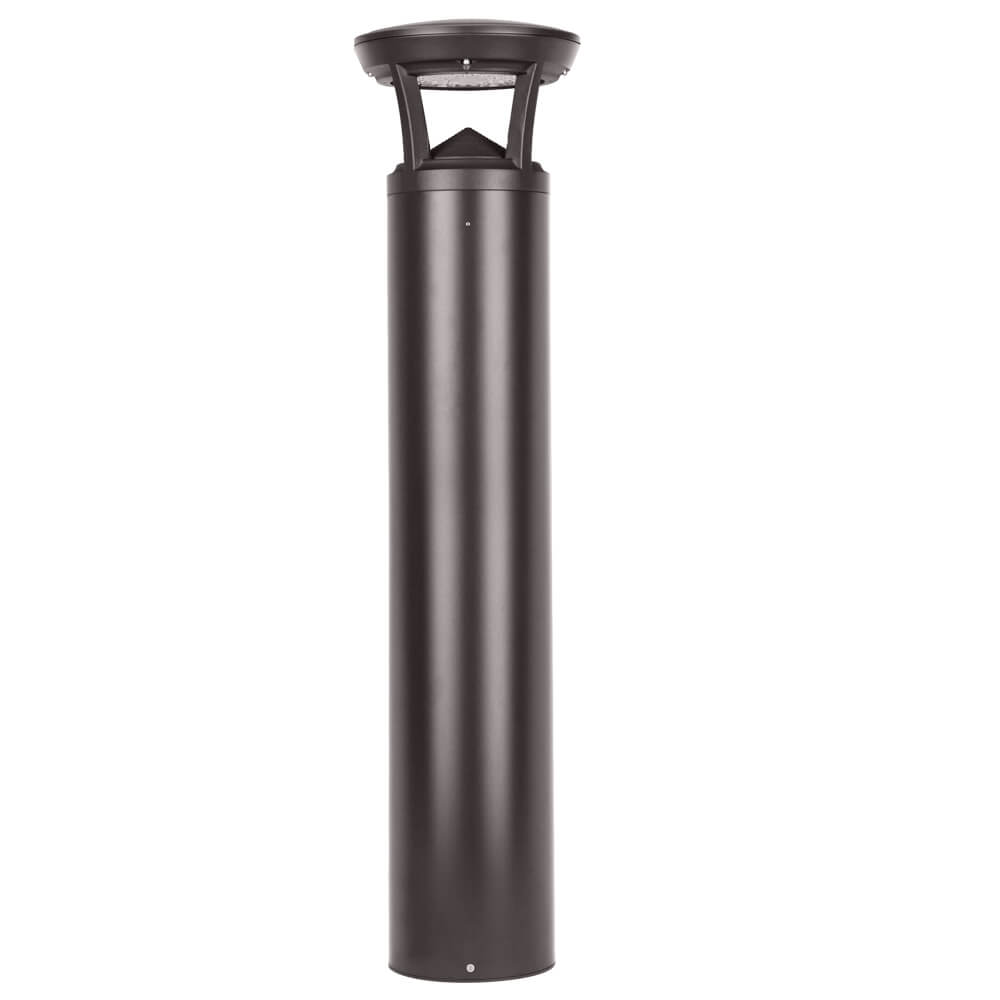

3 FT. Konlite Dome-Top LED Bollard Light - 24W - 3,000 Lumens - 3 Watts Selectable - 3 CCT Selectable - 120-277V - 100W Equal

Konlite SKU: KXBL24WMCL3FD SEARCH CODE: 21-0305

    • Replaces 100W Metal Halide Light

    • Corrosion-resistant aluminum housing

    • Body Dimensions: Ø6.3" x Ht.29.37"

    • Dome Top Dims: Ø8.66" x Ht. 6.77"

    • CCT: 3000K, 4000K or 5000K

    • Wattages: 24W/15W/12W

    • Lumens: 3000/1940/1560 LM

    • Optional 90+ minutes Battery Backup

    • Certificates: UL Wet Location

    • 5-Year Warranty

$176.65

  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.
What's in the box
1 LED WallPack Fixture - 1 Instllation Guide - Anchor Bolts and Installation hardwires
Bronze outdoor 3ft LED bollard light on a white background
3 FT. Konlite Dome-Top LED Bollard Light - 24W - 3,000 Lumens - 3 Watts Selectable - 3 CCT Selectable - 120-277V - 100W Equal
$176.65
What's in the box
1 LED WallPack Fixture - 1 Instllation Guide - Anchor Bolts and Installation hardwires

Product Overview

Elevate pathways, courtyards, campuses, and public spaces with the Konlite 3-foot LED Bollard Light. Engineered for reliability and clean architectural appeal, it delivers uniform illumination, long-life performance, and flexible on-site settings.

Key Features:

  • Wattage Selectable: Choose 12W / 15W / 24W to match your site’s needs.

  • CCT Selectable: 3000K / 4000K / 5000K for warm to cool visual comfort.

  • High Efficacy: Up to 124 lm/W with consistent output across settings.

  • Optics: Type V distribution for open areas; Type III available by request (call 877-718-0808).

  • Optional Emergency Backup: 4W emergency battery provides ≥90 minutes of code-supportive egress illumination during power outages.

  • Rugged Build: Die-cast aluminum housing with corrosion-resistant, outdoor-rated powder coat. Fixture height: 36.14" (3 Ft ).

  • Wet Location Rated: cULus listed for dependable operation in harsh weather.

  • Easy Installation: Pre-drilled base, triangular mounting plate, and hardware for concrete mounting.

  • Included Lead: 3 ft UL power cord for secure, code-compliant wiring.



Applications

•Landscape Lighting •Security Lighting
•Gardens

•Walkways and Pathways
•Residential Complexes •Commercial Complexes
•Building Entryways •Building Perimeters
•Parks •Architectural Lighting
Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumIP65 rating

Specifications

BrandKonliteMPNKXBL24WMCL3FD
Warranty 5 YearsUPC659675059815
Input Voltage120-277VDimmableN/A
Input Wattage24WEqual to 100W MH
Delivered Lumens3,000LM/1,940LM/1,560LMCRI>70
Efficacy124 LM/WAvailable CCT5000K/4000K/3000K
Rated Life>100,000 HrsControlPhotocell, Please call to order
Operating Temp-40°F to 122°FDimension35.71”x6.3”
CertificationsUL, Wet Locations, DLC PremiumWeight9.4 Lbs
