Konlite LED Bollard Louver Kit - Only for Konlite KXBL LED Bollard Head - Dark Bronze

Konlite SKU: KXBL-FLK-D SEARCH CODE: 21-0003

Design for Konlite KXBL LED Bollard Head Only
Corrosion-resistant aluminum housing
Easy integration and installation
5-Year Warranty

$36.00

Quantity:

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

What's in the box

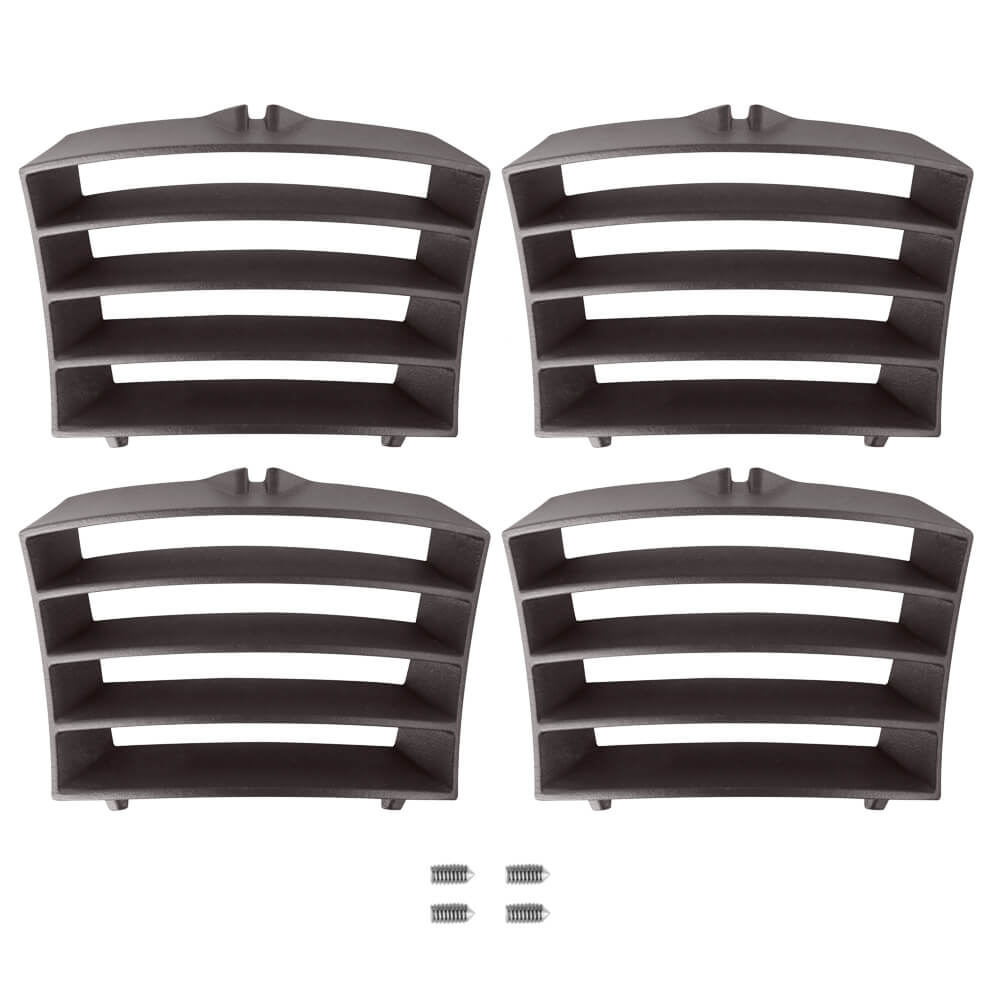

1 Kits - 1 Instllation Guide

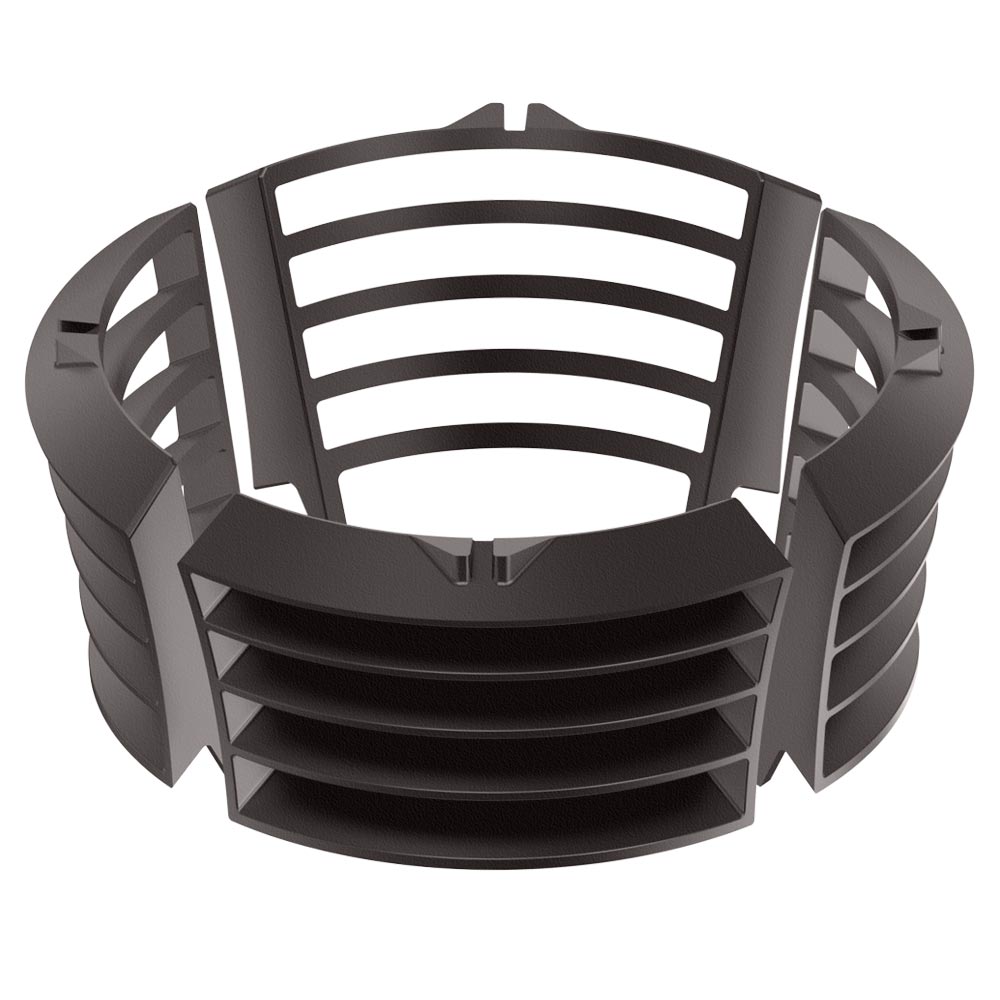

Konlite LED Bollard Louver Kit - Only for Konlite KXBL LED Bollard Head - Dark Bronze

$36.00

What's in the box

1 Kits - 1 Instllation Guide

Product Overview

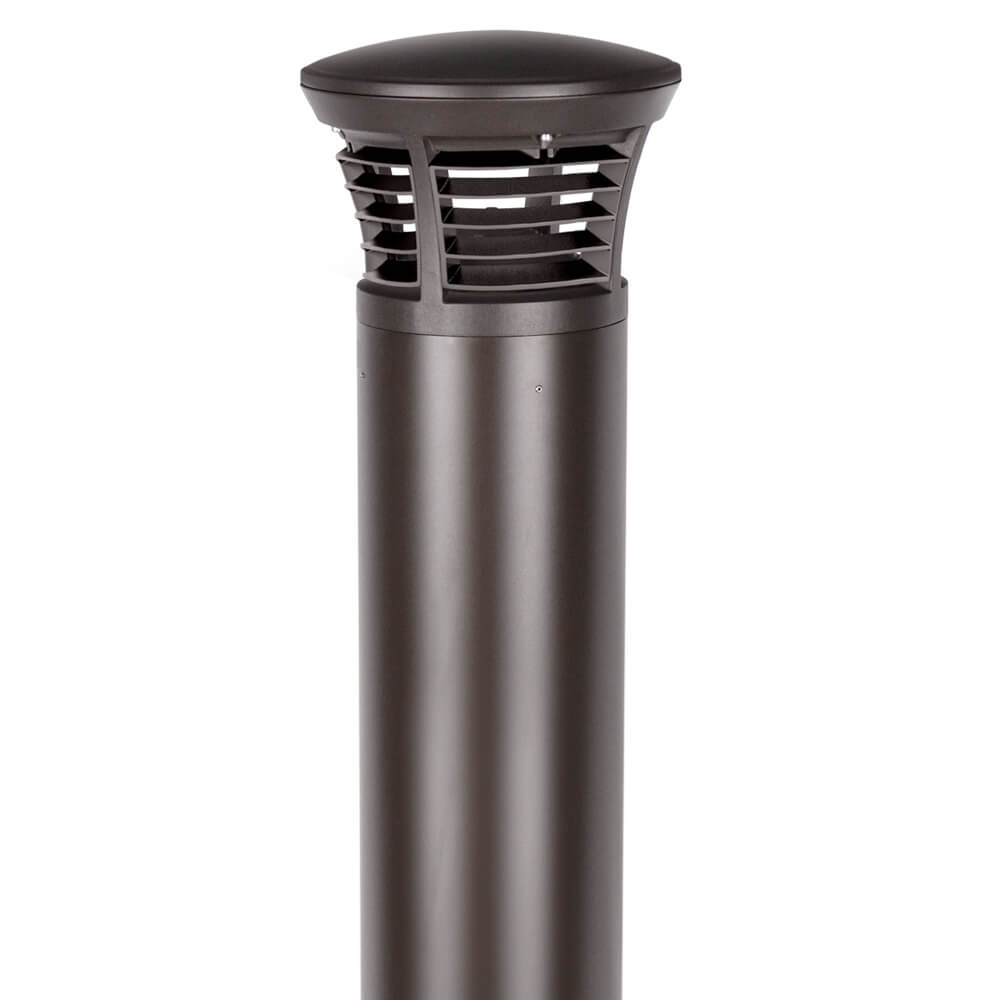

Give your KXBL bollards a clean, architectural look while cutting glare and spill. This snap-in louver kit shapes the beam, improves pedestrian comfort, and keeps light focused on paths and entries—ideal for campuses, hotels, courtyards, and walkways.

Why use it

Glare reduction: Horizontal louvers shield the light source for comfortable, low-glare illumination.
Directional control: Helps limit uplight/trespass and refine the beam for code-friendly, neighbor-friendly sites.
Architectural finish: Matches the KXBL head for a seamless, professional appearance.
Fast retrofit: Installs inside the head with basic hand tools—no rewiring.

Compatibility

For Konlite KXBL LED Bollard fixtures only.

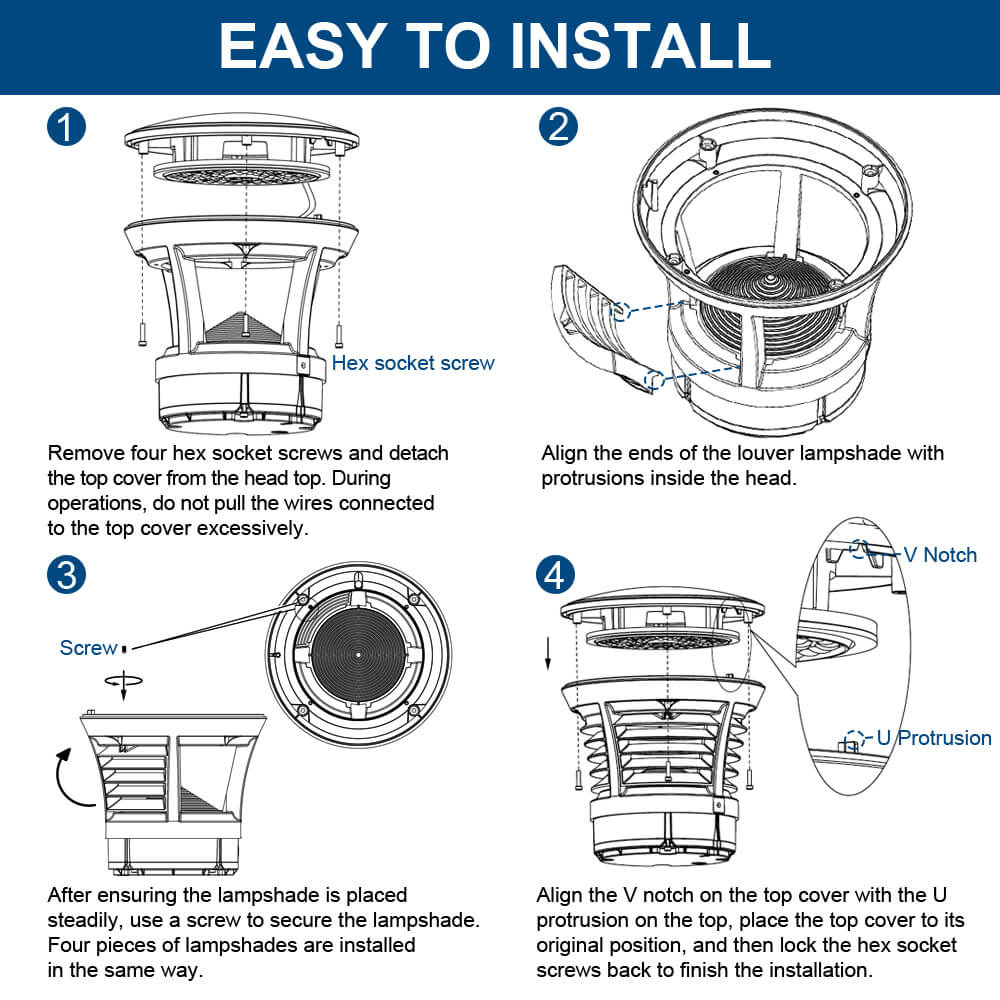

Quick install

Remove the four hex screws and lift the top cap (support the cap—don’t strain the wires).
Align each louver panel with the internal protrusions and slide into place.
Secure with the provided screws.
Reinstall the top cap (align V-notch to U-tab) and tighten the hex screws.

Applications

•Landscape Lighting	•Security Lighting
•Gardens	•Walkways and Pathways
•Residential Complexes	•Commercial Complexes
•Building Entryways	•Building Perimeters
•Parks	•Architectural Lighting
