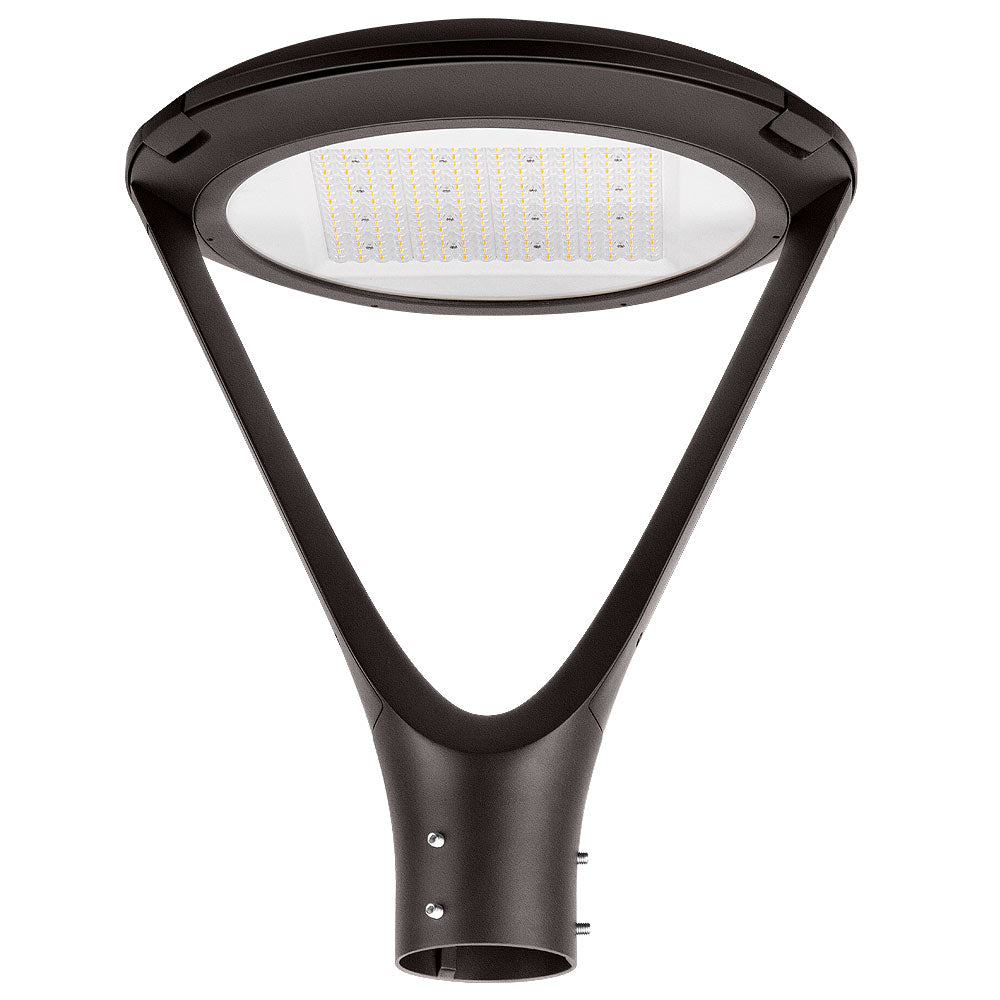

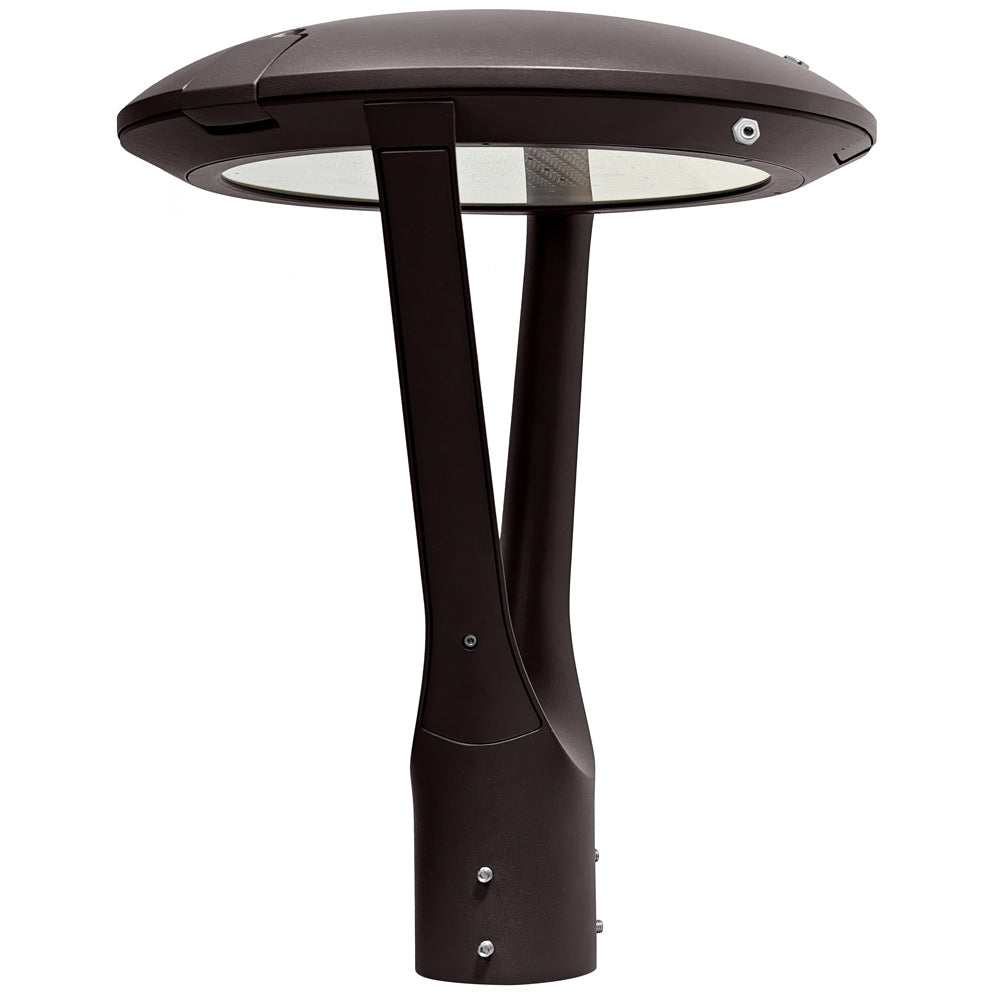

KONLITE Atria LED Post Top Light - 9,450 lumens - 63W/53W/33W - 5000K/4000K/3000K - 120-277V - 250W Equal - Dark Bronze

Product Overview

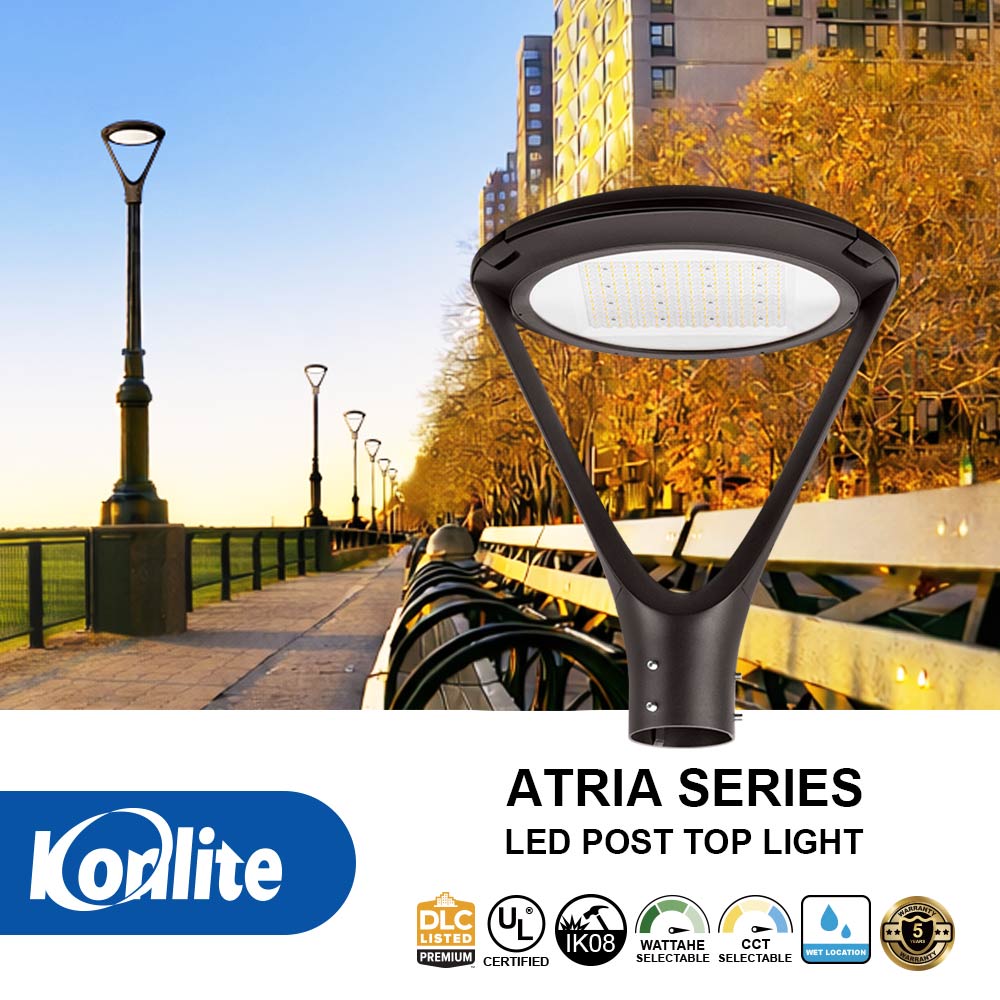

The 63W LED Post Top Light is part of Konlite’s Atria architectural lighting series, designed to deliver a clean, modern appearance with reliable outdoor performance. As part of the Atria family, this design helps create a consistent architectural look across post top lighting, area lighting, canopy lighting, and bollard lighting applications.

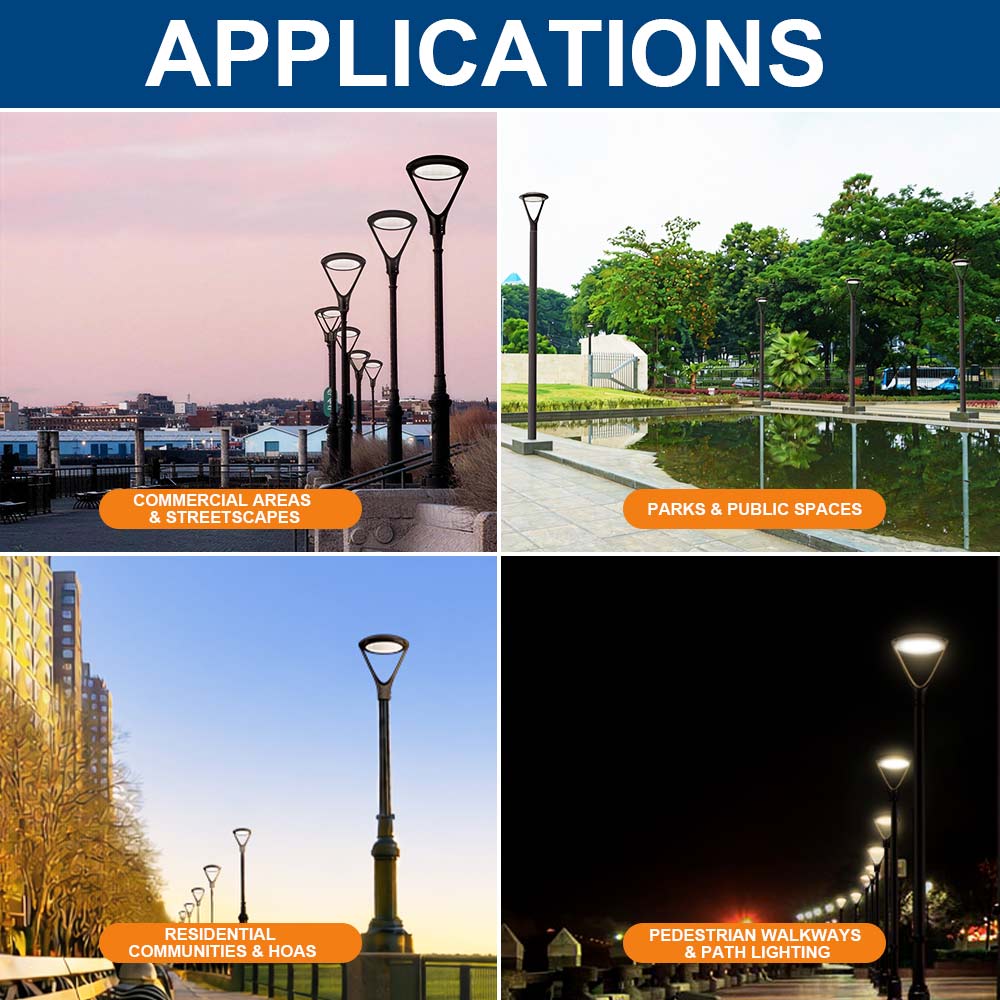

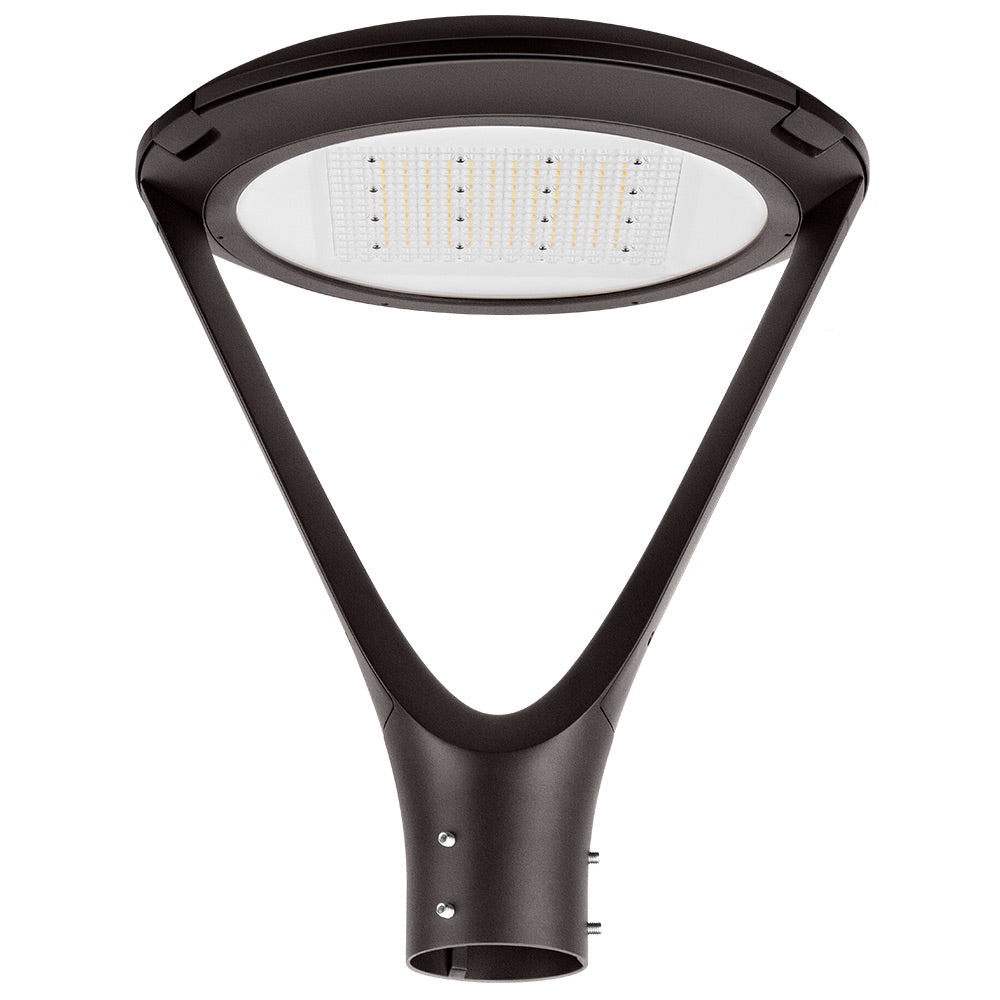

Engineered for commercial and public outdoor spaces, the 63W Atria Post Top Light combines efficient photometric performance with a compact, low-profile architectural housing. It is ideal for pathways, parks, pedestrian plazas, gardens, residential roads, building entrances, public facilities, small parking areas, and other exterior environments where appearance, safety, and energy efficiency are important.

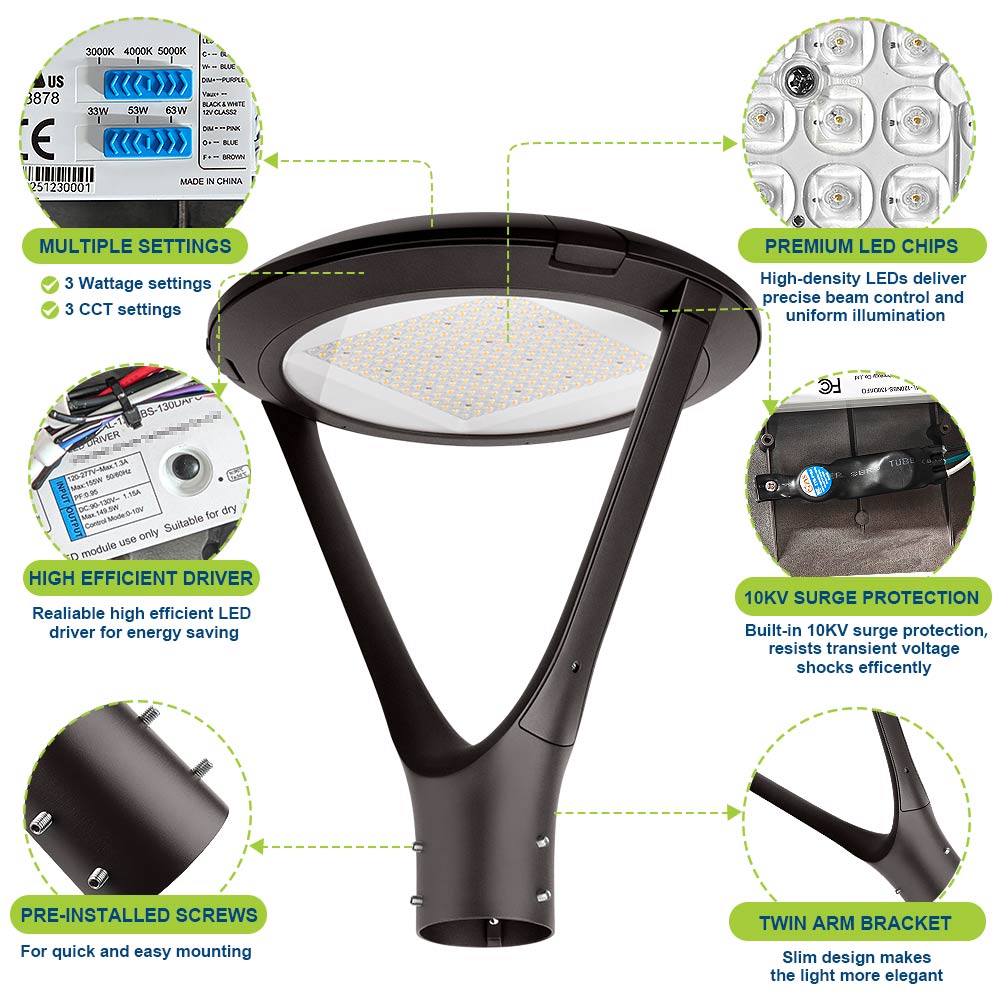

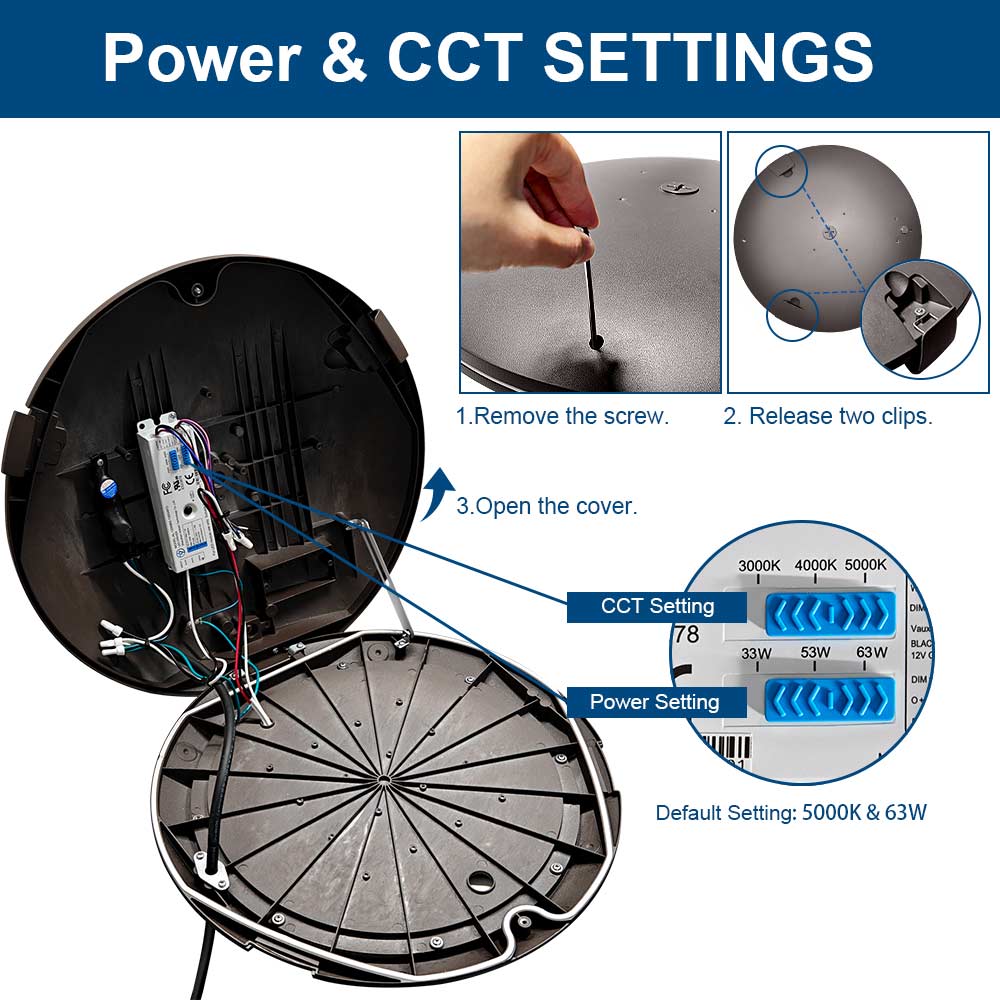

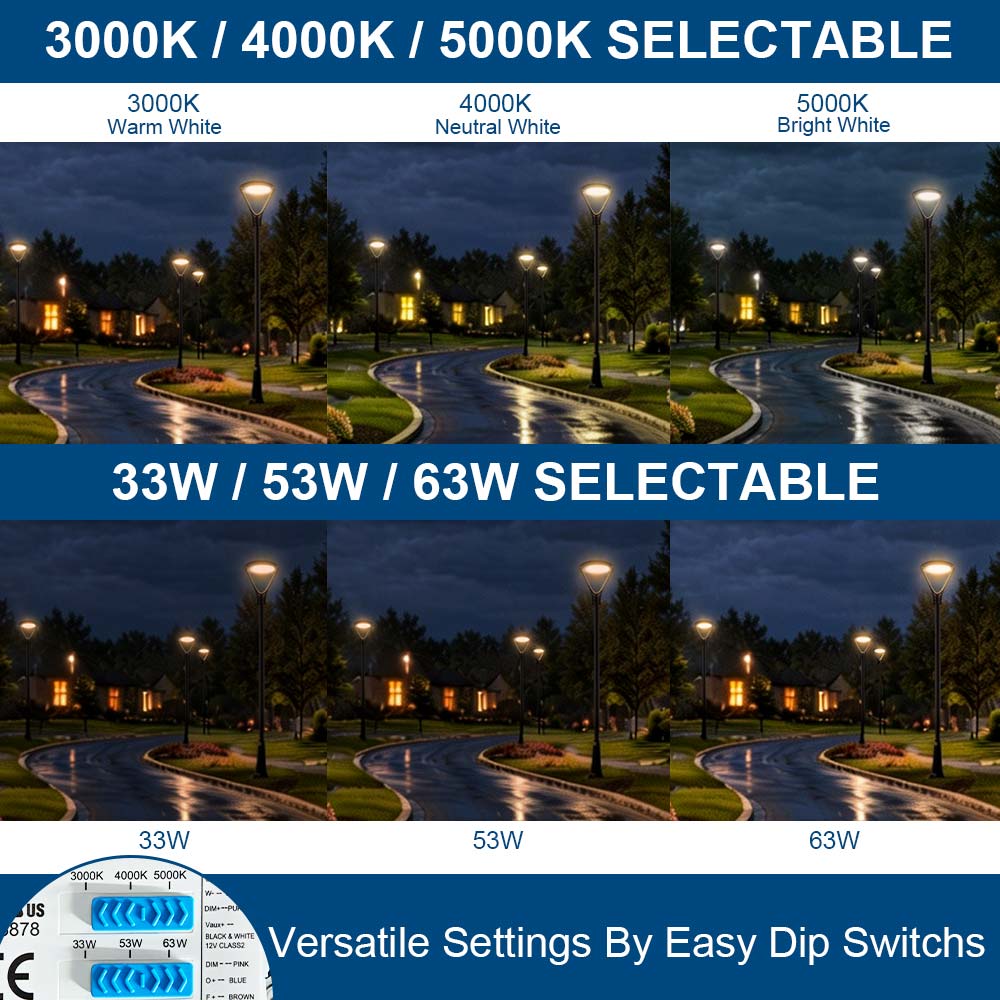

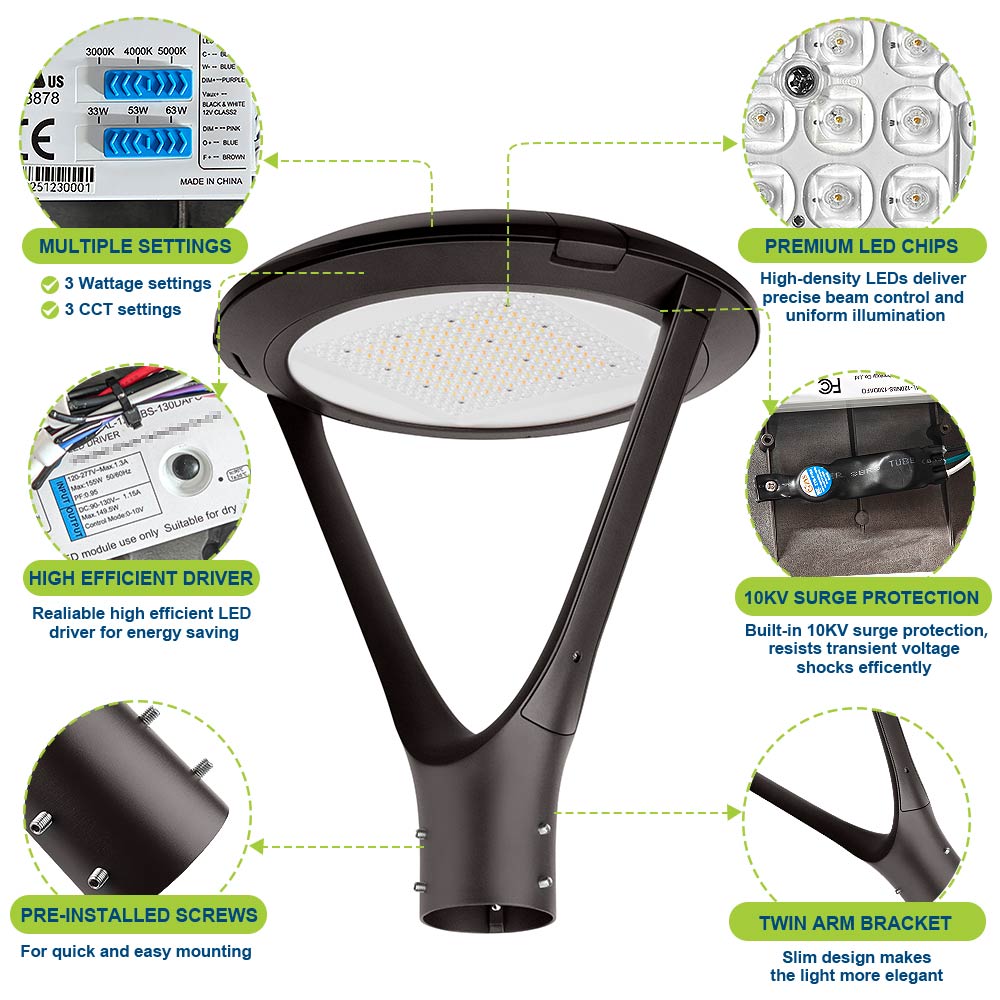

This fixture is wattage selectable, allowing three power settings: 63W, 53W, and 33W, with 63W as the default setting. It is also CCT selectable, offering 3000K, 4000K, and 5000K color temperatures, with 5000K as the default setting. The selectable design helps contractors and facility managers reduce SKU complexity while adjusting light output and color temperature in the field.

The 63W model delivers up to approximately 9,450 lumens, depending on distribution type and CCT, with efficiency up to 150 LPW in tested configurations. It can be used as a replacement for up to 250W metal halide fixtures in many applications.

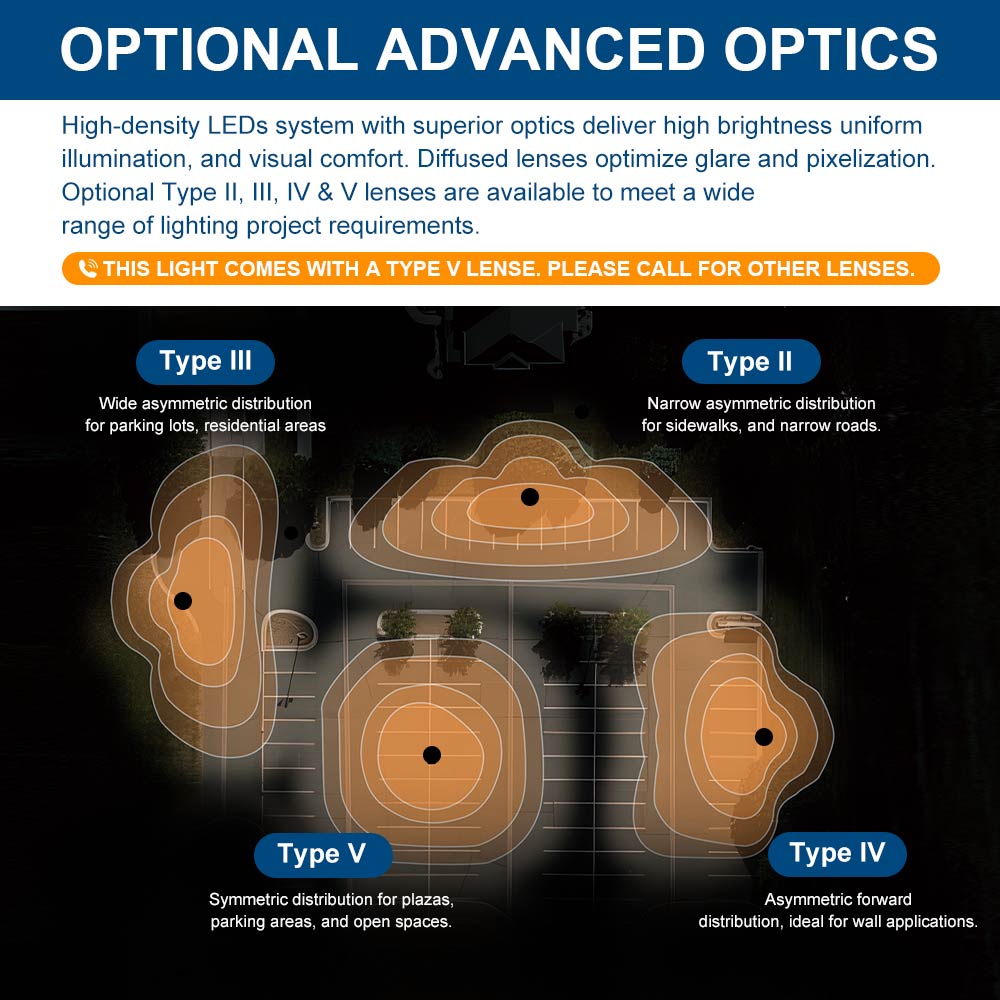

This Atria Post Top Light is supplied with one lens only. Please review and select the correct lens type carefully before checkout, as each lens is designed for a different lighting application. Revolve LED offers this fixture with Type V and Type III light distributions.

Type V Distribution
Type V distribution produces a wide, symmetrical light pattern that spreads illumination evenly in all directions around the fixture. This makes it ideal for open-area applications such as parks, plazas, courtyards, pedestrian areas, small parking lots, and general site lighting where uniform coverage is needed around the pole or mounting point.

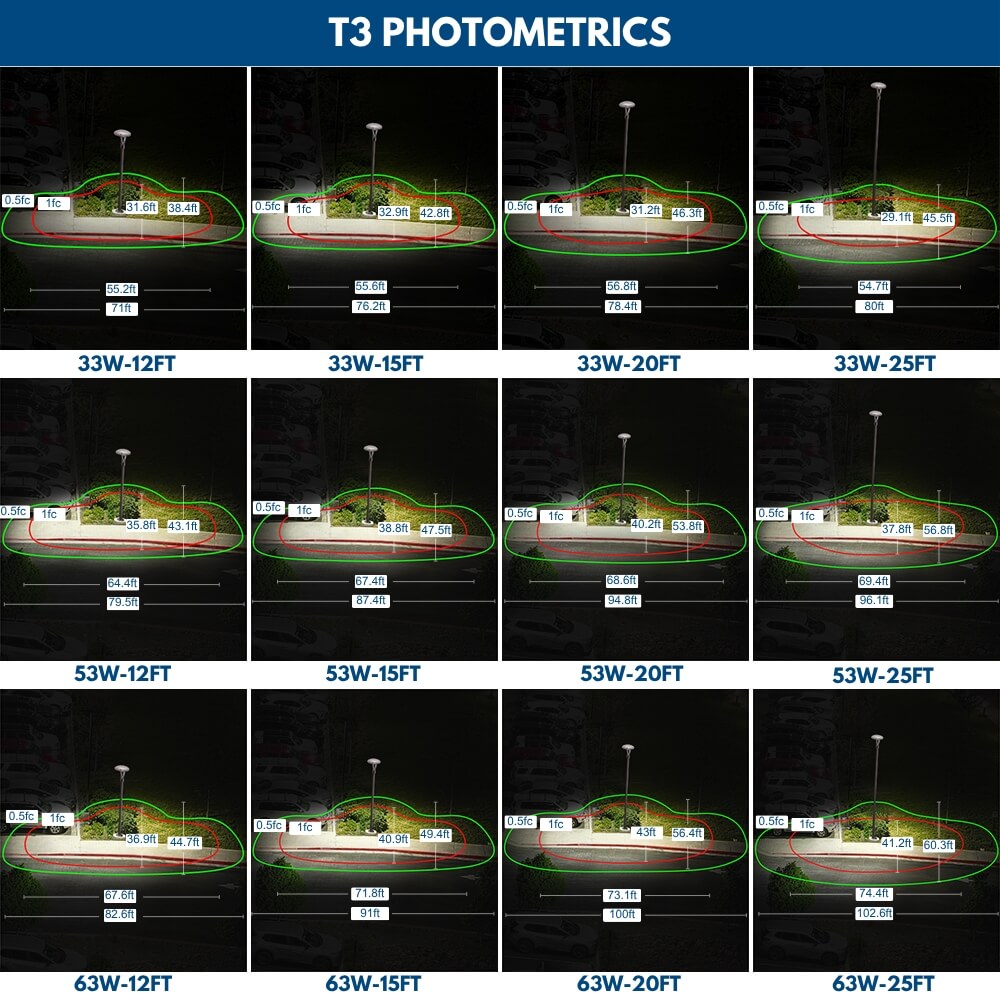

Type III Distribution
Type III distribution provides a wider forward and side-throw light pattern. It is a good choice for roadways, pathways, parking lot edges, perimeter areas, and locations where the fixture is mounted near the side of the space and needs to project light outward.

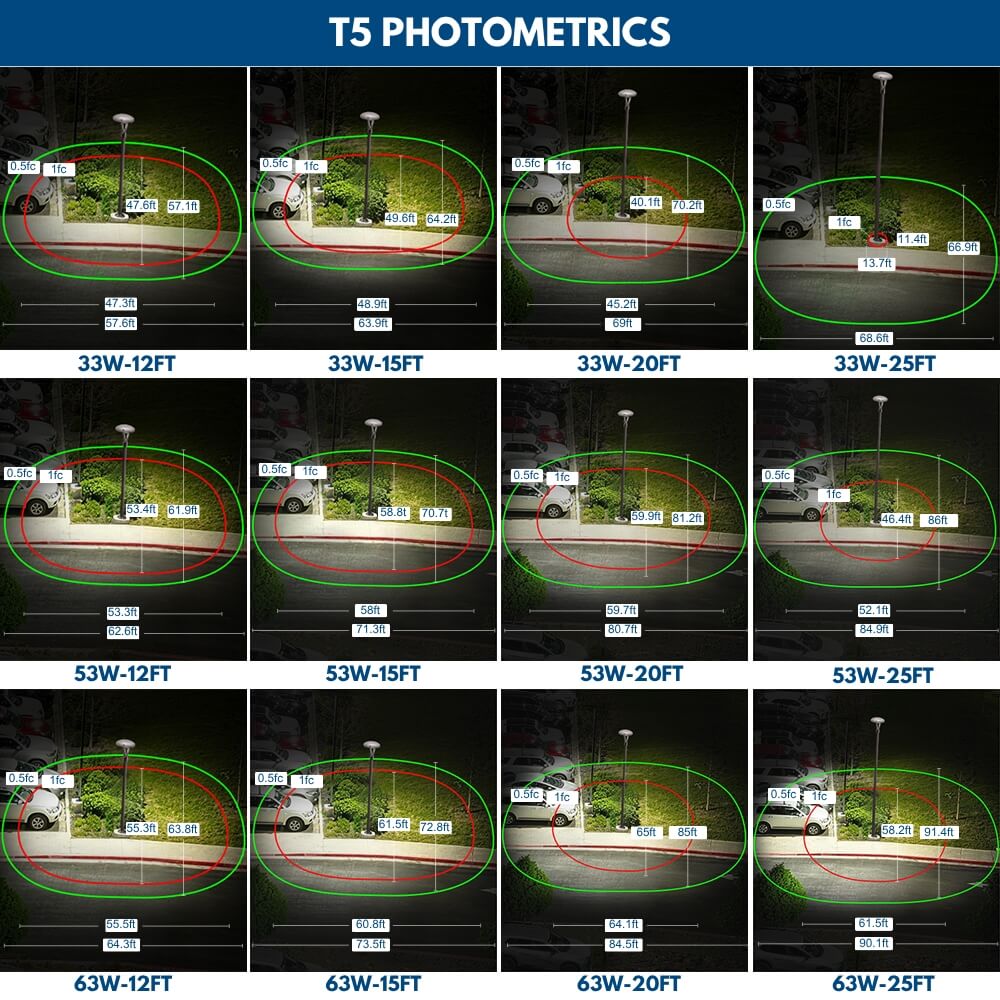

For most open-area post top applications, Type V is the standard choice. For projects requiring a more directional beam pattern, Type III may be selected to better match the site layout. To review photometric performance for each distribution, please download the corresponding IES files for the different lens options in the Download section.

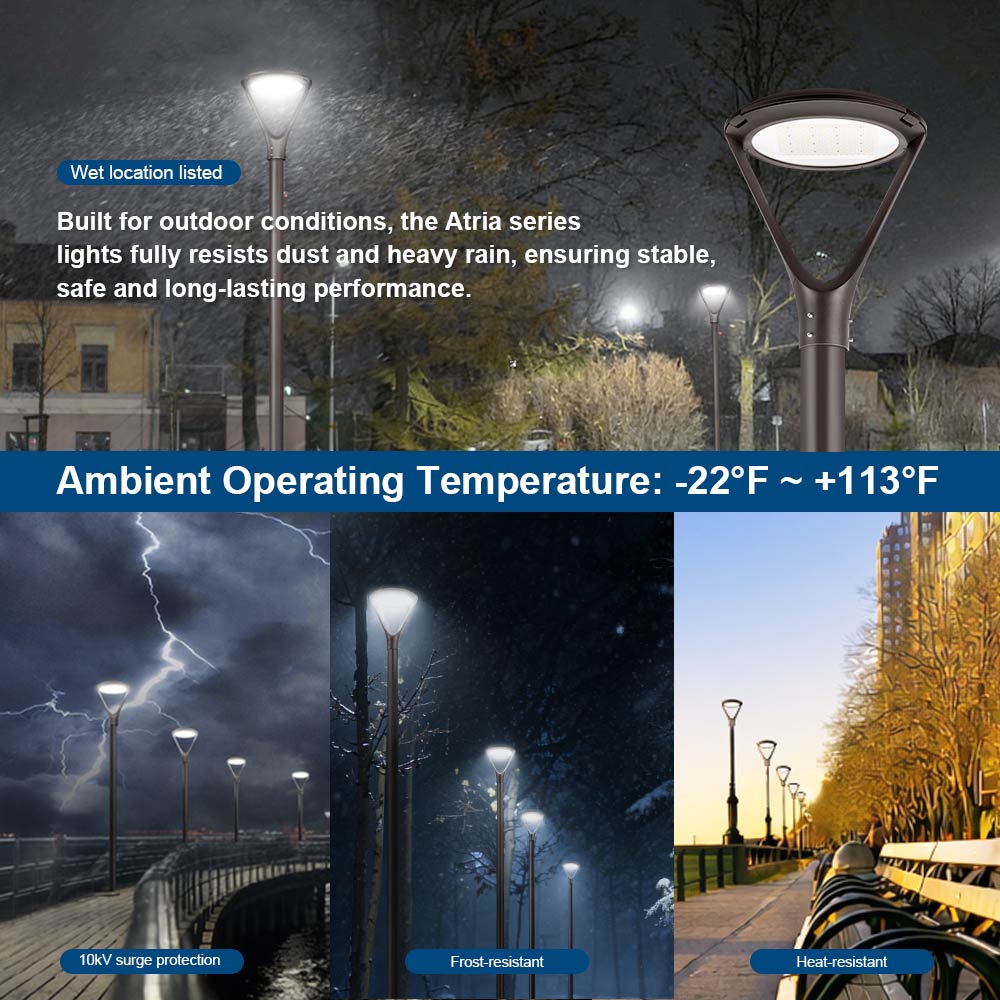

Built with a durable die-cast aluminum housing, harsh-environment-grade powder coating, tempered glass diffuser, and polycarbonate optical lens, the Atria Series is designed for long-term outdoor use. The fully sealed housing helps protect against moisture and environmental contaminants, while the fixture’s IK08 impact rating adds extra durability for demanding applications.

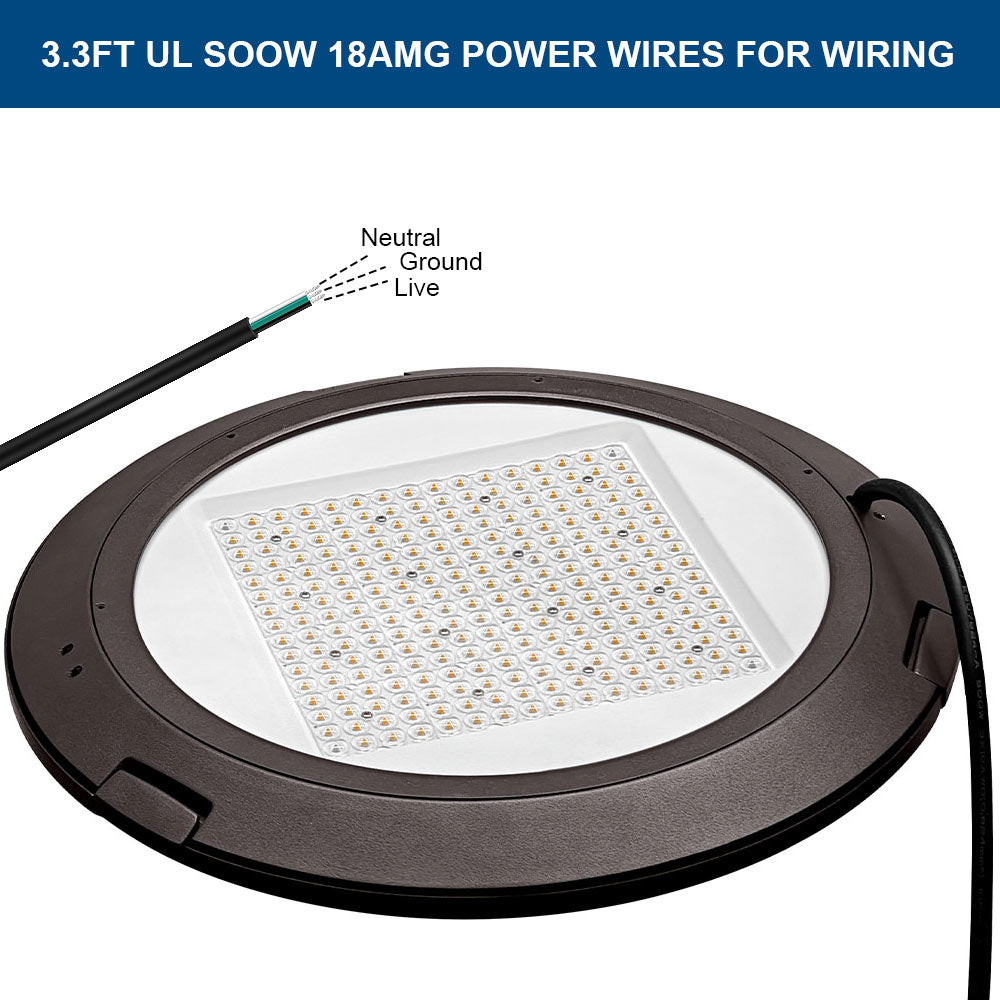

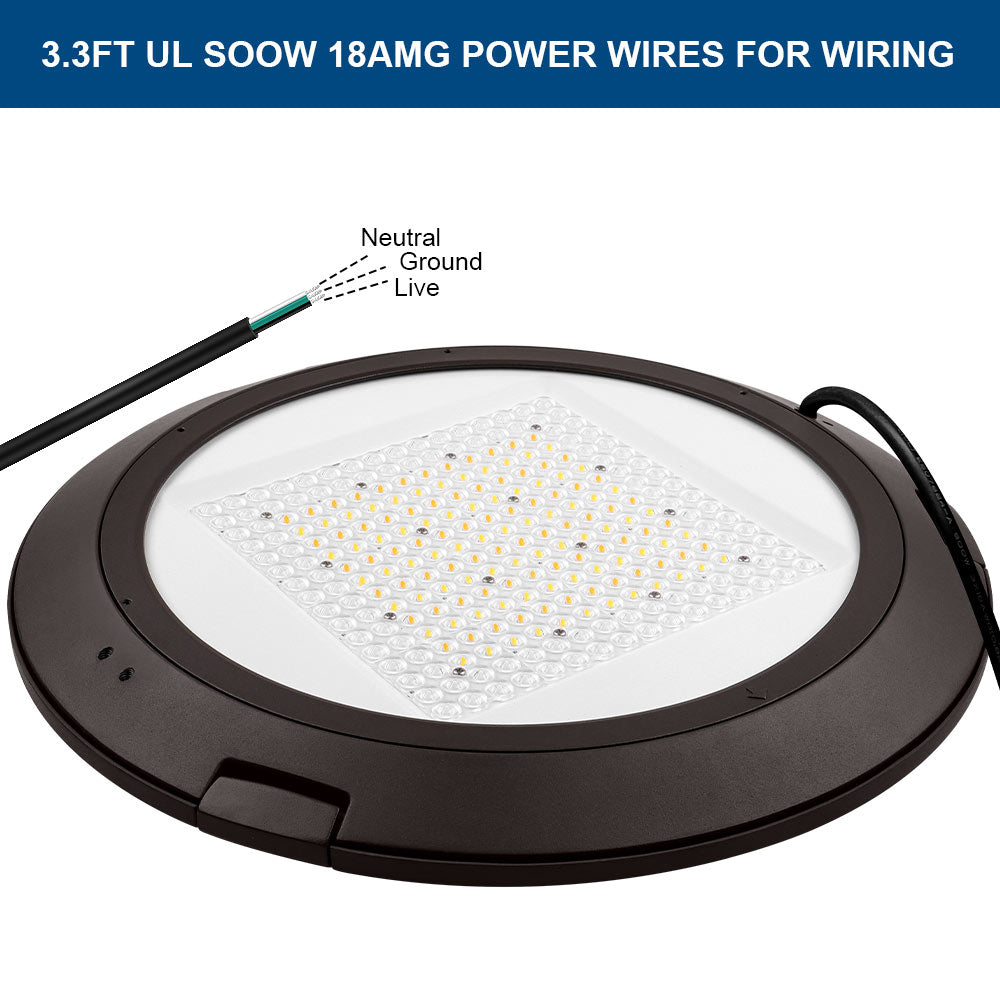

For electrical reliability, the fixture operates on 120–277V, includes built-in 10kV surge protection, and features a 3.3 ft UL power cord. The Atria Post Top Light is UL listed, DLC 6.0 Premium listed, wet-location rated, and backed by a 5-year limited warranty.

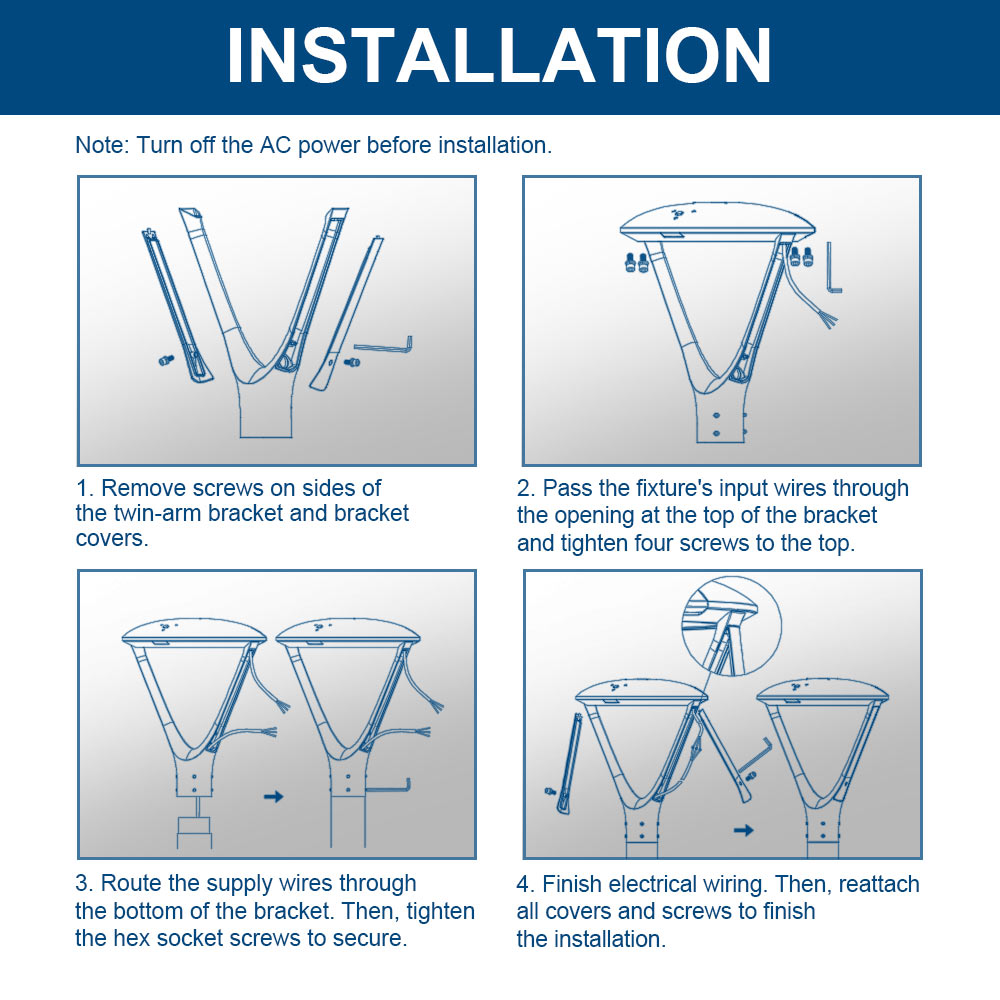

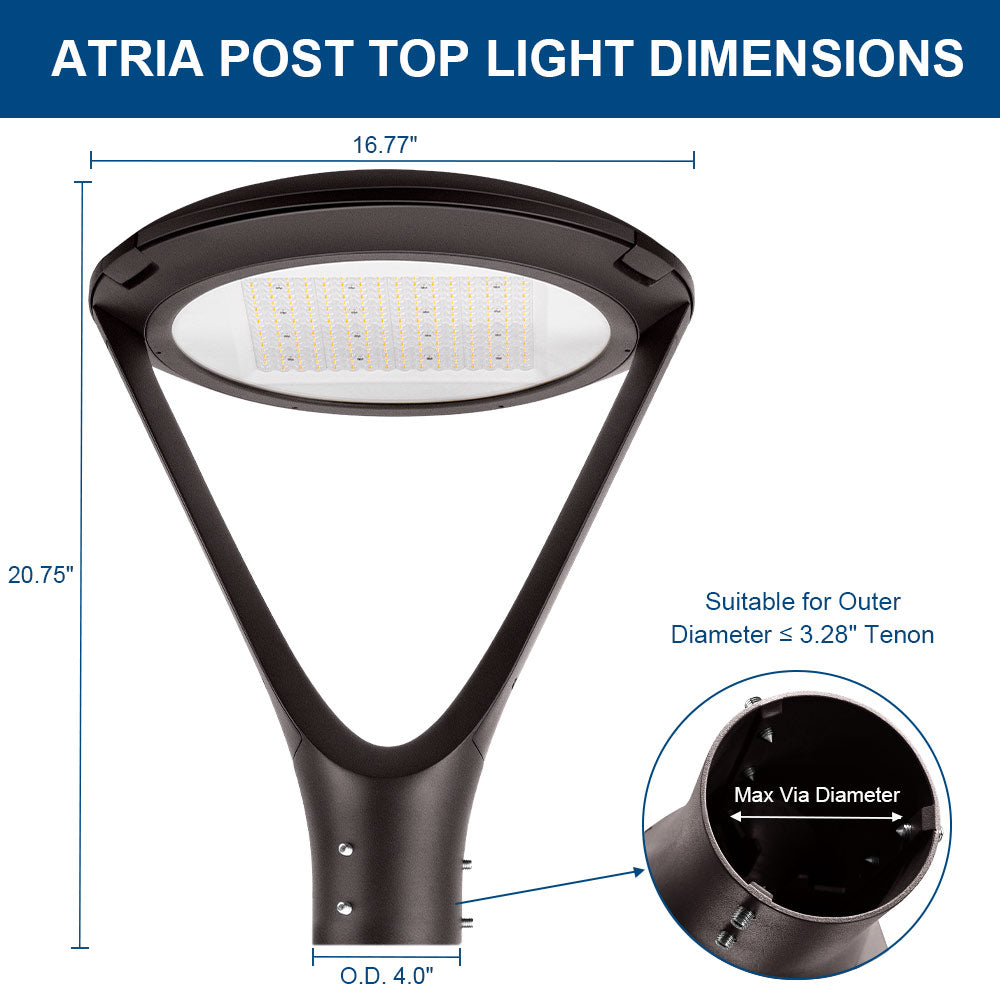

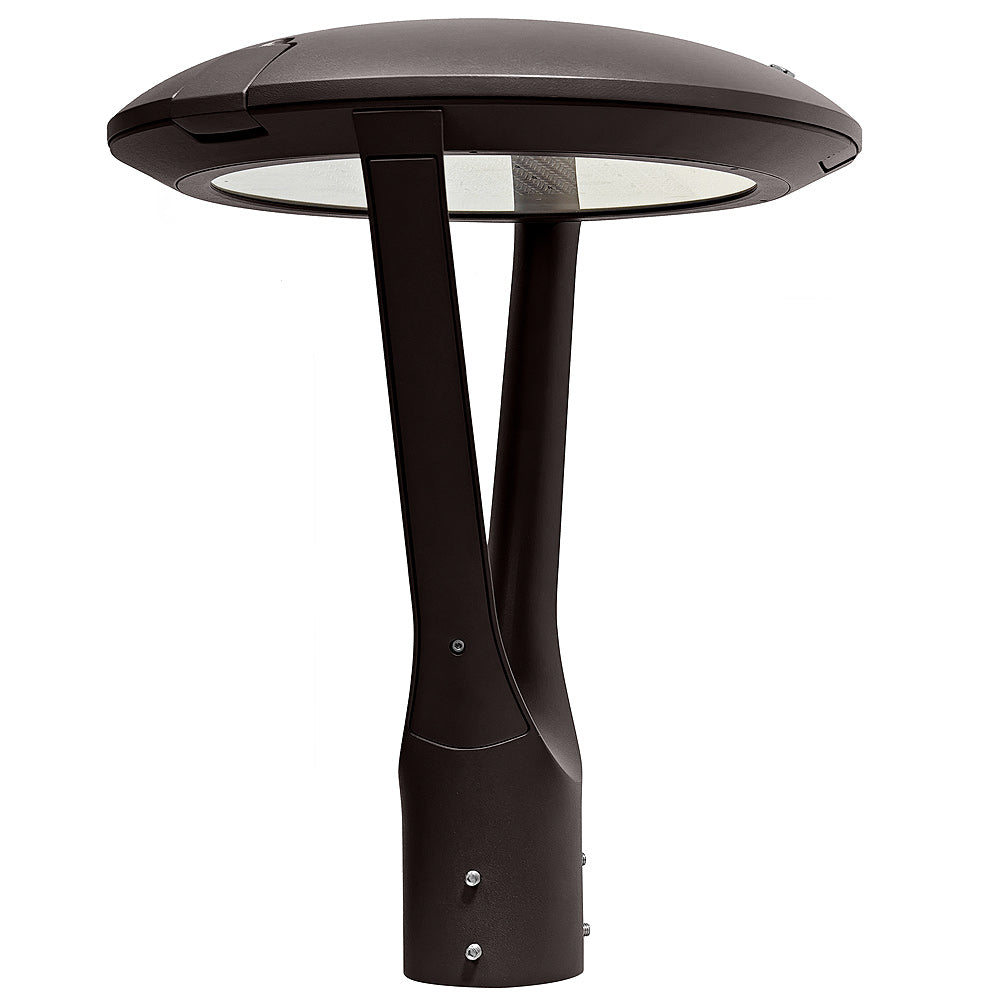

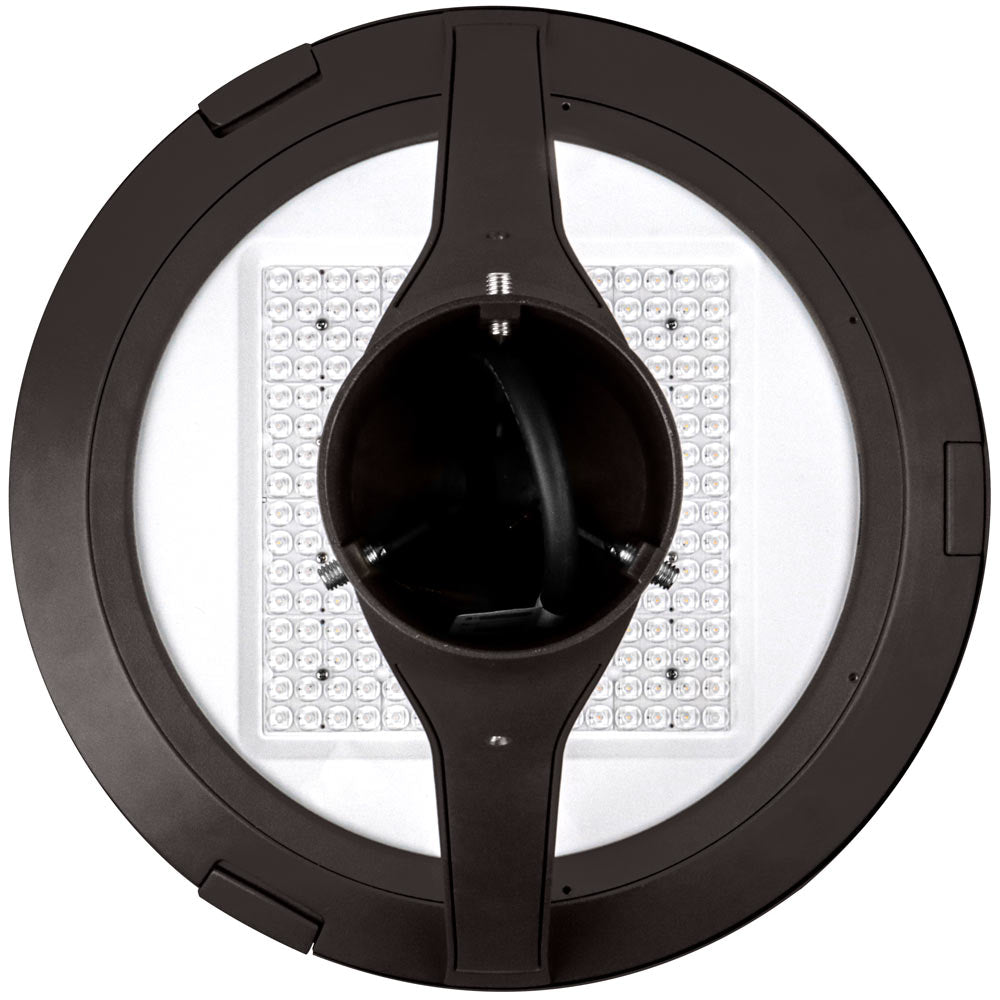

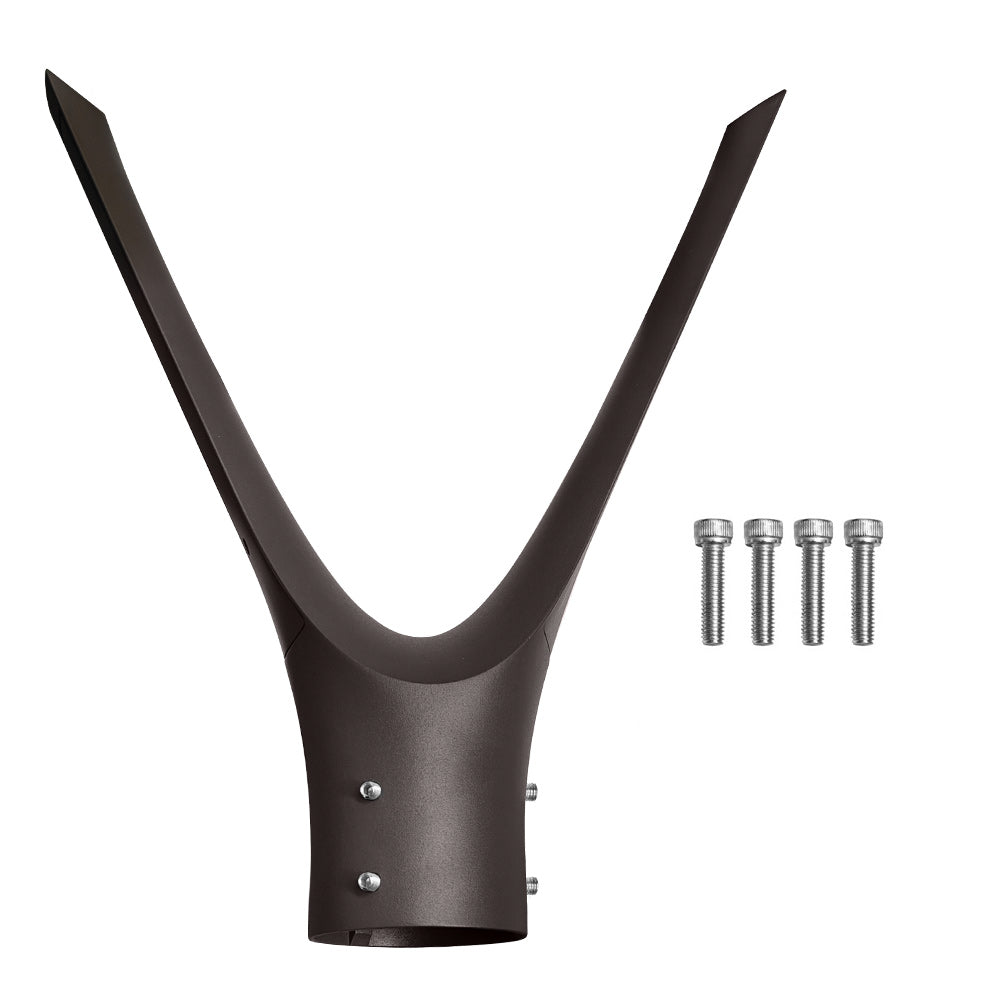

For installation, the fixture includes a twin-arm post top mounting kit and is designed to mount directly to an outer-diameter tenon not exceeding 3.28 inches. With its compact architectural design, selectable performance, and Type V or Type III optic options, the 63W Atria Series LED Post Top Light is a smart choice for commercial outdoor lighting projects that require efficient performance and modern appearance.
