LED Emergency Backup Driver - 40W - Constant Power - 100-277 Vac Input - 170Vdc Output

Konlite SKU: KPV-EB-40 SEARCH CODE: 10-0019
    • For Use with LED Light Fixture up to 320W
    • 0-10V Dimming wire connection needed for Lights over 40W
    • 90-Minute Emergency Illumination Time
    • Built-in Li-Ion battery
    • 1,000 Recharge Cycles
    • Certifications: UL 924, CA Title 20
    • 5 Years Warranty
Sale price$165.00
  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

This high-performance LED emergency battery backup supply is ideal for LED lights fixtures with 0-10V Dimming System

  • Tested to CSA C22 2 . NO 141 Field or factory installation
  • Ambient temperature: 32°F-122°F
  • High case temperature protection up to 167ºF

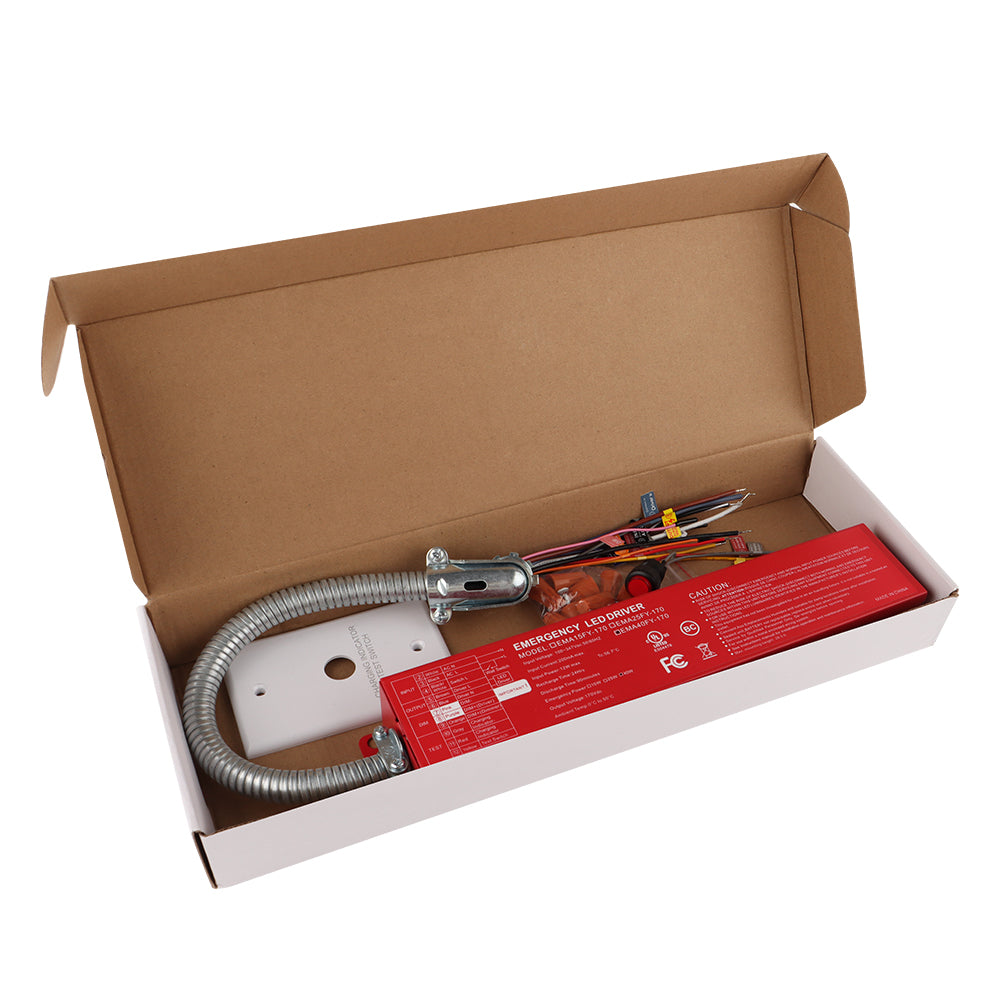

What's in the box

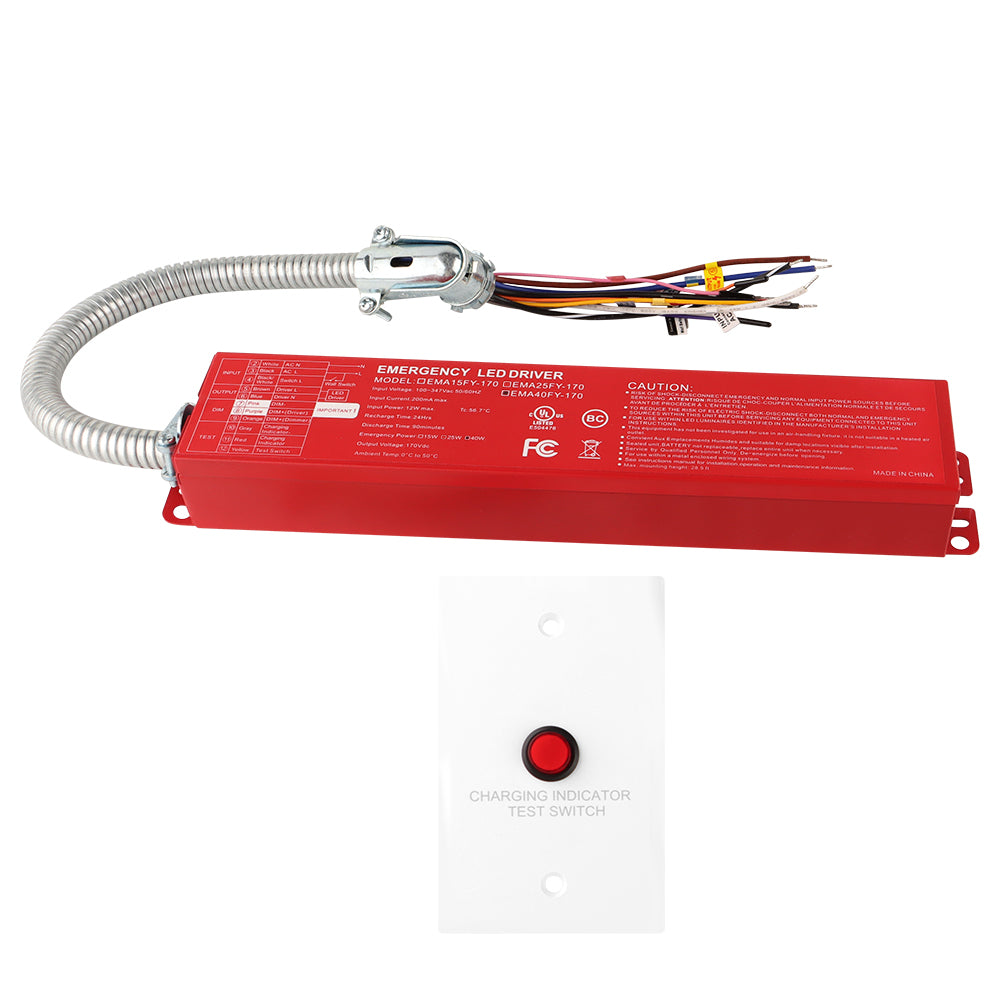

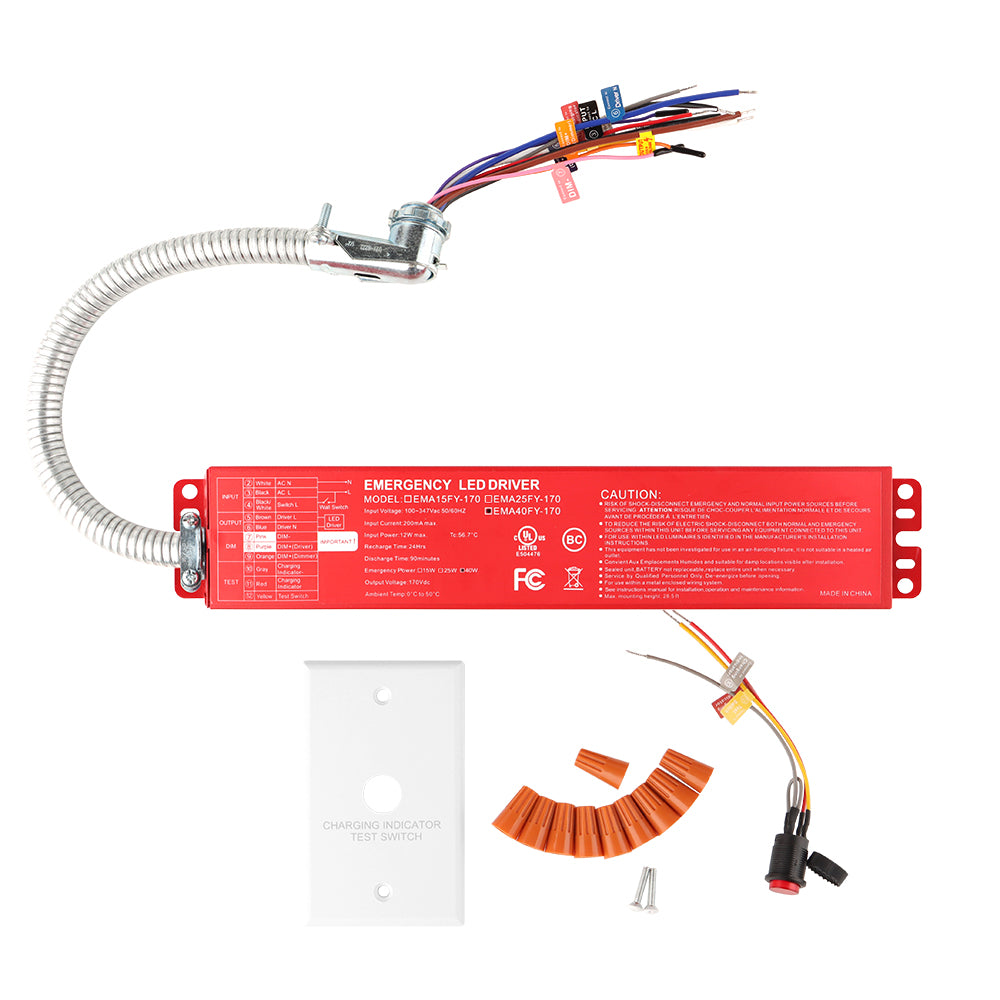

1 Emergency Backup Dirver - 1 Test Kits - 1 Installation Guide - Wiring Accessories
emergency battery backup for LED linear high bay light
LED Emergency Backup Driver - 40W - Constant Power - 100-277 Vac Input - 170Vdc Output
Regular price Sale price $165.00
What's in the box
1 Emergency Backup Dirver - 1 Test Kits - 1 Installation Guide - Wiring Accessories

Product Overview

The 40W Constant Power Emergency Backup Driver is a reliable backup solution for LED Linear High Bay Lights, providing up to 90 minutes of emergency power in case of outages. It supports 100-277V AC input and outputs 170V DC, with the capability to power LED light fixture under 25W or larger LED light fixtures (up to 320W)  with 0-10V dimming at 40W during emergencies.

It can evenly distribute to multiple fixtures when combined wattage does not exceed max load (320 Watts). 0-10V dimming capability is required for fixtures exceeding 40W.

The driver comes with certifications for UL 924, CSA C22.2, FCC, IP44, and CA Title 20 compliant (ECE), ensuring high-quality standards. Backed by a 5-year warranty, it offers durability and peace of mind for commercial and industrial settings.

Its integrated Li-Ion battery simplifies installation by eliminating the need for extra components. Ideal for various applications such as linear lights, low/mid bay lighting, recessed downlights, it’s easy to install and budget-friendly, making it a contractor favorite.



Luminaire Lumen Output Guideline During Emergency Operation:

To determine the lumen output during emergency operation, follow these steps:

  1. Fixture Efficacy: Check the luminaire's efficacy under normal AC operation, typically provided by the luminaire vendor.
  2. Lumen Calculation: Multiply the fixture’s lumens per watt (LM/W) by the rated emergency output power (40W for this driver).

Here are some suggested Konlite LED high bay lights from our collection and their performance during emergency operation:

  1. Konlite LED High Bay Light - 300W - SKU  RKLH0301300W5KDNCHL

    • Efficacy: 140 LM/W
    • Emergency Output: 40W x 140 LM/W = 5,600 lumens
  2. Konlite PAVO IV LED High Bay Light - 310W - SKU KPVMW3150KLV

    • Efficacy: 156 LM/W
    • Emergency Output: 40W x 156 LM/W = 6,240 lumens

  3. 2x4 ft Konlite LED High Bay Light - 270W - RDLH02042705KDN24LC

    • Efficacy: 137 LM/W (5000K)
    • Emergency Output: 40W x 137 LM/W = 5,480 lumens

For more technical details, check the LED emergency driver wiring diagram and specifications in the Downloads section.



Applications

•Warehouses •Workshops
•Convention Centers •Low Bays
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retail •Gymnasiums
Certifications
US company5 years warrantyUL listedRoHS compliance California Title 20 CompliantCSA certificationFCC certification

Specifications

BrandKonliteMPNKPV-EB-40
Warranty5 YearsUPC659675179452
Input Voltage100-347VMax Input Current50mA @120V, 35mA @240V, and 30mA @277V
Input Wattage12W Inrush Current3A
Turn-on Delay Time< 2sPower Factor> 0.9 under 120~277Vac input
Output Voltage170VdcEmergency Power40W (constant)
Surge Protection3kVOutput Current2000mA @ 20Vdc, 690mA @ 58Vdc
Outer Voltage ProtectionYesOuter Power ProtectionYes
Emergency Operation90 MinutesRecharge Time24 Hours
Battery TypeLi-IonBattery Capacity18V 5000mA
Operating Temperature32ºF to 122ºF Storage temperature− 4ºF to 131ºF
Max Case Temperature167ºFStorage Humidity≤65%
Unit DimensionsL 12.33" * W 2.33" * H 1.54"Unit Weight6 lbs

Related Products

Konlite LED High Bay lights PAVO series - 310W
Sale priceFrom $149.95 Regular price$189.95

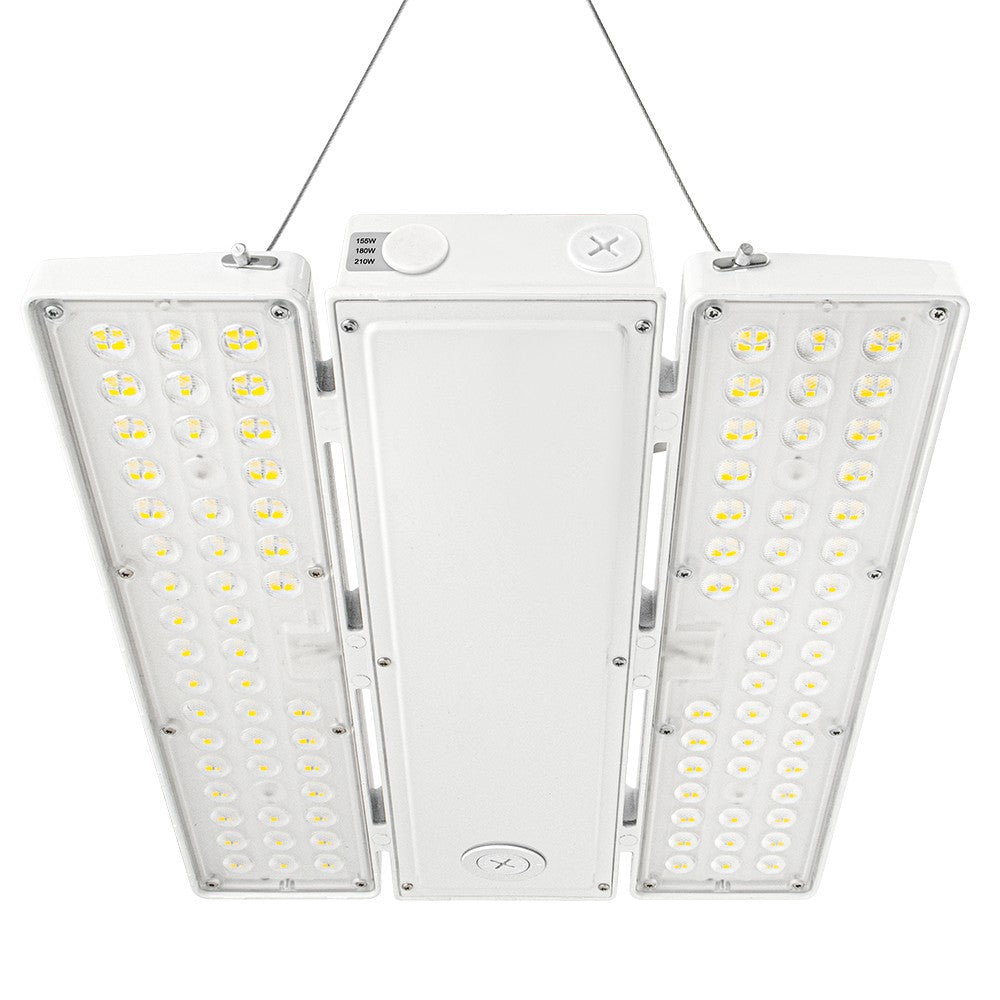

Konlite LED High Bay lights PAVO series - 210W
