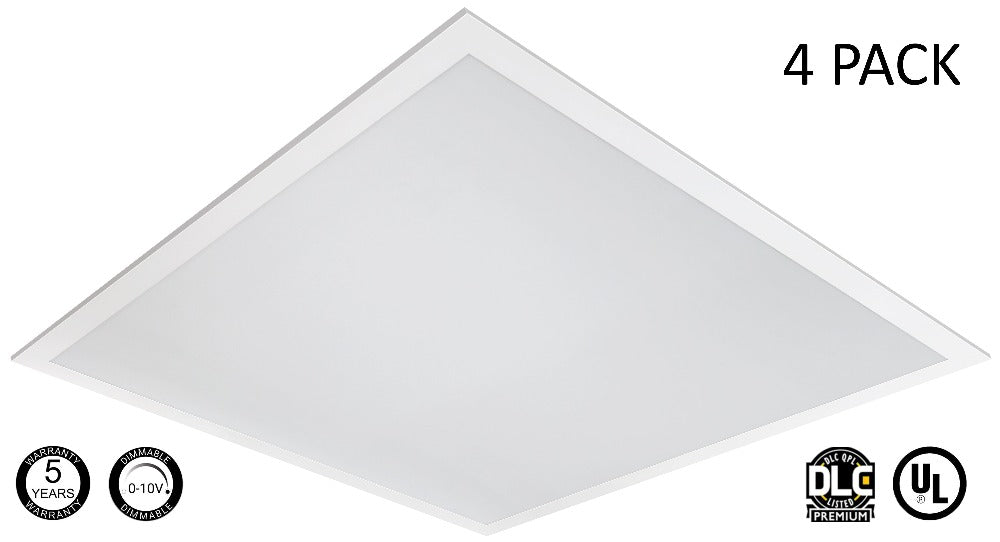

2x2 LED Panel Light - Selectable Wattage and CCT - 5000 Lumens - Dimmable - Pack of 4

Product Search Code: 11-0110
KonliteSKU: RKPL06010MWMCDN22LF-4
$212.80 $169.89
    • Replaces 2-Lamp Fluorescent
    • 0-10V Dimmable (Dimmer NOT included, Separate Wiring Required)
    • 5 Years Warranty
    • CCT Tunable: 3500K-4000K-5000K(Preset)
    • Watts and Lumens Selectable:
      • 40w = 5,000 (Preset)
      • 30w = 3,750
      • 25w = 3,125

    • Replaces 2-Lamp Fluorescent
    • 0-10V Dimmable (Dimmer NOT included, Separate Wiring Required)
    • 5 Years Warranty
    • CCT Tunable: 3500K-4000K-5000K(Preset)
    • Watts and Lumens Selectable:
      • 40w = 5,000 (Preset)
      • 30w = 3,750
      • 25w = 3,125

With wide-view optics, this Konlite PL06 back-lit 2x2 LED panel light provides uniform, glare-free illumination without hot spots, delivering a crisp and clean aesthetic.

  • Choose from multiple wattage and color temperature options to suit your specific needs.
  • Long-life LEDs rated L70 @100K hours offers a sustainable and cost-effective lighting solution.

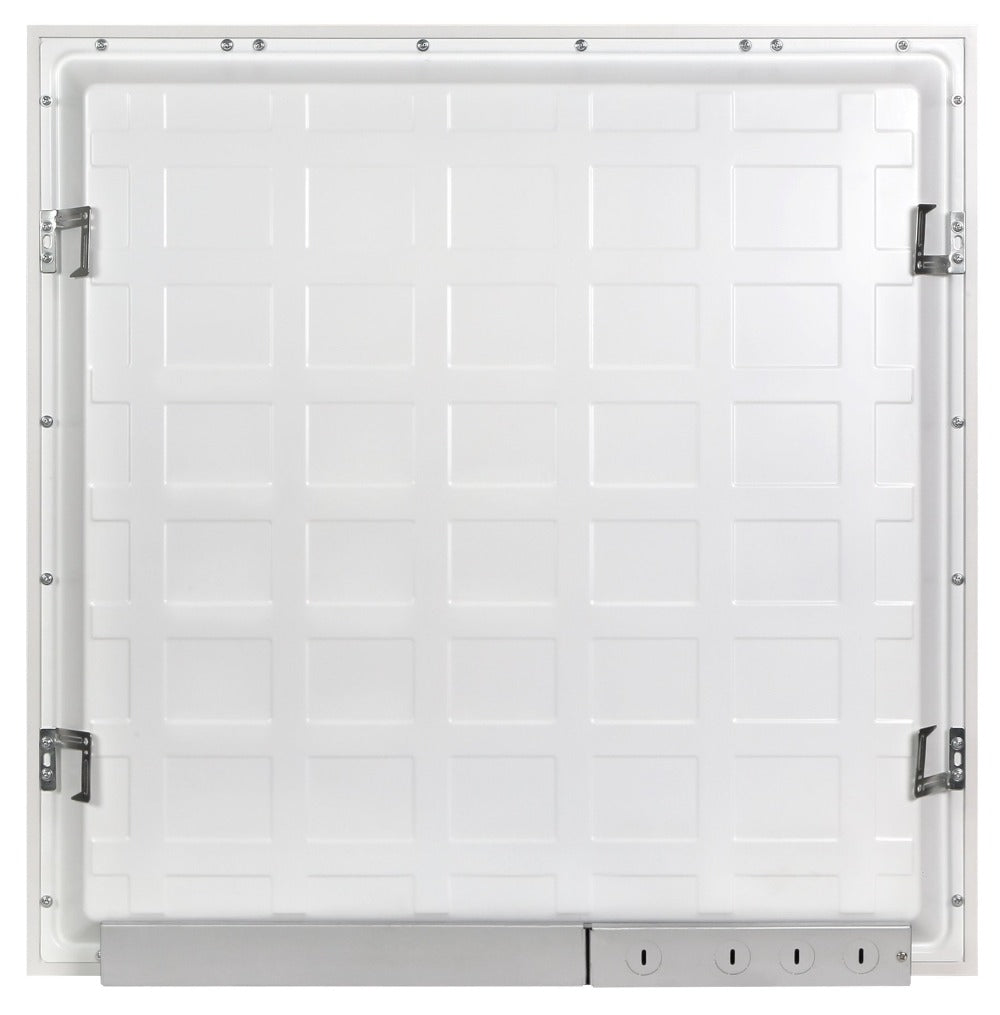

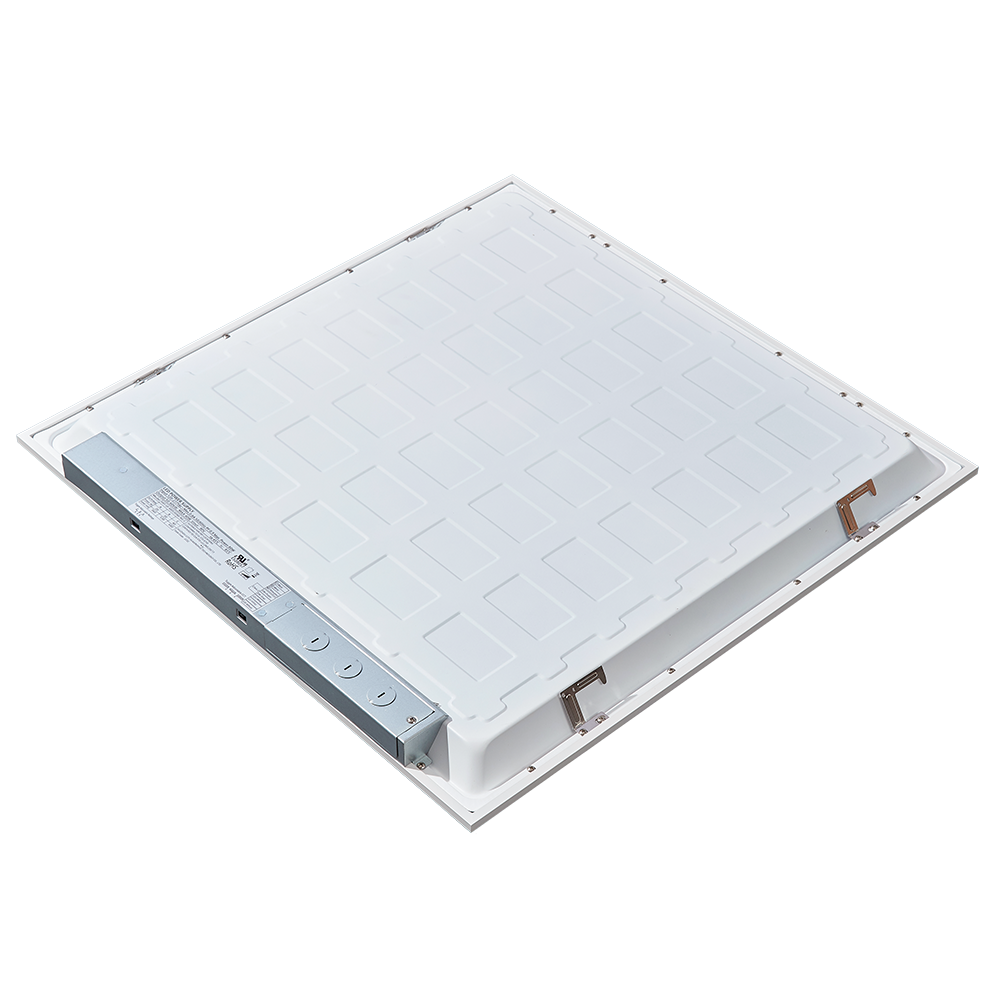

  • The slim design and multiple knockouts provide wiring flexibility.
  • 0-10V dimming control allows for customized lighting levels.
show more
$212.80 $169.89

  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

With wide-view optics, this Konlite PL06 back-lit 2x2 LED panel light provides uniform, glare-free illumination without hot spots, delivering a crisp and clean aesthetic.

  • Choose from multiple wattage and color temperature options to suit your specific needs.
  • Long-life LEDs rated L70 @100K hours offers a sustainable and cost-effective lighting solution.
  • The slim design and multiple knockouts provide wiring flexibility.
  • 0-10V dimming control allows for customized lighting levels.
What's in the box
4 light fixtures - 1 installation guide
Product Details
Downloads
Reviews
Reviews
Q&A
4 light fixtures - 1 installation guide

Product Overview

Upgrade your commercial or industrial lighting with the Konlite PL06 backlit 2x2 Multiwatt - Selectable CCT LED drop ceiling light. This LED panel light is designed for replacement of existing fluorescent or new construction installed on T-bar or grid ceiling systems.

The Konlite PL06 backlit 2x2 Multiwatt and Selectable CCT LED ceiling light features switchable options for wattage consumption, allowing you to choose from 25W / 3125 lumens, 30W / 3750 lumens, or 40W (preset) 5000 lumens to fit your specific lighting needs. The selectable CCT color output (3500K, 4000K, or 5000K preset) further enhances the flexibility and versatility of this LED panel light.

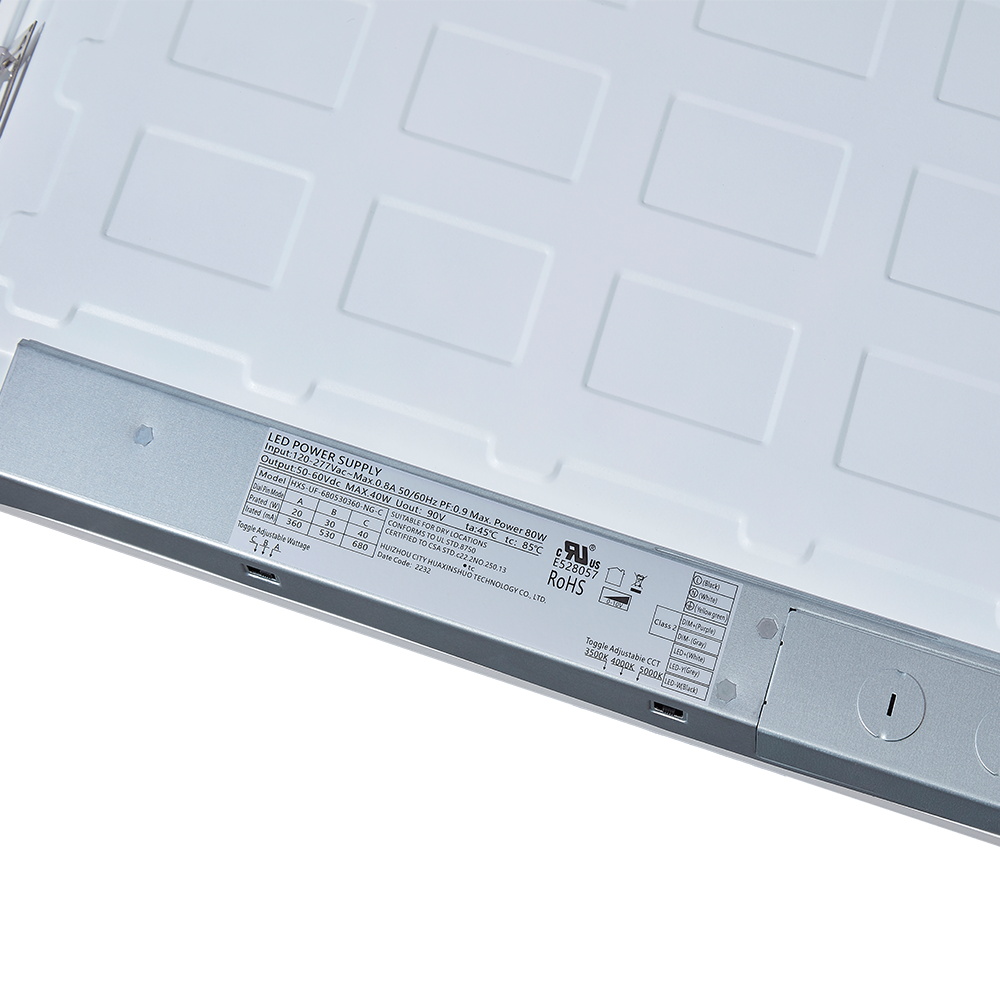

The Konlite PL06 LED panel light is designed to maximize thermal control, ensuring cool and maintenance-free operation.  With its long-life LEDs and high efficiency flicker-free LED driver, this LED panel light is the ideal solution for energy-efficient and cost-effective commercial lighting. It eliminates the needs for bulb replacement, buzzing, flickering that are commonly associated with traditional fluorescent lighting system. By reducing energy consumption, this can significantly reduce utility costs for your organization or business.

With its sleek design and uniform illumination, the Konlite PL06 backlit panel light provides a modern and stylish lighting solution that will enhance the look and feel your space. Invest it today and enjoy the benefit of high-quality, energy-efficient, and sustainable commercial lighting.


Applications

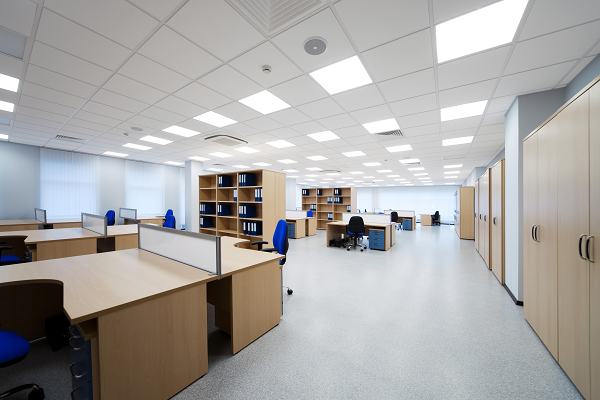

•Offices and Commercial buildings •Retrofit Installation
•Hospitals and healthcare facilities •Educational institutions
•Hospitality venues •Manufacturing facilities and warehouse
•Retail stores and Shopping malls •Public transportation hubs
•Gyms and fitness centers

•Residential buildings

Color Temperature Selectable color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumRoHS compliance FCC certification

Specifications

BrandKonliteMPNRKPL06010MWMCDN22LF-4PK
Warranty5 YearsUPC
Input Voltage120-277VBeam Angle120°
Input Wattage25/30/40WEfficacy125 LM/W
Lumensup to 5,000CRI>83
Available CCT3500/4000/5000KDimmable0-10V, additional 2 dimming wires required to connect fixture to dimmer switch.
Rated Life>L70@100,000 hrsTHD<11%
Power Factor>0.9EnvironmentIndoor Dry

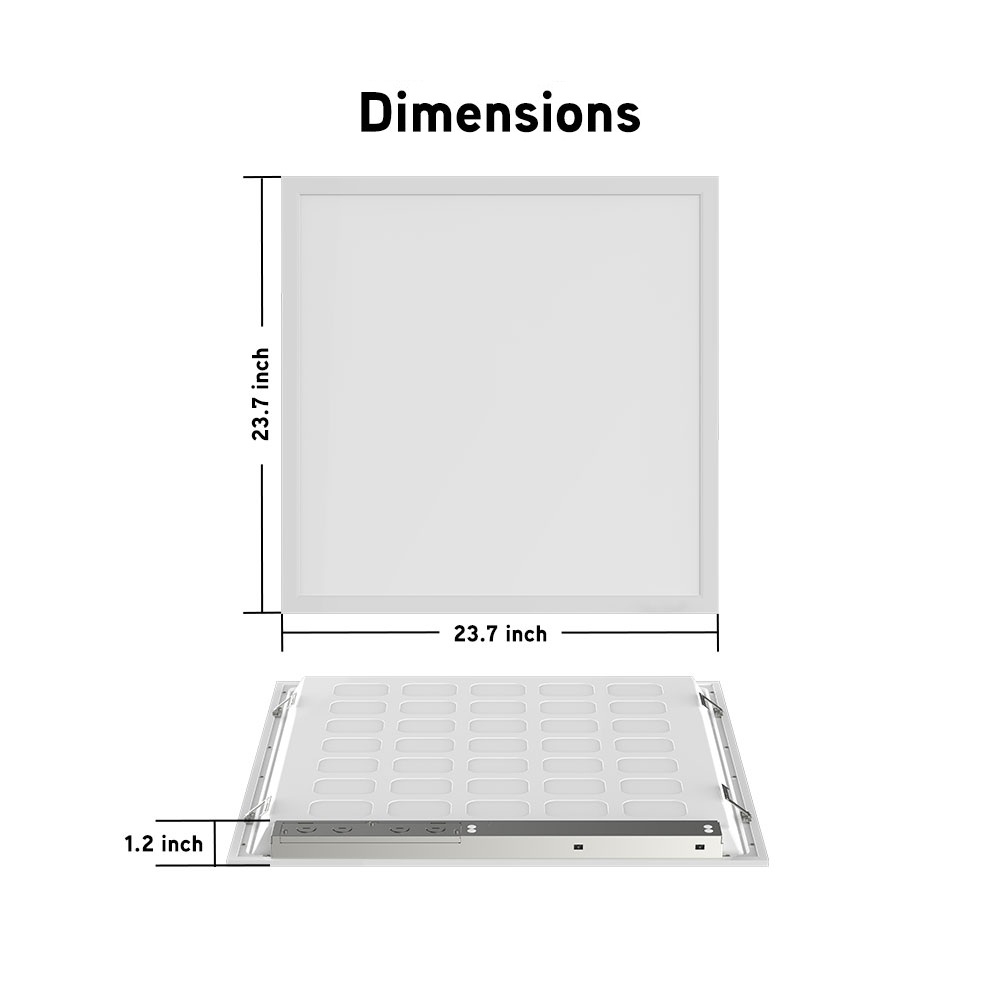

Operating Temperature-4 to 104 FDimensions23.8" x 23.8" x 1.6"
CertificationsDLC Premium, ULWeight4.5 lbs each fixture

Accessories

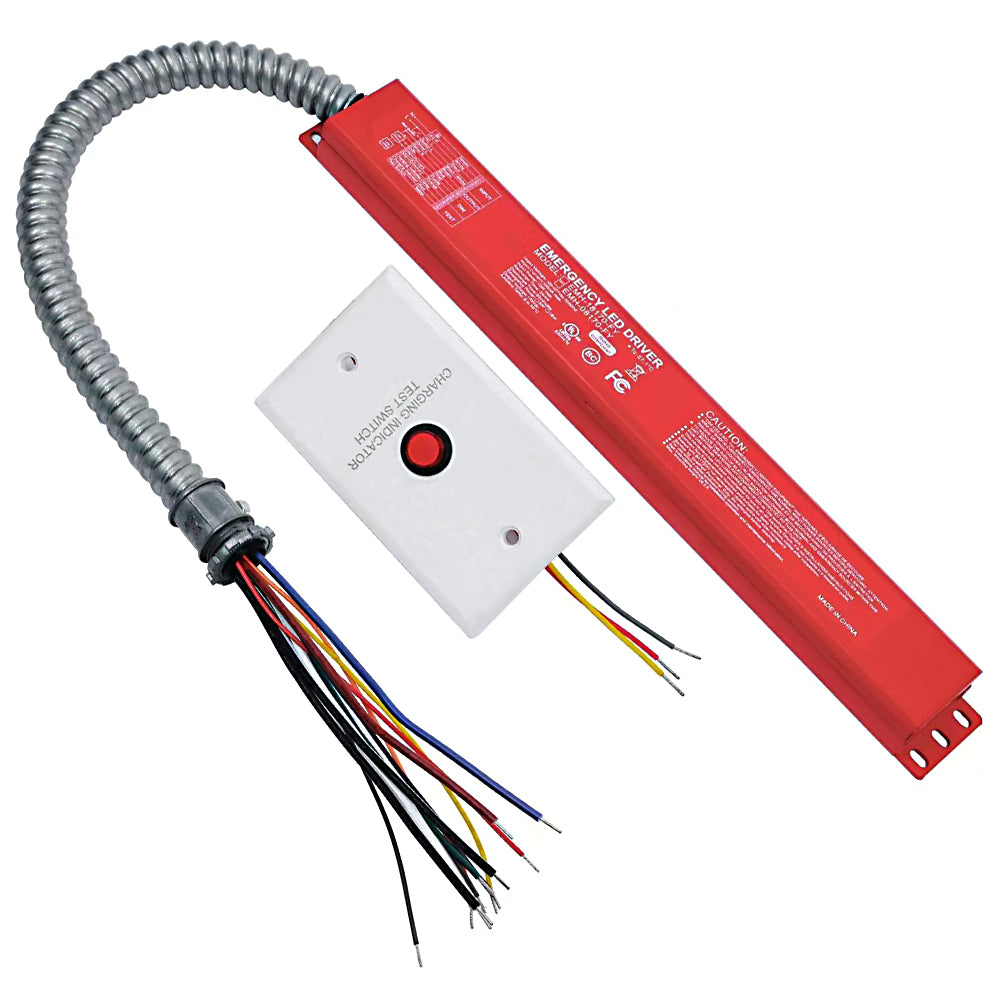

LED Emergency Backup Driver For Commercial LED Lighting - 8W - 100-277V
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.
LED Emergency Backup Driver For Commercial LED Lighting - 8W - 100-277V
SKU:BLD-YT08D-XXX
$74.65

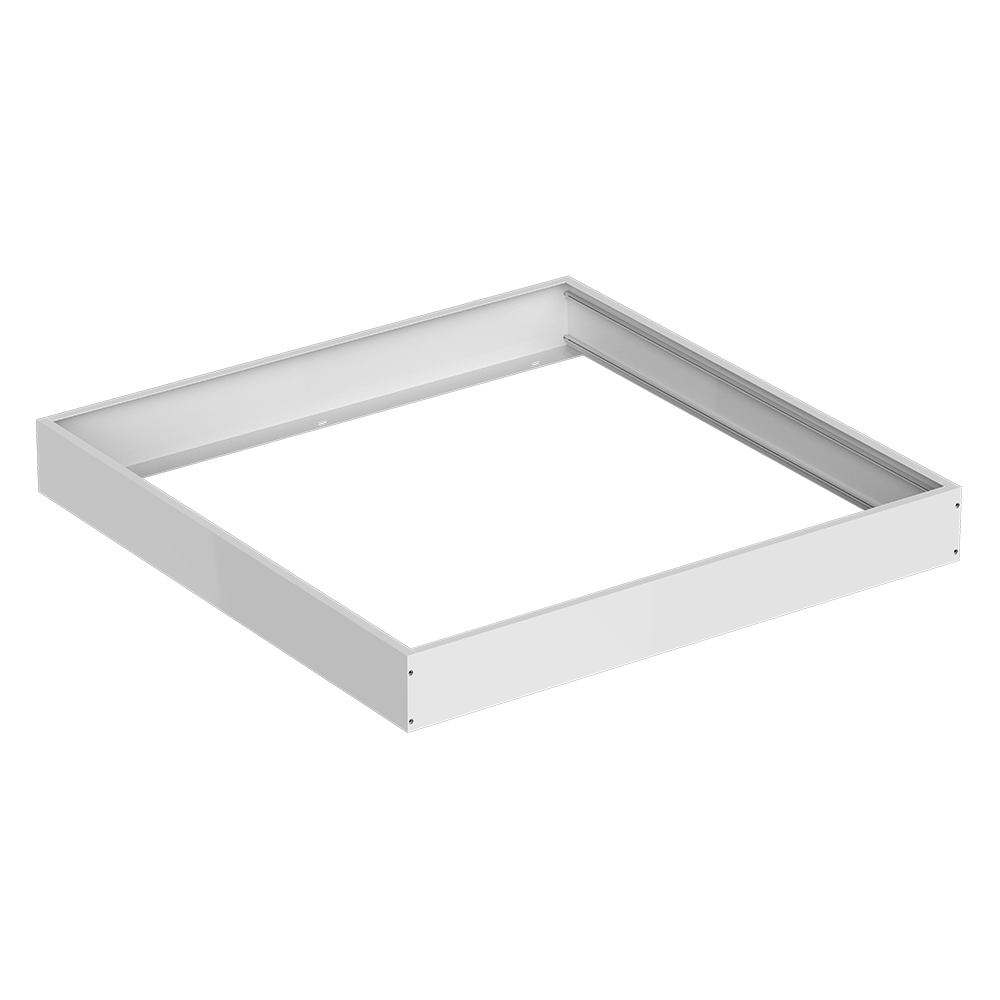

Products 2'x2' Surface Mount Kit for LED Panel Light
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.
2'x2' Surface Mount Kit for LED Panel Light
SKU:RKPL-SM22-01
$24.65

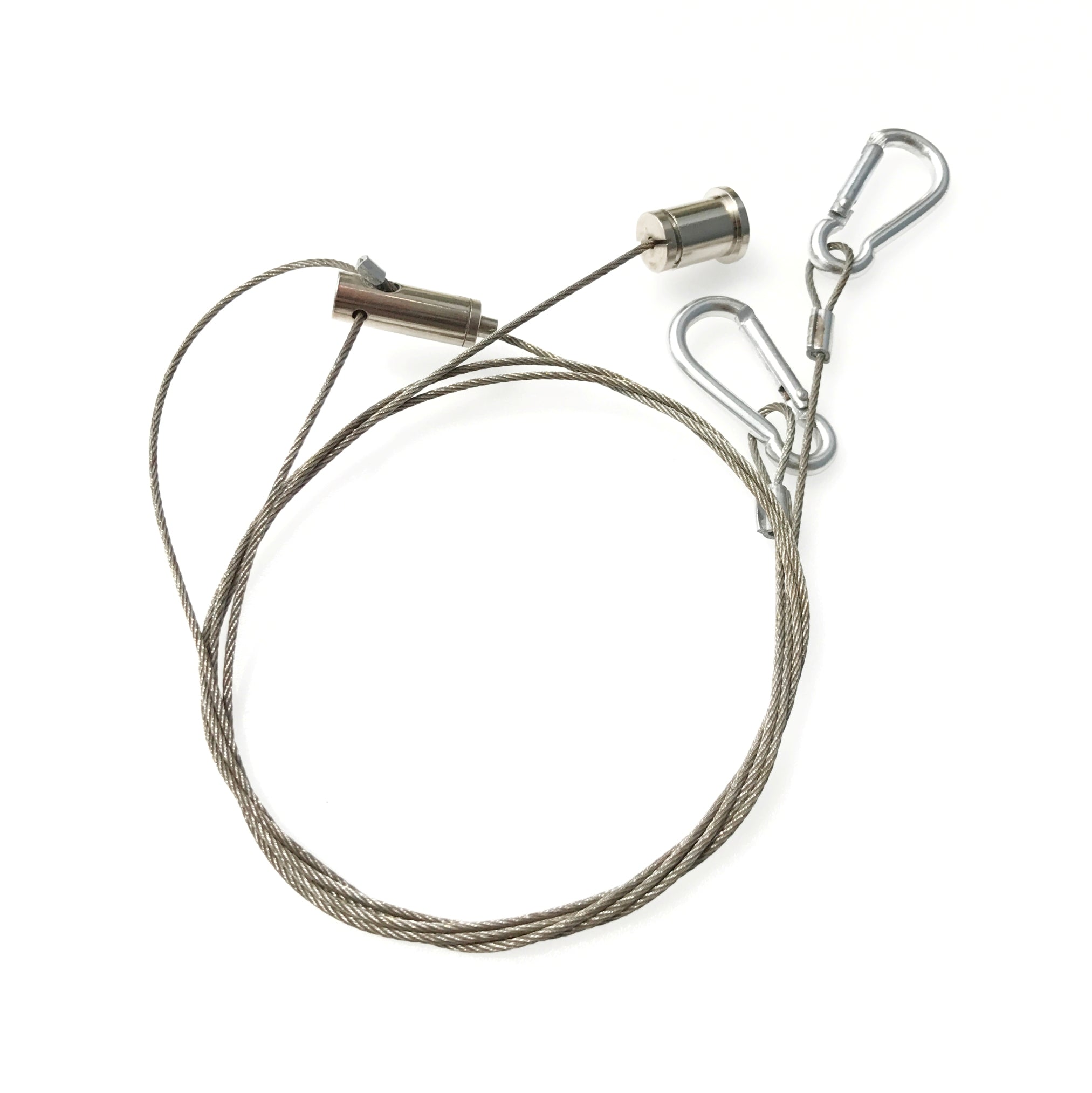

Suspension hanging kit for LED Panel Light 1x4, 2x2, 2x4
