Product Overview

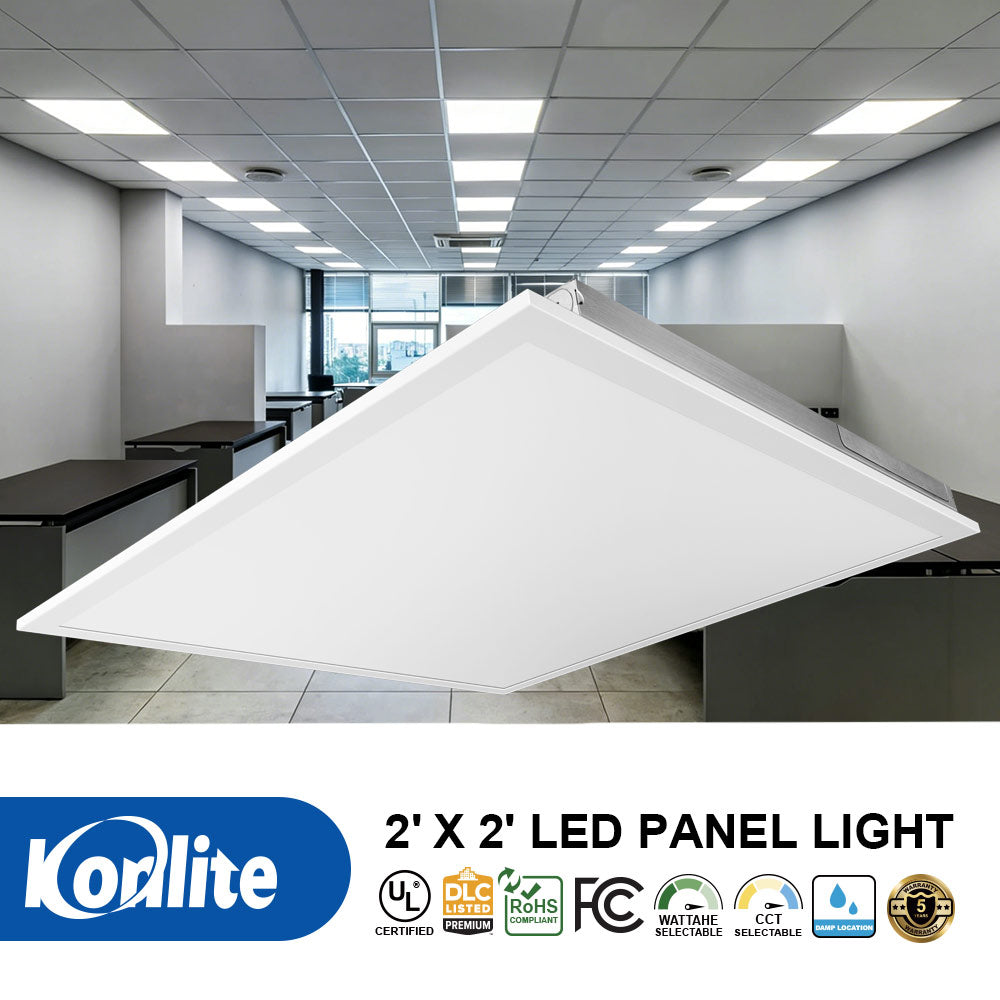

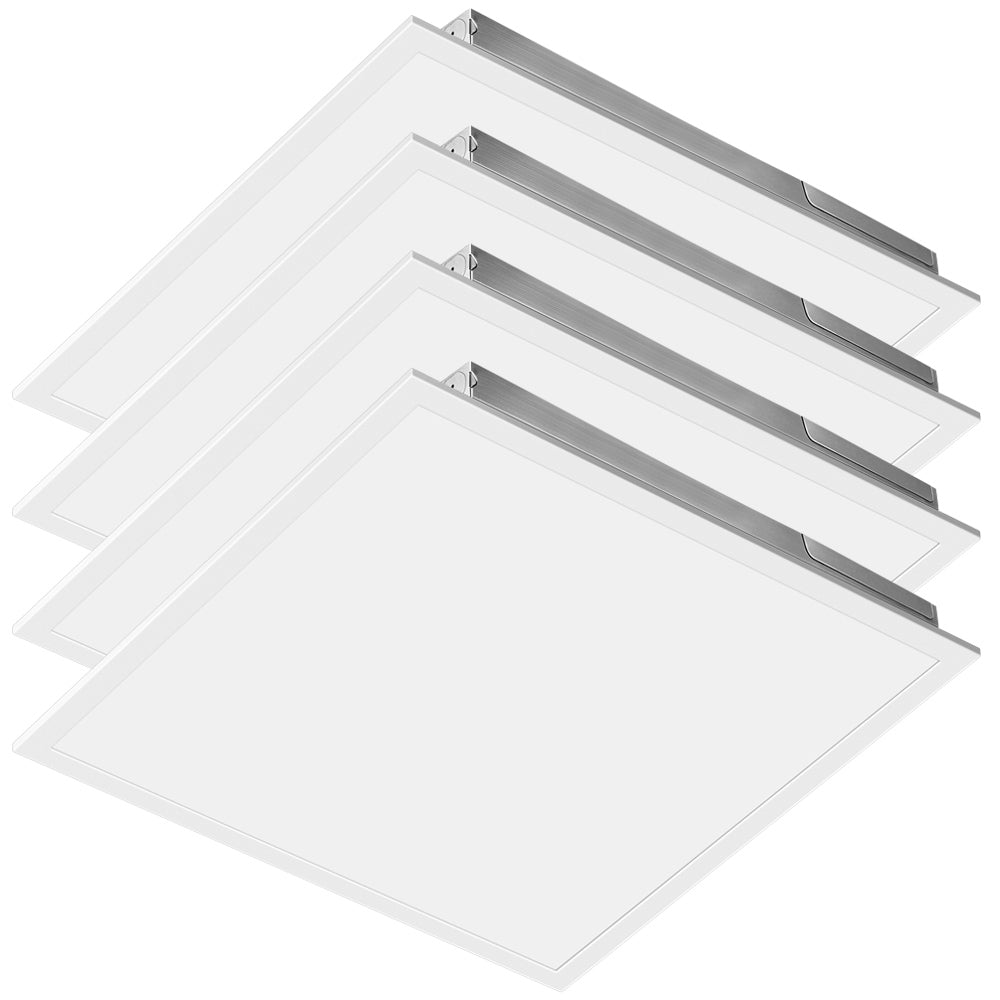

Upgrade your indoor lighting with the Konlite 2x2 LED Panel Light, designed to deliver uniform, flicker-free illumination for professional environments such as classrooms, offices, hospitals, and commercial spaces. Engineered for T-bar grid ceilings, this panel light offers a clean, modern look while improving visual comfort and productivity.
The LED panel provides smooth, evenly distributed light with no glare or hotspots, making it ideal for learning and work environments where eye comfort is critical. The fixture supports multiple wattage options (40W / 30W / 20W) and selectable color temperatures (3500K / 4000K / 5000K), allowing flexible lighting design to suit different applications.
With up to 148 lumens per watt efficiency, this energy-saving LED panel significantly reduces operating costs compared to traditional fluorescent fixtures. The flicker-free driver ensures stable light output, helping reduce eye strain in classrooms and offices during long hours of use.

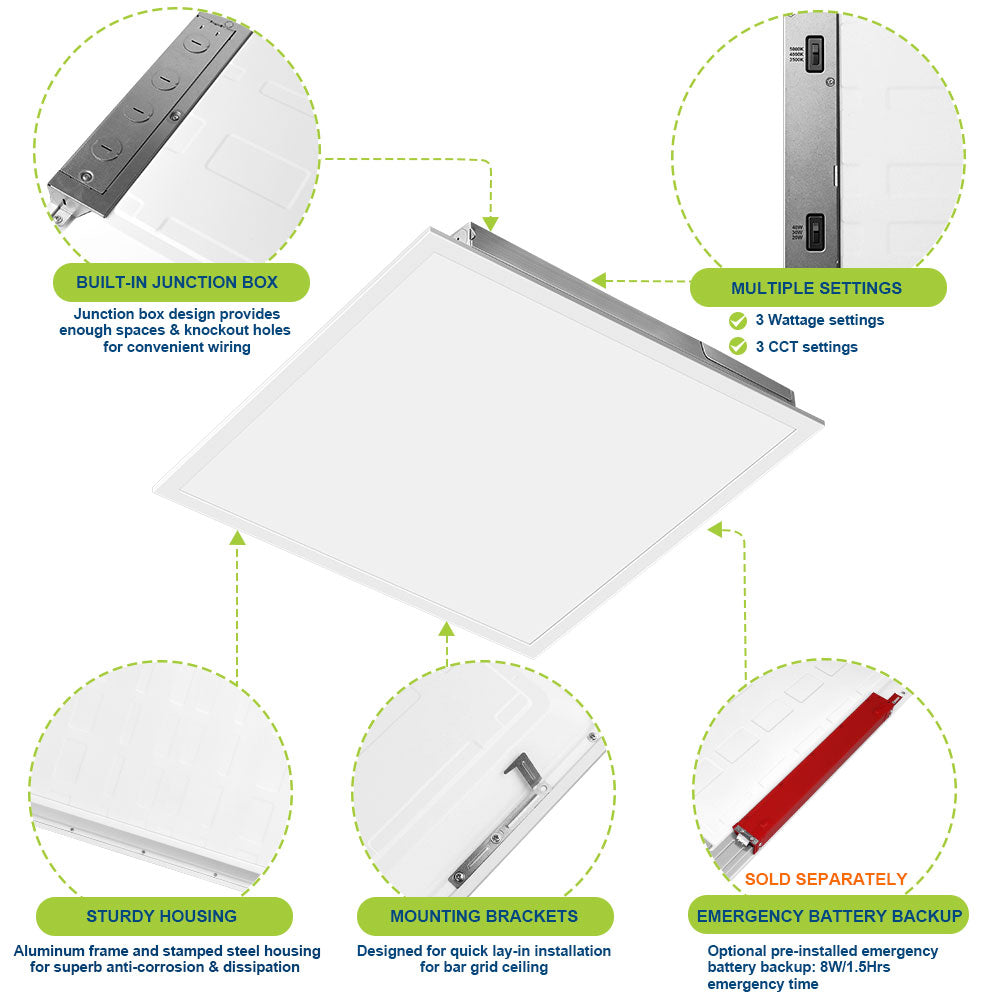

The durable construction features a steel housing with aluminum frame, offering excellent heat dissipation and long-term reliability. Rated for up to 100,000 hours (L70), this panel light minimizes maintenance and replacement costs. Optional emergency battery backup provides up to 90 minutes of lighting during power outages for added safety.
Key Features:

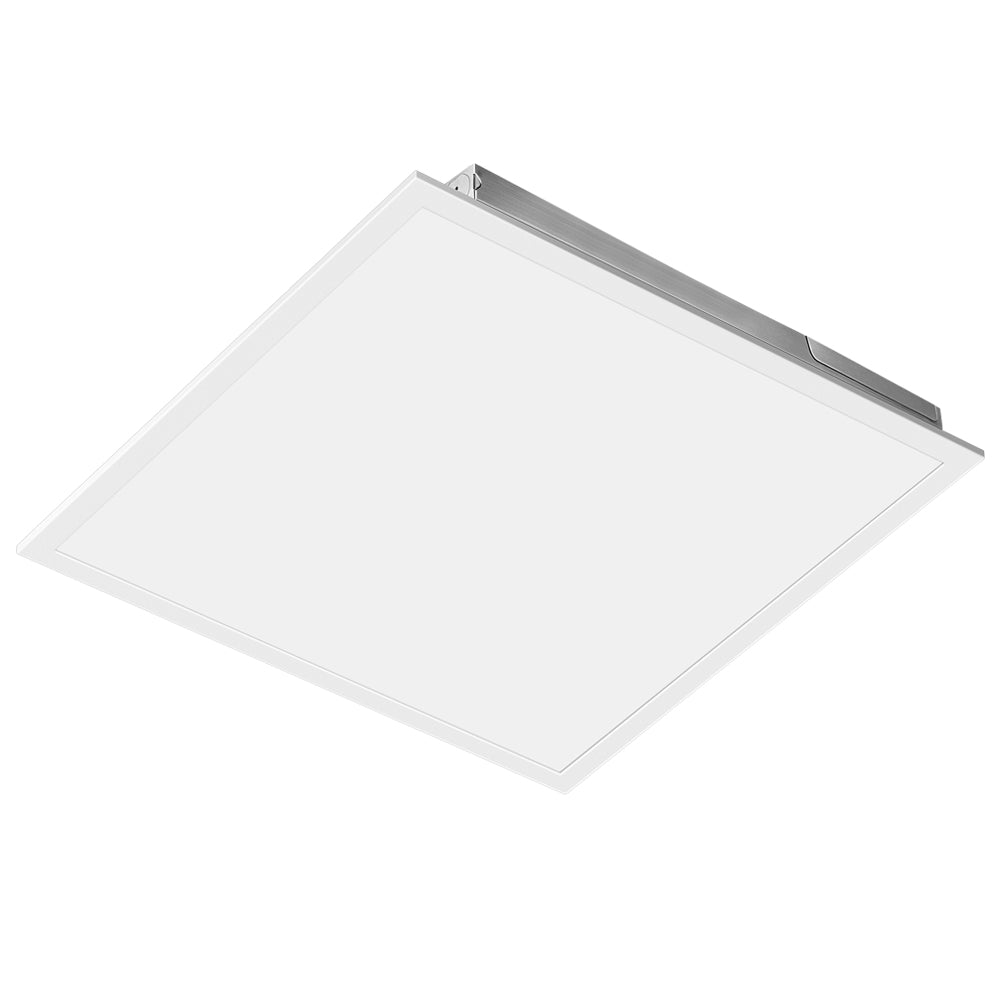

- 2x2 LED panel light for drop/T-bar ceilings
- Flicker-free performance – ideal for classrooms & offices

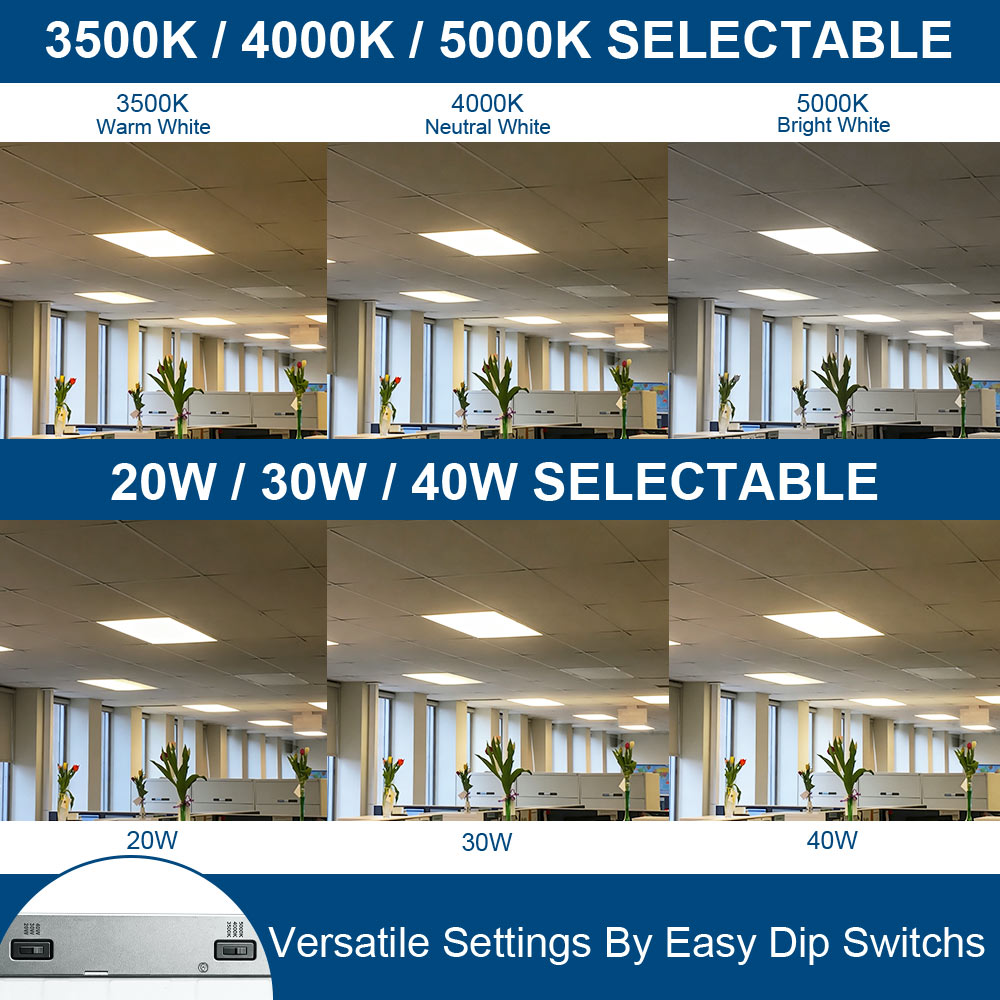

- Selectable wattage: 40W / 30W / 20W
- Selectable CCT: 3500K / 4000K / 5000K
- Up to 148 lm/W efficiency
- Uniform, glare-free light distribution (UGR <22)
- 120–277V universal input

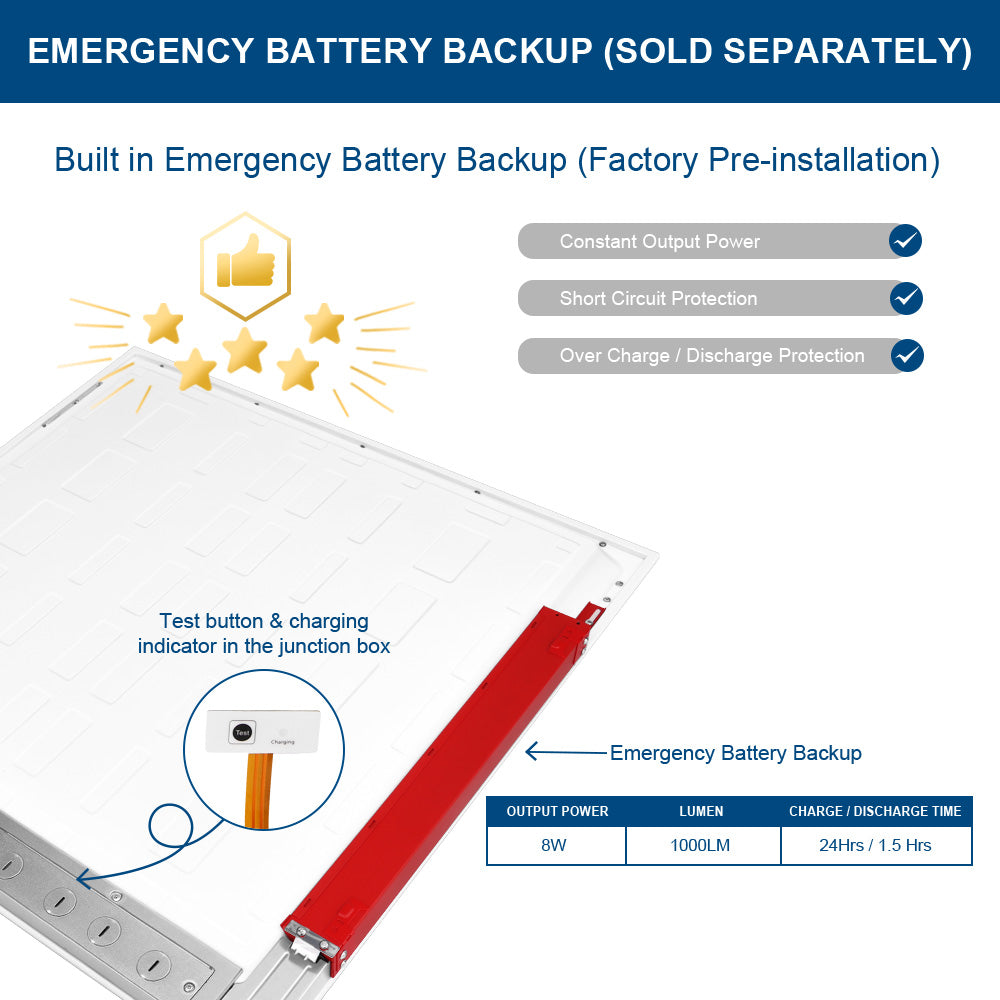

- Optional emergency battery backup (90 minutes)
- UL / DLC Premium listed
- 5 Years Warranty
Perfect for replacing fluorescent troffers, the Konlite 2x2 LED panel light delivers reliable, comfortable, and energy-efficient lighting for modern indoor spaces.
See similar Wattage/CCT-Selectable Back-Lit 2X4 LED Panel light version.

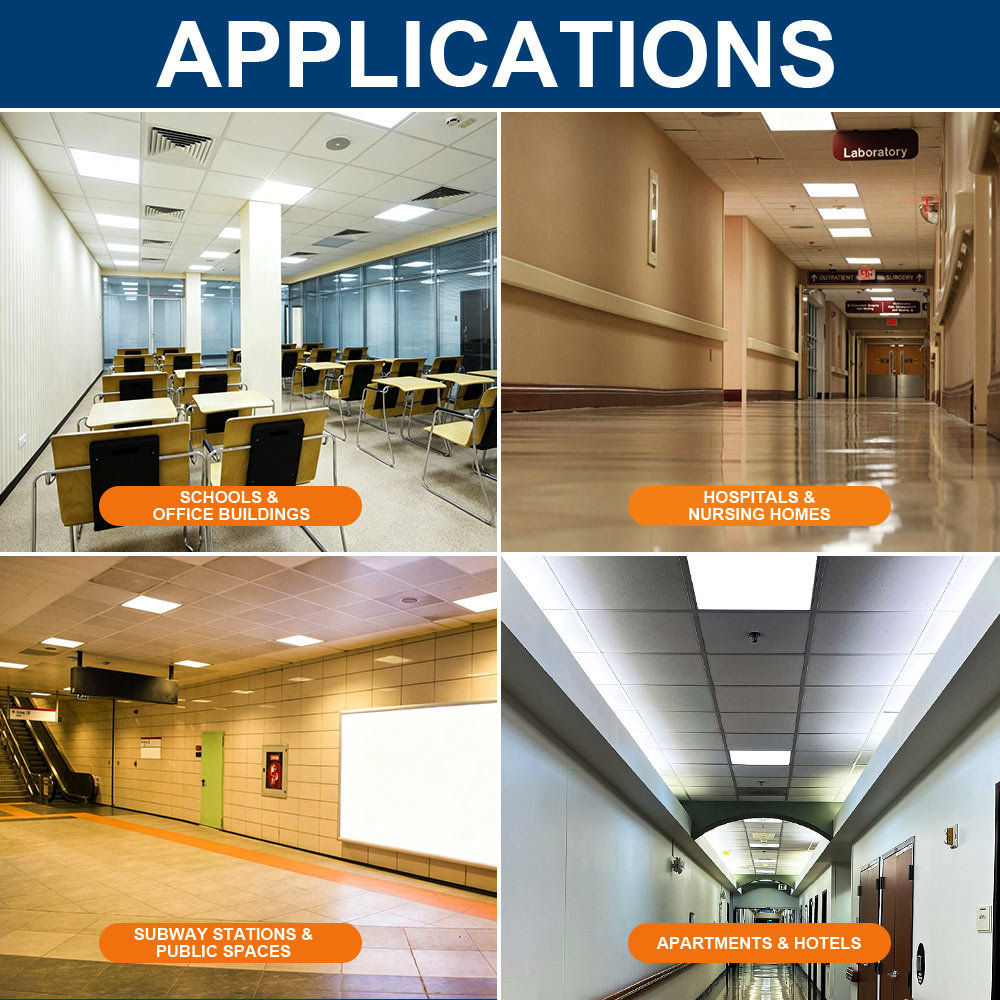

Applications
| •Office Lighting | •Retrofit Installation |
| •Commercial & Industrial Lighting | •New Constructions |
| •Hospitals | •Schools |
| •Retail | •Healthcare |

Specifications
| Brand | Konlite | MPN | KPL40MCL22 |
| Warranty | 5 Years | UPC | 659675411637 |
| Input Voltage | 120-277V,50/60Hz | Dimmable | 0-10V |
| Input Wattage | 40W/30W/20W | Equal To | 2 lamp T8 |
| Delivered Lumens | 5,370 LM Max | CRI | >80 |
| Efficacy | 148 LM/W Max | Available CCT | 5000K/4000K3500K |
| Rated Life | >50,000 hrs | Power Factor | >0.9 |
| THD | >20% | IC Rated | Yes |
| Operating Temperature | -4F to 104F | Mounting | Chain, Surface |

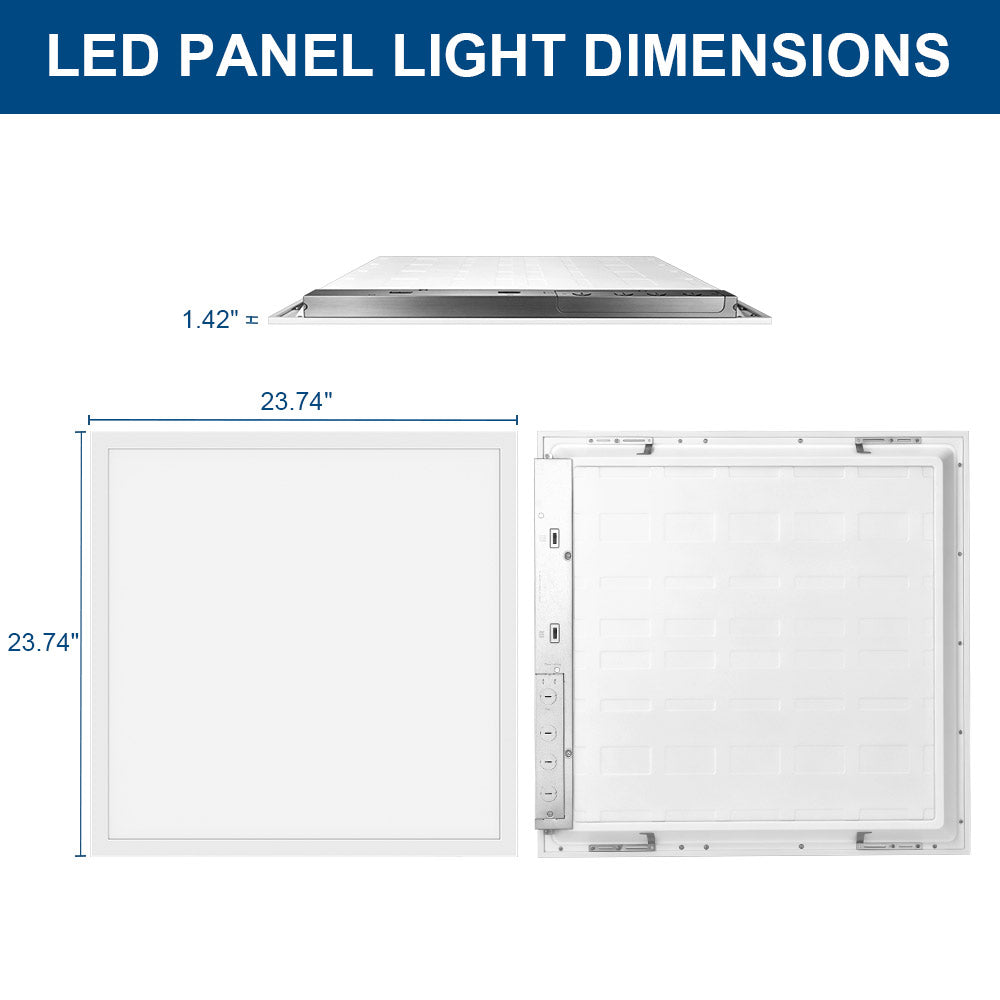

| Certifications | UL, DLC Premium | Dimensions and Weight | 23.74"x23.74"x1.42" 3.6 Lbs |
| Download Specifications | |

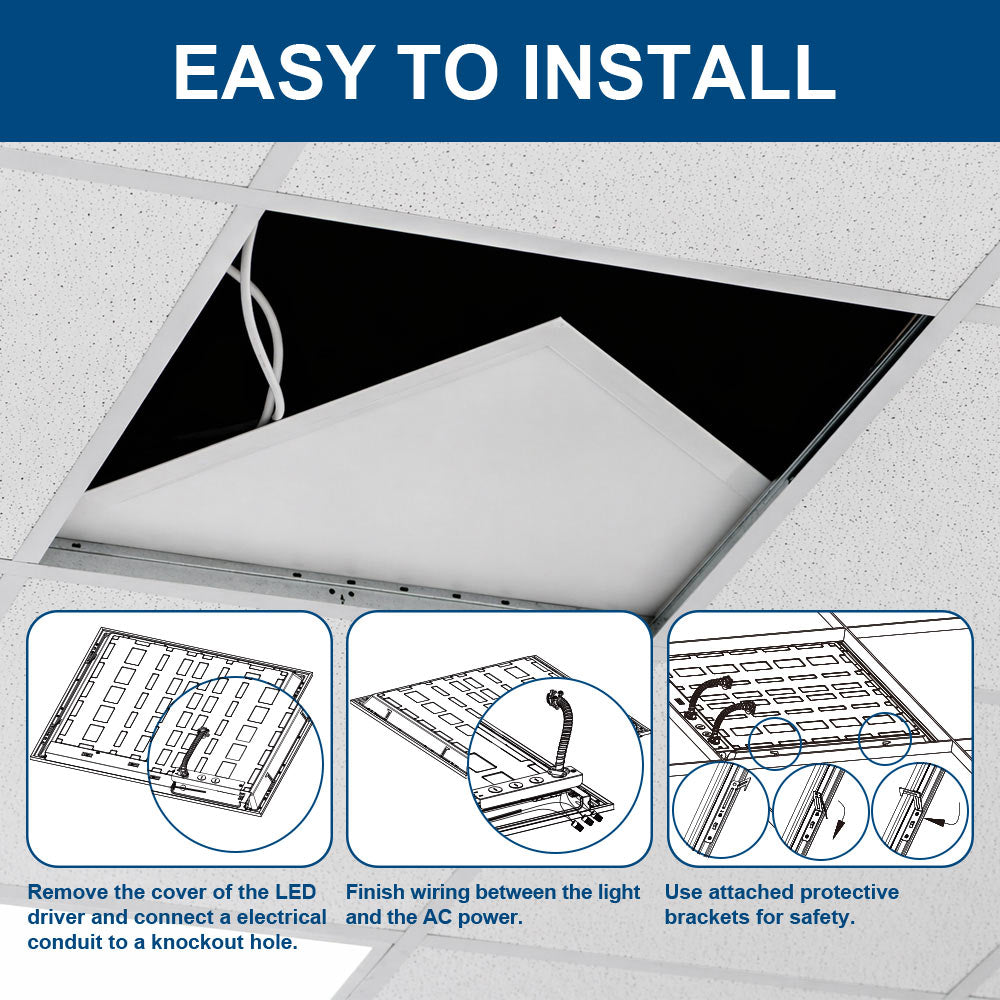

| Download Installation Guide | |
| Download IES files: KPL40MCL22. |
