Product Overview
Upgrade commercial exterior lighting with the Konlite WP7 Traditional LED Wall Pack Light. Featuring field-selectable 80W, 60W, and 40W settings, this energy-efficient fixture can replace traditional metal halide or HID wall packs rated up to 250 watts. Our energy-efficient Konlite LED Wall Pack Light reduces power consumption by 65% compared to conventional Metal Halide or HPS lights, making it a top pick among contractors. Experience effortless one-person installation and upgrade your building's exterior with ease.

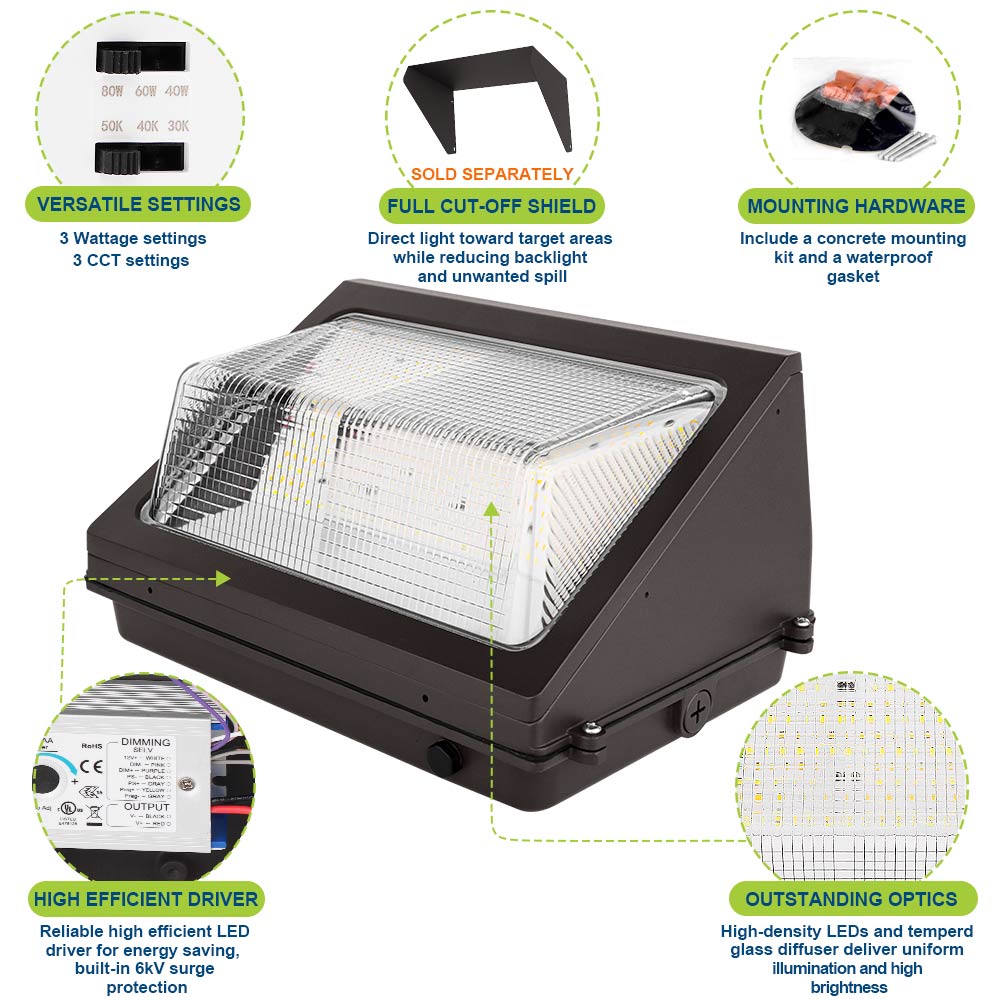

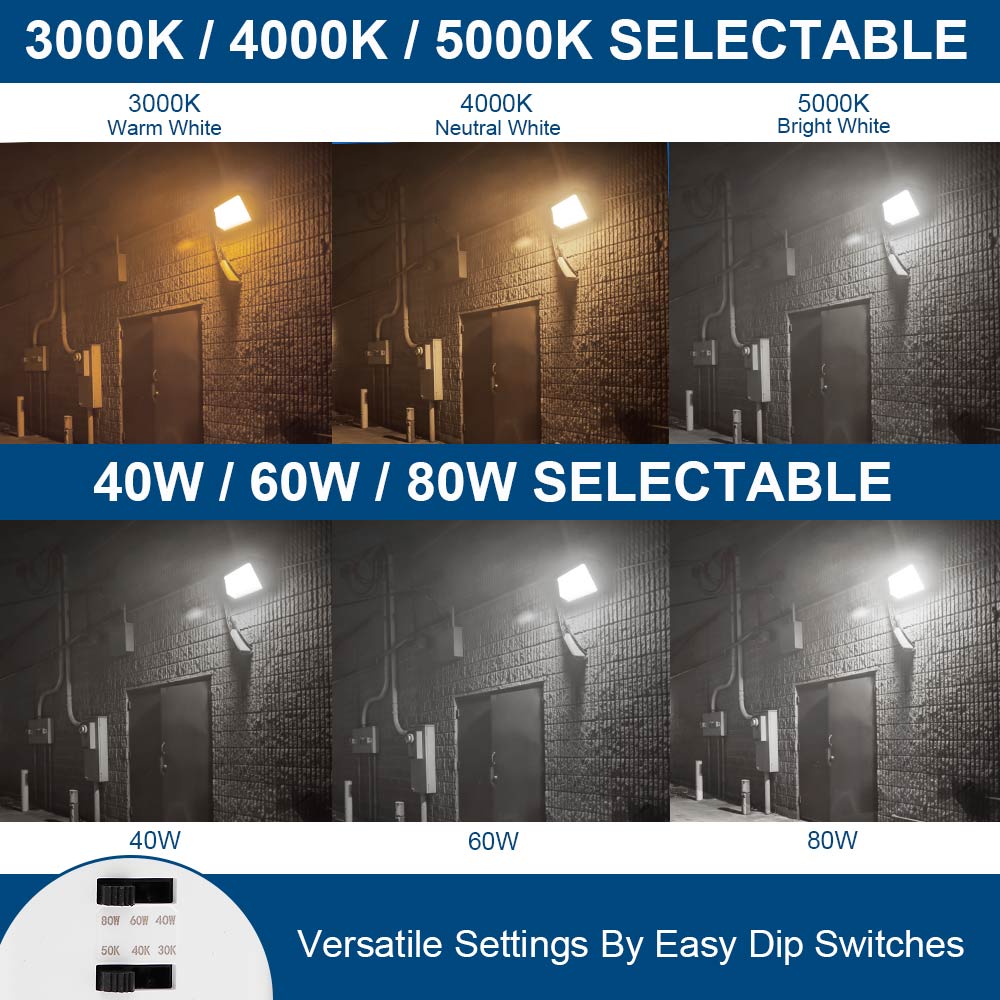

The built-in CCT selector allows installers to choose 3000K warm white, 4000K neutral white, or 5000K daylight during installation. Combined with 0-10V dimming, these adjustable settings make one fixture suitable for a wide range of commercial exterior and security lighting applications. You can customize your lighting experience to fit your individual needs:
40W / 6,100 Lumens - 5000K
60W / 8,750 Lumens - 5000K
80W / 11,090 Lumens - 5000K
(Preset at 80 Watts - 5000K)

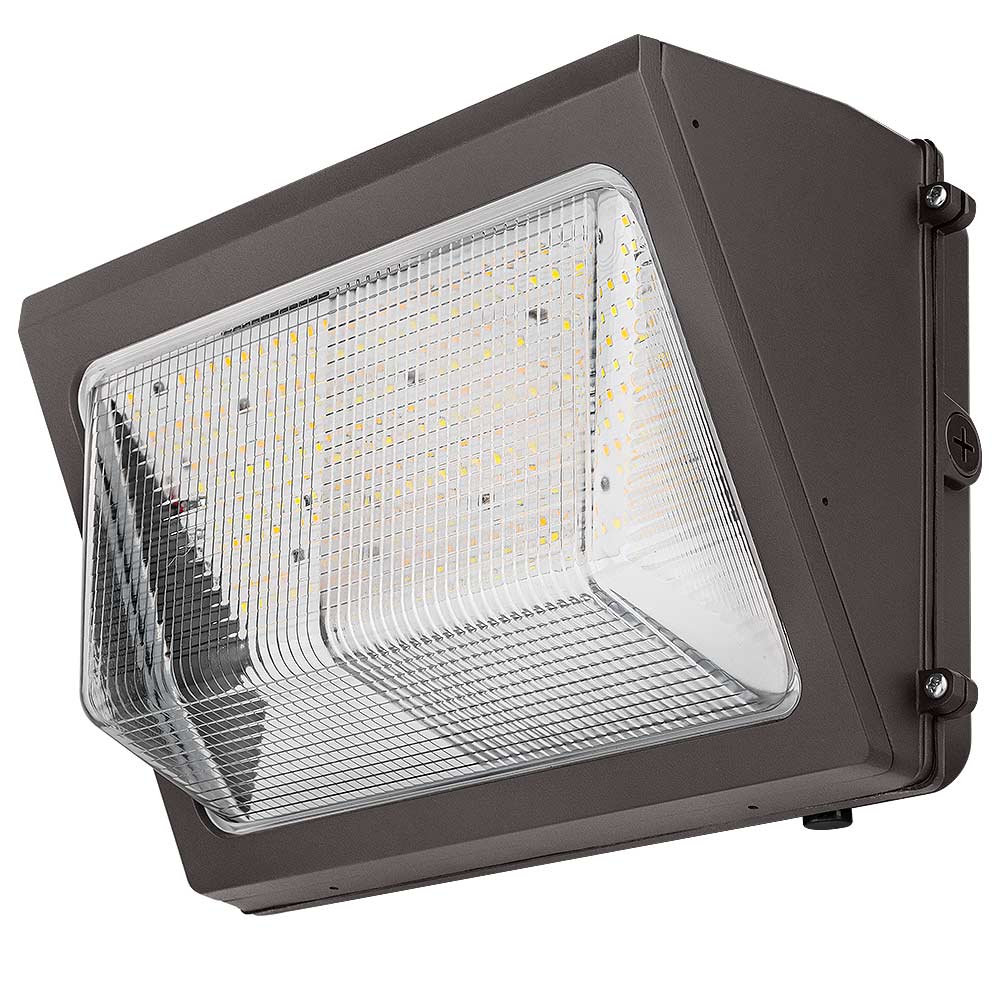

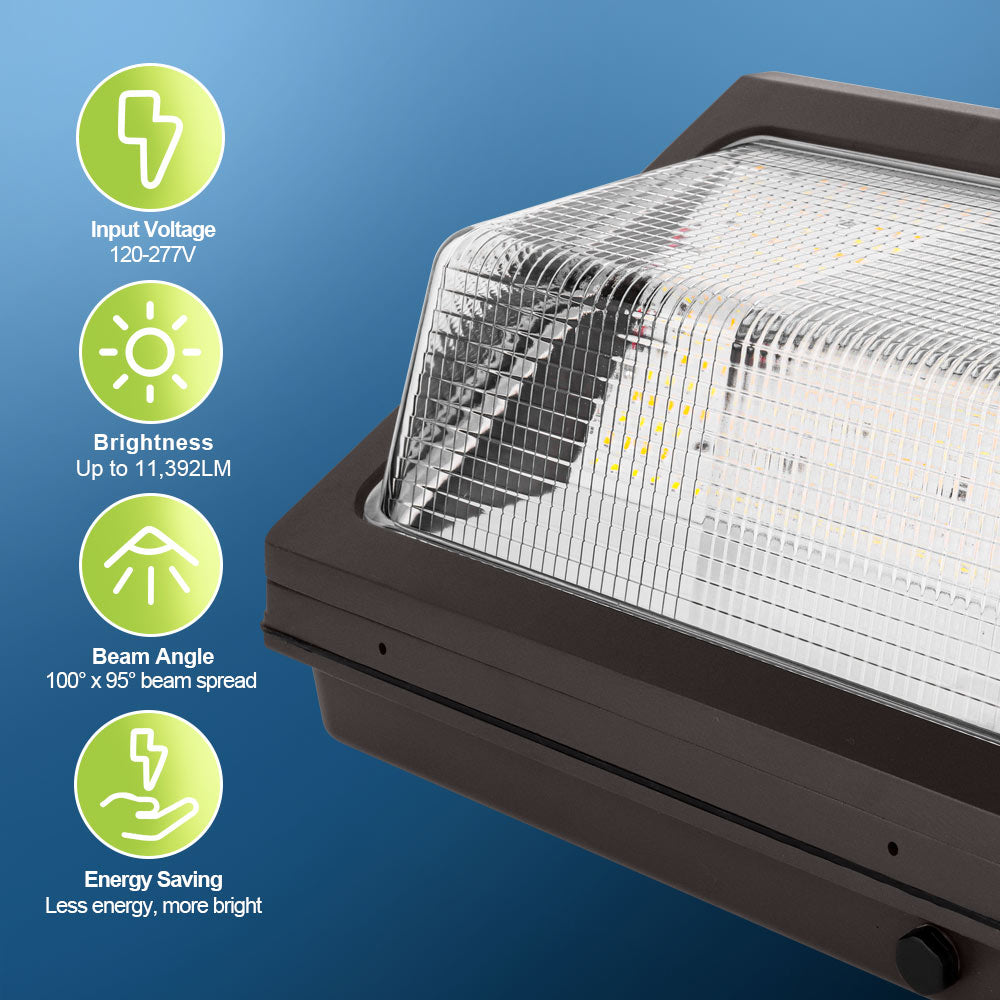

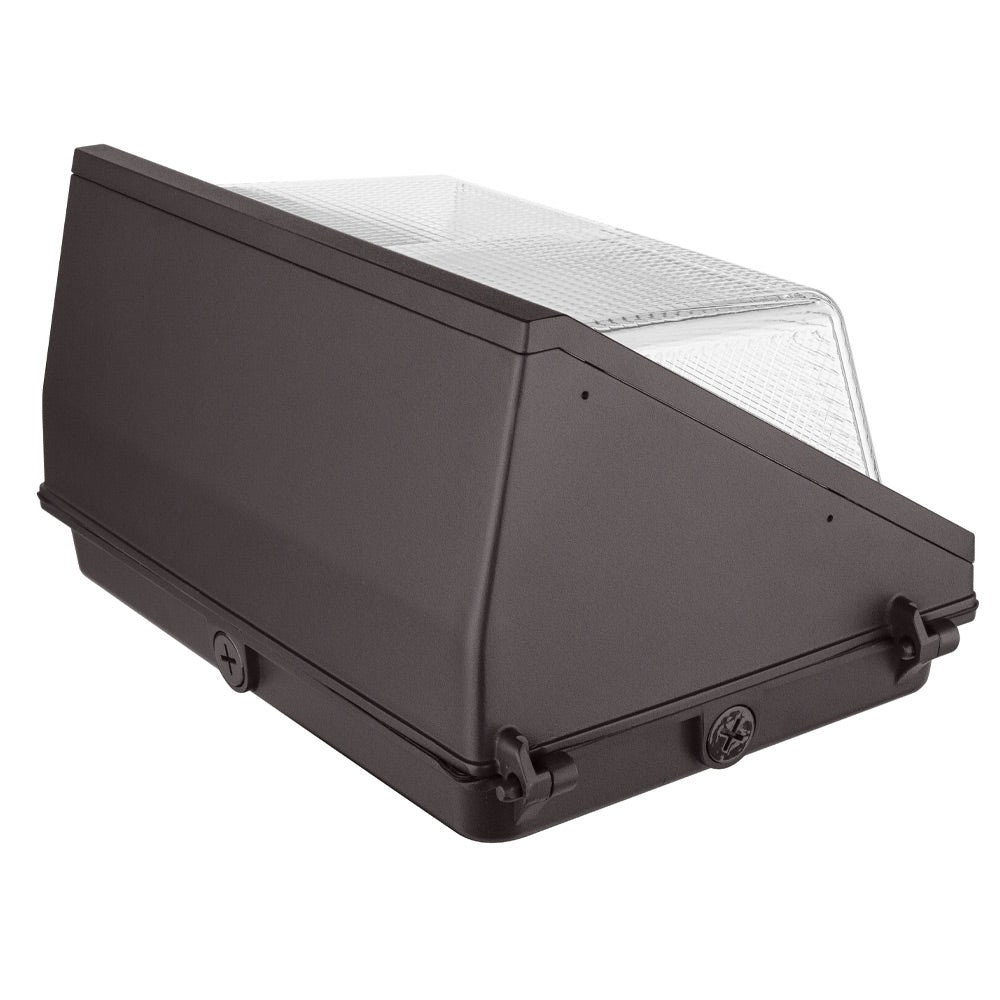

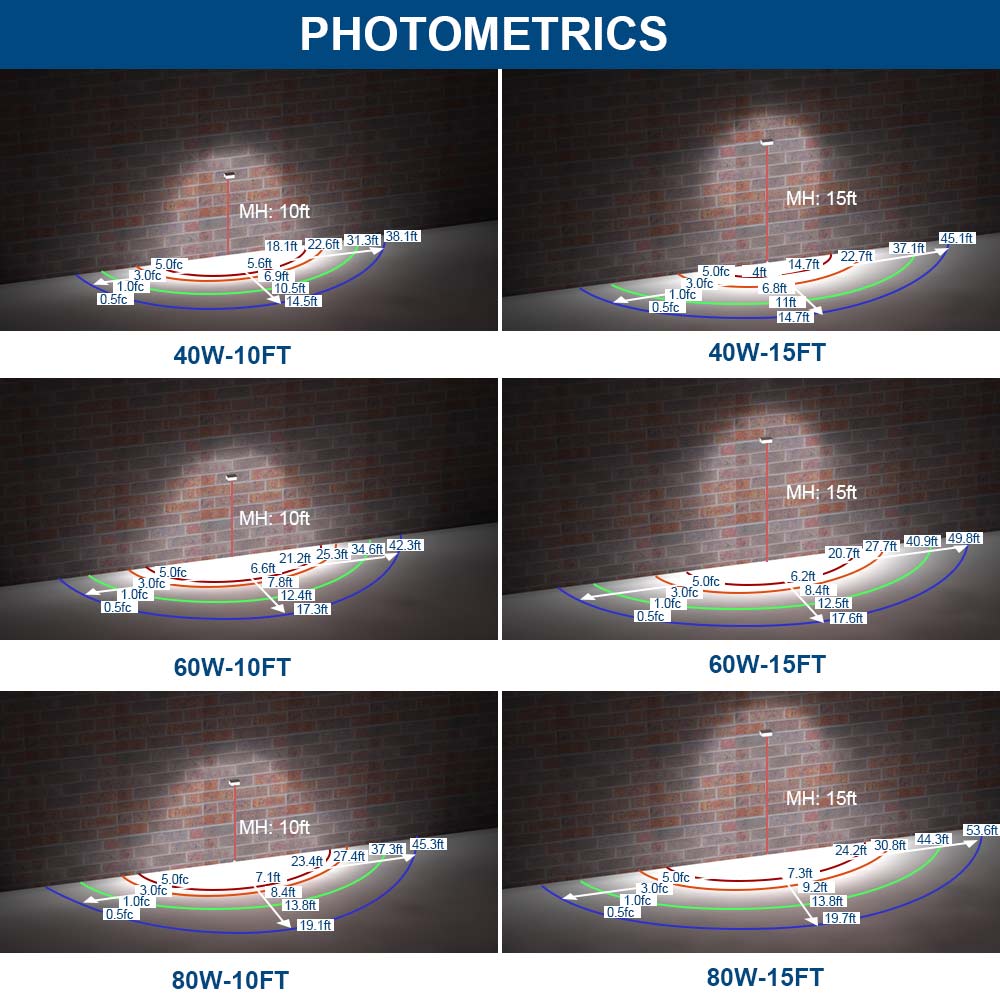

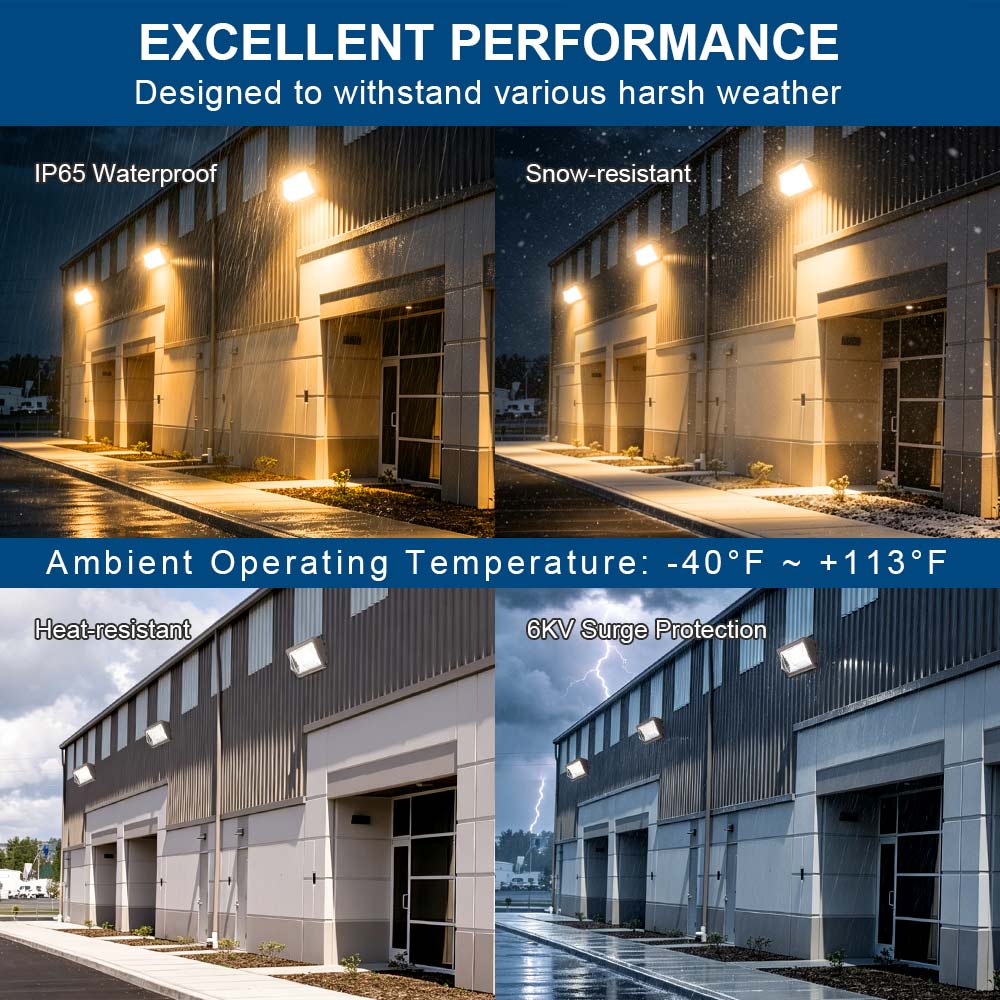

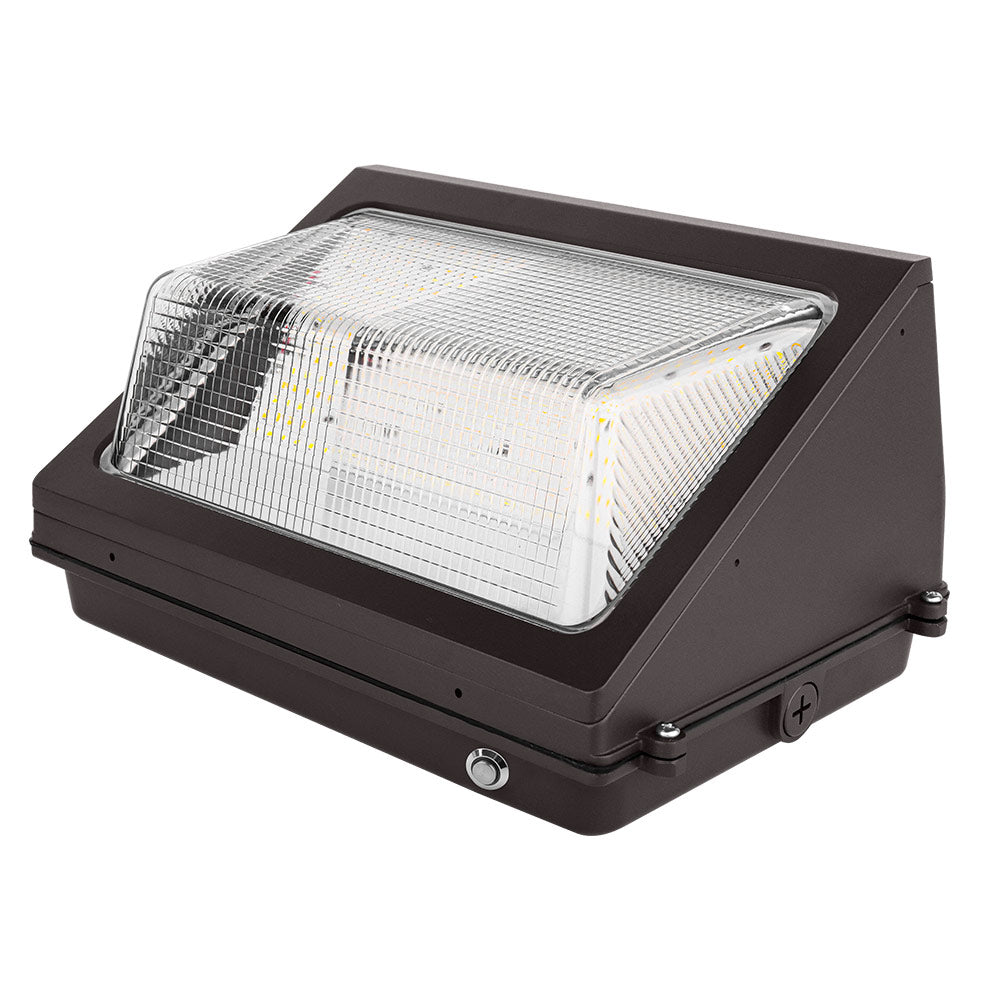

Built with dark bronze corrosion-resistant die-cast aluminum housing, this LED wall pack light is IP65 wet-rated and features a UV stabilized prismatic borosilicate glass lens that will not discolor with age. Its wide 100° × 95° beam spread provides broad light distribution across building walls, entrances, walkways, loading areas, driveways, yards, and parking facilities.

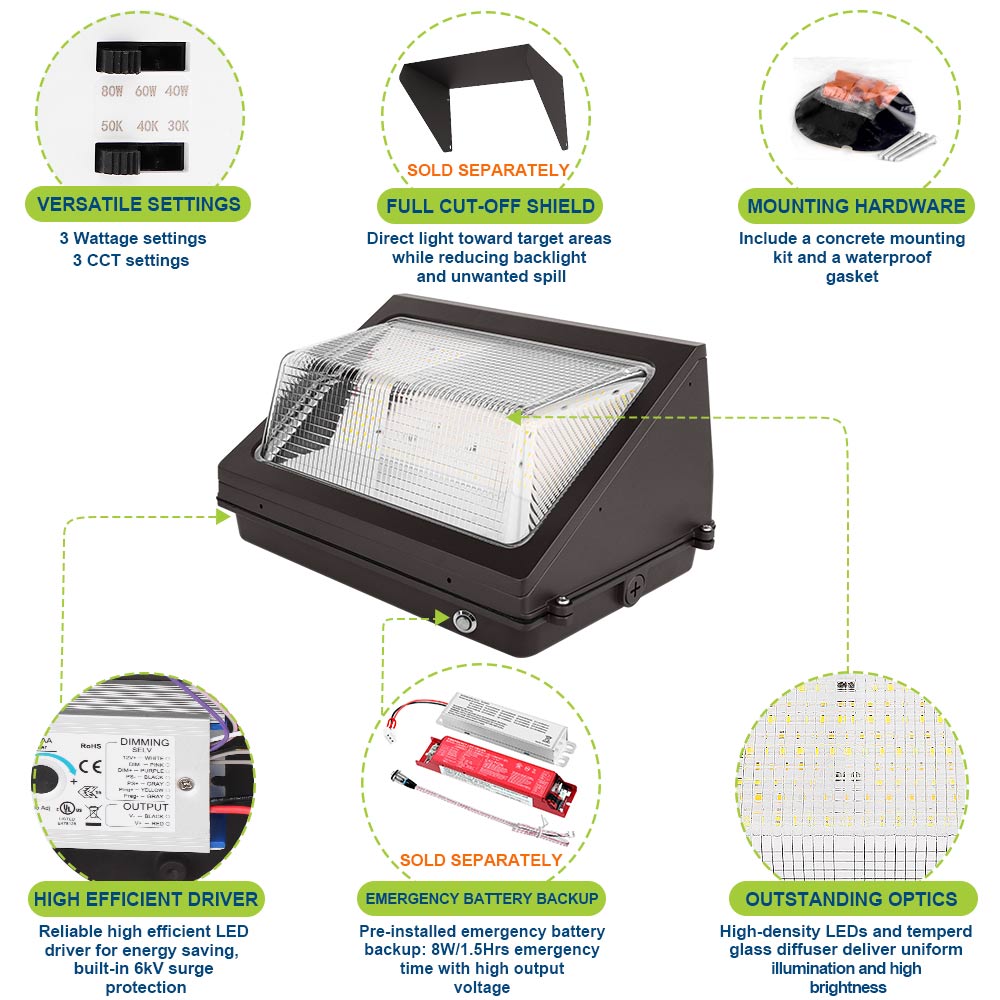

For the Konlite LED Wall Pack Light, you can consider integrating an 8-Watt emergency battery backup option. This optional backup ensures that the fixture continues to operate during power outages by providing up to 90 minutes of emergency lighting.
This fixture does not include a photocell. A compatible button photocell can be purchased separately and installed in the fixture’s 5/8-inch knockout for automatic dusk-to-dawn operation. Optional PIR motion sensor and emergency battery backup configurations are also available.
Our wall pack is UL and DLC certified, making it eligible for rebates. With a >50,000-hour L70 lifespan and a 5-year warranty, you can trust in the reliability and durability of our Wattage Selectable LED Wall Pack Light.
See our High Wattage model.

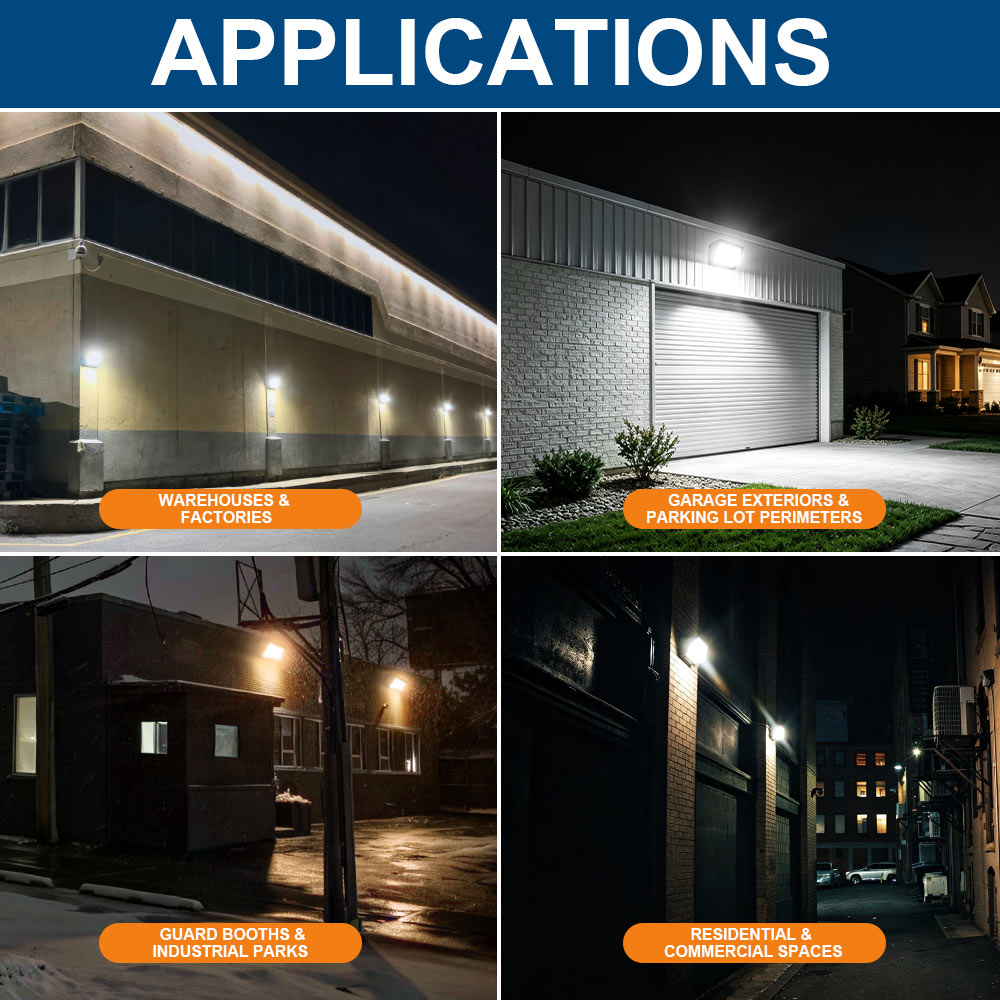

Applications
| • Warehouses | • Schools & Universities |
| • Boat Docks & Marinas |
• Building façade |
| • Security Lighting | • Underpasses |
| • Parking Facilities | • Loading Areas |
| • Gas Stations | • Metal Buildings |
Specifications
| Warranty | Limited 5 Years | MPN | RKWP05010635KDSWMLCD |
| Input Voltage | 120-277V | UPC | 672975367961 |
| Input Wattage | 63W/45W/30W | Equal to | 150W/100W/70W |
| Lumens | 8,190/5,850/3,900 | CRI | >80 |
| Efficacy | 130 LM/W | Available CCT | 5000K |
| Rated Life | >50,000 hrs | THD | <15% |
| Power Factor | >0.9 | IP Rating | IP65 |
| Dimmable | 0-10V | Controls | Built-in Dusk to Dawn Photocell |
| Operating Temperature | -30 to 122 F ( -4° to 122° F Powered by EBB ) | Dimensions | 14.33" x 9.26" x 5.87" |
| Certifications | UL, Damp Locations | Weight | 7 lbs |
Video
Video of Konlite LED Wall Pack Light With Photocell, 100 watts, 14500 lumens, 5000K
 | Download Specifications |

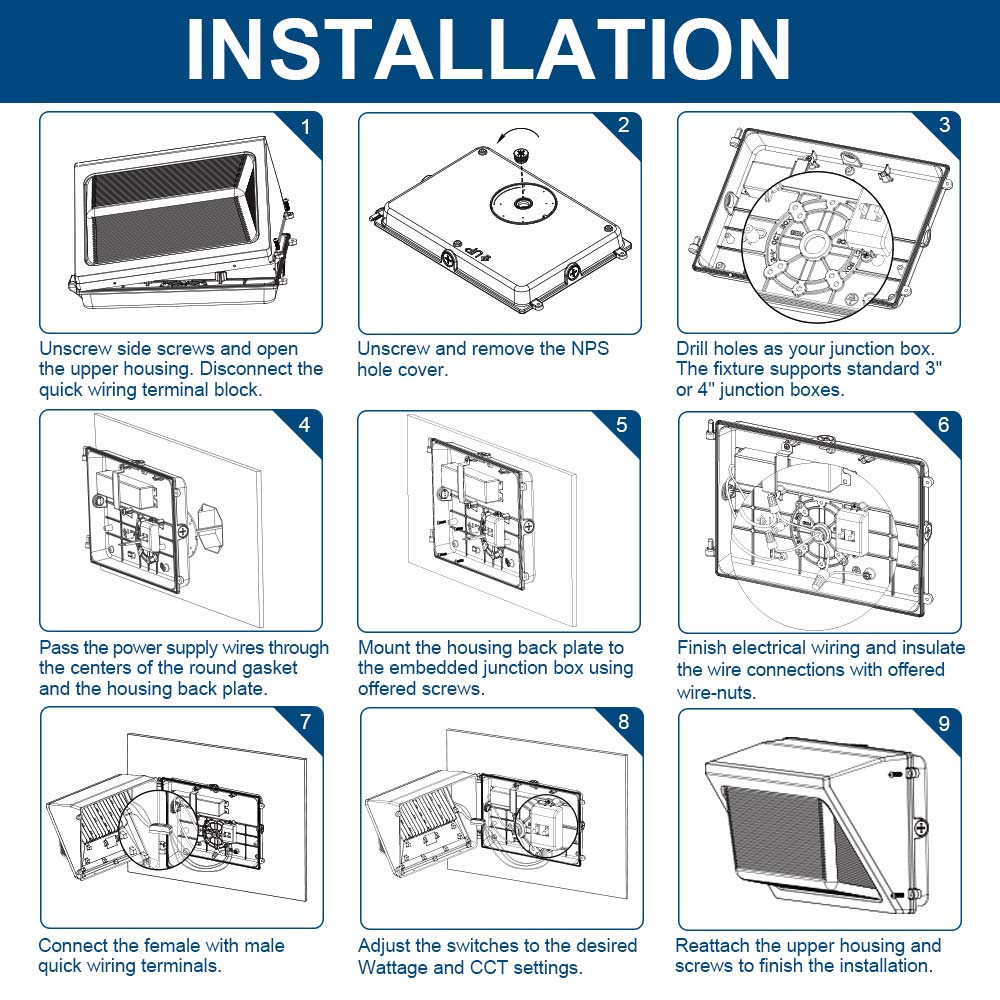

| Installation Guide |
| Download IES: 63W | 45W | 30W |
