Product Overview

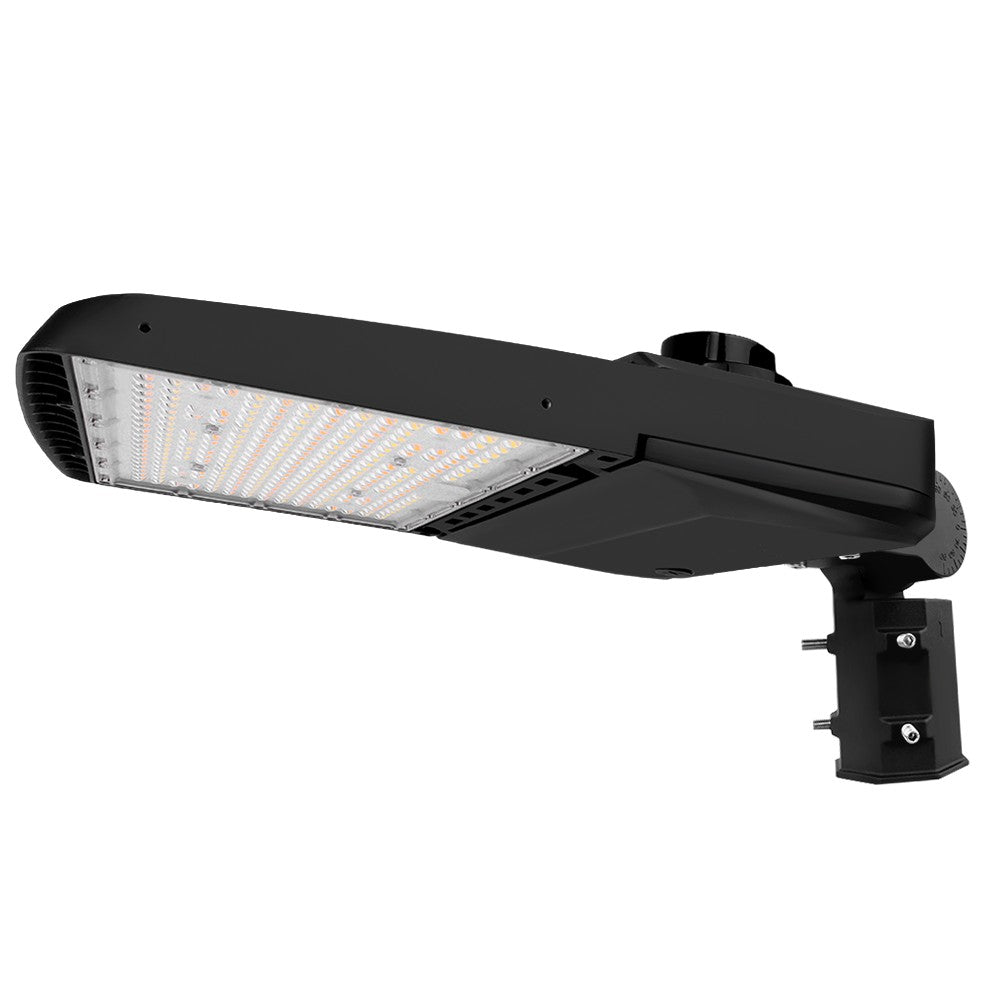

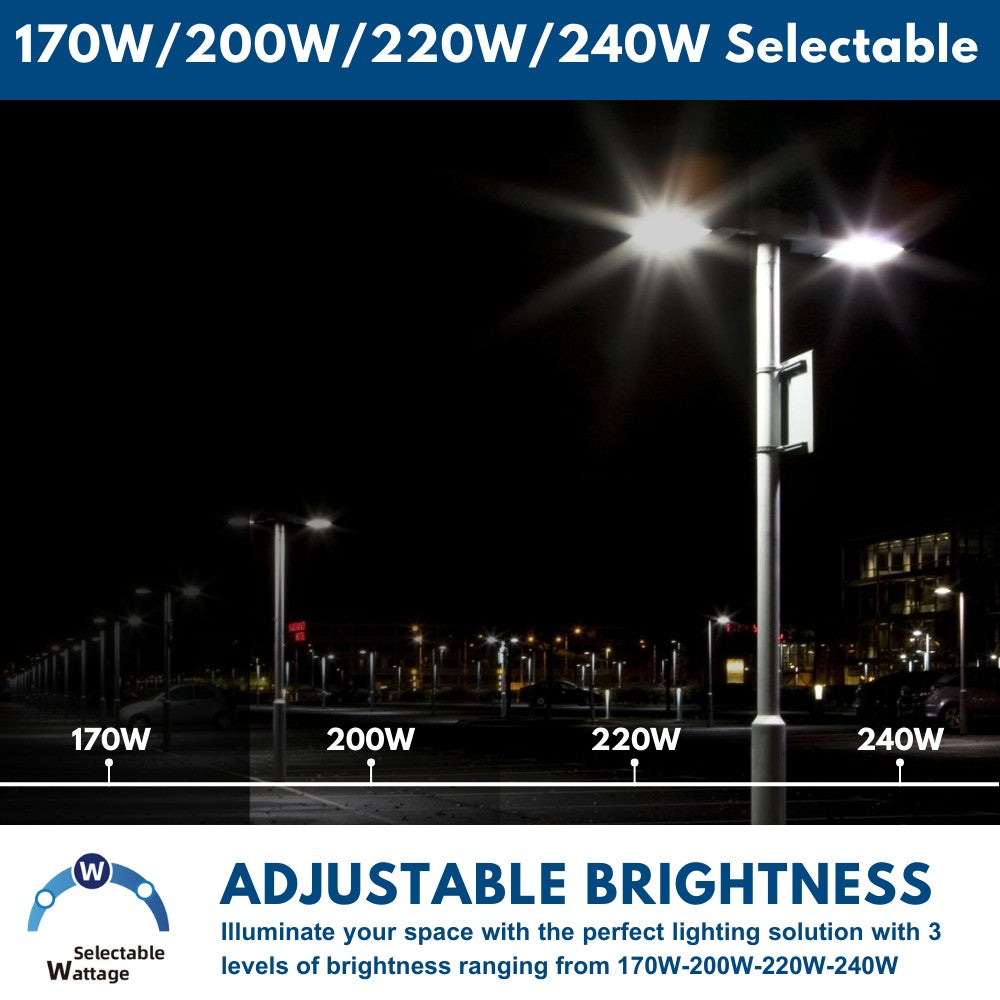

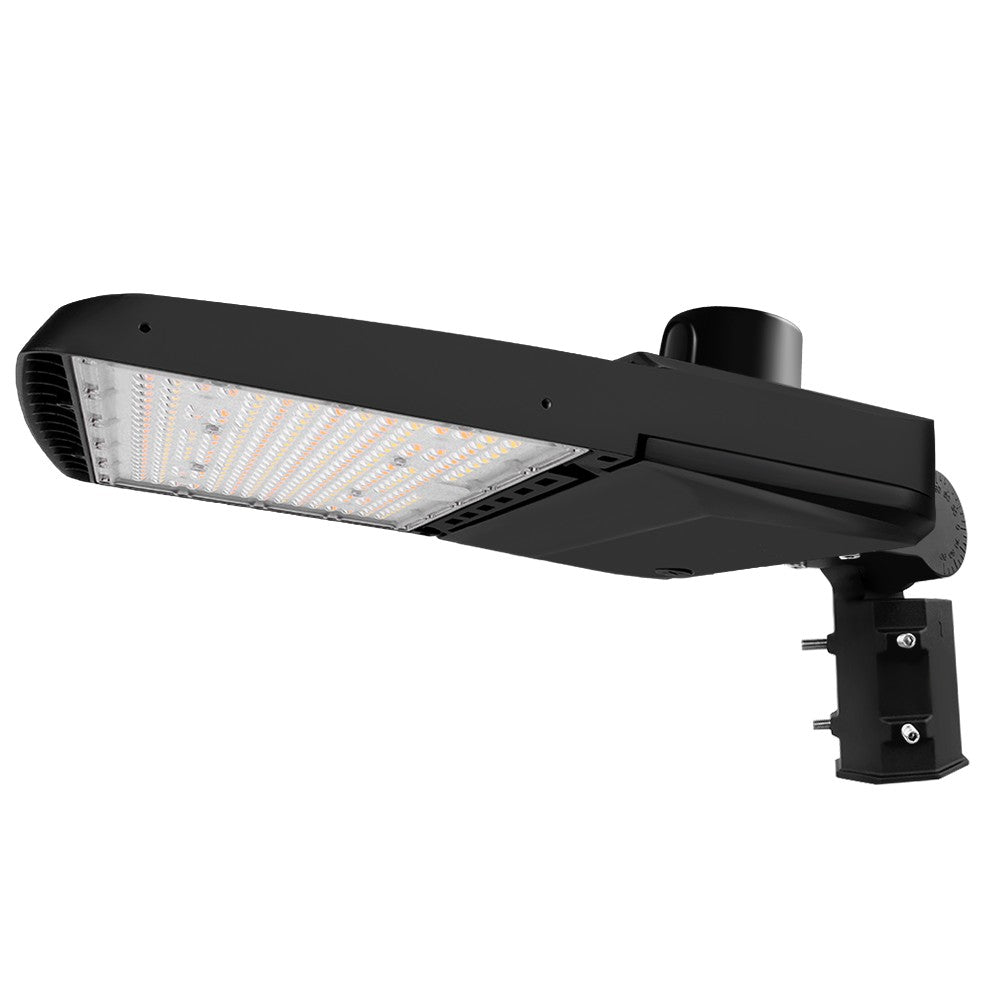

Upgrade your outdoor lighting with the Konlite Black VELA II LED Parking Lot Shoebox Light, designed for superior illumination and energy savings. This LED light is a 1,000 Watt equivalent and offers a 4-way switch with four field-selectable wattage/brightness settings (240W/34,888 Lm Preset, 220W/31,993 Lm, 200W/29,097 Lm, 170W/24,701 Lm) to meet your specific lighting needs.

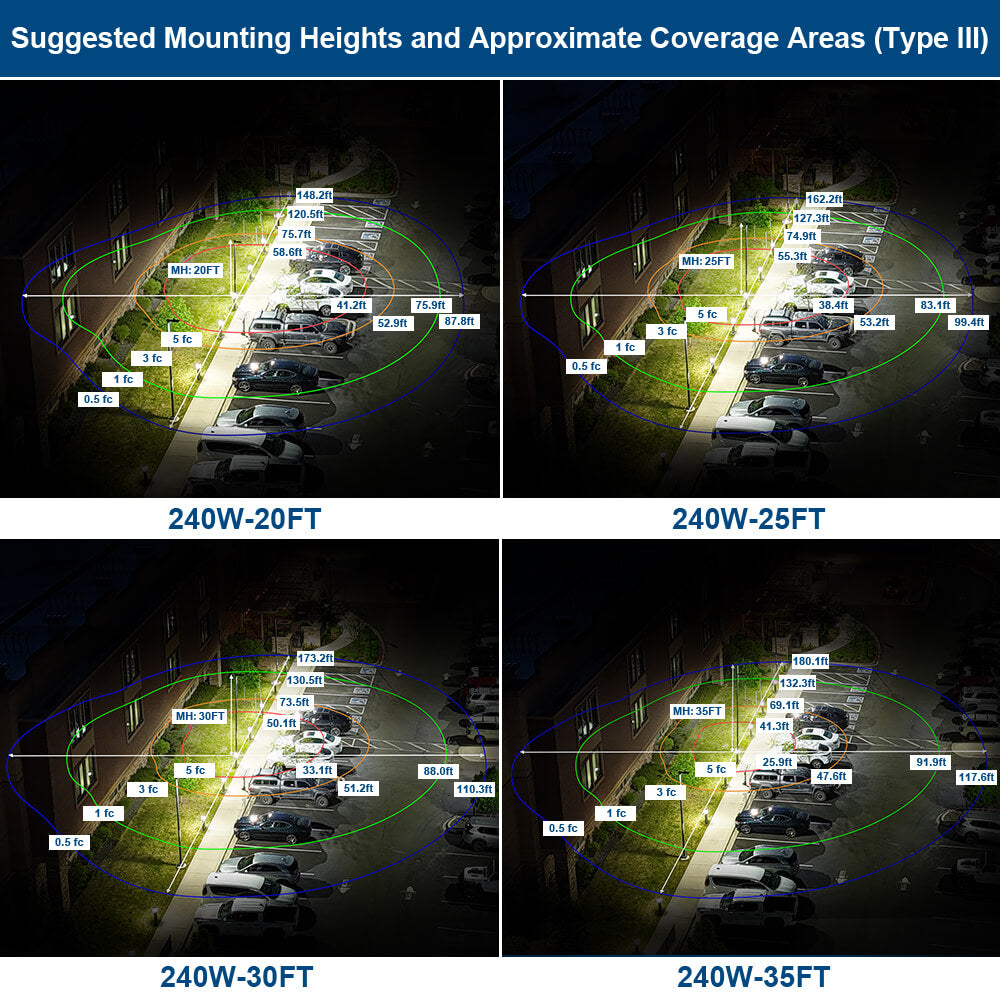

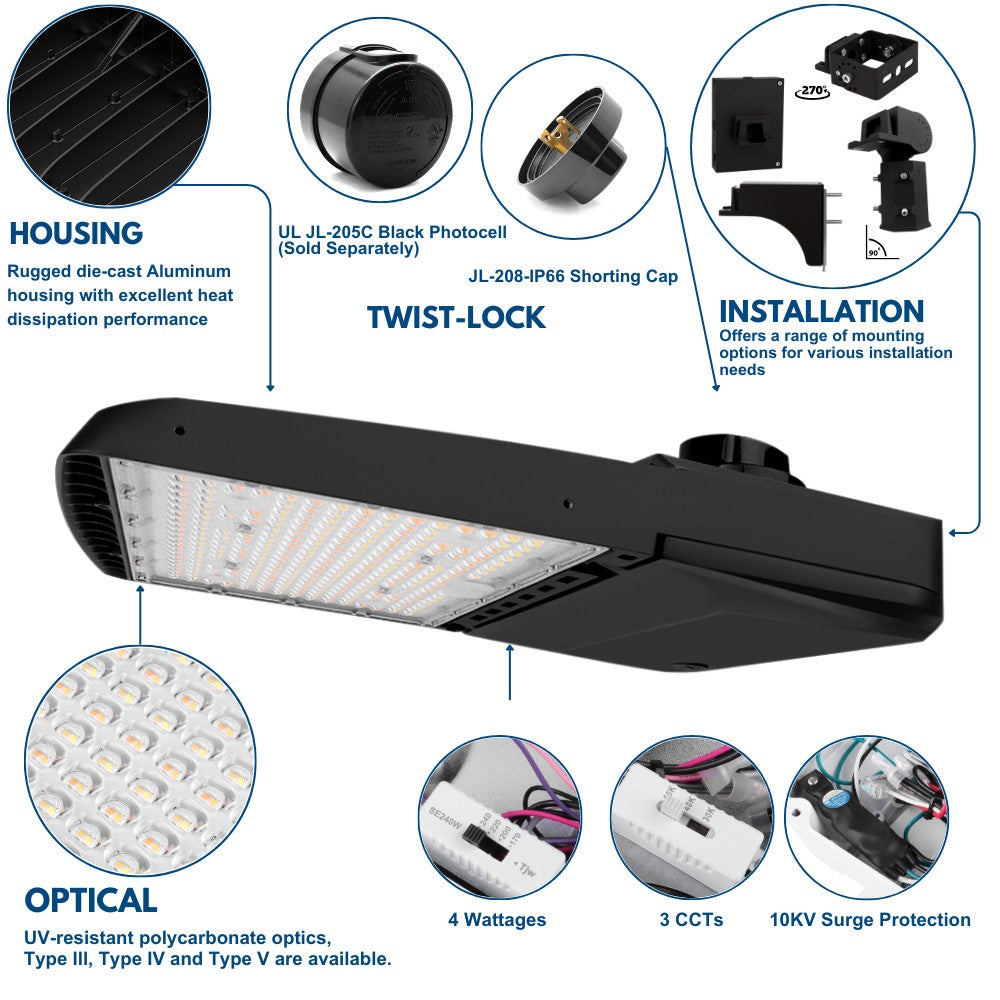

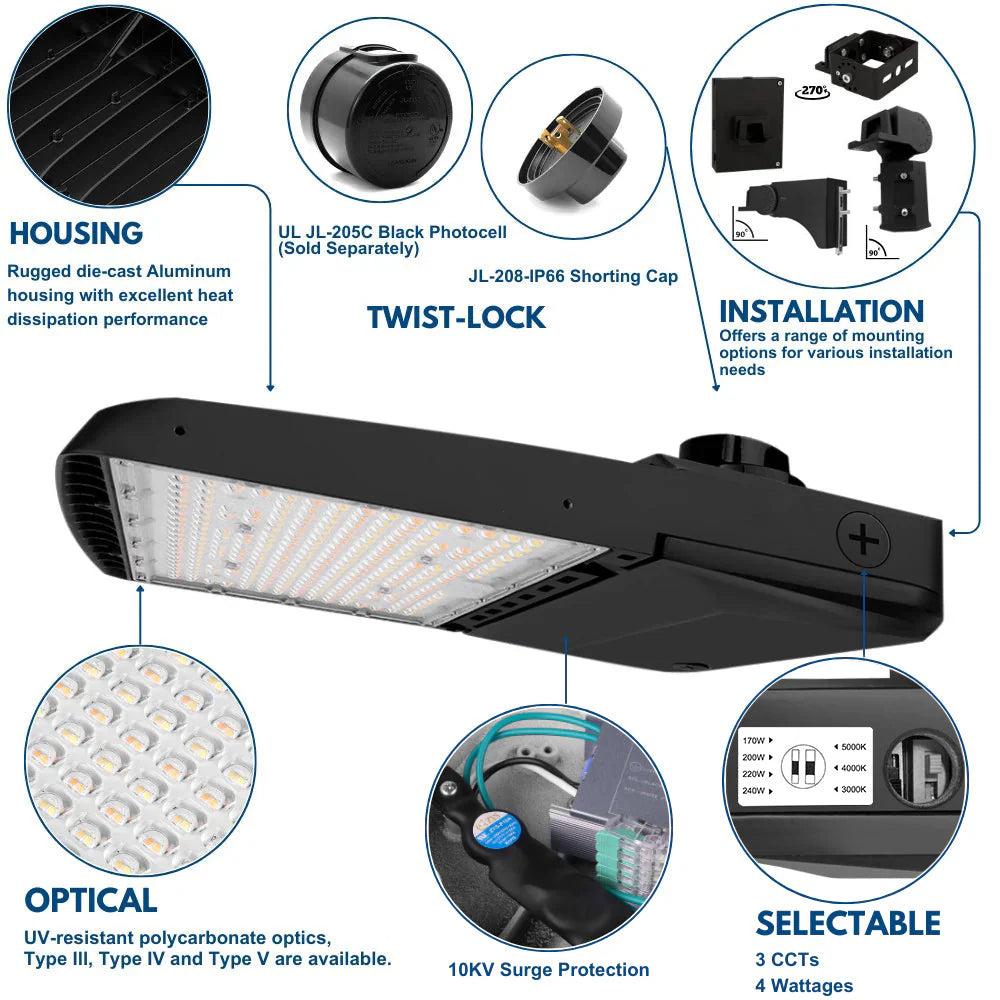

Increase safety and security for your buildings and lots with this LED parking lot light and pole light, which provides excellent light distribution with high output LEDs and custom optics, resulting in 155 Lumens per Watt Efficiency. The VELA II LED light offers a type III beam distribution standard, UV-resistant polycarbonate optical lens, and 1-10V dimming with 5000K CCT.

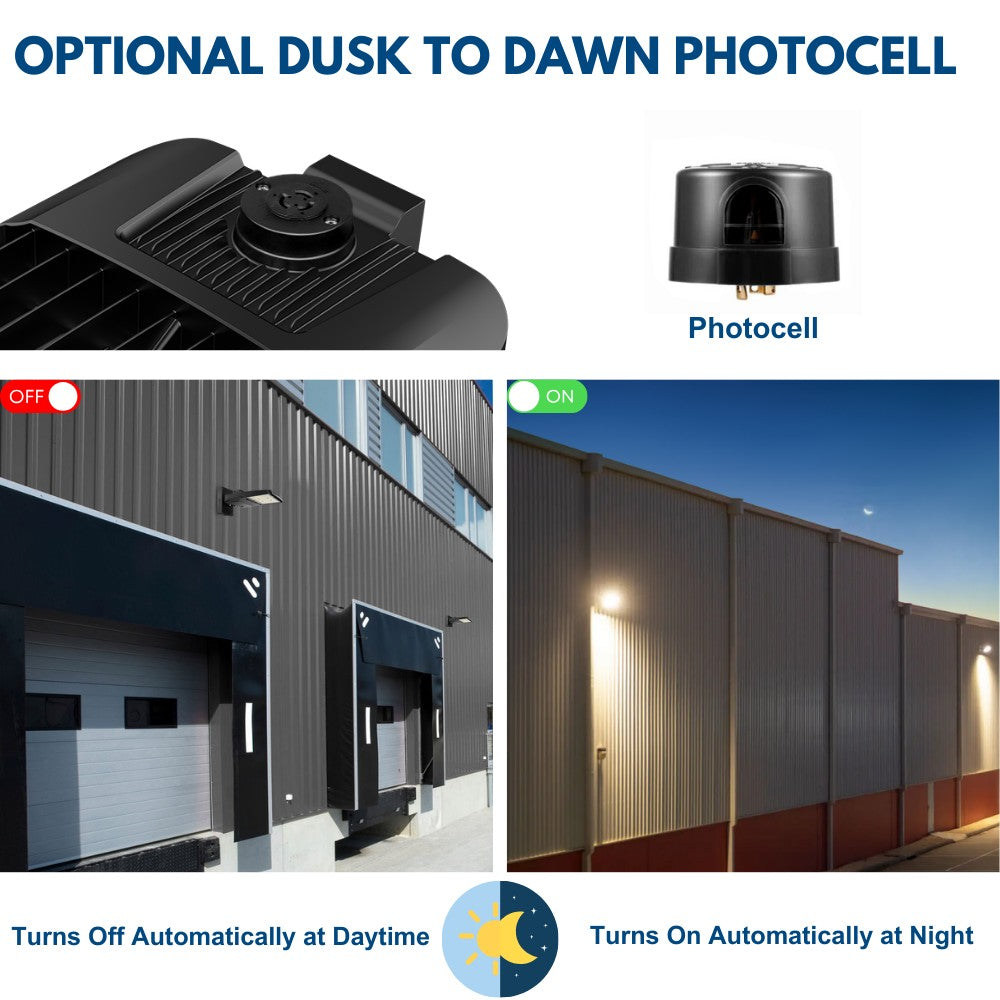

This LED light is compatible with dusk-to-dawn photocell and PIR motion sensor (please call for motion sensor availability), making it a smart and energy-efficient lighting solution. It offers up to 65% energy savings, long service life, and quick return on investment.

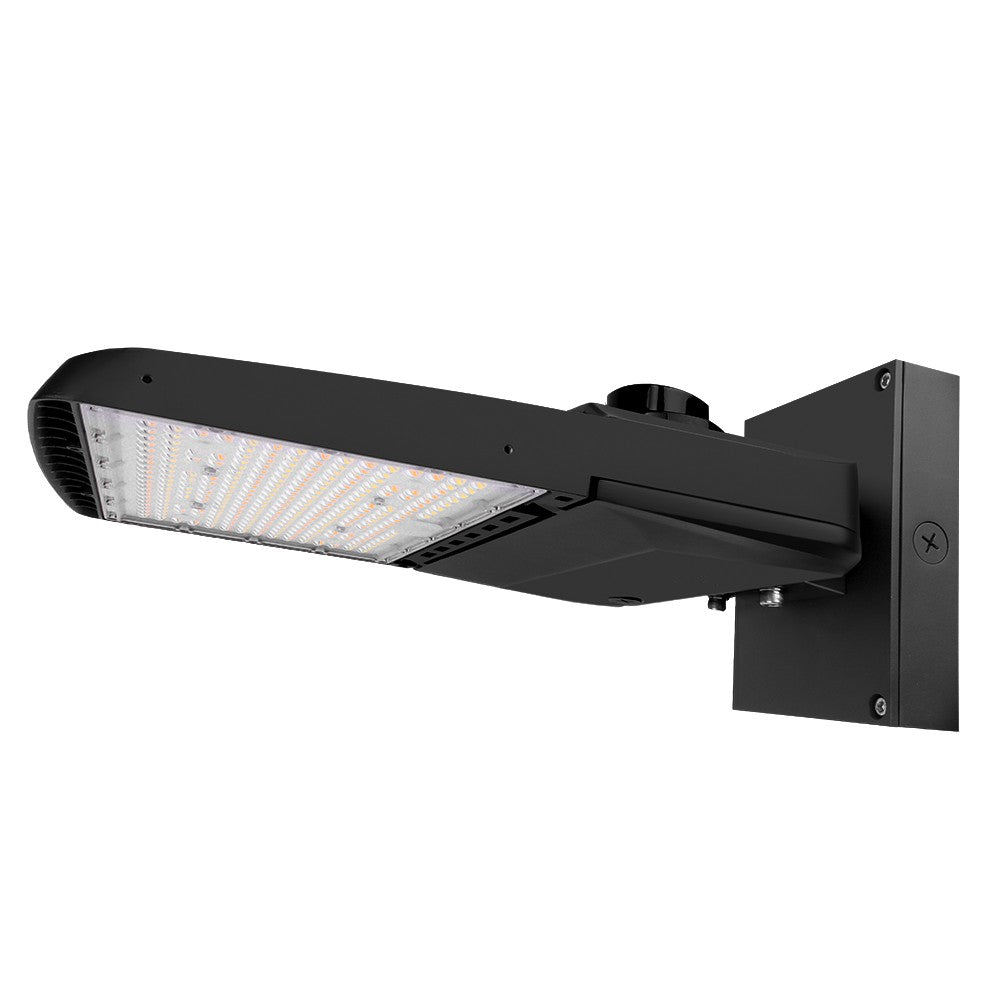

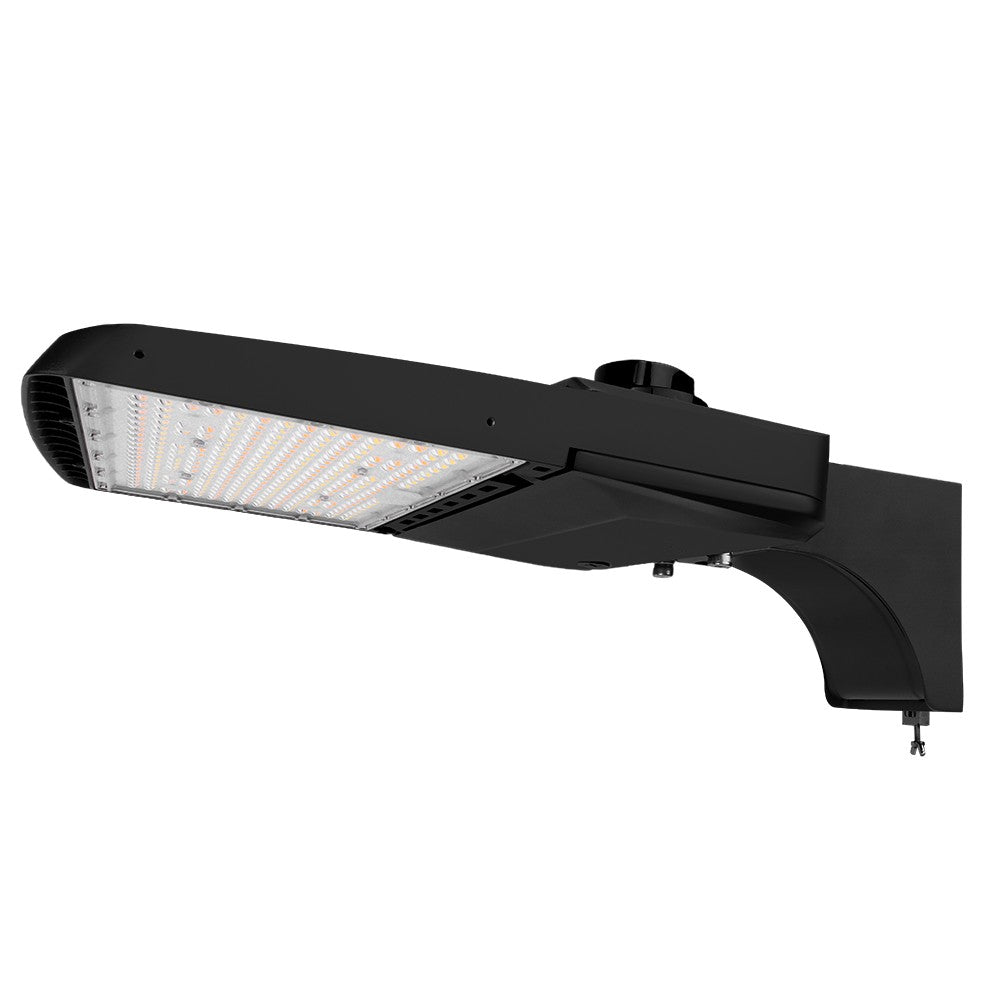

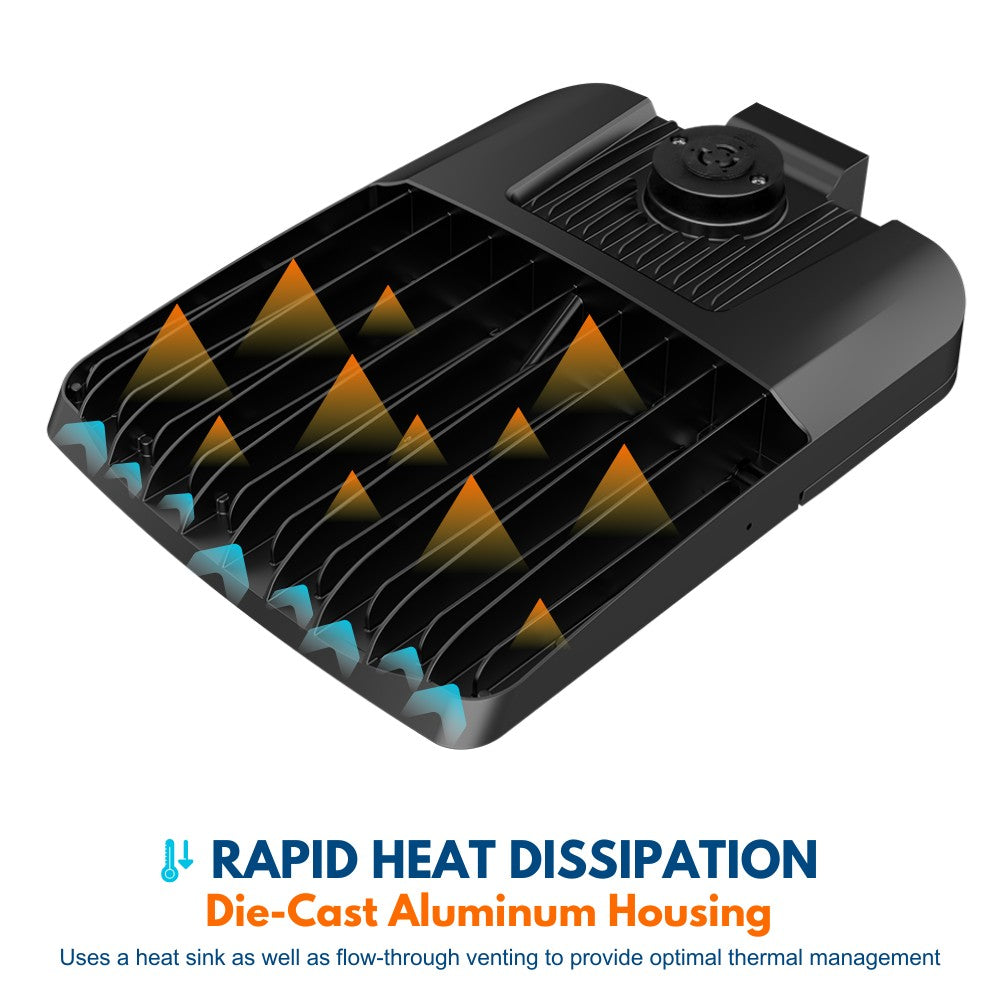

With its IP65 corrosion-proof die-cast aluminum housing and mounting brackets, the VELA II LED light is built to withstand all weather elements. It offers built-in 10KV surge protection, ensuring a reliable and long-lasting lighting solution.
Certified for quality, the Konlite VELA II LED Parking Lot Shoebox Light is DLC 5.1 Premium for eligible rebates, UL certified, and boasts a 100,000-hour lifespan. The lightweight design and low EPA rating with a 1.5G vibration load per ANSI C136.31 make this LED light easy to install and a top choice for one-to-one replacement of HID/HPS from 750 Watt to 1000 Watt equivalent or new construction projects.
270-480V available for 150-watt and 310-watt Dark Bronze versions.
See similar VELA I(150W/120W/100W/80W), VELA III(310W/280W/260W/240W) versions.
Applications
• Area Lighting | • Parking Lots |
• Streets |
• Building Façade |
• Storage Facilities | • Underpasses & Tunnel |
• Boat Docks & Marinas | • Billboards |
• Outdoor event spaces | • Industrial yards |
• Roadways & Pathways | • Security Lighting |
• Sports Complex | • Schools & Universities |
• Parks | • Car Dealerships |
Specifications
Brand | Konlite | DLC Part # | KVLMMW50KLV3SFB |
Warranty | Limited 5 Years | UPC | |
Input Voltage | 120-277V | Optical | Type III |
Input Wattage | 240W/220W/200W/170W | Equal to | 1000W/750W MH |
Delivered Lumens | 35K/32K/29K/25K Lumens | CRI | >70 |

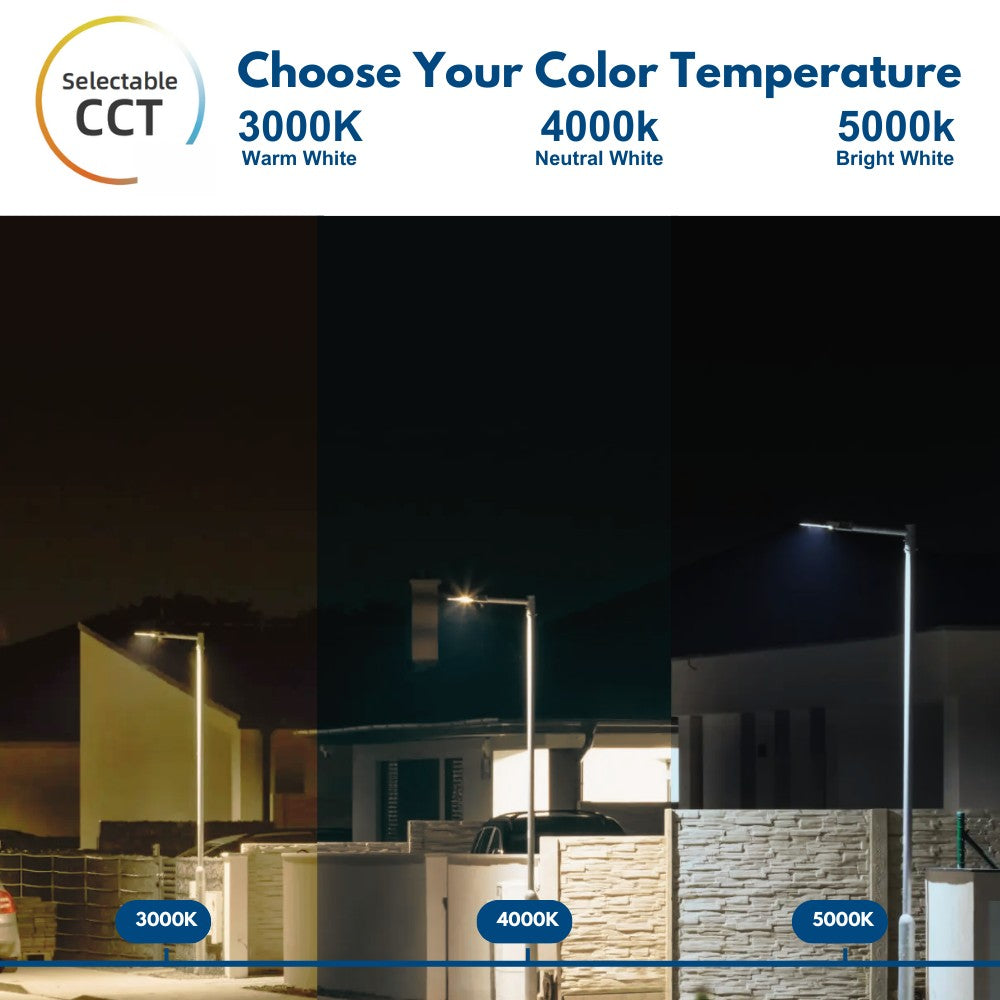

Efficacy | 160 lm/W | Available CCT | 5000K/4000K/3000K |
Rated Life | >100,000 hrs | THD | <20% |
Power Factor | >0.9 | IP Rating | IP65 |
Dimmable | Call us for 1-10V Dimming Availability | Controls | Optional Dusk to Dawn Photocell |

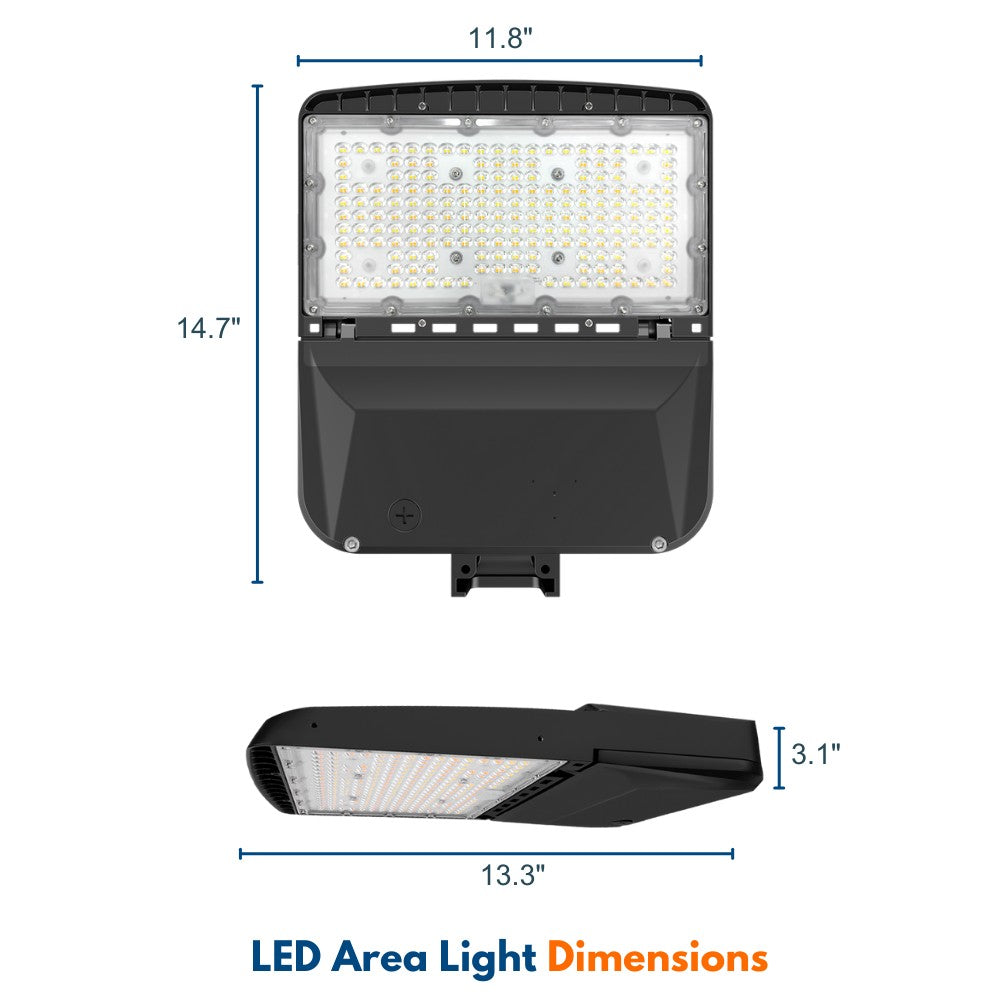

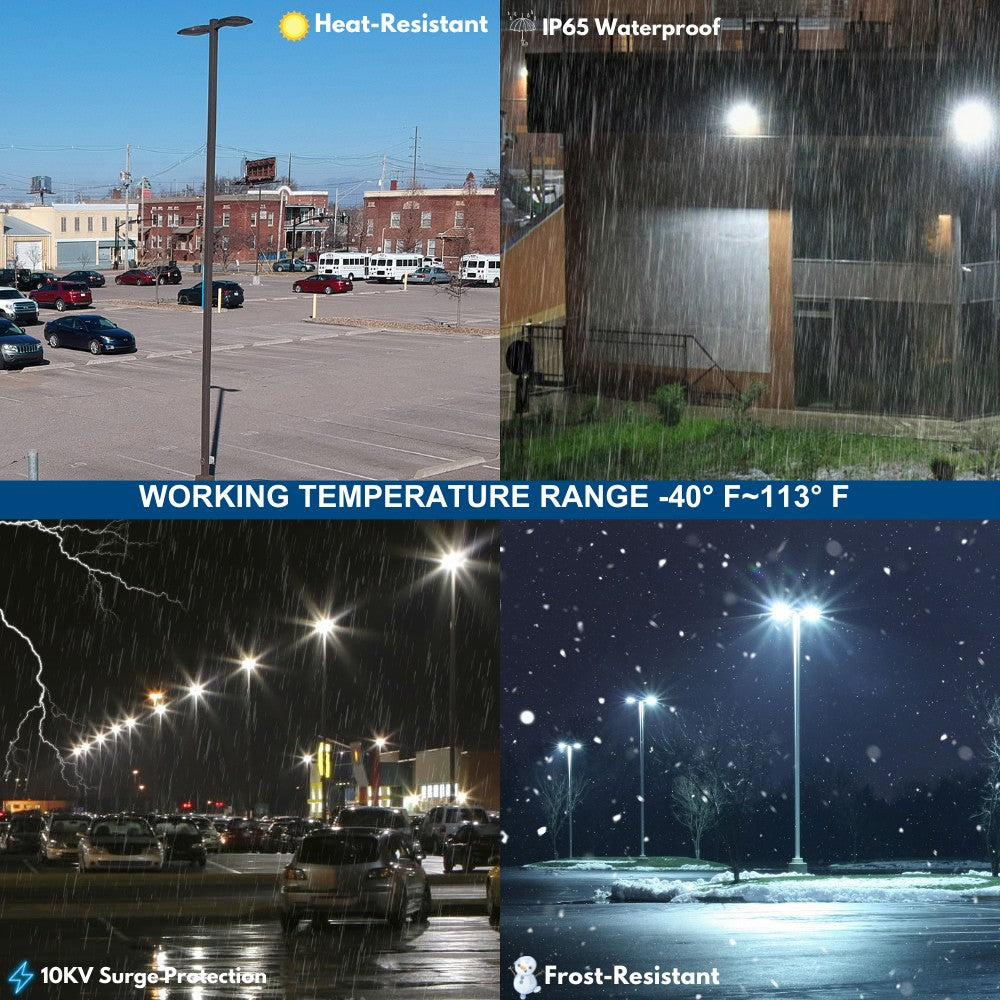

Operating Temperature | -40 °F to 113 °F | Dimensions | See Specifications |
Certifications | UL, Wet Locations, DLC Premium | Weight | 12 lbs |
Konlite Vela LED Parking Lot Light Video
Video of Konlite Vela LED Parking Lot Light - 240W/220W/200W/170W Selectable - Up To 34,888 Lumens
Download Specifications | |
Installation Guide | |
Download IES: 240W | 220W | 200W | 170W |
