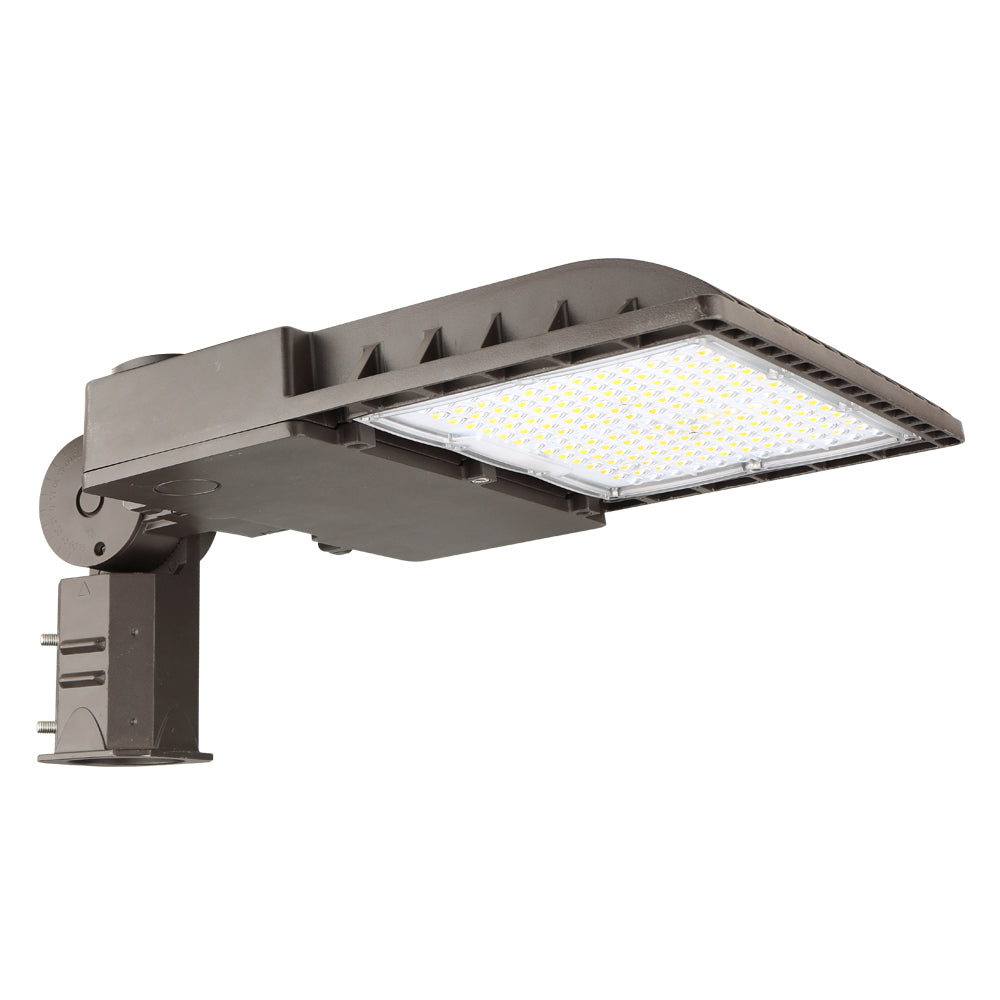

4000K 200W slipfitter mount led flood light with type 3 lens

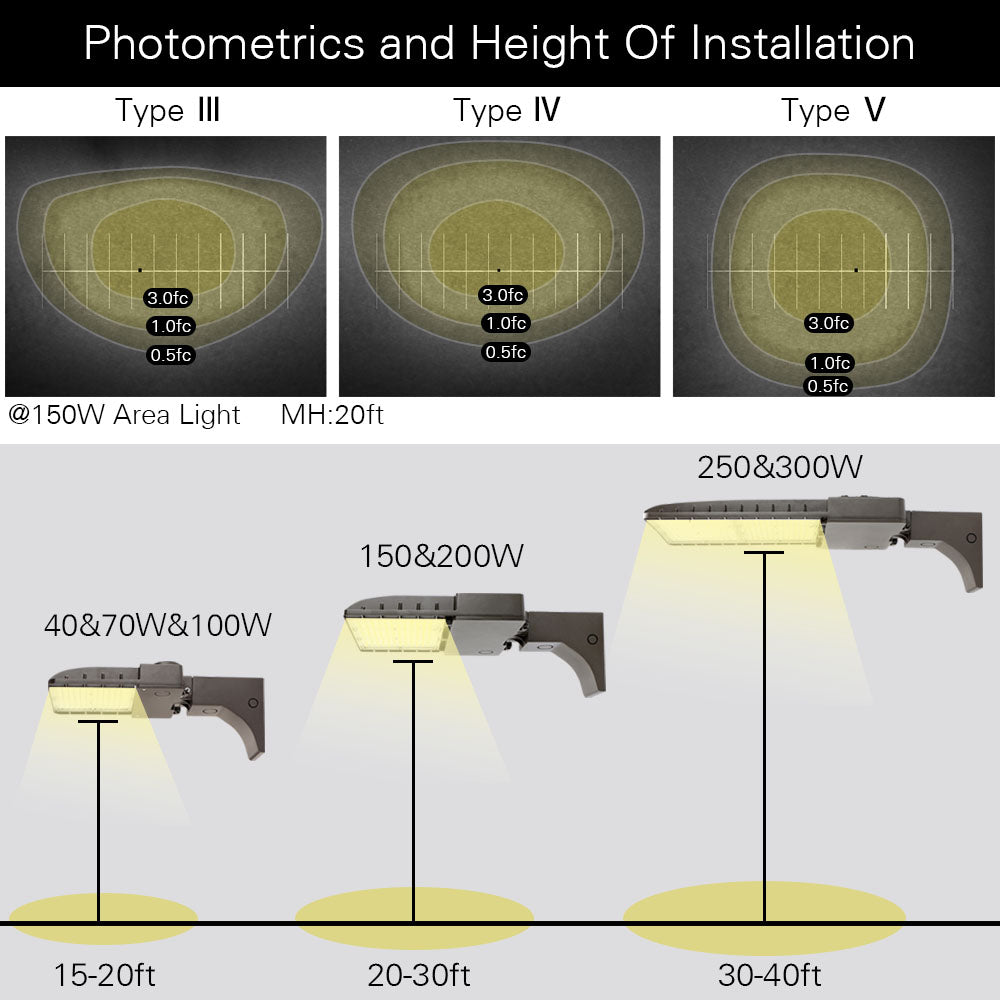

various wattage Konlite led area lights luminaire photometrics and installation heights

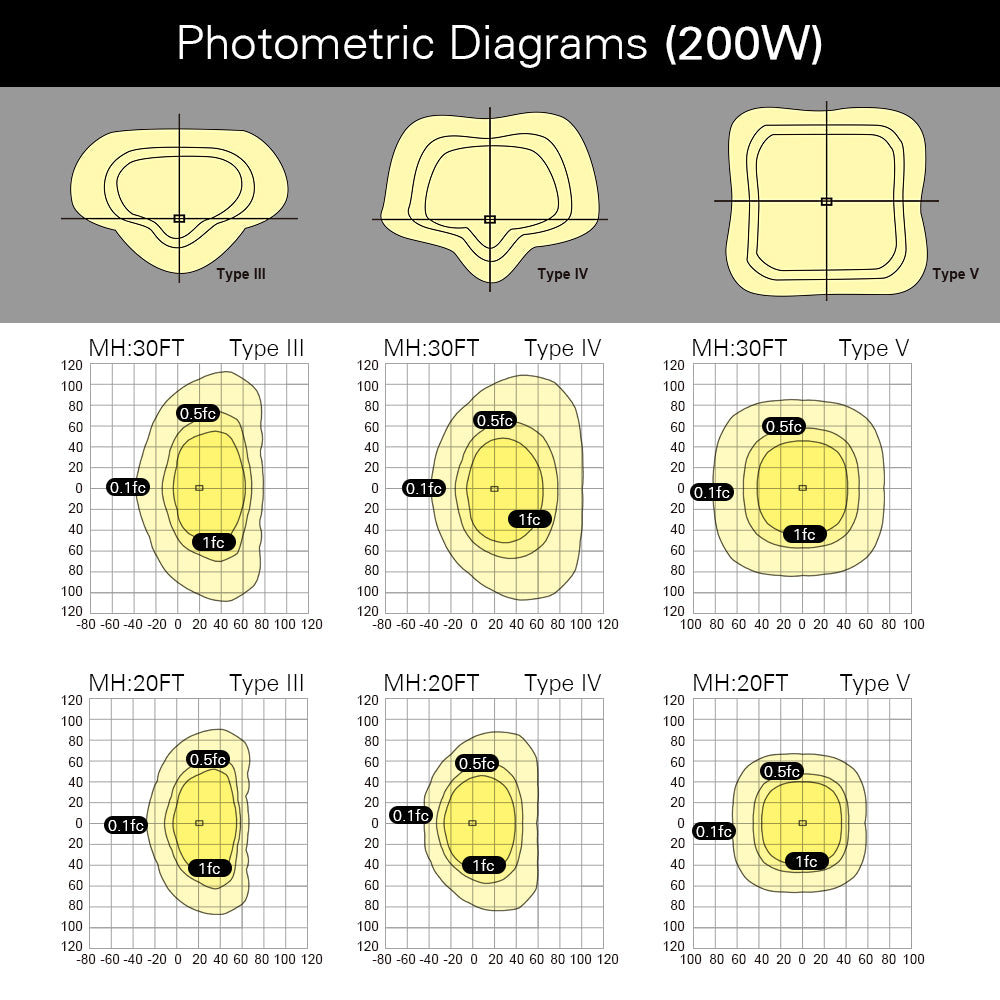

200W LED Area Light Photometric Diagrams

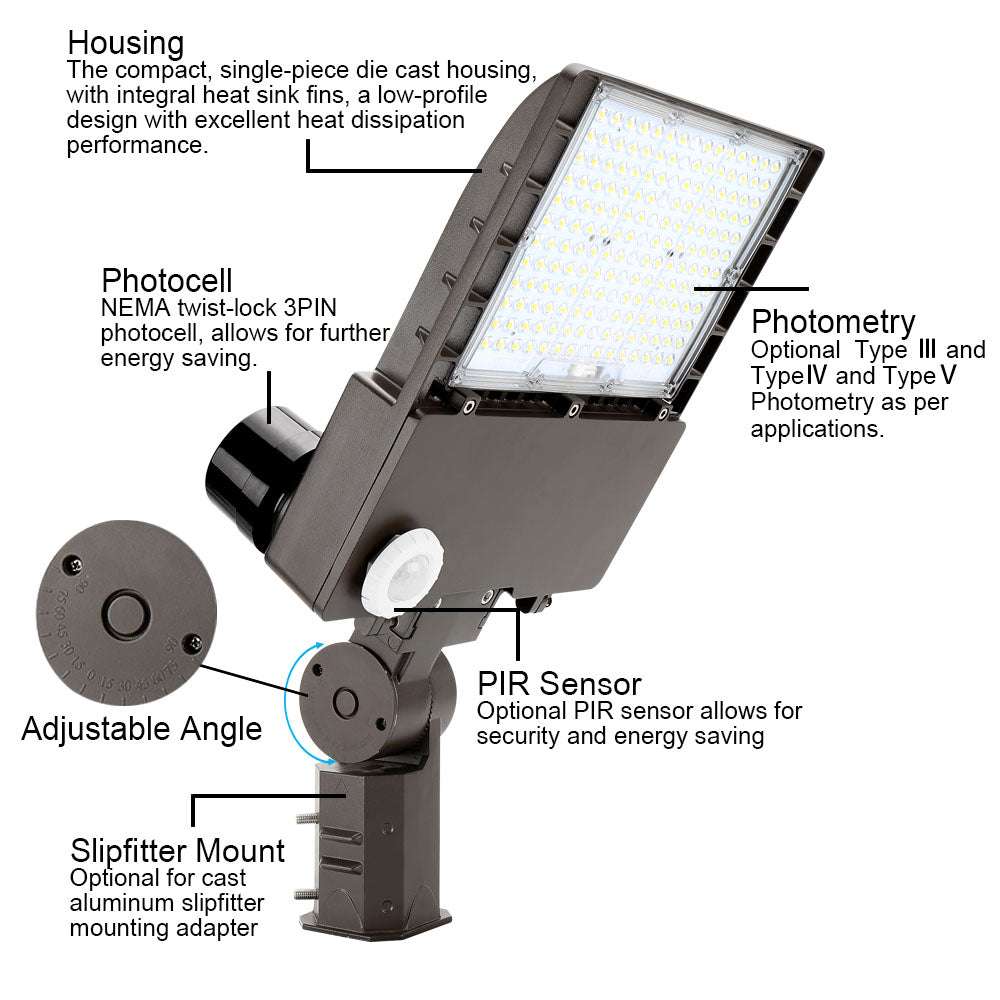

200W led flood light with photocell structure

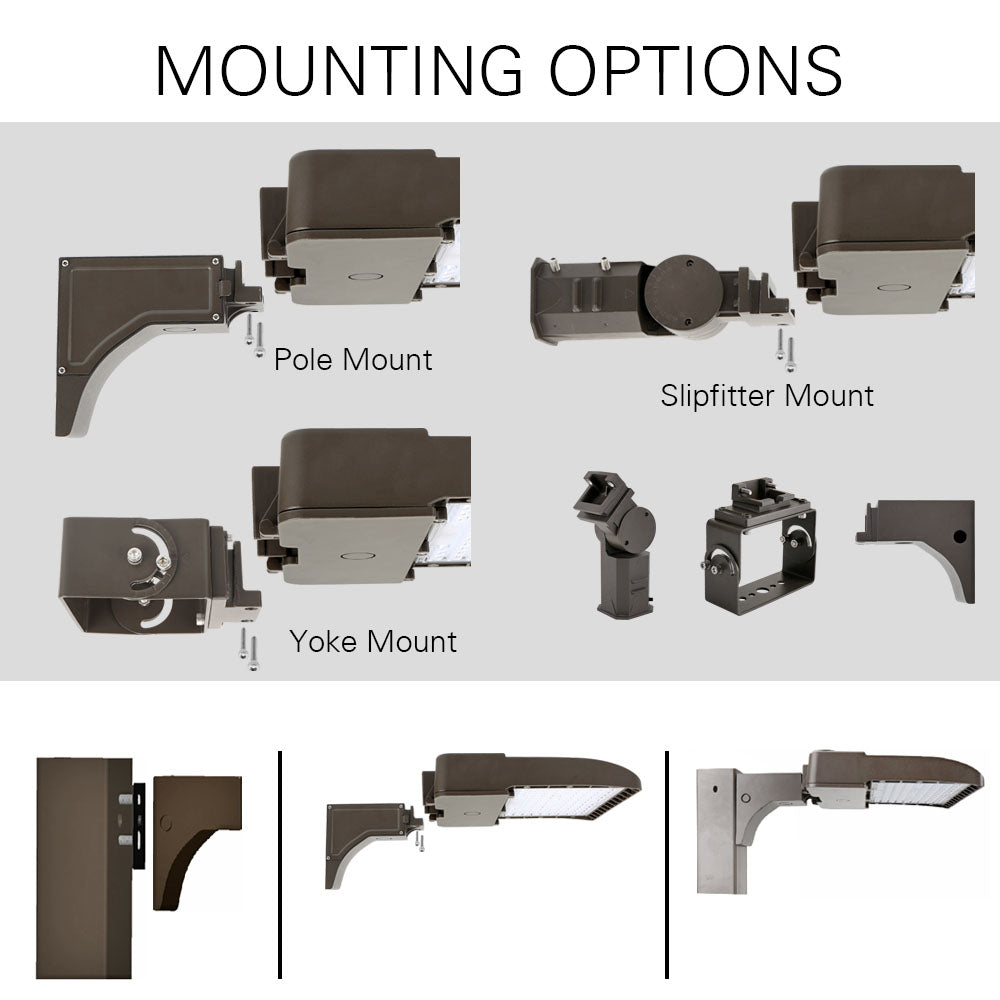

mounting brackets for led flood lights including pole mount slipfiiter Trunnion and yoke mounts

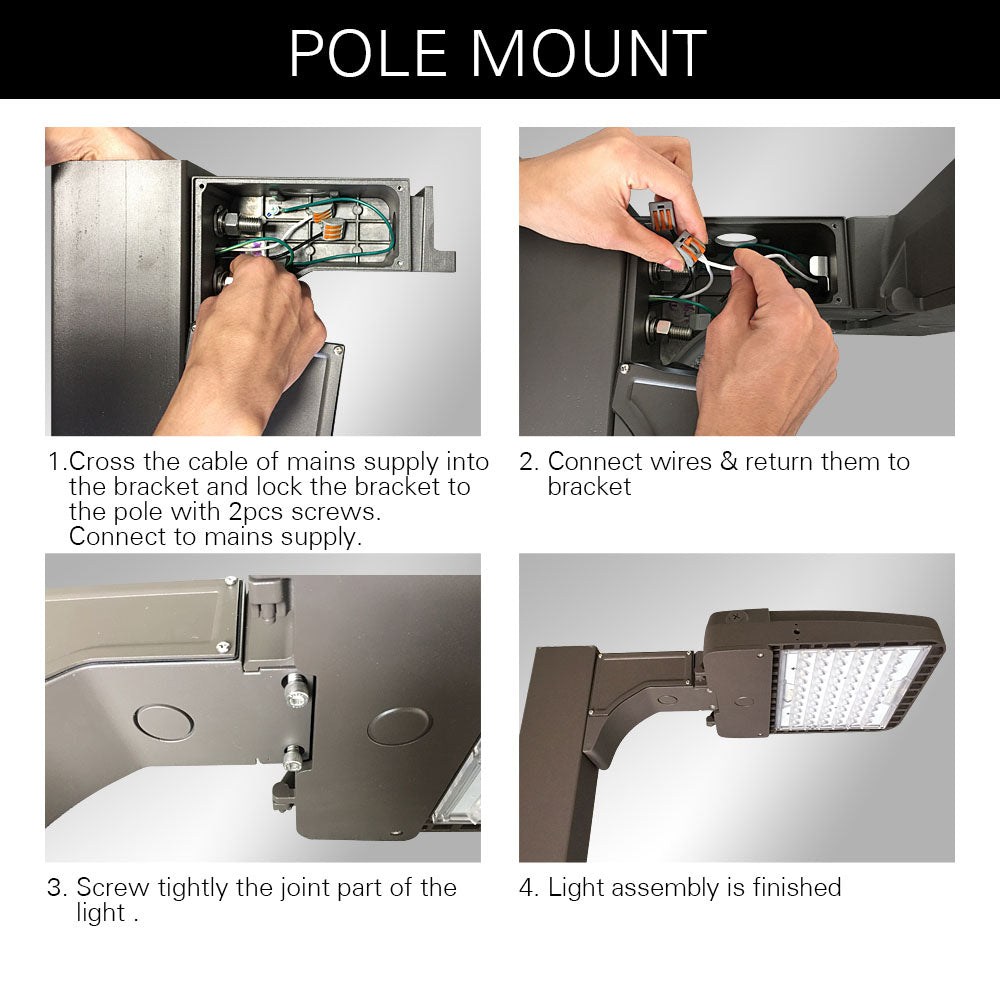

Led parking lot light pole mount installations guides

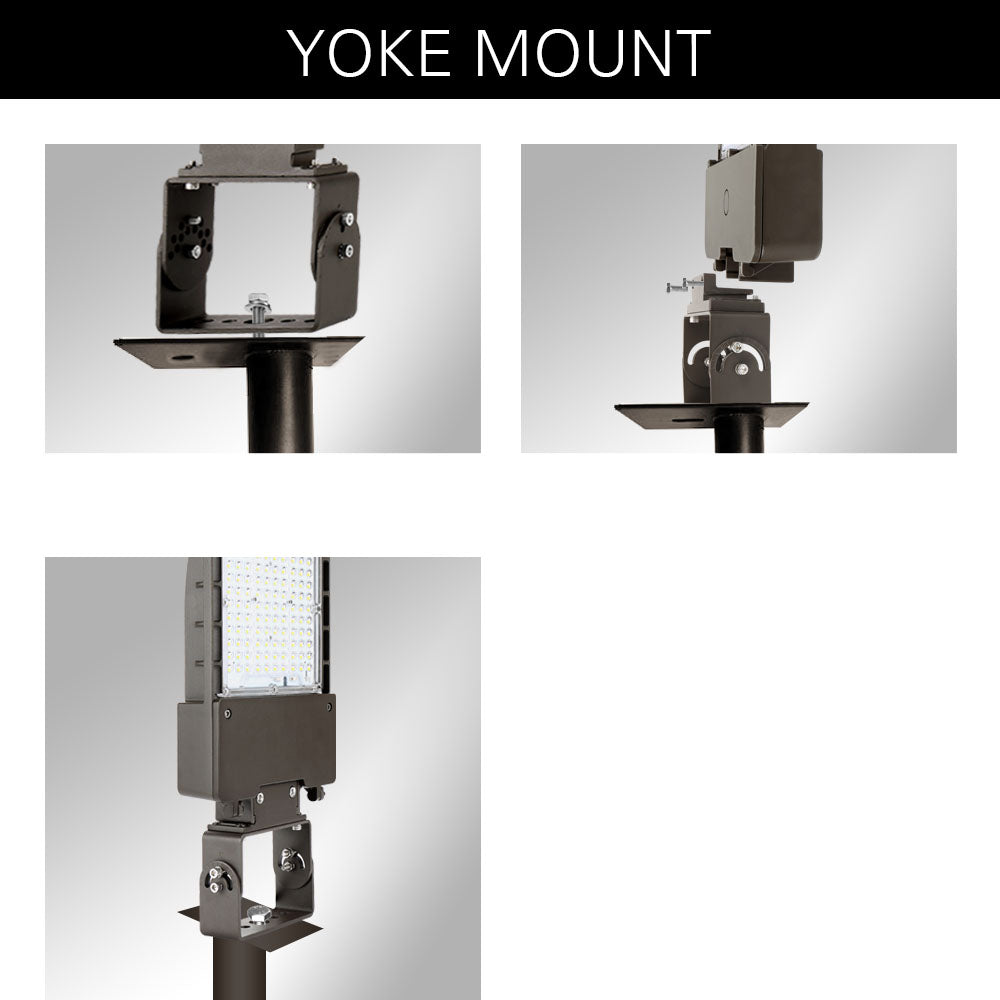

LED parking lot light trunnion and yoke mount installations guides

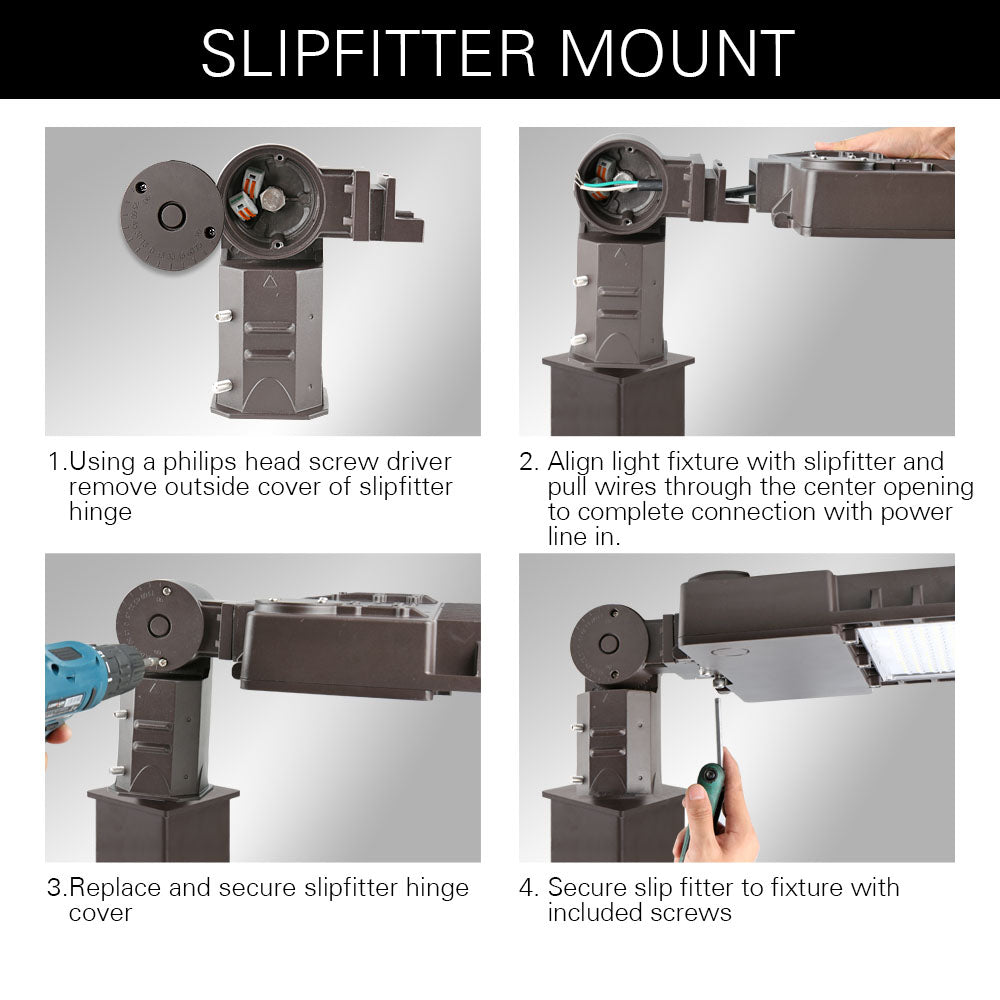

LED area light slipfitter mount installations guides

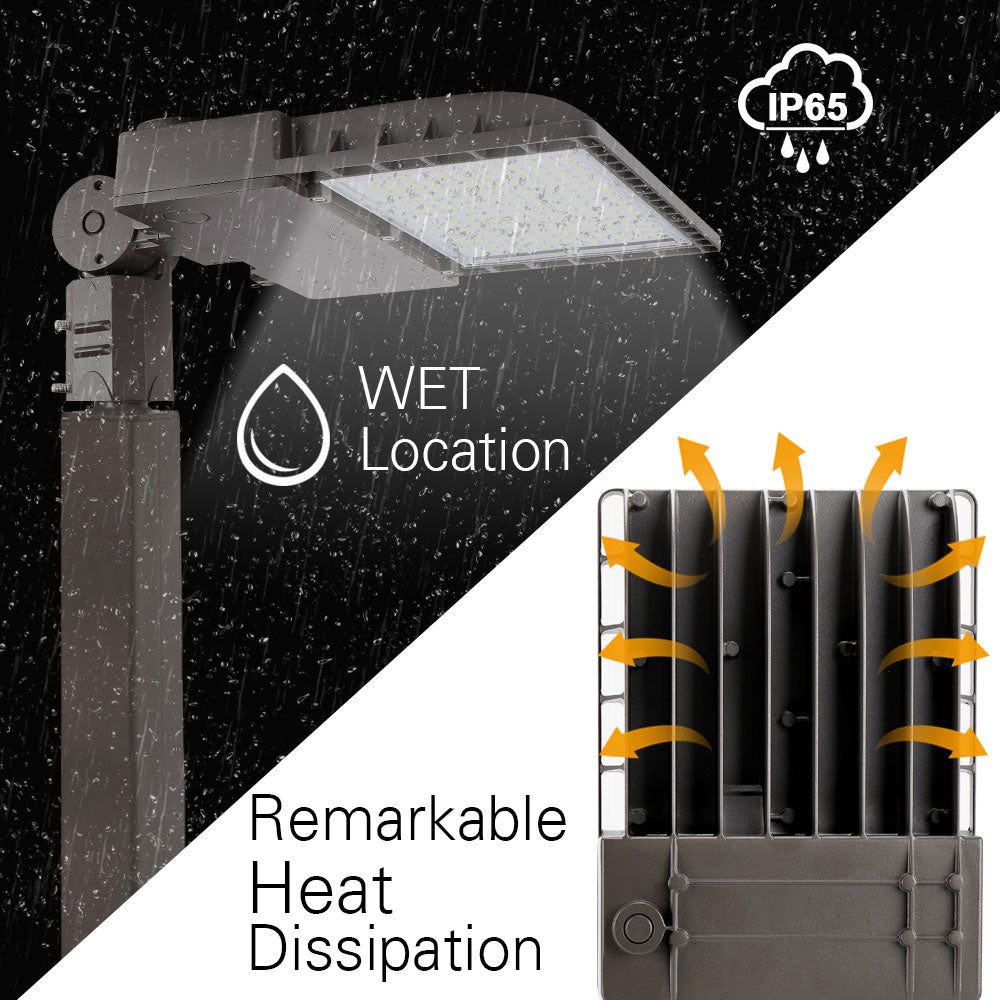

ip65 rated led parking lot light with great heat dissipation stands in rain

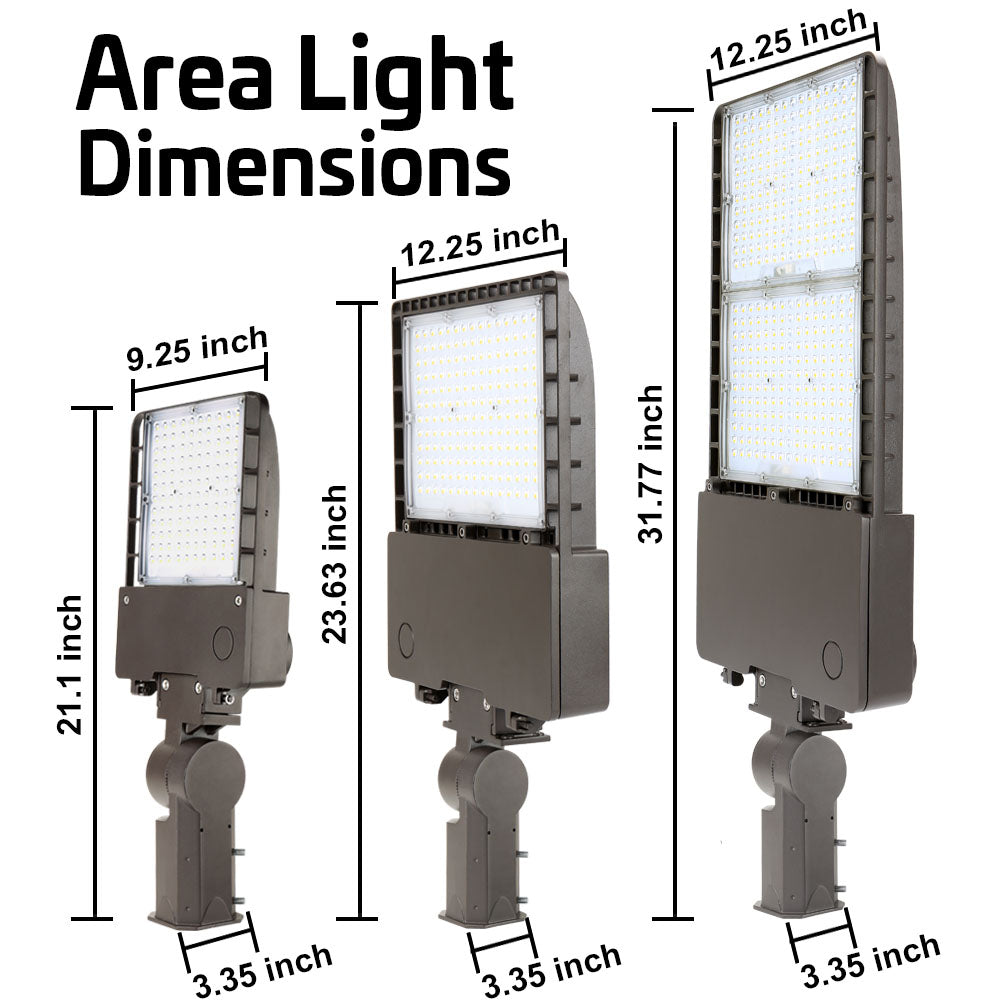

the dimensions of Konlite LED Area light on slipfitters for all sizes

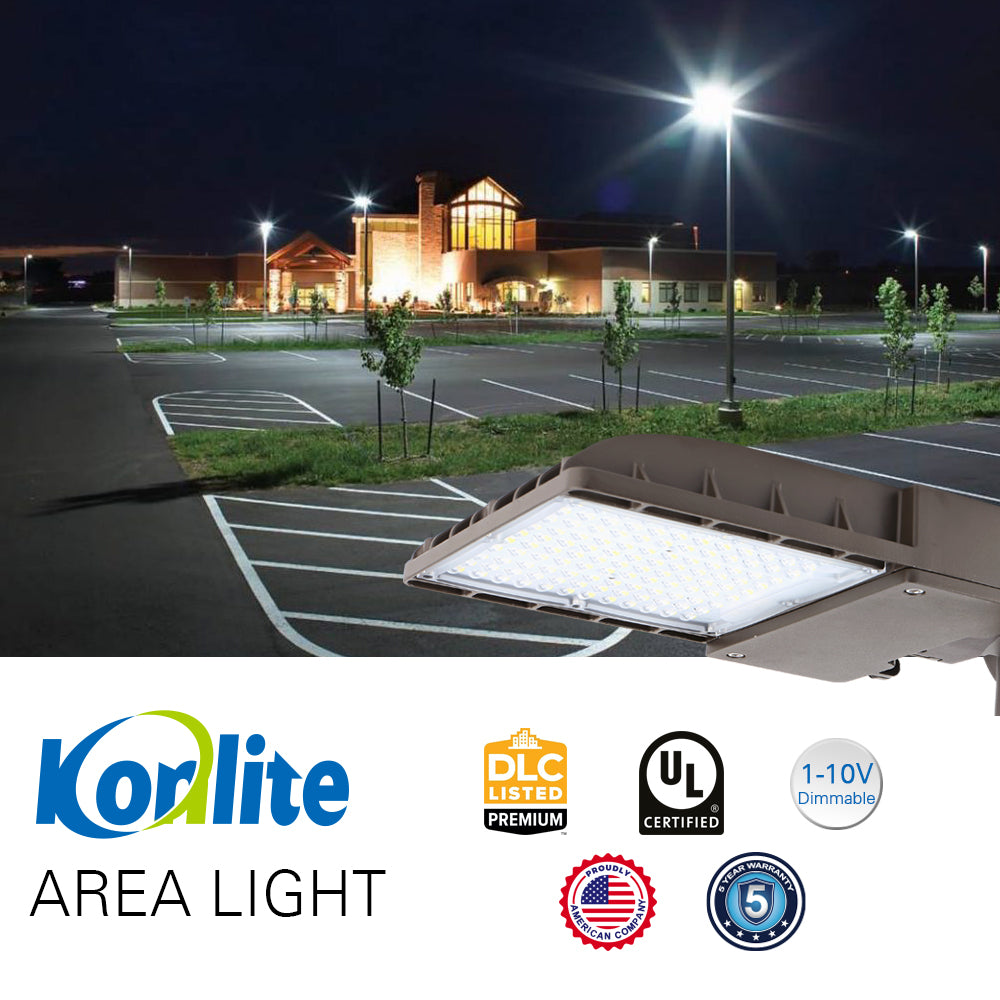

UL and DLC certified Konlite led pole lights illuminate a parting lot of commercial buildings

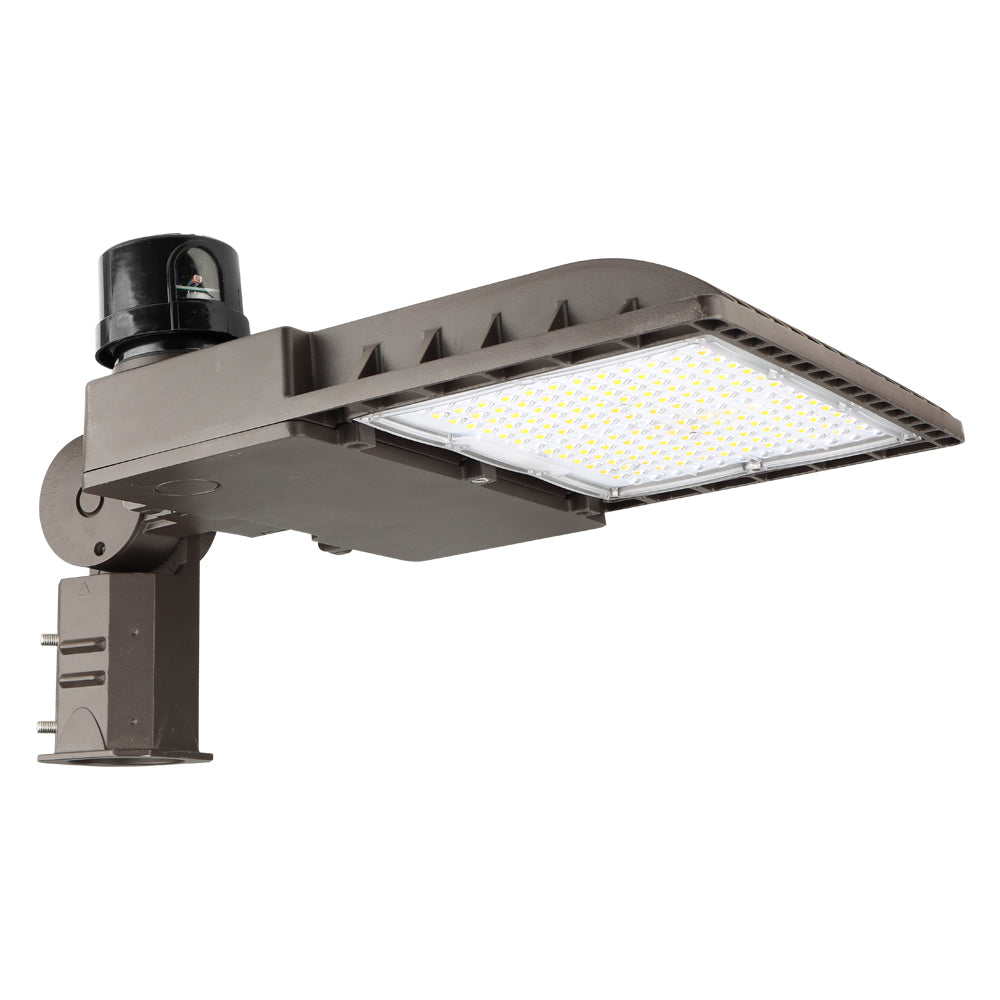

200W Konlite LED Outdoor Area Light with photocell

200W Konlite LED Outdoor Parking lot Light with photocell

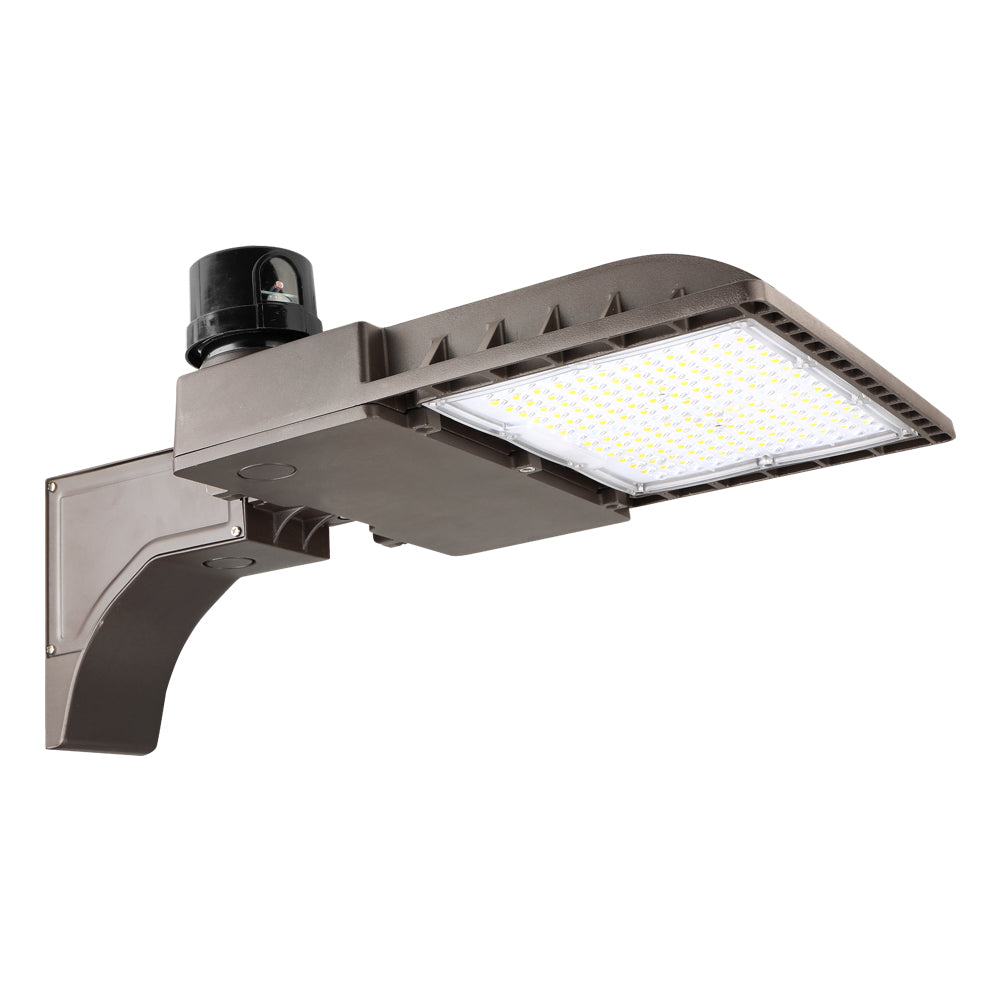

4000k 200W round or square pole mount led flood light with type 3 lens

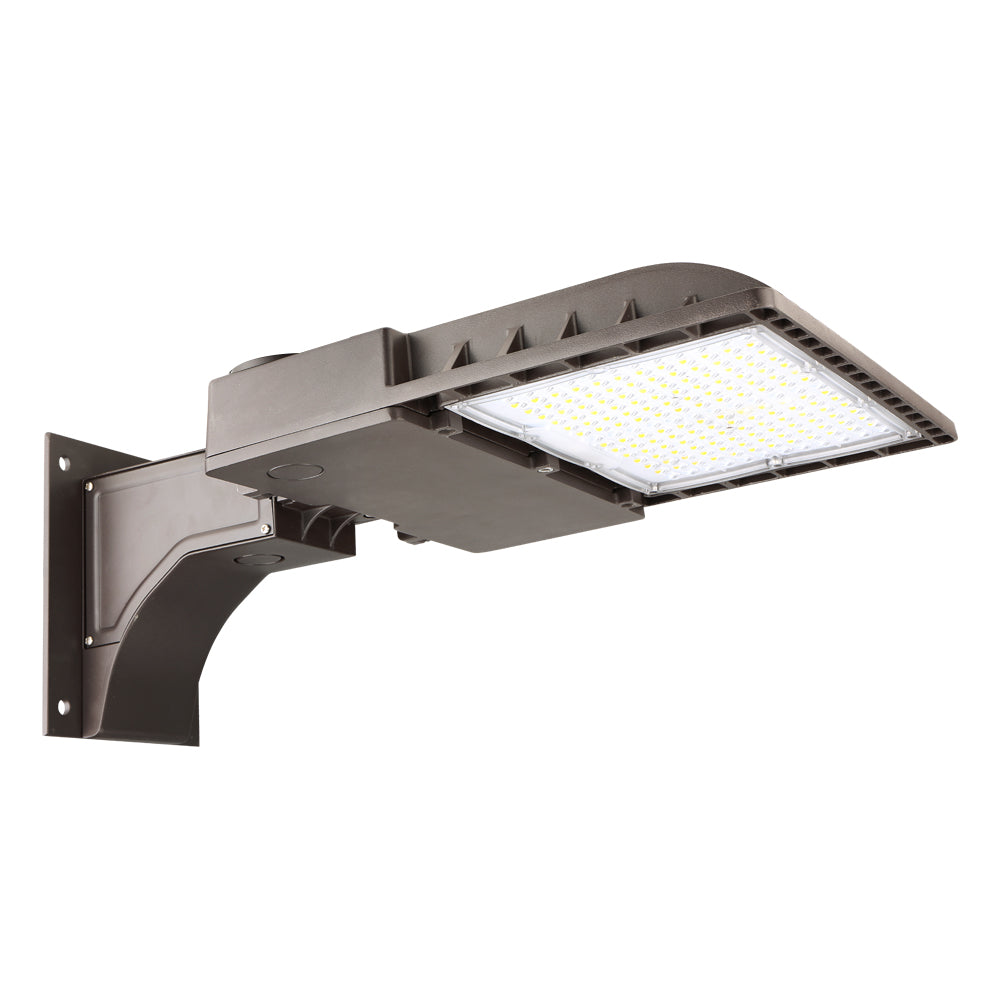

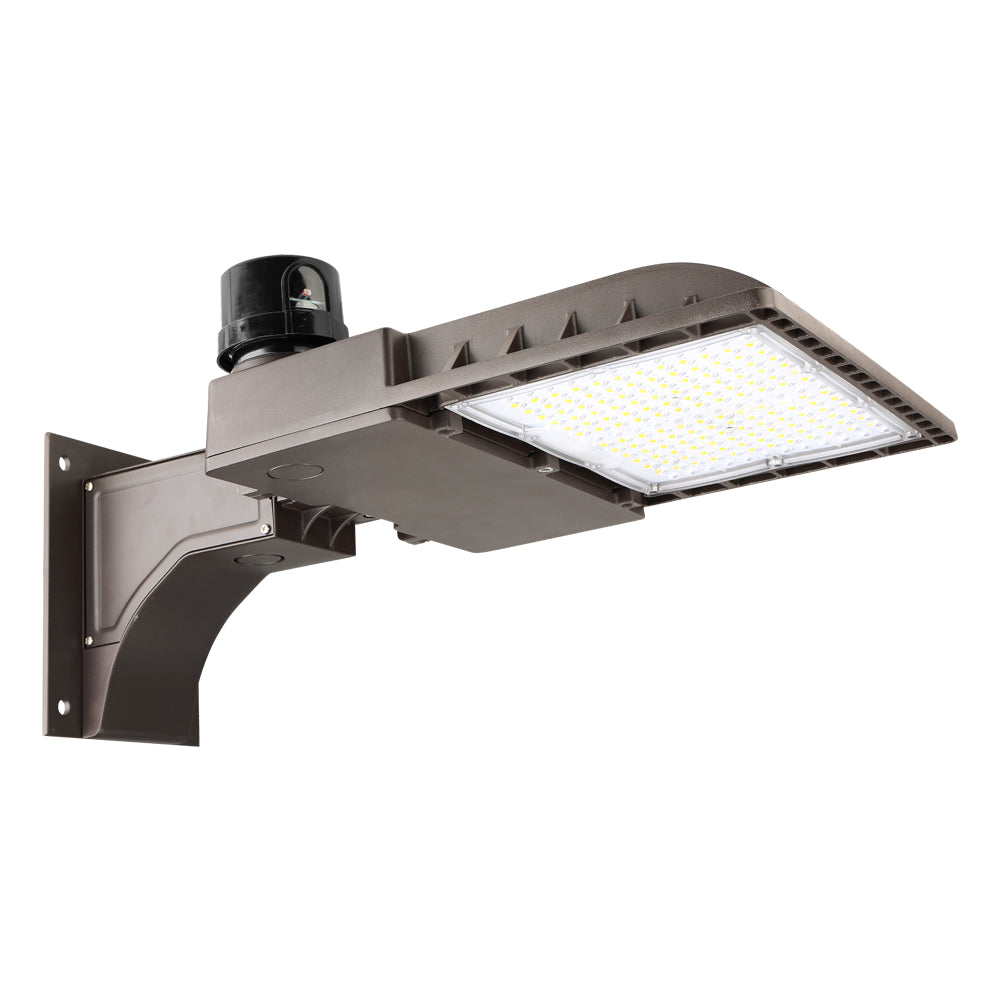

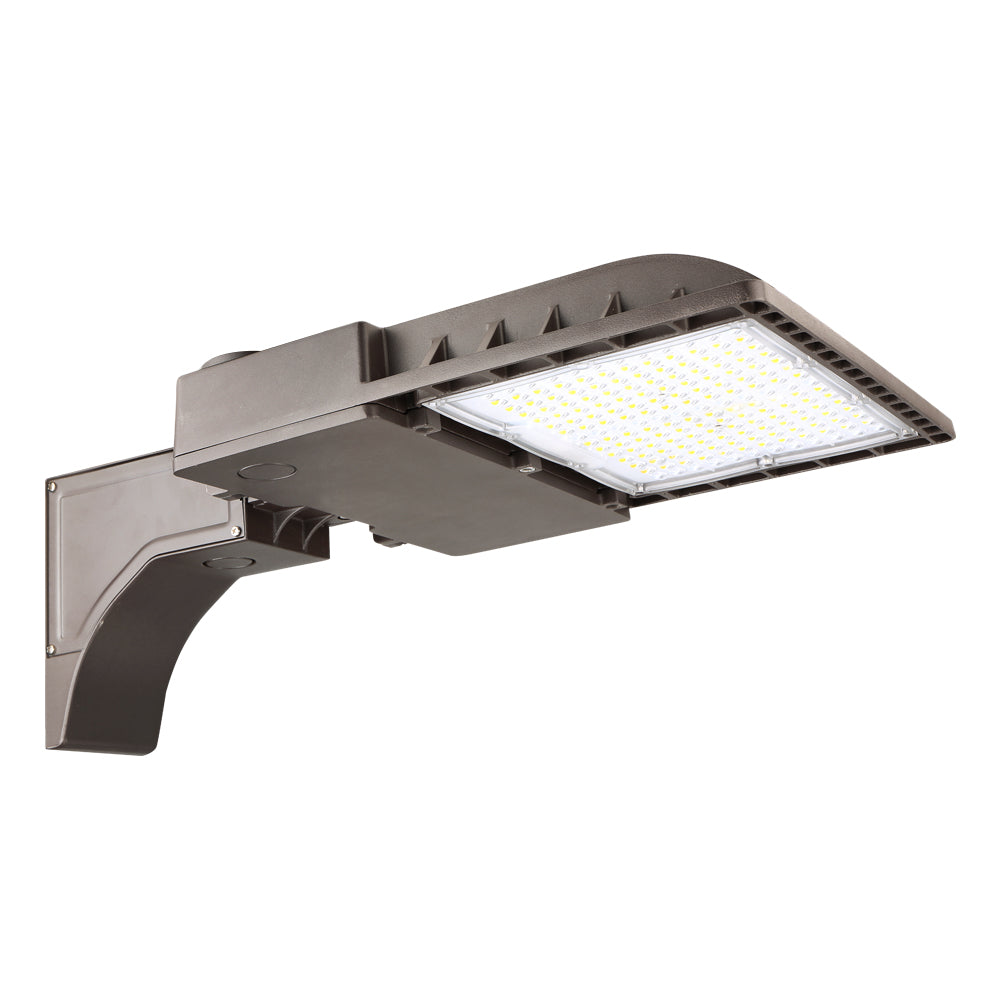

4000K 200W wall mount led flood light with type 3 lens

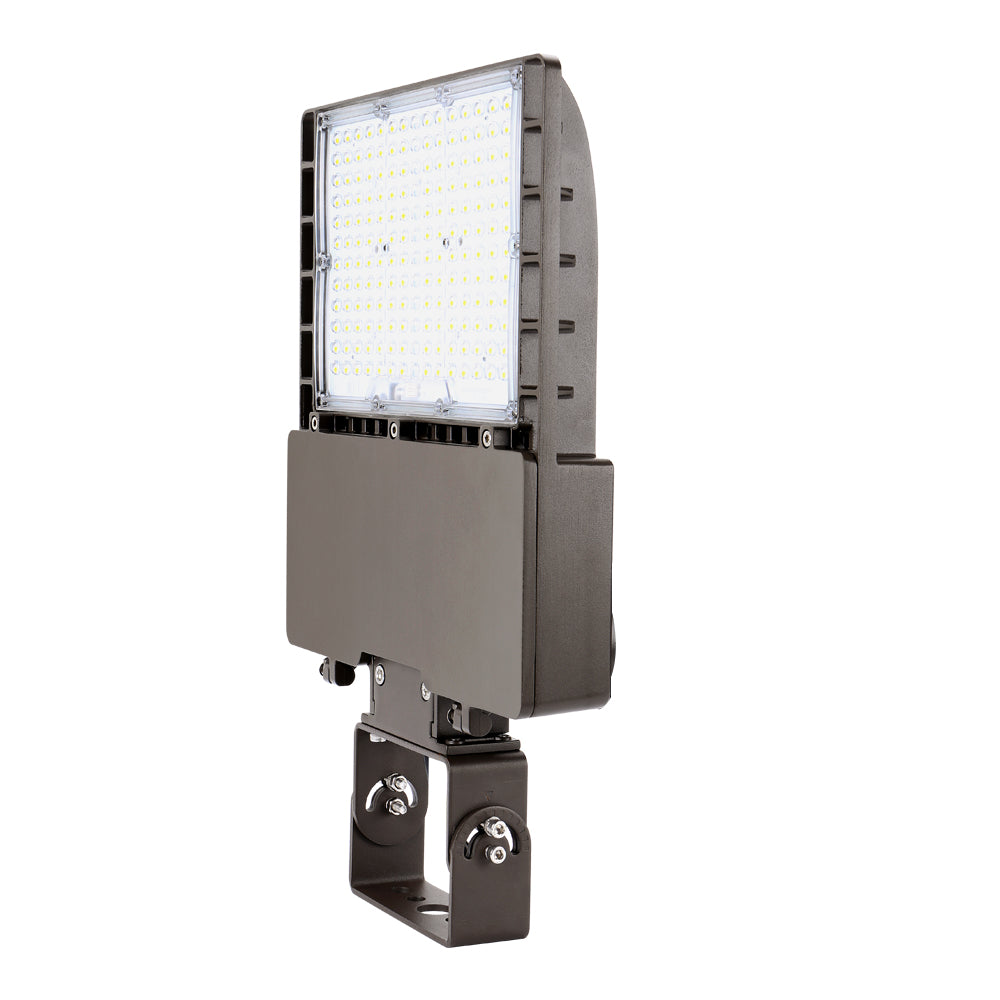

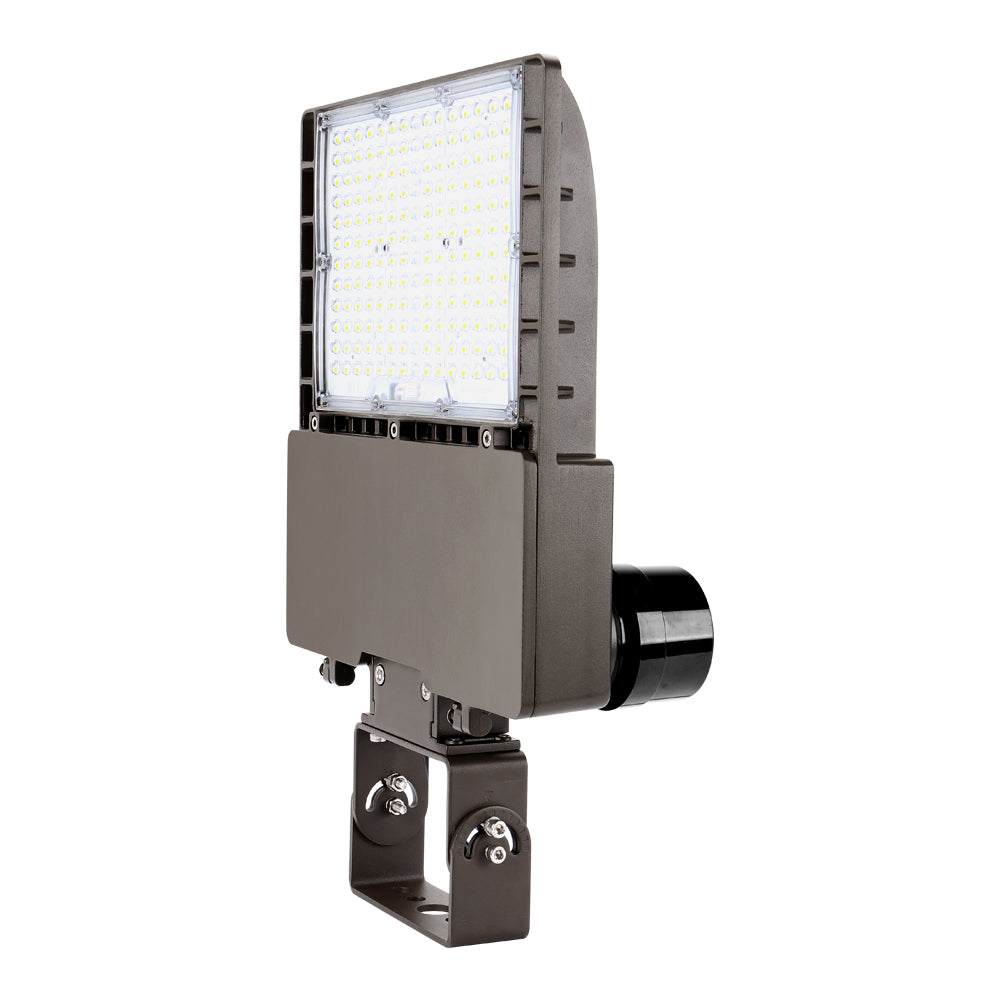

200W yoke trunnion mount led flood light with type 3 lens

Roll over image to zoom in Click on image to zoom

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

Designed for easy one person install
Precise optics designed to shape light distribution, maximizing spacing of fixtures
Low Profile 3G vibration and compact design minimizes wind load requirements
100,000 hour lifespan

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Konlite LED Area Light - 200W - Type III - 25,500 Lumens - 4000K - 120-277V - 750W Equal

Konlite SKU: RDAL02042004KDNSFL3D SEARCH CODE: 20-0217

Replaces 750W Metal Halide Light
Price Includes One Mounting Bracket
Input Voltage: 120-277V
4000K Neutral White
100,000 hours lifespan
Distribution: Type 3
Certificates: UL, DLC 5.1 Premium
5-Year Warranty

$228.95

Mounting Options: Slip Fitter

Variant

Quantity:

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Designed for easy one person install
Precise optics designed to shape light distribution, maximizing spacing of fixtures
Low Profile 3G vibration and compact design minimizes wind load requirements
100,000 hour lifespan

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Konlite LED Area Light - 200W - Type III - 25,500 Lumens - 4000K - 120-277V - 750W Equal

$228.95

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Product Overview

The Konlite LED Area Light eliminates maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

200 Watts, 25,500 Lumens, 4000K, Type III Beam Distribution, 120-277V

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

See similar 100-watt, 150-watt, 300-watt versions.

Applications:

• Area Lighting	• Parking Lots
• Streets	• Building Façade
• Storage Facilities	• Underpasses & Tunnel
• Boat Docks & Marinas	• Billboards
• Warehouses	• Metal Buildings
• Roadways & Pathways	• Security Lighting
• Sports Complex	• Schools & Universities
• Parks	• Car Dealerships

Color Temperature 4000K color temperature

Certifications

Specifications

Brand	Konlite	DLC Part #	RDAL02042004KXXXXXX
Warranty	Limited 5 Years	UPC	752480729901
Input Voltage	120-277V	Optical	Type III
Input Wattage	200W	Equal to	750W MH
Delivered Lumens	25,500	CRI	>70
Efficacy	128 LM/W	Available CCT	4000K/5000K
Rated Life	>100,000 hrs	THD	<20%
Power Factor	>0.9	IP Rating	IP65
Dimmable	Call us for 1-10V Dimming Availability	Controls	N/A
Operating Temperature	-40 F to 113 F	Dimensions	See Specifications
Certifications	UL, Wet Locations, DLC Premium	Weight	15 lbs
