Product Overview
Konlite PAVO series LED High Bay Light offers budget-oriented design by utilizing a compact and strong housing while still offering industry leading performance. The compact design also makes handling easier for a quicker installation. The PAVO IV bay light offers wattage selectable flexibility, which can be adjusted on field via a 3-step switch located on the side of the fixture. 120-277 Volts input.
Three field selectable brightness settings:
310w/46,500 Lumens, 270w/40,500 Lumens, 240w/36,000 Lumens. Preset at 310 Watts.
Two field color temperature settings:
5000K Commercial daylight white or 4000K Natural white.

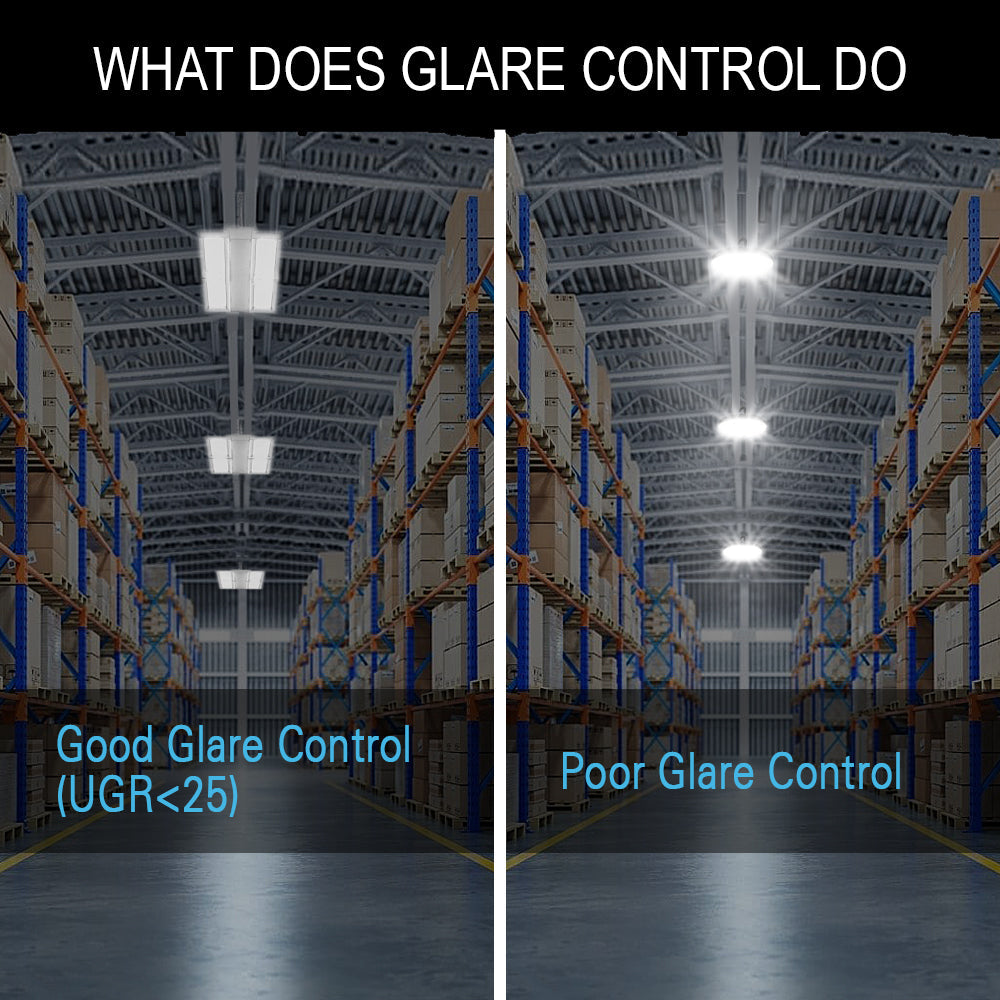

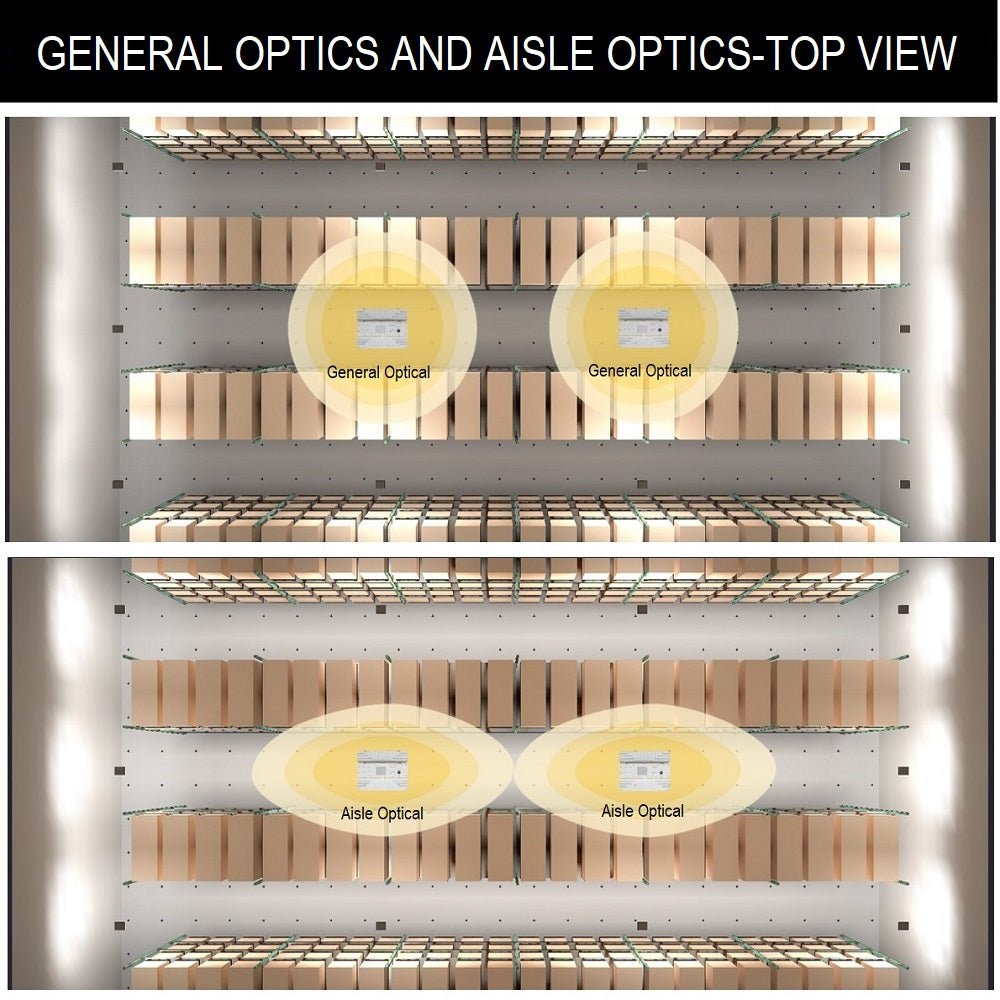

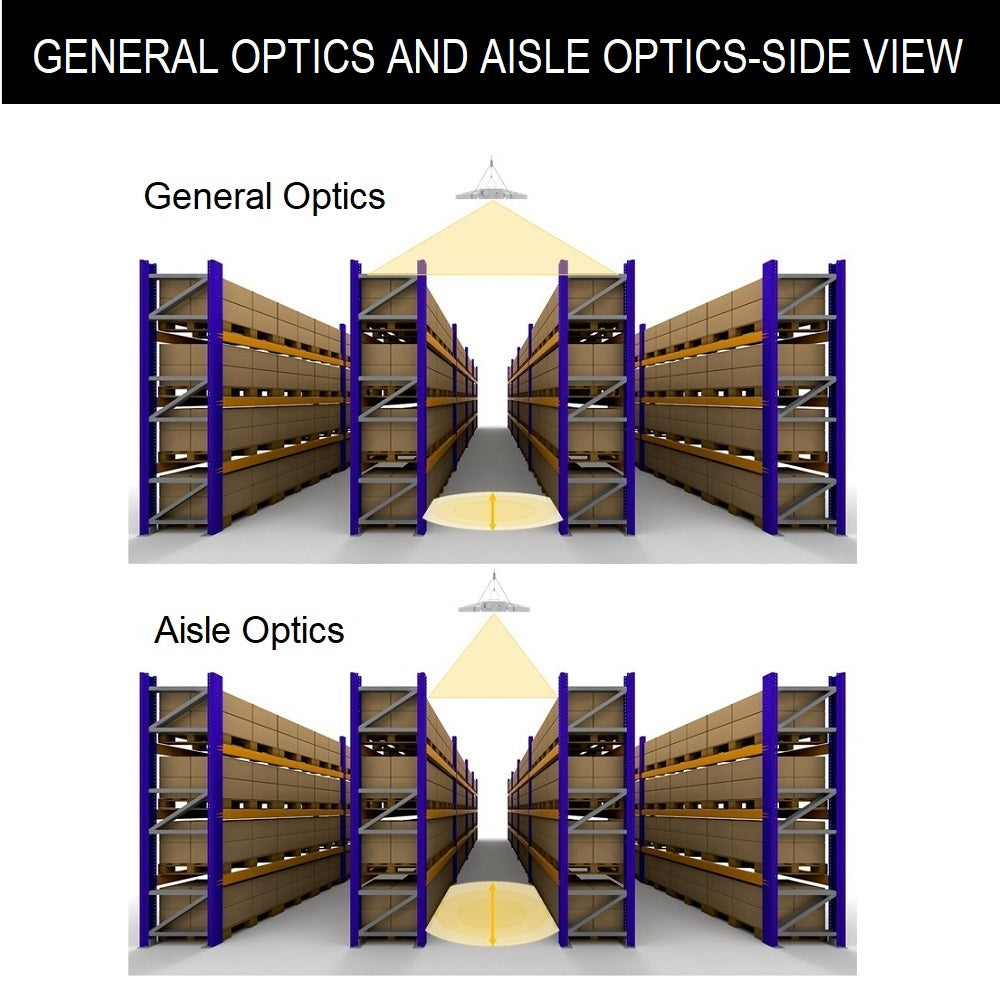

Equipped with an optical lens instead of an ordinary diffuser, it offers better glare control and higher efficacy. For warehouse application with tall racks, the optional Aisle Optic is an ideal solution to maximize light usage efficiency and greater energy savings.

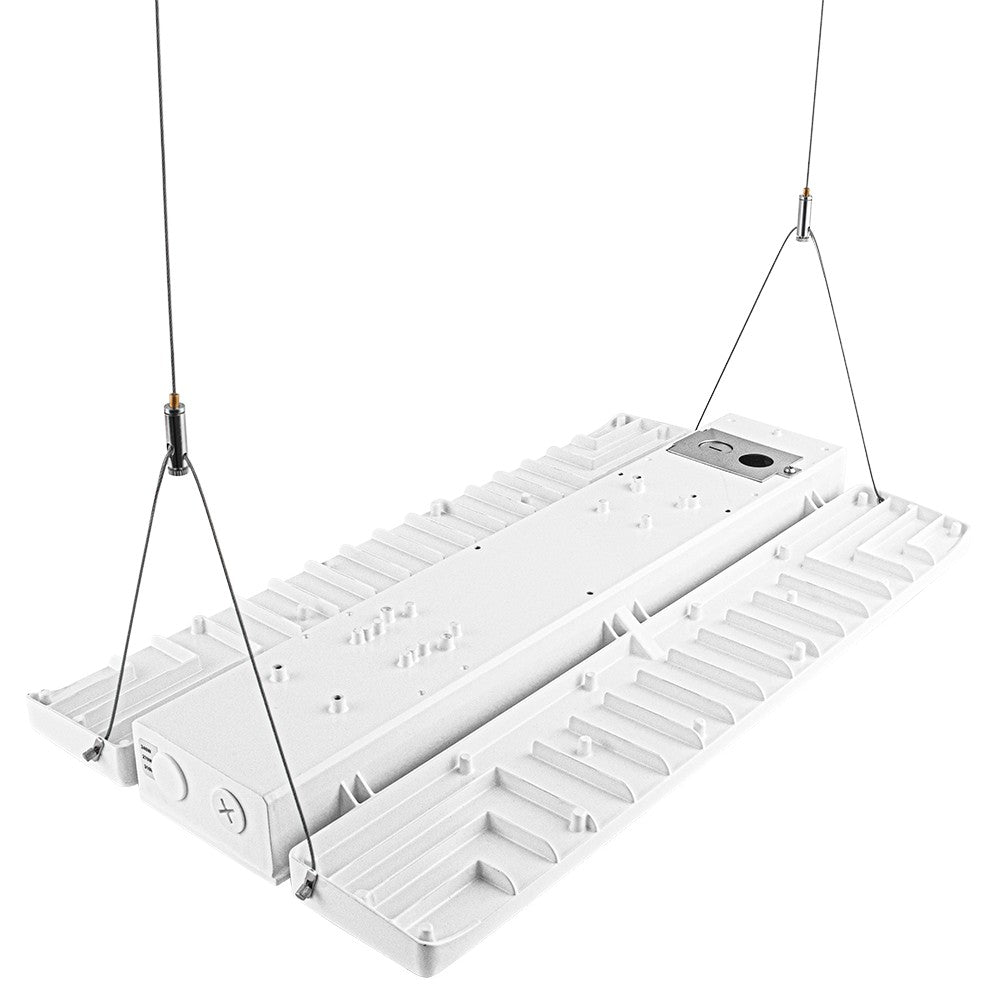

Suspension chains come standard, optional Surface Mount and Pendant Mount are also available.

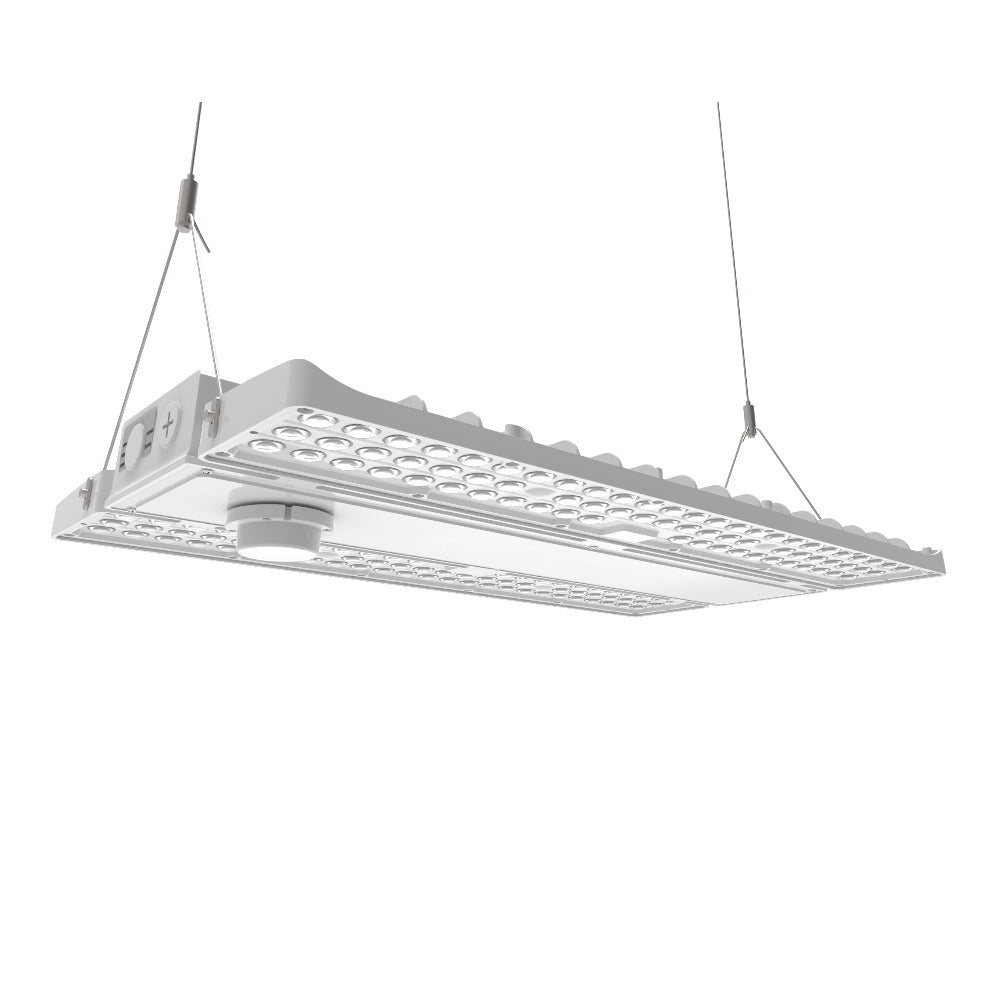

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity. Optional remote control is required to program the motion sensor.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KPVMW31MCLV |
| Warranty | Limited 5 Years | UPC | 659675202136 |
| Input Voltage | 120-277V | Beam | 106° |
| Input Wattage | 310W/270W/240W | Equal To | 1000W MH or 8x32-T8/8x54-T5 |
| Delivered Lumens | 46,500lm/40,500lm/36,000lm | CRI | ≥80 |
| Efficacy | Up to 156 LM/W | Available CCT | 5000K/4000K |
| Rated Life | >50,000 hrs | Power Factor | ≥0.95 |
| THD | ≤15% | IP Rating | N/A |
| Dimmable | 0-10V | Mounting | Suspension Chain, Surface, Pendant |
| Operating Temperature | -40° F to 122° F | Dimensions | 20.5''X11.5''X2.1'' |
| Certifications | UL, Dry Locations, DLC Premium | Weight | 11 Lbs |
