Product Overview

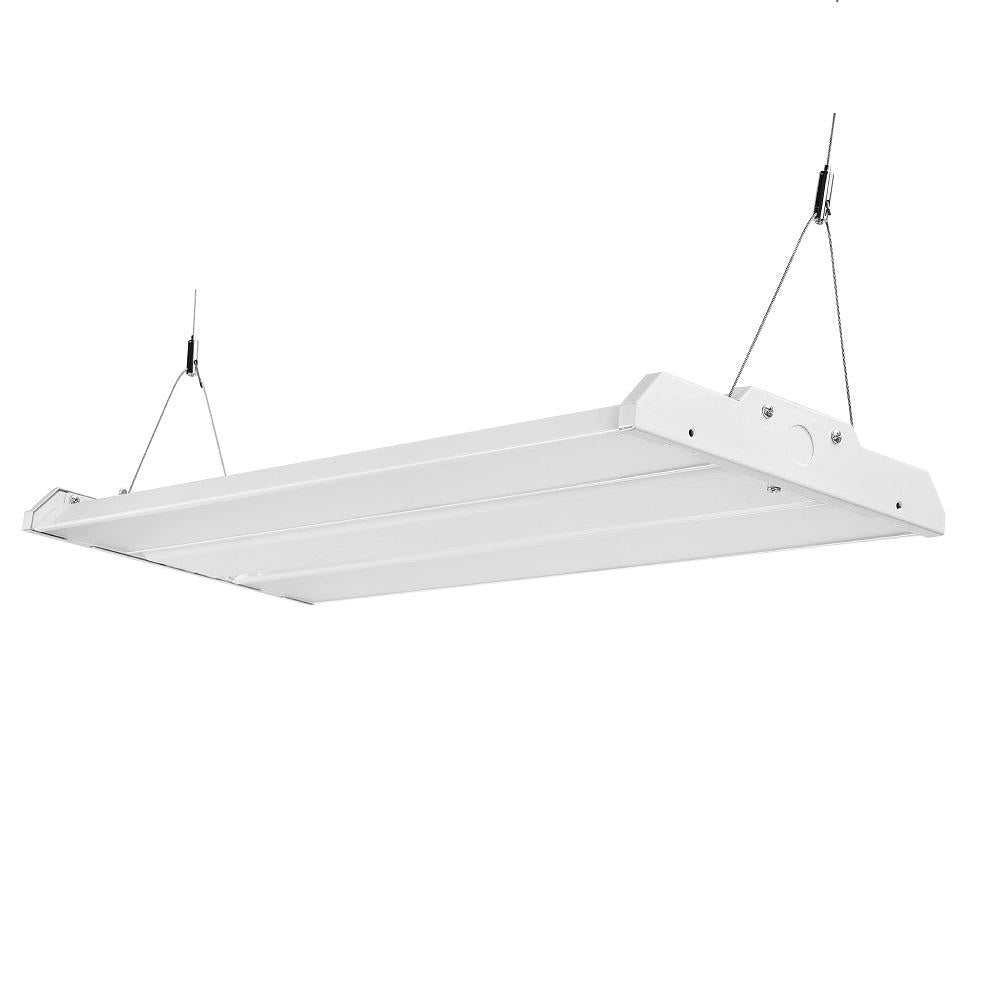

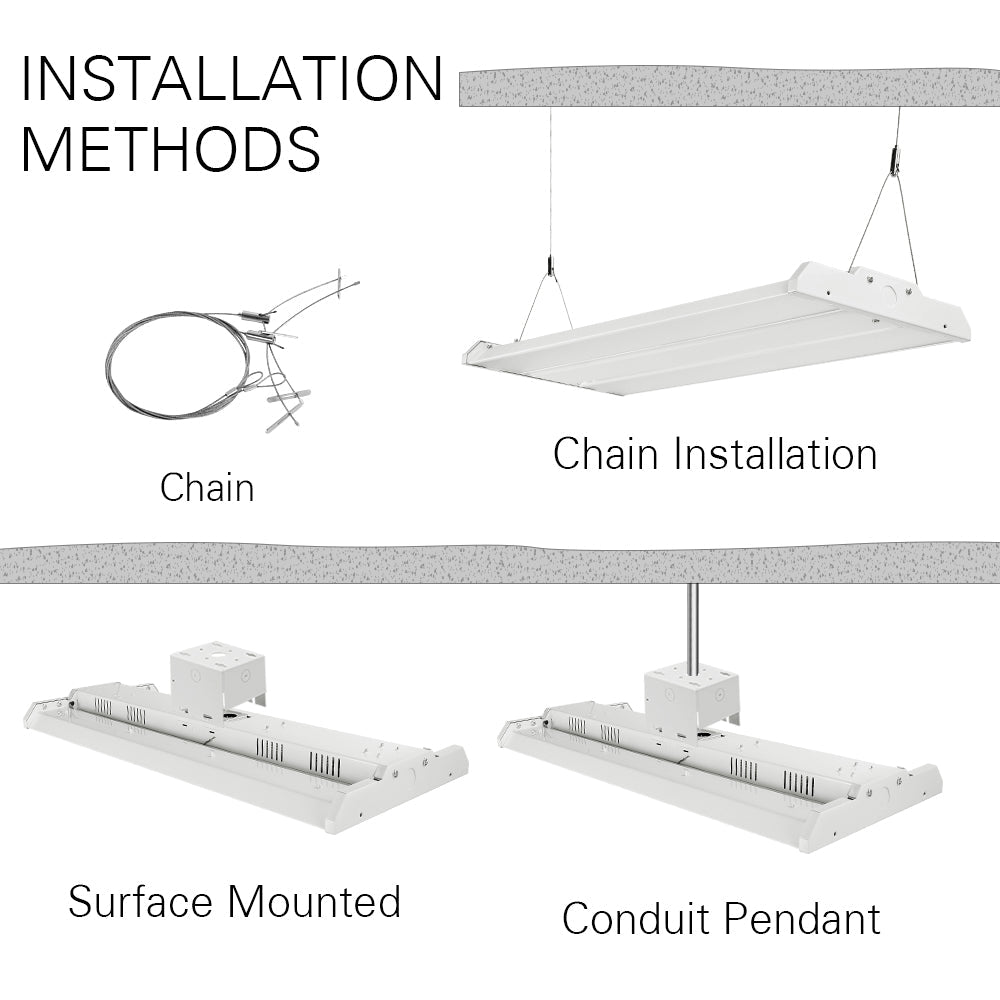

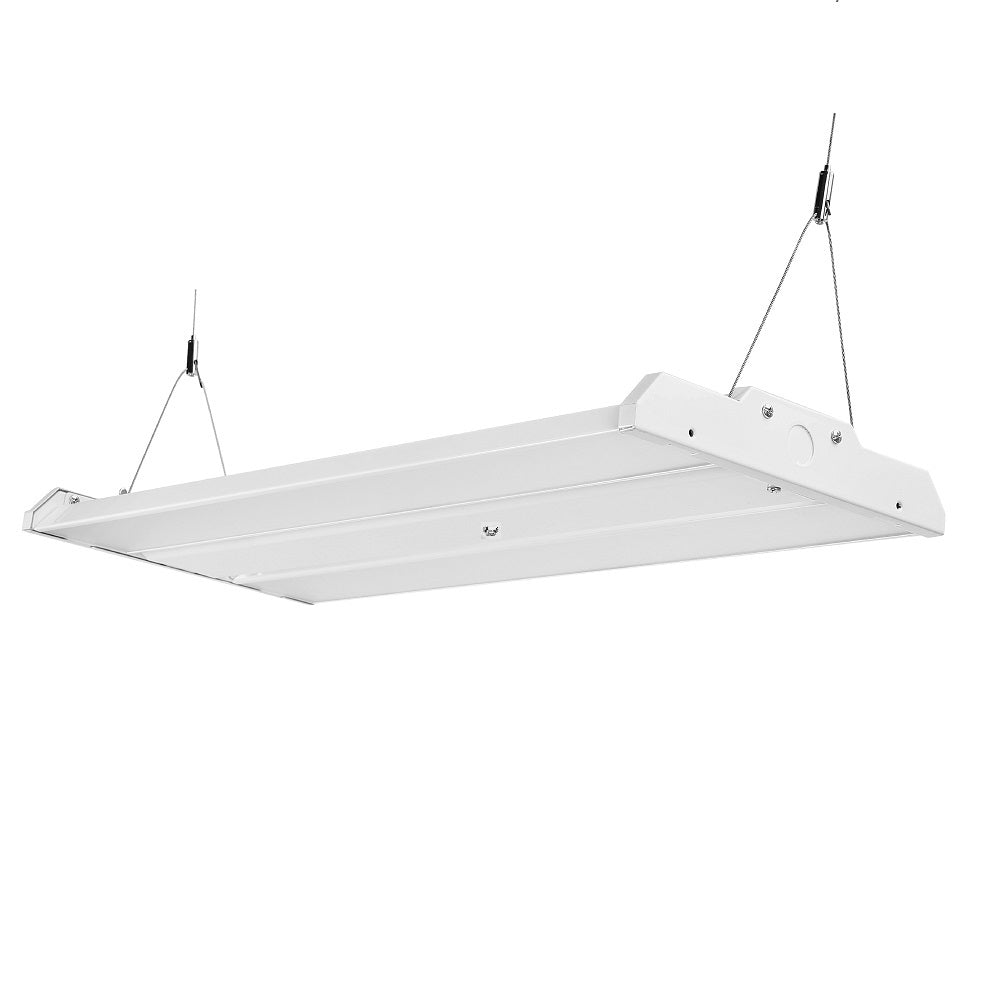

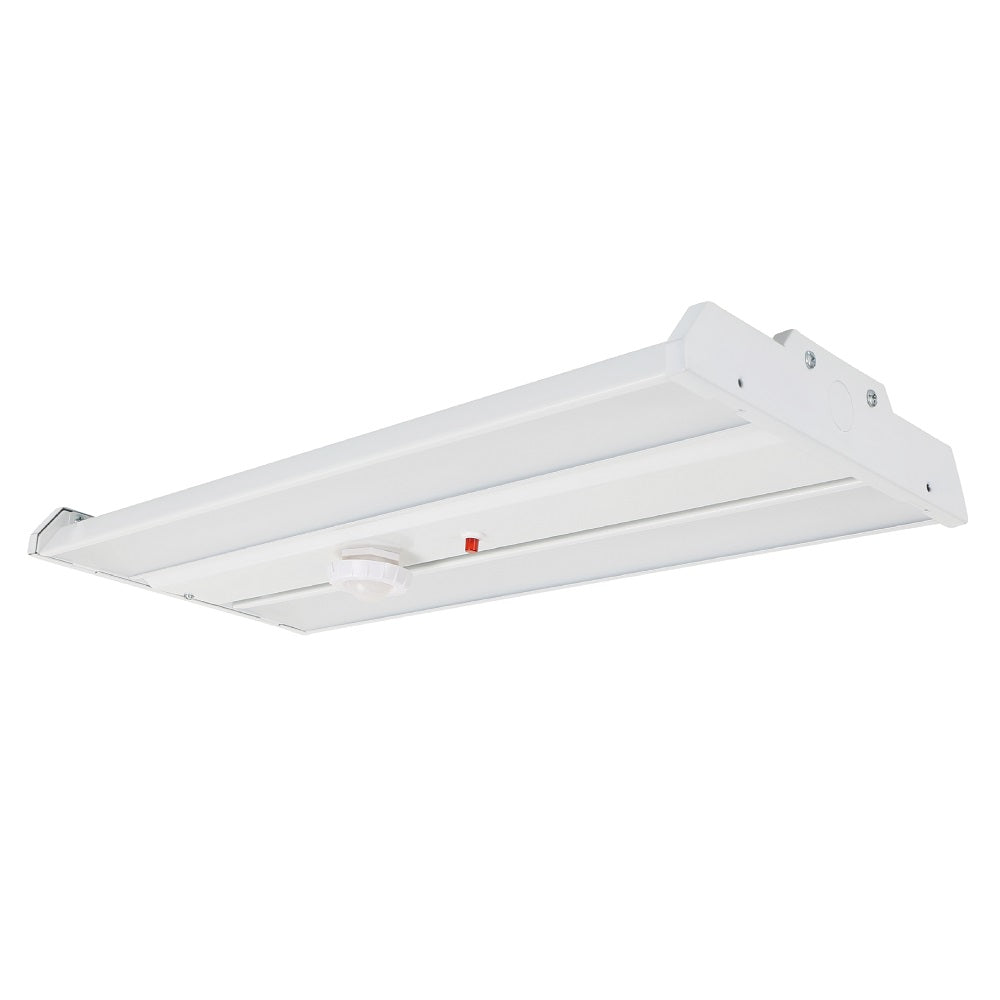

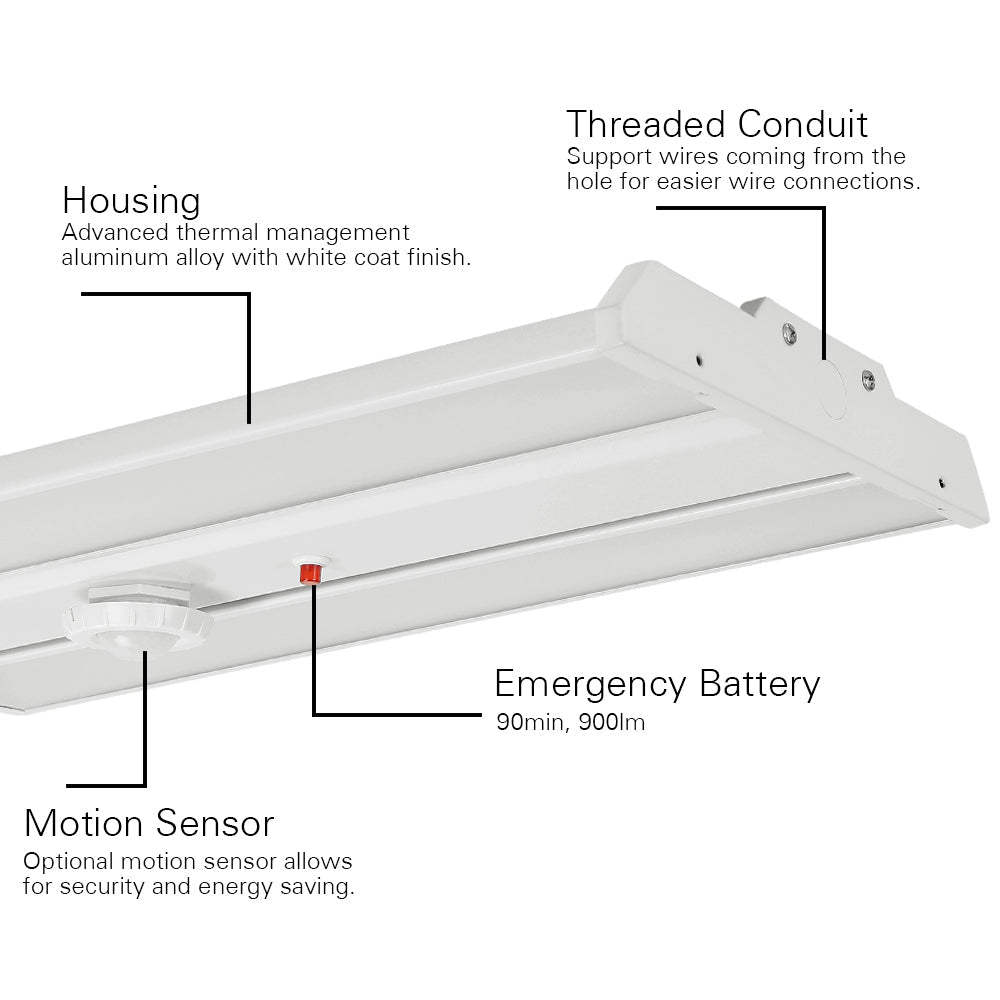

The RDLH0204 Linear LED bay light is a one to one replacement for Fluorescent T8, T5 or HID fixtures or new construction. Avoid safety concerns and maintenance cost of changing traditional bulbs, ballasts and disposal fees over the lifetime of this LED fixture. Extremely durable, constructed from advanced thermal management aluminum alloy with white coat finish. Low profile, seamless fit for bay rafters. Clear Lens, 1-10V Dimming. Easy to install, ships with steel suspension cables. This unit provides high efficiency, excellent color rendering, instant on, and consistent uniform light distribution for warehouse & storage, manufacturing, sports facilities, gyms and retail centers. DLC Energy rebate certified, 5 yr. warranty. Customize your space and increase security and energy savings with a PIR sensor for occupancy and daylight controls. Need to meet code or want another layer of protection? Pre-installed Emergency Battery backup is available.
Equivalent to: 750-1000W HID, 8 pcs T5 or T8 lamps
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •Low Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specifications
| Brand | Konlite | DLC Product ID | PHPG4EY3 |
| Warranty | 5 Years | UPC | 717360775492 |
| Input Voltage | 347-480V | Dimmable | 1-10V |
| Input Wattage | 300W | Equal to | 750-1000W HID |
| Delivered Lumens | 41,500LM | CRI | >80 |
| Efficacy | 138 LM/W | Available CCT | 5000K/4000K |
| Rated Life | >50,000 Hrs | THD | <20% |
| Power Fact | >0.9 | Control | Motion Sensor Optional |

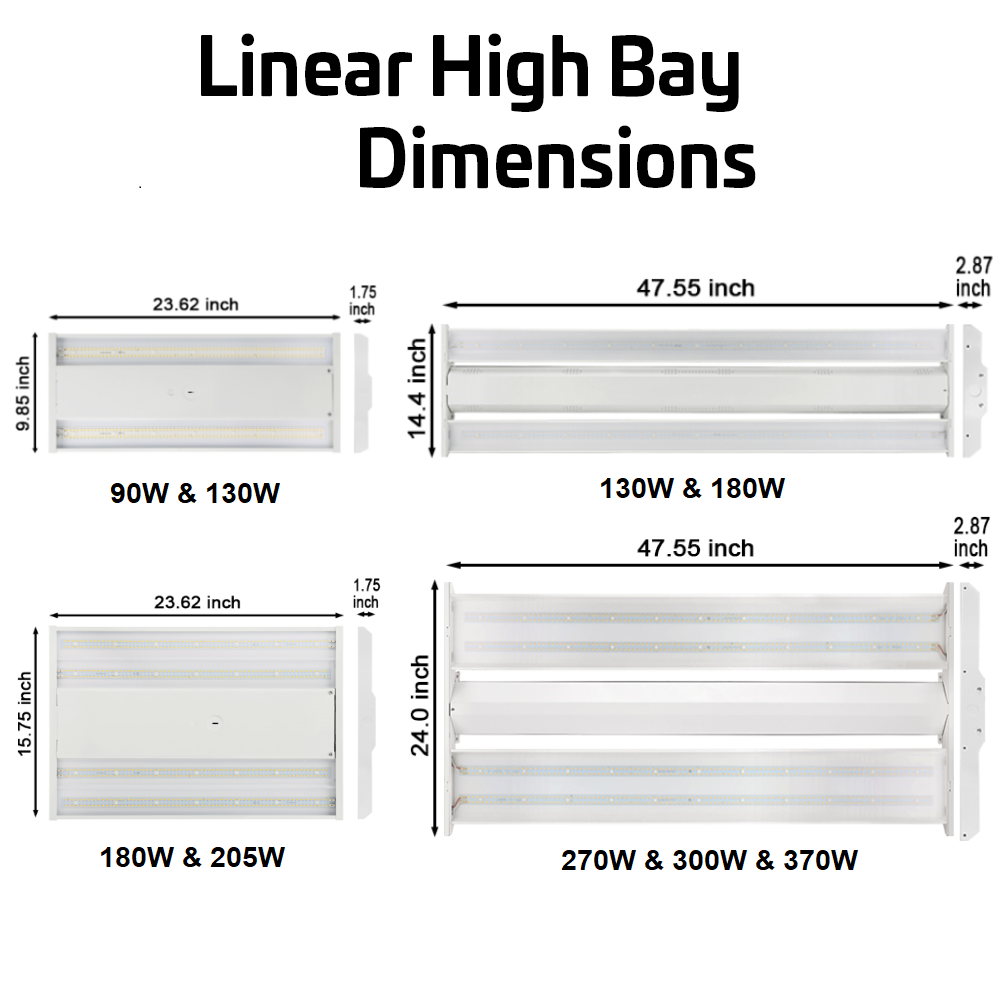

| Operating Temp | -40°F to 131°F | Dimension | 47.55”x24.01”x2.87 |
| Certifications | UL, Damp Locations, DLC Premium | Weight | 22.49 lbs |
