Product Overview

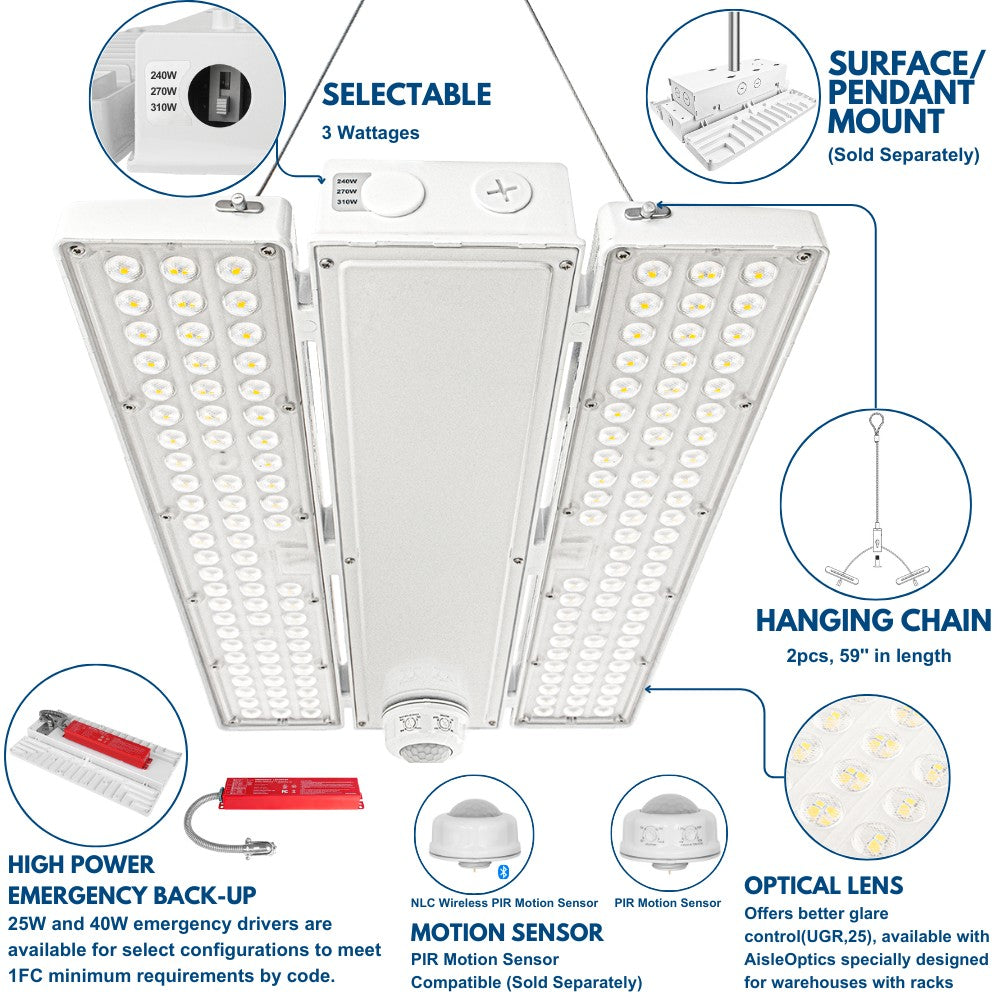

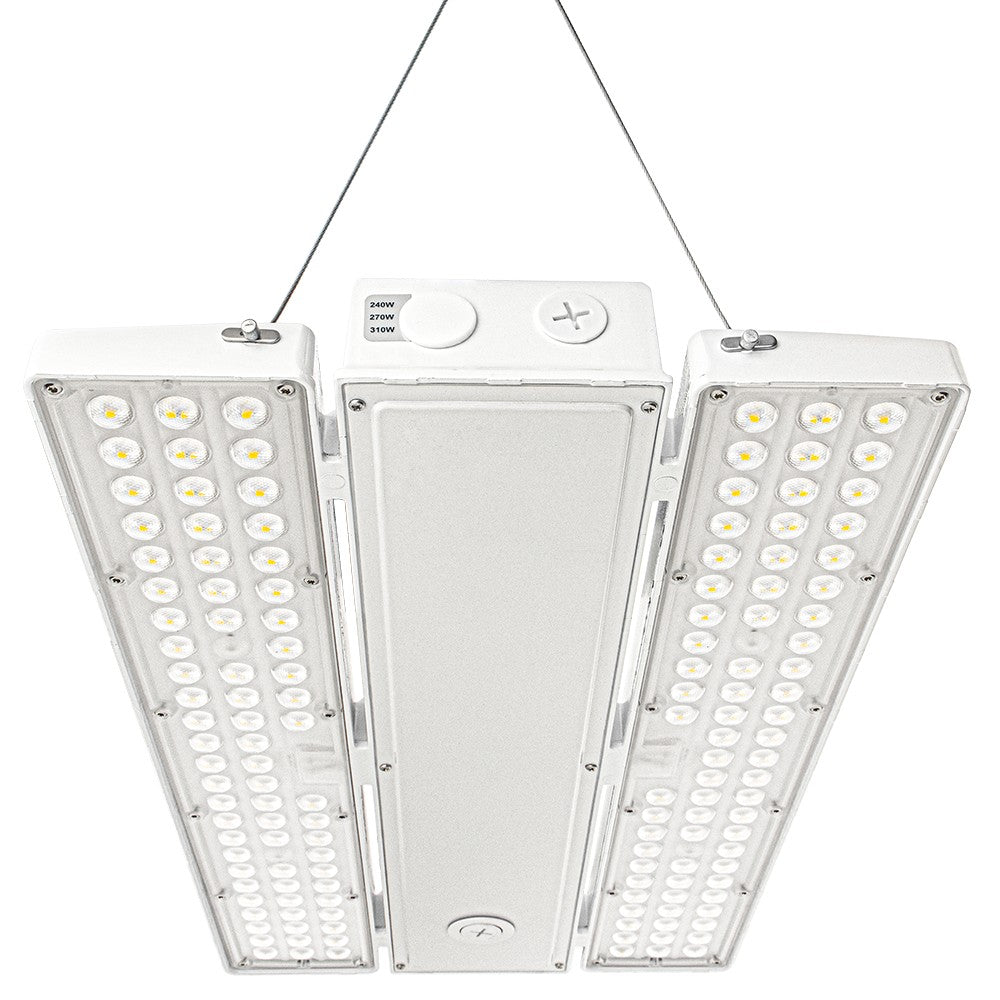

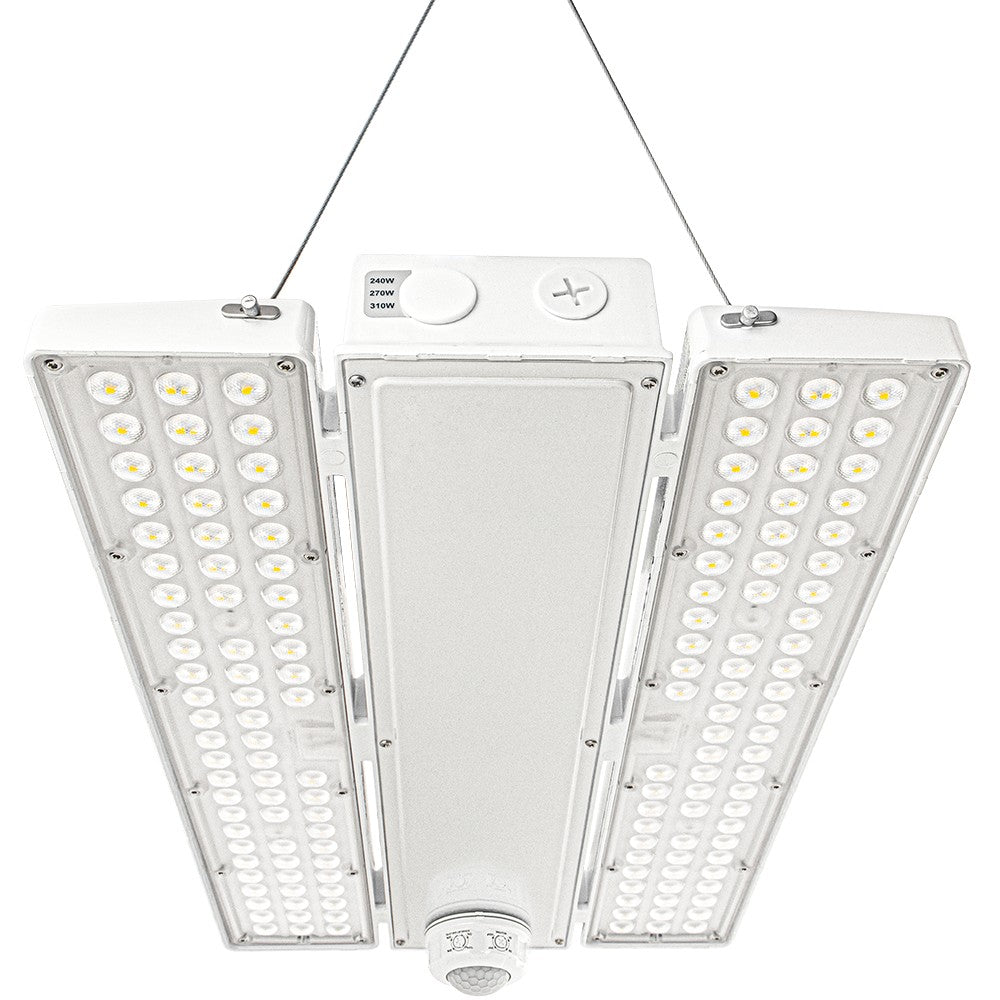

Konlite PAVO series LED High Bay Light offers budget-oriented design by utilizing a compact and strong housing while still offering industry leading performance. The compact design also makes handling easier for a quicker installation. The PAVO IV bay light offers wattage selectable flexibility, which can be adjusted on field via a 3-step switch located on the side of the fixture. 277-480 Volts input.
Three field selectable brightness settings:
310w/46,500 Lumens, 270w/40,500 Lumens, 240w/36,000 Lumens. Preset at 310 Watts.
Two field color temperature settings:
5000K Commercial daylight white or 4000K Natural white.

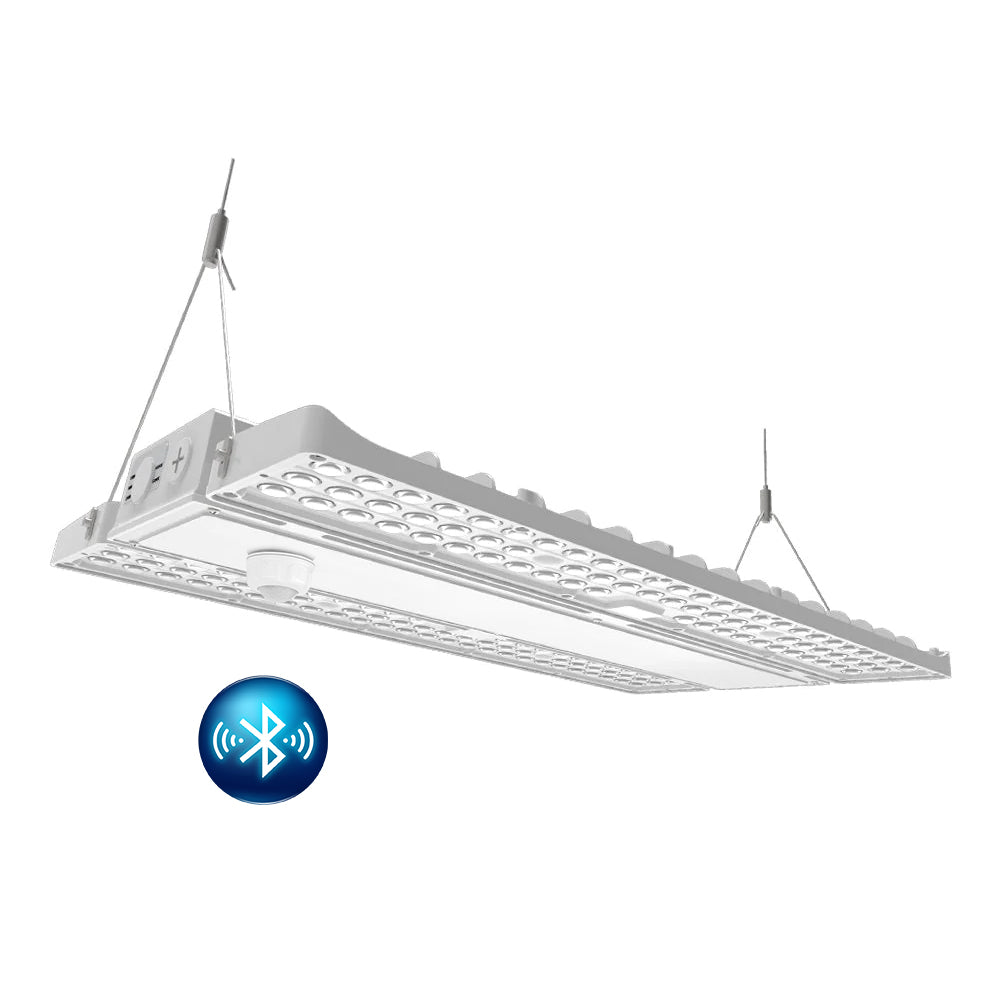

Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with PAVO High Bay Lights, ensuring a smooth and efficient control experience right out of the box.

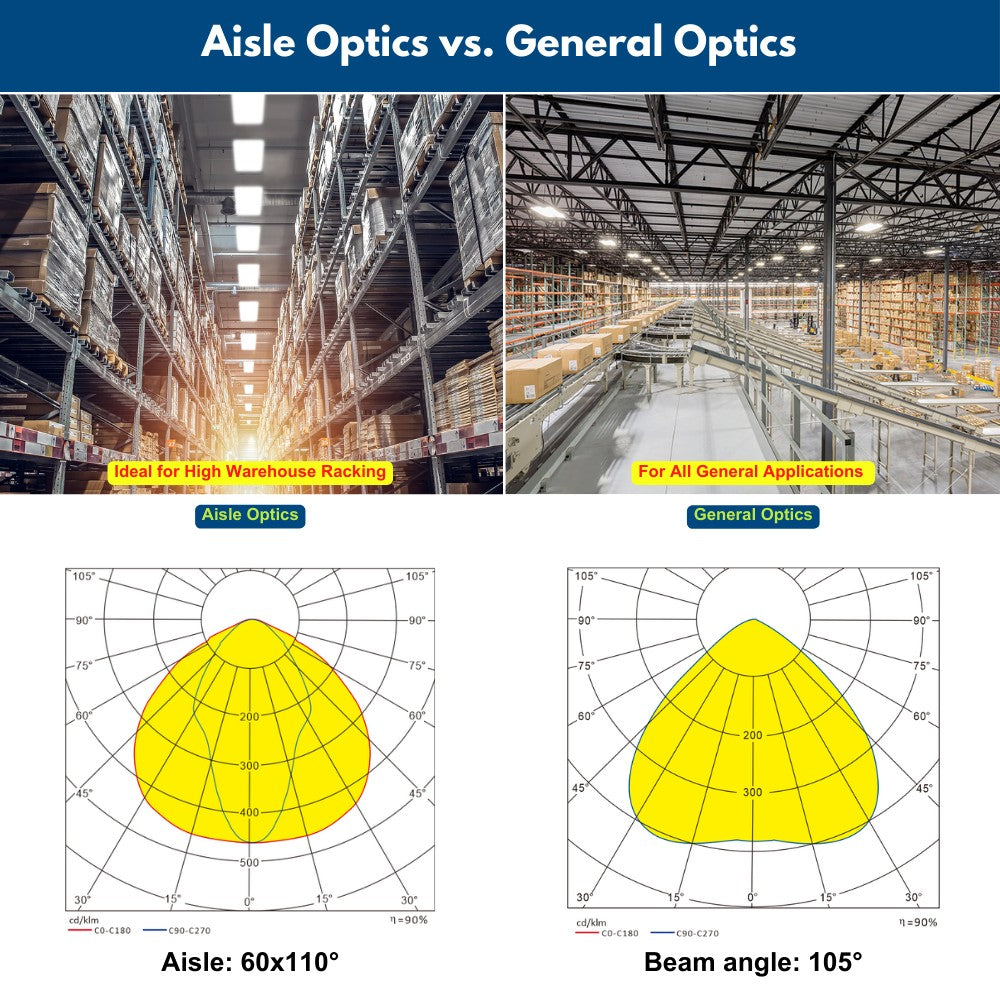

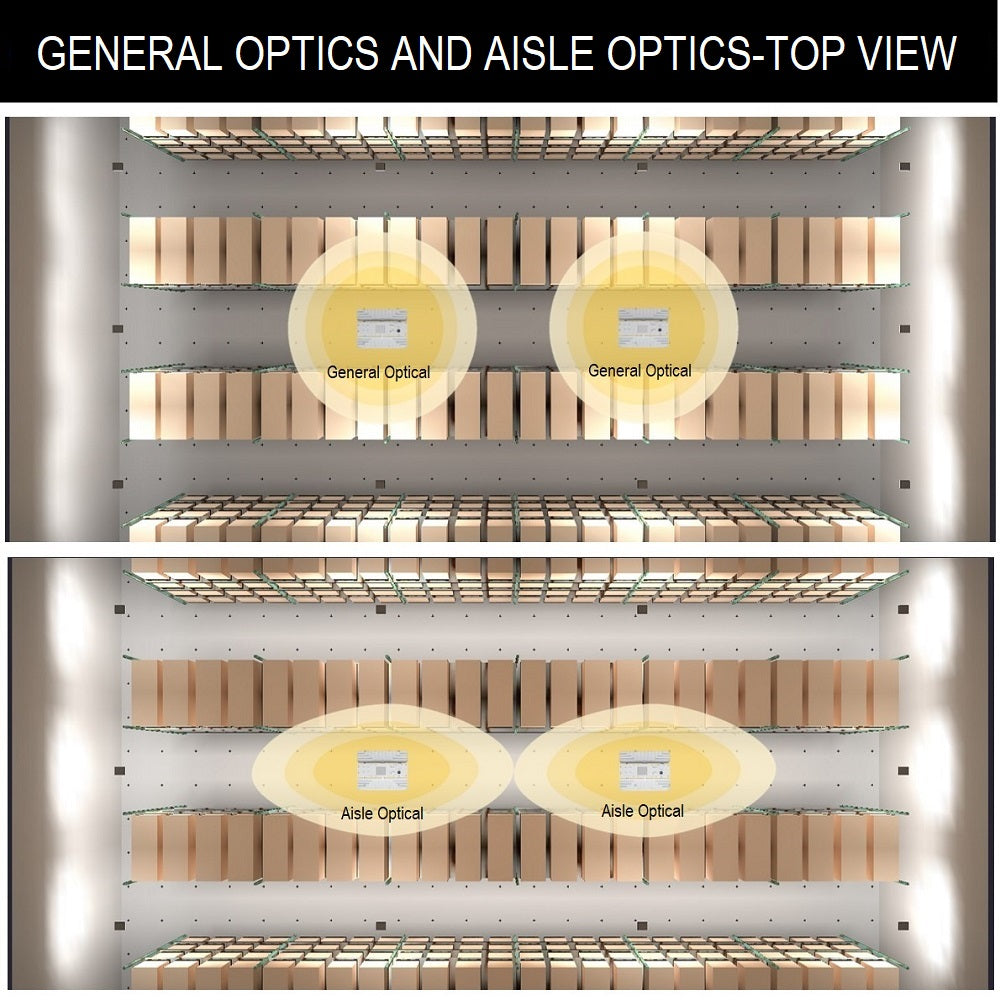

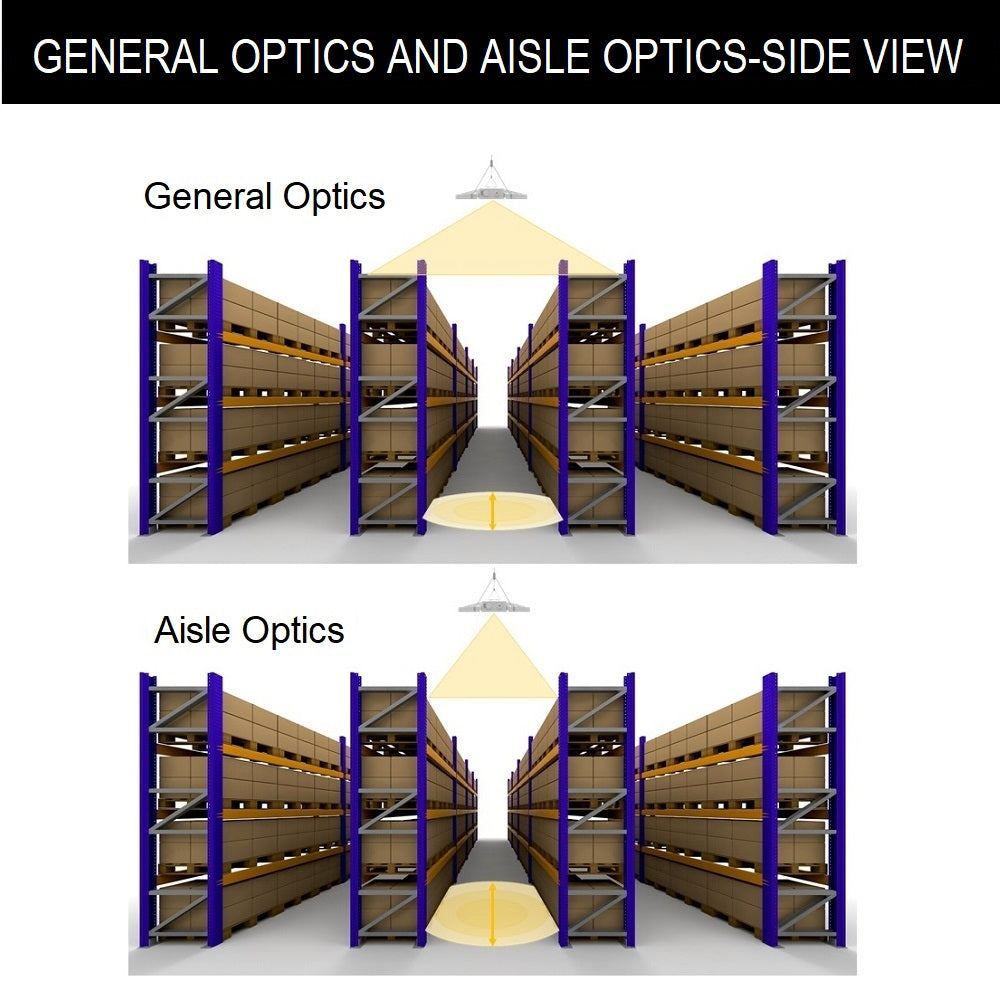

Equipped with an optical lens instead of an ordinary diffuser, it offers better glare control and higher efficacy. For warehouse application with tall racks, the optional Aisle Optic is an ideal solution to maximize light usage efficiency and greater energy savings.

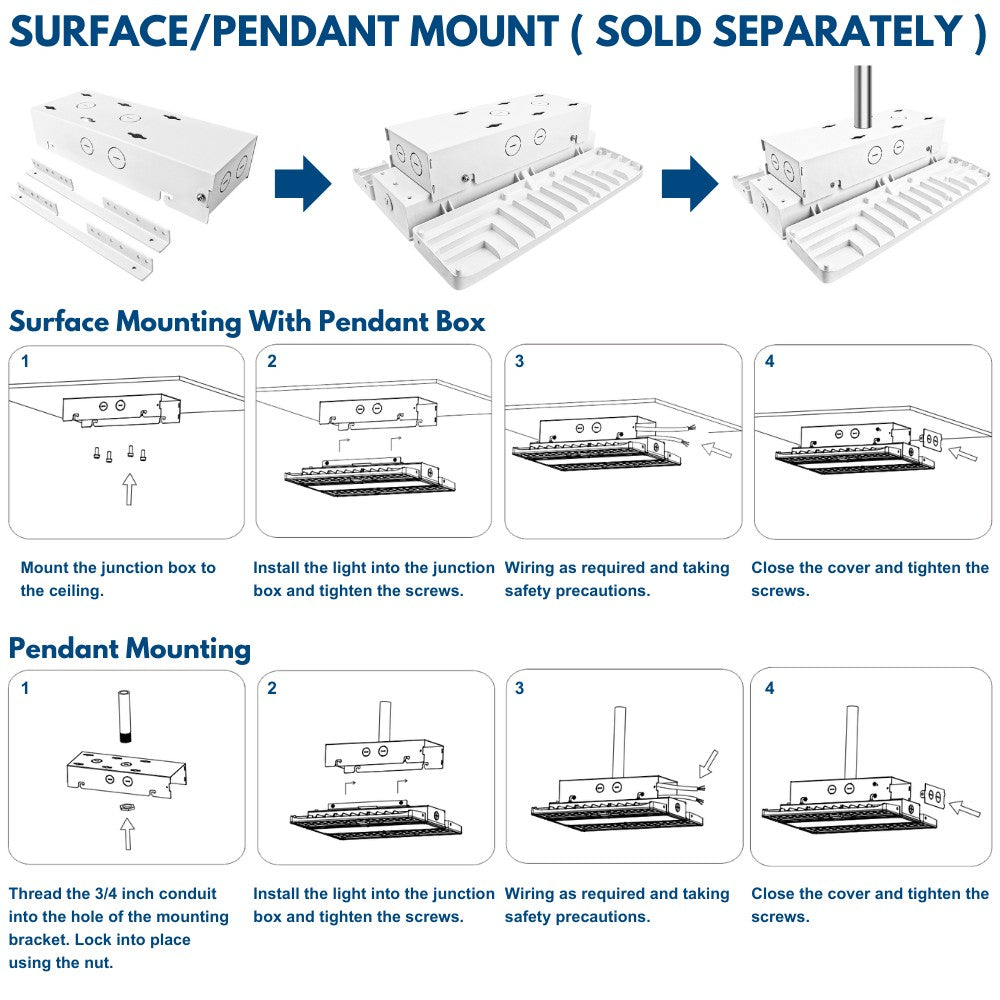

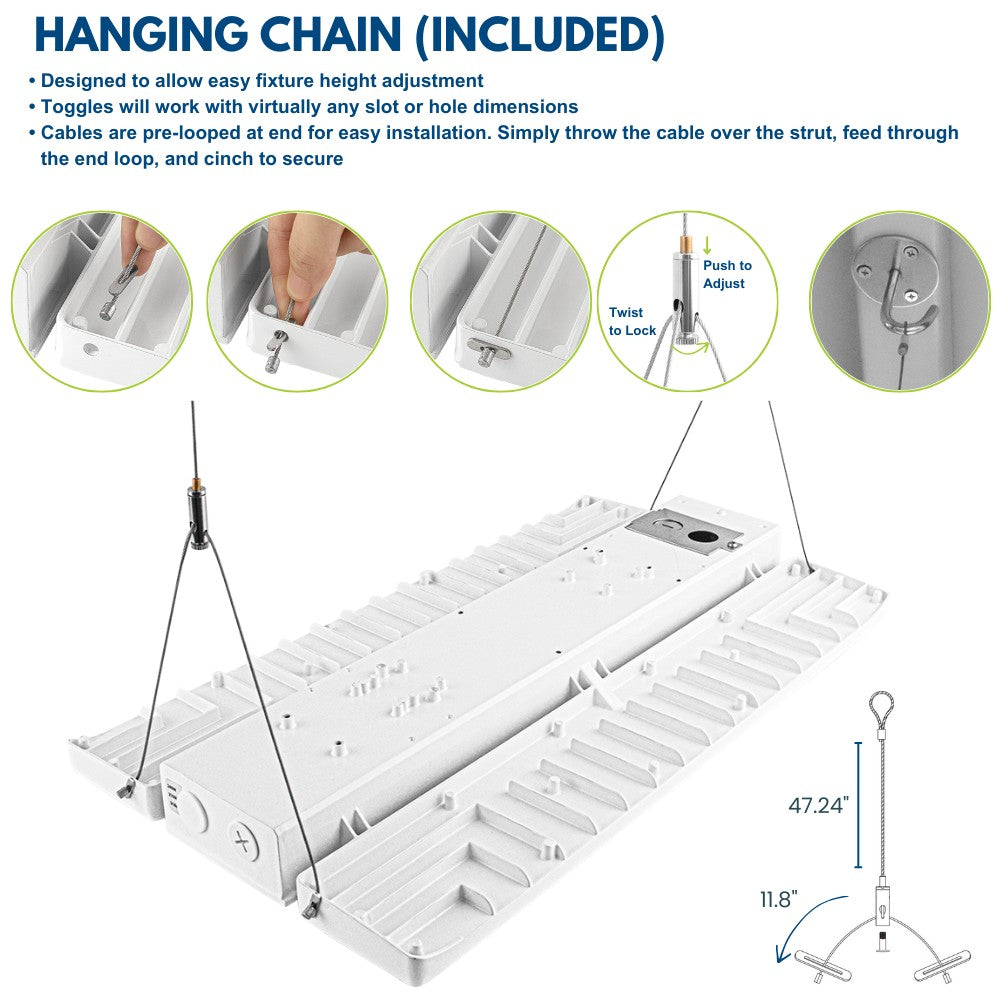

Suspension chains come standard, optional Surface Mount and Pendant Mount are also available.
*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity. Optional remote control is required to program the motion sensor.

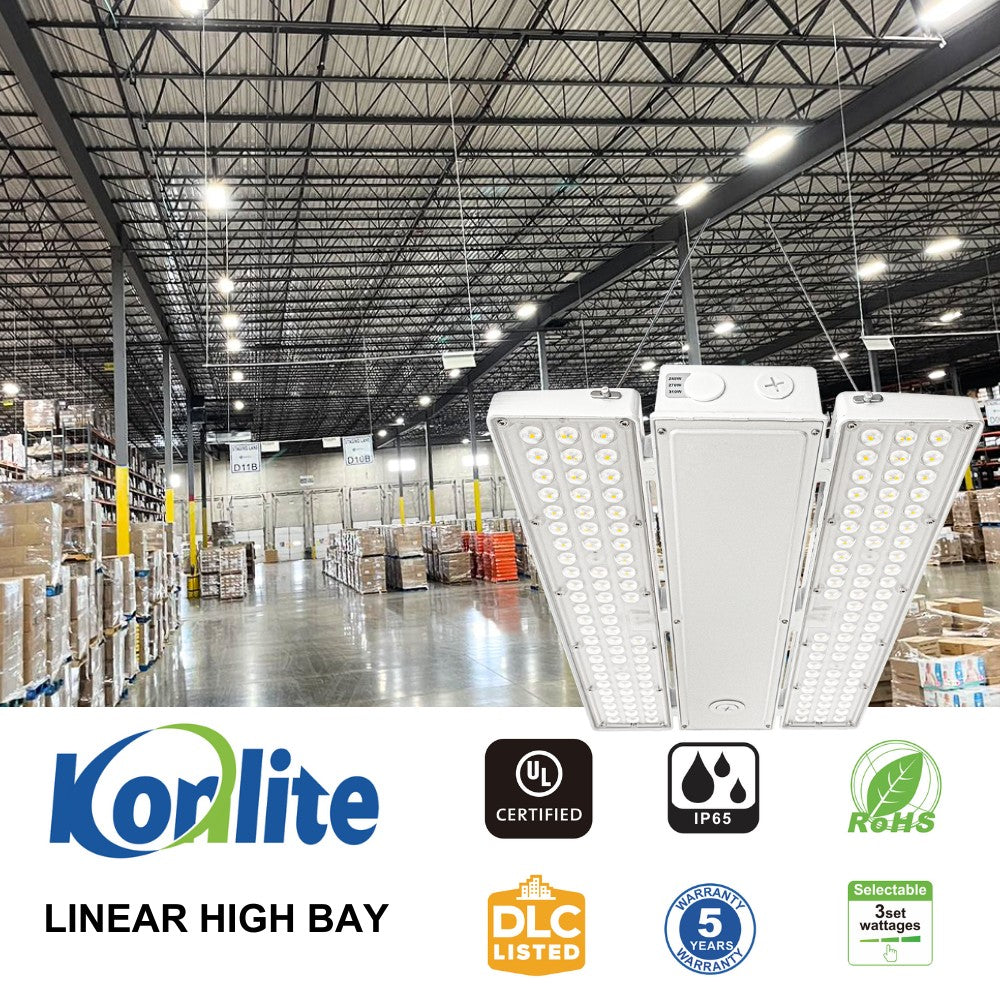

Applications
| •Warehouses | •Workshops |
| •Convention Centers | •High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KPVMW3150KHV |
| Warranty | Limited 5 Years | UPC | 659675381794 |
| Input Voltage | 270-480V | Beam | 106° |
| Input Wattage | 310W/270W/240W | Equal To | 1000W MH or 8x32-T8/8x54-T5 |
| Delivered Lumens | 46,500lm/40,500lm/36,000lm | CRI | ≥80 |
| Efficacy | Up to 156 LM/W | Available CCT | 5000K/4000K |
| Rated Life | >50,000 hrs | Power Factor | ≥0.95 |
| THD | ≤15% | IP Rating | N/A |
| Dimmable | 0-10V | Mounting | Suspension Chain, Surface, Pendant |

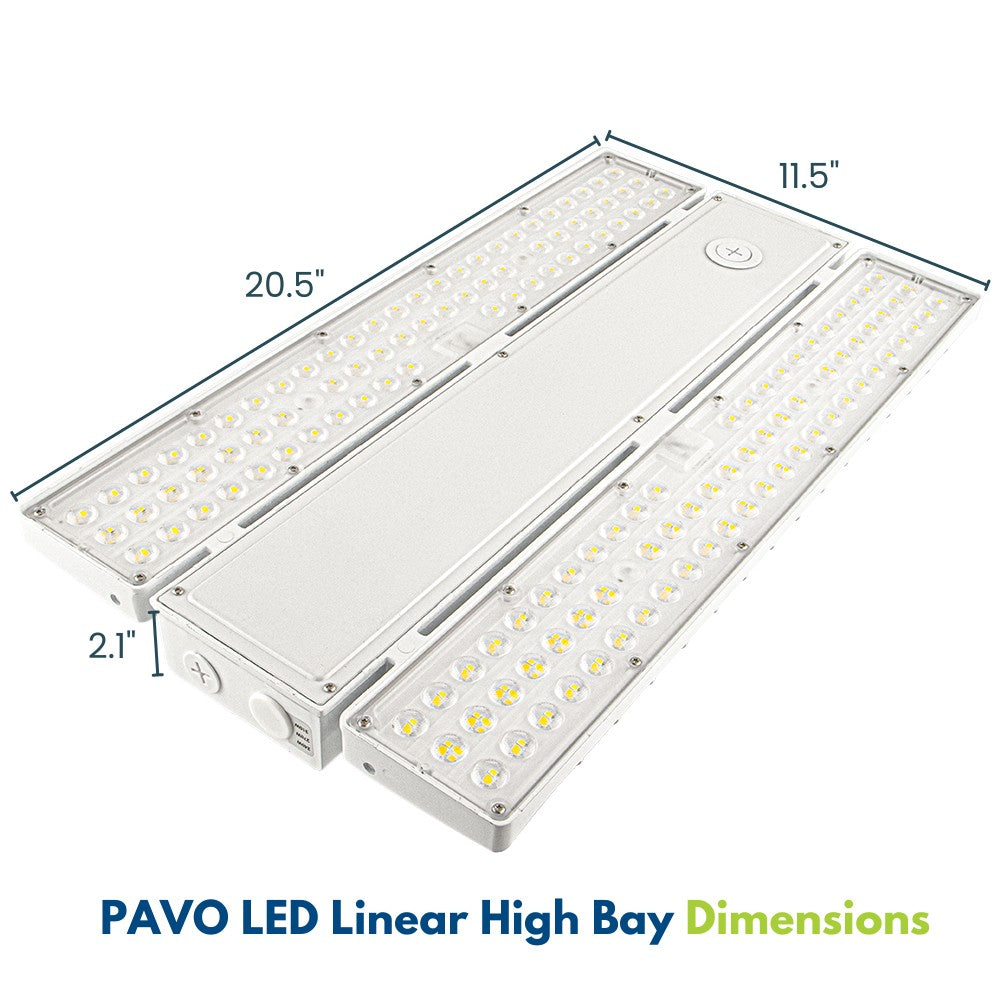

| Operating Temperature | -40° F to 122° F | Dimensions | 20.5''X11.5''X2.1'' |
| Certifications | UL, DLC Premium, NLC | Weight | 11 Lbs |
Occupancy Sensor Specification
| Brand | Haisen | MPN | HD09VCR-PH / HD09VCR-PHB ( Network Lighting Controls ) |
| Control | On/off / 1-10V Dimming | Setting tools | Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones |
| Detection area | 25%/50%/75%/100% (R.C) | Hold time | 5s/1min/5min/10min (Rotating Switch) 5s/30s/1min/3min/5min/10min/20min/30min (R.C) |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ (R.C) | Stand-by dimming level | 0%/10%/30%/50% (Rotating Switch) 10%/20%/30%/50% (R.C) |
| Input Range | 12VDC | Daylight threshold | Disable / 11 settings from 2Lux to 400Lux (R.C) |
| Operating Voltage | 10.5-15V DC | Detection range | Max. 45.92ft |
| Mounting height | Max. 39.37 ft | IP rating | IP65 |
*Stand-By Period need to be set to 0s while using with dimmer switch.
Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
