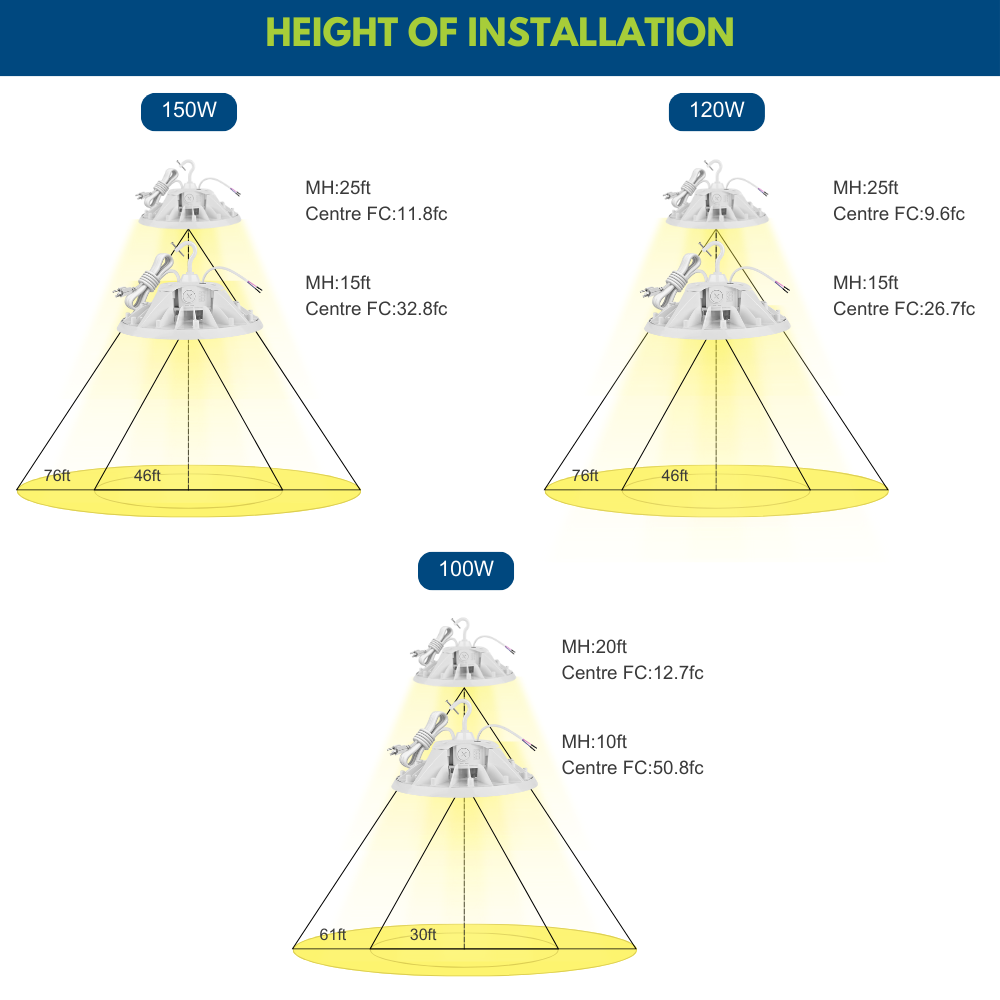

Konlite UFO Highbay light Suggested installation height

White LED UFO High bay with motion sensor

White LED UFO High bay With NLC Bluetooth Sensor

Roll over image to zoom in

MAX UFO LED Bay Light - White - 150W - 3 Watts Selectable - 23,550LM - 5000K - 400W Equal

Name: MAX UFO LED Bay Light - White - 150W - 3 Watts Selectable - 23,550LM - 5000K - 400W Equal
Brand: Konlite
SKU: RKRH0302LMW5KDNLCW
Price: 89.95 USD
Availability: InStock

Product Search Code: 10-0114

KonliteSKU: RKRH0302LMW5KDNLCW

$119.99 $89.95

Replaces 250-400W Metal Halide
0-10V Dimmable
8Ft Power Cord with a Plug
Plug-N-Play Motion Sensor (*Standby Time Set to 0 While Working with Dimmer)
Certificates: UL, DLC Premium 5.1, NLC
5 Years Warranty
Watts and Lumens Selectable:
- 150w = 23,550 (Preset)
- 120w = 19,200
- 100w = 16,200

Sensor Controls:

Glare Controls:

Variant

Quantity

Replaces 250-400W Metal Halide
0-10V Dimmable
8Ft Power Cord with a Plug
Plug-N-Play Motion Sensor (*Standby Time Set to 0 While Working with Dimmer)
Certificates: UL, DLC Premium 5.1, NLC
5 Years Warranty
Watts and Lumens Selectable:
- 150w = 23,550 (Preset)
- 120w = 19,200
- 100w = 16,200

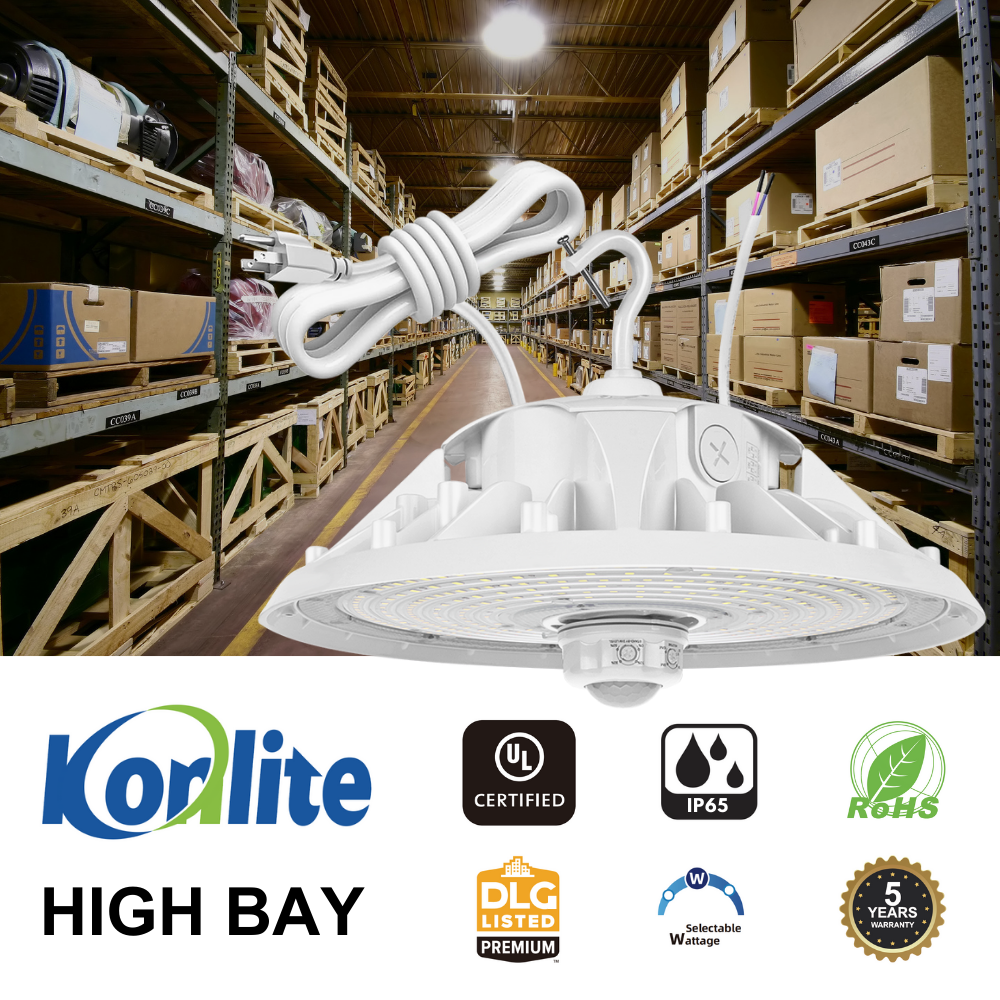

This high-performance Konlite MAX series LED Bay light is ideal for new construction or replacement of 150w to 400w HID/HPS. Delivers top energy savings and maintenance free durability for a wide range of applications.

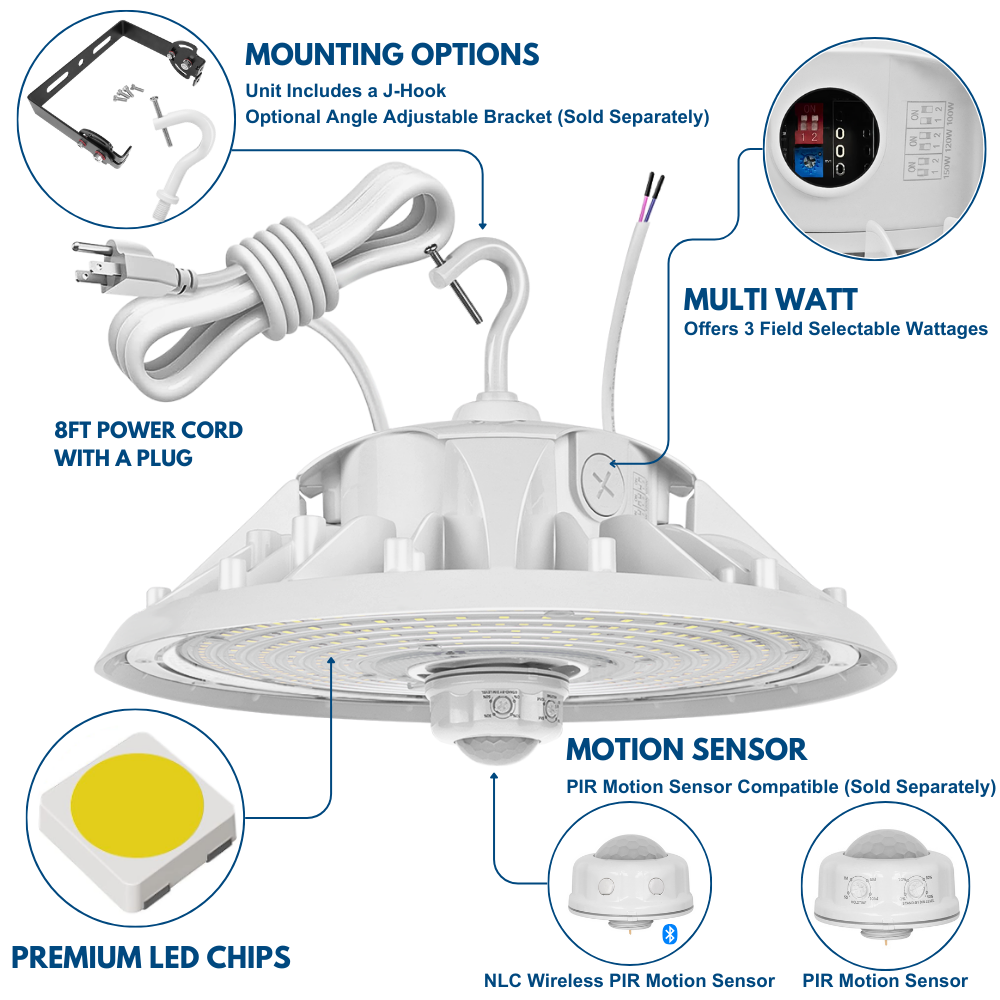

Offers 3 Field Selectable Wattage/Brightness Settings.
Designed for quick, easy installation-Each unit comes with 8' quick connect cord and plug.

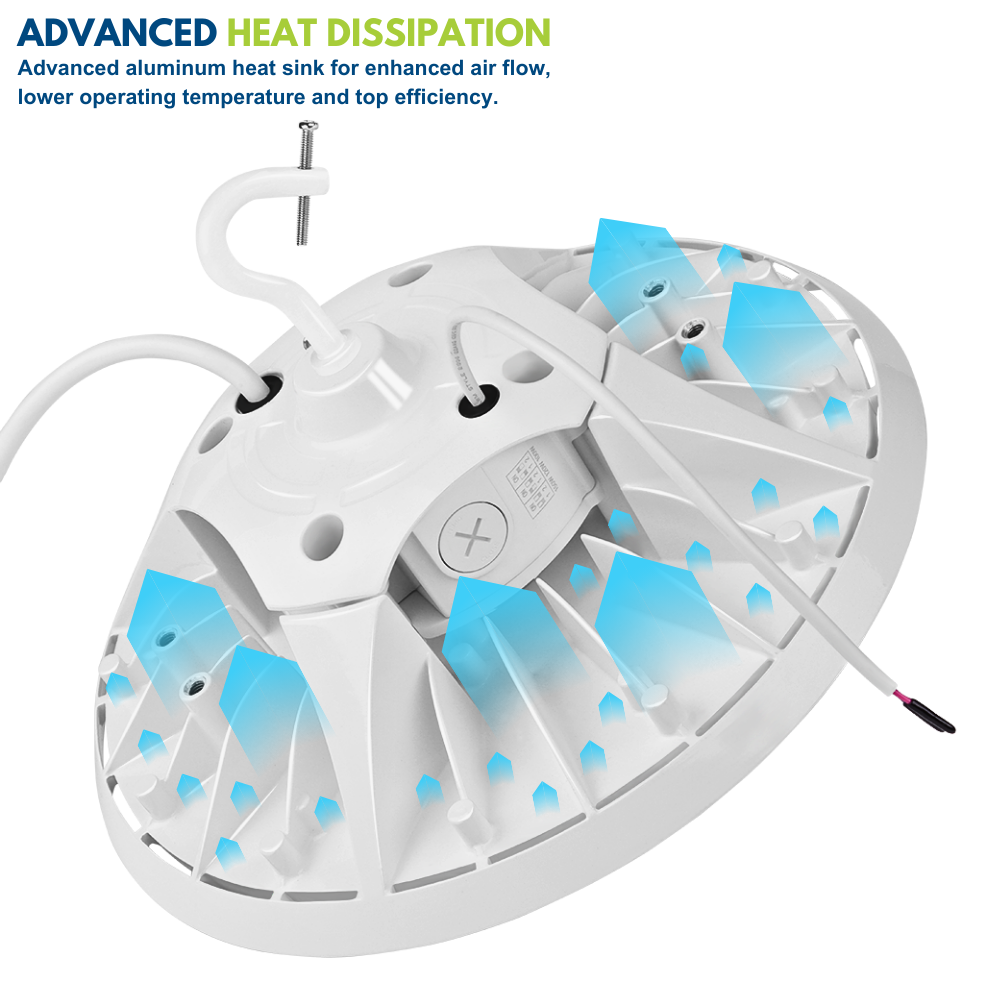

Advanced aluminum heat sink for enhanced air flow, lower operating temperature and top efficiency.

$119.99 $89.95

Sensor Controls:

Glare Controls:

Variant

Quantity

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Offers 3 Field Selectable Wattage/Brightness Settings.
Designed for quick, easy installation-Each unit comes with 8' quick connect cord and plug.
Advanced aluminum heat sink for enhanced air flow, lower operating temperature and top efficiency.

What's in the box

1 Lighting fixture - 1 Mount Hook - 1 Installation Guide

Product Details

Downloads

Reviews

Q&A

1 Lighting fixture - 1 Mount Hook - 1 Installation Guide

Product Overview

Upgrade your space and reduce operating costs with the energy efficient Konlite RH03 MAX series round LED High bay lights. This compact design is easy to install, meets any budget and a Contractor favorite for retrofit or new construction.

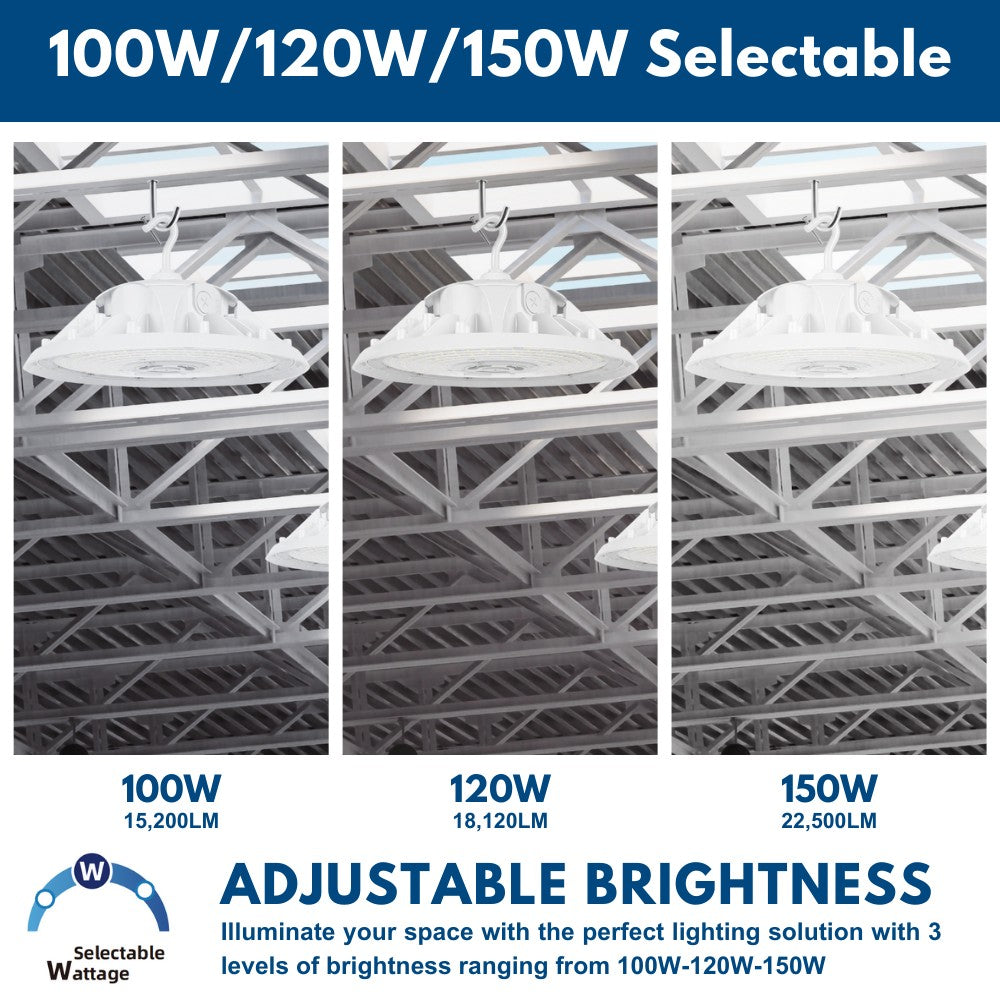

Selectable wattage takes the risk out of purchasing. A low/high bay light that is too dim or too bright can affect the daily operations of the space- from employee productivity to safety. You can now select your brightness and efficiency during install to assure the brightness meets the application and provides the amount of light you want and need for your area. Great for multi-zone facilities.

Four Field Selectable brightness Settings:

100w / 16,200 Lm, 120w / 19,200 Lm, 150w / 23,500 Lm Preset at: 150 watts.

5000K CCT, Excellent color rendition compared to HID/HPS with uniform 120° broad beam illumination.

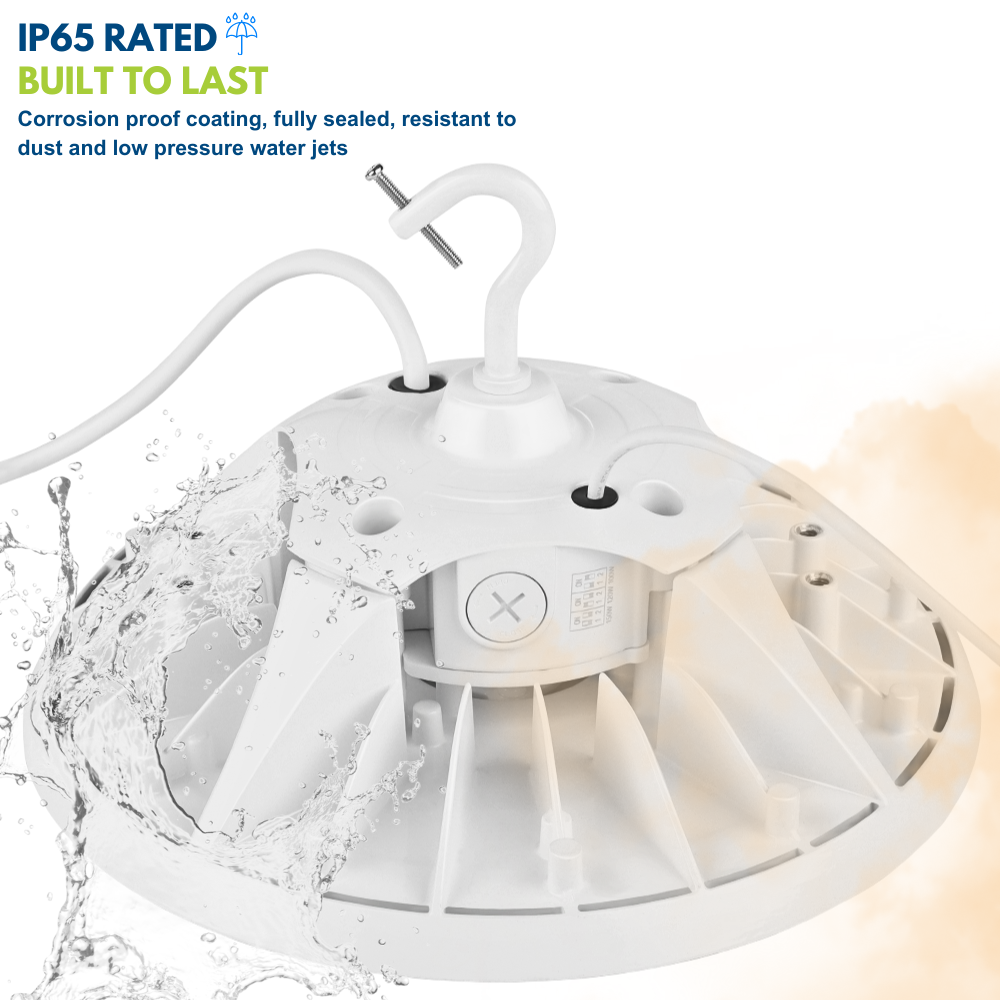

120-277V, Built in 4K surge protector, 8’ Quick Connect Cord, 0-10V Dimming, IP65 rated; Corrosion proof aluminum coating, fully sealed for dust and moisture intrusion.

Certified Quality: DLC 5.1 Premium and NLC for eligible rebates, UL, 5 year warranty.

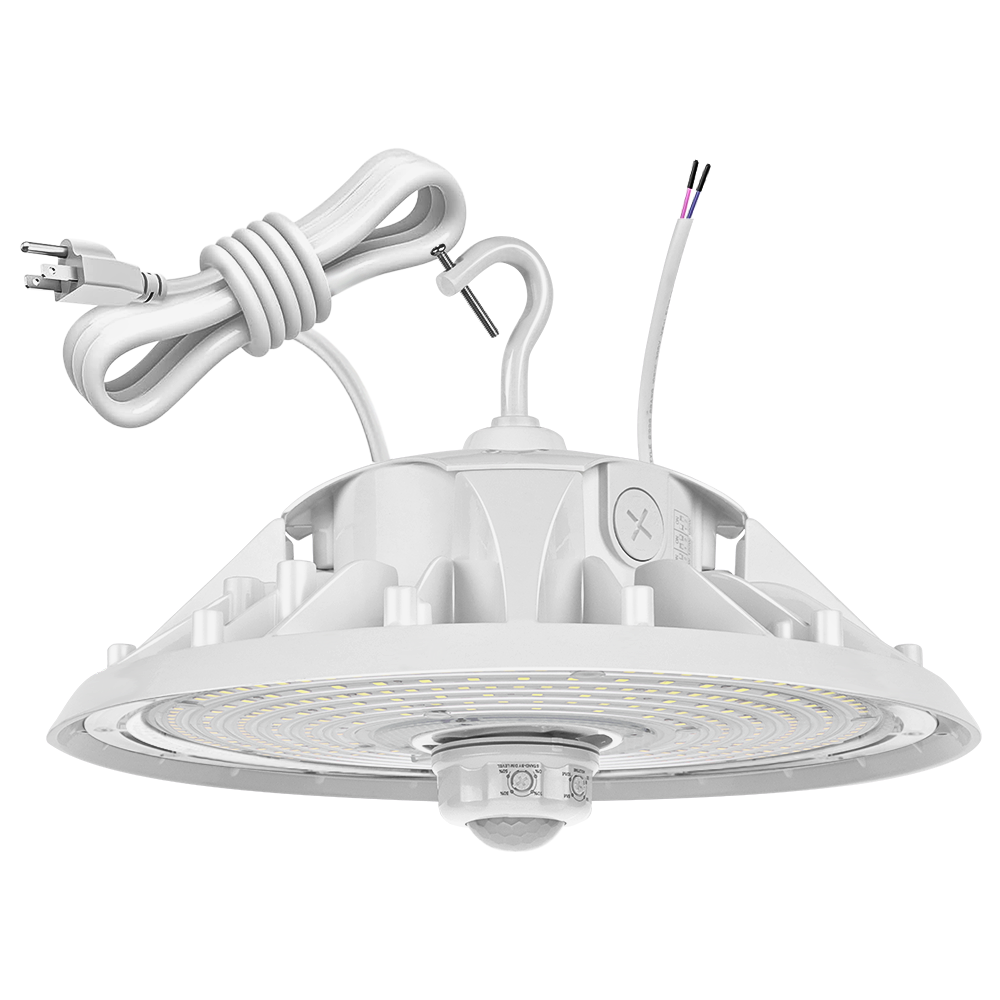

Increase savings with the optional integrated PIR sensor. Set and adjust the controls via Remote Control: Brightness, Sensitivity, Hold-time, Daylight Harvesting and Stand by dimming level. Requires (1) HD05R Remote

Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with the High Bay Lights, ensuring a smooth and efficient control experience right out of the box.

Delivers top energy savings and maintenance free durability for a wide range of applications.

See similar High-watt Highbay version.

Applications

•Warehouses	•Workshops
•Convention Centers	•Automotive Centers
•Storage Facilities	•Distribution Centers
•Factories	•Supermarkets
•Retail	•Gymnasiums

Color Temperature 5000K color temperature

Certifications

Specification

Brand	Konlite	MPN	RKRH0302LMW5KDNLCB
Warranty	Limited 5 Years	UPC	680660094580
Input Voltage	120-277V	Beam	120°
Input Wattage	100w/120w/150w	Equal To	250W-400W
Lumens	16,200/19,200/23,500	CRI	>80

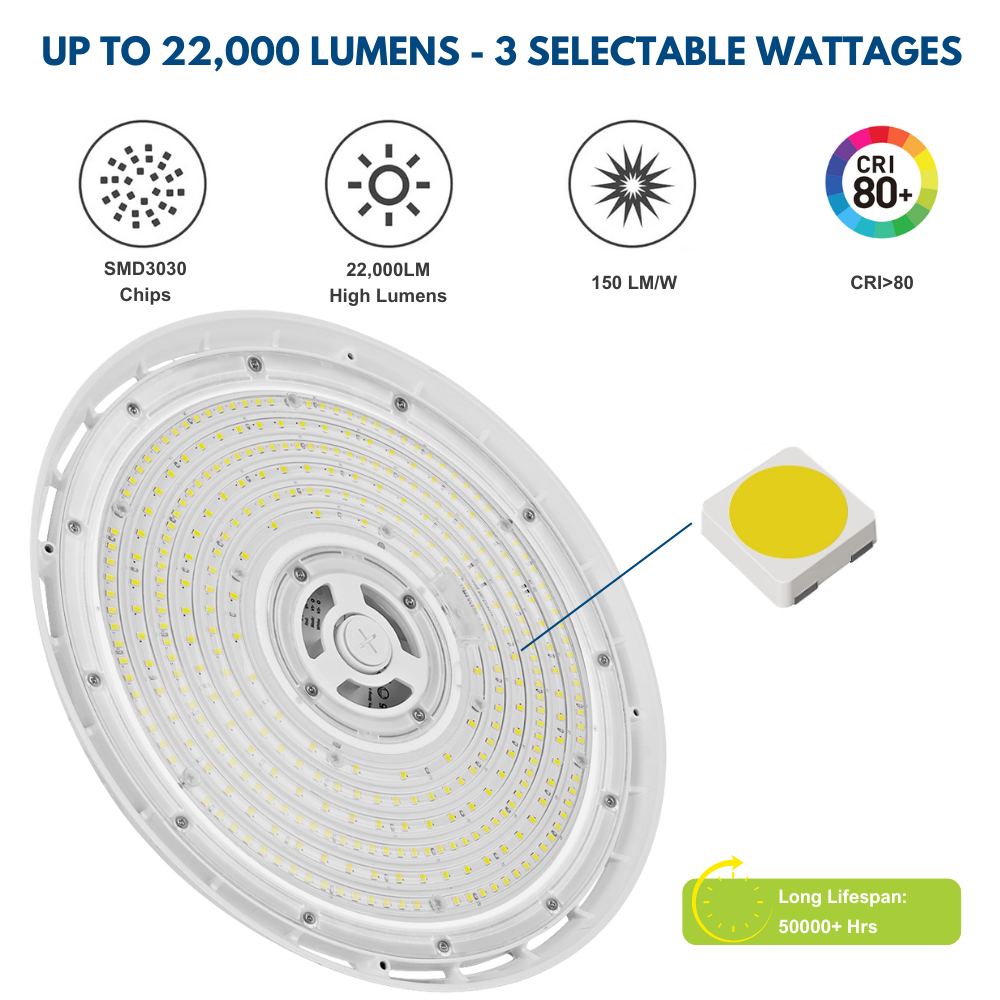

Efficacy	150 LM/W	Available CCT	5000k
Rated Life	>50,000 hrs	Power Factor	>0.88
THD	≤20%	IP Rating	IP65
Dimmable	0-10V	Controls	optional PIR Motion Sensor

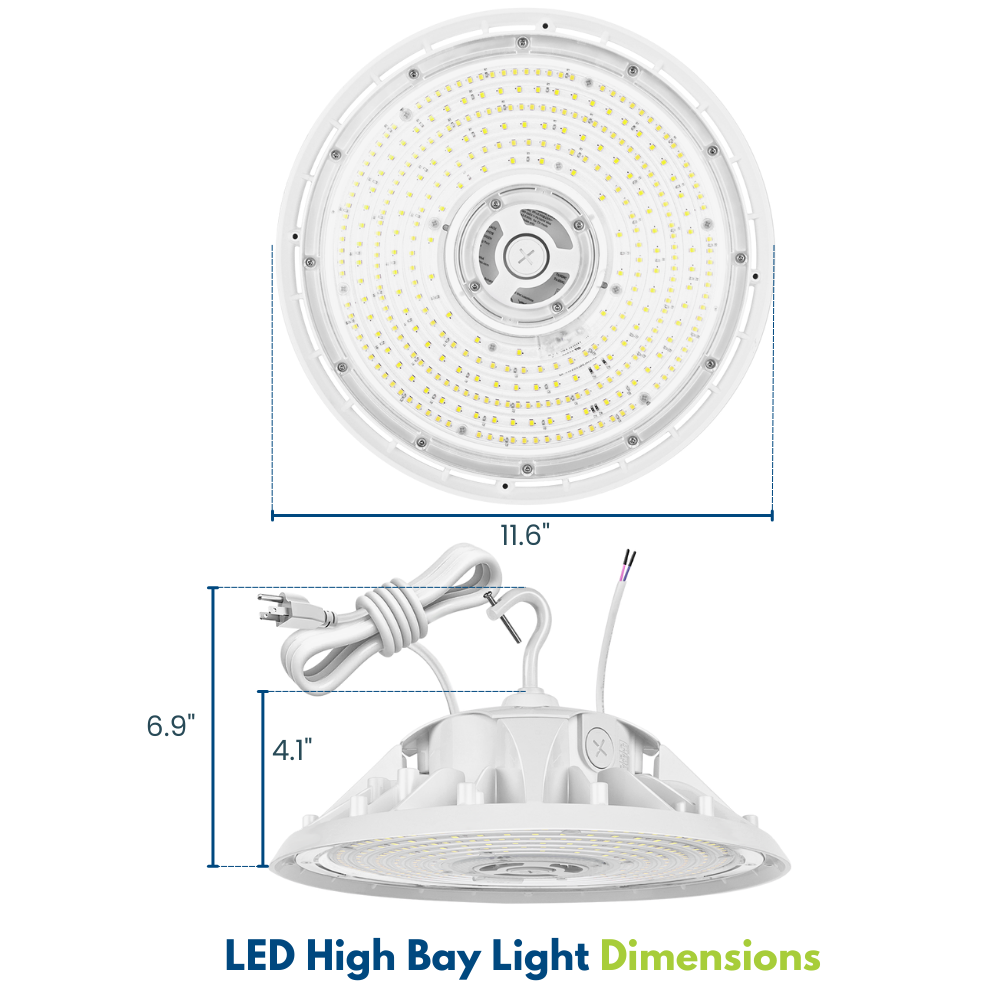

Operating Temperature	-40F to 113F	Diameter	12.4"
Certifications	UL, Damp Locations, DLC Premium	Weight	7 Lbs

Motion Sensor Specification

Brand	Haisen	MPN	HD09VR-PH/HD09VR-PHB(Network Lighting Controls)
Control	On/off / 1-10V Dimming	Setting tool	Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones
Detection area	25%/50%/75%/100%	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
Stand-by period	0s/10s/30s/1m/5m/10m/30m/60m/+∞	Stand-by dimming level	10%/20%/30%/50%
Motion detection	0.5~1.5m/s	Daylight threshold	Disable / 8 settings from 2Lux to 400Lux
Mounting height	Max. 39ft	Detection range	Max. 45ft
Operating Voltage	10-15V DC	IP rating	IP65
Current	<15mA	Warranty	3 Years

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
