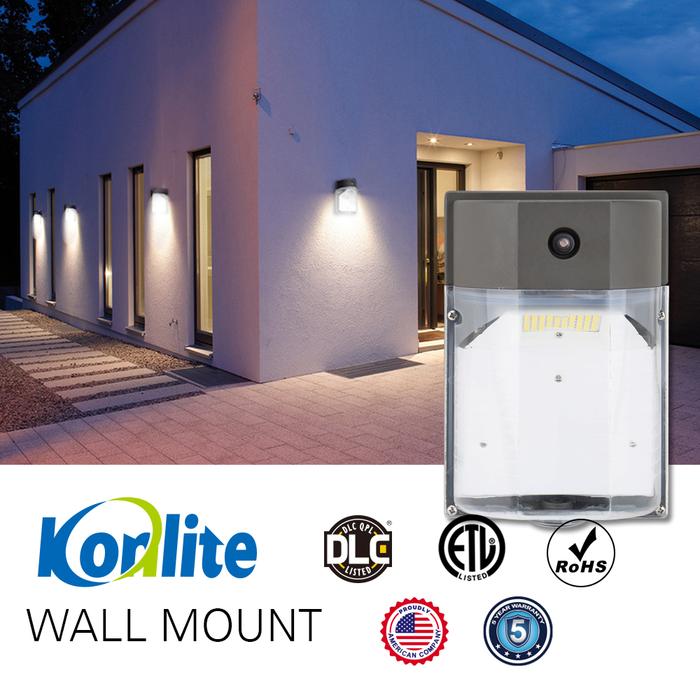

Revolve LED Konlite Mini LED Wall Pack

The Konlite WP05 LED Mini Wall Pack Light combines optical performance and energy efficiency for a variety of indoor and outdoor applications. Clean and simple design; this high performance compact fixture offers security and safety for both commercial and residential uses.

Designed for J-box mounting, Ideal for retrofit or new construction with an attractive modern design. Available in both 3000K natural white and 5000K cool white color temperatures. Offers crisp uniform light distribution with an UV stabilized polycarbonate clear lens that will not discolor with age. Available in both 15 watt and 25 watt with lumen output brightness from 1875 to 3200 Lumens.

Efficiency: LED reduces energy consumption up to 65% over traditional lighting, lowering utility costs and is maintenance free. Instant start, no warm up or flickering. Environmentally friendly: no lead, mercury or other contaminants.

IP 65 Wet rated, Gasketed aluminum housing makes for a rugged exterior. Constructed to resist corrosion and withstand all types of weather conditions. This lightweight powder coated die-cast aluminum housing won’t flake or fade over time, ensuring the fixture always looks professional.

Konlite Mini LED Wall Pack with photocell
The Mini Wall Pack comes with a preinstalled optional use integrated Dusk to Dawn Photocell. To activate simply remove the daylight sensor cap - the wall pack will automatically turn on at night and turn off at sunrise. If you do not want to use the optional dusk to dawn photocell option- Simply do not remove the daylight sensor cap.


Eligible for rebates with ETL, DLC certification, Long Life: >50,000 Hours Lifespan L70, with 5 year warranty. These powerful light fixtures can be used for many applications including security lighting, loading bay and dock lighting, stairways, storage and perimeter areas, on all type building facades.

For questions regarding volume discounts or lighting design please contact us at 1-877-178-0808 or email us at
