NAVI LED Flood Light - 155W/125W/90W - 23,500 lumens - 5000K/4000K/3000K - 120-277V - 400W Equal

Product Search Code: 21-0217
KonliteSKU: KNV155MCPLV77TR
$128.65

    • Dusk to Dawn Photocell with a Daylight Sensor Cap
    • 5000K (default),4000K and 3000K Selectable
    • 155W (default), 125W and 90W Selectable
    • 5-Year Warranty
    • 2Ft Pigtail (Hardwire)
    • Replaces up to 400W HID/MH

    • Dusk to Dawn Photocell with a Daylight Sensor Cap
    • 5000K (default),4000K and 3000K Selectable
    • 155W (default), 125W and 90W Selectable
    • 5-Year Warranty
    • 2Ft Pigtail (Hardwire)
    • Replaces up to 400W HID/MH

This Konlite NAVI LED flood light is designed with optical versatility and a slim, low profile design. Provides constant light that improves overall visibility, providing added security for commercial or residential locations.

  • NEMA type: 7H x 7V wide beam spread

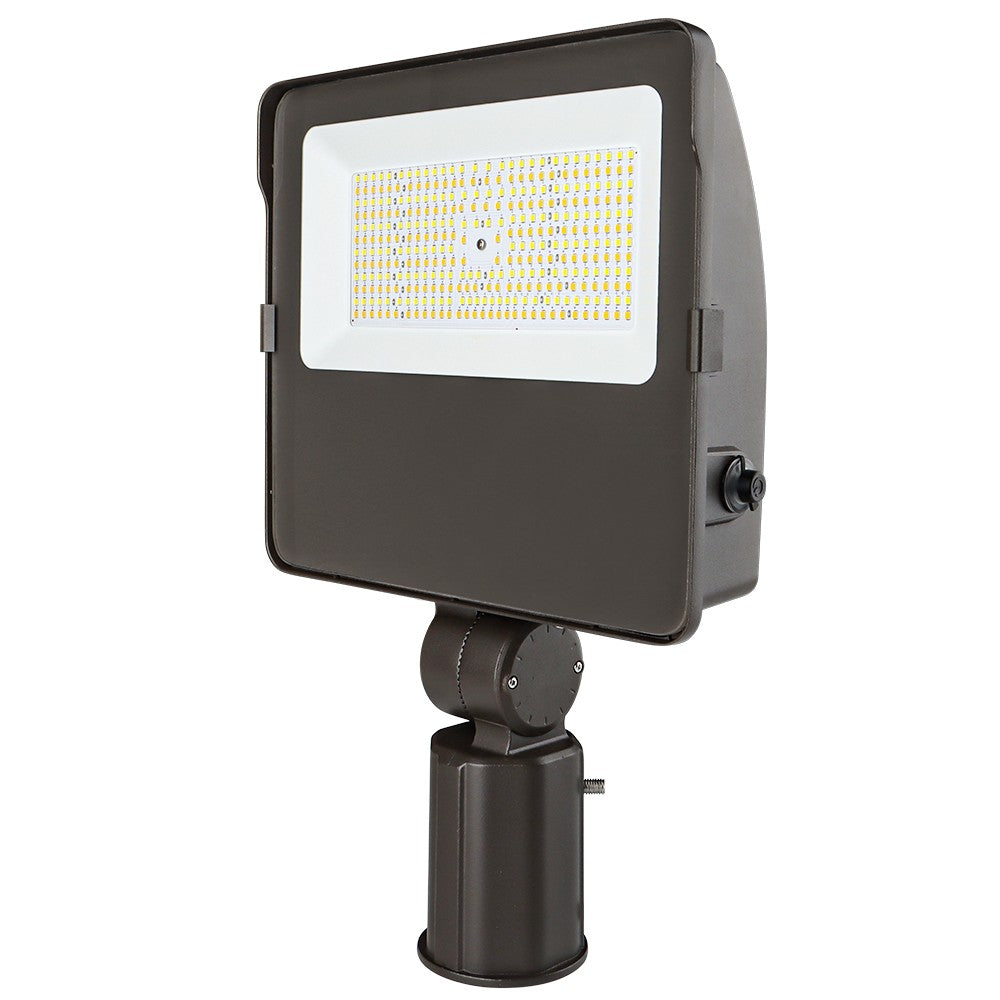

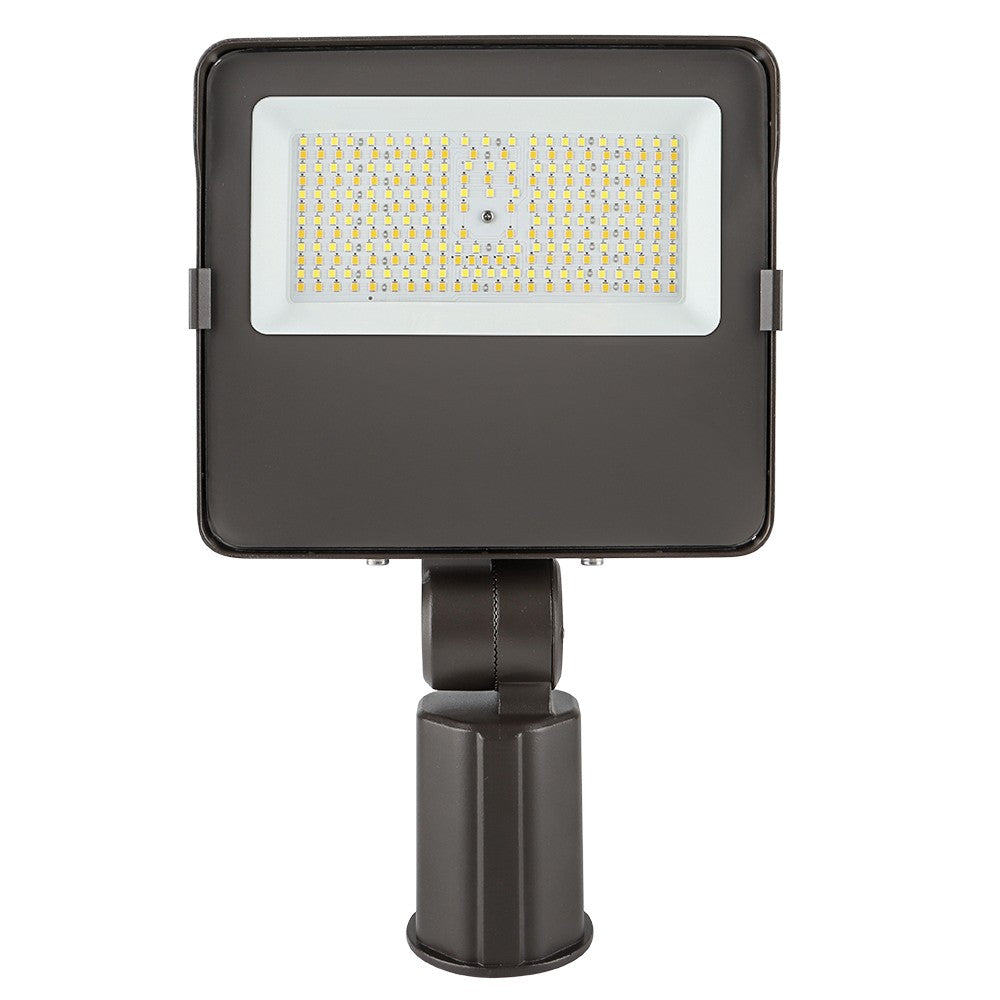

  • Installation options: 2 3/8 inches SlipFitter or Trunnion

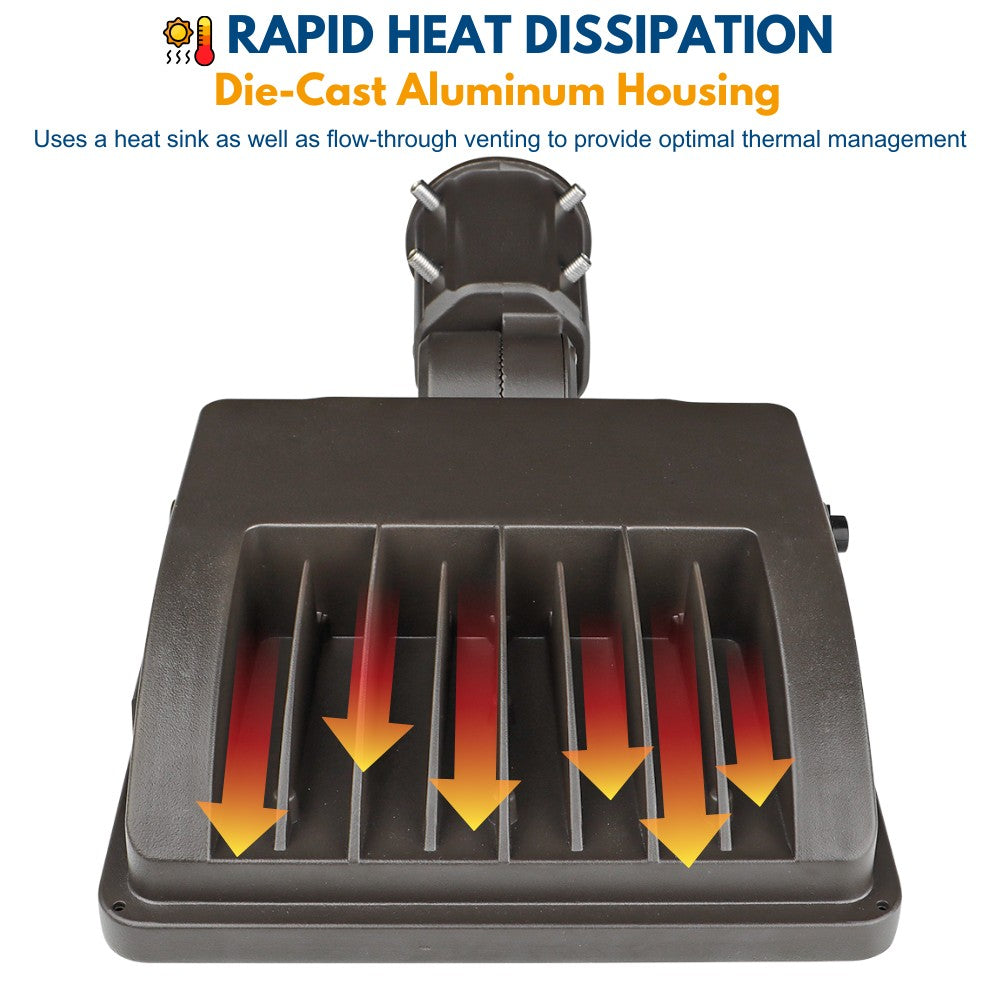

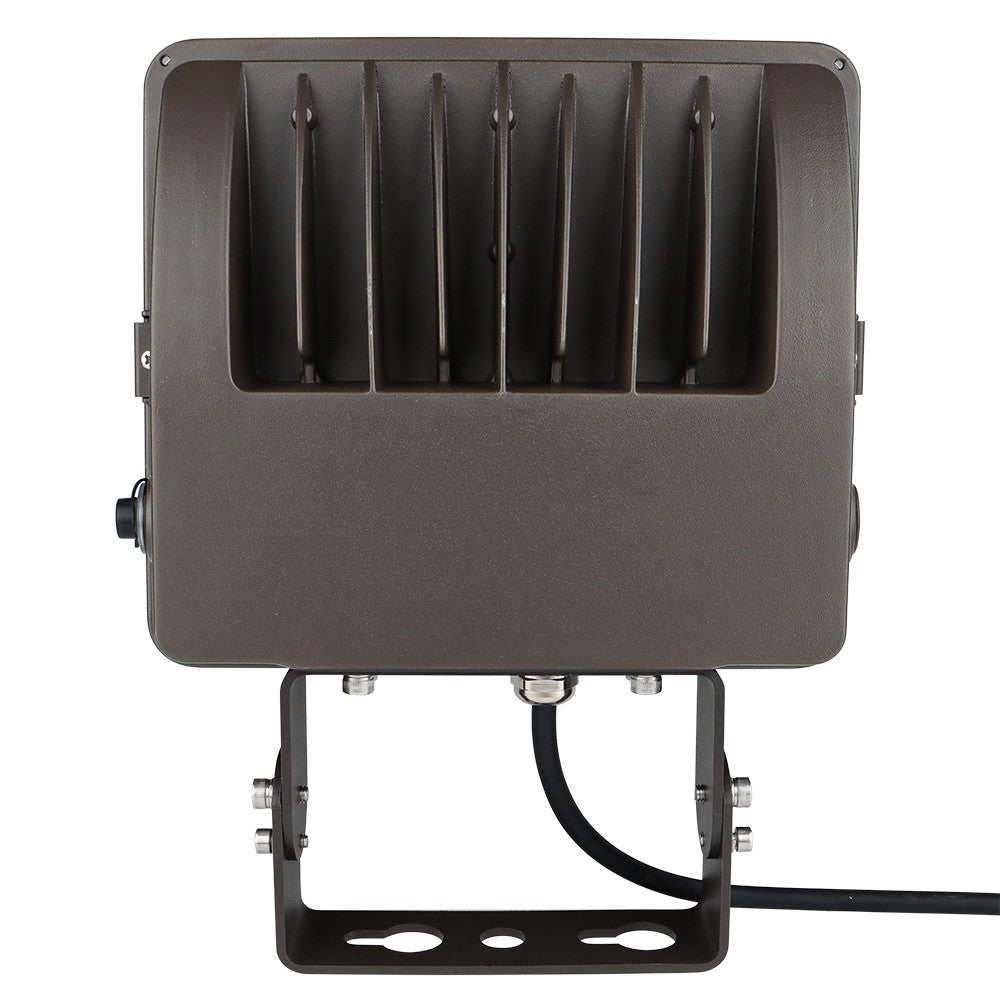

  • Die cast aluminum housing with tempered glass cover
  • Fully sealed to keep out moisture and environmental contaminants
show more
$128.65


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

This Konlite NAVI LED flood light is designed with optical versatility and a slim, low profile design. Provides constant light that improves overall visibility, providing added security for commercial or residential locations.

  • NEMA type: 7H x 7V wide beam spread
  • Installation options: 2 3/8 inches SlipFitter or Trunnion
  • Die cast aluminum housing with tempered glass cover
  • Fully sealed to keep out moisture and environmental contaminants
What's in the box
1 Flood light fixture - 1 Mount Kit – 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Flood light fixture - 1 Mount Kit – 1 Installation Guide

NAVI LED Flood Light - Selectable Wattages & CCT - Dusk to Dawn Photocell

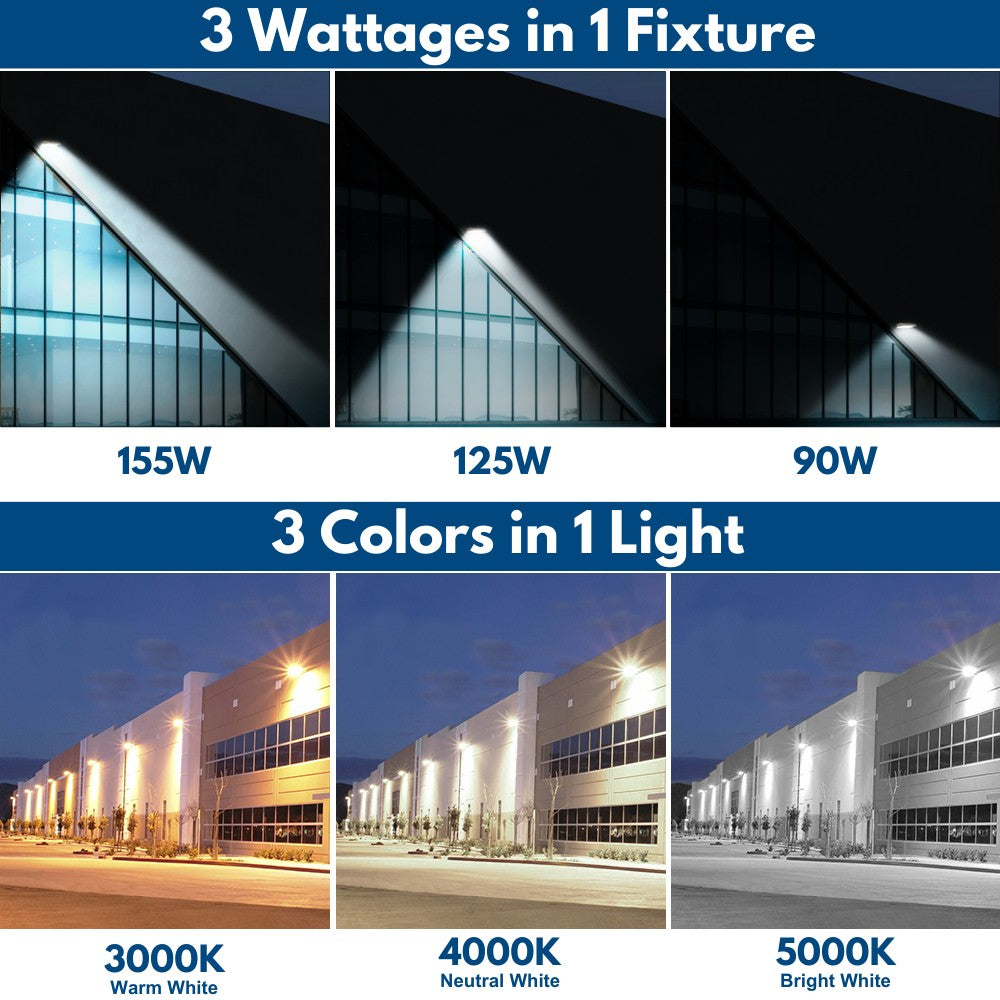

Illuminate your space with the versatile and powerful NAVI LED Flood Light. Perfect for both commercial and residential applications, this flood light offers an energy-efficient alternative to traditional 600W metal halide lights. With its selectable wattage (155W/125W/90W) and color temperature (5000K/4000K/3000K), you can easily customize the lighting to suit your needs.

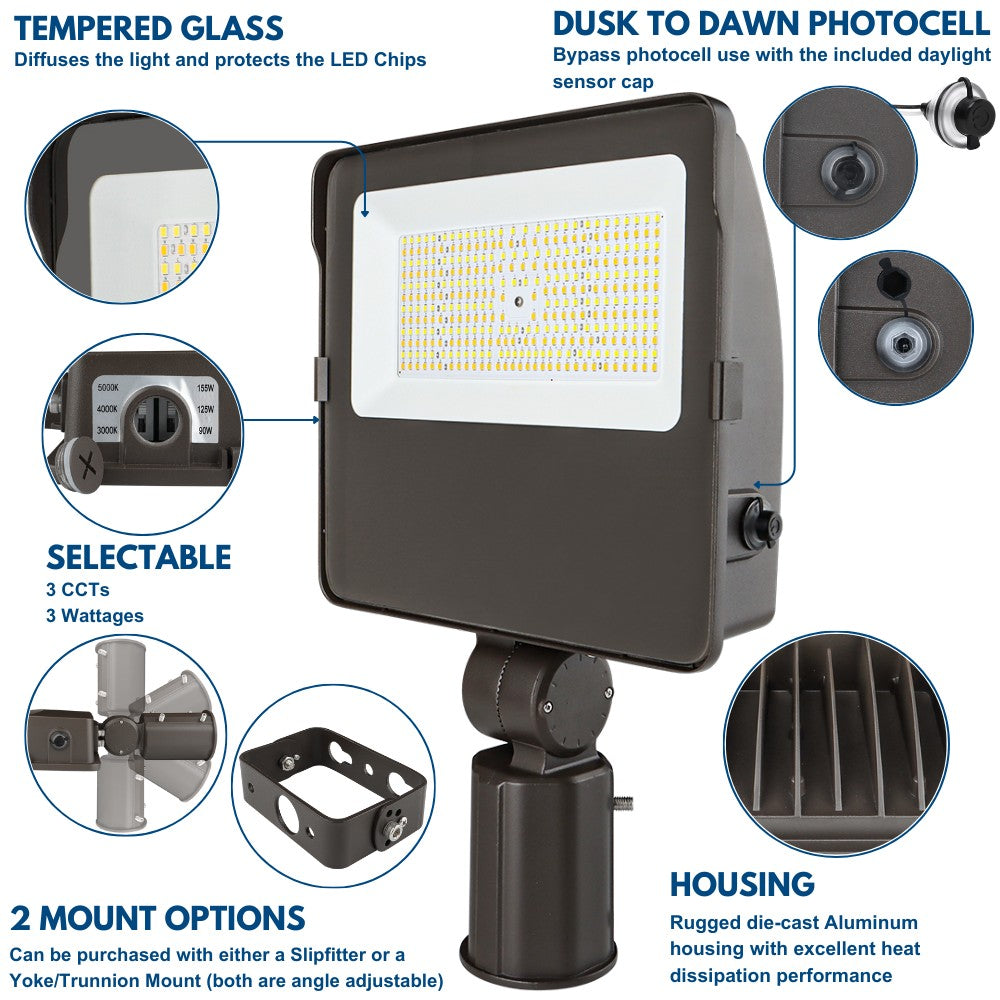

Key Features:

  • Selectable Wattage: Choose between 155W, 125W, or 90W to get the perfect balance of brightness and energy savings. The default setting is 155W.
  • High Lumen Output: Delivers up to 23,500 lumens, providing bright and consistent illumination.
  • Adjustable Color Temperature: Switch between 5000K (daylight), 4000K (neutral white), and 3000K (warm white) to create the desired ambiance. The default setting is 5000K.
  • Wide Voltage Range: Operates on 120-277V, making it suitable for a variety of electrical systems.

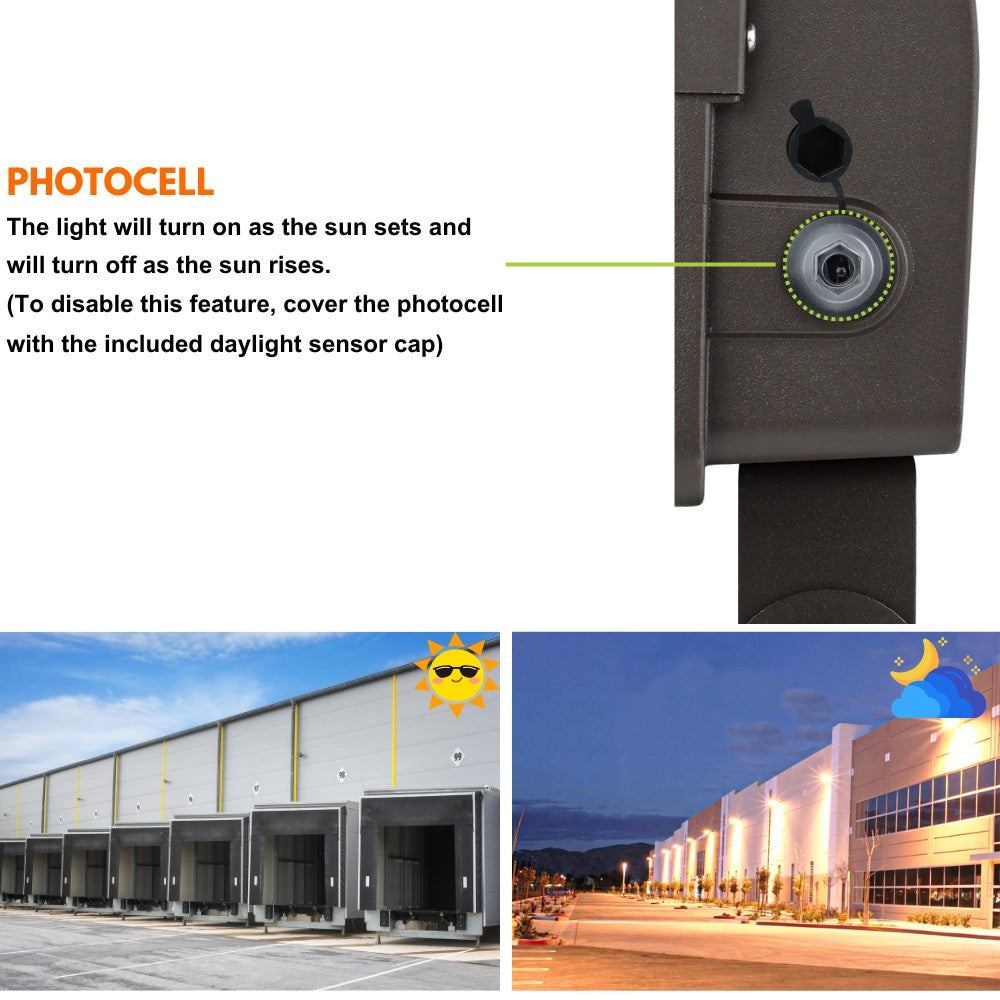

  • Preinstalled Photo Cell: Comes equipped with a photo cell for automatic dusk-to-dawn operation, which can be bypassed with a daylight cap if manual control is preferred.

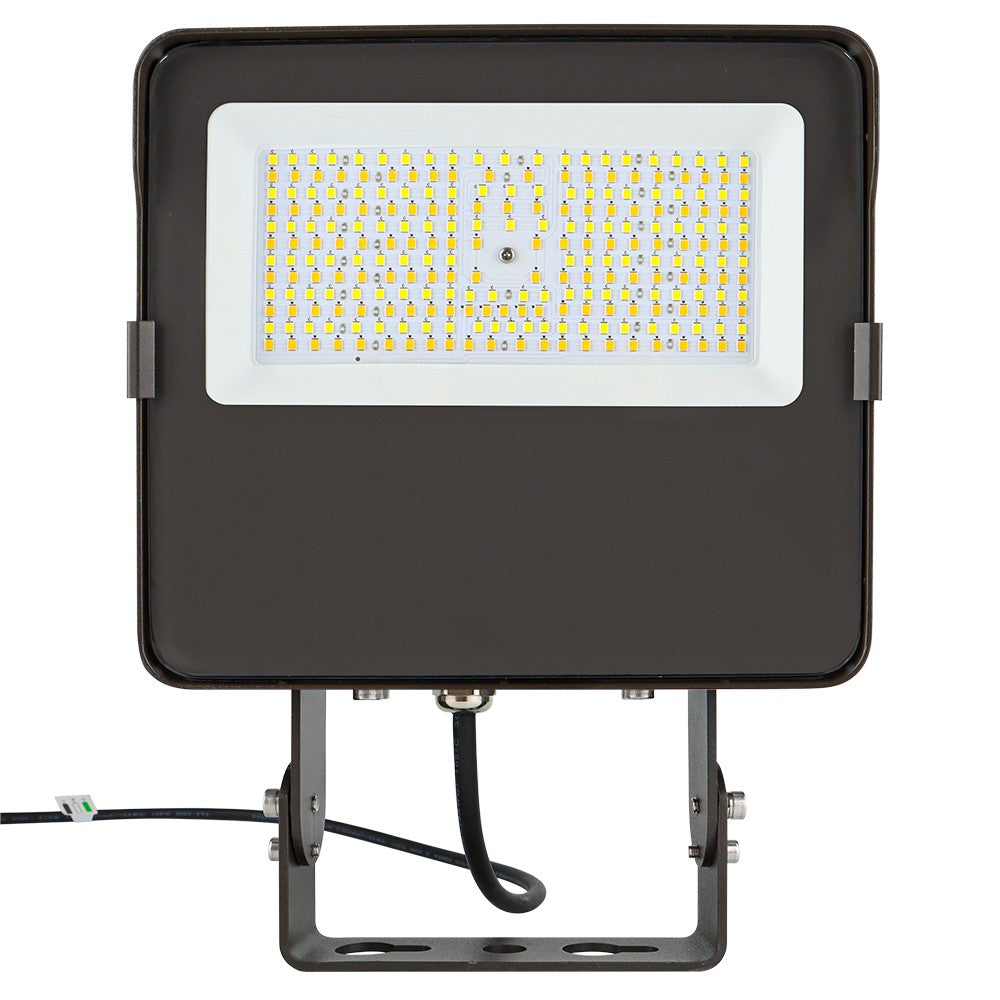

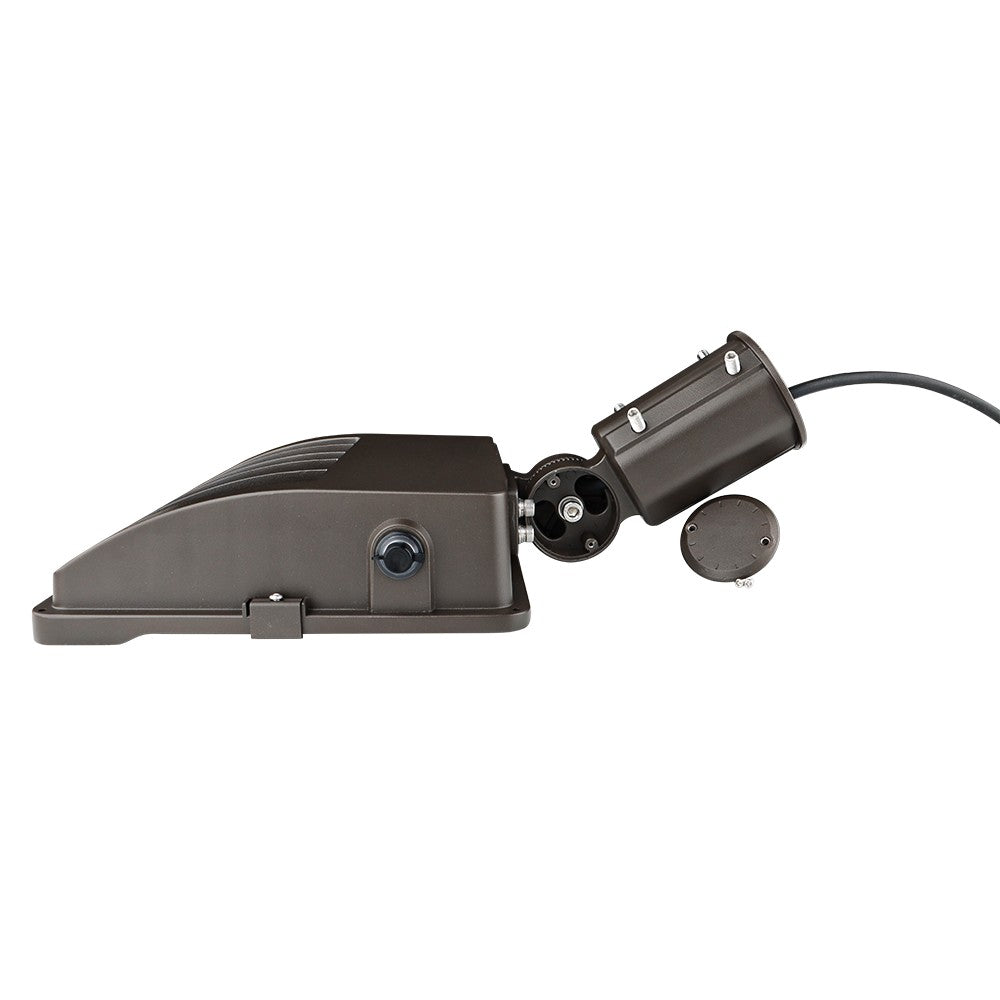

  • Mounting Options: Available with two mounting choices – Slipfitter mount or Yoke mount. Please ensure you select the appropriate mounting option during checkout to suit your installation needs.

Upgrade your lighting to the NAVI LED Flood Light and enjoy superior performance, flexibility, and efficiency. Whether you need to light up a parking lot, building facade, or large outdoor area, this flood light is designed to deliver exceptional results.

Order now and experience the difference with NAVI LED Flood Light – the ultimate solution for your outdoor lighting needs!

See similar 63-watt and 108-watt versions.

Applications

• Signs • Billboards
• Landscape Lighting

• Building Façade

• Storage Facilities • Security Lighting
• Warehouses • Gardens
• Flagpole Lighting • Architectural Lighting
• Tree Uplighting • Outdoor Common Areas
• Parks
Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyUL listedDLC PremiumFCC certificationIP65 rating

Specifications

BrandKonliteDLC Model #KNV155MCPLV77TR
Warranty5 YearsUPC659675479873

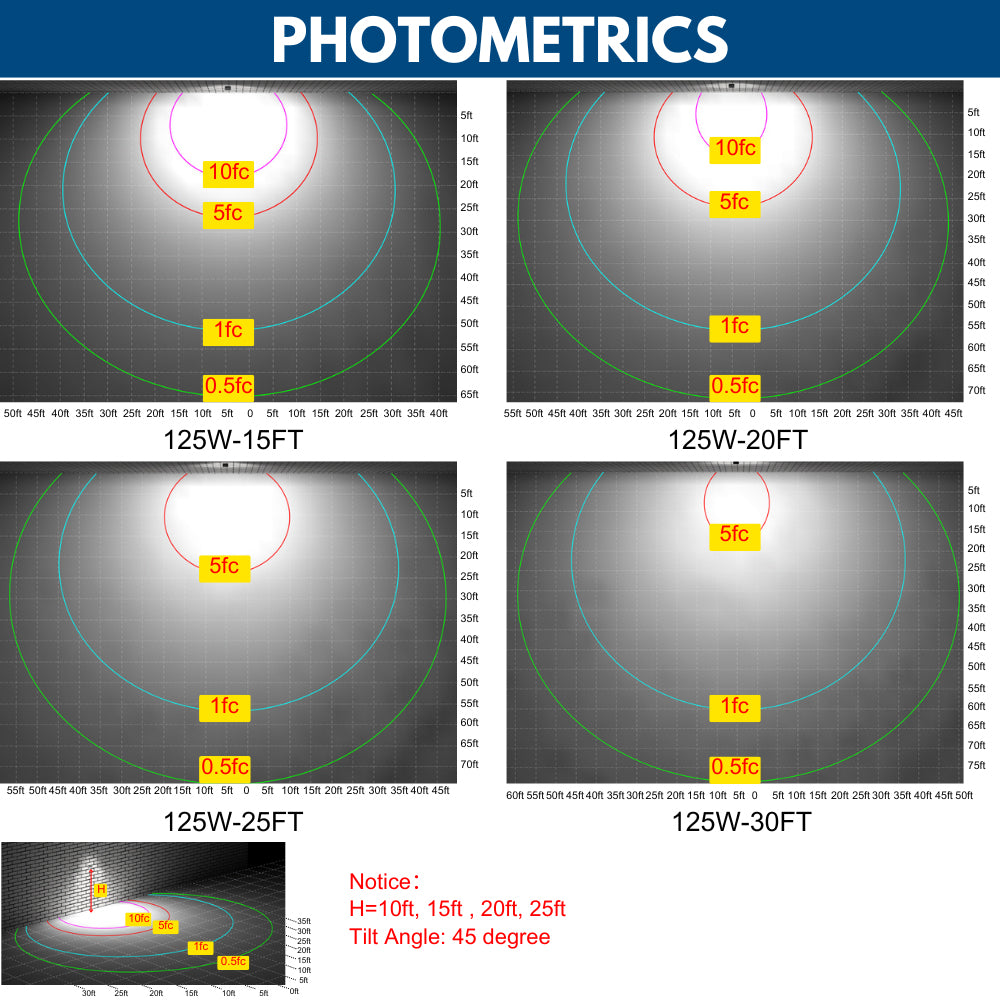

Input Voltage120-277VBeam7HX7V
Input Wattage155W/125W/90WEqual to400W/320W/250W MH
Delivered Lumens23,500LM Max.CRI>70
Efficacy151 LM/WAvailable CCT5000K/4000K/3000K
Rated Life>100,000 HrsTHD<20%
Power Factor>0.9IP RatingIP65

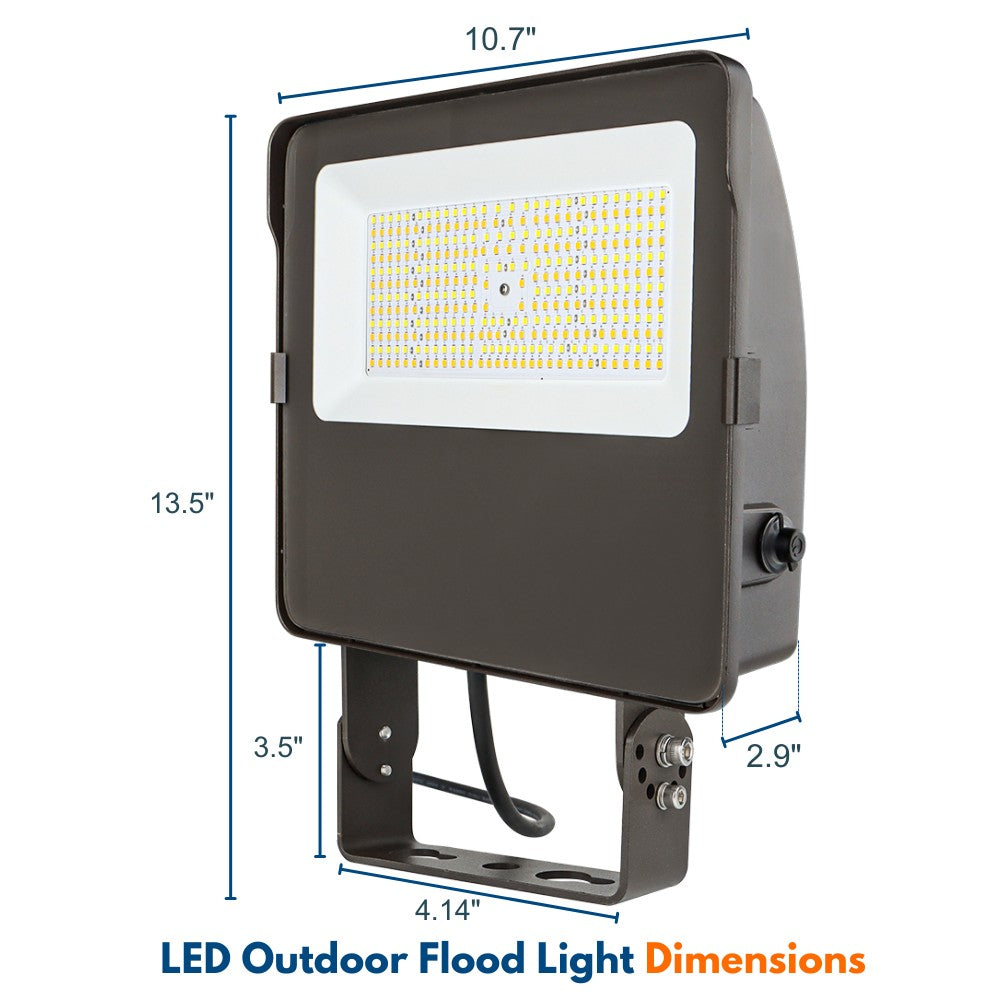

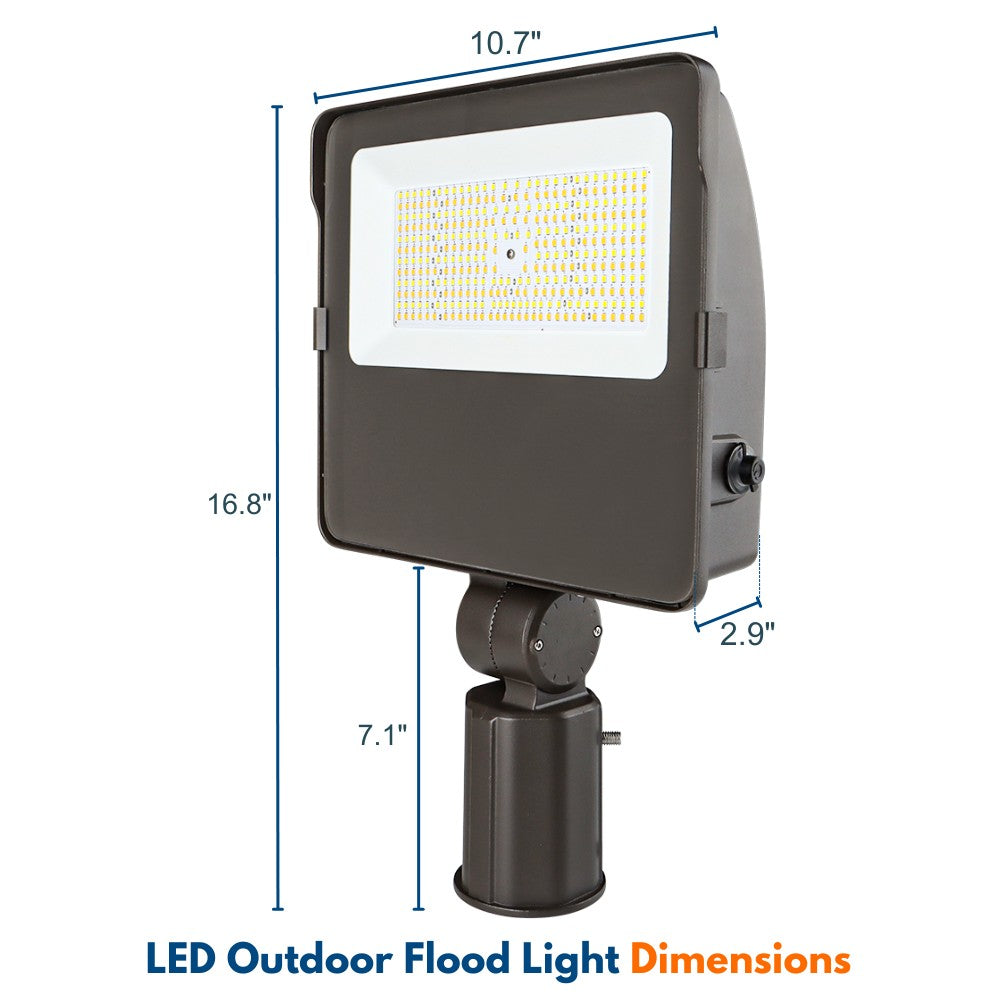

Operating Temp-40°F to 113°FDimensions10.7”x 13.5(KN)”x 2.9"
ControlPhotocellDimmableNo
CertificationsUL, Wet Locations, DLC PremiumUnit Weight5 lbs
