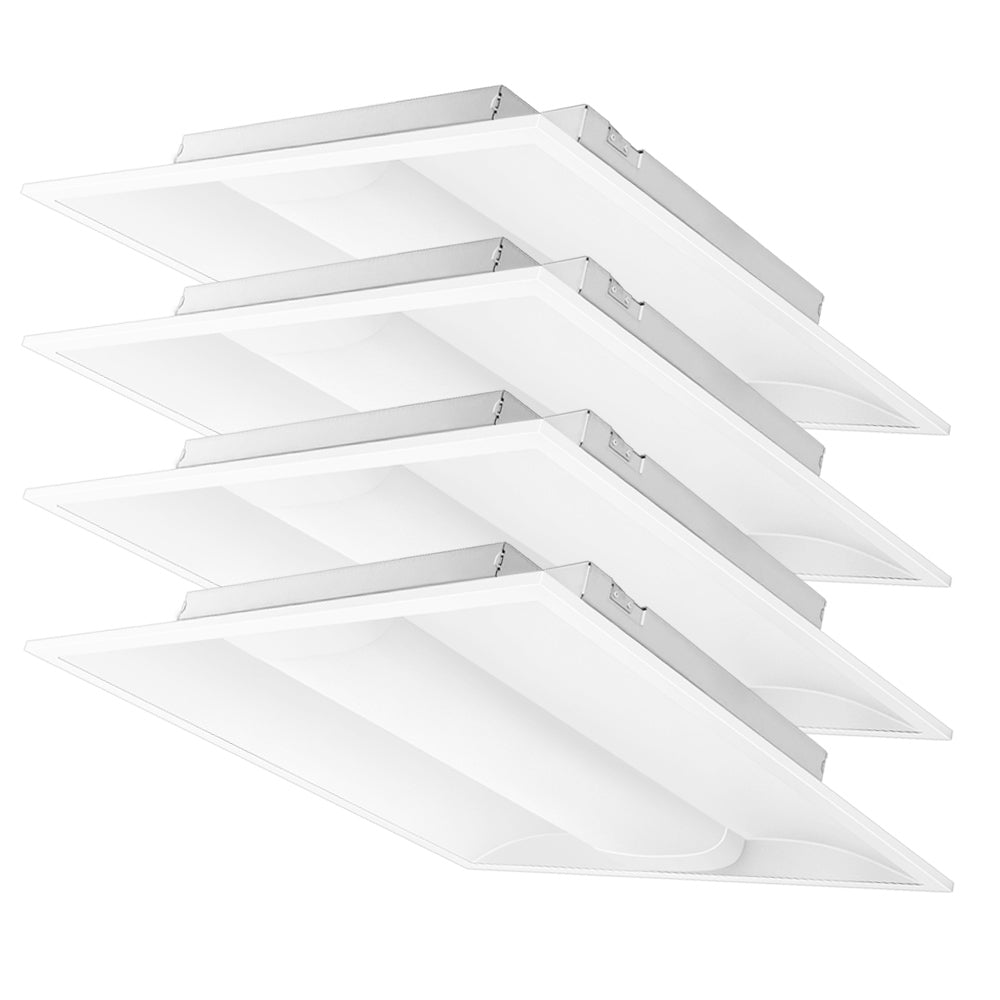

4 pack of Konlite 2x2 Center Basket Troffer Light

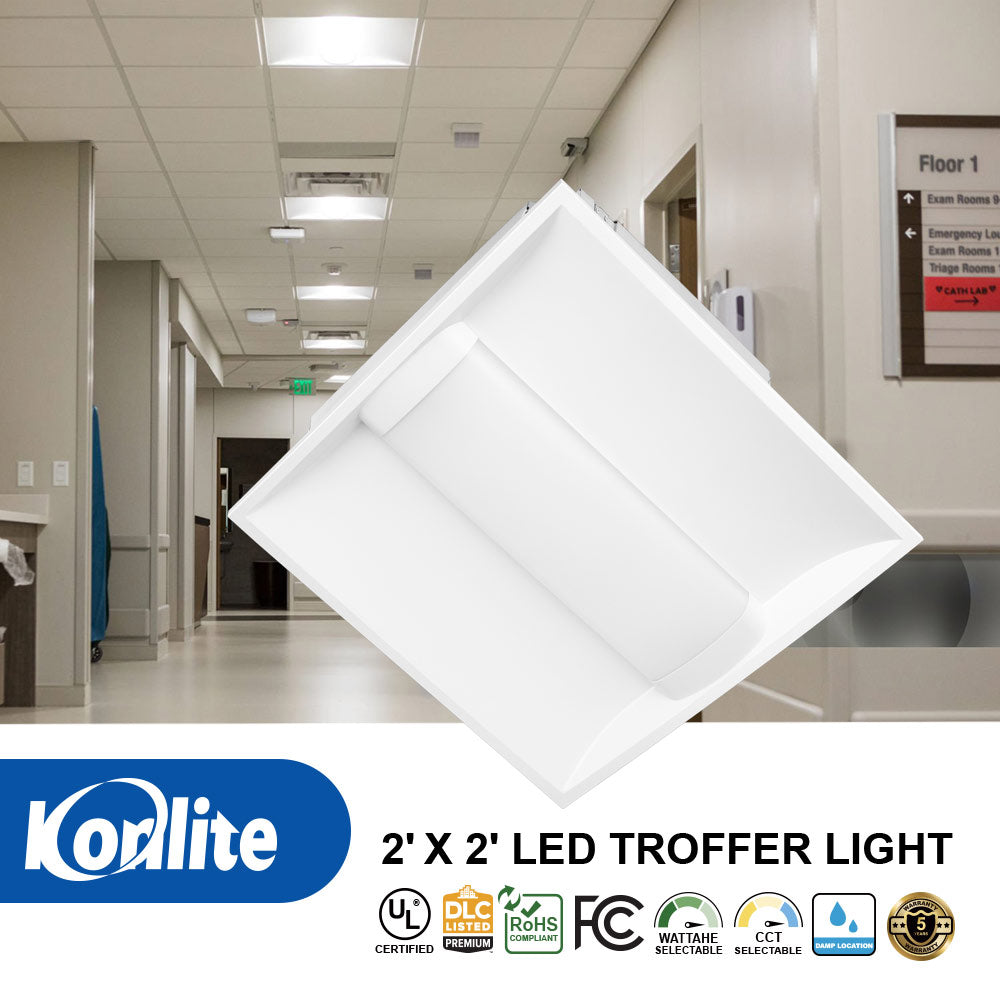

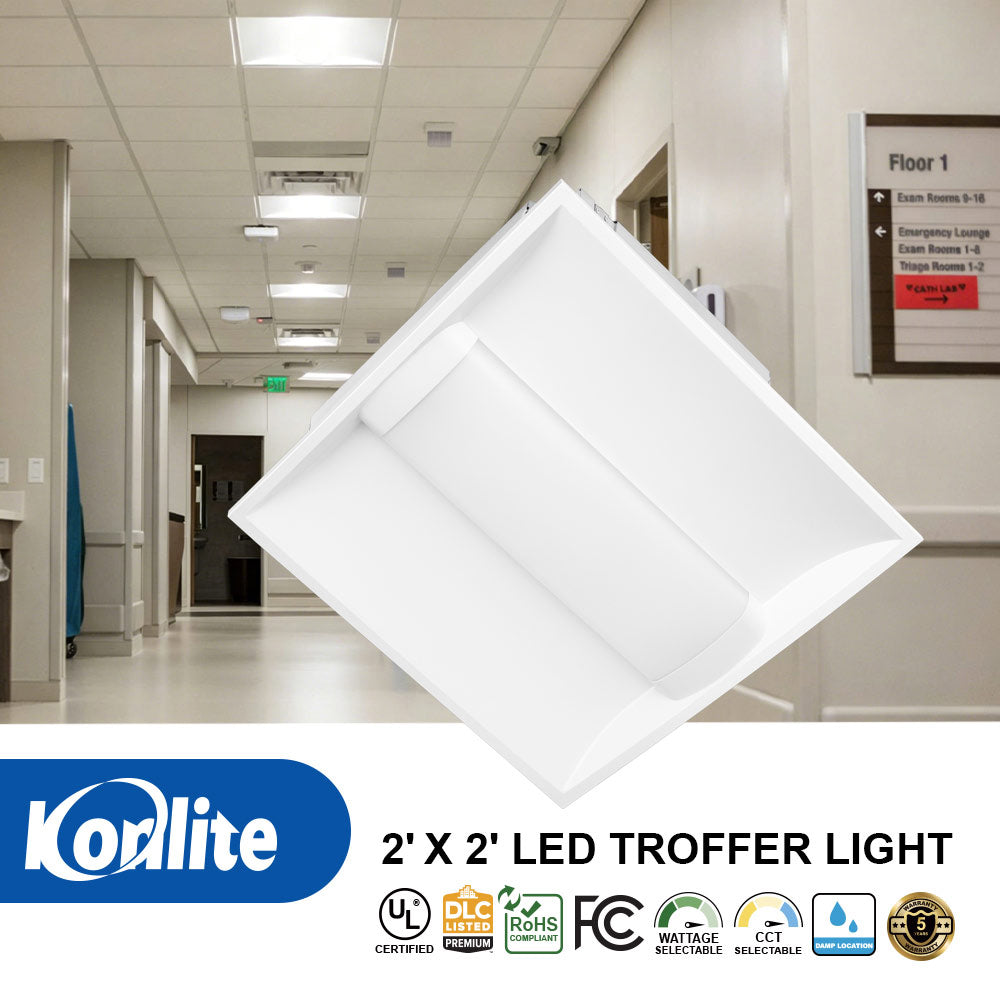

Korlite 2' x 2' LED troffer light in a hallway setting

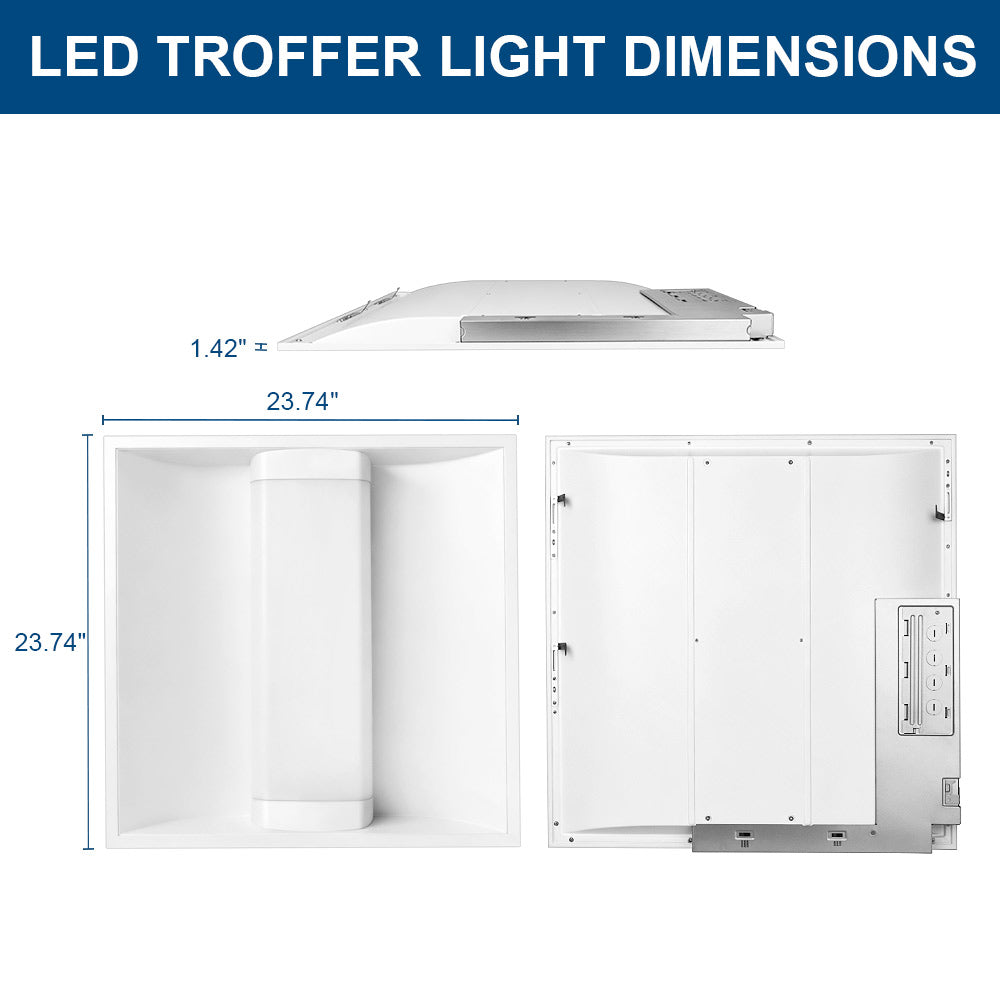

LED troffer light with dimensions labeled

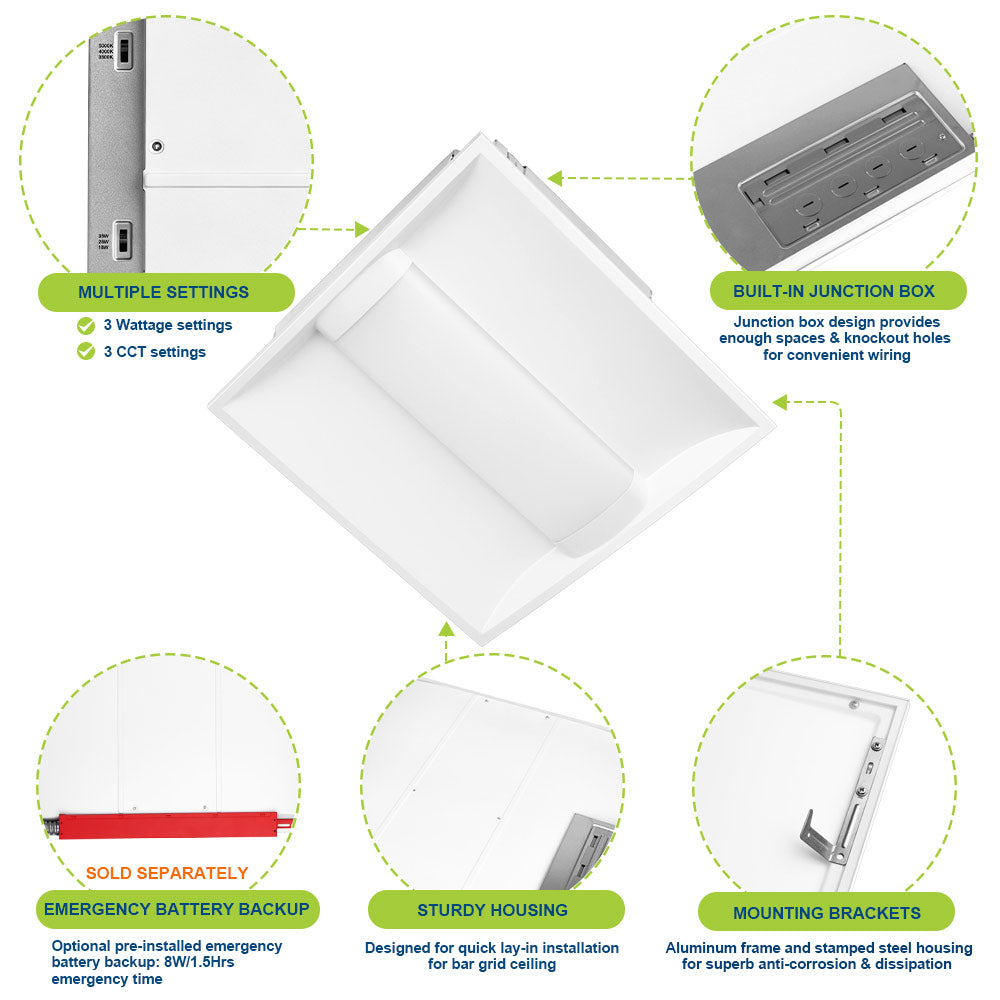

Product details of Konlite 2x2 Center Basket Troffer Light

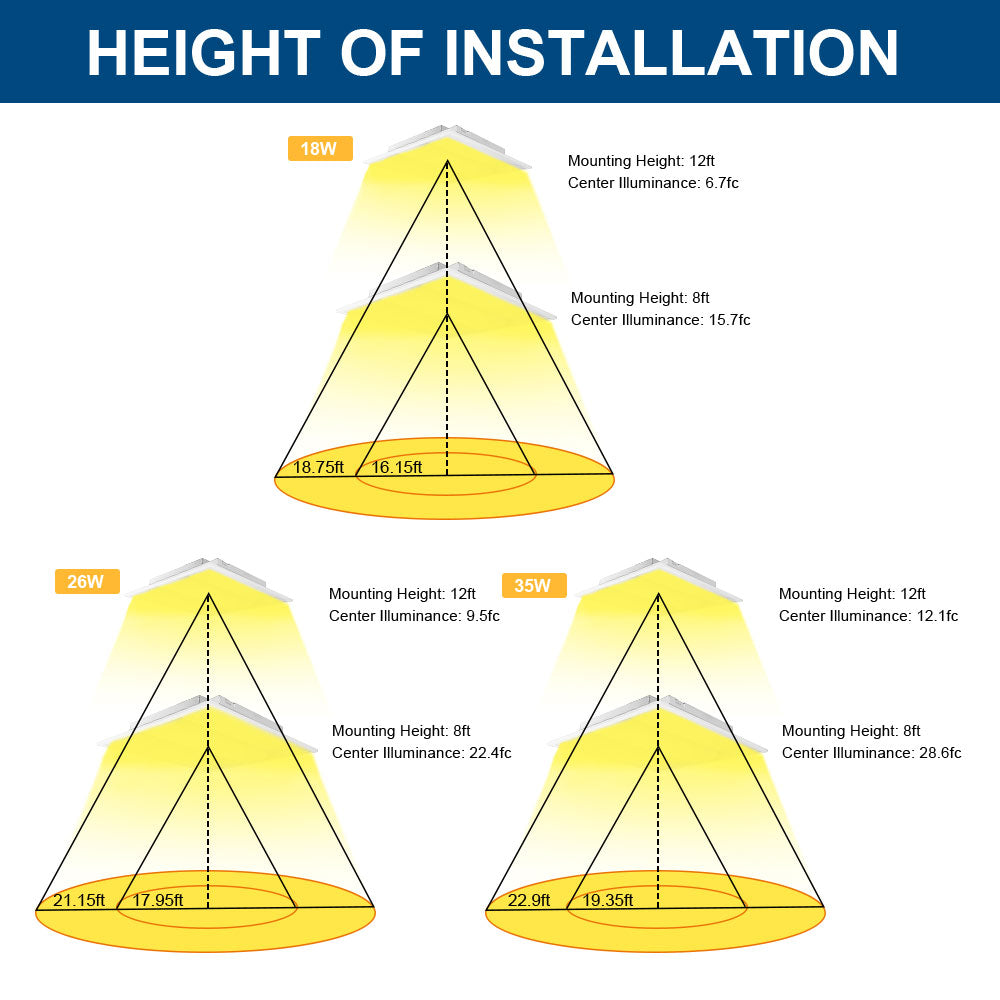

Konlite 2x2 Center Basket Troffer Light brightness of different heights of installation

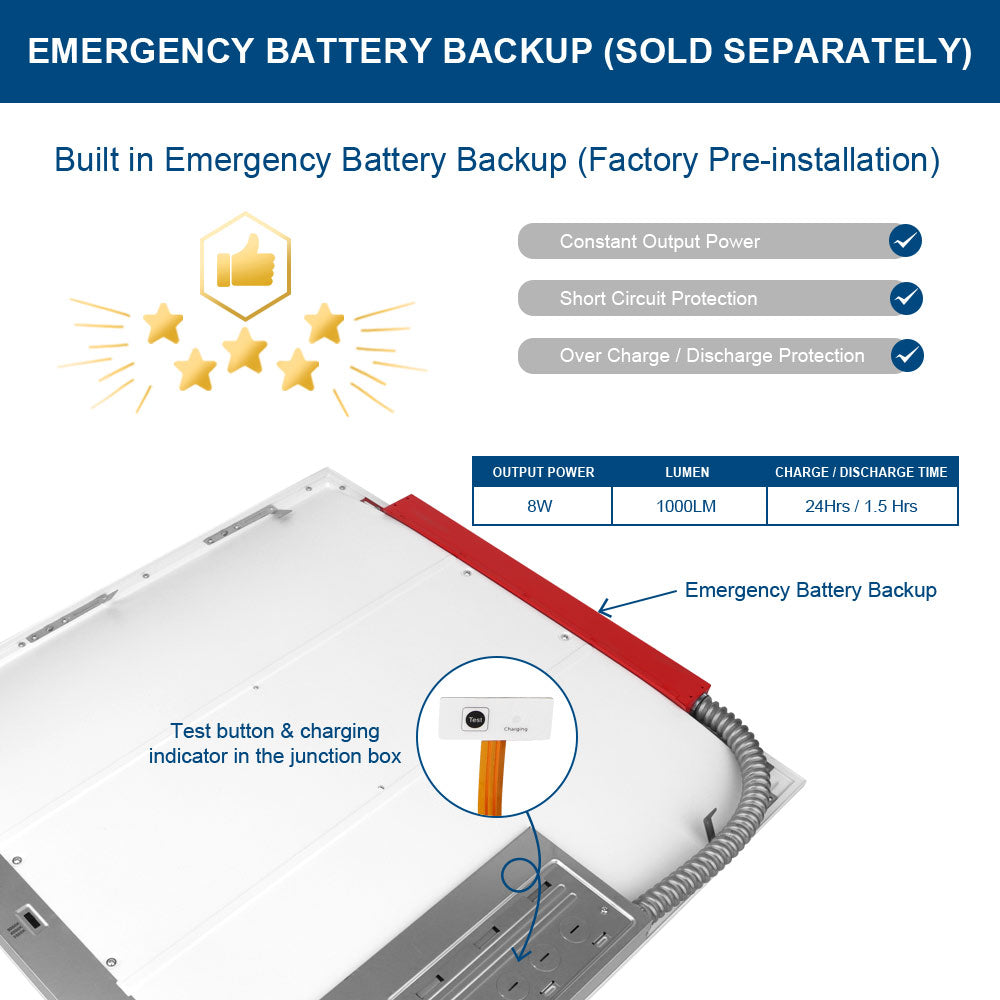

Konlite 2x2 Center Basket Troffer Light with emergency battery backup feature, showing specifications and safety features.

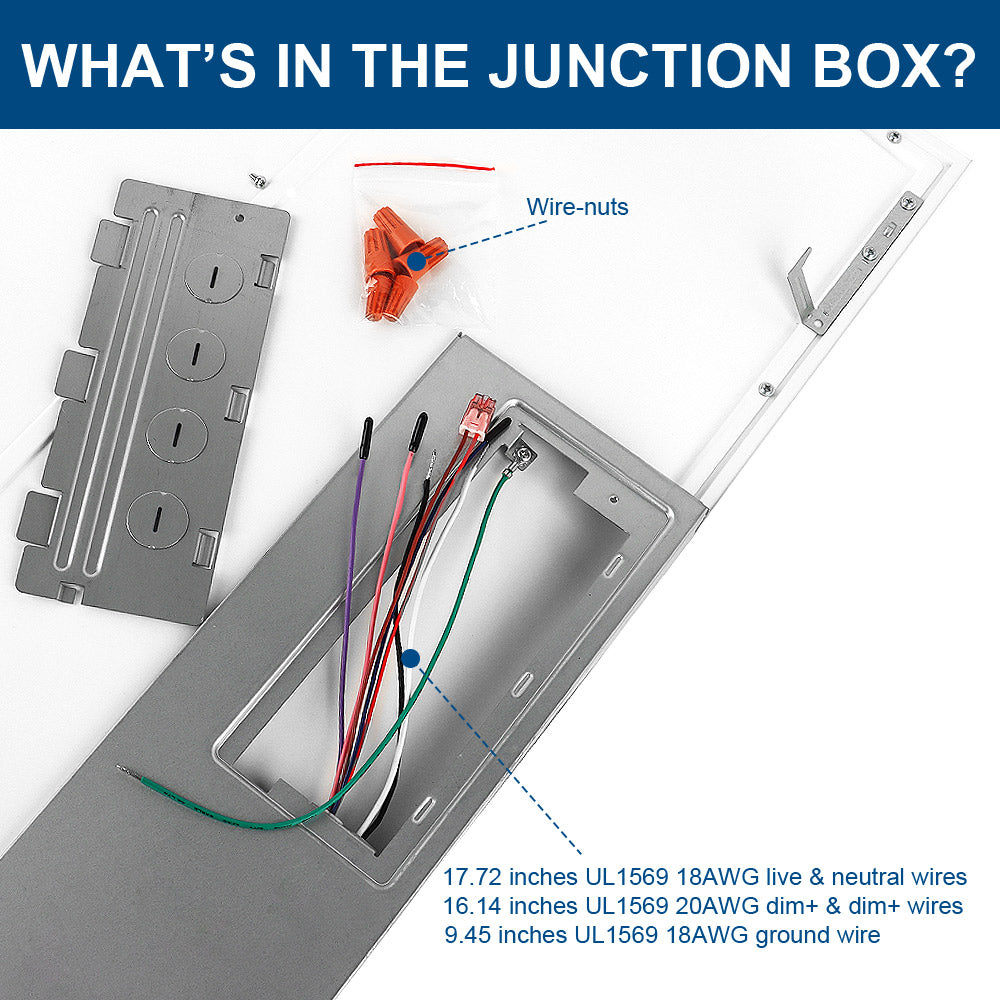

Konlite 2x2 Center Basket Troffer Light Junction box with wires and wire-nuts, labeled with specifications.

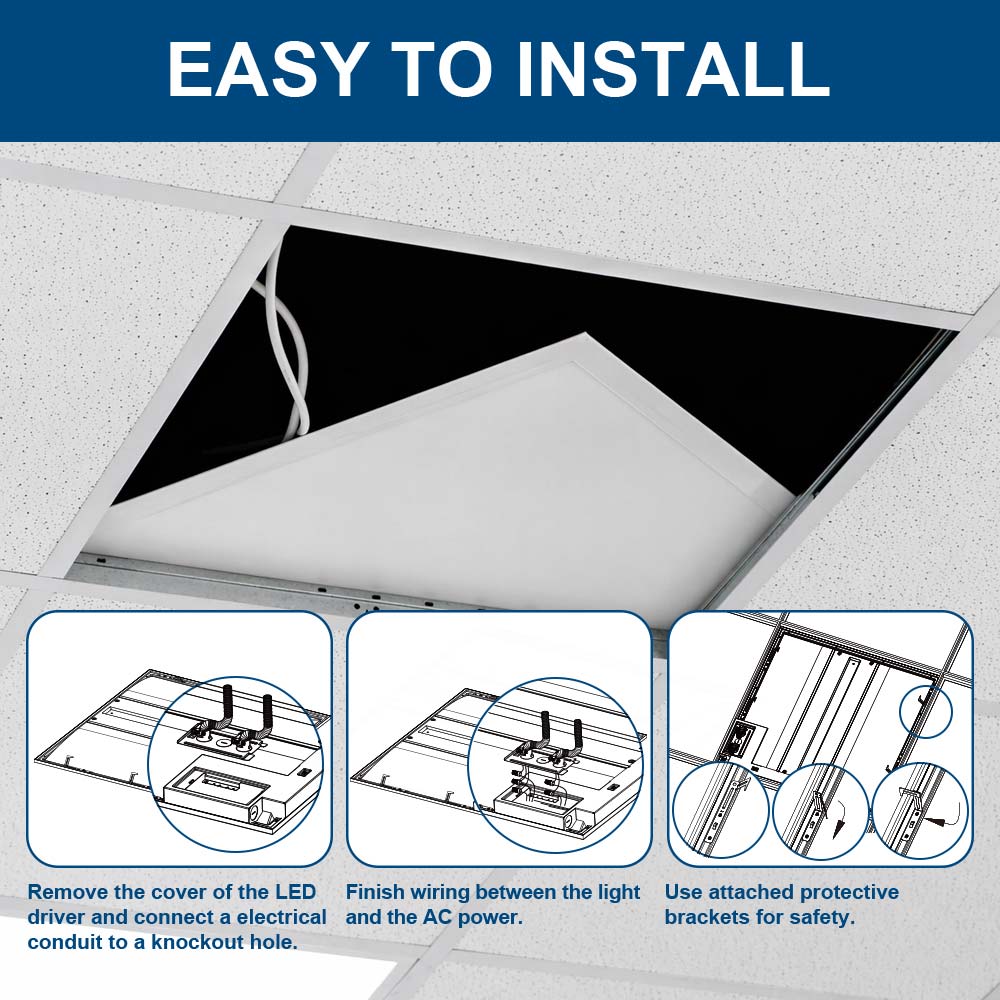

Konlite 2x2 Center Basket Troffer Light installation Guide
Roll over image to zoom in Click on image to zoom
4 pack of Konlite 2x2 Center Basket Troffer LightKorlite 2' x 2' LED troffer light in a hallway settingLED troffer light with dimensions labeledProduct details of Konlite 2x2 Center Basket Troffer LightKonlite 2x2 Center Basket Troffer Light brightness of different heights of installationKonlite 2x2 Center Basket Troffer Light with emergency battery backup feature, showing specifications and safety features.Konlite 2x2 Center Basket Troffer Light Junction box with wires and wire-nuts, labeled with specifications.Konlite 2x2 Center Basket Troffer Light installation Guide

With wide-distribution optics, this new Konlite 2x2 LED Troffer light delivers smooth, uniform illumination with low glare and no visible hot spots, creating a clean and modern appearance.

  • Select from multiple wattage and color temperature settings to match your application needs.

  • Long-life LEDs provide an energy-efficient and low-maintenance lighting solution.

  • The slim design and multiple knockouts provide wiring flexibility.

  • Standard 0-10V dimming enables adjustable light levels for improved comfort and energy savings.

What's in the box
4 LED Panel Lights - Installation Guide

2x2 Center Basket Troffer Light - 35W/26W/18W - 4700 Lumens - 5000K/4000k/3500k - 120-277V - Pack of 4

Konlite SKU: KTR35MCL22-4 SEARCH CODE: 11-0101
    • Replaces 2-Lamp Fluorescent
    • Flicker-free, eye-friendly lighting
    • 0-10V Dimmable
    • Watts: 35W/26W/18W
    • Brightness: 4720/3635/2484 LM
    • CCT: 5000K/4000K/3500K
    • Made In North America - TAA Compliant
    • Certificates: UL, DLC Premium
    • 5 Years Warranty
$239.99 $187.65

  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

With wide-distribution optics, this new Konlite 2x2 LED Troffer light delivers smooth, uniform illumination with low glare and no visible hot spots, creating a clean and modern appearance.

  • Select from multiple wattage and color temperature settings to match your application needs.

  • Long-life LEDs provide an energy-efficient and low-maintenance lighting solution.

  • The slim design and multiple knockouts provide wiring flexibility.

  • Standard 0-10V dimming enables adjustable light levels for improved comfort and energy savings.

What's in the box
4 LED Panel Lights - Installation Guide
4 pack of Konlite 2x2 Center Basket Troffer Light
2x2 Center Basket Troffer Light - 35W/26W/18W - 4700 Lumens - 5000K/4000k/3500k - 120-277V - Pack of 4
$239.99 $187.65
What's in the box
4 LED Panel Lights - Installation Guide

Product Overview

Upgrade your commercial lighting with the Konlite 2x2 LED Center Basket Troffer Light — a high-efficiency, low-glare lighting solution designed for offices, schools, healthcare facilities, retail stores, hallways, and commercial spaces. Featuring selectable wattage and color temperature settings, this premium LED troffer provides flexible performance while reducing maintenance and energy costs

Built with a durable stamped steel housing and aluminum frame, the fixture delivers excellent heat dissipation and long-lasting reliability. The ultra-smooth PS diffuser creates soft, uniform illumination with reduced glare, making it ideal for environments requiring comfortable visual performance and productivity..

This 2x2 center basket troffer supports recessed lay-in installation for standard T-bar grid ceilings and includes selectable wattage options of 35W / 26W / 18W with selectable 3500K / 4000K / 5000K color temperatures for customizable lighting control.

The fixture is DLC 6.0 Premium qualified, UL listed, flicker free, and delivers up to 153 lumens per watt for maximum energy savings and rebate eligibility. Optional emergency battery backup provides up to 90 minutes of emergency lighting operation.

Perfect for replacing fluorescent troffers or upgrading commercial ceiling lighting with long-lasting LED performance.



Applications

•Office Lighting •Retrofit Installation
•Commercial & Industrial Lighting •New Constructions
•Hospitals •Schools
•Retail •Healthcare
Color Temperature Selectable color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumFCC certification

Specifications

BrandKonliteMPNKTR35MCL22
WarrantyLimited 5 YearsUPC659675413877
Input Voltage120-277VBeam Angle120°
Input Wattage35W/26W/18WEfficacy134 LM/W
Lumens4,720 LM Max.CRI>80
Dimmable0-10VAvailable CCT3500/4000/5000K
Rated Life>L70@100,000 hrsTHD<20%
Power Factor>0.9EnvironmentIndoor Dry
Operating Temperature-4 to 104 FDimensions23.74"x 23.74"X 1.42"
CertificationsDLC, ULWeight4.3 Lbs
