Product Overview
The Konlite CDT Series 20W LED Recessed Downlight delivers flexible, energy-efficient illumination for modern residential and commercial interiors. Designed with a multi-selectable platform, this fixture allows installers and end users to adjust both wattage and color temperature to match the space without changing fixtures.
With field-selectable 3000K / 3500K / 4000K CCT, the light easily transitions from warm ambient environments to neutral task lighting and crisp commercial applications—all from a single unit.
The 20W model also features built-in wattage selection:
-
20W (max output)
-
15W (energy saving)
-
10W (low output)
At full output, the fixture delivers over 2,200 lumens with smooth, uniform distribution and no visible flicker, making it suitable for both comfort and task lighting environments.
Engineered for recessed ceiling installation, the CDT Series produces soft, glare-controlled illumination that enhances interior spaces without visual clutter. High-efficiency LED chips paired with precision optics ensure consistent light output and reliable long-term performance.

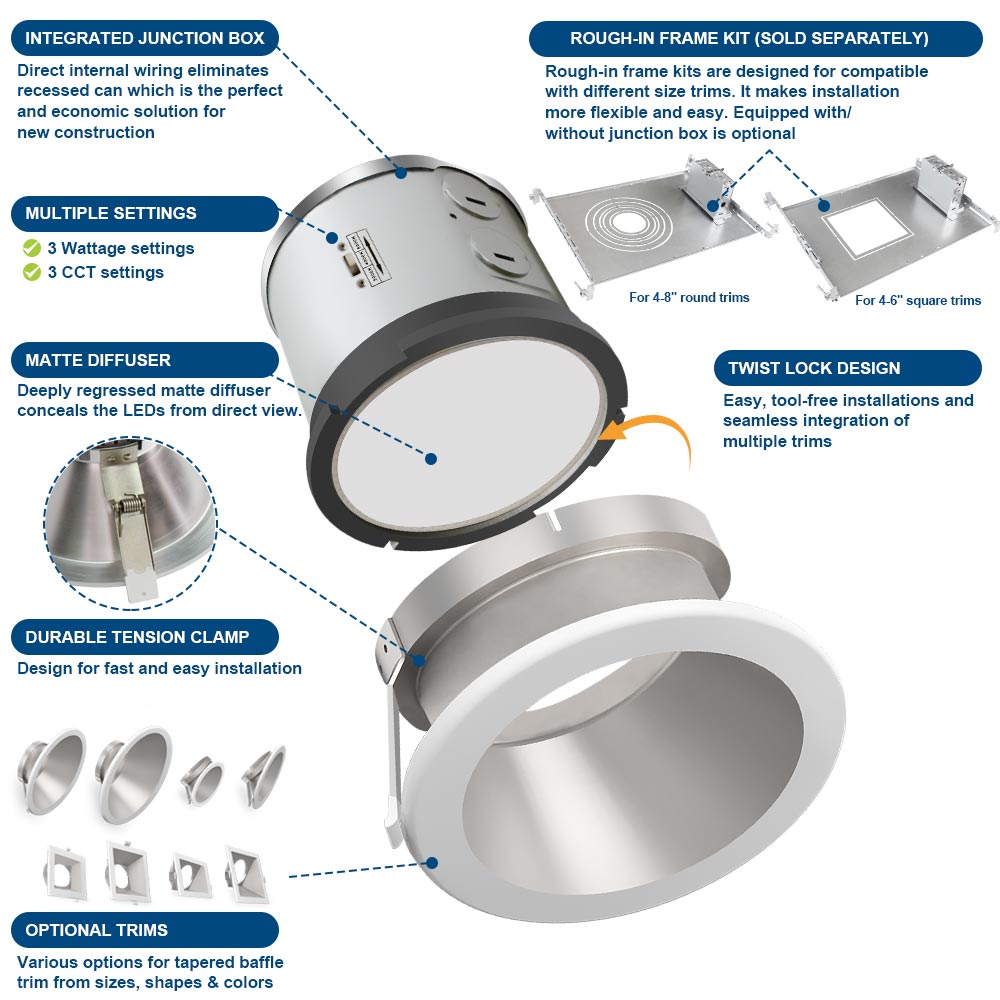

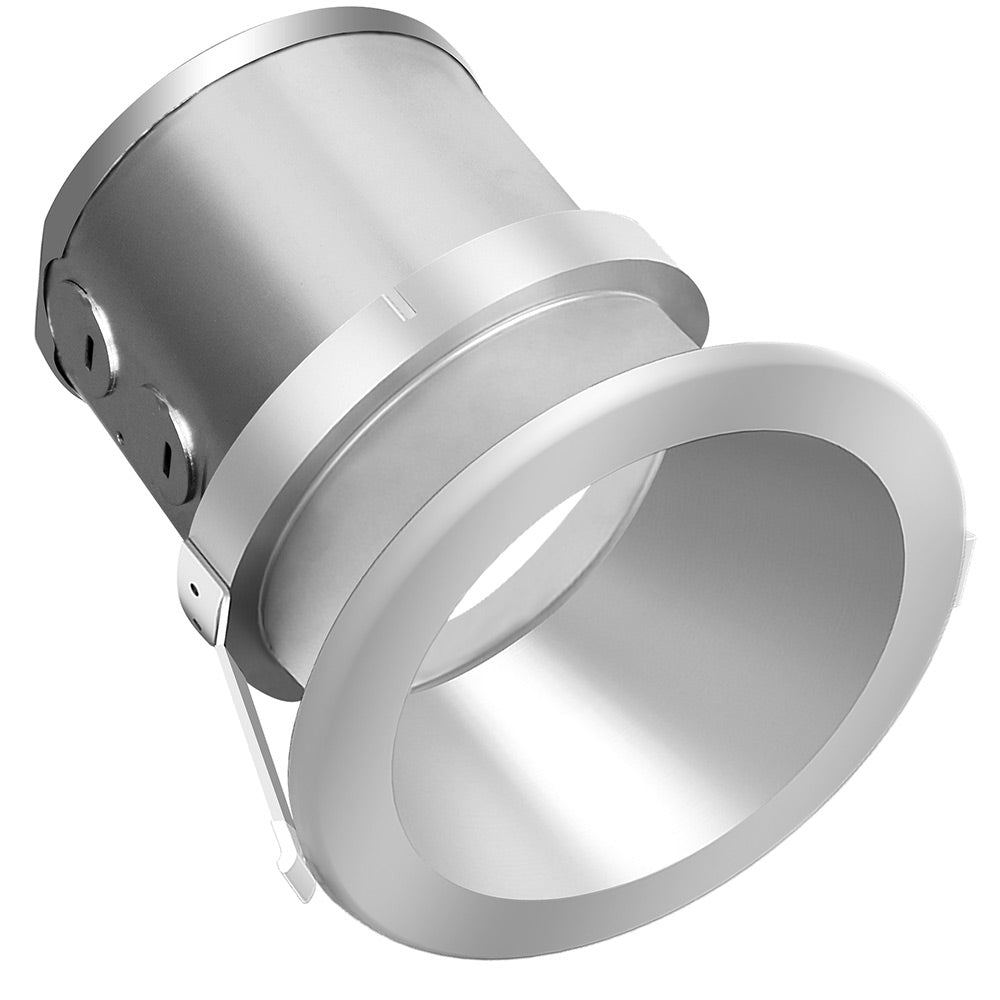

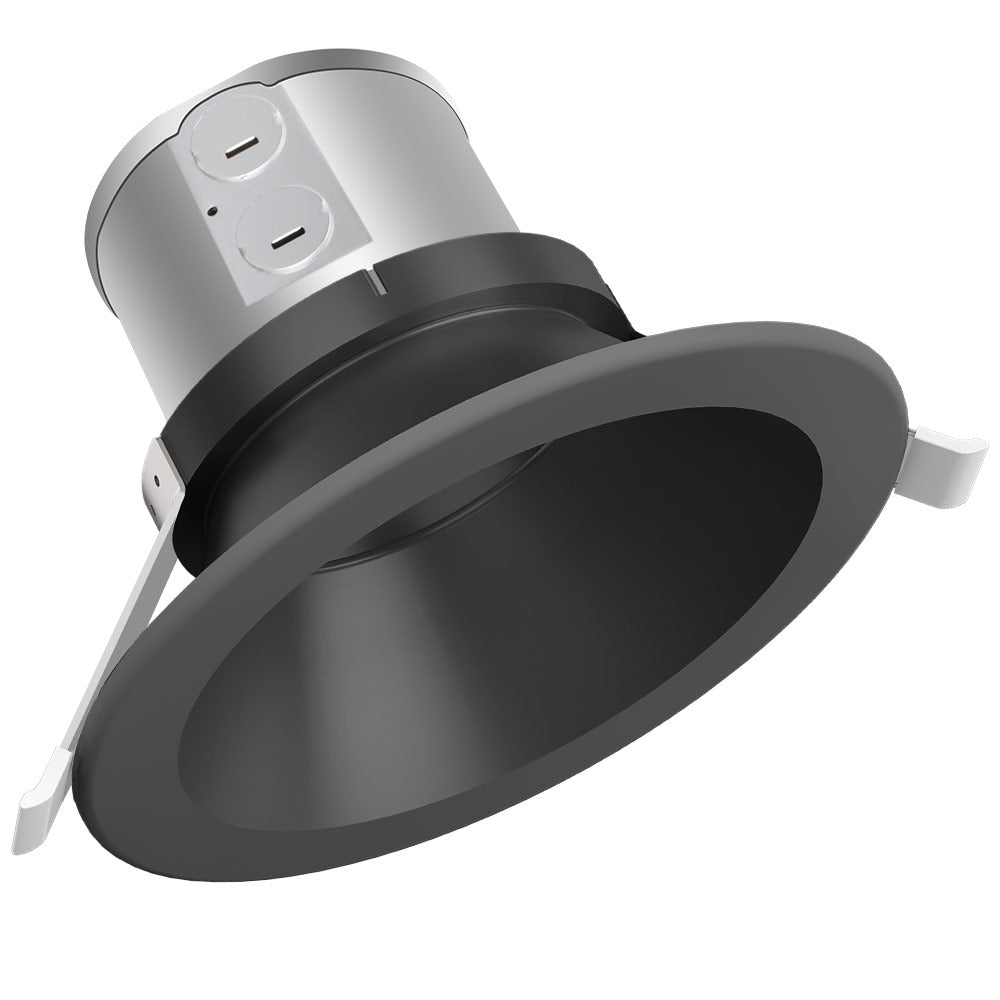

Installation is streamlined with an integrated junction box and spring clamp mounting system, allowing for fast ceiling recessed installation in both new construction and retrofit projects.
The durable die-cast aluminum housing provides excellent thermal management, helping extend LED lifespan while maintaining stable lumen performance.
Backed by a 5-Year Limited Warranty for long-term reliability and peace of mind.

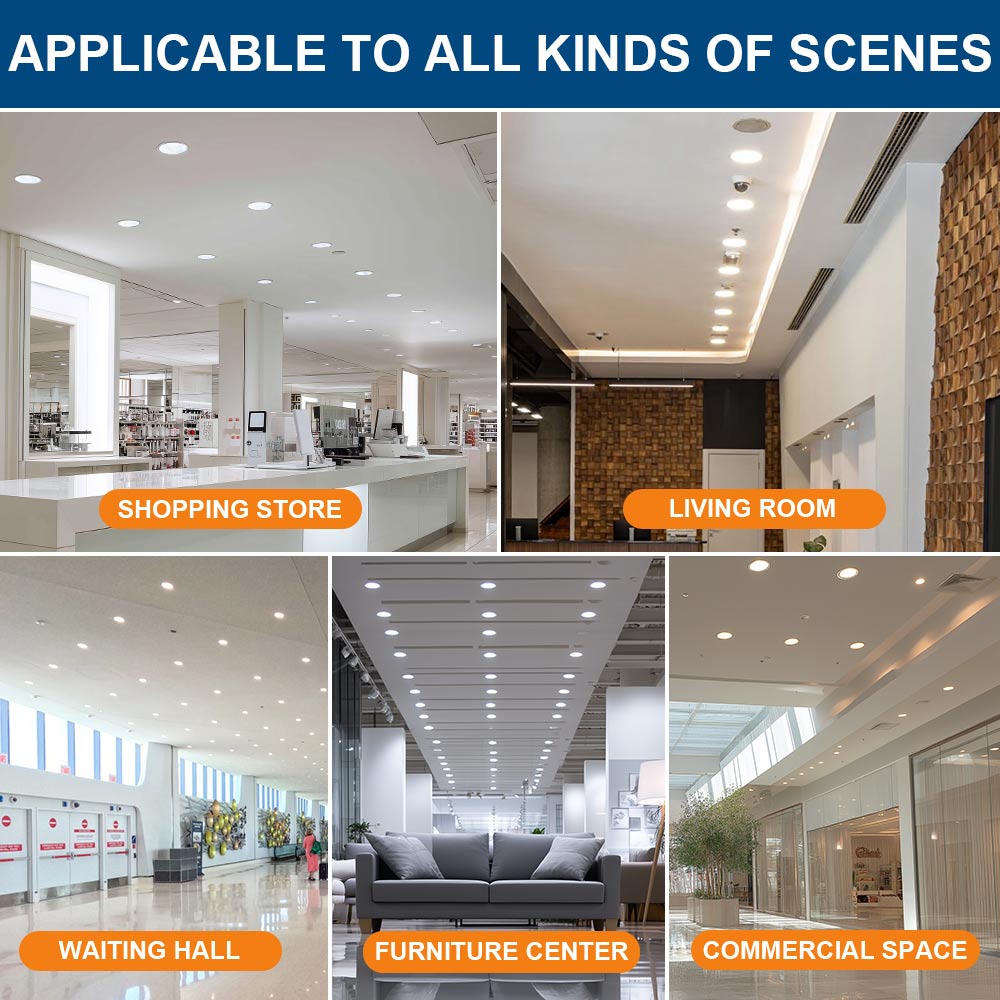

Applications
| •Retrofits | •Offices & conference rooms |
| •Retail stores | •Hotels & hospitality spaces |
| •Residential living areas | •Lobbies & corridors |
| •Bars | •Healthcare facilities |

Specifications
| Warranty | 5 Years | MPN | KCDT204KXRX |
| Input Voltage | 120-347V | UPC | 659675151748 |
| Input Wattage | 20W/15W/10W | Equal to | 120W |
| Lumens | 2200 LM | CRI | >80 |
| Efficacy | 110 LM/W | Available CCT | 4000K/3500K/3000K |
| Rated Life | >50,000 hrs | THD | <20% |
| Dimmable | Yes | IP Rating | N/A |
| Operating Temperature | -4° to 122° F | Dimensions | See Spec Sheet |
| Certifications | UL, Damp Locations, Energy Star | Weight | 2 Lbs |
