Product Overview

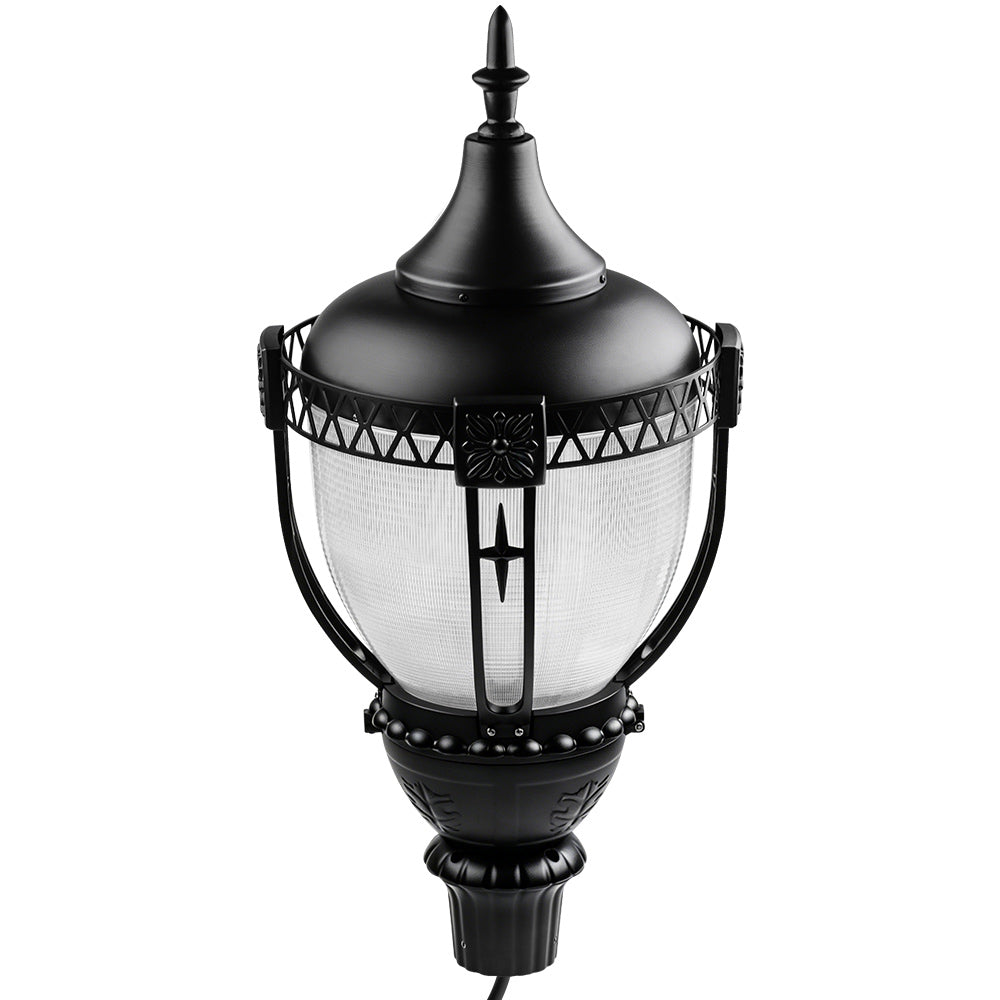

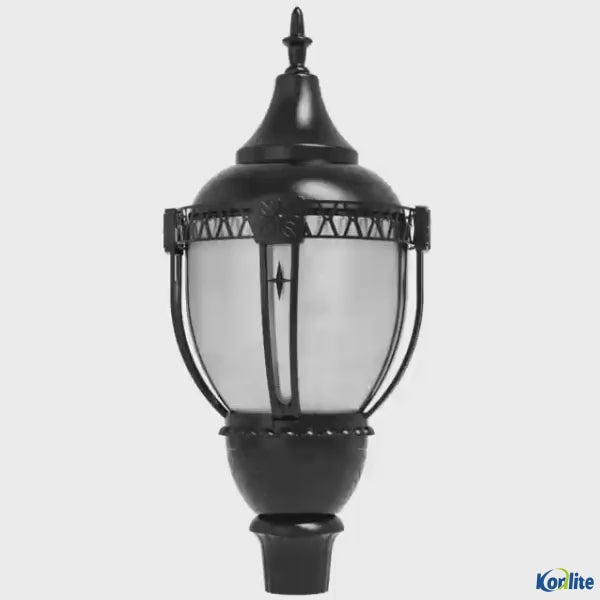

The Konlite PT03 100W LED Acorn Post Top Light combines timeless decorative styling with the efficiency and reliability today's contractors demand. Designed for municipalities, HOAs, schools, parks, campuses, pedestrian pathways, and commercial properties, the PT03 delivers attractive area illumination while reducing maintenance and energy costs.

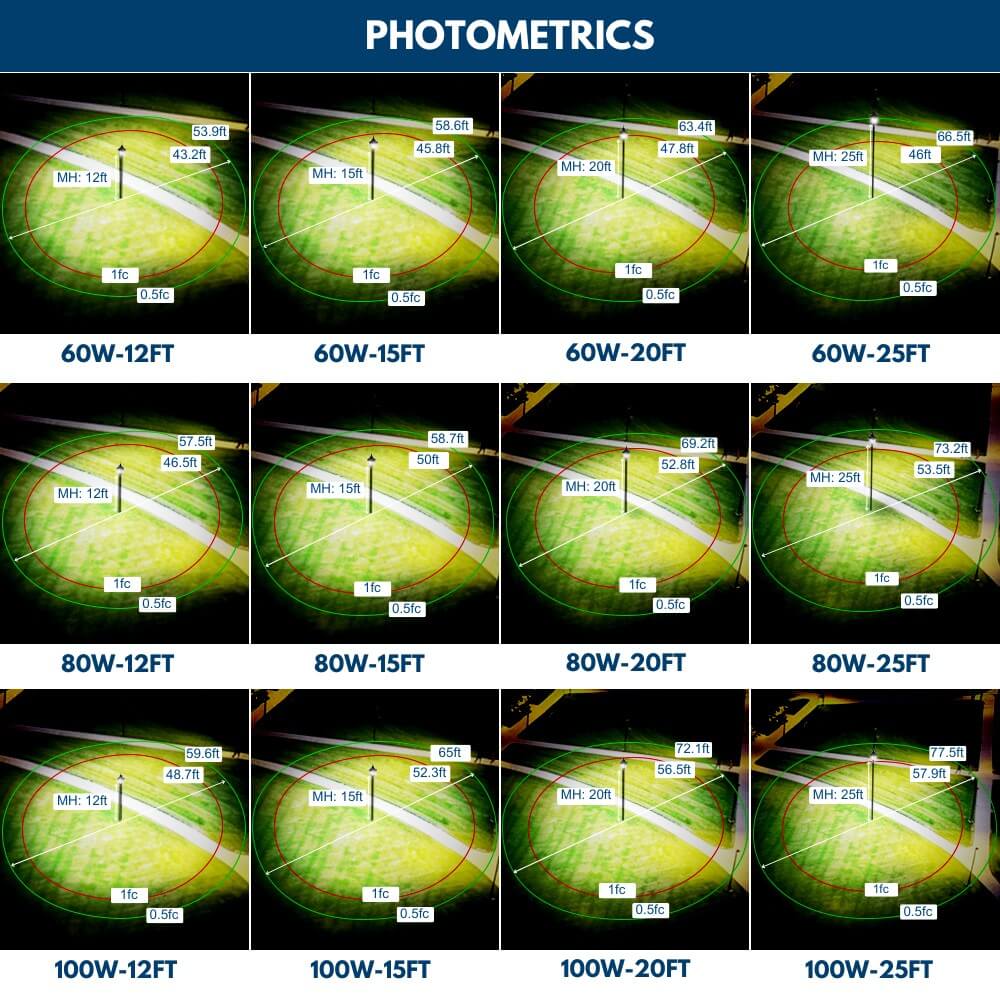

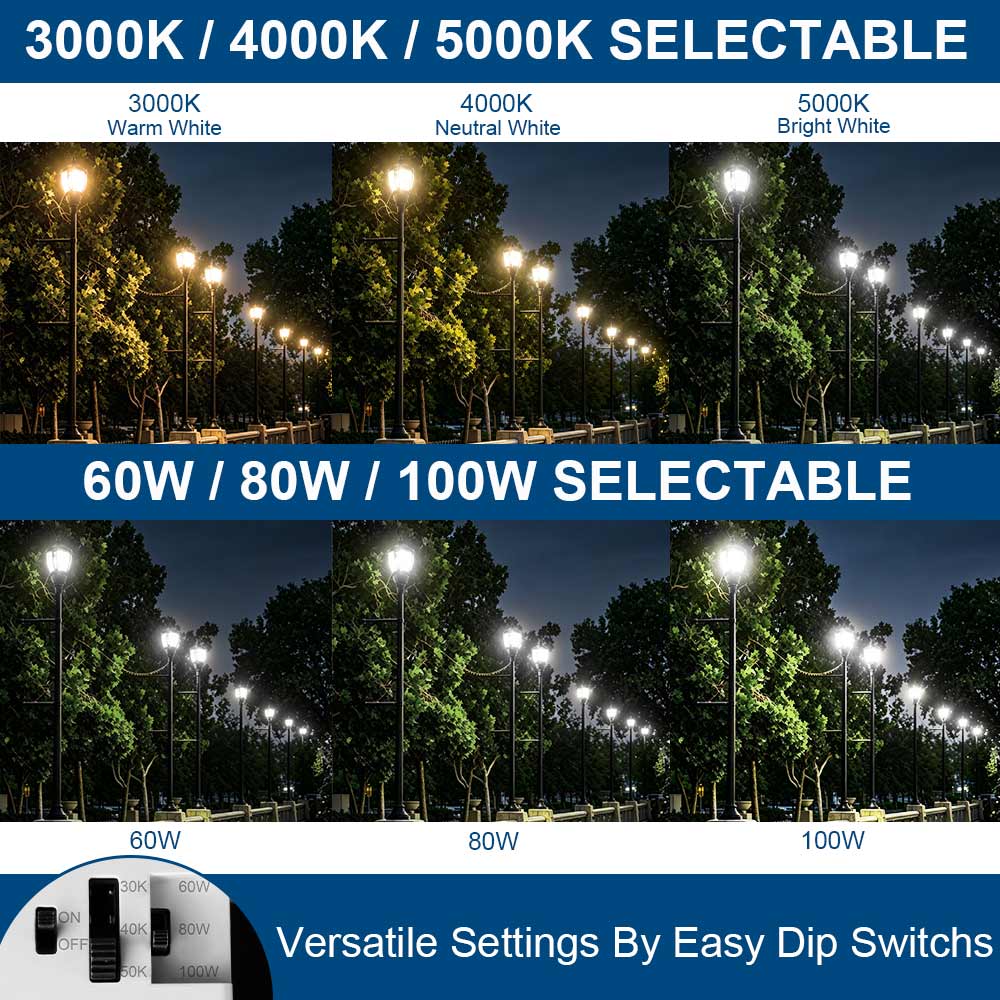

Unlike traditional HID acorn fixtures, the PT03 features integrated LED technology, delivering up to 10,139 lumens while consuming significantly less energy. Contractors can simplify inventory with field-selectable wattages of 60W, 80W, or 100W and selectable color temperatures of 3000K, 4000K, or 5000K.

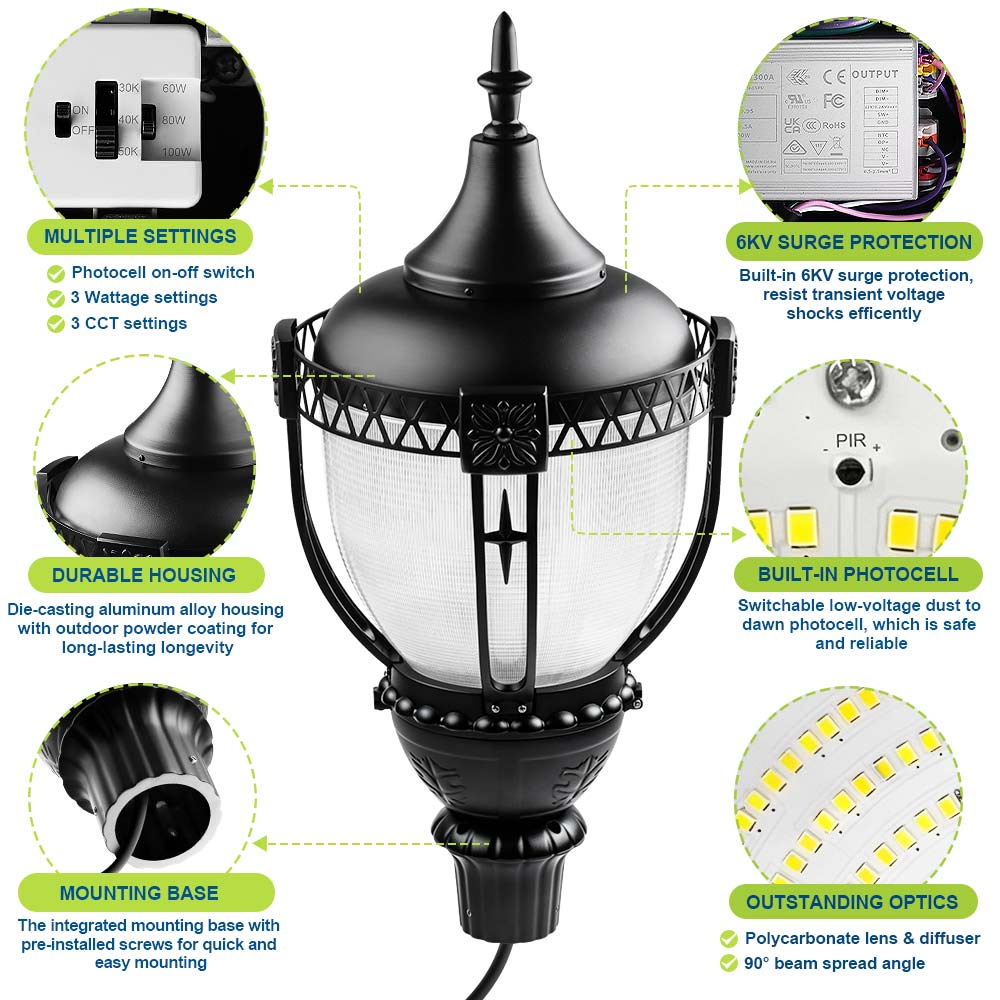

The rugged die-cast aluminum housing, polycarbonate globe, IP65 weatherproof rating, IK08 impact resistance, and DLC Premium certification make this fixture ideal for long-term outdoor installations. A built-in photocell comes standard, automatically turning the fixture on at dusk and off at dawn for maximum energy savings.
Whether you're lighting parks, residential communities, downtown streetscapes, or public facilities, the PT03 delivers decorative appeal and dependable performance in one contractor-friendly fixture.

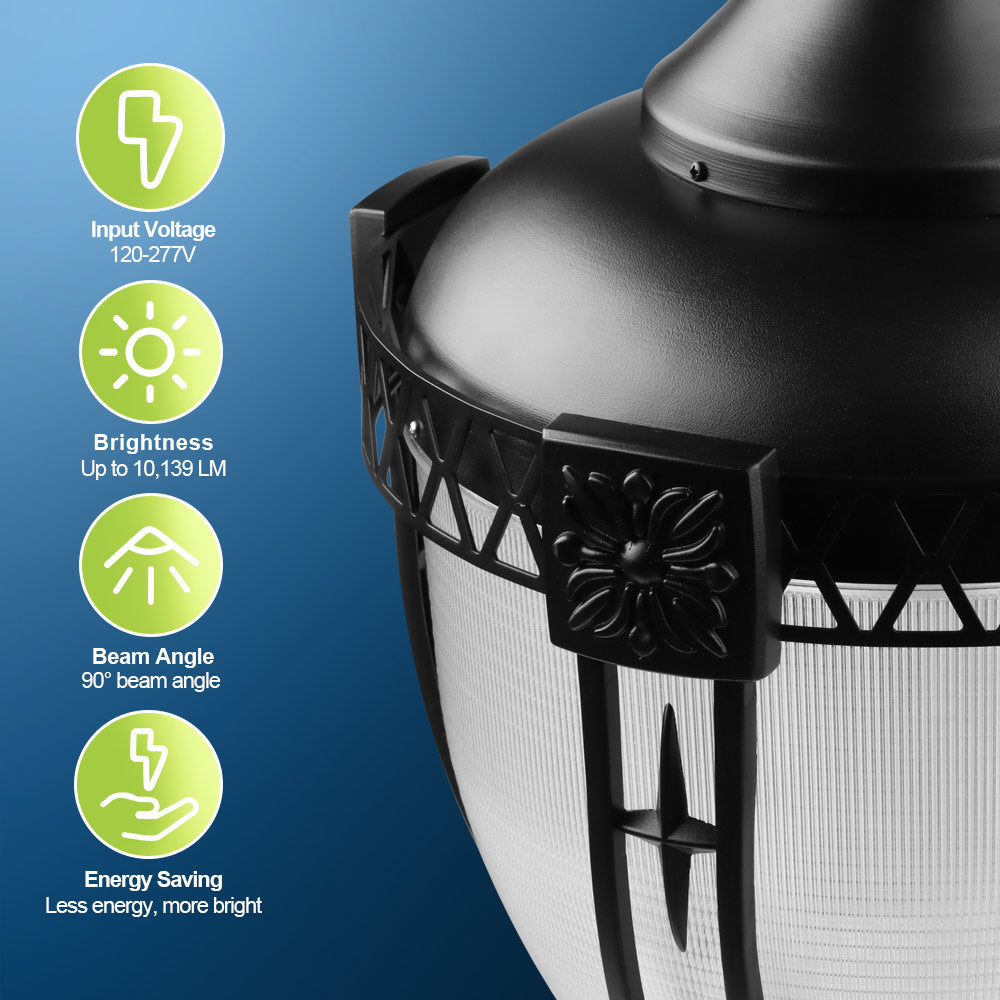

Key Features
- Up to 10,139 lumens output
- Selectable 60W / 80W / 100W
- Selectable 3000K / 4000K / 5000K

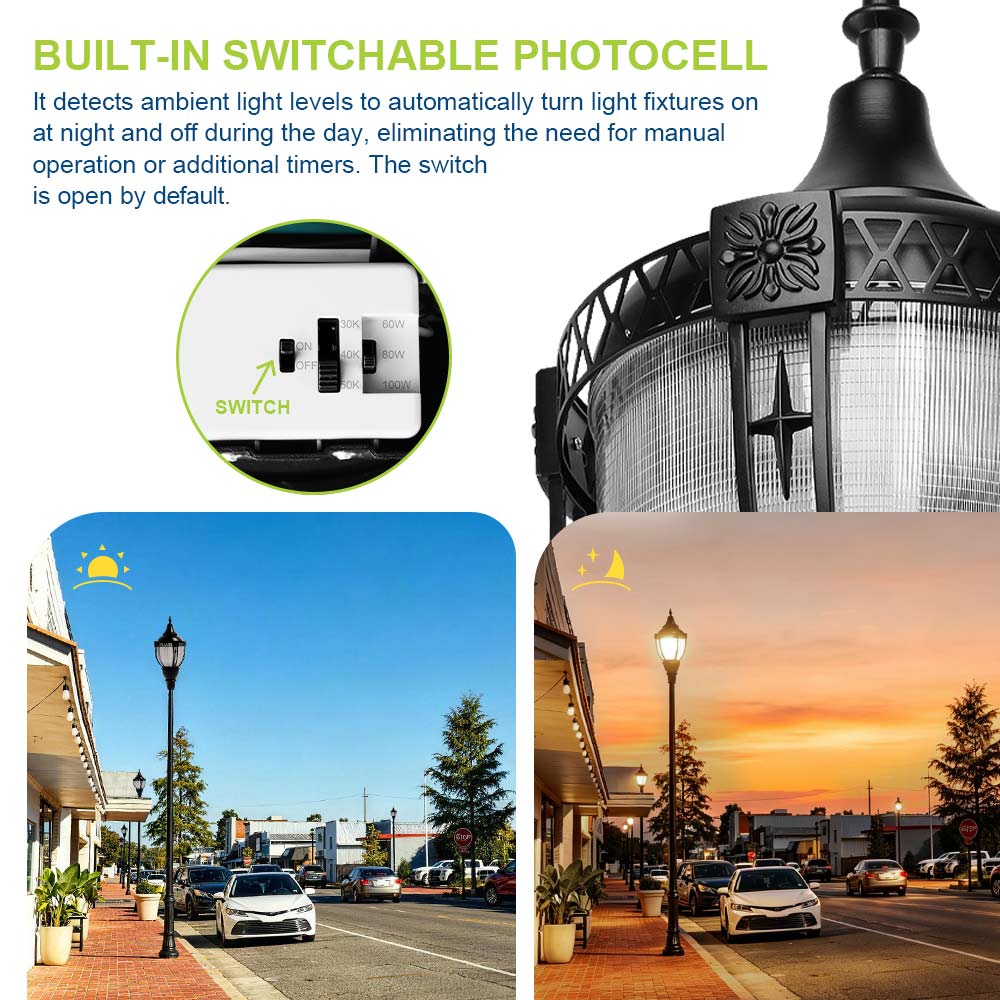

- Built-in dusk-to-dawn photocell
- DLC Premium listed
- IP65 weatherproof construction
- IK08 impact resistant housing

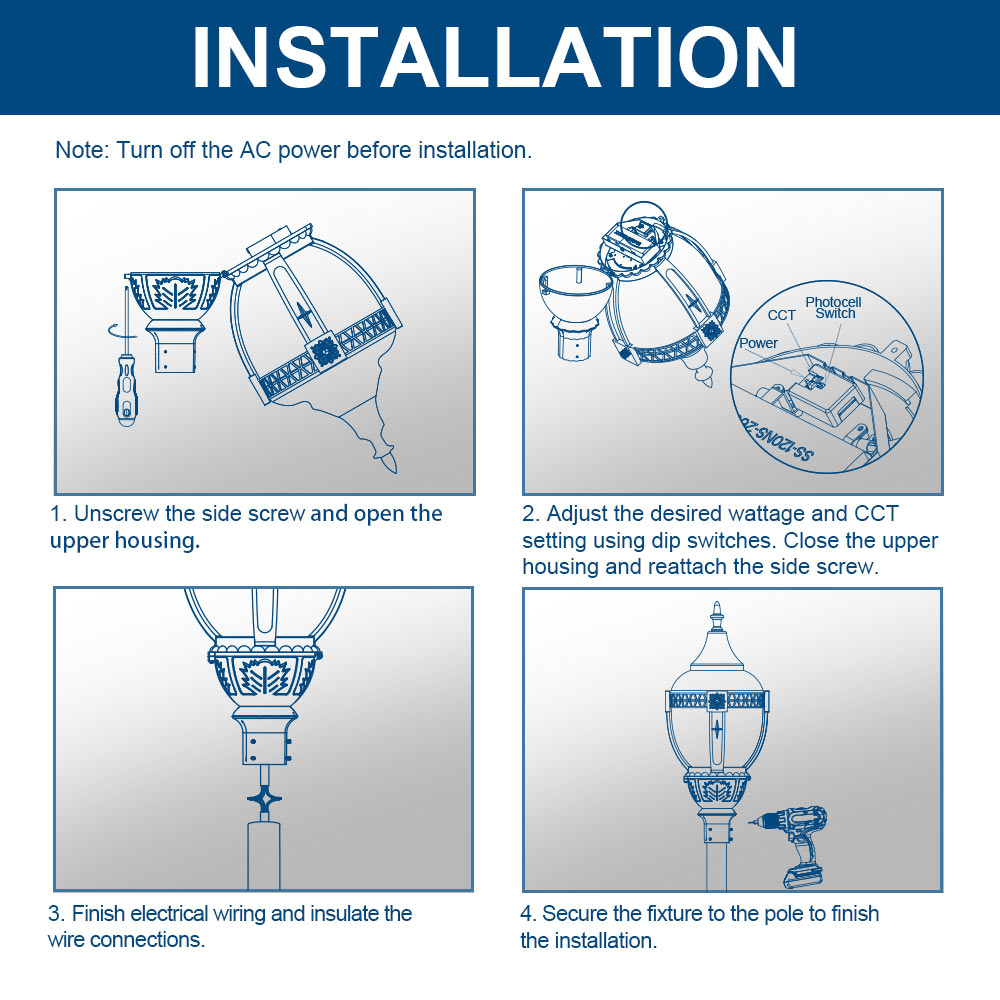

- Fits standard 3" pole tenons

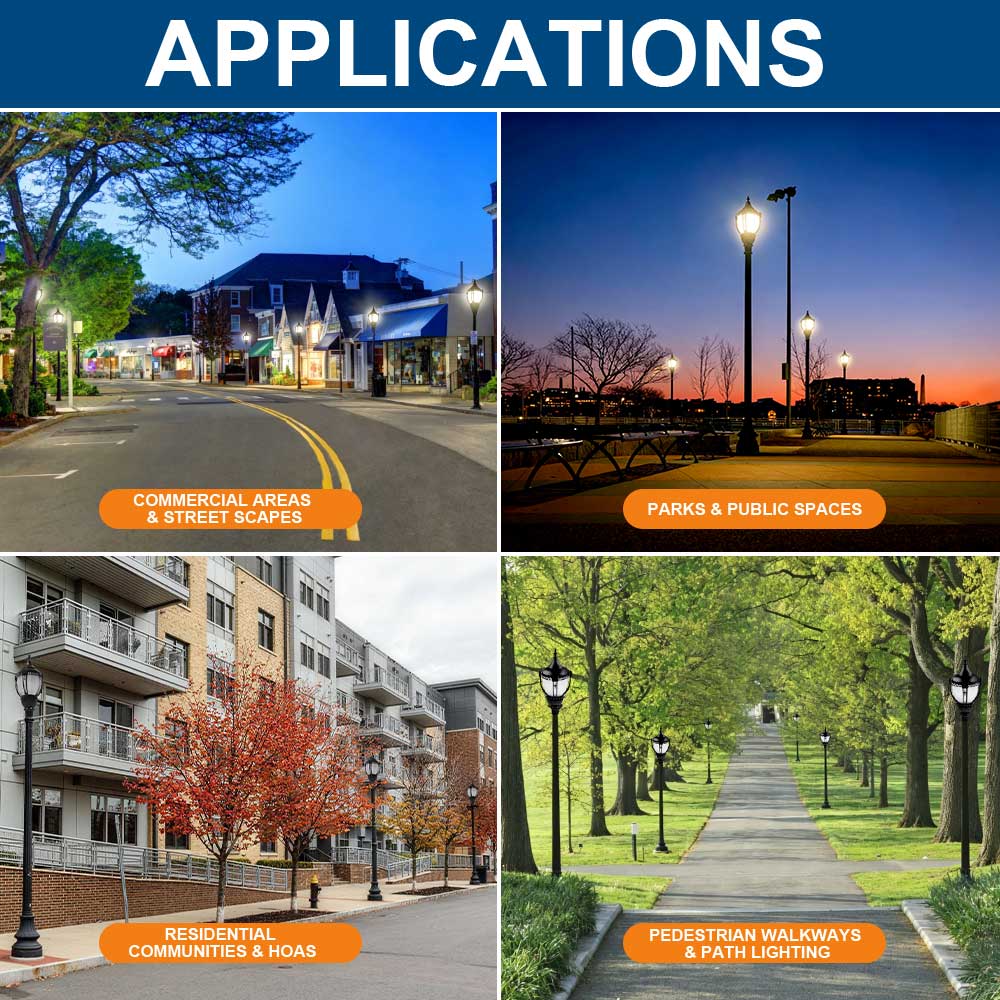

Applications
| • Area Lighting | • Parking Lots |
| •Residential Communities & HOAs |
• Roadways & Pathways |
| • Parks & Recreation Areas | • Car Dealerships |
| • Courtyards & Gardens | • Historic Districts |
| • Apartment Complexes | • Streetscapes |
| • Campus Lighting | • Municipal Lighting Projects |
Specification
| Brand | Konlite | MPN | RD-SS-PT03-100W-H-T-F |
| Warranty | Limited 5 Years | UPC | 605547664366 |
| Input Voltage | 120-277V | Beam | Type V |
| Input Wattage | 100W/80W/60W | Equal to | 320W MH |
| Lumen | 10,140 Max. | CRI | >70 |
| Efficacy | 141 LM/W max. | Available CCT | 5000K/4000K/3000K |
| LED Rated Life | >100,000 hrs | THD | <18% |
| Power Factor | >0.95 | IP Rating | IP65 |
| Dimmable | 0-10V Dimmable | Controls | Dusk to Dawn Photocell |

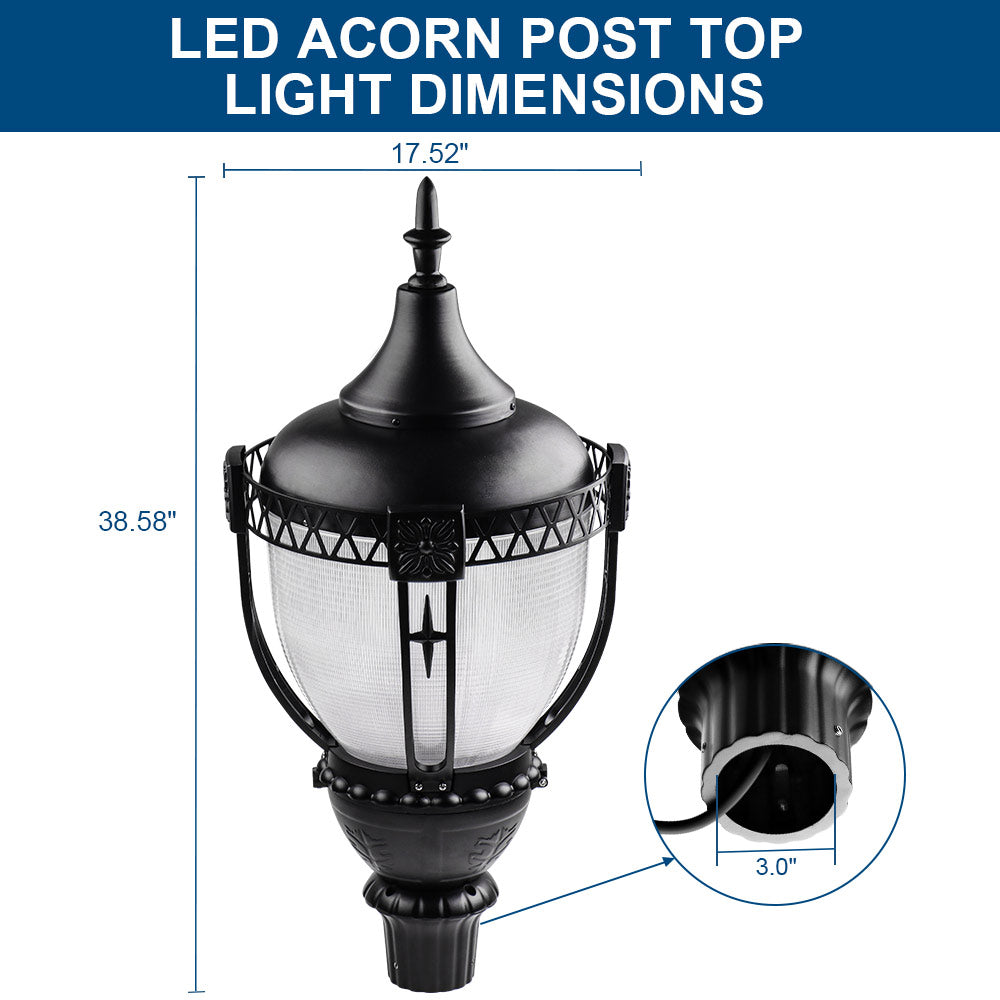

| Operating Temperature | -40 to 113 F | Dimensions | Ø17.52" x 38.58"H |
| Certifications | UL, Damp Locations, DLC Premium | Weight | 16.53 lbs |
