Outdoor LED Emergency Backup Driver - Constant Power - 18W - 100-347Vac Input - 170Vdc Output
- For Use with 1 Light Fixture with 150 Watt Max
- 90-Minute Emergency Illumination Time
- Cold Weather working Temp as low as -4ºF
- Dimmable wire connection needed
- 1,000 Recharge Cycles
- UL 924, Wet Location, CA Title 20, FCC
- 5 Years Warranty
- For Use with 1 Light Fixture with 150 Watt Max
- 90-Minute Emergency Illumination Time
- Cold Weather working Temp as low as -4ºF
- Dimmable wire connection needed
- 1,000 Recharge Cycles
- UL 924, Wet Location, CA Title 20, FCC
- 5 Years Warranty
This high-performance LED emergency power supply is ideal for Round UFO LED lights with 0-10V Dimming System.
- Runs 90 minutes in emergency mode
- 3kV surge protection

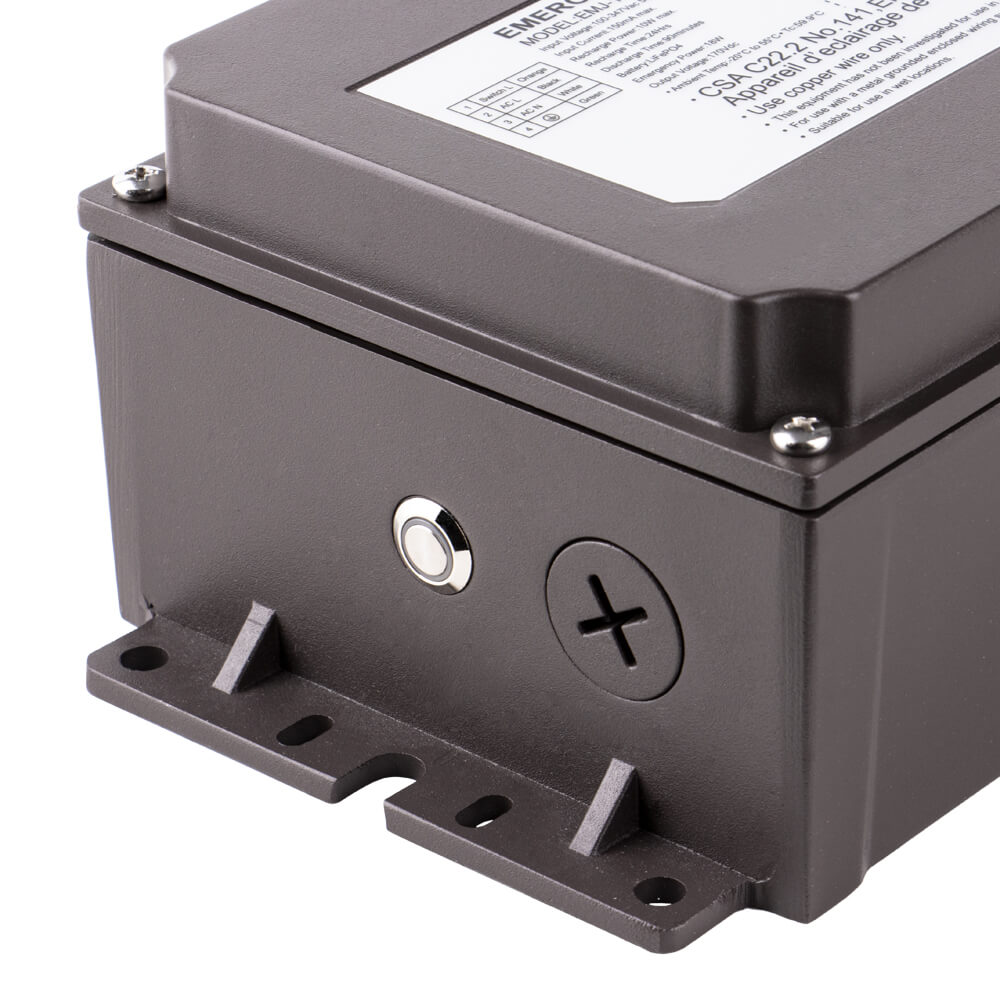

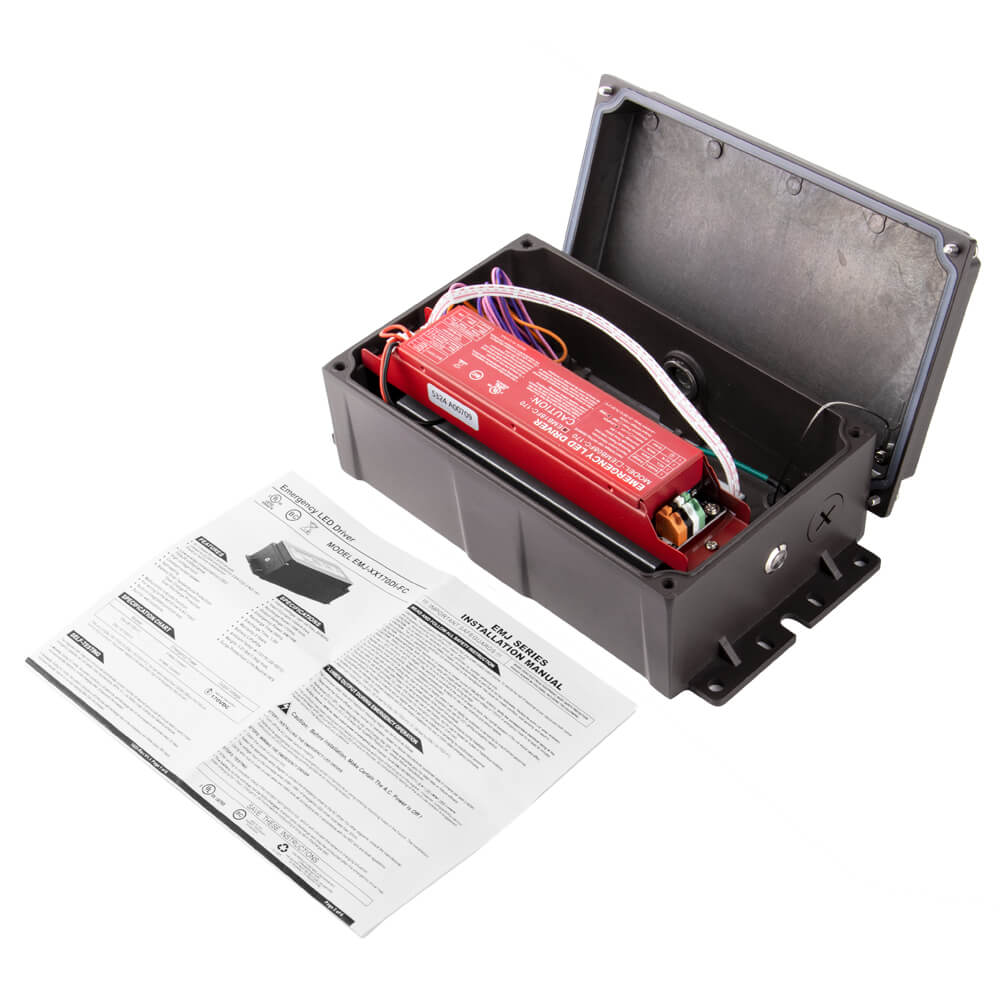

- Product Comes with mounting accessories and remote control test device
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview:

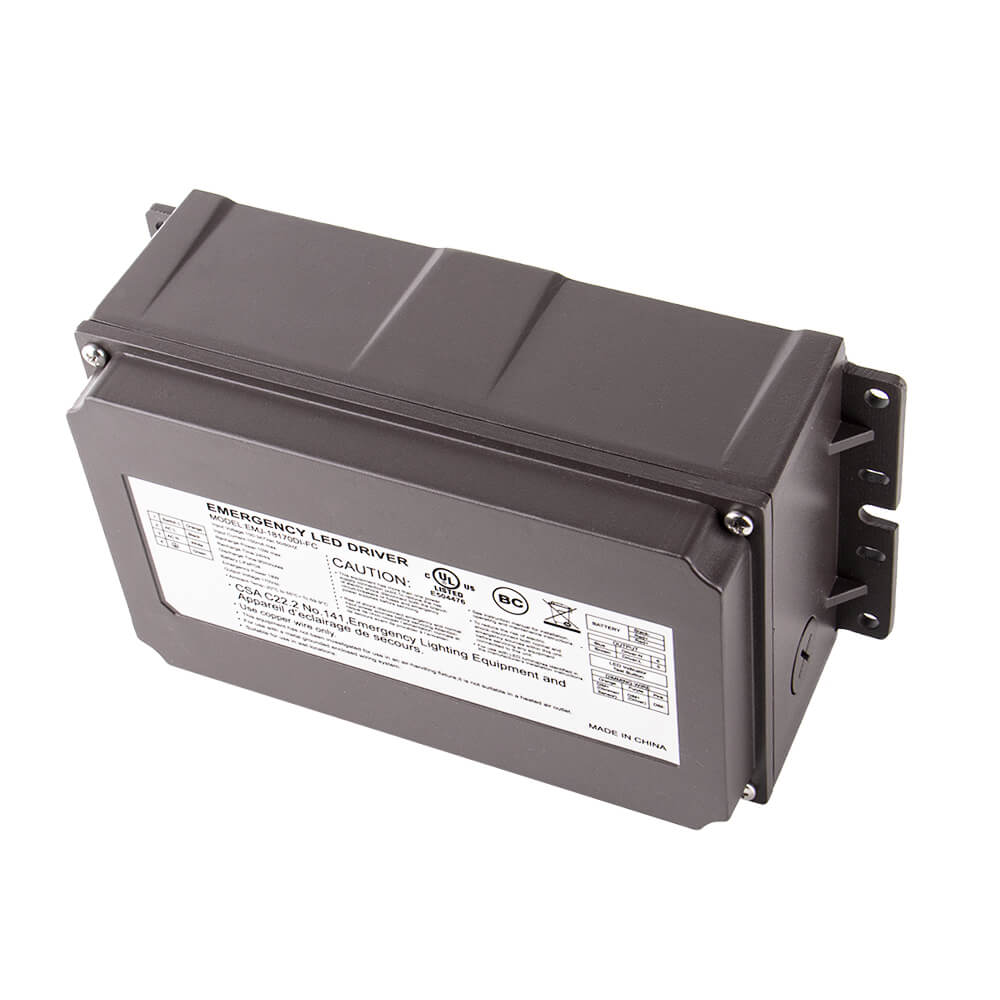

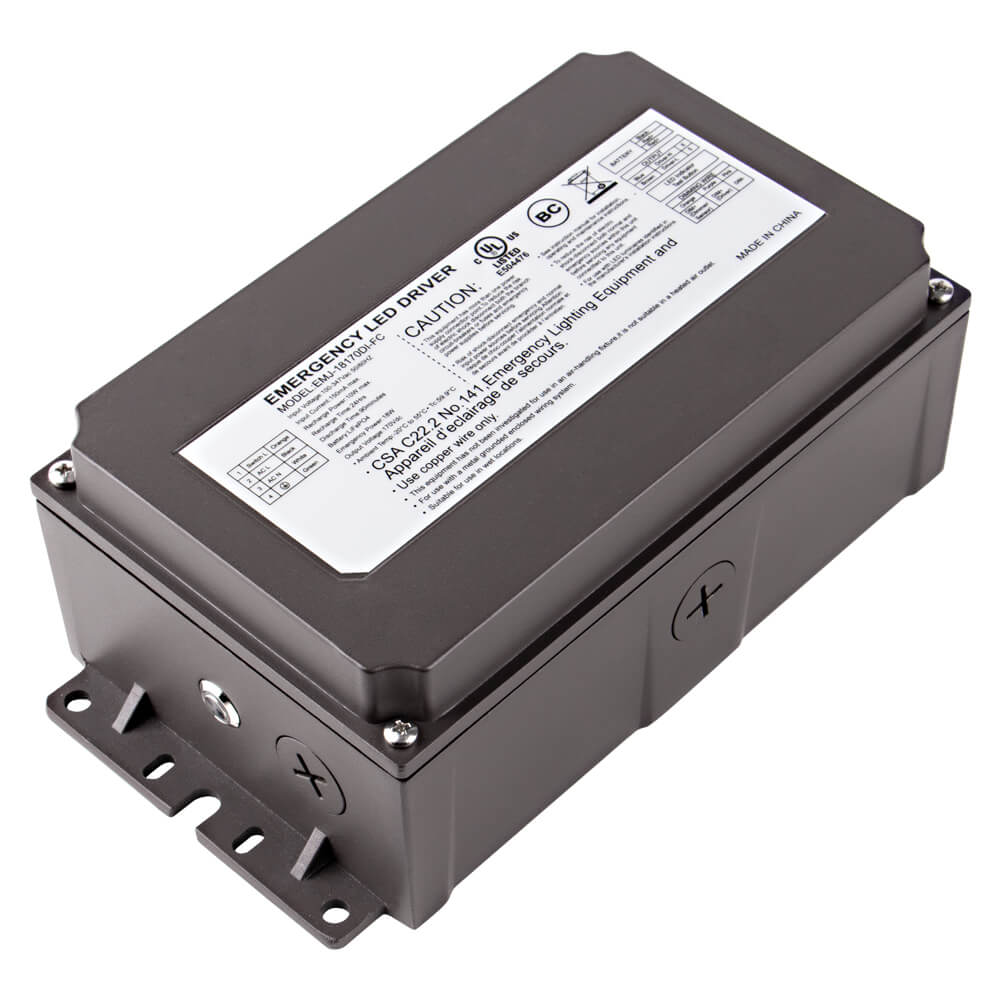

The Konlite 18W Outdoor LED Emergency Backup Driver (EMJ-18170DI-FY) delivers reliable emergency power for outdoor LED fixtures up to 150W, providing up to 90 minutes of illumination during power outages. Designed with a built-in waterproof junction box and an IP67 rating, it’s ideal for parking lot lights, wall packs, flood lights, and other exterior applications that require dependable emergency lighting.
With a constant 18W output and 170V DC output voltage, this unit ensures consistent performance. Its self-testing functionality runs monthly and annual diagnostics to meet UL 924, CSA C22.2, and CEC Title 20 safety requirements, giving you peace of mind that the backup system will be ready when needed.
Key Features:
- Constant Power Output: Provides a steady 18W of emergency power.

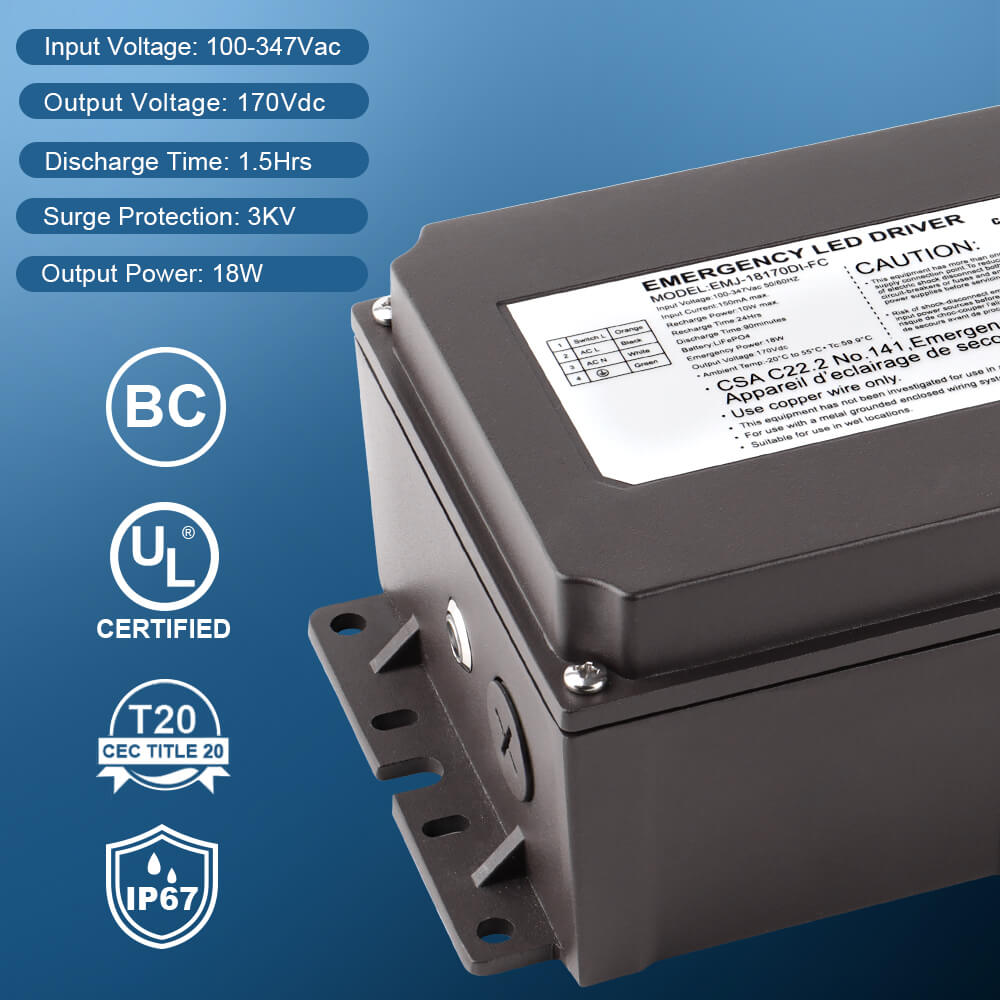

- Wide Voltage Compatibility: Operates with 100–347V AC input and delivers 170V DC output.

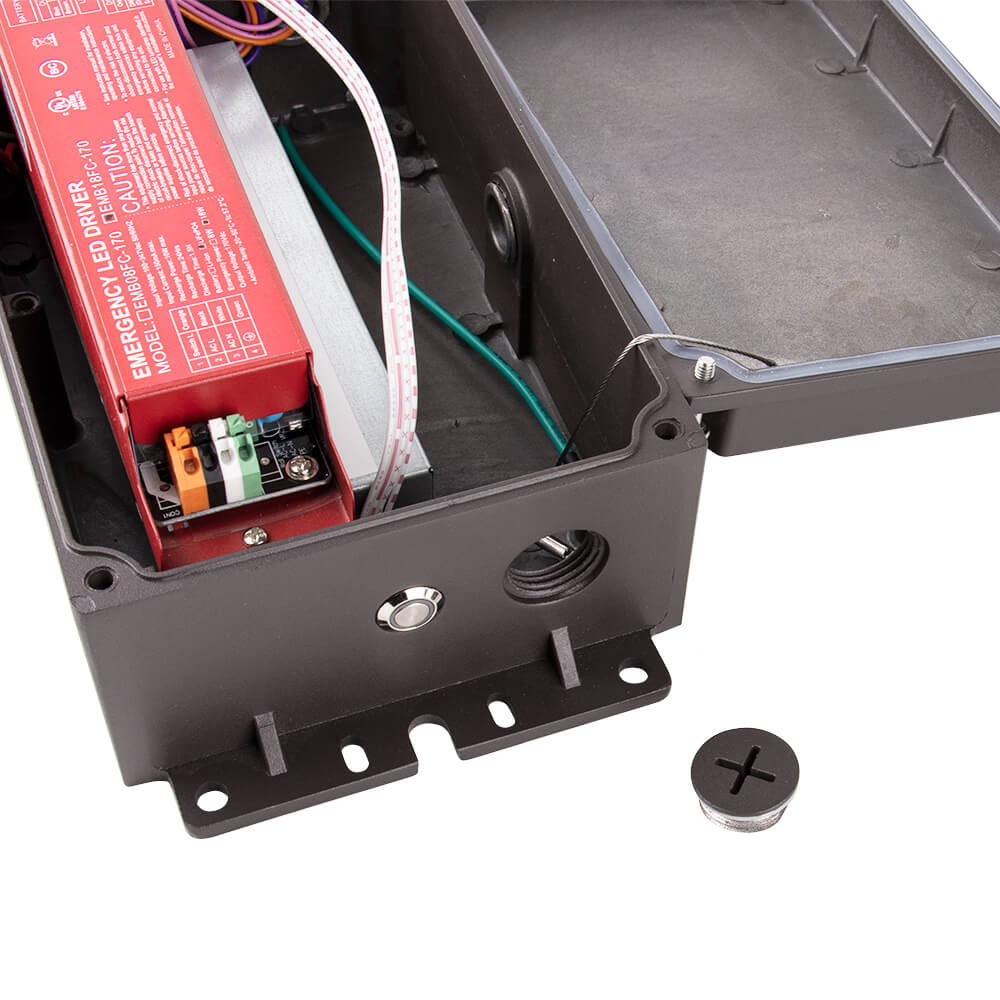

- Built-in Waterproof Junction Box: Simplifies installation and protects internal components.

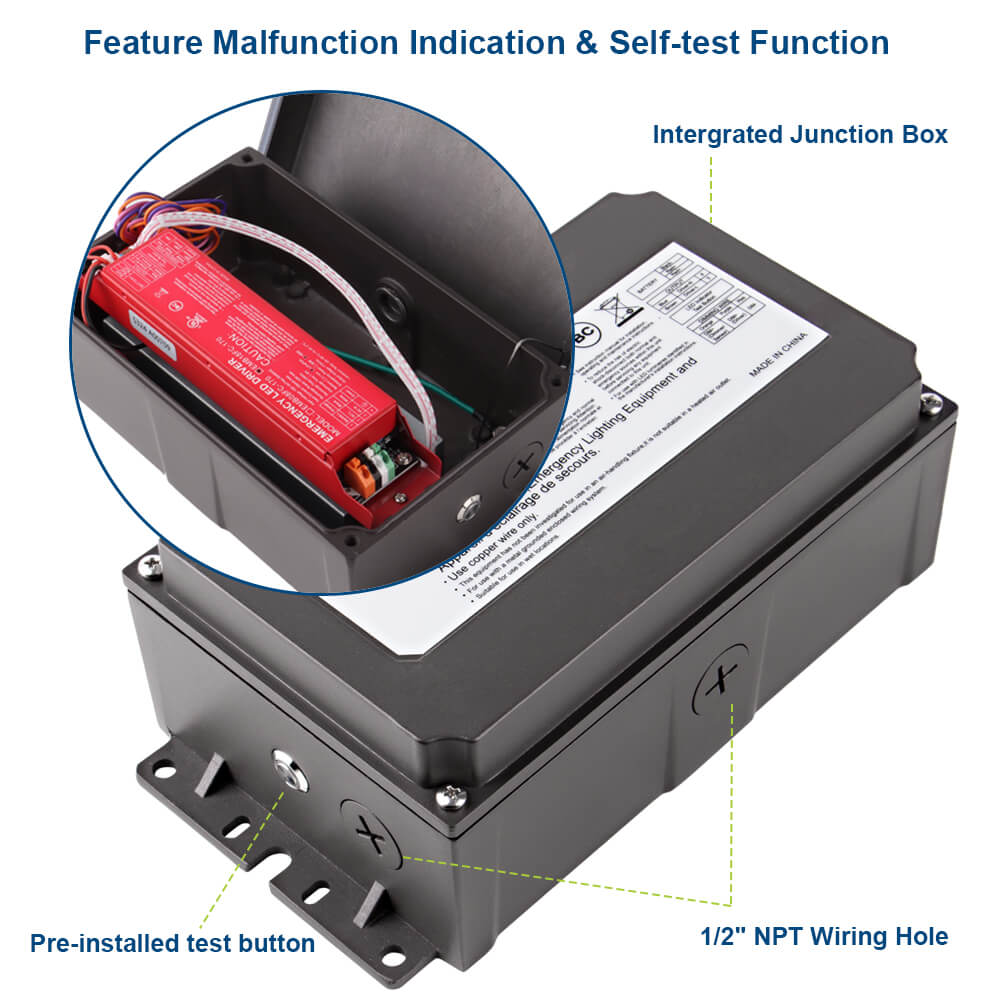

- Self-Testing System: Automatic 30-second monthly and 90-minute annual tests for code compliance.

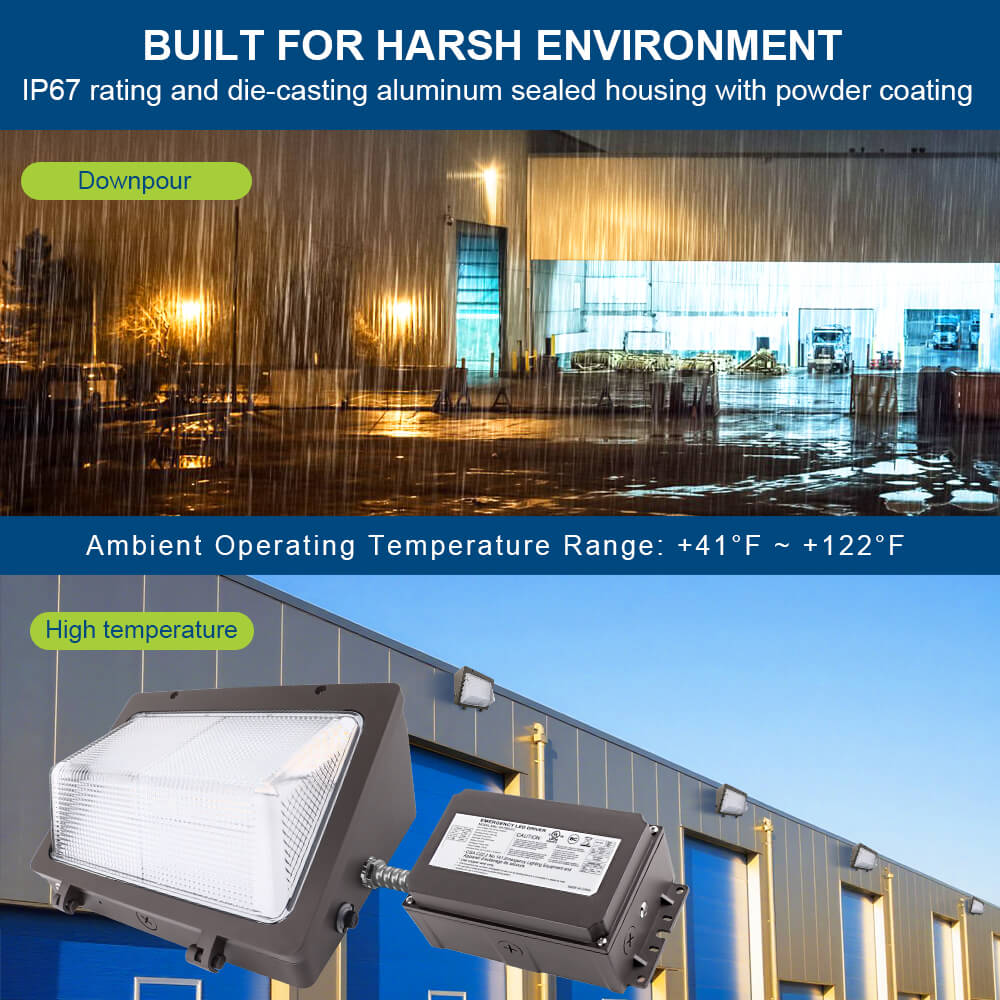

- Durable & Weather-Resistant: IP67-rated design ensures reliable performance in harsh environments.
- Multiple Protections: Over-temperature, over-charge, and over-discharge safeguards.
- Long Service Life: Up to 800 charge cycles for dependable operation.
- Certified & Compliant: UL 924, CSA C22.2, FCC, and CEC Title 20 certified.
- 5-Year Warranty: Backed by RevolveLED for long-term confidence.
Luminaire Lumen Output Guideline During Emergency Operation:
To determine the lumen output during emergency operation, follow these steps:
- Fixture Efficacy: Check the luminaire's efficacy under normal AC operation, typically provided by the luminaire vendor.
- Lumen Calculation: Multiply the fixture’s lumens per watt (LM/W) by the rated emergency output power (18W for this driver).
Here are some suggested Konlite out door lights from our collection and their performance during emergency operation:
-
Full Cutoff Wall Pack light - 125W - SKU KWPDHMWMCLV
- Efficacy: 157 LM/W
- Emergency Output: 18W x 157 LM/W = 2,826 lumens
This driver is ideal for ensuring uninterrupted lighting in critical environments, providing reliable emergency lighting for LED exterior lighting fixtures. For more technical details, including the wiring diagram, refer to the Downloads section.

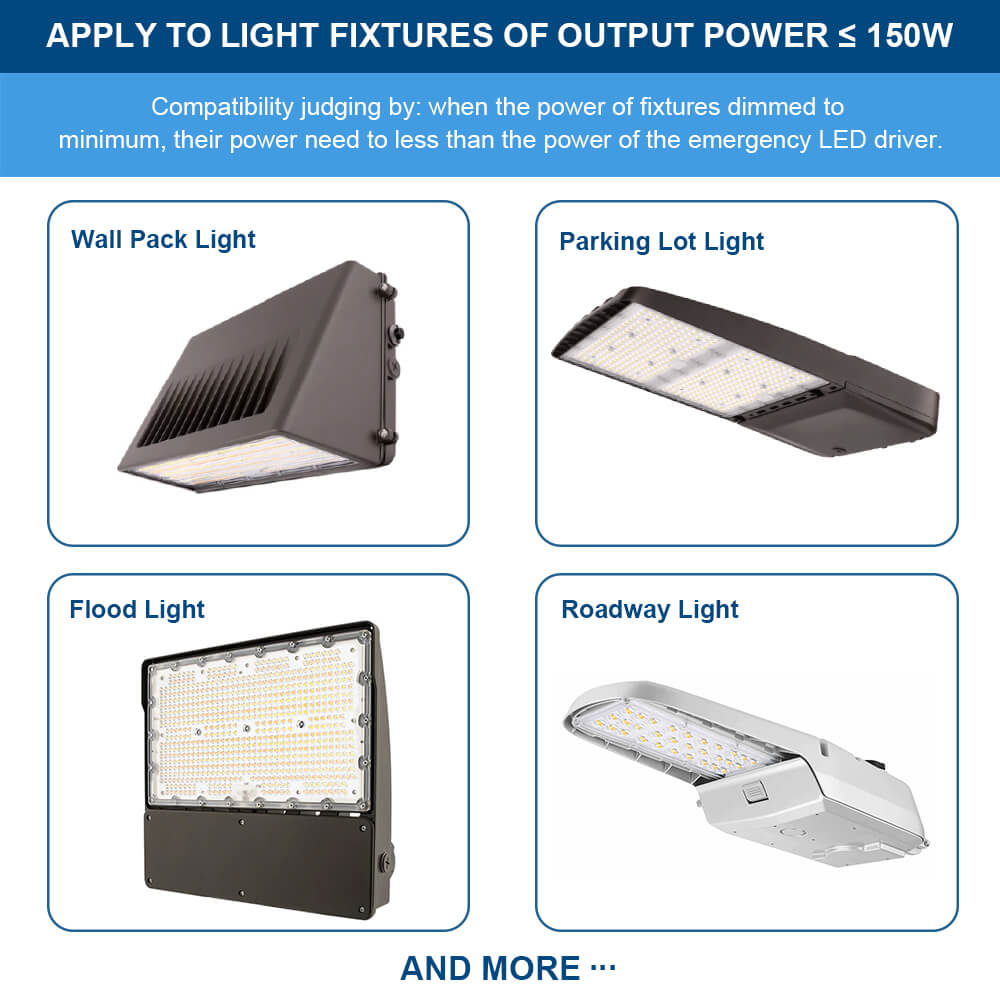

Applications
| •Parking lot and area lights | •Wall packs and security lights |
| •Flood lights and landscape lighting | •Any outdoor LED fixture ≤150W |
Specifications
| Brand | Konlite | MPN | EMJ-18170DI-FY |
| Warranty | 5 Years | UPC | 659675238500 |
| Input Voltage | 100-347V | Max Input Current | 50mA @120V, 35mA @240V, and 30mA @277V |
| Input Wattage | 10W | Inrush Current | 3A |
| Turn-on Delay Time | < 4s | Power Factor | 0.9 under 120~277Vac input |
| Output Voltage | 170Vdc | Emergency Power | 18W (constant) |
| Surge Protection | 3kV | Output Current | 900mA @ 20Vdc, 310mA @ 58Vdc |
| Outer Voltage Protection | Yes | Outer Power Protection | Yes |
| Emergency Operation | 90 Minutes | Recharge Time | 24 Hours |
| Battery Type | Li-Ion | Battery Capacity | 14.4V 5000mA |
| Operating Temperature | -4ºF to 113ºF | Storage temperature | − 4ºF to 131ºF |
| Max Case Temperature | 157ºF | Storage Humidity | ≤65% |

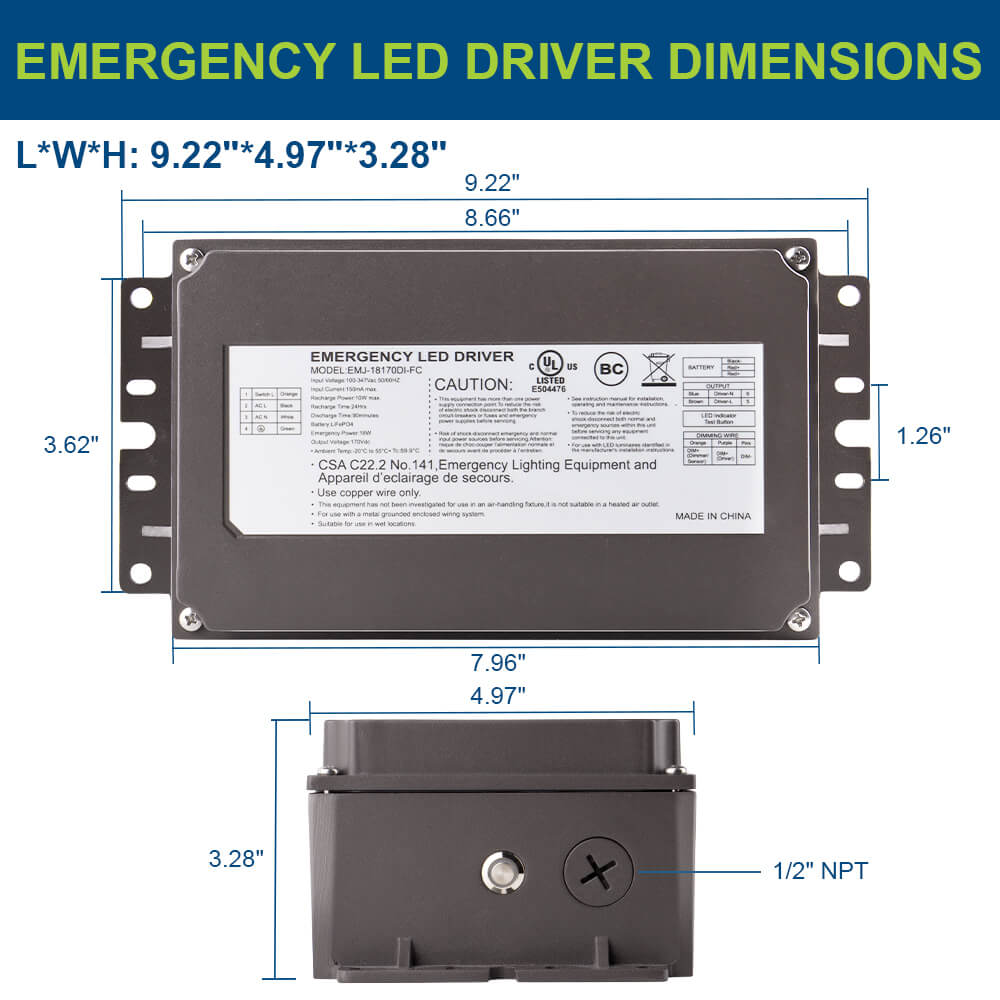

| Unit Dimensions | L 7.96" H 3.28" * W 4.97" | Unit Weight | 3.31 lbs |
