Konlite 60W LED Wall Pack Light With Photocell

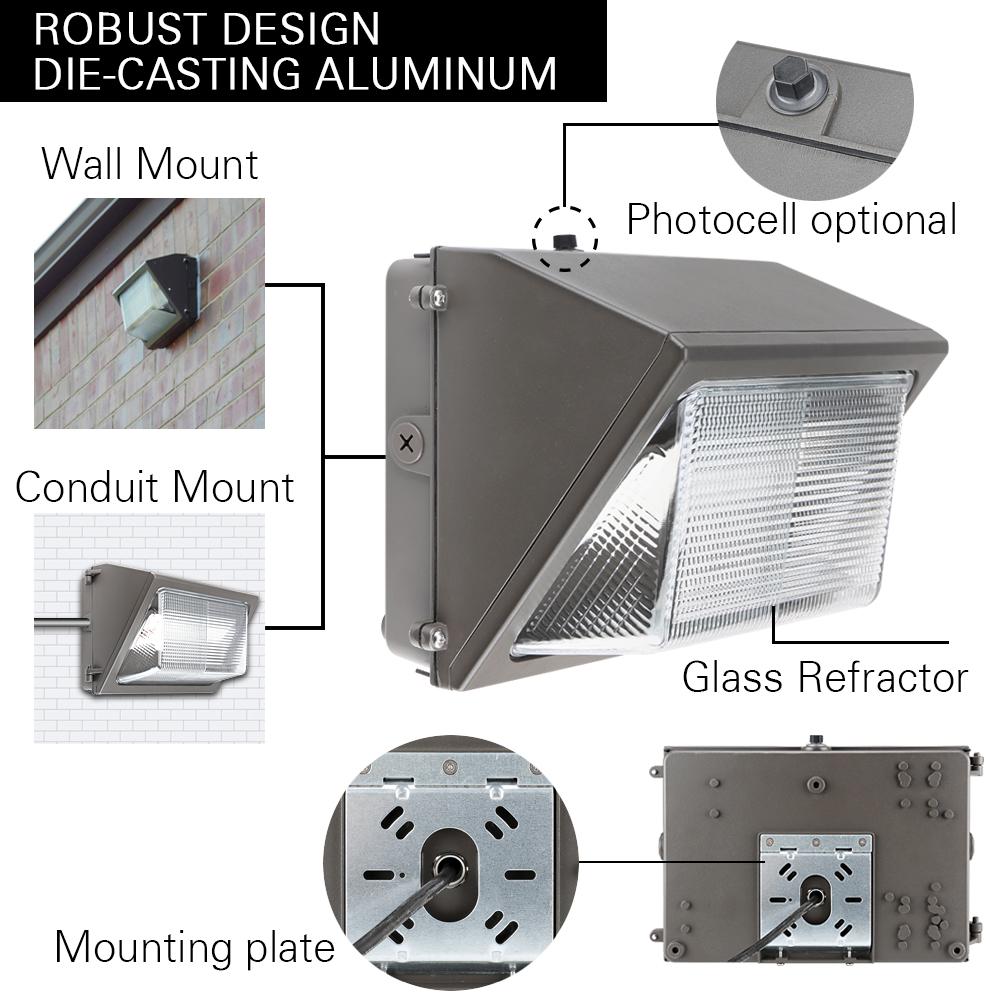

Mounting options for LED Wall Pack Light With Photocell

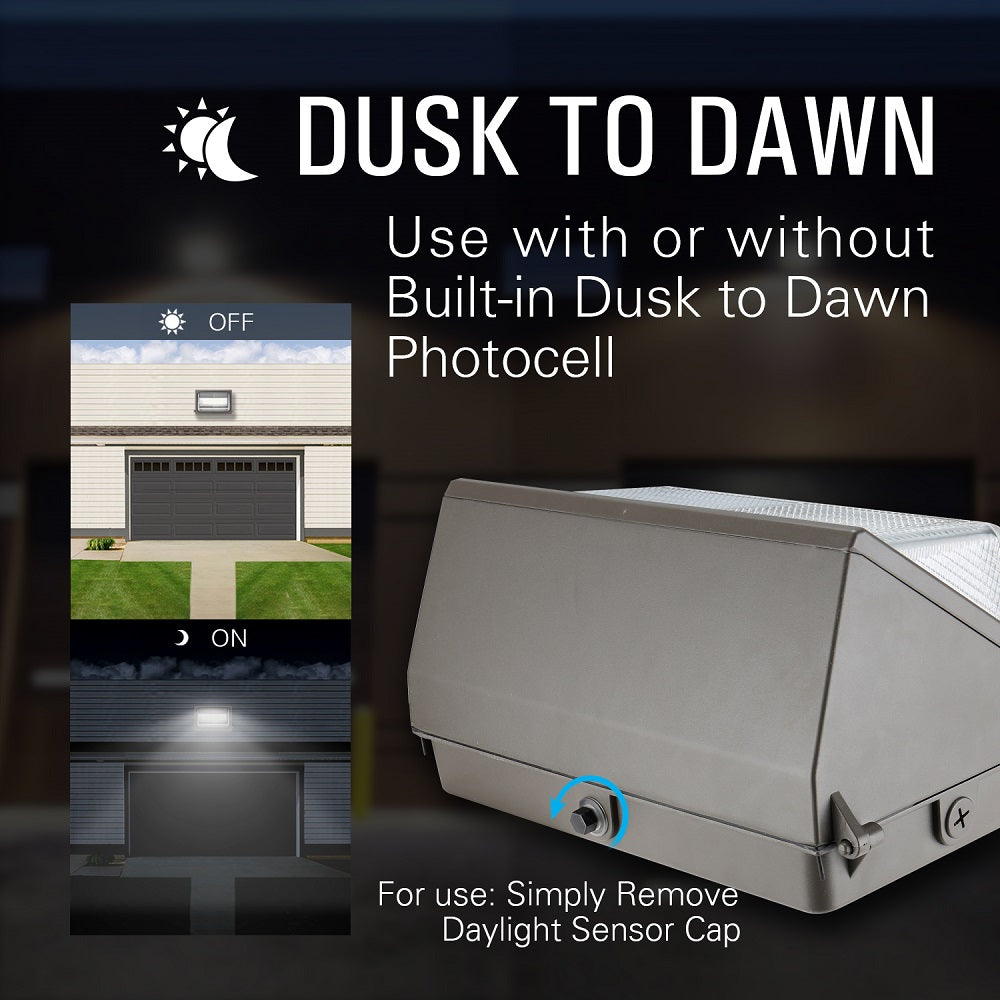

LED Wall mount with dusk to dawn Photocell

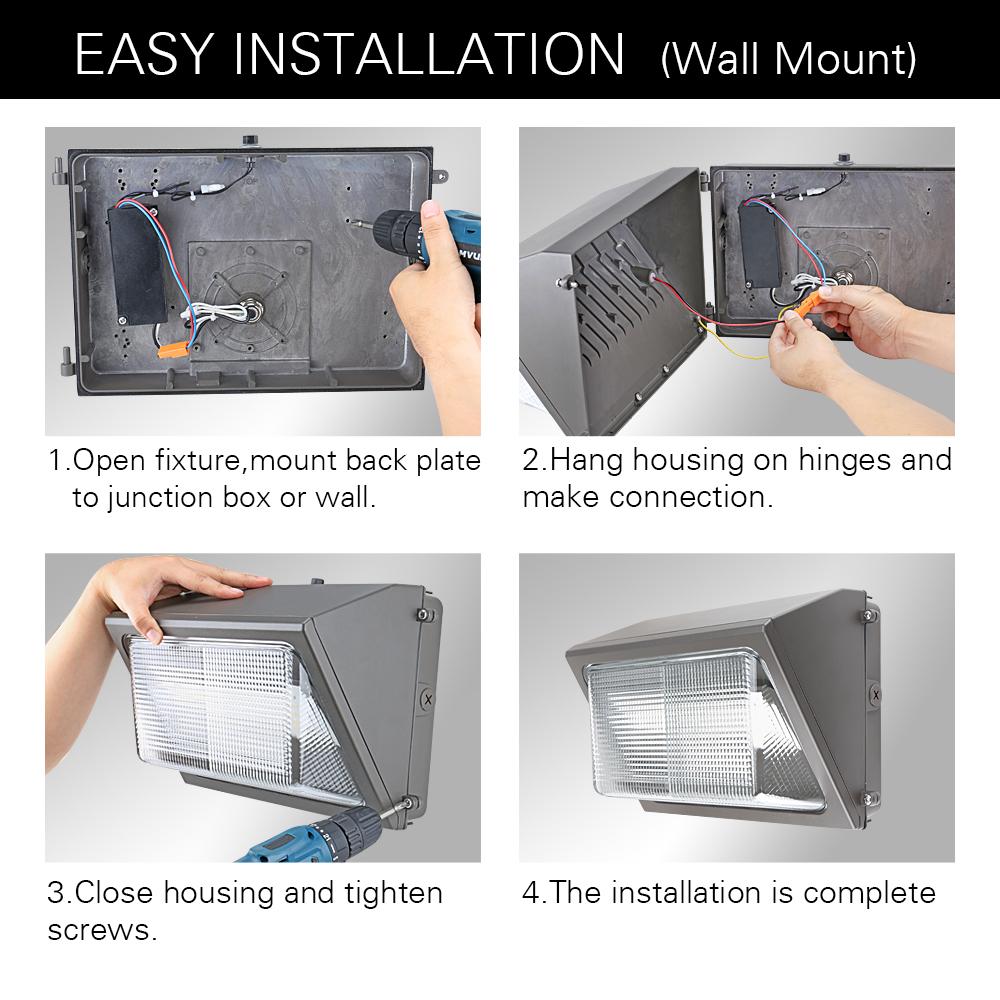

Konlite LED Wall Pack Light Wall mount installation guides

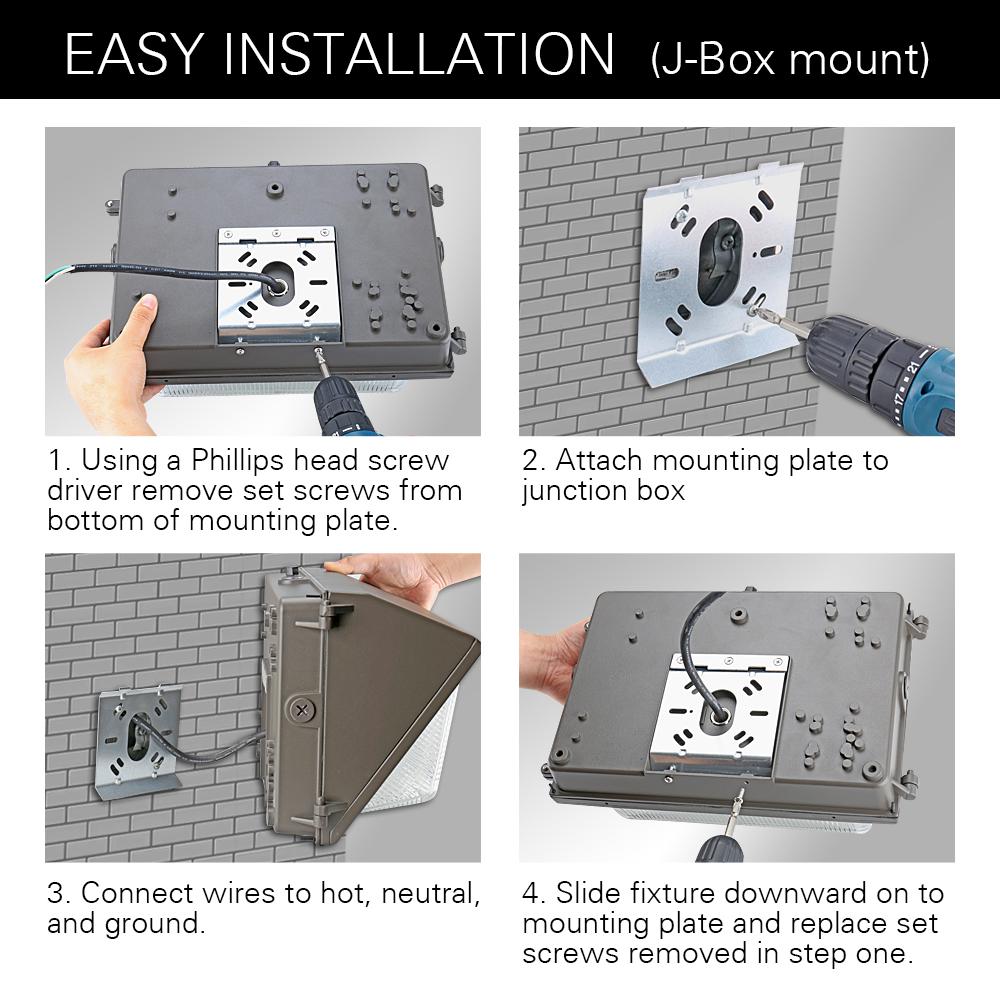

Konlite LED Wall Pack Light installation guides

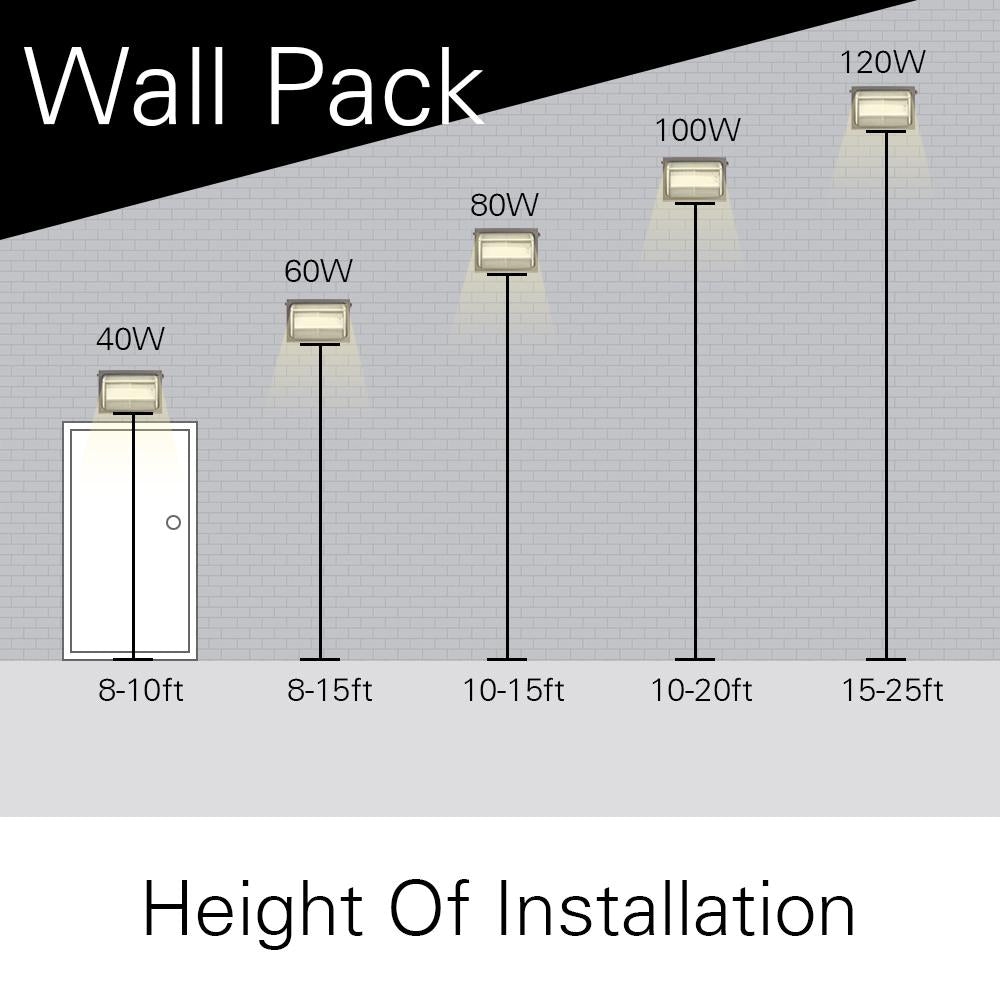

Konlite LED Wall Pack Light mounting height recommendation

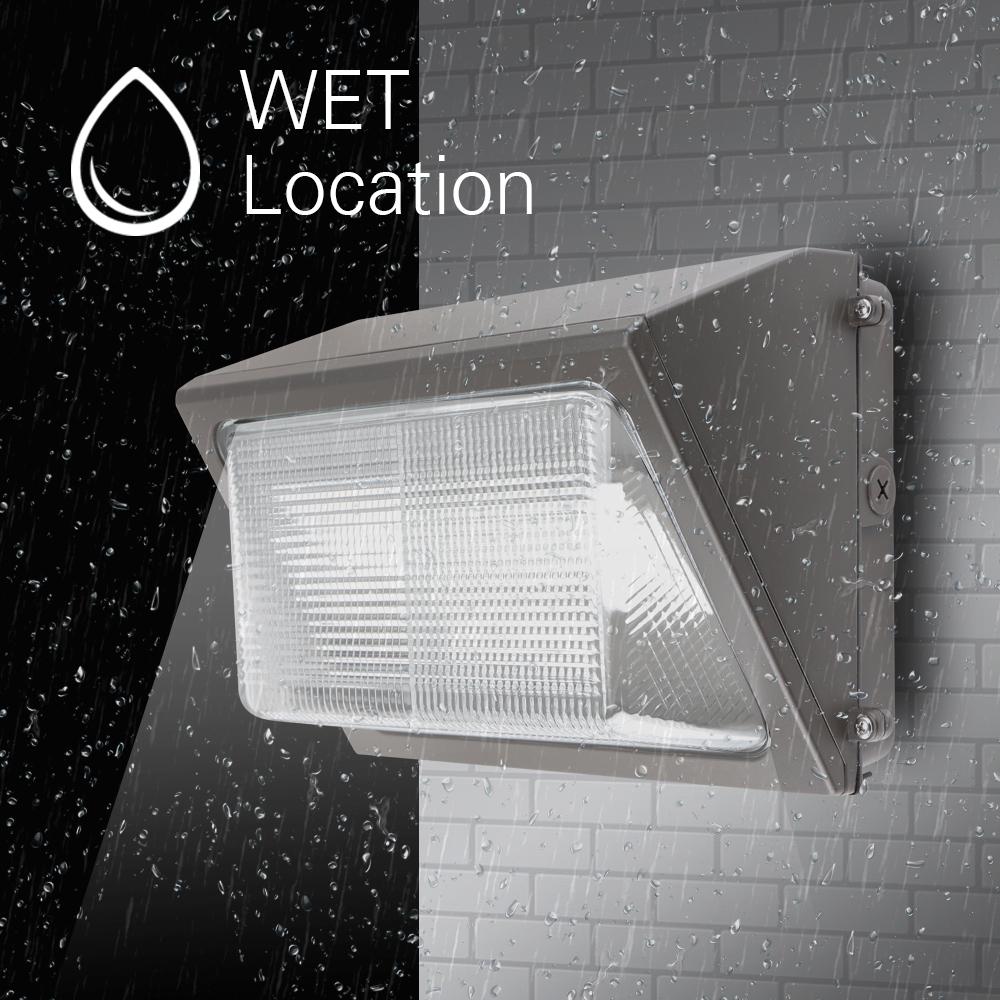

Konlite LED Wall Pack Light in wet location

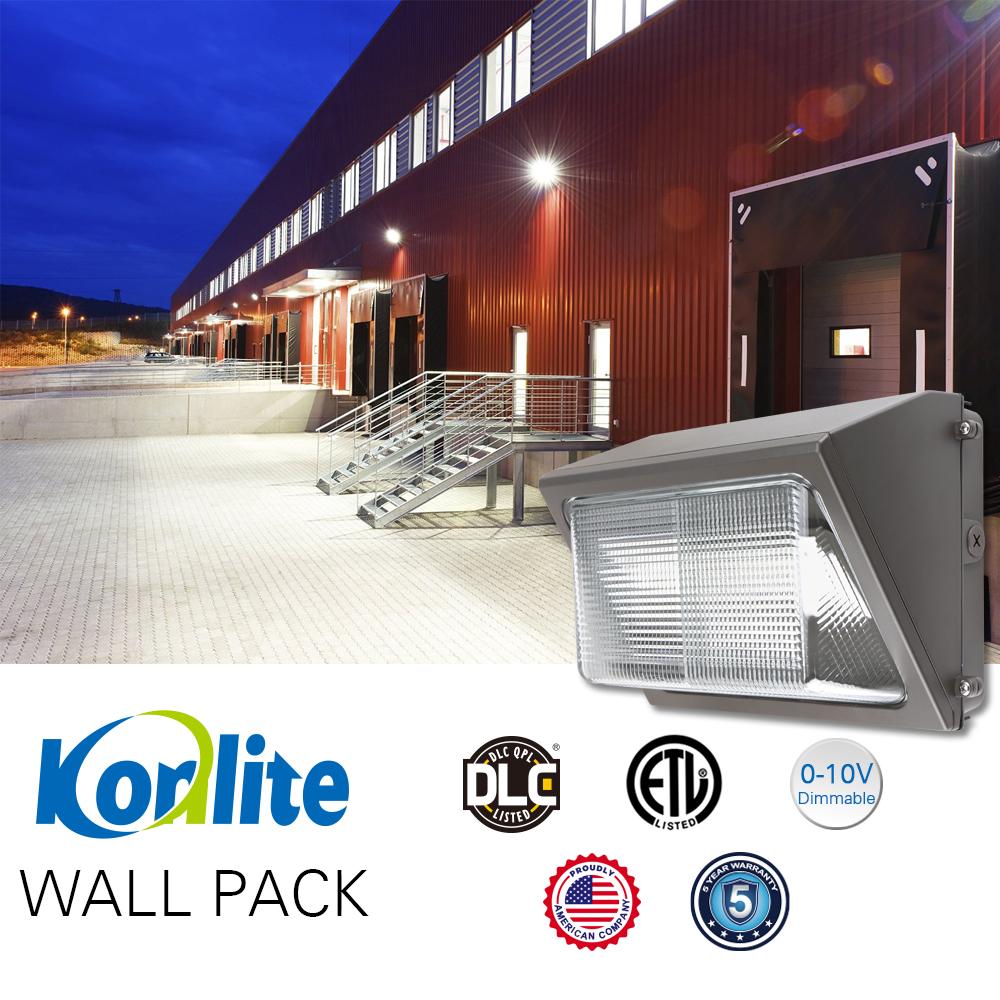

UL and DLC certified Konlite led wall pack lights illuminate the back side of a commercial warehouse

Roll over image to zoom in Click on image to zoom

Heavy duty die-cast aluminum housing with optional integrated photocell that is activated by removing Daylight sensing cap.
This energy efficient unit provides crisp illumination for casting light onto building surfaces, doorways, walkways and outdoor areas while providing security for after dark hours.

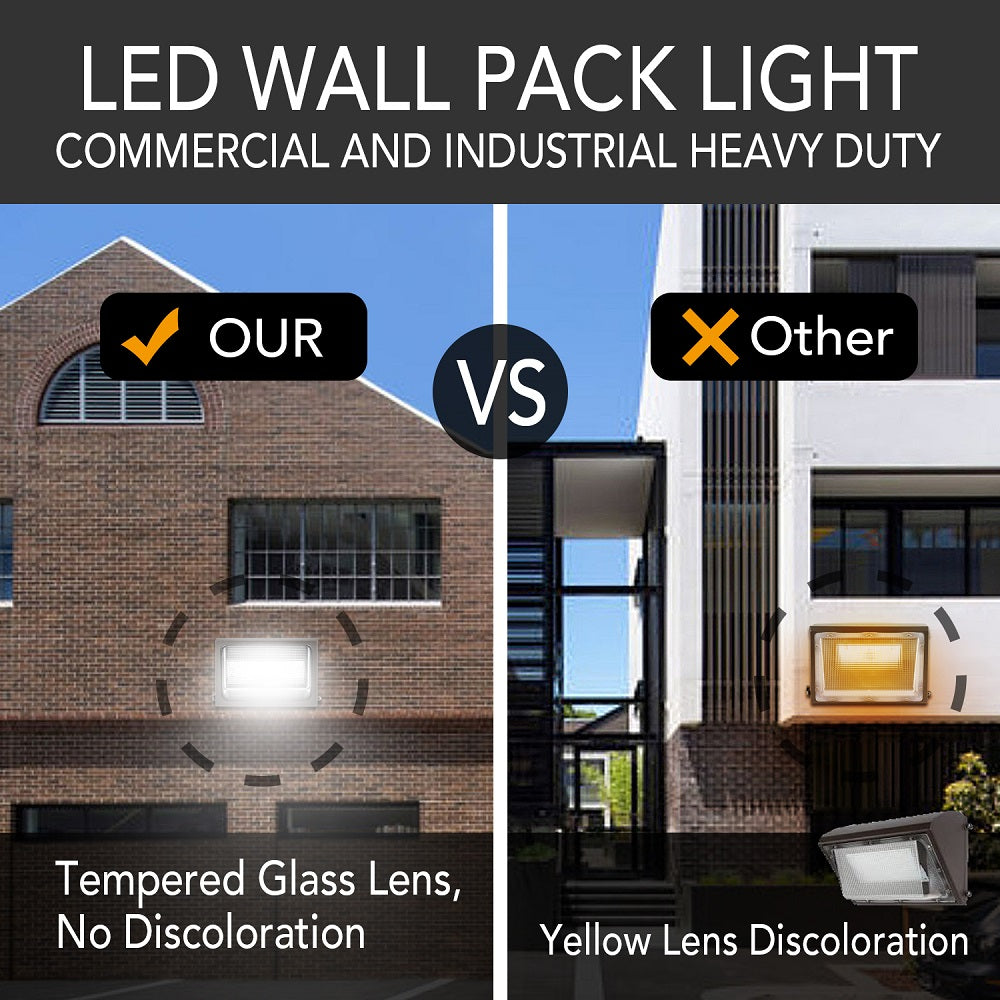

High quality tempered glass optics that will not discolor with age.

What's in the box

1 Wall Pack Light - 1 Installation Guide

IN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Konlite LED Wall Pack Light With Photocell - 60W - 8,100 lumens - 5000K - 0-10V Dimmable - 120-277V - 150W Equal

Konlite SKU: RKWP05010605KDPWMLCD SEARCH CODE: 22-0103

Replaces 150 Watt Metal Halide
Tempered Glass Lens

$86.99

Quantity:

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Heavy duty die-cast aluminum housing with optional integrated photocell that is activated by removing Daylight sensing cap.
This energy efficient unit provides crisp illumination for casting light onto building surfaces, doorways, walkways and outdoor areas while providing security for after dark hours.
High quality tempered glass optics that will not discolor with age.

What's in the box

1 Wall Pack Light - 1 Installation Guide

Konlite LED Wall Pack Light With Photocell - 60W - 8,100 lumens - 5000K - 0-10V Dimmable - 120-277V - 150W Equal

$86.99

What's in the box

1 Wall Pack Light - 1 Installation Guide

Product Overview

Brighten dark exteriors while adding perimeter security with this modern take on a traditional design.

A top Contractor pick, the energy efficient Konlite WP05 LED Wall Pack will enhance any building exterior while reducing power consumption by 65% compared to Metal Halide or HPS. Designed for a Quick- 1 man installation.

60 Watts, 8100 Lumens, 120-277V, 5000K Commercial Bright White, 0-10V Dimmable

Preinstalled optional use integrated Dusk to Dawn Photocell: To activate simply remove the daylight sensor cap - the wall pack will automatically turn on at night and turn off at sunrise. If you do not want to use the optional dusk to dawn photocell option- Do not remove the daylight sensor cap.

Constructed of dark bronze corrosion resistant die-cast aluminum housing, IP65 wet rated and UV stabilized prismatic borosilicate glass lens that will not discolor with age. 110° Beam angle for wide distribution. The LED design ensures long-lasting use and reduces the need for bulb changing maintenance.

50,000>hours L70 lifespan use, 5-year warranty

Applications

• Warehouses	• Schools & Universities
• Boat Docks & Marinas	• Building façade
• Security Lighting	• Underpasses
• Parking Facilities	• Loading Areas
• Gas Stations	• Metal Buildings

Color Temperature 5000K color temperature

Certifications

Specifications

Warranty	Limited 5 Years	MPN	RKWP05010605KDPWMLCD
Input Voltage	120-277V	UPC	643934352328
Input Wattage	60W	Equal to	150W MH
Lumens	8,700	CRI	>80
Efficacy	145 LM/W	Available CCT	5000K
Rated Life	>50,000 hrs	THD	<15%
Power Factor	>0.9	IP Rating	IP65
Dimmable	0-10V	Controls	Built-in Dusk to Dawn Photocell

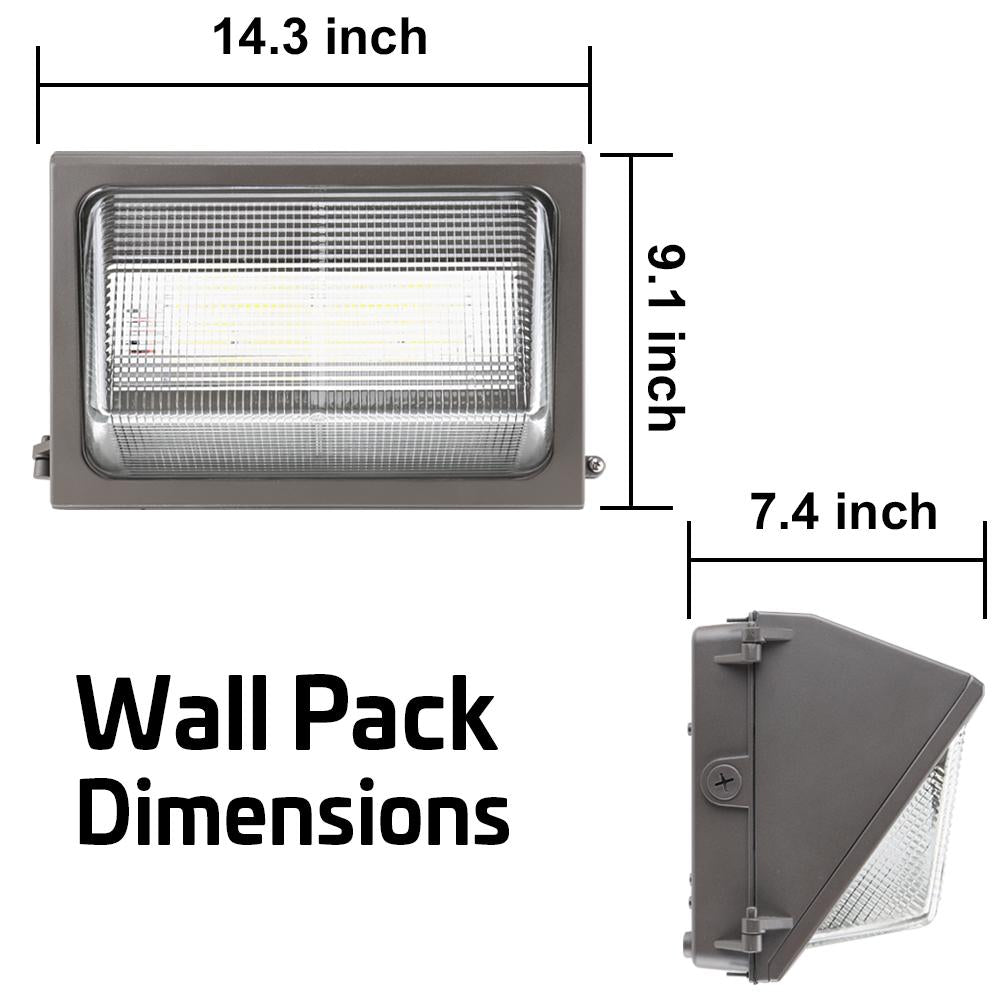

Operating Temperature	-30 to 122 F	Dimensions	14.38" x 9.2" x 7.52"
Certifications	ETL, Damp Locations	Weight	10 lbs
