Product Overview

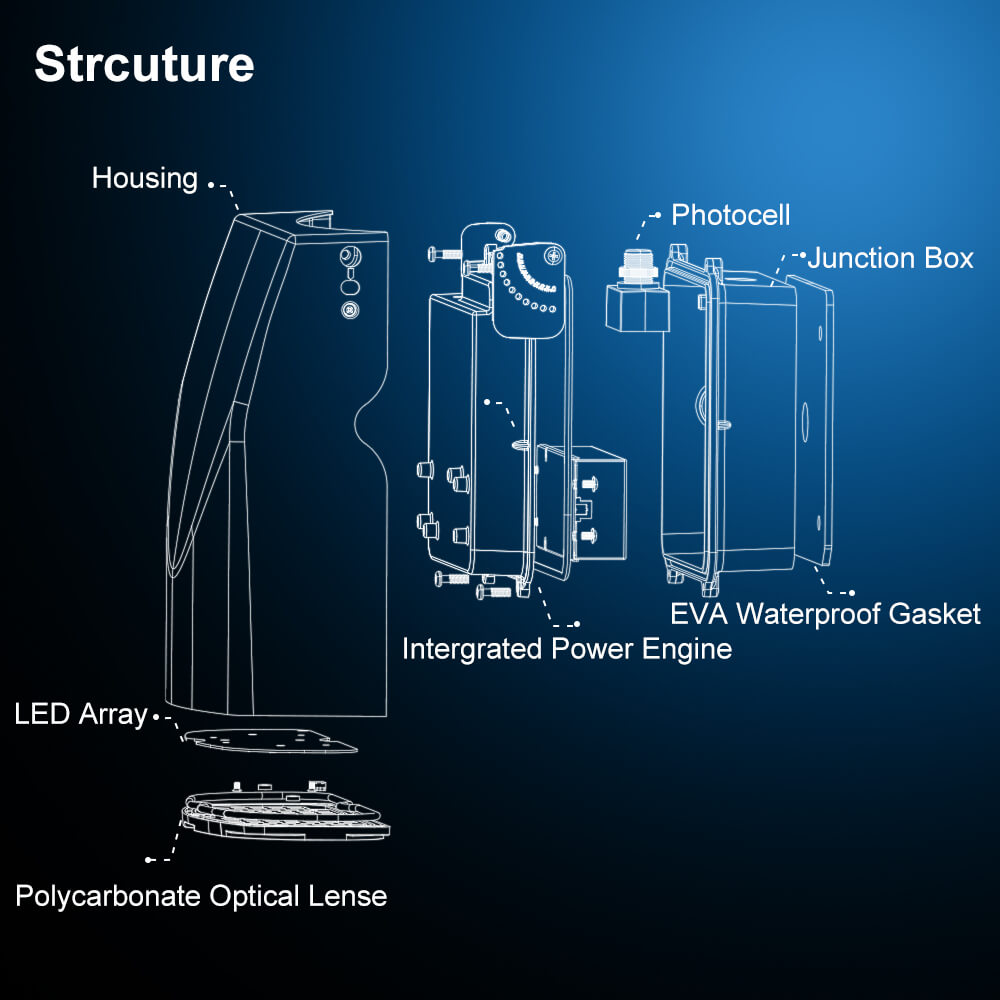

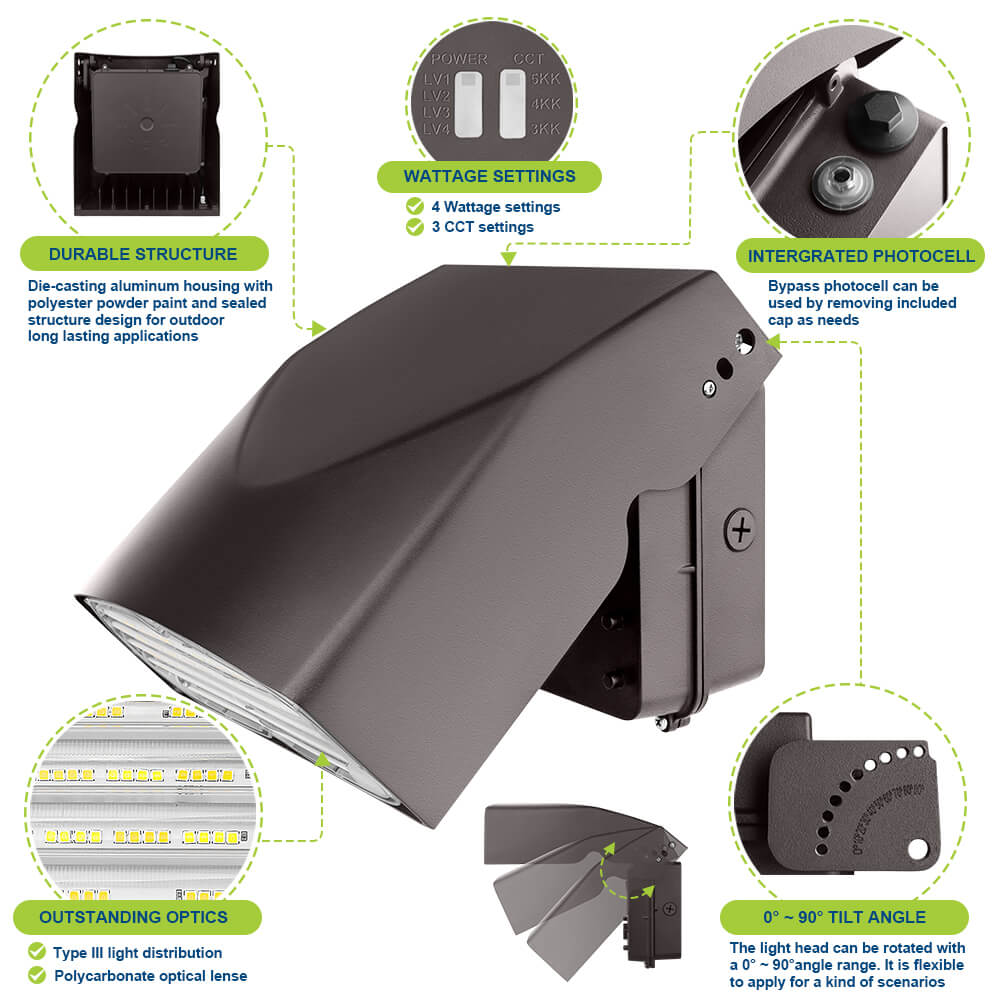

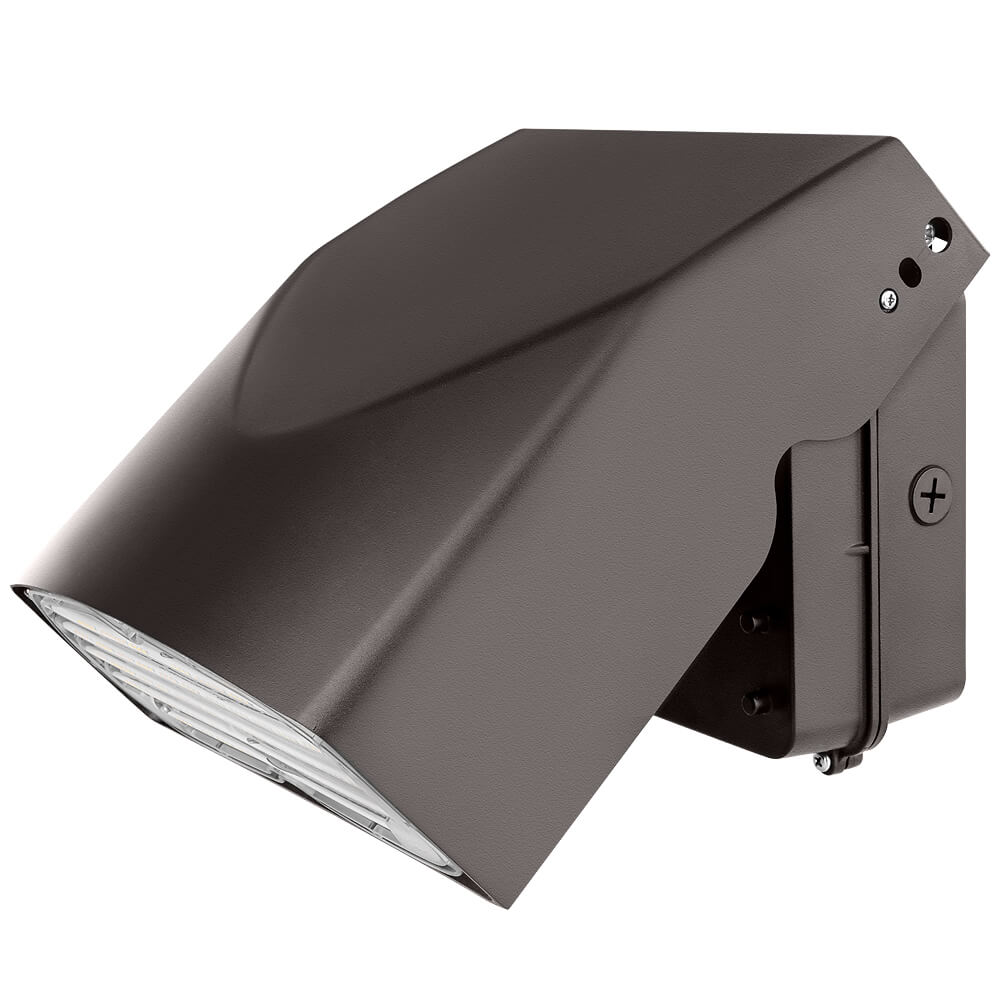

The Konlite Adjustable Full Cutoff LED Wall Pack pairs a low-profile architectural form with bright, energy-efficient performance. Its rugged bronze aluminum housing offers multi-mount flexibility and a heavy-duty spring-loaded hinge (0° to +90°) for precise forward throw or site-line focusing. A UV-coated flat lens delivers uniform illumination with excellent glare control. Fully sealed to IP65, UL listed, DLC Premium, and backed by a 5-year warranty.
Now upgraded with:
-

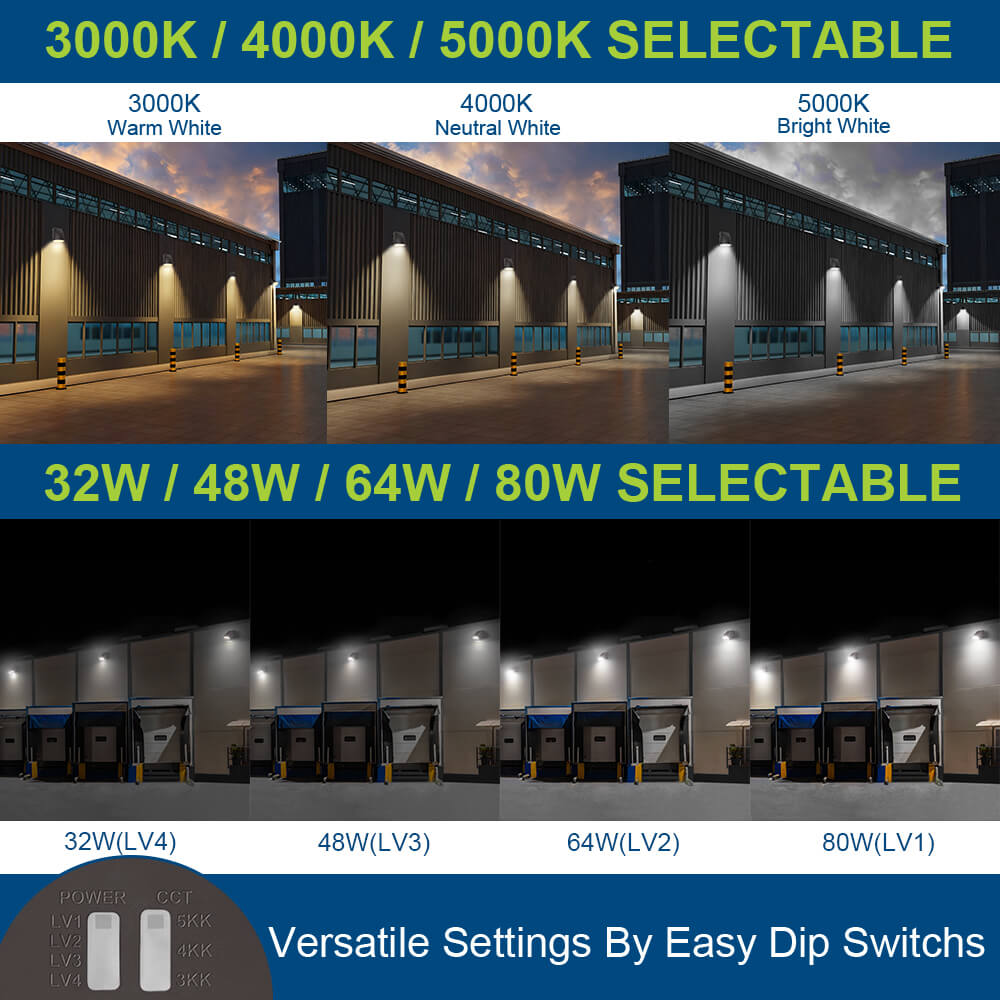

Wattage-selectable: 80W / 64W / 48W / 32W
– Approx. 12,000 lm (80W), 10,300 lm (64W), 8,000 lm (48W), 5,500 lm (32W) -
CCT-selectable: 5000K / 4000K / 3000K
-

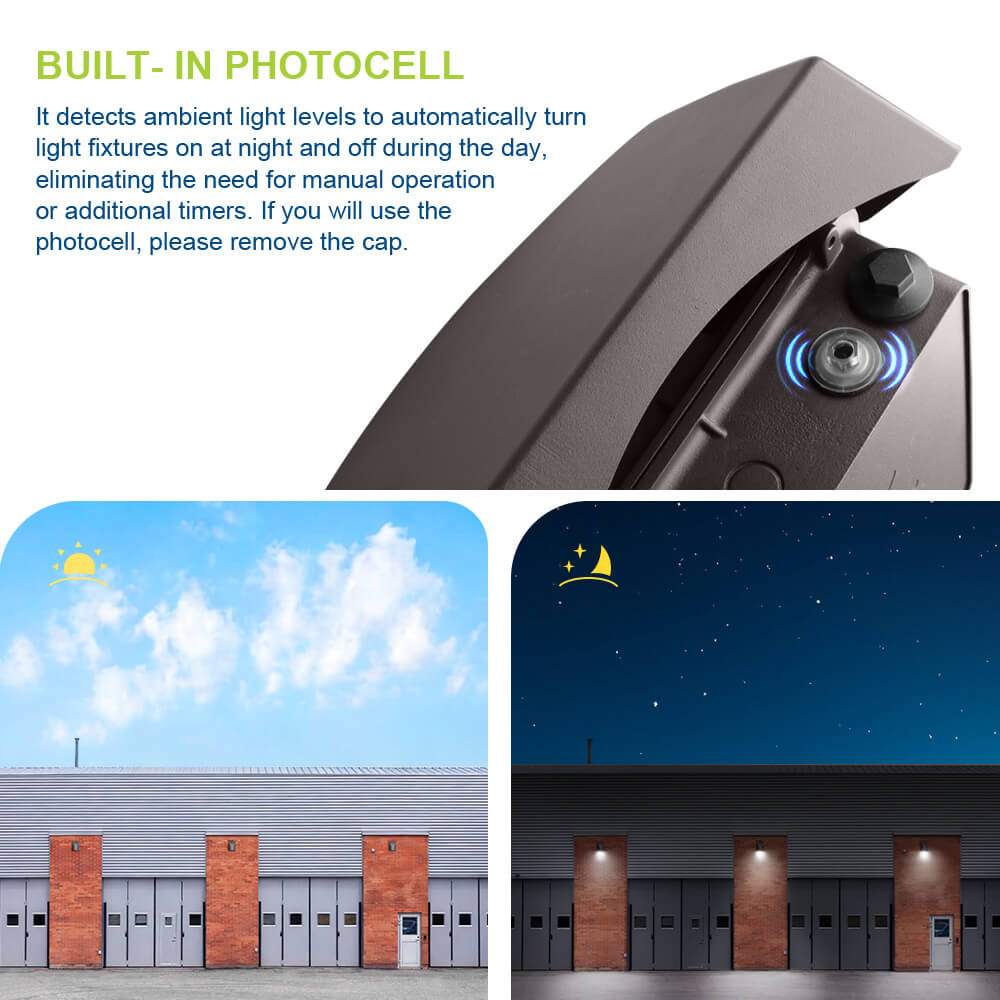

Integrated dusk-to-dawn photocell with daylight block cap (disable when needed)
-
0–10V dimmable for controls and energy savings
Additional highlights: full-cutoff optical design for reduced uplight and glare, UV-stable flat lens, and field-friendly mounting/aiming for fast installs and consistent results.
See similar 40-watt versions.
Applications
| • Commercial Complexes | • Schools & Universities |
| • Security Lighting |
• Building façade |
| • Wall Washing | • Commercial & Retail Buildings |
| • Parking Garages | • Parking Lots |
| • Architectural Lighting | • Tree Uplighting |
Performance
| Brand | Konlite | DLC Number | KWPS80WMCLV |
| Warranty | 5 Years | UPC | 717360774624 |
| Input Voltage | 120-277V | Dimmable | 0-10V Dimmable Driver |
| Input Wattage | 80W/64W/48W/32W | Equal to | 250W MH |
| Delivered Lumens | 12,000/10,000/8,000/5,500LM | CRI | 73 |
| Efficacy | 150 LM/W | Available CCT | 5000K/4000K/3000K |
| Rated Life | >50,000 Hrs | THD | <20% |
| Power Fact | >0.9 | Control | Dusk To Dawn Photocell |

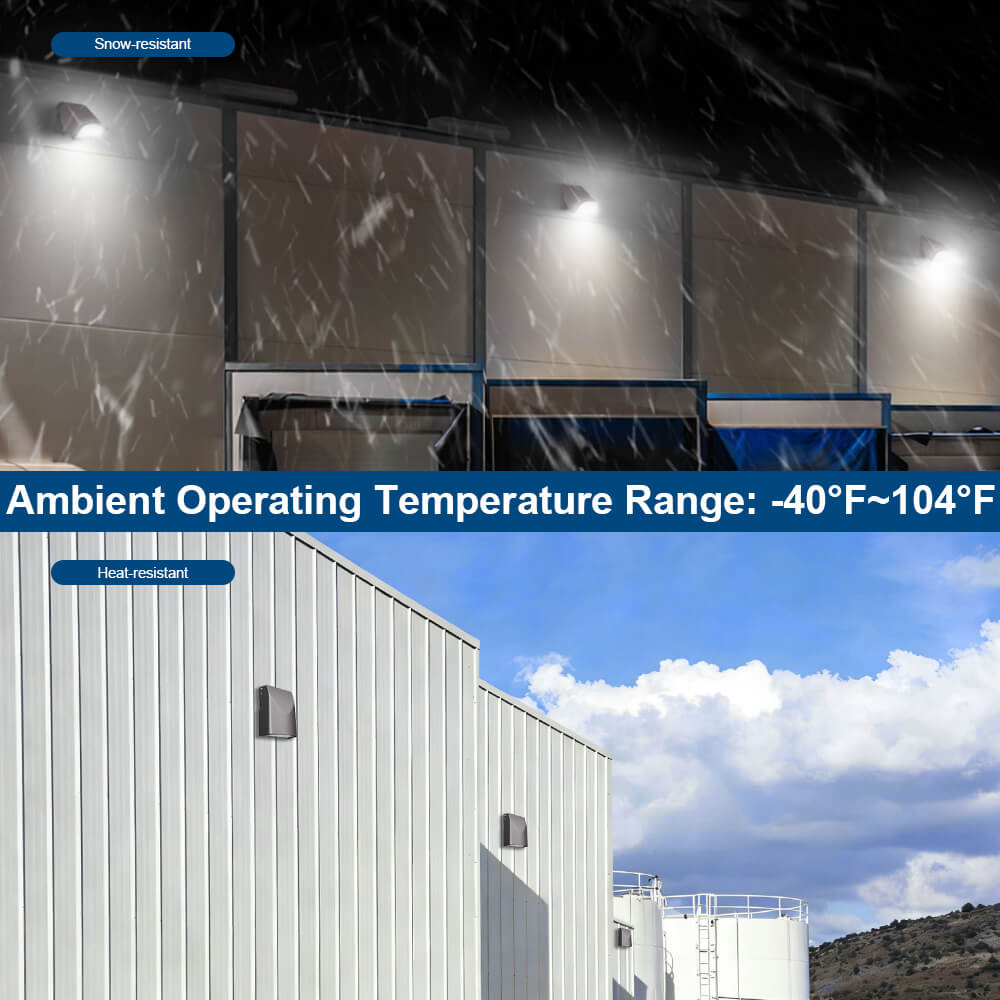

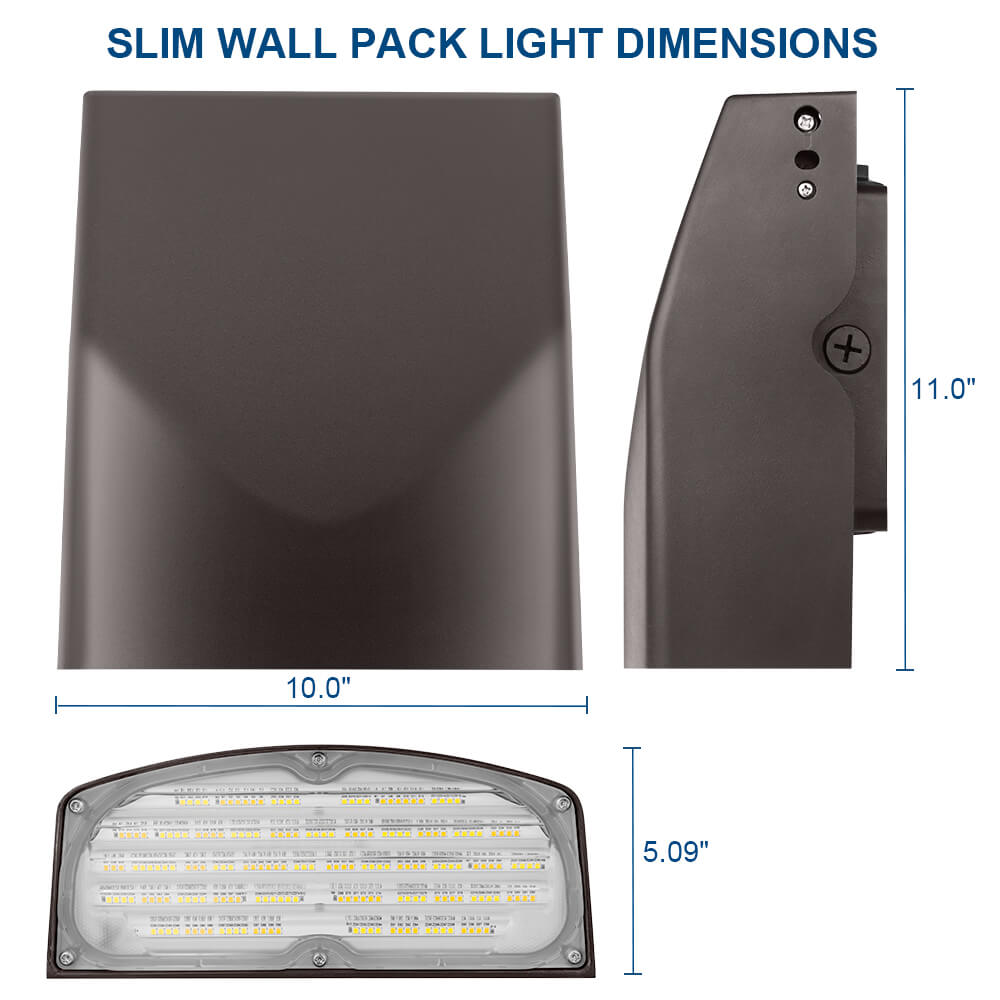

| Operating Temp | -40°F to 122°F | Dimension | 10.06”x11.02”x5.09” |

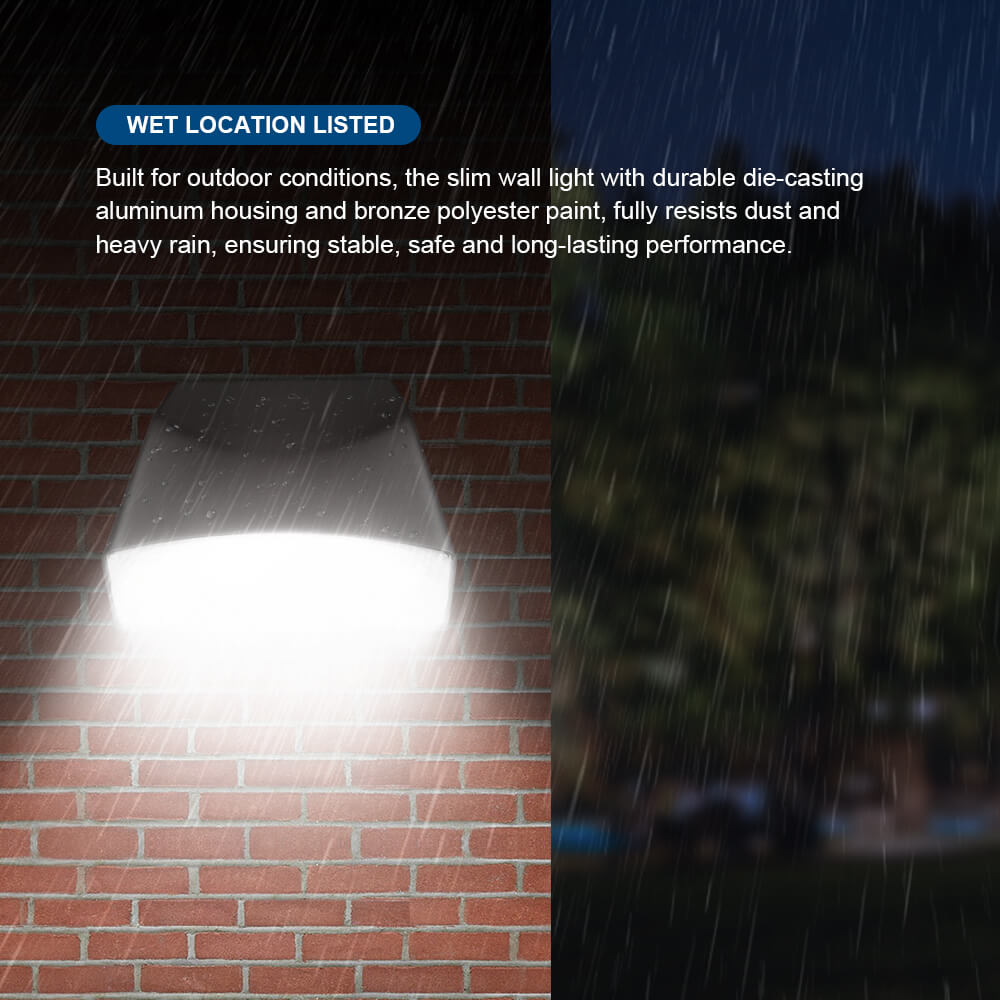

| Certifications | UL, Wet Locations, DLC Premium | Weight | 7.8 Lbs |
 | Download Specifications |

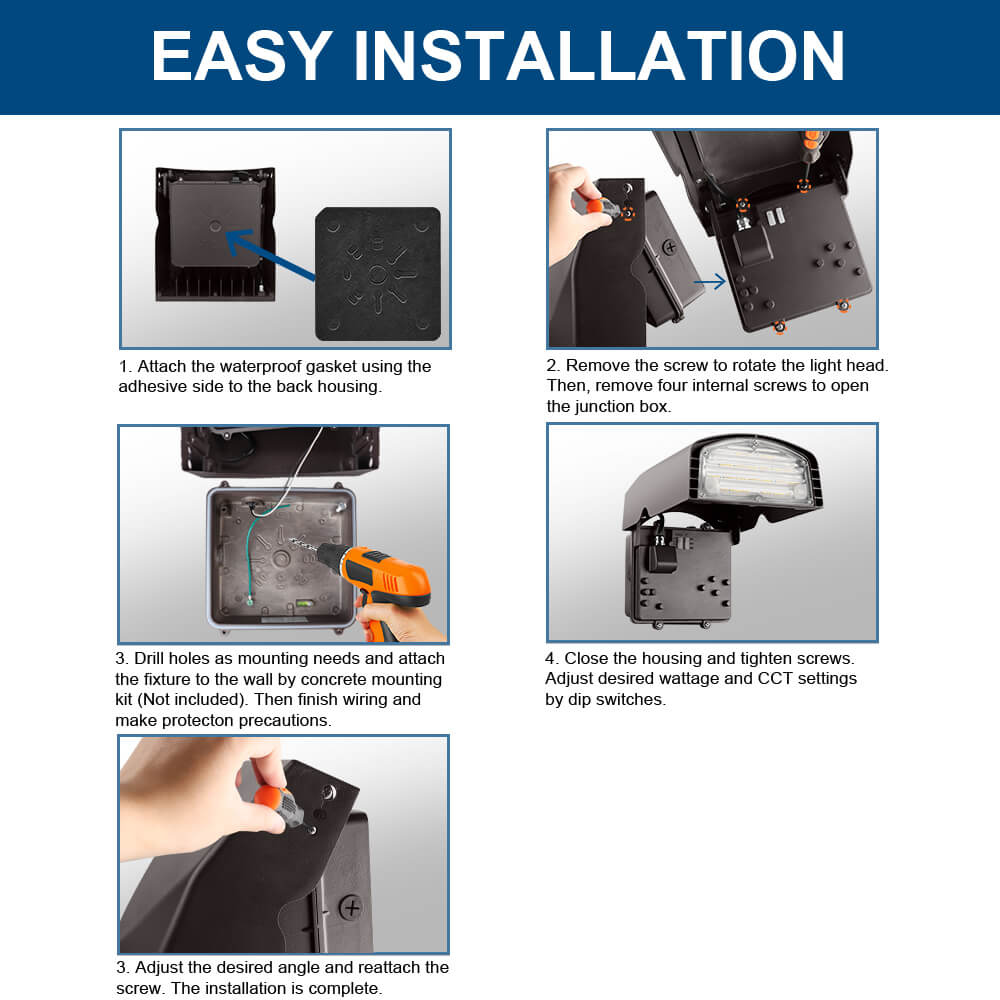

| Download Installation Guide |

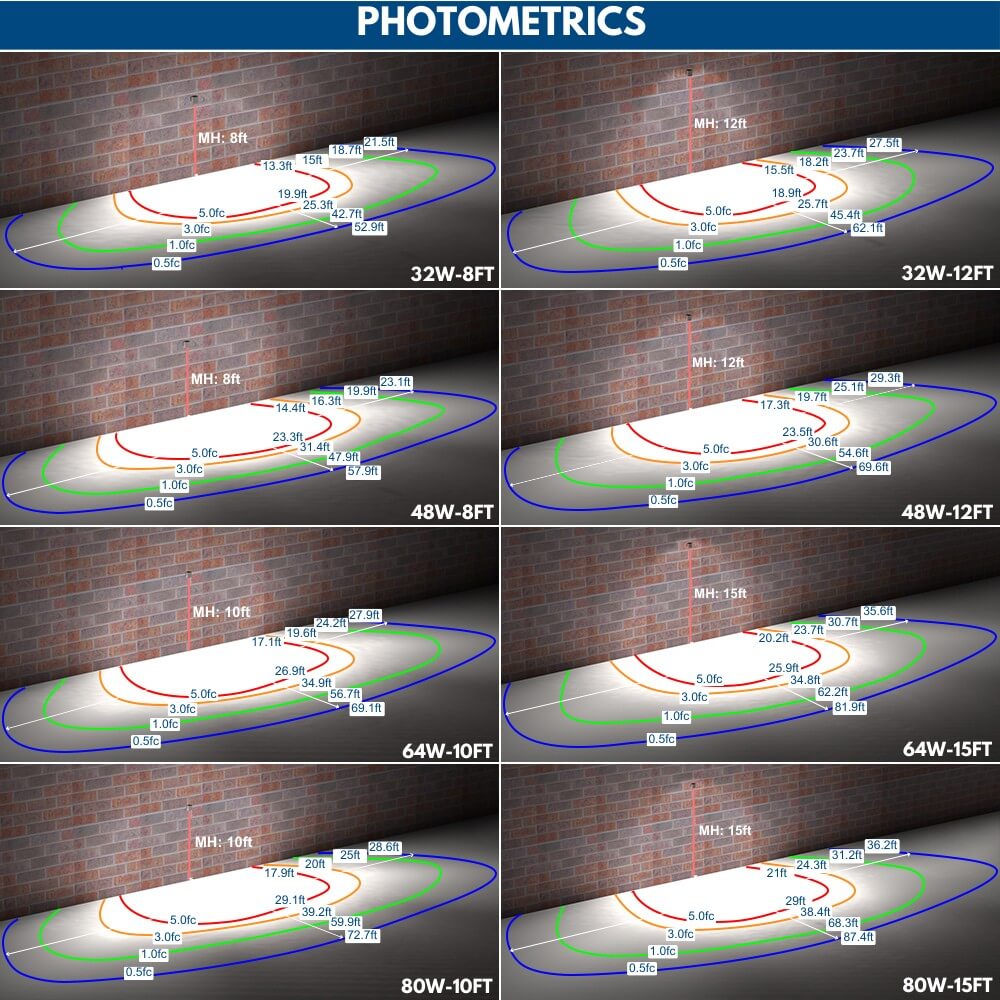

| Download IES Files. 80W-5000K, 80W-4000K, 80W-3000K, 64W-5000K, 64W-4000K, 64W-3000K. |
