Product Overview
The Konlite KWPT Series LED Wall Pack, an enhanced version of the Konlite WP05 series, delivers superior lighting performance for high-mount applications up to 30 feet. The preset 5000K CCT ensures crisp, daylight-like lighting, with the flexibility to adjust to 4000K or 3000K for different lighting needs. With selectable wattages of 125W (16,400 lumens-5000K), 105W (14,350 lumens), and 76W (11,000 lumens), this wall pack is designed to provide bright, energy-efficient illumination for large commercial and industrial spaces.
Key Features:
- Enhanced Version: Improved design over the Konlite WP05 series, offering greater flexibility and higher output.
- High Output Performance: Ideal for mounting heights up to 30 feet, providing powerful illumination for larger areas.

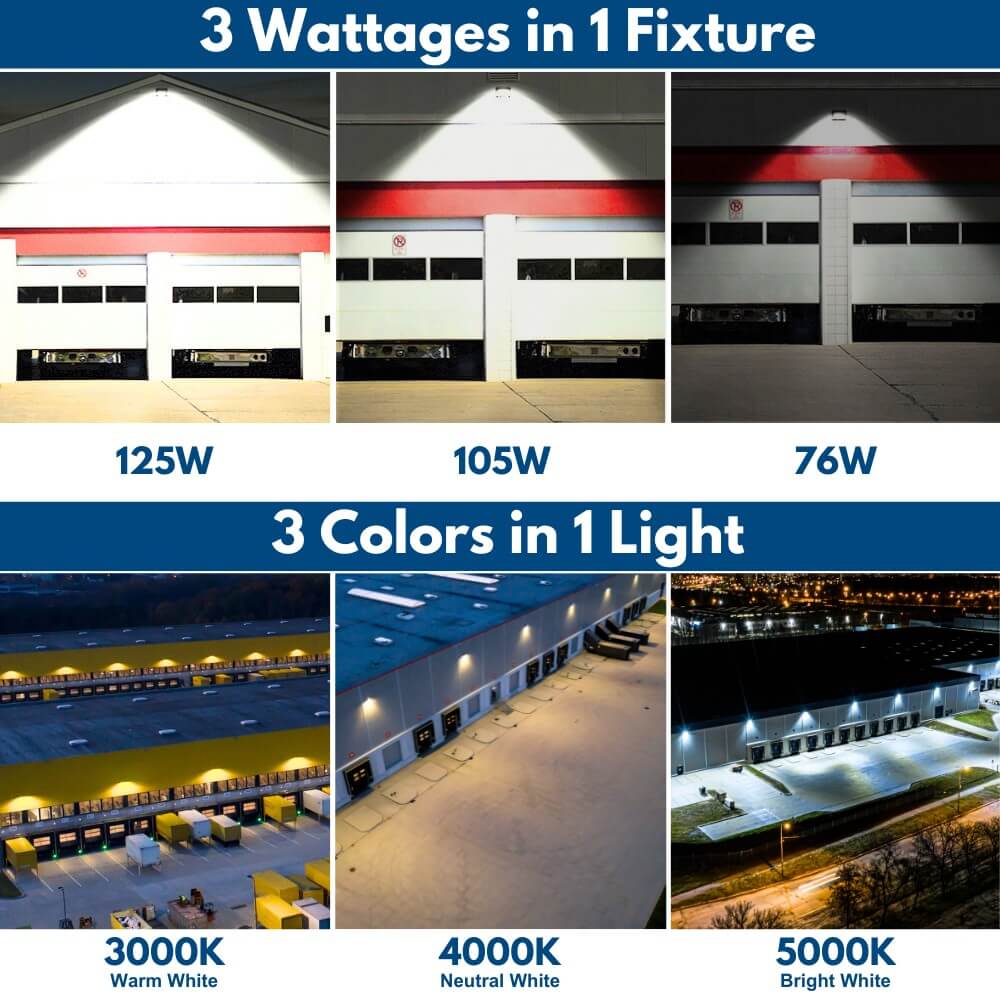

- Selectable Wattage: Choose between 125W, 105W, or 76W to suit your specific lighting requirements.
- Adjustable Color Temperature: Easily switch between 5000K for bright daylight, 4000K for neutral white, or 3000K for a warmer glow.
- High Energy Efficacy: Provides up to 140 LM/W at 4000K, ensuring optimal brightness while reducing energy consumption.
- Energy Savings: Reduces energy use by up to 65% compared to traditional Metal Halide or HPS fixtures, lowering operating costs.
- Photocell Option: Comes with a pre-installed dusk-to-dawn photocell for automatic on/off operation. Remove the daylight sensor cap to activate, or leave it on for manual control.

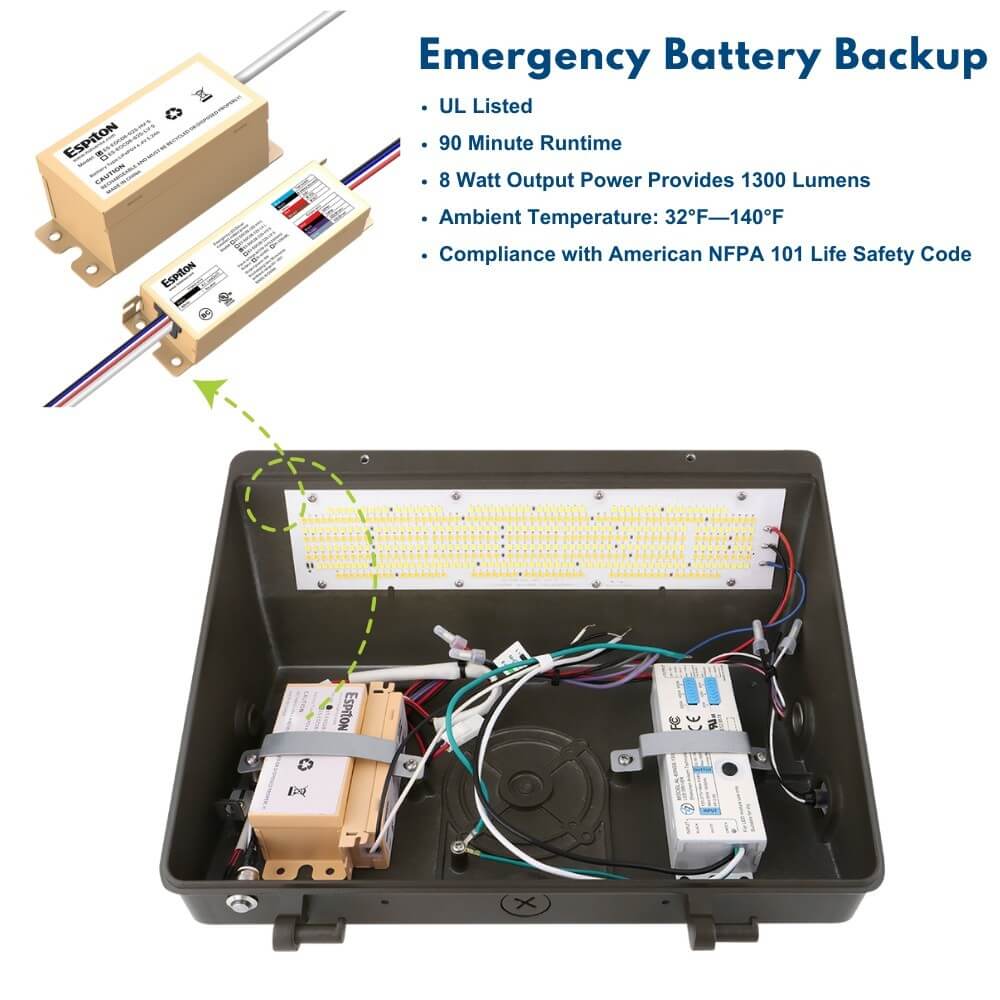

- Emergency Battery Backup: Available with an optional pre-installed emergency battery backup, ensuring continued lighting during power outages for enhanced safety.
- Durable Design: Constructed from corrosion-resistant dark bronze die-cast aluminum housing and a UV-stabilized borosilicate glass lens that won't discolor over time. Rated IP65 for wet locations, making it perfect for outdoor environments.
- Wide Light Distribution: Features a 120° beam angle for broad, even light coverage, ideal for outdoor areas.
- Long Lifespan: Offers over 50,000 hours of L70 lifespan, reducing the need for frequent maintenance or replacements.
- 0-10V Dimming: Compatible with dimming systems for full control over brightness levels.
- 5-Year Warranty: Comes with a 5-year warranty, providing reliable, long-term performance.
The Konlite KWPT Series LED Wall Pack is designed to deliver enhanced lighting performance for large exterior spaces, combining powerful output with energy-saving efficiency. Ideal for building exteriors, parking lots, and other high-mount applications.
See similar 63-watt, and 90-watt versions.
Applications
• Warehouses | • Schools & Universities |
• Boat Docks & Marinas |
• Building façade |
• Security Lighting | • Underpasses |
• Parking Facilities | • Loading Areas |
• Gas Stations | • Metal Buildings |
Specifications
Warranty | 5 Years | MPN | KWPT125SMCLV |
Input Voltage | 120-277V | UPC | 659675158808 |
Input Wattage | 125W/105W/76W | Equal to | 400W/320W/250W MH |
Lumens | 17,450 | CRI | >80 |
Efficacy | 145 LM/W | Available CCT | 5000K/4000K/3000K |
Rated Life | >50,000 hrs | THD | <15% |
Power Factor | >0.9 | IP Rating | IP65 |
Dimmable | 0-10V | Controls | Built-in Dusk to Dawn Photocell |
Operating Temperature | -40 to 122 F | Dimensions | 13.17"(W) x 10.35"(H) x 5.73"(D) |
Certifications | UL, Damp Locations | Weight | 10 lbs |
Download Specifications | |
Installation Instructions Guide | |
Download IES Files |
