Product Overview

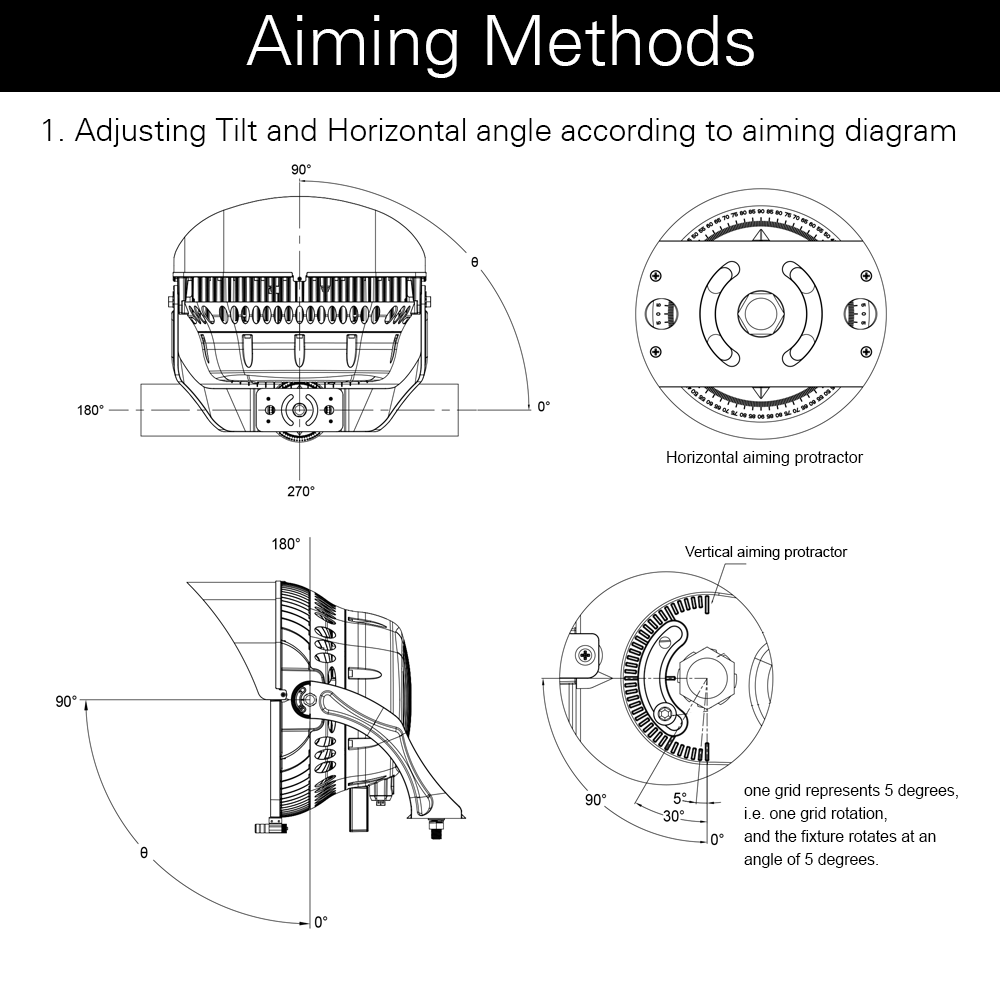

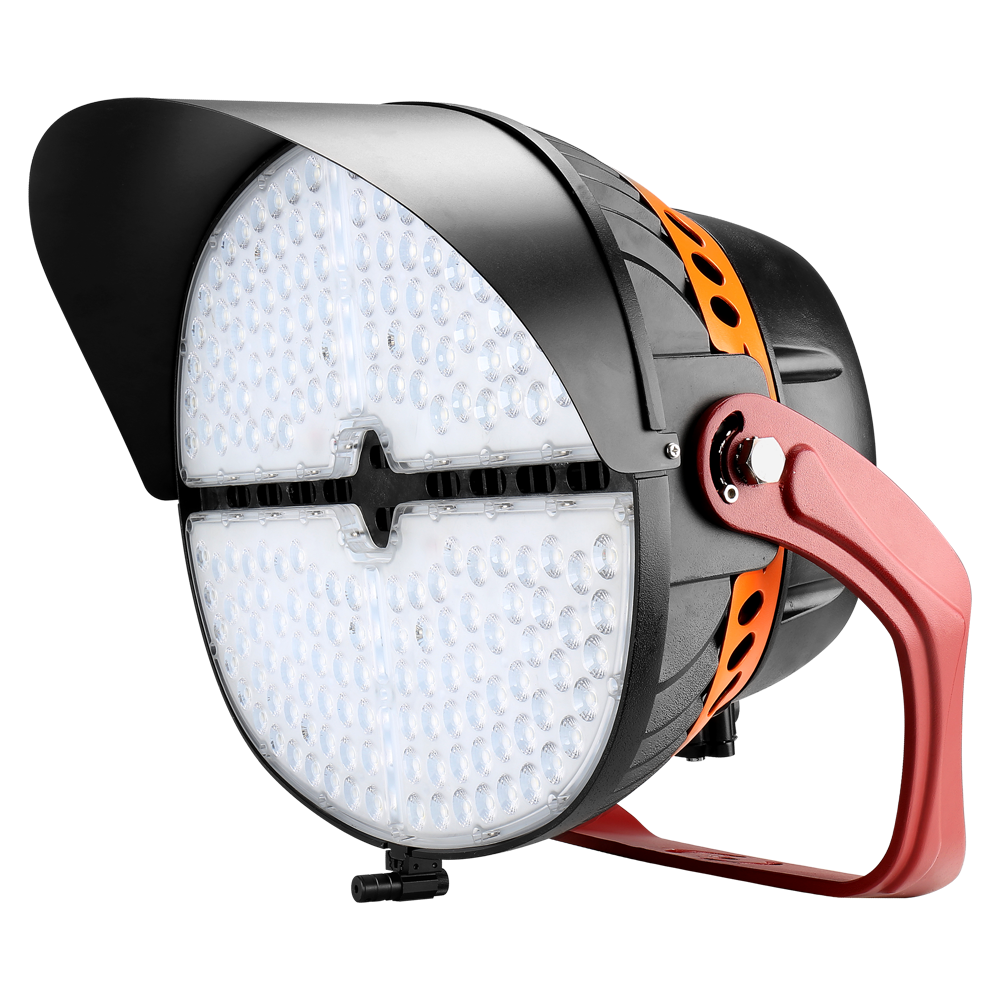

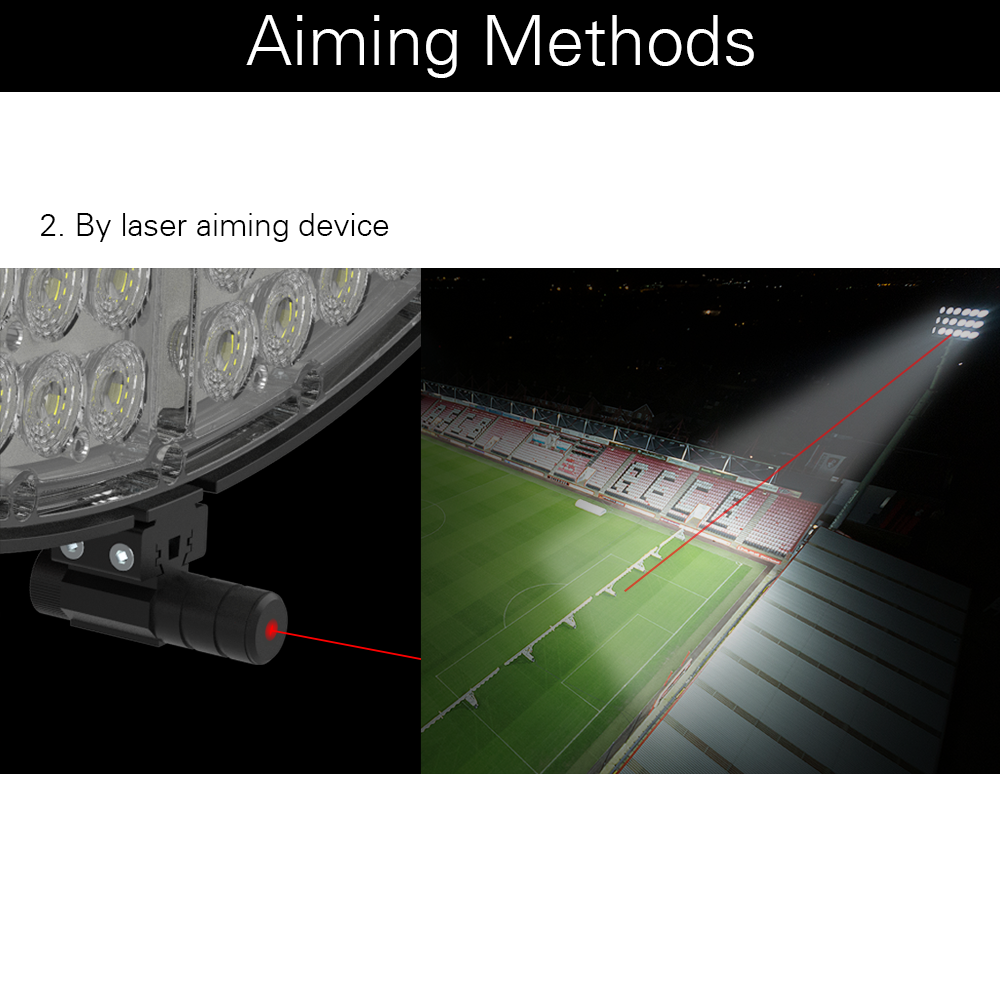

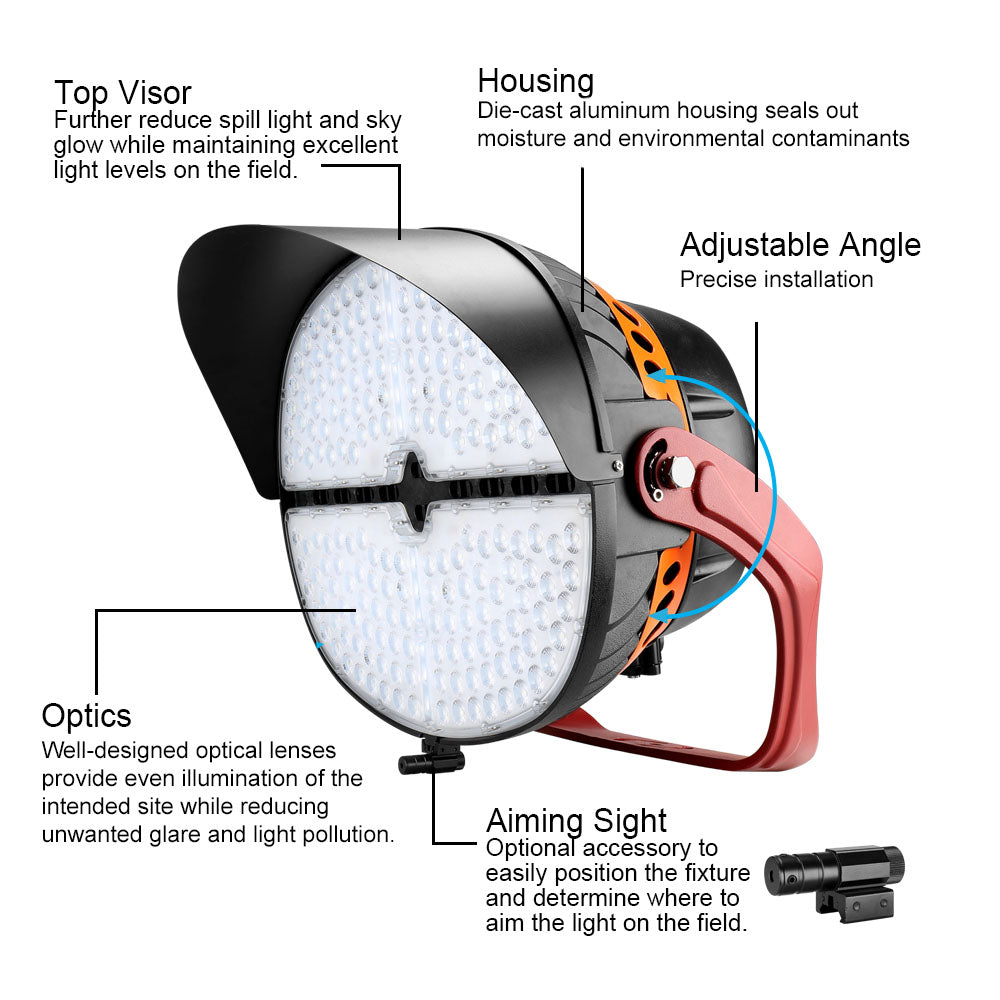

Replace your old outdoor Flood Lights, Stadium lights with this Konlite high efficiency LED Sports light. Konlite 650W Sports Light is a high efficacy luminaire designed to offer excellent visibility with minimal glare. This lightweight fixture has a beam angle of 21° and easily installs in applications of up to 120 feet, providing outstanding illumination of sport and municipal sports fields, stadium, and Parks. A light shield ( Visor ) prevents light pollution in areas where preserving ambiance may be a concern. A laser pointer to help point the fixture in the correct direction.

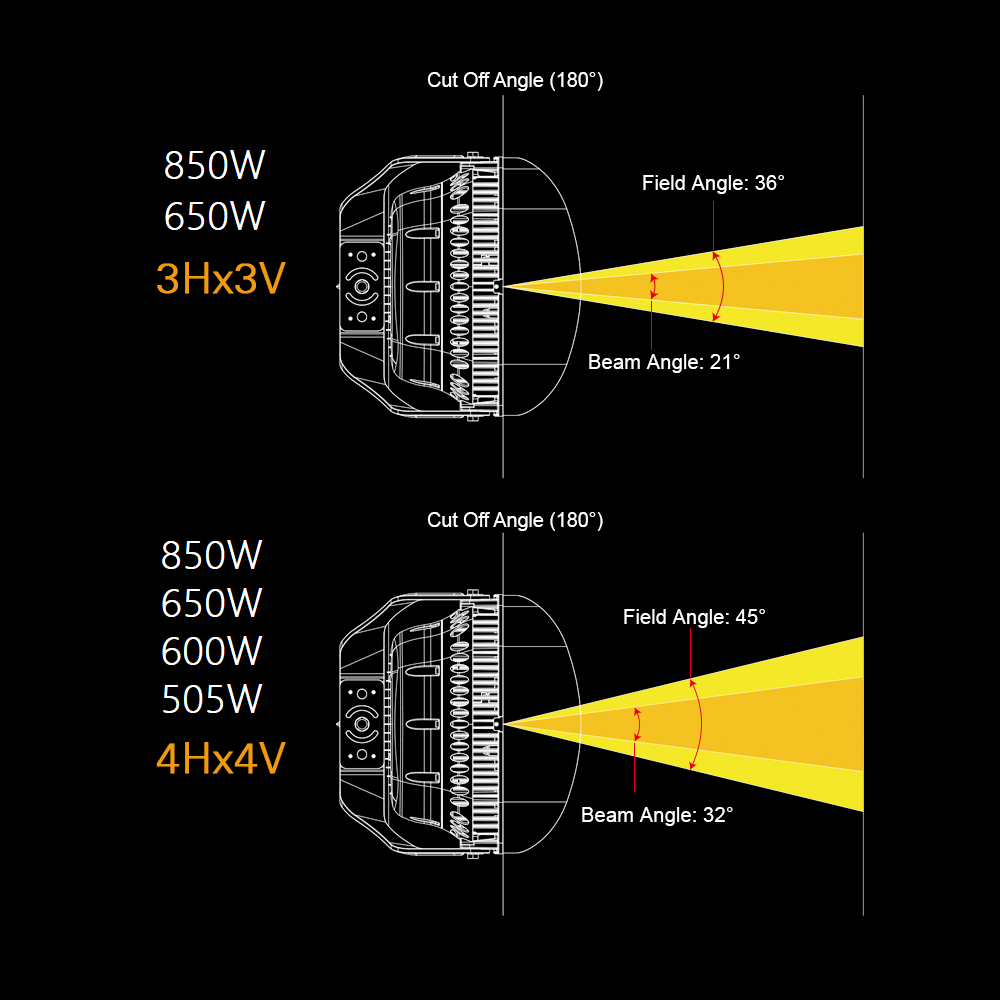

650 Watts, 91,000 Lumens, 1-10V Dimmable, 5700K, NEMA 3H3V Distribution, 277-480V

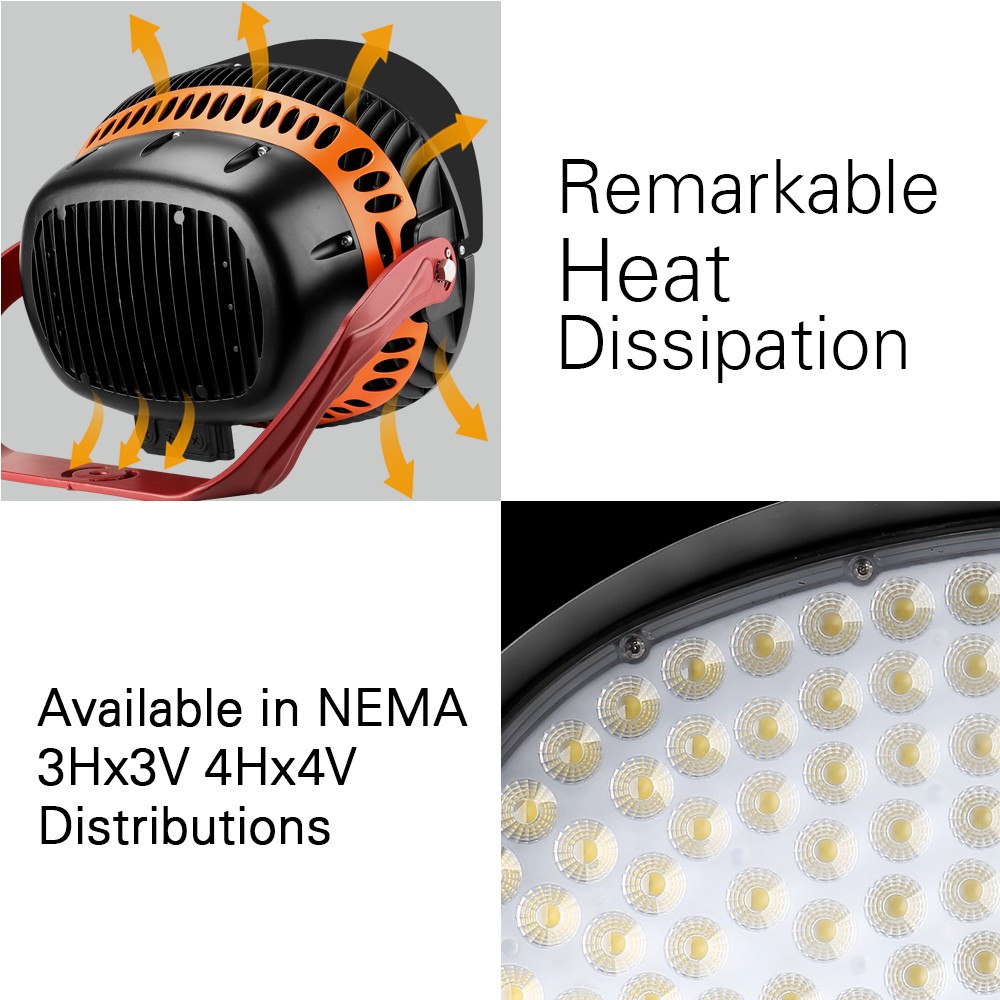

Built to last and withstand harsh elements, the stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.
UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 10-year warranty
See similar 850-watt versions.
Applications
| • Baseball Fields | • Football Fields Lighting |
| • Tennis Courts |
• Cricket Fields |
| • Soccer Fields | • Golf Range |
| • Basketball | • Stadium Lighting |
| • Shooting Range | • Speedway |
| • Schools & Universities | • Community Parks |
| • Sports Complex | • Open area High Mast lighting |
| • Arenas | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | MSL01650W48V57KB33TR |
| Warranty | Limited 10 Years | UPC | |
| Input Voltage | 277-480V | Optical | NEMA 3H3V |
| Input Wattage | 650W | Equal to | 1500W-2000W MH |
| Delivered Lumens | 91,000 | CRI | >70 |
| Efficacy | 140 LM/W | Available CCT | 5700K |
| Rated Life | >100,000 hrs | THD | <20% |

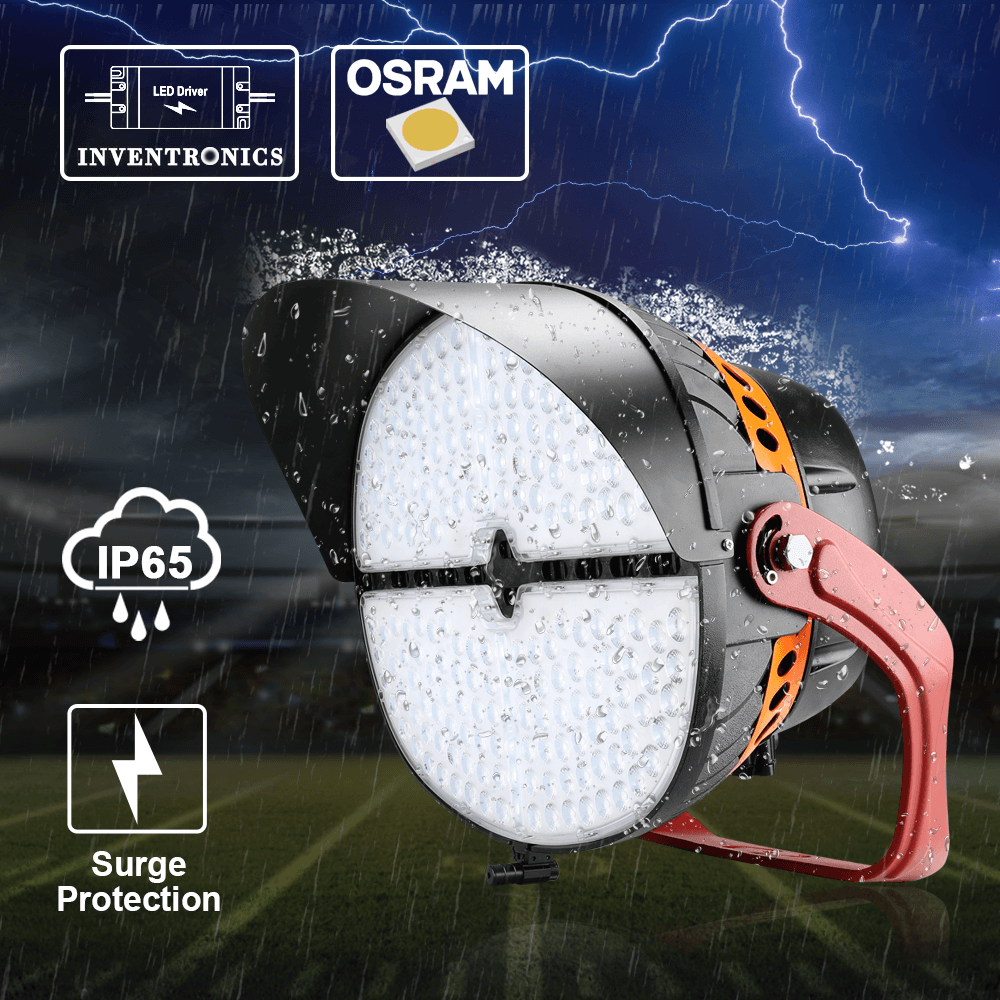

| Power Factor | >0.9 | IP Rating | IP65 |
| Dimmable | 1-10V | Controls | N/A |

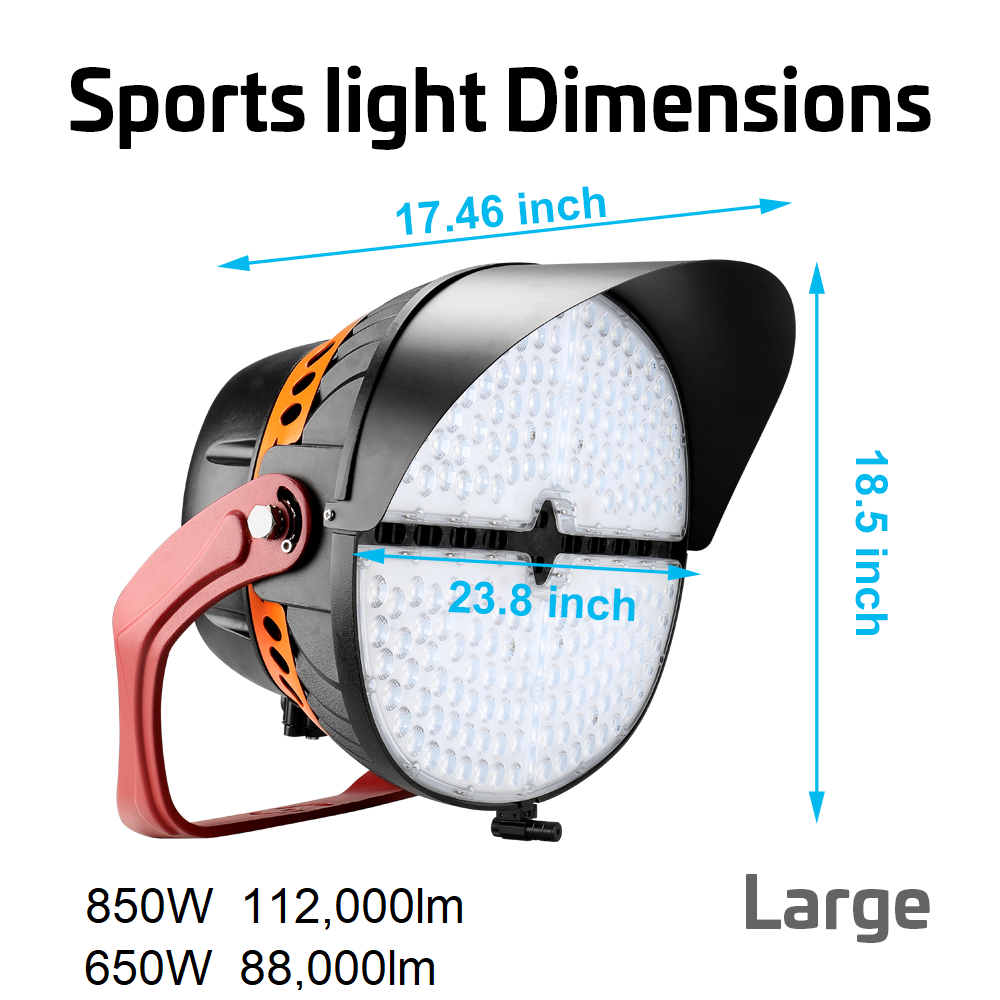

| Operating Temperature | -40 F to 113 F | Dimensions | 23.8''x18.5''x17.5'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 60 lbs |
