Konlite LED Canopy CP0203 Series - 45W - 5000 Lumens - 4000K - 120-277V - White - Dimmable - 150W Equal

Product Search Code: 23-0103
KonliteSKU: RDCP02030454KDNSMLW

Enhance safety and security to perimeter lighting with the Konlite CP0203 White LED Canopy

  • Suitable for parking garage applications
  • Sealed die-cast profile for indoor and outdoor applications
  • White diffused lens provides crisp uniform illumination
$114.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

What's in the box

1 Lighting Fixture with J-Junction - 1 Installation Guide

Enhance safety and security to perimeter lighting with the Konlite CP0203 White LED Canopy

  • Suitable for parking garage applications
  • Sealed die-cast profile for indoor and outdoor applications
  • White diffused lens provides crisp uniform illumination

What's in the box

1 Lighting Fixture with J-Junction - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A

Product Overview

The versatile low profile Konlite CP03 White LED Canopy is ideal for new spaces or replacement of fluorescent or HID. Offers energy savings, while cutting maintenance cost of bulb replacement.

45watts, 5000 Lumens, 4000K Daylight, CCT, 0-10V Dimmable

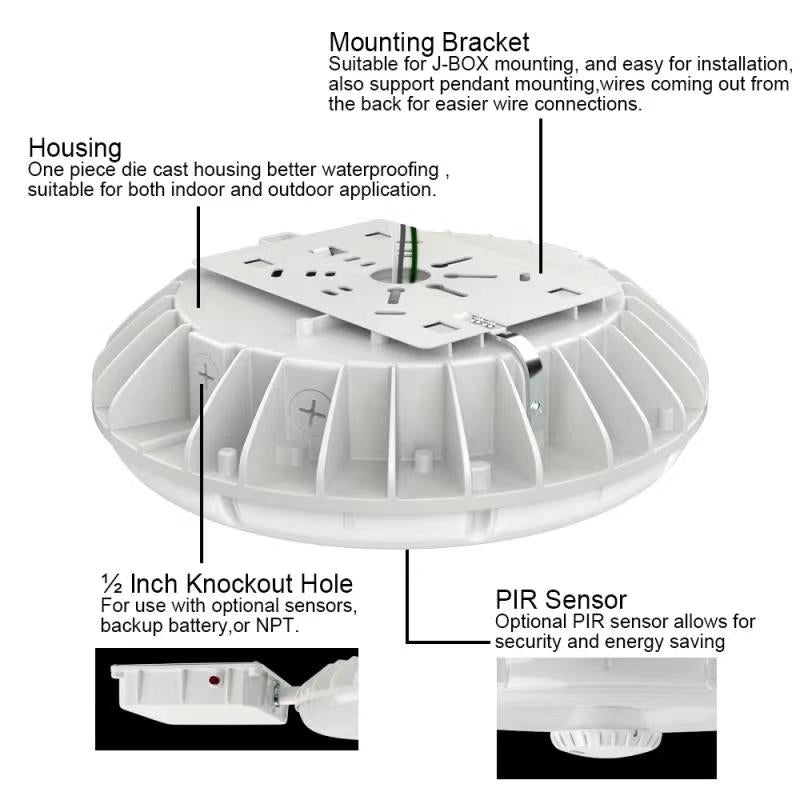

Sealed die cast aluminum housing with corrosion resistant white powder coat finish both protects and provides architectural appearance for indoor and outdoor use. Superior thermal performance extends the life of the fixture.

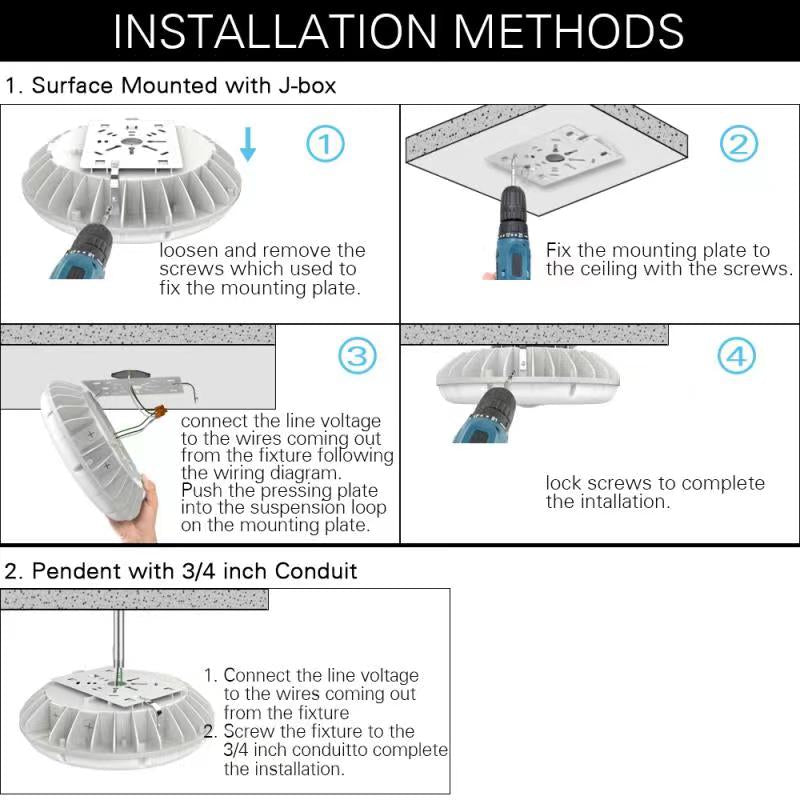

Diffused lens for reduced pixilation and broad beam light distribution. Easy to install, suitable for junction box mounting.

Delivers energy efficient, uniform illumination to a wide range of applications: parking garages, breezeways, stairwells, perimeter lighting, porches, workshop, hotel, retail, and schools.

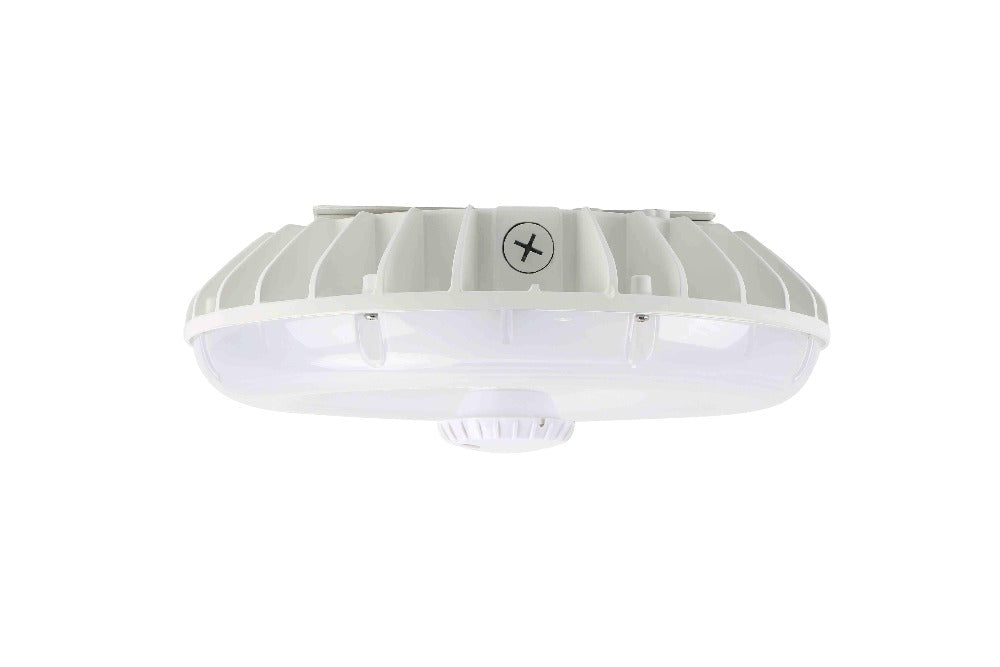

UL wet location, DLC Energy rebate eligible, 50,000>hours L70 lifespan use, 5 year warranty. Optional PIR motion sensor for increased energy savings.

See similar 60-watt version.

Applications

•Workshop •Walkways
•Garage •Store Front
•Parking Garage •Gas Stations
•Low Bays •Cover Docks
•General Site Lighting •Doorway and Pathway
Color Temperature4000K color temperature
Certifications
US company5 years warrantyDLC listed UL listedFCC certificationIP65 rating

Specifications

BrandKonliteMPNRDCP02030454KDNSMLW
Warranty5 YearsUPC717360773023
Input Voltage120-277VDimmable1-10V
Input Wattage45WEqual to150W
Delivered Lumens5,000LMCRI>70
Efficacy111 LM/WAvailable CCT4000K
Rated Life>50,000 hrsTHD<15%
Power Factor>0.9ControlsPIR Motion Sensor
Operating Temp-40°F to 113°FMotion Sensor DefaultHold time 10 Seconds, On Hold 100%, Stand By Time 60 mins, Diming Level 30%
CertificationsUL, Wet Locations, DLC PremiumWeight5.4 lbs
