Product Overview
The Konlite Magnetic LED Retrofit Kit offers a high-performance solution for converting traditional 4ft fluorescent fixtures to energy-efficient LED lighting. With selectable wattages and color temperatures, it delivers versatility and ease of use for commercial, industrial, and institutional applications.
Key Features
🔹 Selectable Wattage (60W / 50W / 36W)
Choose from multiple wattage settings to match the lighting requirements of the space while providing flexibility for energy savings and fixture performance.
🔹 Selectable Color Temperature (3000K / 4000K / 5000K)
Select warm, neutral, or daylight white light to achieve the desired lighting appearance for offices, commercial spaces, warehouses, schools, and other interior environments.
🔹 Multiple Light Bar Configurations

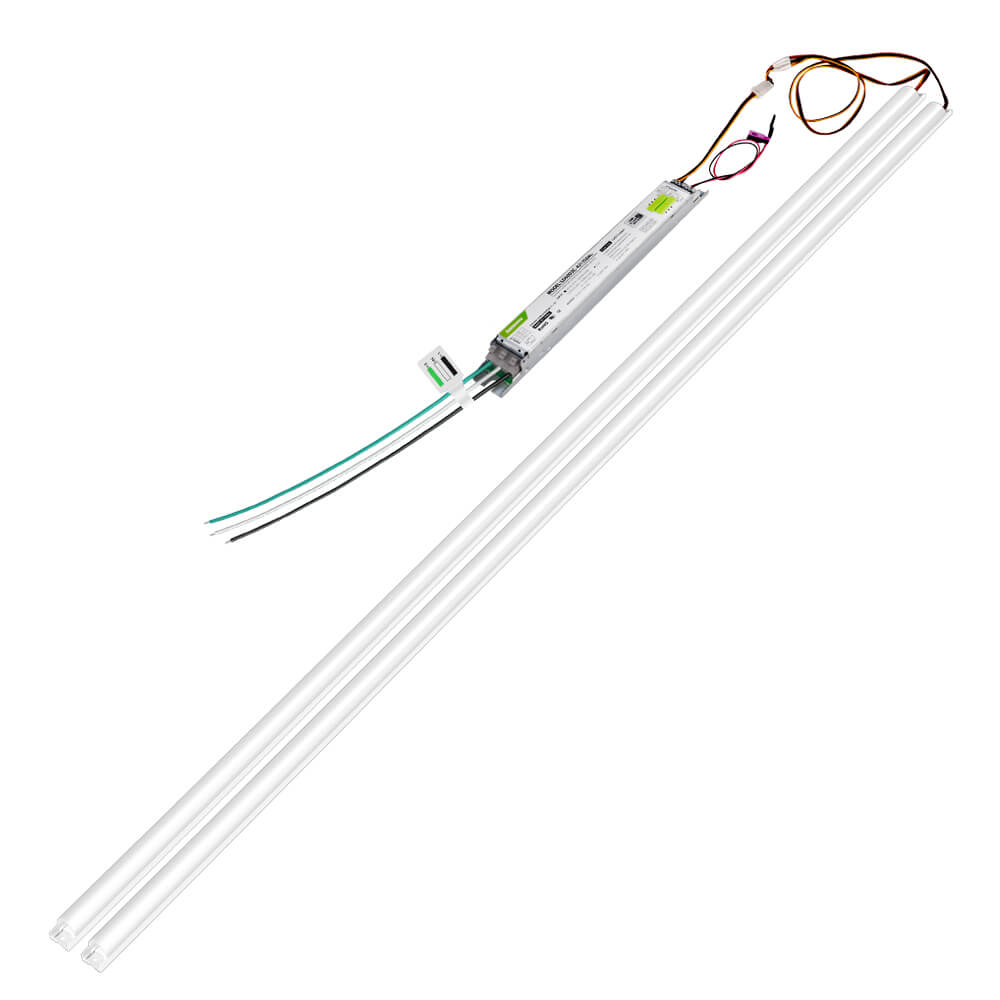

This item uses includes two light bars and a LED driver. Also available with four light bars.

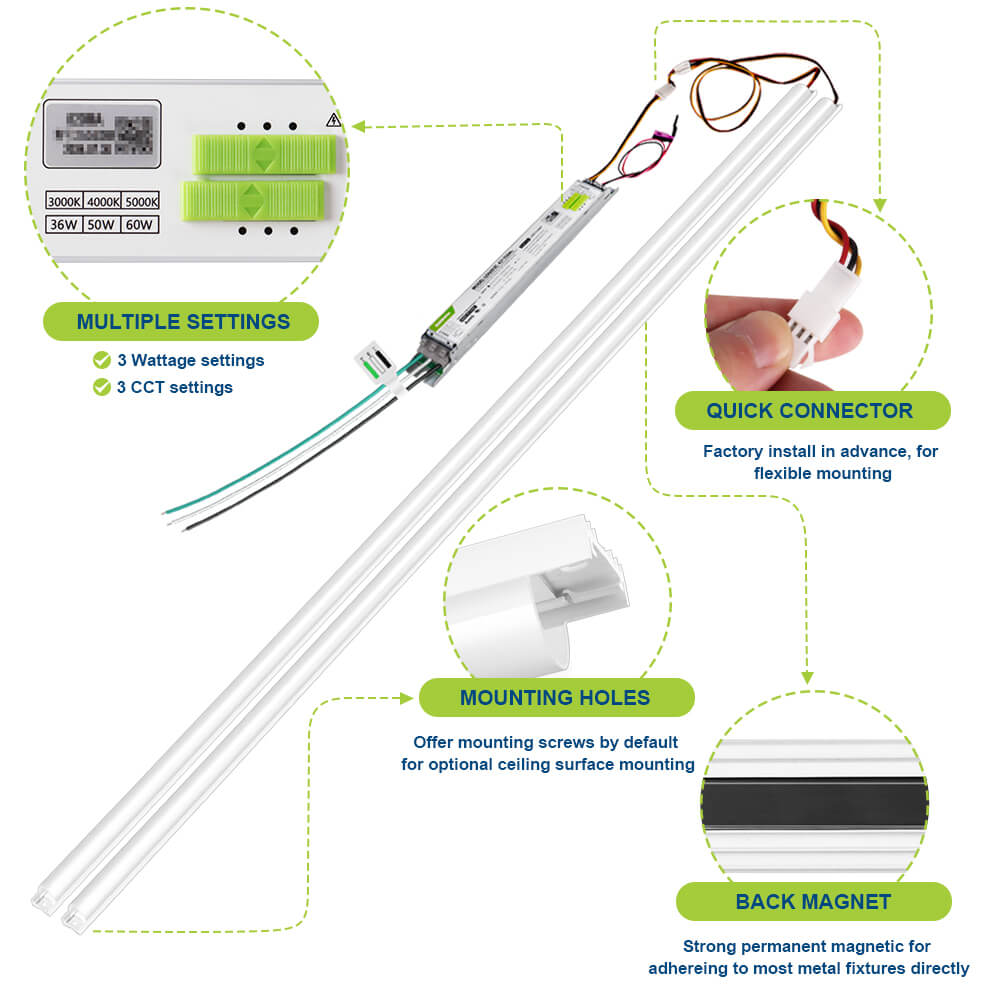

🔹 Fast Magnetic Retrofit Installation

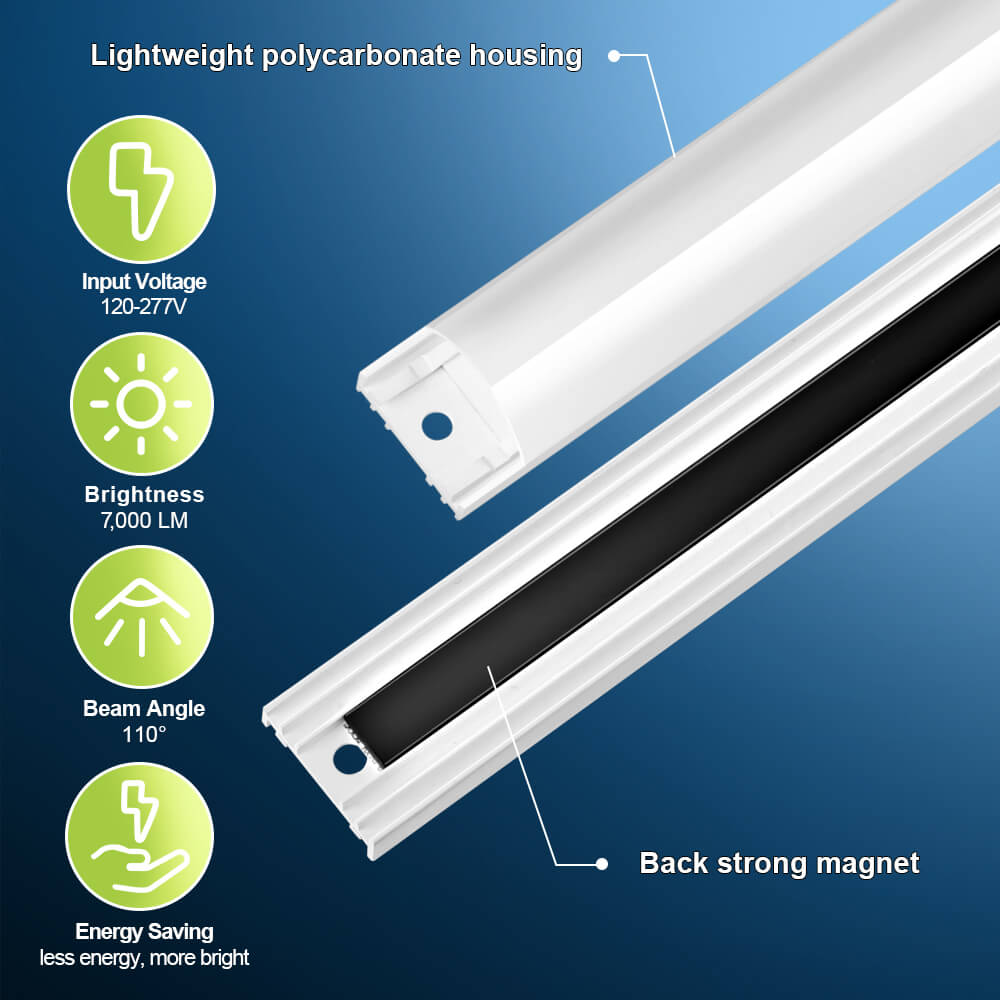

Magnetic backing allows the LED light bars to mount directly to compatible metal fixture housings for quick, tool-free installation, helping reduce installation time and labor costs.
🔹 T8/T12 Fluorescent Retrofit Solution

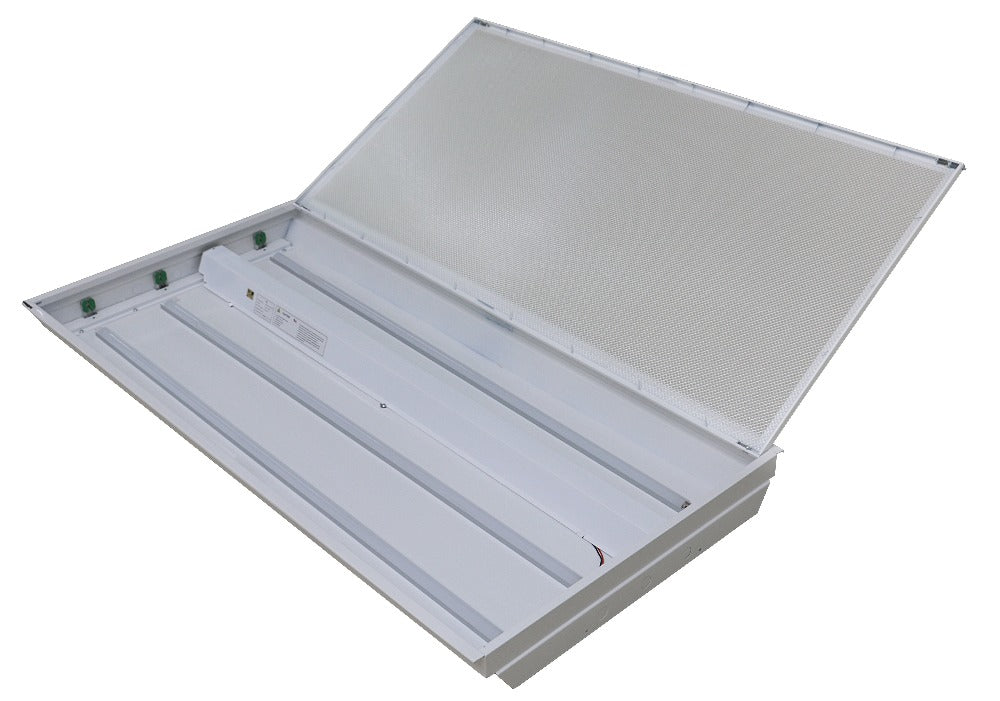

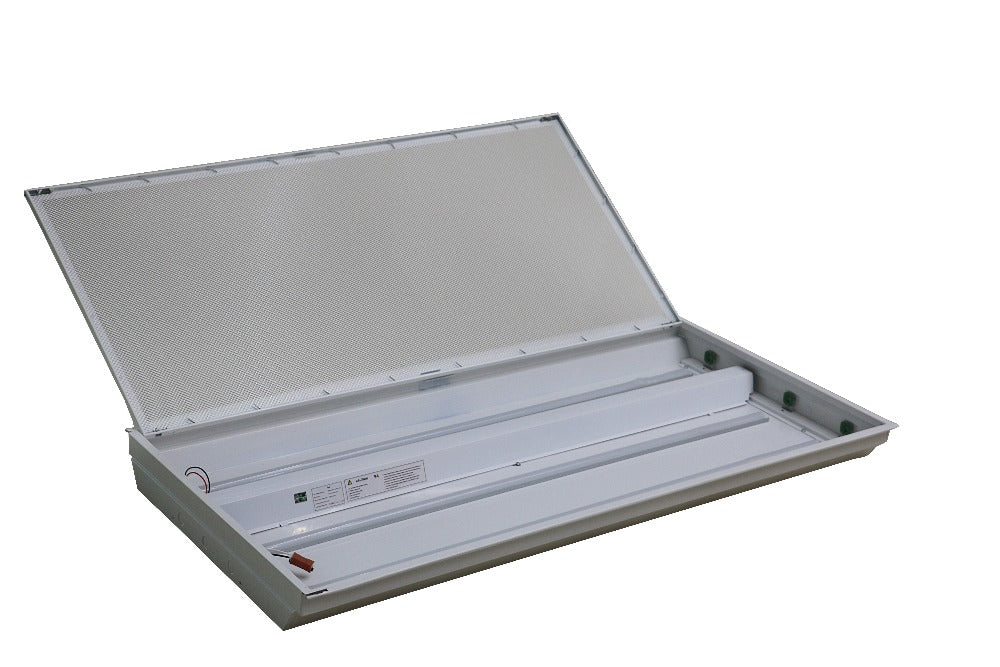

Designed specifically to upgrade traditional T8/T12 fluorescent fixtures to LED without requiring replacement of the entire existing fixture housing.
🔹 Wide 110° Beam Spread
Provides broad light distribution for consistent illumination across interior spaces, making the retrofit kit suitable for a variety of commercial, industrial, and institutional applications.
🔹 0-10V Dimming
Equipped with a 0-10V dimmable LED driver that allows the light output to be adjusted from 100% down to off, providing additional control over illumination levels and energy consumption.
🔹 High-Efficiency LED
Delivers up to 7,000 lumens with efficacy reaching 128 lm/W, providing efficient illumination while reducing energy consumption compared to traditional fluorescent lighting.
🔹 Reliable Electrical Performance
Operates on 120–277V AC at 50/60Hz with power factor greater than 0.9, THD below 10%, and CRI greater than 80 for dependable and efficient operation.
🔹 Commercial-Grade Construction
Features a lightweight polycarbonate housing designed for dependable indoor operation with an ambient operating temperature range of -13°F to +113°F.
🔹 White Diffuser for Uniform Illumination
The integrated white diffuser helps eliminate visible hotspots and pixelation, creating a cleaner and more uniform appearance throughout the illuminated space.
🔹 DLC 6.0 Standard
DLC 6.0 Standard qualified across the listed lumen packages, making the retrofit kit suitable for commercial energy-efficiency projects and applicable rebate opportunities where eligible.
🔹 5-Year Limited Warranty
Backed by a 5-year limited warranty for added confidence in long-term product performance.
Applications
| • Offices & Workspaces | • Warehouses & Distribution Centers |
| • Retail Stores & Shopping Centers |
• Factories & Industrial Buildings |
| • Conference Rooms | • Schools & Educational Facilities |
| • Healthcare Facilities | • Storage Facilities & Self-Storage |
| • Hospitality & Hotels | • Industrial Facilities |
| • Hallways & Corridors | • Fluorescent Fixture Retrofits |
| • Commercial Buildings | • Showrooms & Display Areas |
Performance:
Warranty | Limited 5 Years | MPN | XMTA4F260WSCSAUV |
Input Voltage | 120-277V | Equal to | 4-Lamp Fluorescent |
Input Wattage | 60/50/36W | Dimmable | 0-10V |
Lumens | 7,000 Max | CRI | >80 |
Efficacy | 126 LM/W | Available CCT | 5000k/4000k/3000k |
Rated Life | >50,000 hrs | THD | <10% |
Power Factor | >0.9 | IP Rating | IP22 |

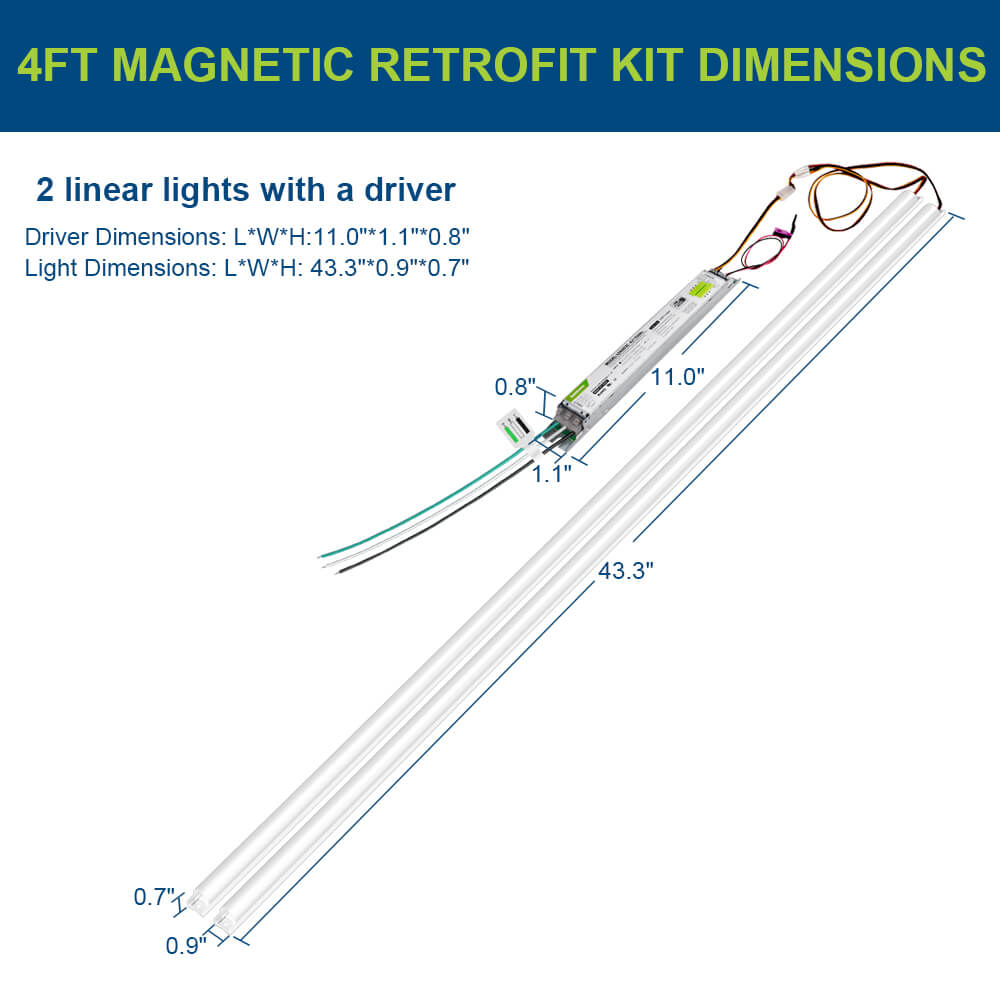

Operating Temperature | -4° to 113° F | Dimensions | 43.3" x 0.9" x 0.7" |
Certifications | DLC, ETL listed | Weight | 1.45 lbs |
