Product Overview

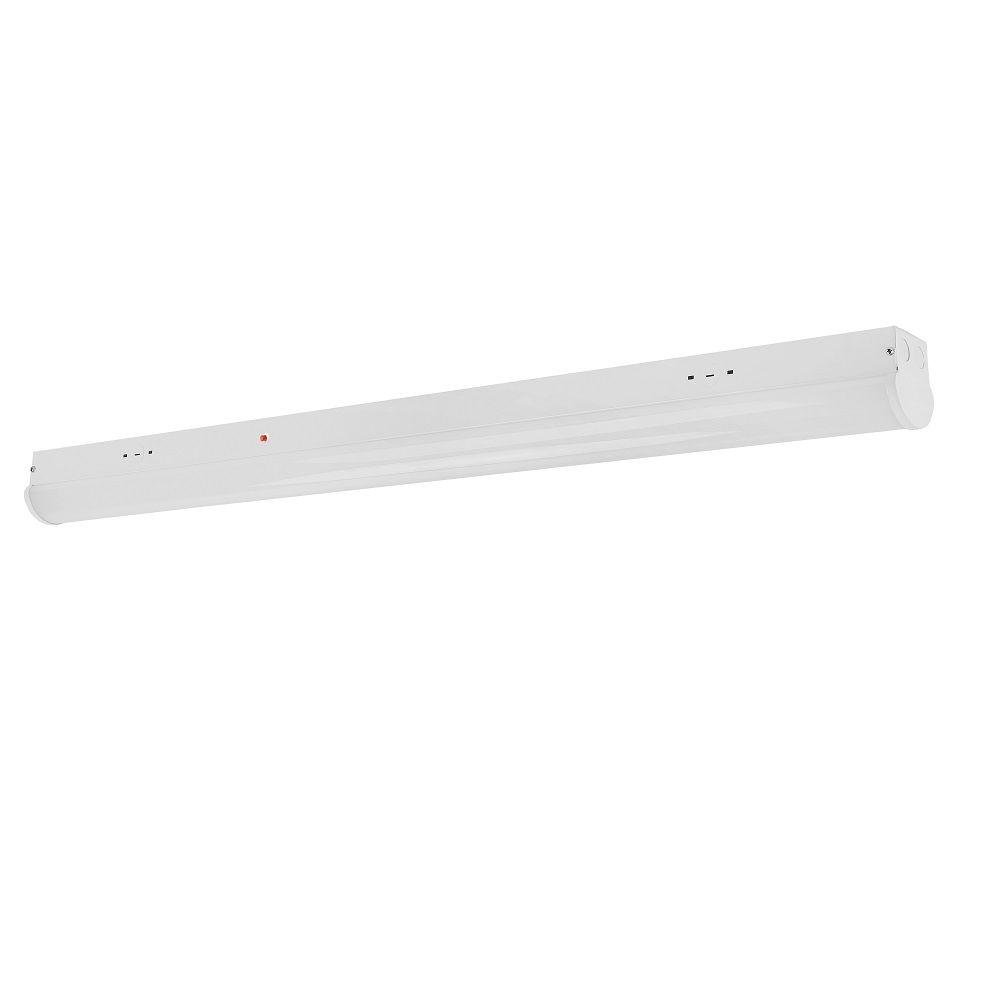

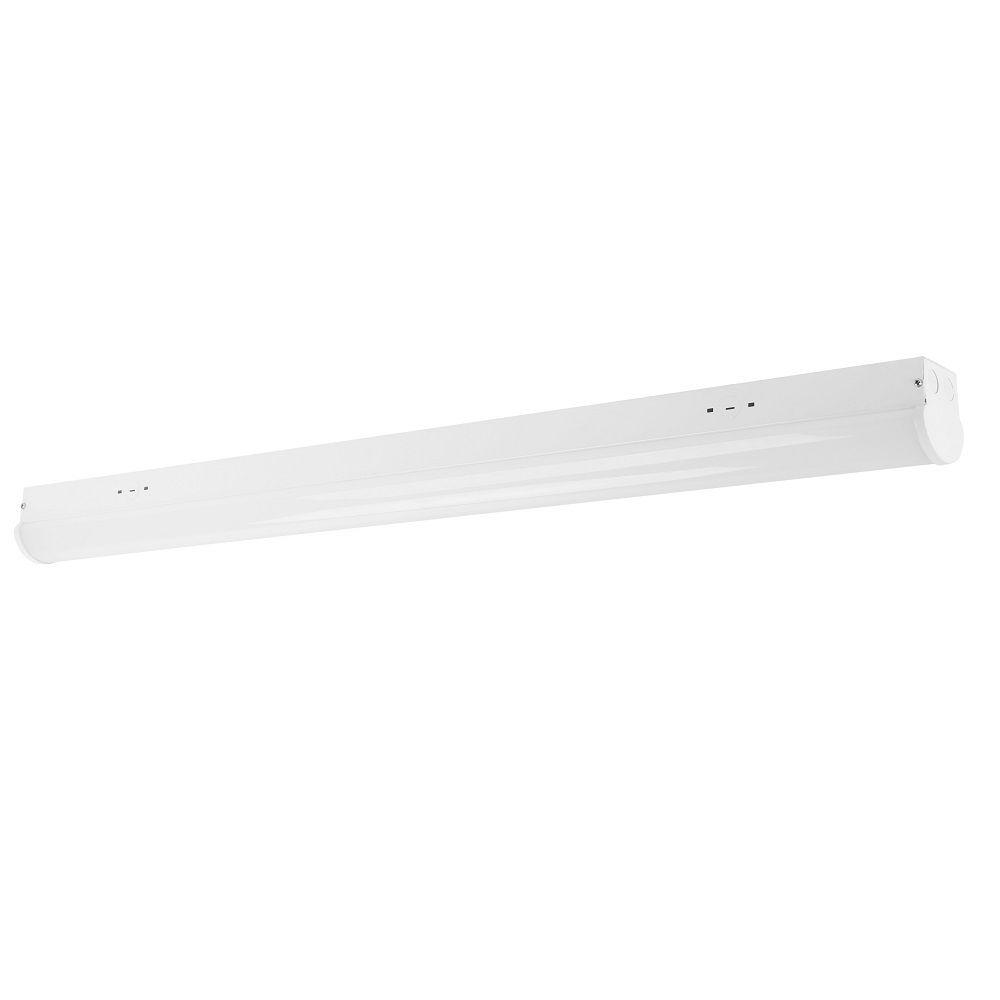

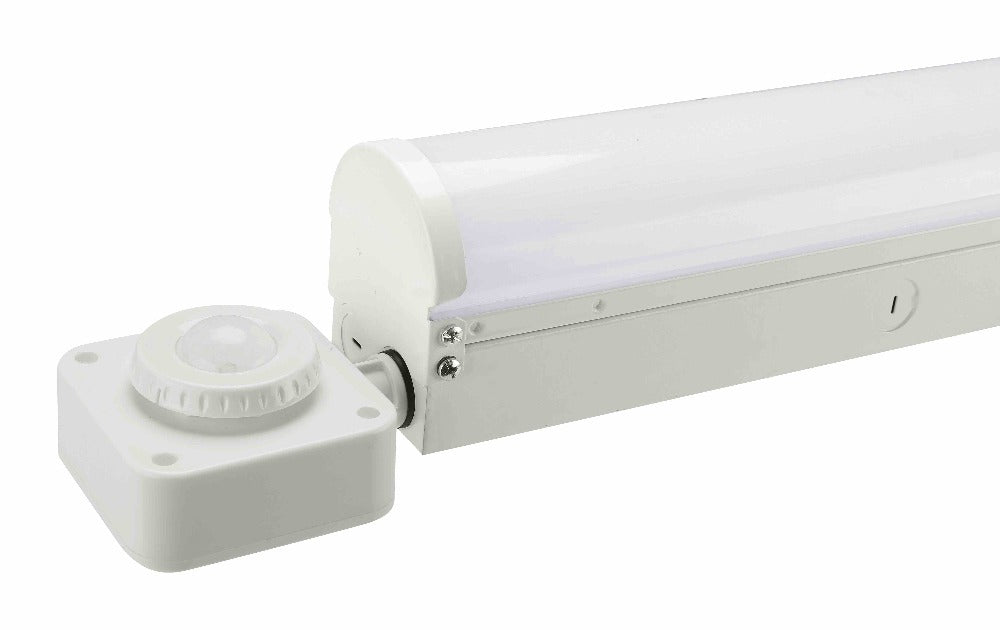

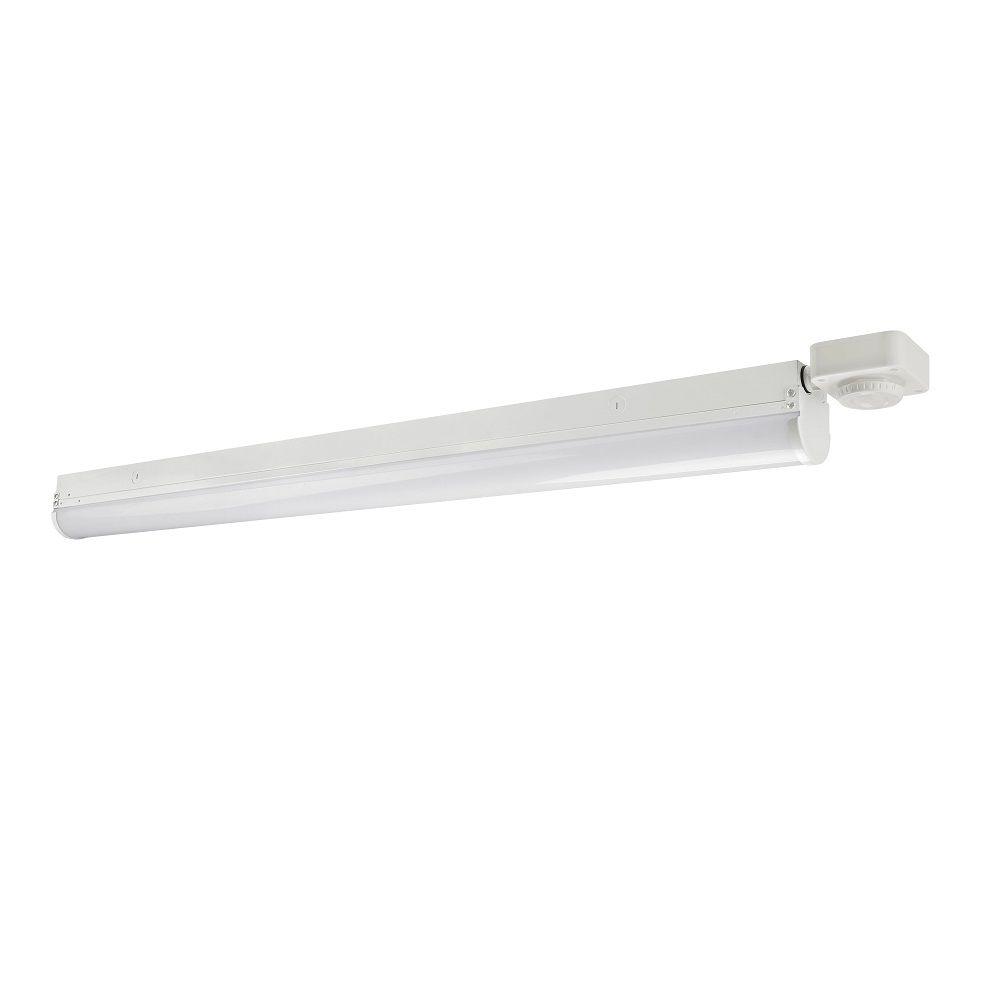

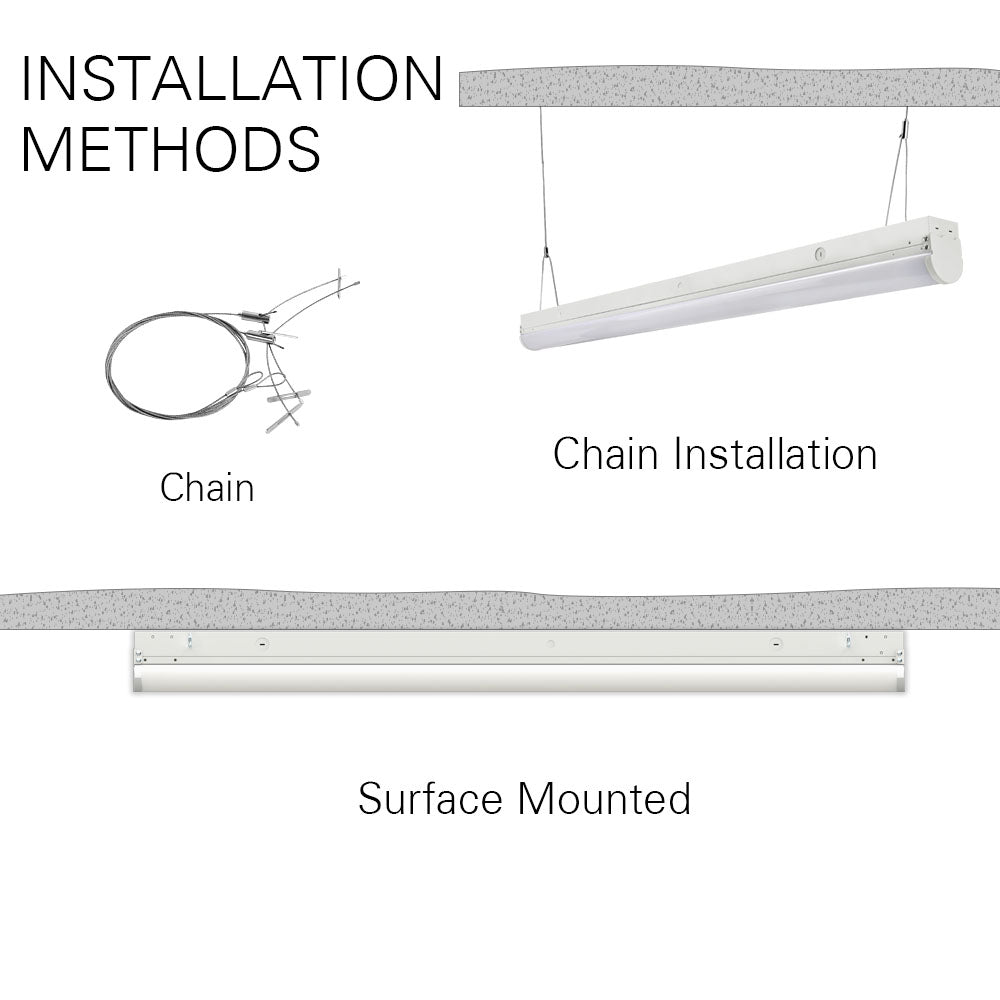

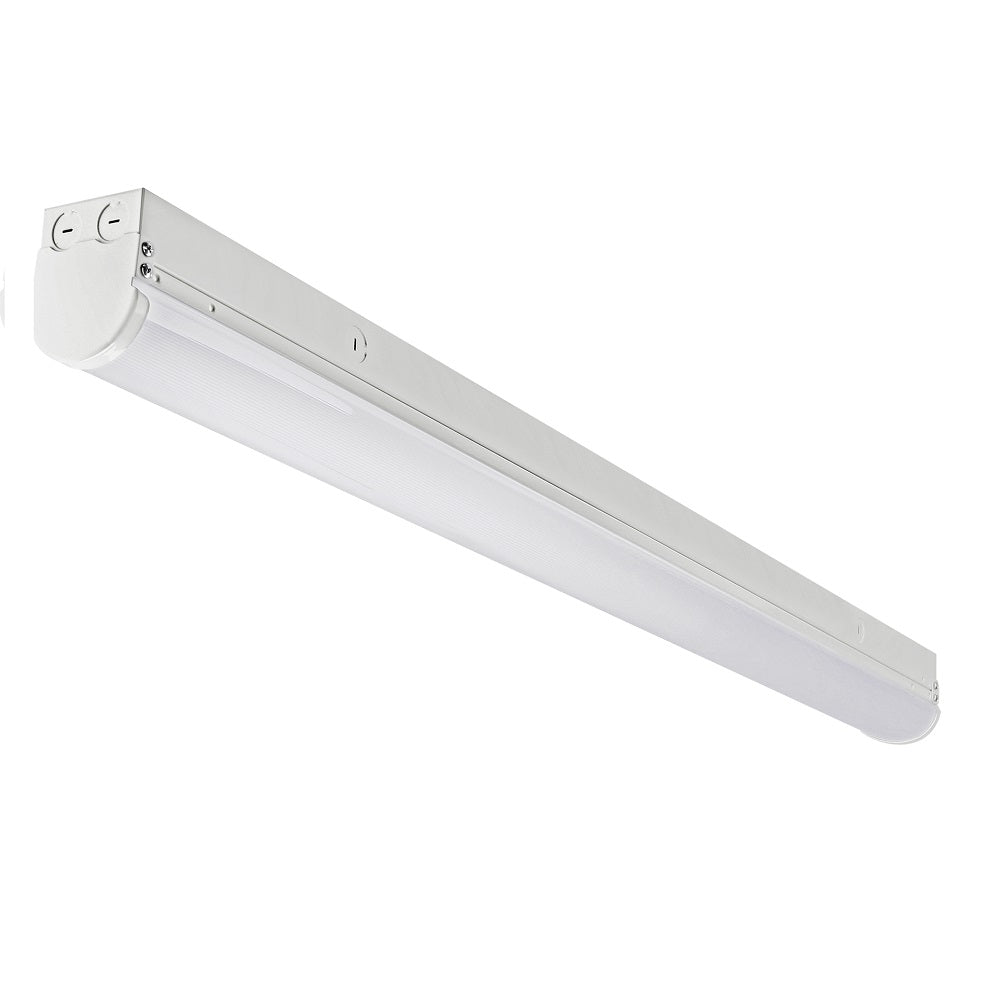

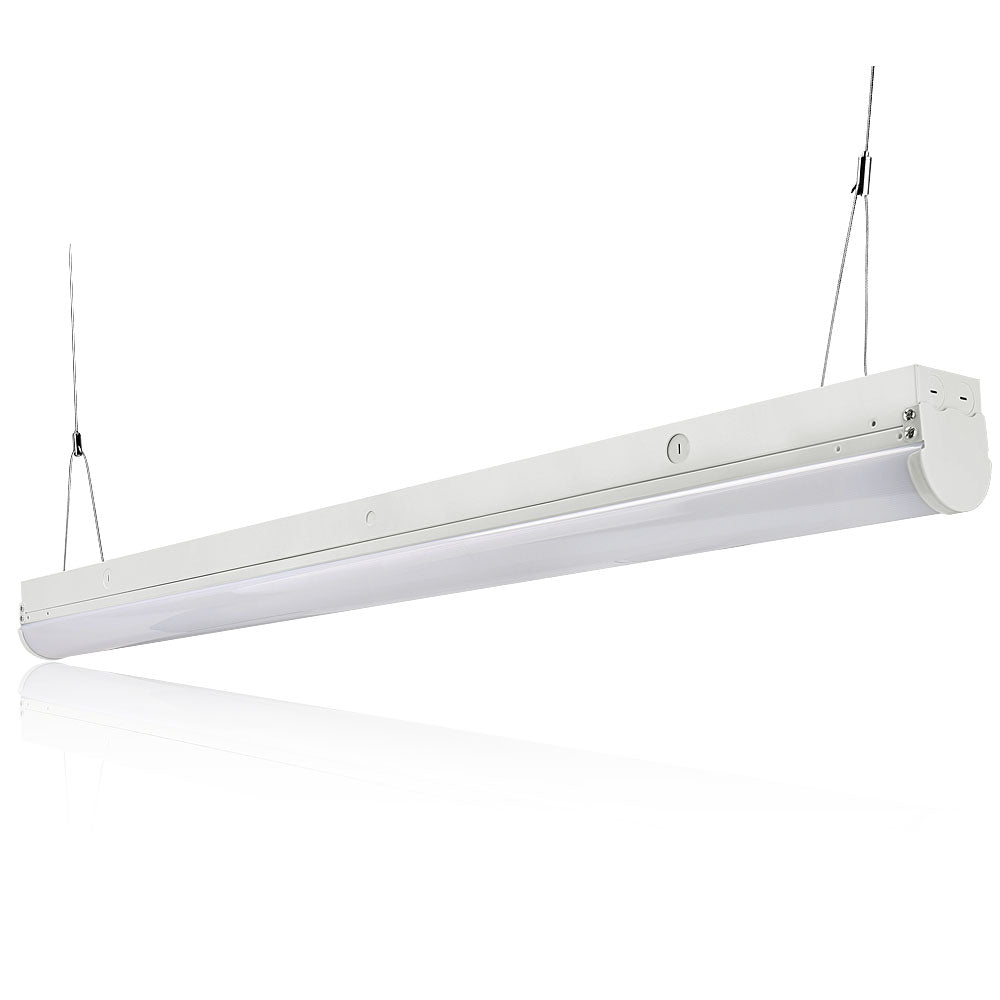

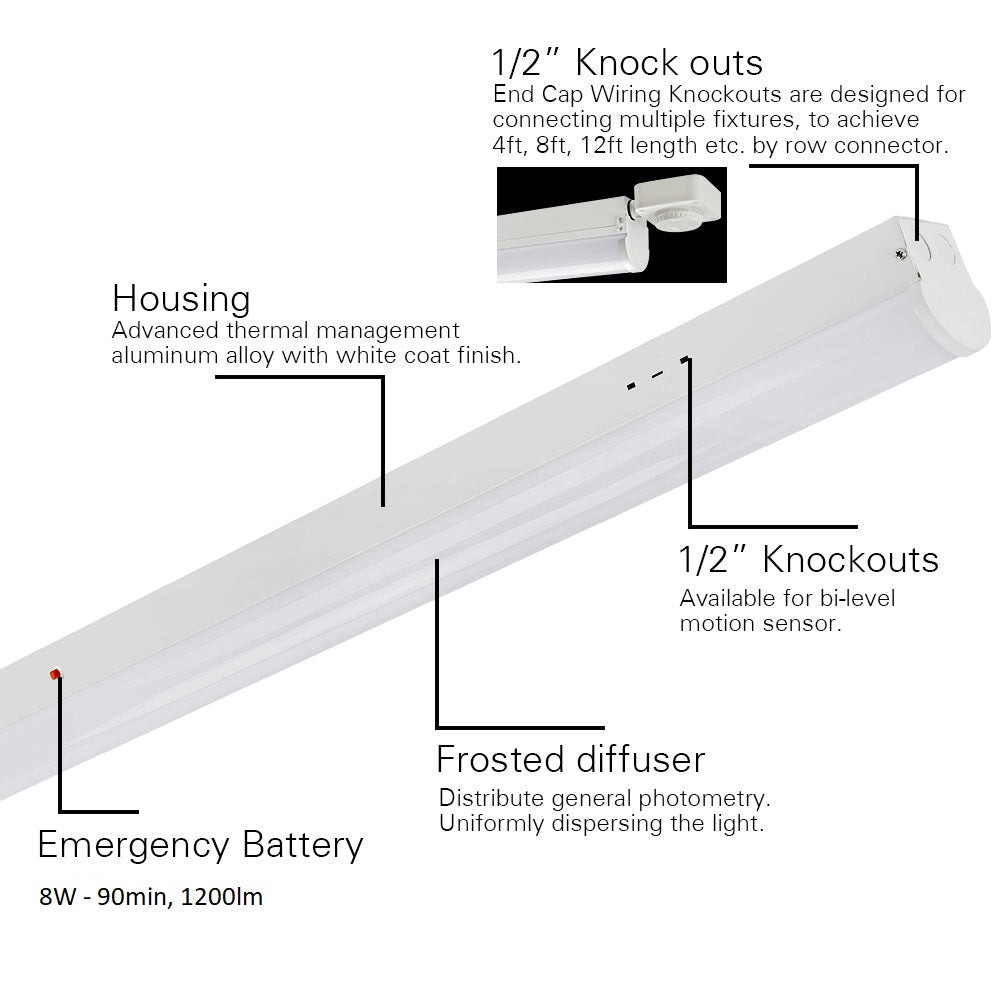

The 4ft Konlite 45 Watt LED strip light fixture is designed to retrofit existing fluorescent or new construction. Easy install- can be surface mounted to ceilings and walls or suspended with cable. Frosted acrylic diffuser provides wide light distribution and glare control. Energy efficient multi-purpose fixture is suitable for light industrial, commercial, retail, schools, healthcare or residential. 1-10V Dimming, UL, DLC certified, 5 yr. warranty. Increase energy savings with optional integral PIR motion sensor ( ( Field Install ) or Emergency Battery backup.See similar 23-watt and 35-watt 5000K versions.
Applications
•Warehouses | •Workshops |
•Factories | •Residential Ceilings |
•Storage Facilities | •Distribution Centers |
•Retails | •Supermarkets |
Color Temperature
Specification
Brand | Konlite | MPN | RDSL02020455KDN4LF |
Warranty | 5 Years | UPC | 717360777021 |
Input Voltage | 120-277V | Dimmable | 1-10V |
Input Wattage | 45W | Equal to | T5HO,4xF32T8 |
Delivered Lumens | 6,050LM | CRI | >83 |
Efficacy | 134 LM/W | Available CCT | 4000K/5000K |
Rated Life | >50,000 Hrs | THD | <18% |
Power Fact | >0.9 | Control | Motion Sensor Optional |
Operating Temp | -40°F to 113°F | Dimension | 48”x2.88”x3.76" |
Certifications | UL, Damp Locations, DLC Premium | Weight | 6 lbs |
Accessories
Remote Control For Konlite PIR Motion Sensor
SKU:RC-100
$29.95
Surface Mount Plate for SL0202 Series LED Strip Light Fixture
SKU:SC-LF02-J4-WA
$8.50
