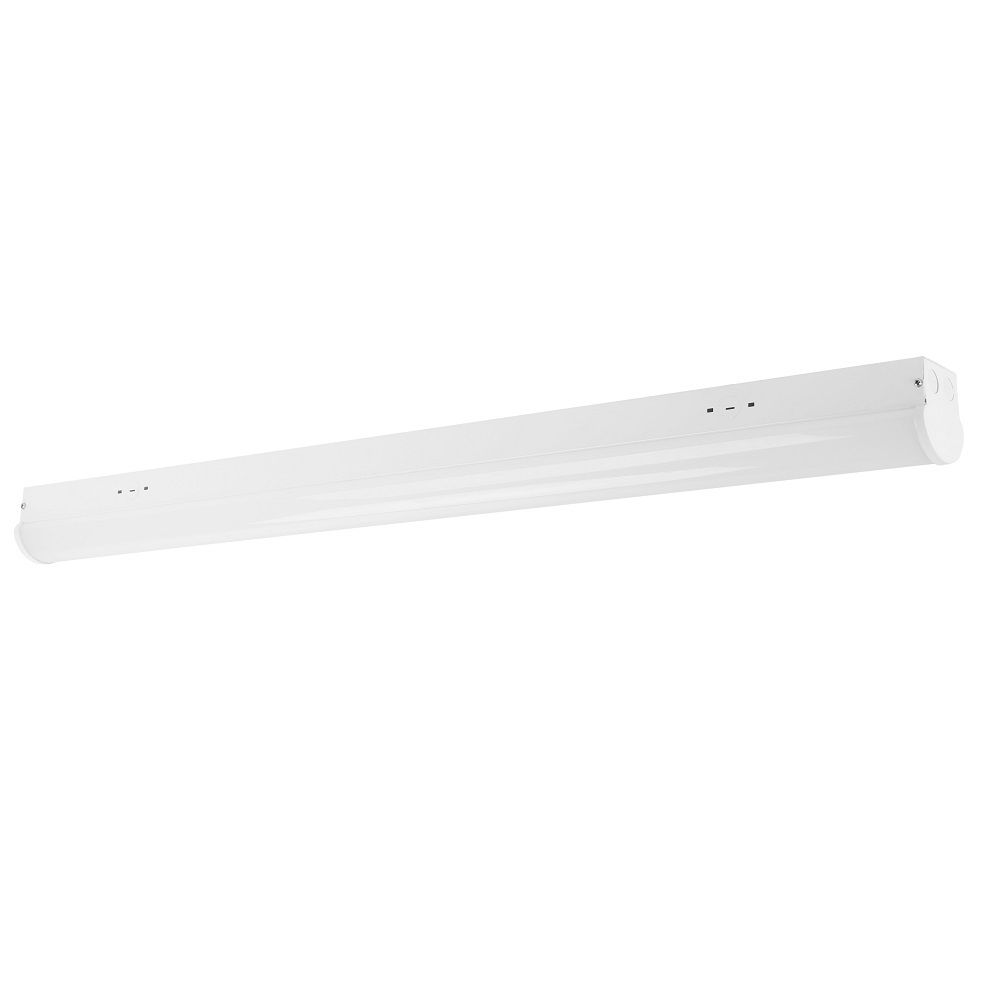

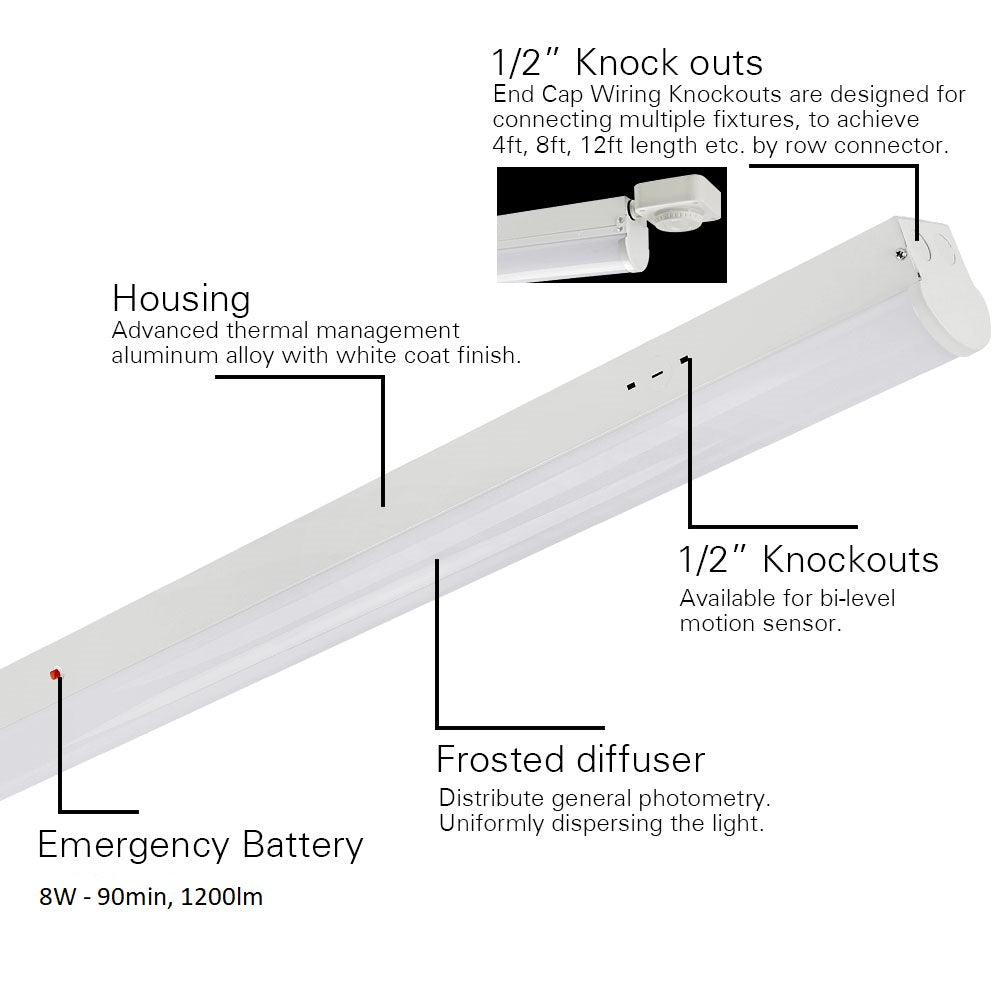

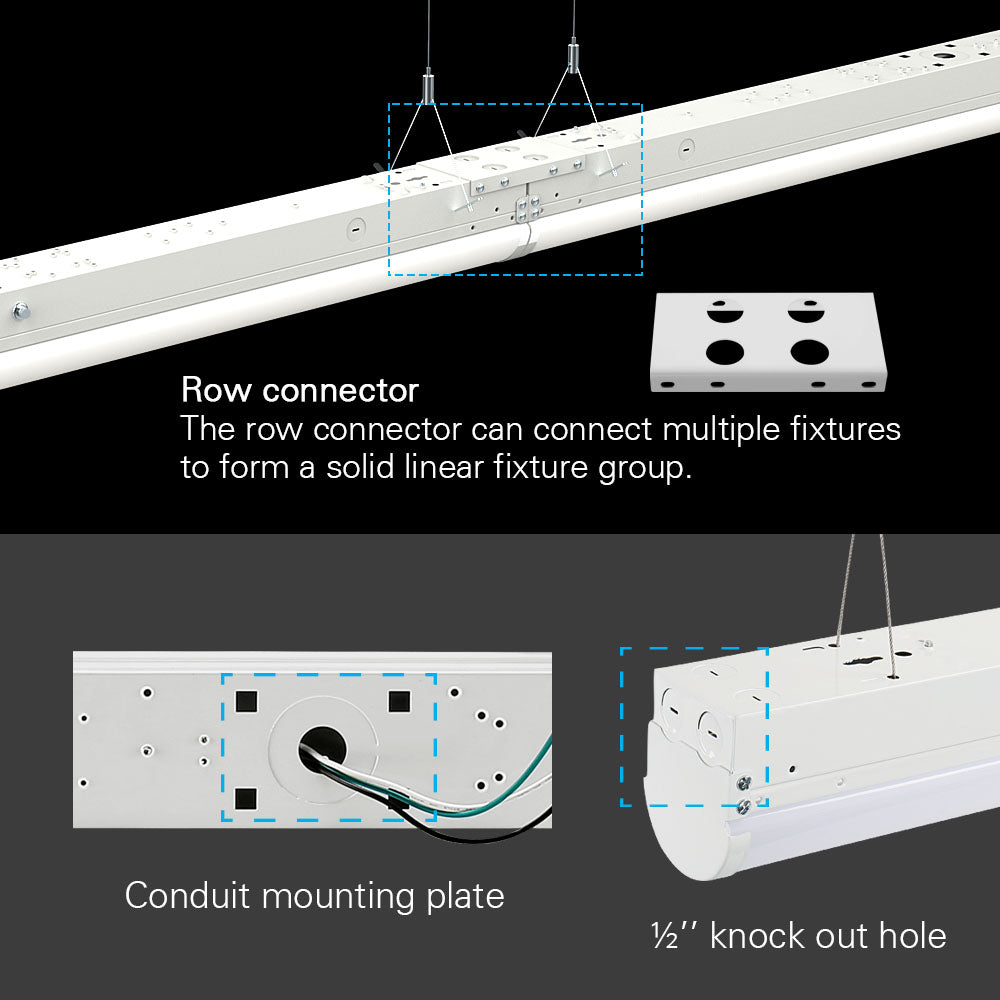

4ft Linear LED Strip Fixture Product details

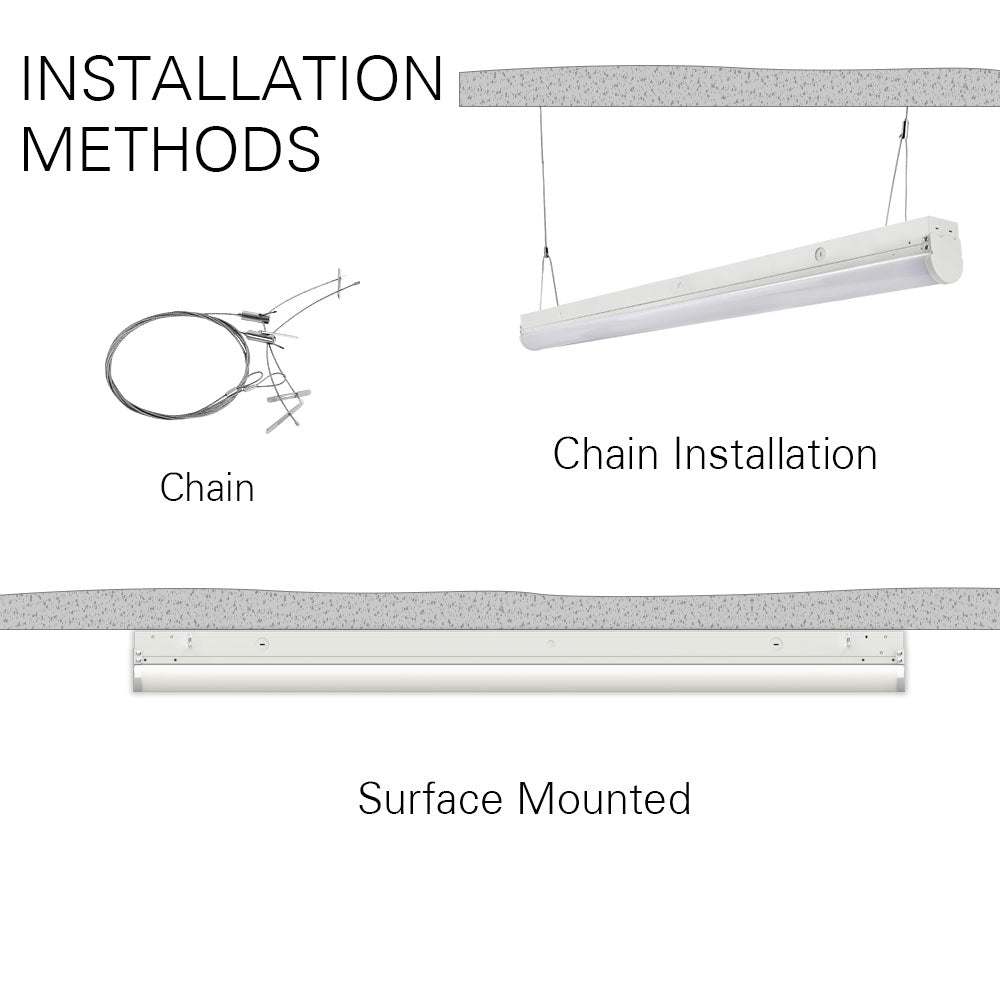

4ft Linear LED Strip Fixture Product installation ways

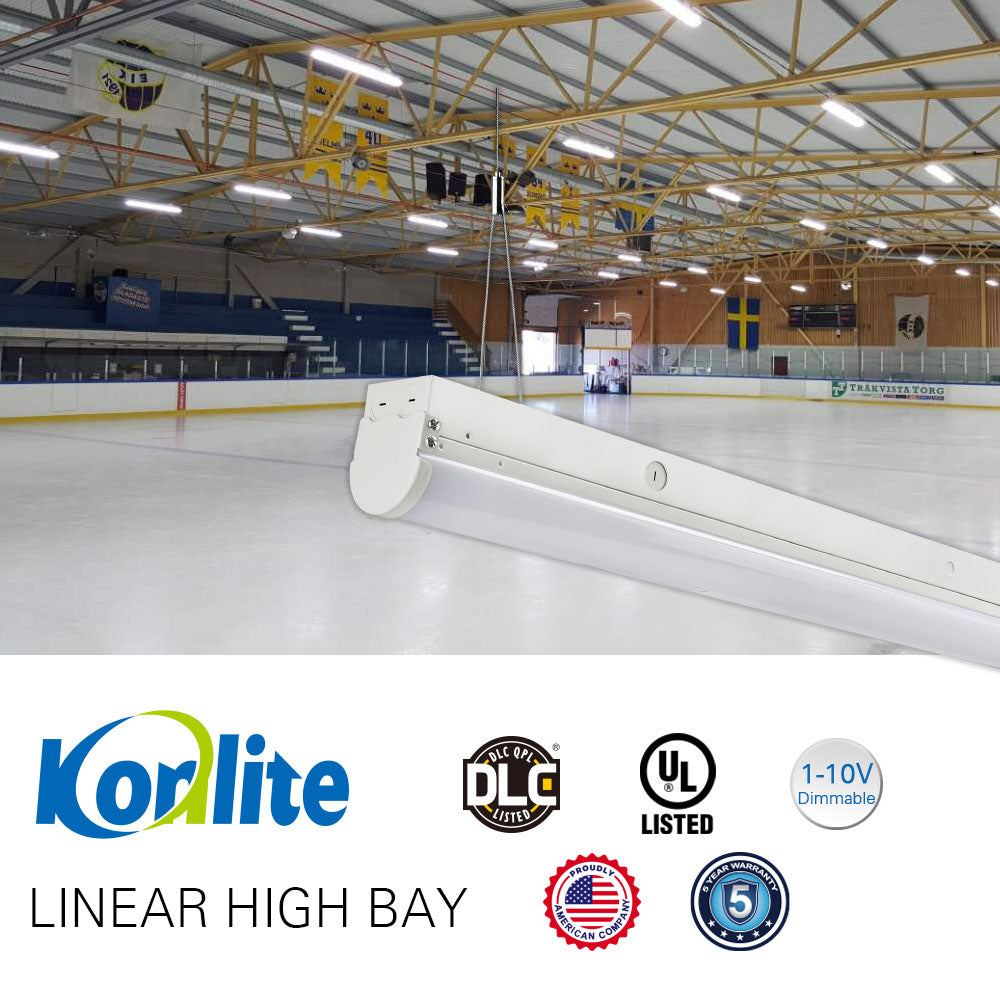

UL and DLC certified 4ft Linear LED Strip Fixture in a Gymnasium

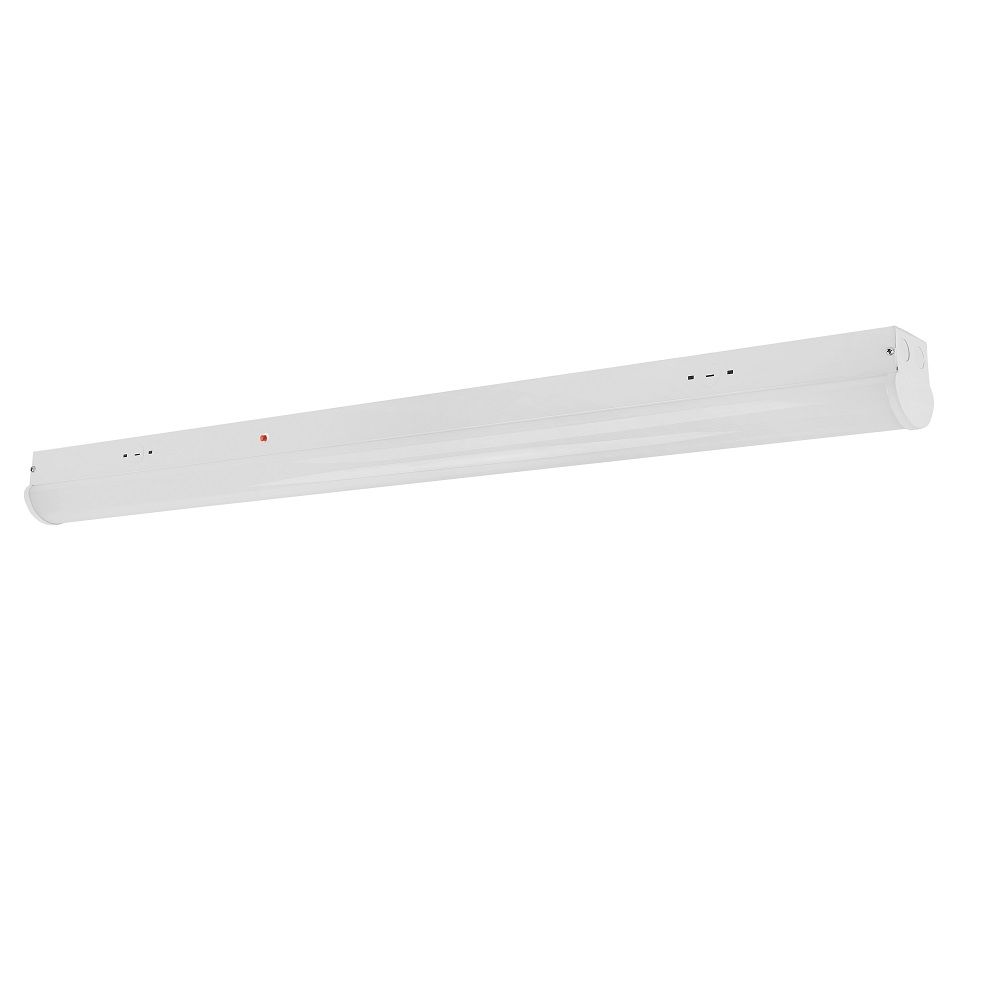

4ft Linear LED Strip Fixture with emergency battery

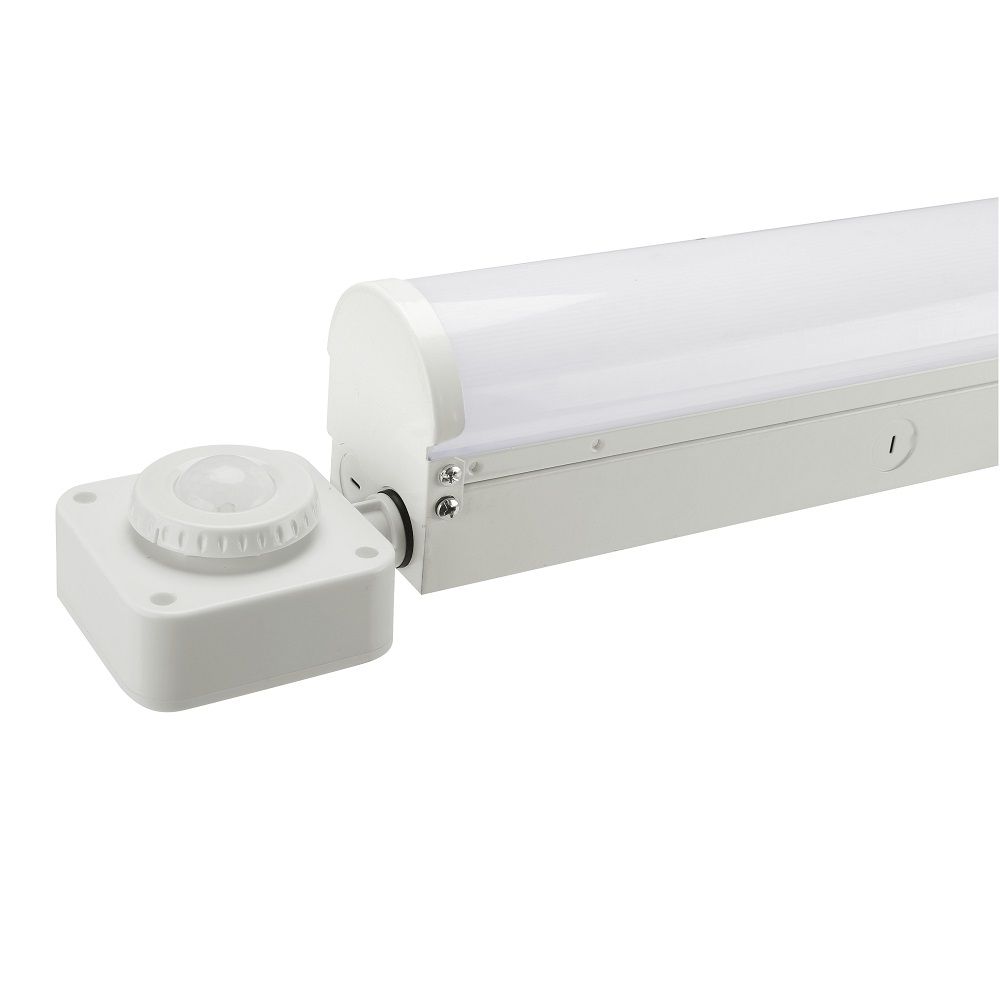

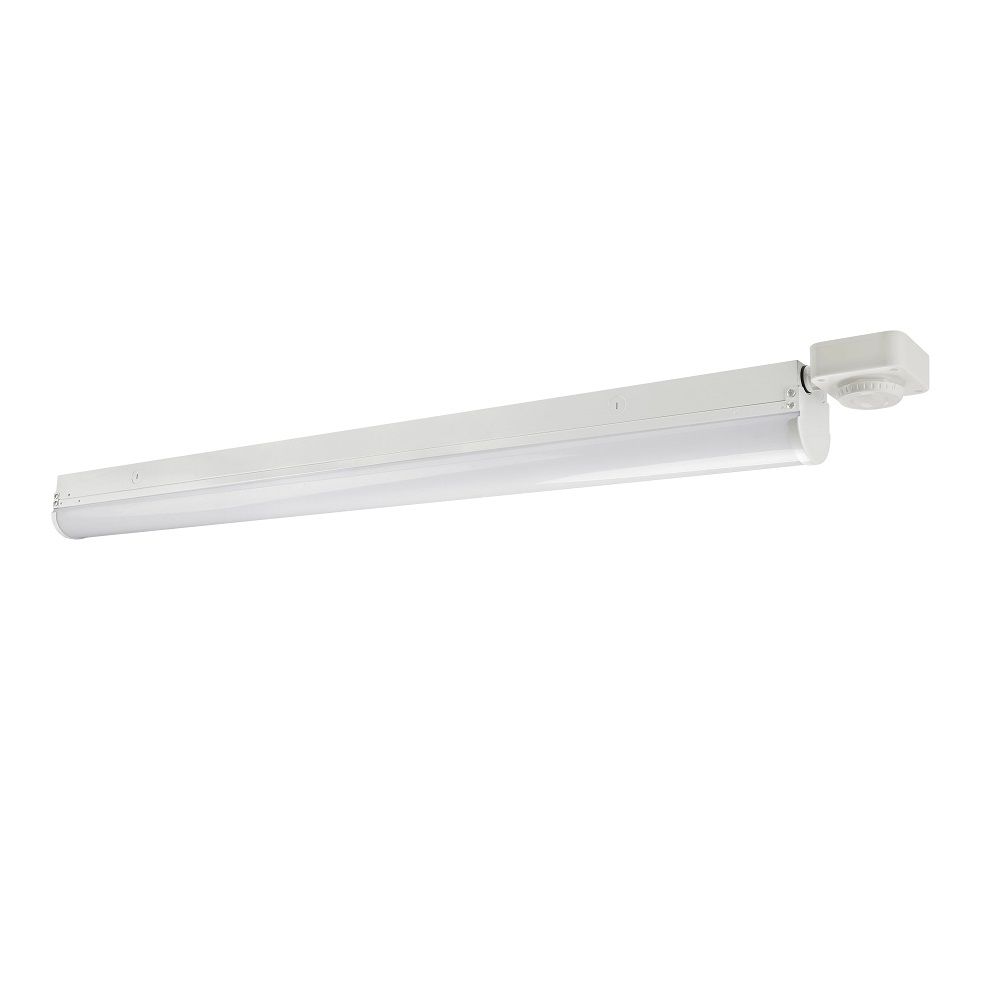

4ft Linear LED Strip Fixture with motion sensor

4ft Linear LED Strip Fixture with emergency battery and motion sensor

Roll over image to zoom in Click on image to zoom

This Konlite 23W SL0202 premium 4ft LED strip light fixtures are designed for retrofit of fluorescent strips or new construction.

Steel Housing, Matte white powder coated finish
Contoured frosted acrylic diffuser provides wide light distribution and glare control
Standard 1-10V dimmable

What's in the box

1 Lighting Fixture - 1 Installation Guide

Konlite 4ft Linear LED Strip Fixture - 23W - 3050 Lumens - 5000K - 120-277V - Dimmable

Konlite SKU: RDSL02020235KDN4LF SEARCH CODE: 14-0201

Replaces 2-Lamp Fluorescent
1-10V Dimmable (Dimmer NOT included)
5000K Daylight White
Dimensions: 48”x2.88”x3.76"
Certificates: UL, DLC 5.1
5 Years Warranty

$58.96

Controls: Without Motion Sensor

EBB Option: Without Emergency Battery Back-Up

Variant

Quantity:

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

This Konlite 23W SL0202 premium 4ft LED strip light fixtures are designed for retrofit of fluorescent strips or new construction.

Steel Housing, Matte white powder coated finish
Contoured frosted acrylic diffuser provides wide light distribution and glare control
Standard 1-10V dimmable

What's in the box

1 Lighting Fixture - 1 Installation Guide

Konlite 4ft Linear LED Strip Fixture - 23W - 3050 Lumens - 5000K - 120-277V - Dimmable

$58.96

What's in the box

1 Lighting Fixture - 1 Installation Guide

Product Overview

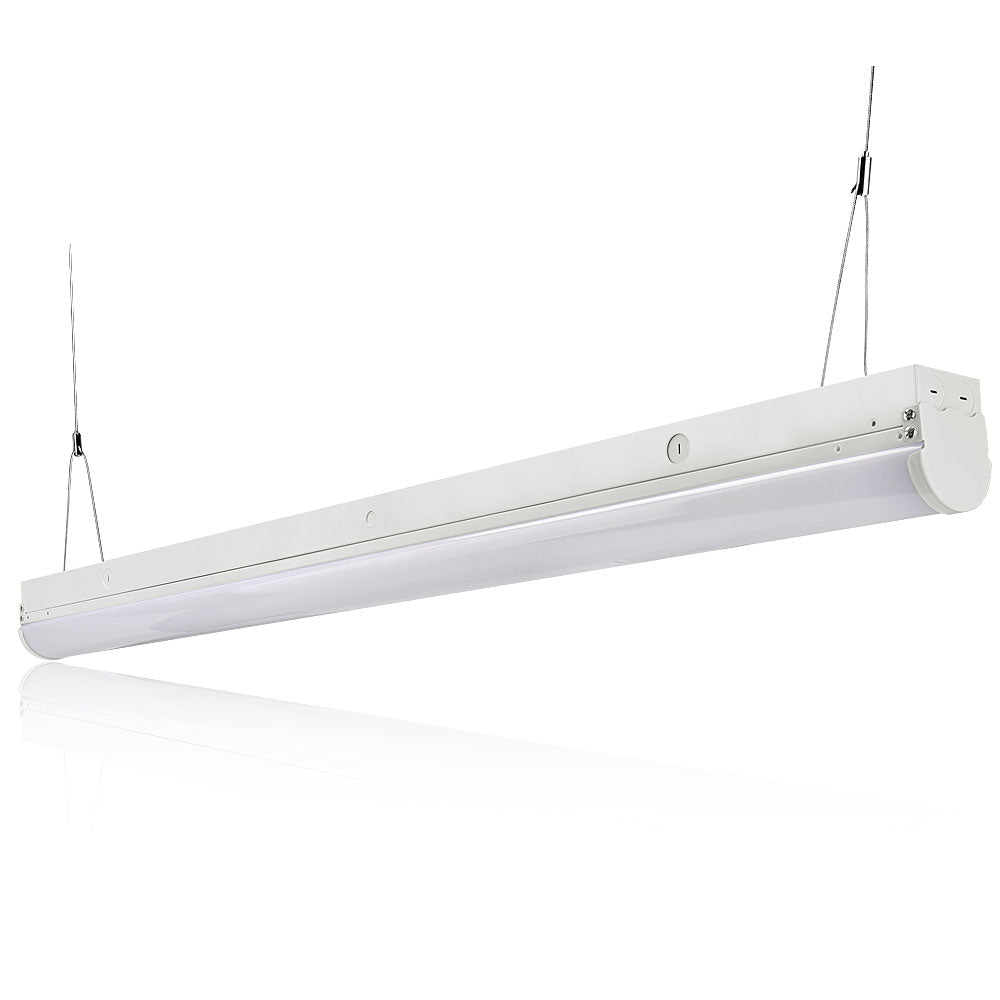

The 4ft Konlite 23 Watt LED strip light fixture is designed to retrofit existing fluorescent or new construction. Easy install- can be surface mounted to ceilings and walls or suspended with cable. Frosted acrylic diffuser provides wide light distribution and glare control. Energy efficient multi-purpose fixture is suitable for light industrial, commercial, retail, schools, healthcare or residential. 1-10V Dimming, UL, DLC certified, 5 yr. warranty. Increase energy savings with optional integral PIR motion sensor ( Field Install ) or Emergency Battery backup.

See similar 35-watt and 45-watt 5000K versions.

Applications

•Warehouses	•Workshops
•Factories	•Residential Ceilings
•Storage Facilities	•Distribution Centers
•Retails	•Supermarkets

Color Temperature 5000K color temperature

Certifications

Specification

Brand	Konlite	MPN	RDSL02020235KDN4LF
Warranty	Limited 5 Years	DLC Model #	P7C4FYVK
Input Voltage	120-277V	Dimmable	1-10V
Input Wattage	23W	Equal to	1x54W T5HO,1xF32T8
Delivered Lumens	3,050LM	CRI	>83
Efficacy	133 LM/W	Available CCT	4000K/5000K
Rated Life	>50,000 Hrs	THD	<18%
Power Fact	>0.9	Control	Motion Sensor Optional
Operating Temp	-40°F to 113°F	Dimension	48”x2.88”x3.76"
Certifications	UL, Damp Locations, DLC Premium	Weight	5.75 lbs
