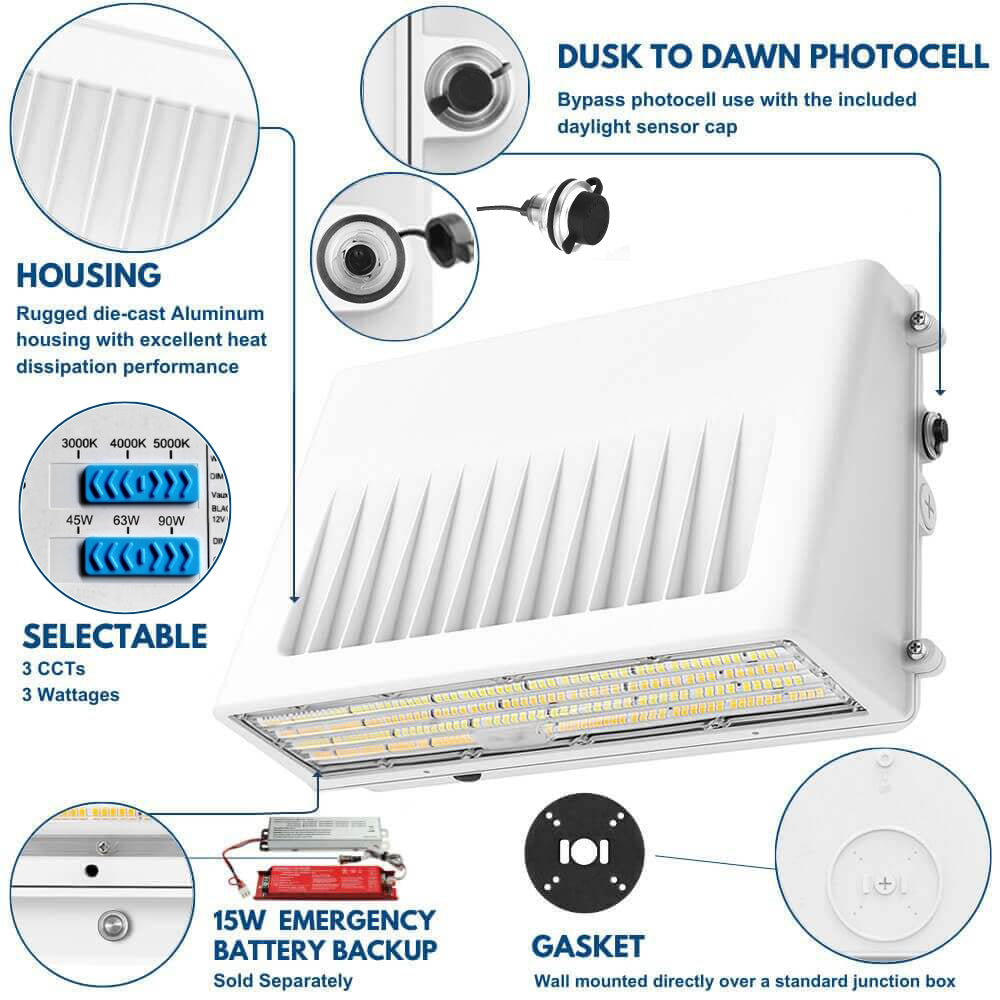

White Konlite full cut-off wall pack light features
Konlite white Full Cut off Wall Pack light specifications
Full Cut off Wall Pack dimensions
Konlite Full Cut off Wall Pack light with Photocell
White Konlite Full Cut off Wall Pack light
White Konlite Full Cut off Wall Pack light with Emergency battery backup
Accessories for Konlite Full Cut off Wall Pack light
Konlite Full Cut off Wall Pack light with emergency battery pack
IP65 FULL CUT-OFF WALL PACK Light
White Konlite Full Cut off Wall Pack light
Roll over image to zoom in
Konlite White Full Cut off Wall Pack light
White Konlite full cut-off wall pack light features
Konlite white Full Cut off Wall Pack light specifications
Full Cut off Wall Pack dimensions
Konlite Full Cut off Wall Pack light with Photocell
White Konlite Full Cut off Wall Pack light
White Konlite Full Cut off Wall Pack light with Emergency battery backup
Accessories for Konlite Full Cut off Wall Pack light
Konlite Full Cut off Wall Pack light with emergency battery pack
IP65 FULL CUT-OFF WALL PACK Light
White Konlite Full Cut off Wall Pack light
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Full Cutoff LED Wall Pack - White Finish - 90W/63W/45W Selectable - 14,900 Lumens - 3 CCT Selectable - 120-277V - 320W Equal

Product Search Code: 22-0405
KonliteSKU: KWPDMMWMCLVW
$149.99 $105.65

    • White Finish

    • Replaces up to 320W Metal Halide

    • 0-10V Dimmable

    • Pre-installed Dusk to Dawn Photocell

    • Optional LiFePO4 Emergency Battery Backup

    • Certificates: UL, DLC 5.1 Premium

    • 5-Year Warranty

    • Watts/Lumens and CCT Selectable

      • 90w = 13,200 (Preset, 5000K)

      • 63w = 11,000 (5000K)

      • 45w = 10,000 (5000K)

(1)
Write A Review
Write A Review

    • White Finish

    • Replaces up to 320W Metal Halide

    • 0-10V Dimmable

    • Pre-installed Dusk to Dawn Photocell

    • Optional LiFePO4 Emergency Battery Backup

    • Certificates: UL, DLC 5.1 Premium

    • 5-Year Warranty

    • Watts/Lumens and CCT Selectable

      • 90w = 13,200 (Preset, 5000K)

      • 63w = 11,000 (5000K)

      • 45w = 10,000 (5000K)

The Konlite KWPD LED Full Cutoff wall pack developed with the latest technology, offers better luminaire efficiency, provides long lasting, energy saving illumination for years to come.

  • 3 Wattage  and 3 color selectable
  • Zero up-light, Dark Sky friendly
  • High-output up to 160 Lumen per Watt
show more
$149.99 $105.65

  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

The Konlite KWPD LED Full Cutoff wall pack developed with the latest technology, offers better luminaire efficiency, provides long lasting, energy saving illumination for years to come.

  • 3 Wattage  and 3 color selectable
  • Zero up-light, Dark Sky friendly
  • High-output up to 160 Lumen per Watt
What's in the box
1 Wall Pack Light - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Wall Pack Light - 1 Installation Guide

Product Overview

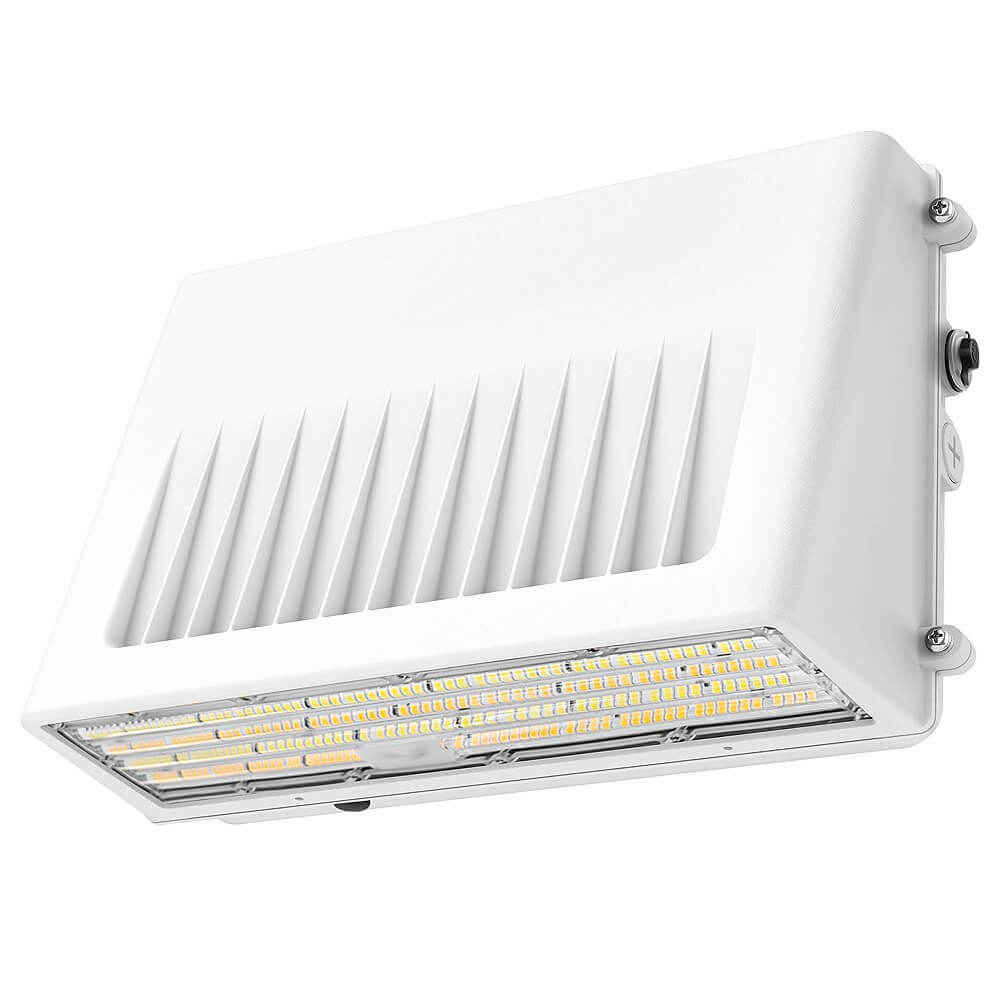

Elevate security and enhance building aesthetics with the Konlite KWPD Series White House Wall Pack Light. Designed with a unique, slim profile, this full-cutoff LED wall pack combines modern aesthetics with cutting-edge lighting technology, offering high lumen output and energy efficiency. Its wattage and color temperature (CCT) selectable features provide customizable brightness and color settings with a simple flip of switches:

Wattage/Lumens Options:

  • 45W / 6,600LM (5000K), 7,100LM (4000K), 6,450LM (3000K)
  • 63W / 10,400LM (5000K), 11,200LM (4000K), 10,200LM (3000K)
  • 90W / 13,950LM (5000K), 14,900LM (4000K), 11,700LM (3000K) (preset)

Color Temperature (CCT) Options:

  • 3000K
  • 4000K
  • 5000K (preset)

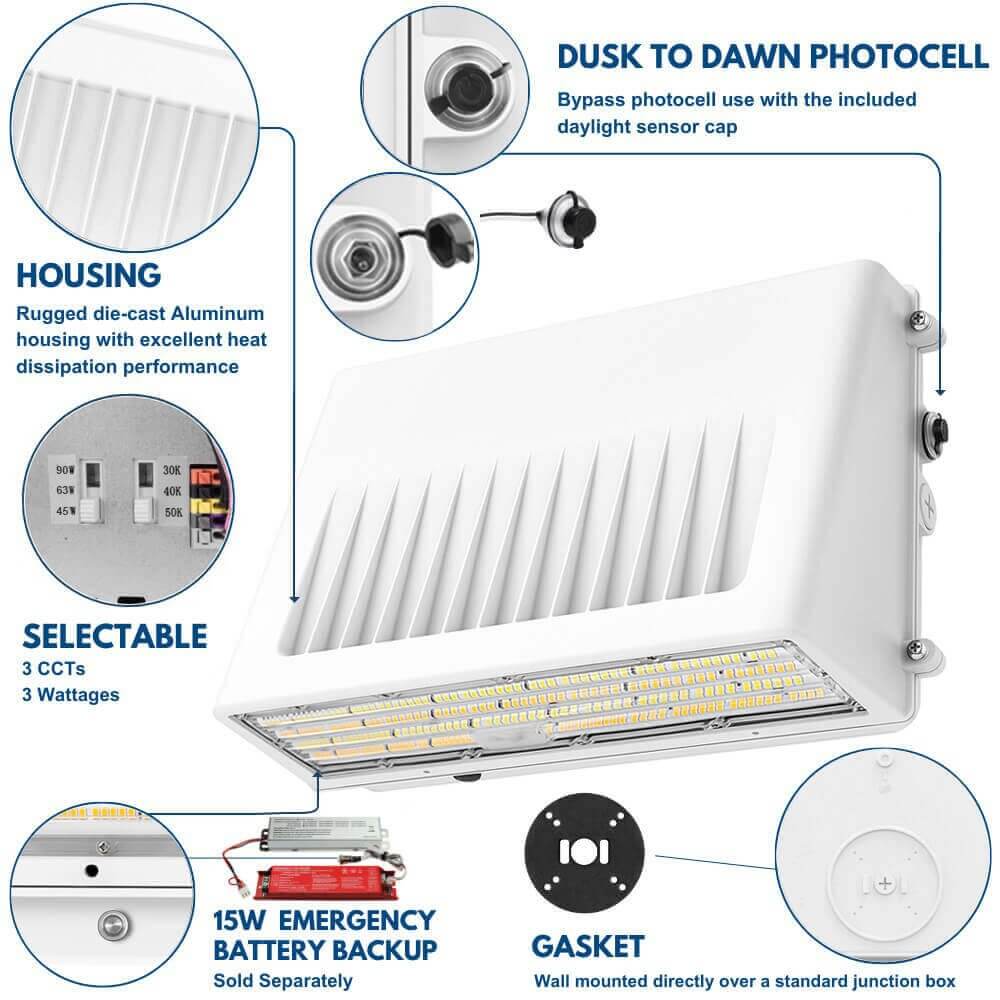

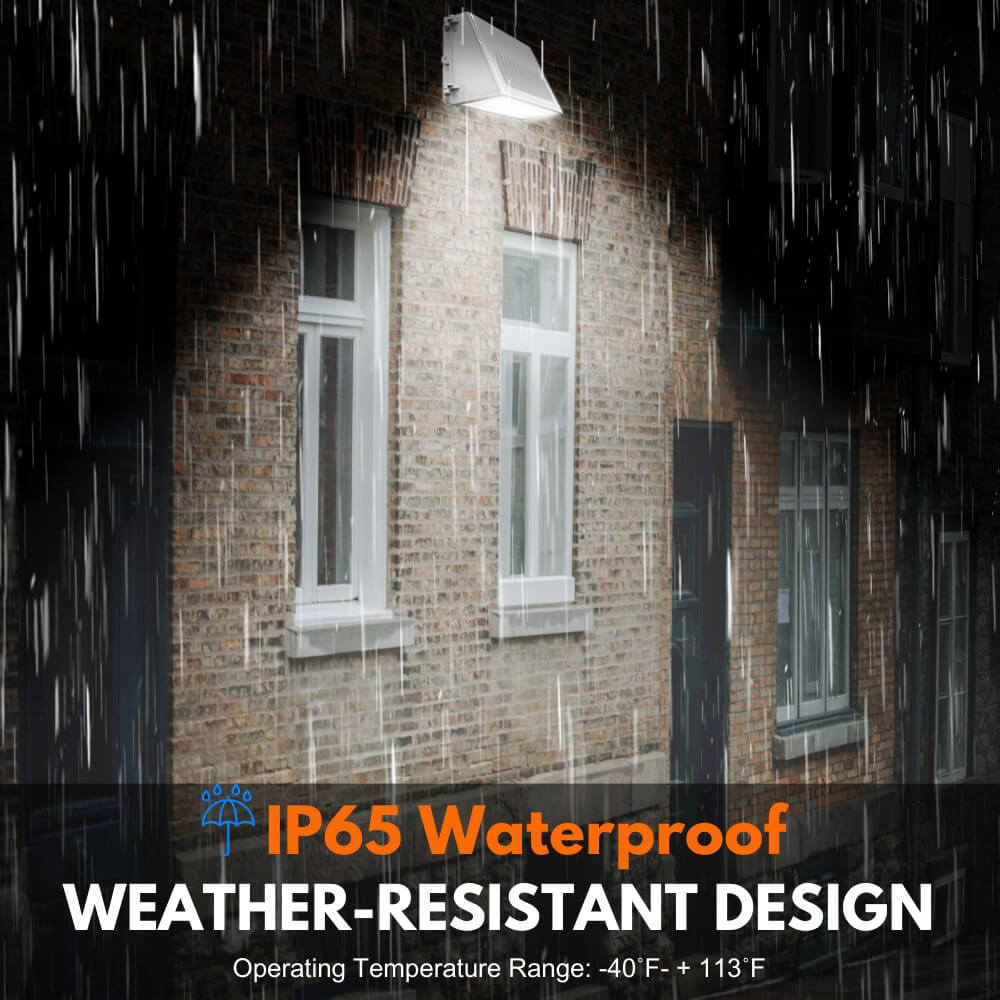

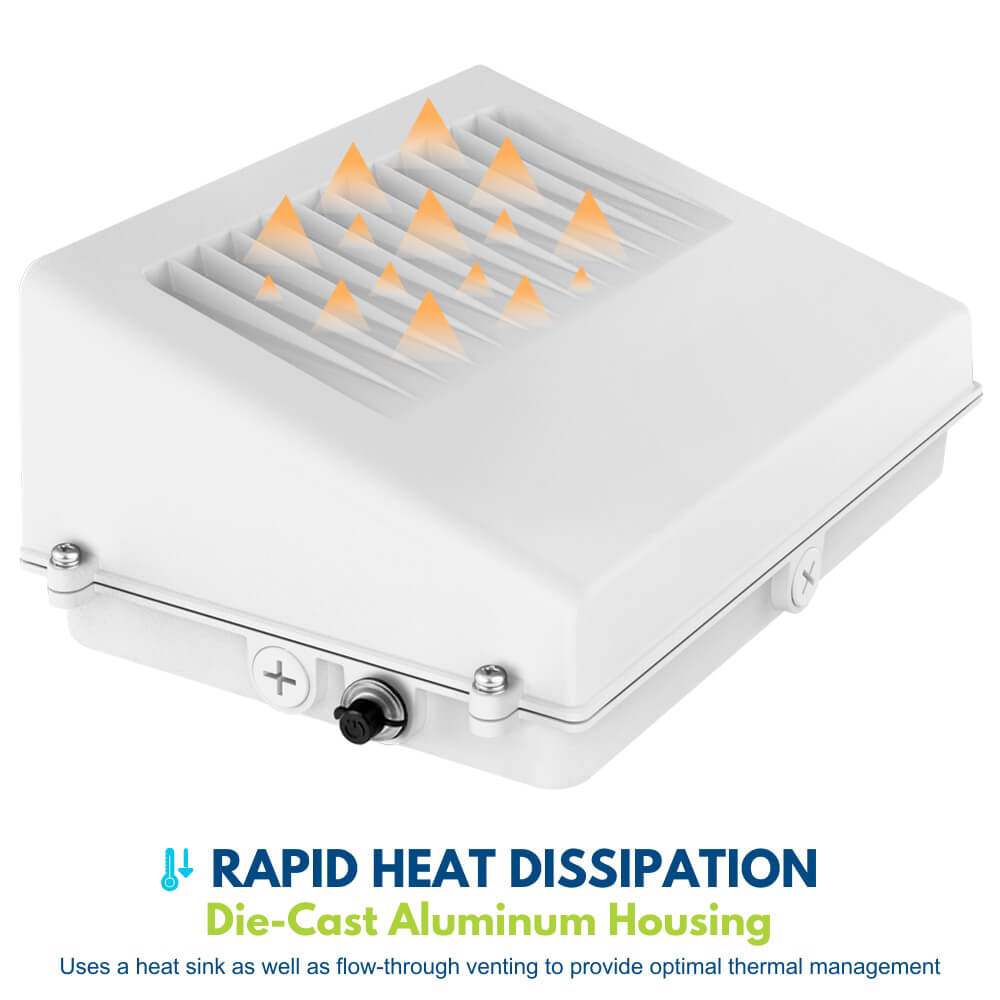

The full cutoff design directs light downward, eliminating glare and light pollution, making it Dark Sky compliant. Built for durability in any weather, this wall pack features a robust die-cast aluminum housing with a UV-stabilized polycarbonate optical lens and a white powder-coated finish.

Optional 8-watt emergency battery backup provides up to 90 minutes of emergency lighting during power outages, ensuring continuous security illumination.

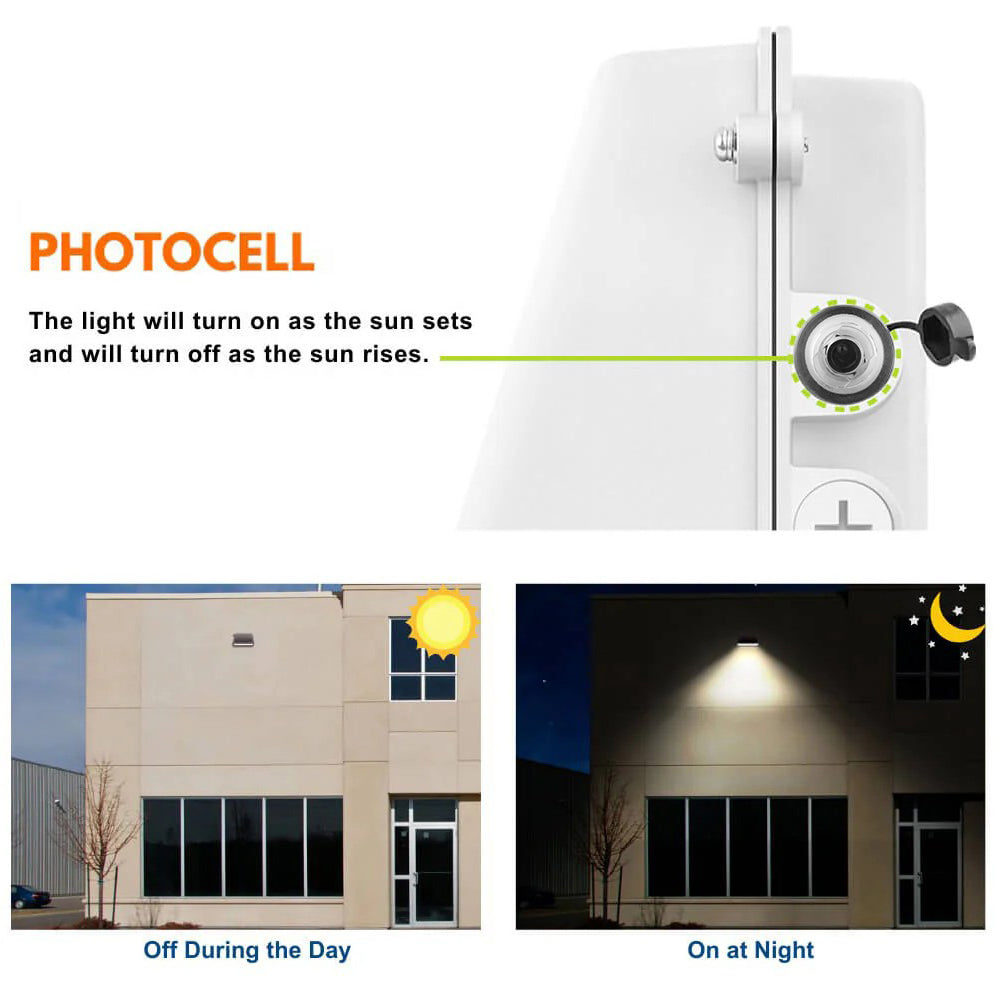

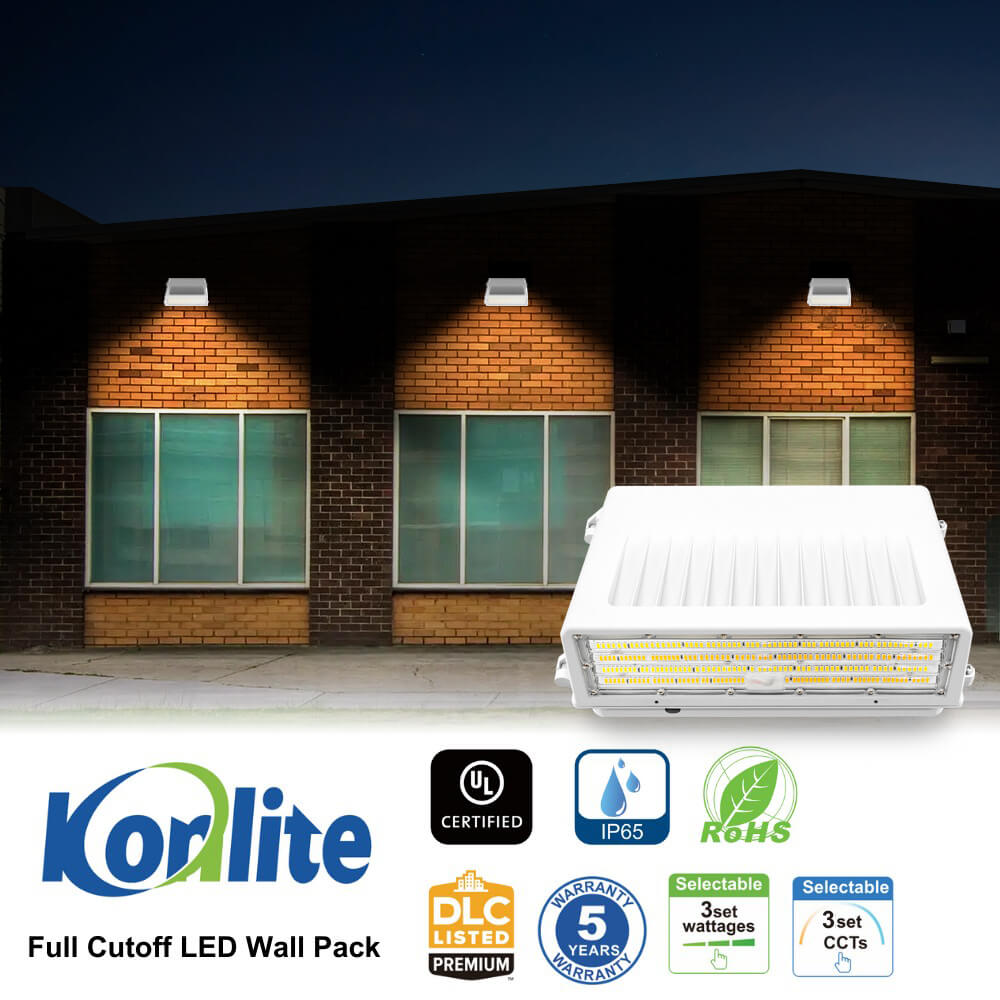

Pre-installed Dusk to Dawn Photocell with daylight cap, this eco-friendly LED wall pack is ideal for building facades, perimeter lighting, loading docks, parking garages, stairwells, signage, and areas requiring targeted downward lighting.

  • DLC and UL Listed
  • 5-Year Warranty

Applications

• Security Lights • Signage Lights
• Boat Docks & Marinas • Building facades
• Storage Facilities • Underpasses
• Parking Facilities • Loading Areas
• Warehouses • Metal Buildings



Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumFCC certificationIP65 rating

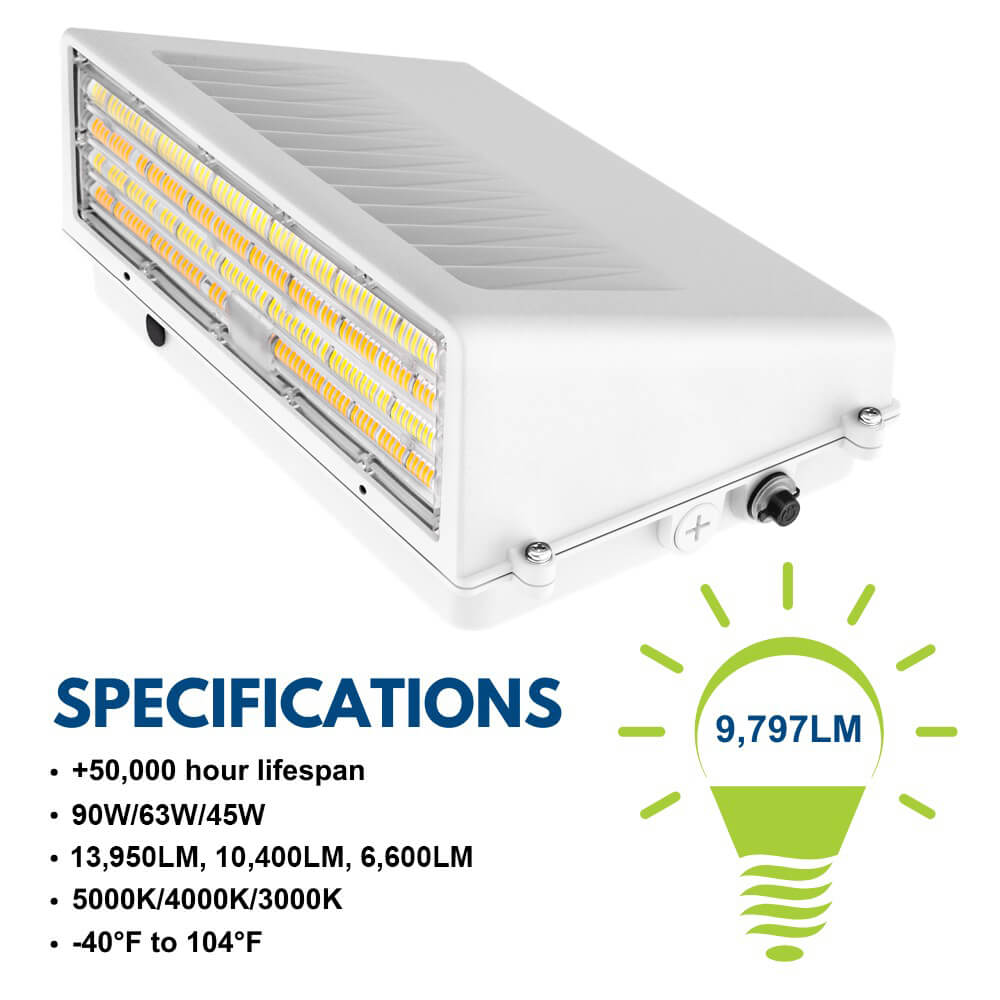

Specifications

BrandKonliteDLC Part #KWPDMMWMCLVW
Warranty 5 YearsUPC659675078502
Input Voltage120-277VDimmable0-10V
Input Wattage90W/63W/45WEqual to250/320 MH
Delivered Lumens13,200 LM Max.CRI>70
Efficacy157 LM/WAvailable CCT5000K/4000K/3000K
Rated Life>50,000 HrsTHD<20%
Power Fact>0.9ControlDusk To Down Photocell

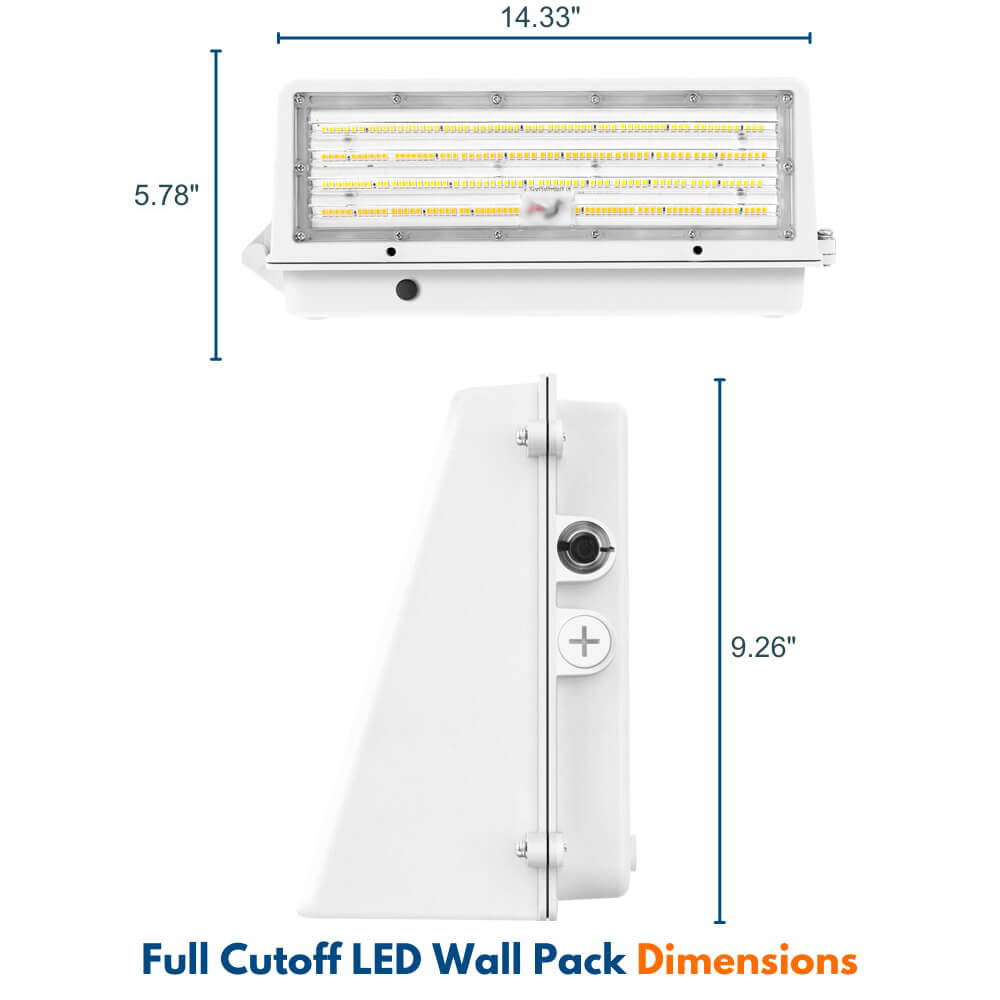

Operating Temp-40°F to 113°F  ( 32° to 113° F Powered by EBB )Dimension14.33”x7.01”x9.26”
CertificationsUL Wet Locations Weight8.5 Lbs
