Product Overview:

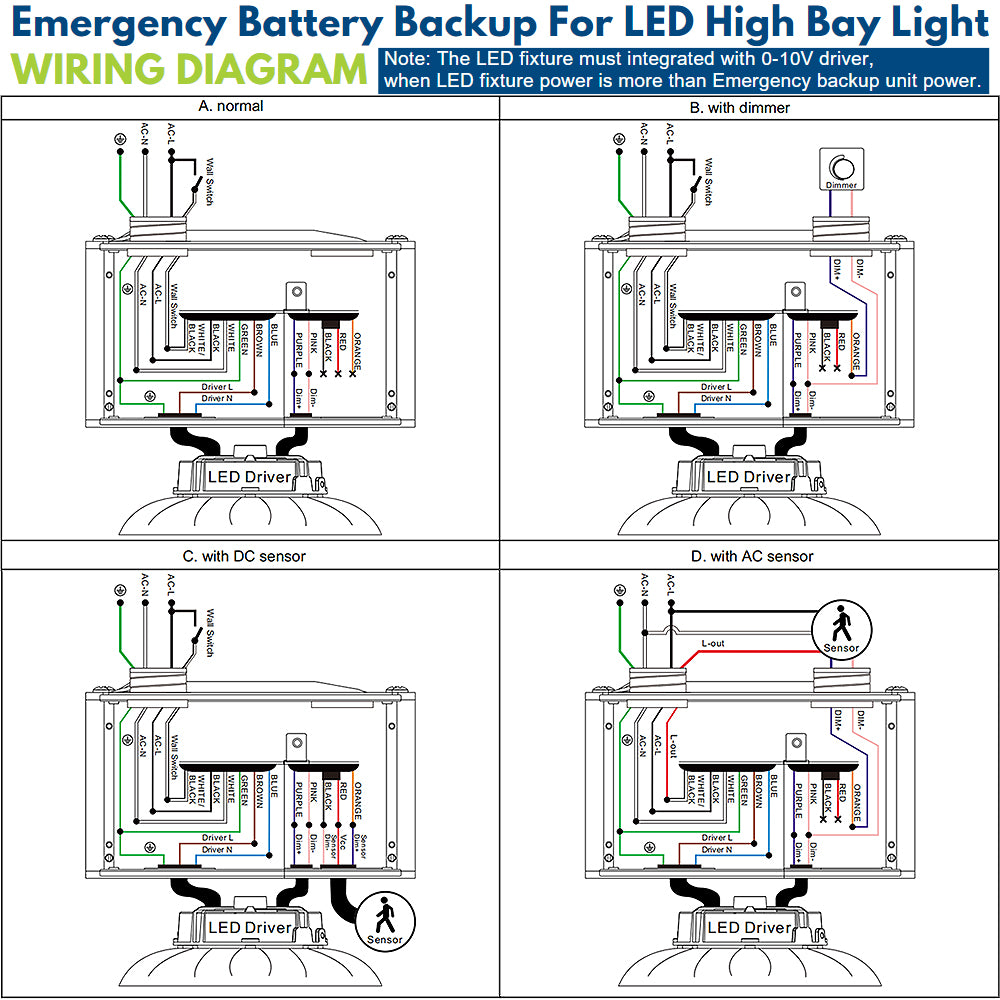

The 40W LED Emergency Backup Driver offers a robust emergency power solution for LED high bay fixtures, delivering up to 90 minutes of backup power during outages. Designed to operate with 100-347V AC input and providing 170V DC output. Suitable for fixtures up to 320W. Dimmable wire connection needed for fixtures exceeding emergency power of 40 Watts ( For details, see the LED emergency driver wiring diagram ). This driver is ideal for maintaining critical lighting functionality in commercial and industrial settings.
This driver supports larger LED fixtures, ensuring 40W of emergency power, making it perfect for high bay lighting in environments such as warehouses, factories, and gyms. It is engineered for easy installation and is compatible with high-powered LED fixtures.
Key Features:
- Constant Power Output: Delivers consistent 40W of emergency power to supported fixtures.
- Wide input Voltage Range: Designed to work with input voltages from 100-347V AC and outputs 170V DC.

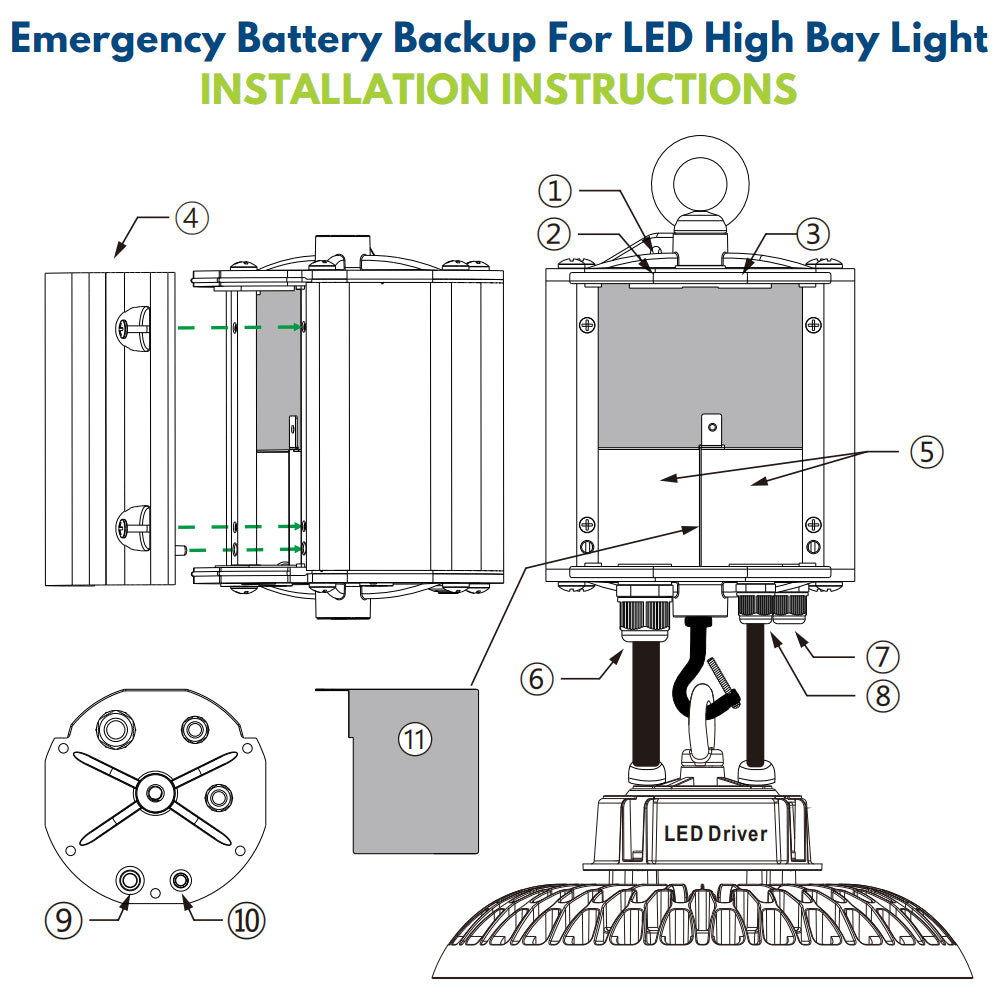

- Field Installable: Can be easily integrated into existing high bay lighting systems.
- Wide Application: Suitable for high bay lights, linear lights, and other large LED fixtures.
- 1000 Charge Cycles: Provides up to 1000 charge cycles for long-lasting reliability.
- Certifications: Compliant with UL 924, CSA C22.2, FCC, IP65, and CA Title 20, ensuring safety, energy saving, and performance.
- 5-Year Warranty: Backed by a 5-year warranty for peace of mind.
Luminaire Lumen Output Guideline During Emergency Operation:
To determine the lumen output during emergency operation, follow these steps:
- Fixture Efficacy: Check the luminaire's efficacy under normal AC operation, typically provided by the luminaire vendor.
- Lumen Calculation: Multiply the fixture’s lumens per watt (LM/W) by the rated emergency output power (40W for this driver).
Here are some suggested Konlite LED high bay lights from our collection and their performance during emergency operation:
-

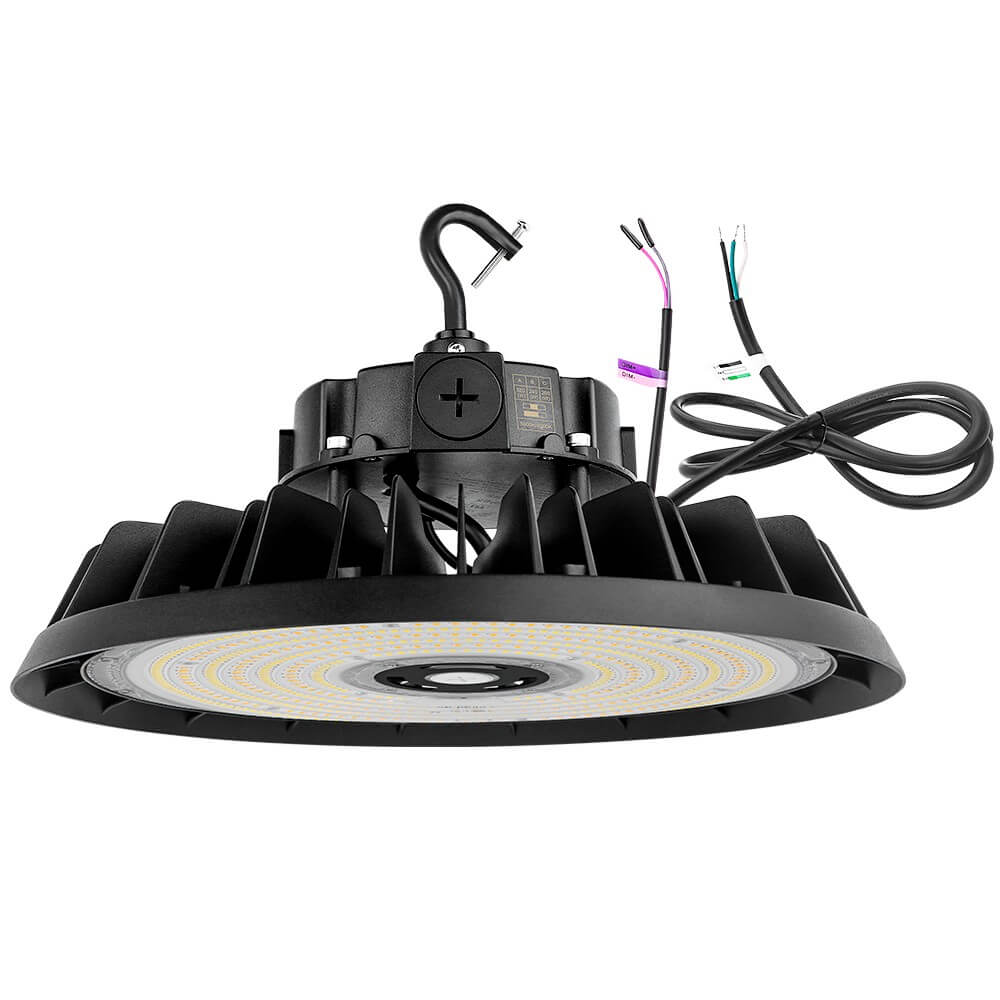

EcoMax Round UFO LED High Bay Light - 320W - SKU KEM320SMCLVGB
- Efficacy: 151 LM/W ( 5000K )
- Emergency Output: 40W x 151 LM/W = 6,040 lumens
-
EcoMAX Series UFO LED High Bay Light - 240W - SKU KEM240SMCLVGB
-
MAX Series UFO LED High Bay Light - 240W - RKRH0302HMW5KDNLCB
This driver is ideal for ensuring uninterrupted lighting in critical environments, providing reliable emergency lighting for high bay fixtures. For more technical details, including the wiring diagram, refer to the Downloads section.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •Low Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retail | •Gymnasiums |
Specifications
| Brand | Konlite | MPN | EMUFO-40170-YY |
| Warranty | 5 Years | UPC | 659675171203 |
| Input Voltage | 100-347V | Max Input Current | 50mA @120V, 35mA @240V, and 30mA @277V |
| Input Wattage | 12W | Inrush Current | 3A |
| Turn-on Delay Time | < 4s | Power Factor | >0.9 under 120~277Vac input |
| Output Voltage | 170Vdc | Emergency Power | 40W (constant) |
| Surge Protection | 3kV | Output Current | 2000mA @ 20Vdc, 690mA @ 58Vdc |
| Outer Voltage Protection | Yes | Outer Power Protection | Yes |
| Emergency Operation | 90 Minutes | Recharge Time | 24 Hours |
| Battery Type | Li-Ion | Battery Capacity | 18V 5000mA |
| Operating Temperature | 32ºF to 122ºF | Storage temperature | − 4ºF to 131ºF |
| Max Case Temperature | 167ºF | Storage Humidity | ≤65% |

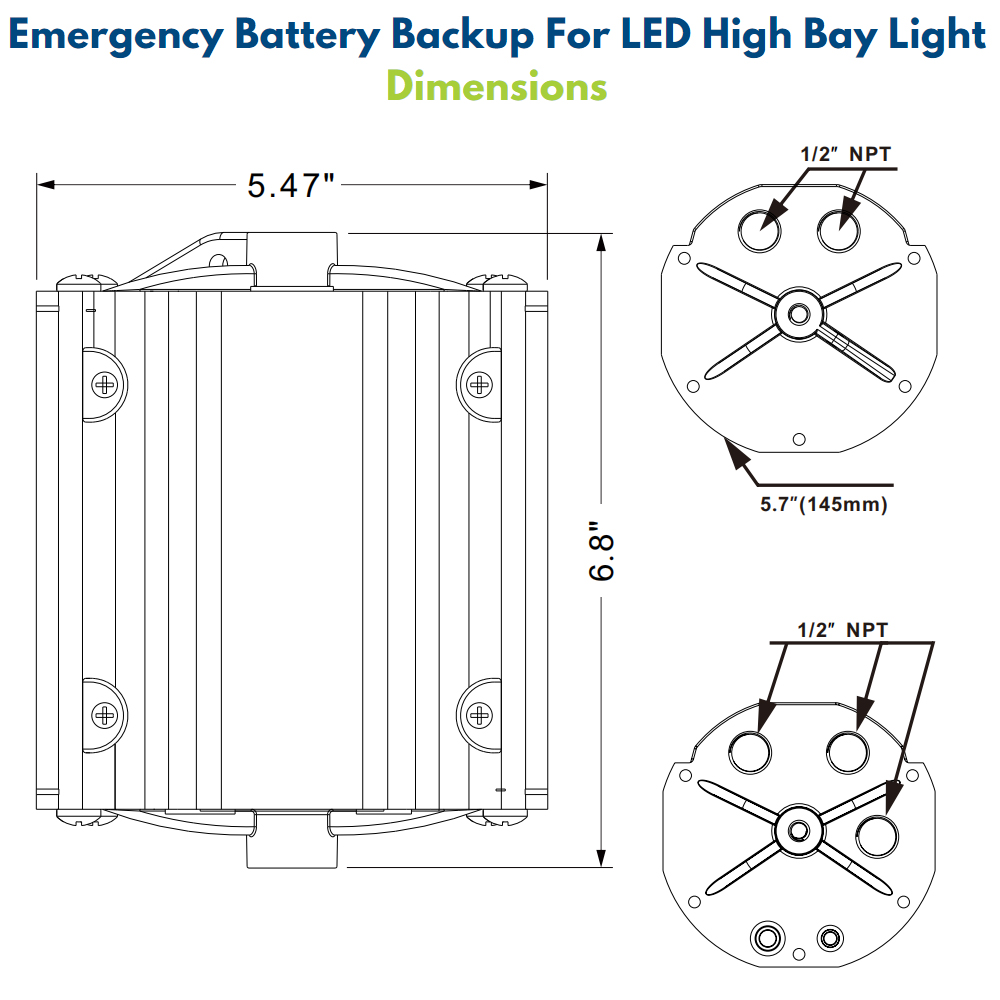

| Unit Dimensions | L 6.8" * H 5.47" | Unit Weight | 7.3 lbs |
