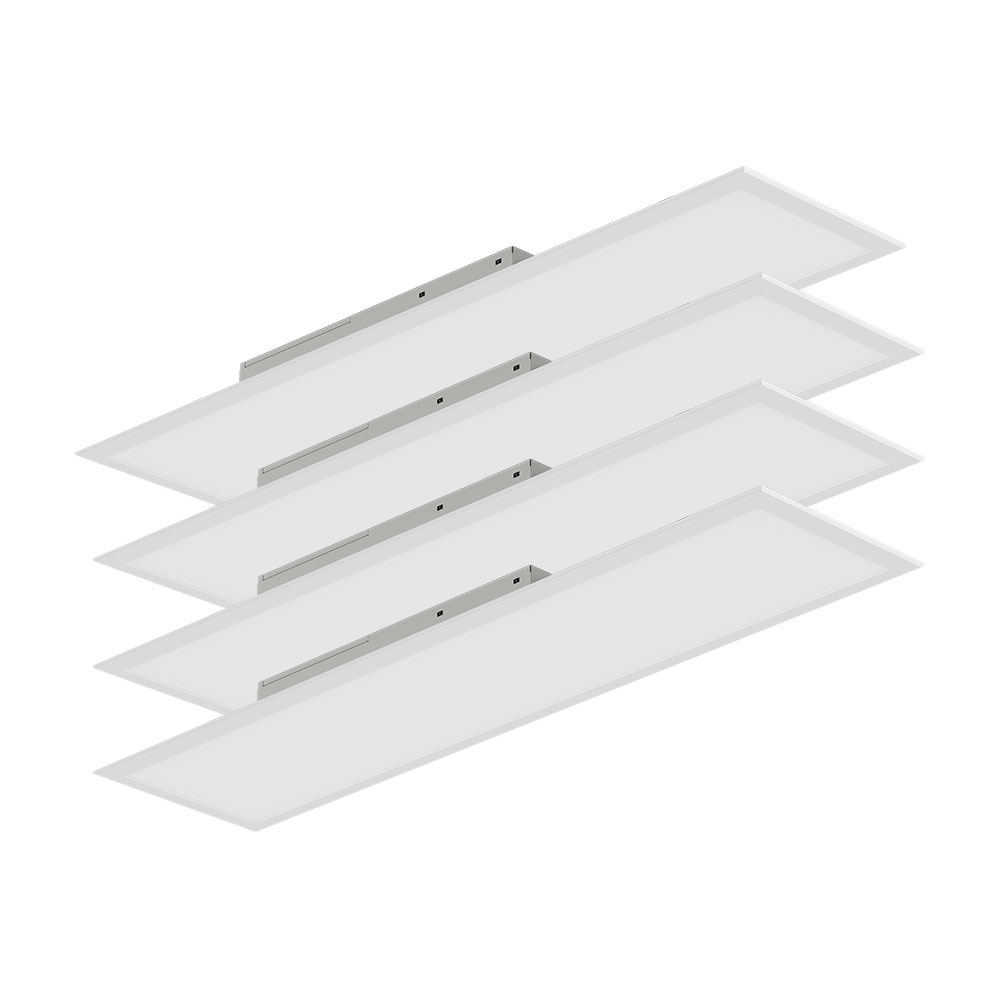

1x4 LED Panel Light - Selectable Wattage and CCT - 3980 Lumens - Dimmable - Pack of 4

Product Search Code: 11-0116
KonliteSKU: RKPL06010MWMCDN14LF‐4
$249.99 $198.85

    • Replaces 2-Lamp Fluorescent
    • 0-10V Dimmable (Dimmer NOT included, Separate Wiring Required)
    • 5 Years Warranty
    • CCT Tunable: 3000K-4000K-5000K(Preset)
    • Watts and Lumens Selectable:
      • 29w = 3,580 (Preset)
      • 19w = 2,560
      • 15w = 2,050

    • Replaces 2-Lamp Fluorescent
    • 0-10V Dimmable (Dimmer NOT included, Separate Wiring Required)
    • 5 Years Warranty
    • CCT Tunable: 3000K-4000K-5000K(Preset)
    • Watts and Lumens Selectable:
      • 29w = 3,580 (Preset)
      • 19w = 2,560
      • 15w = 2,050

With wide-view optics, this Konlite PL06 back-lit 1x4 LED panel light provides uniform, glare-free illumination without hot spots, delivering a crisp and clean aesthetic.

  • Choose from multiple wattage and color temperature options to suit your specific needs.
  • Long-life LEDs rated L70 @100K hours offers a sustainable and cost-effective lighting solution.
  • The slim design and multiple knockouts provide wiring flexibility.
  • 0-10V dimming control allows for customized lighting levels.
show more
$249.99 $198.85

This product qualifies for the Double Rewards Promotion!   Learn more...
Double Rewards Promotion
  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

With wide-view optics, this Konlite PL06 back-lit 1x4 LED panel light provides uniform, glare-free illumination without hot spots, delivering a crisp and clean aesthetic.

  • Choose from multiple wattage and color temperature options to suit your specific needs.
  • Long-life LEDs rated L70 @100K hours offers a sustainable and cost-effective lighting solution.
  • The slim design and multiple knockouts provide wiring flexibility.
  • 0-10V dimming control allows for customized lighting levels.
What's in the box
4 light fixtures - 1 installation guide
Product Details
Downloads
Reviews
Reviews
Q&A
4 light fixtures - 1 installation guide

Product Overview

Upgrade your commercial or industrial lighting with the Konlite PL06 backlit 1x4 Multiwatt - Selectable CCT LED drop ceiling light. This LED panel light is designed for replacement of existing fluorescent or new construction installed on T-bar or grid ceiling systems.

The Konlite PL06 backlit 1x4 Multiwatt and Selectable CCT LED ceiling light features switchable options for wattage consumption, allowing you to choose from 15w / 2052 lumens, 19w / 2566 lumens, or 29w (preset) 3825 lumens to fit your specific lighting needs. The selectable CCT color output (3000K, 4000K, or 5000K preset) further enhances the flexibility and versatility of this LED panel light.

The Konlite PL06 LED panel light is designed to maximize thermal control, ensuring cool and maintenance-free operation. It eliminates the needs for bulb replacement, buzzing, flickering that are commonly associated with traditional fluorescent lighting system. By reducing energy consumption, this can significantly reduce utility costs for your organization or business.

The Konlite PL06 backlit 1x4 Multiwatt - Selectable CCT LED ceiling light features long-life LEDs, coupled with a high efficiency Flicker-Free LED driver, making this panel ideal for use in offices, retail stores, schools, restaurants, healthcare facilities, residential buildings, and hospitality venues. With its uniform and high-quality illumination, this LED panel light provides an efficient and stylish lighting solution that will enhance the look and feel of your space.

With its sleek design and uniform illumination, the Konlite PL06 back-Lit panel light provides a modern and stylish lighting solution that will enhance the look and feel your space. Invest it today and enjoy the benefit of high-quality, energy-efficient, and sustainable commercial lighting.


Applications

•Offices and Commercial buildings •Retrofit Installation
•Hospitals and healthcare facilities •Educational institutions
•Hospitality venues •Manufacturing facilities and warehouse
•Retail stores and Shopping malls •Public transportation hubs
•Gyms and fitness centers

•Residential buildings

Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumFCC certification

Specifications

BrandKonliteMPNRKPL06010MWMCDN14LF‐4
Warranty5 YearsUPC659359627705
Input Voltage120-277V,50/60HzDimmable0-10V
Input Wattage29W(default) /19W/15WEqual To2 lamp T8
Delivered Lumens3,825LM(default)/3,183LM/2,566LM/2,052LMCRI>80
Efficacy125 LM/WAvailable CCT3000K/4000K/5000K
Rated Life>50,000 hrsPower Factor>0.9
THD15%IC RatedYes
Operating Temperature-10F to 104FMountingChain, recessed

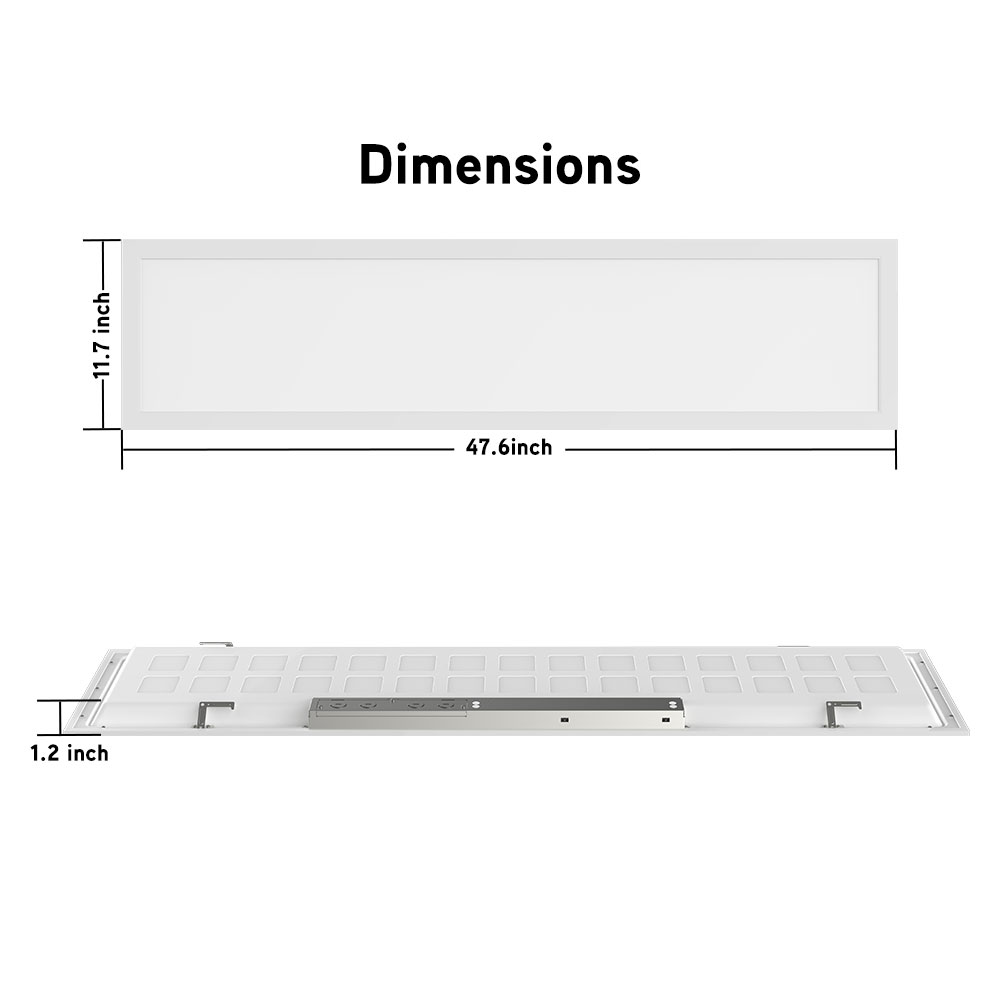

CertificationsUL, DLC PremiumDimensions and Weight11.9"x47.8"x1.9"

Accessories

LED Emergency Backup Driver For Commercial LED Lighting - 8W - 100-277V
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.
LED Emergency Backup Driver For Commercial LED Lighting - 8W - 100-277V
SKU:BLD-YT08D-XXX
$74.65

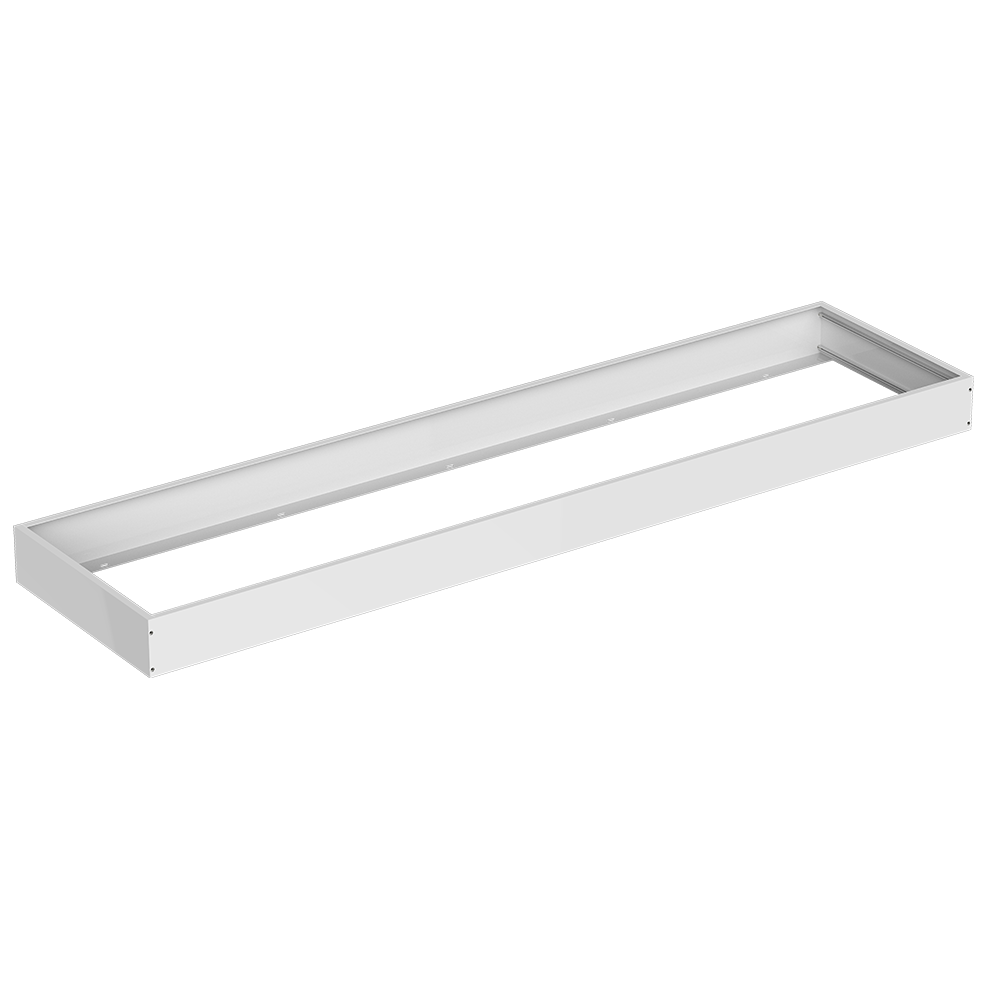

1'x4' Surface Mount Kit for LED Panel Light
