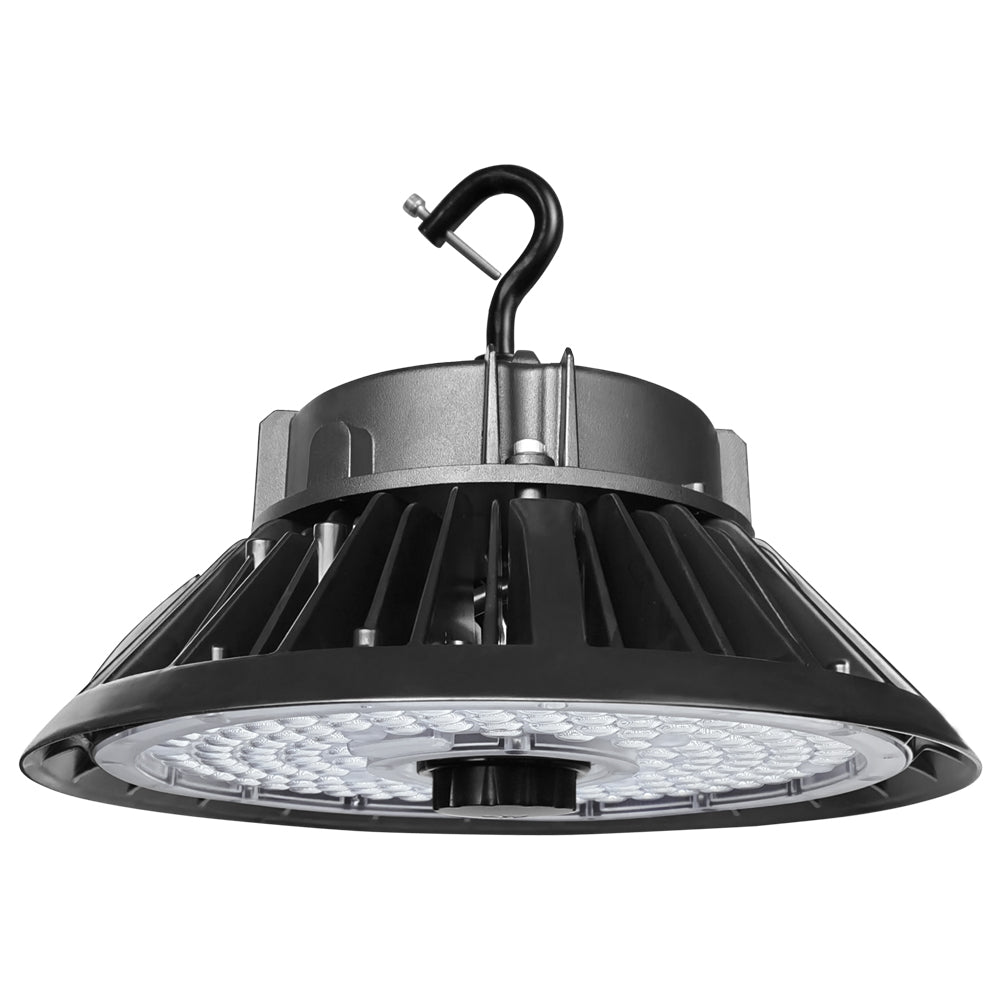

Konlite LED High Bay Light - 250W- 37,500 Lumens - 5000K - 277-480V - 1000W Equal
- Replaces 1000W Metal Halide
- Certificates: UL, DLC Premium 5.1
- 5000K Daylight White
- 6Ft Power Cord
- 5 Years Warranty
- Replaces 1000W Metal Halide
- Certificates: UL, DLC Premium 5.1
- 5000K Daylight White
- 6Ft Power Cord
- 5 Years Warranty
This high-performance Konlite RH03 MAX series LED Bay light is ideal for new construction or replacement of 1000W HID/HPS. Delivers top energy savings and maintenance free durability for a wide range of applications.

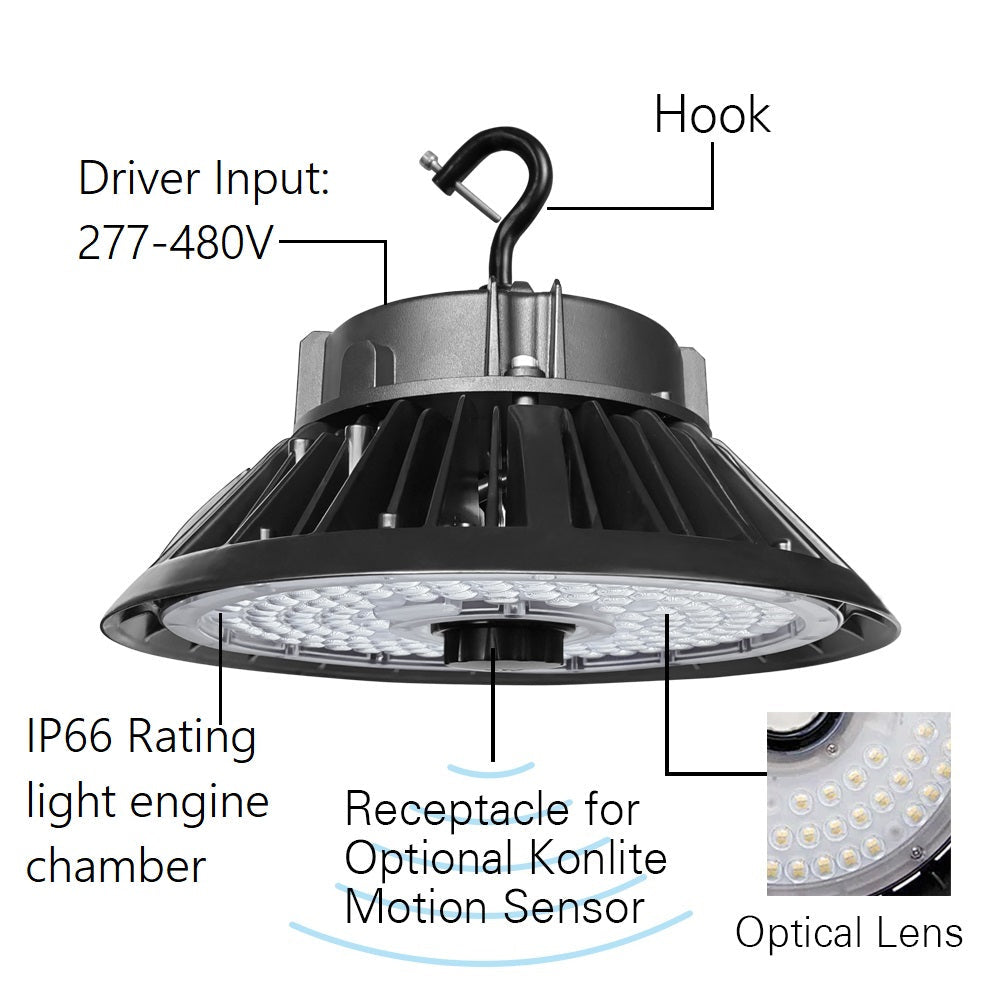

- Designed for quick, easy installation-Each unit comes with 6' power cord without plug.
- Advanced aluminum heat sink for enhanced air flow, lower operating temperature and top efficiency.
- Increase energy savings with optional integrated motion sensor
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview
Upgrade your space and reduce operating costs with the energy efficient Konlite RH03 MAX series round LED bay lights. This compact design is easy to install, meets any budget and a Contractor favorite for retrofit or new construction.
250 watt, 37,500 Lumens, 277-480V, 5000K Commercial White, 0-10V Dimmable
Excellent color rendition compared to HID/HPS with uniform 120° broad beam illumination.

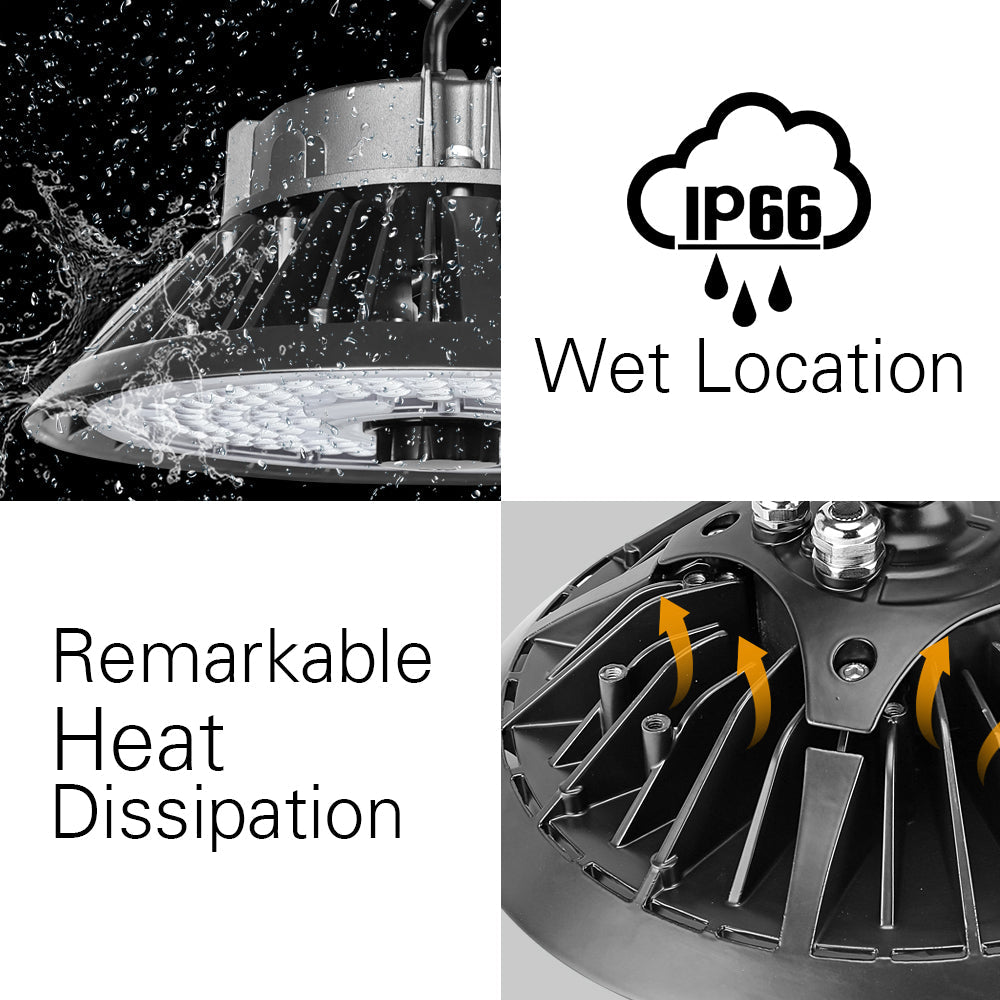

Built in 4KV surge protector, 6’ Power Cord, IP66 rated, corrosion proof aluminum coating, fully sealed for dust and moisture intrusion.
Certified Quality: DLC 5.1 Premium for eligible rebates, UL, 5-year warranty.
Increase savings with the optional integrated PIR sensor. Set and adjust the controls via Remote Control: Brightness, Sensitivity, Hold-time, Daylight Harvesting and Stand by dimming level. Requires (1) HD05R Remote
Delivers top energy savings and maintenance free durability for a wide range of applications.
See similar 150W version.

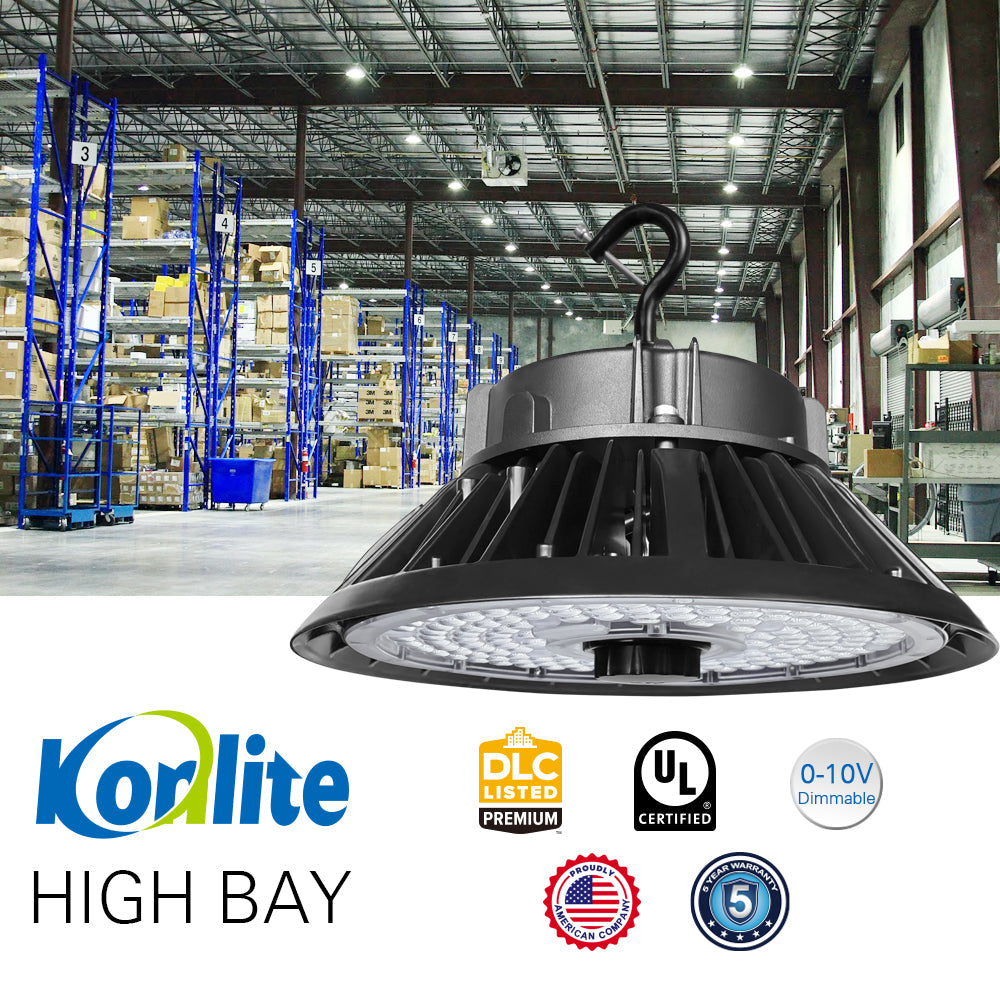

Applications
| •Warehouses | •Workshops |
| •Convention Centers | •Automotive Centers |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retail | •Gymnasiums |
Specification
| Brand | Konlite | MPN | RKRH03022505KDNHCB |
| Warranty | Limited 5 Years | UPC | |
| Input Voltage | 277-480V | Beam | 120° |
| Input Wattage | 250W | Equal To | 1000W |
| Lumens | 37,500 | CRI | >70 |
| Efficacy | 150 LM/W | Available CCT | 5000K |
| Rated Life | >50,000 hrs | Power Factor | >0.95 |
| THD | ≤20% | IP Rating | IP66 |
| Dimmable | 0-10V | Controls | Motion Sensor |
| Operating Temperature | -40F to 113F | Diameter | 12.4" |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 15 Lbs |
Motion Sensor Specification
| Brand | Haisen | MPN | HD06VCRH |
| Control | On/off / 1-10V Dimming | Setting tool | Remote control (HD05R) |
| Detection area | 25%/50%/75%/100% | Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ | Stand-by dimming level | 10%/20%/30%/50% |
| Motion detection | 0.5~1.5m/s | Daylight threshold | Disable / 8 settings from 2Lux to 400Lux |
| Mounting height | Max. 49.2ft | Detection range | Max. 32.8ft |
| Operating Voltage | 10.5-15V DC | IP rating | IP65 |
Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
