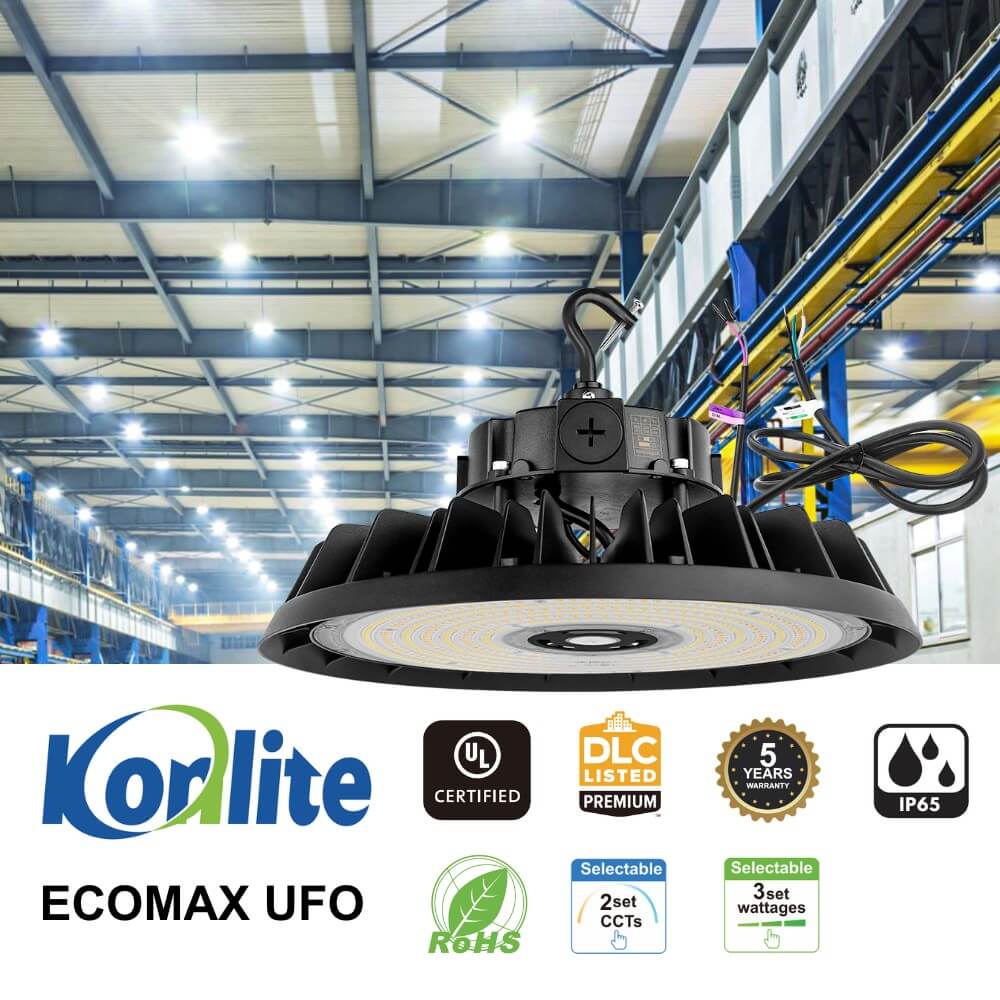

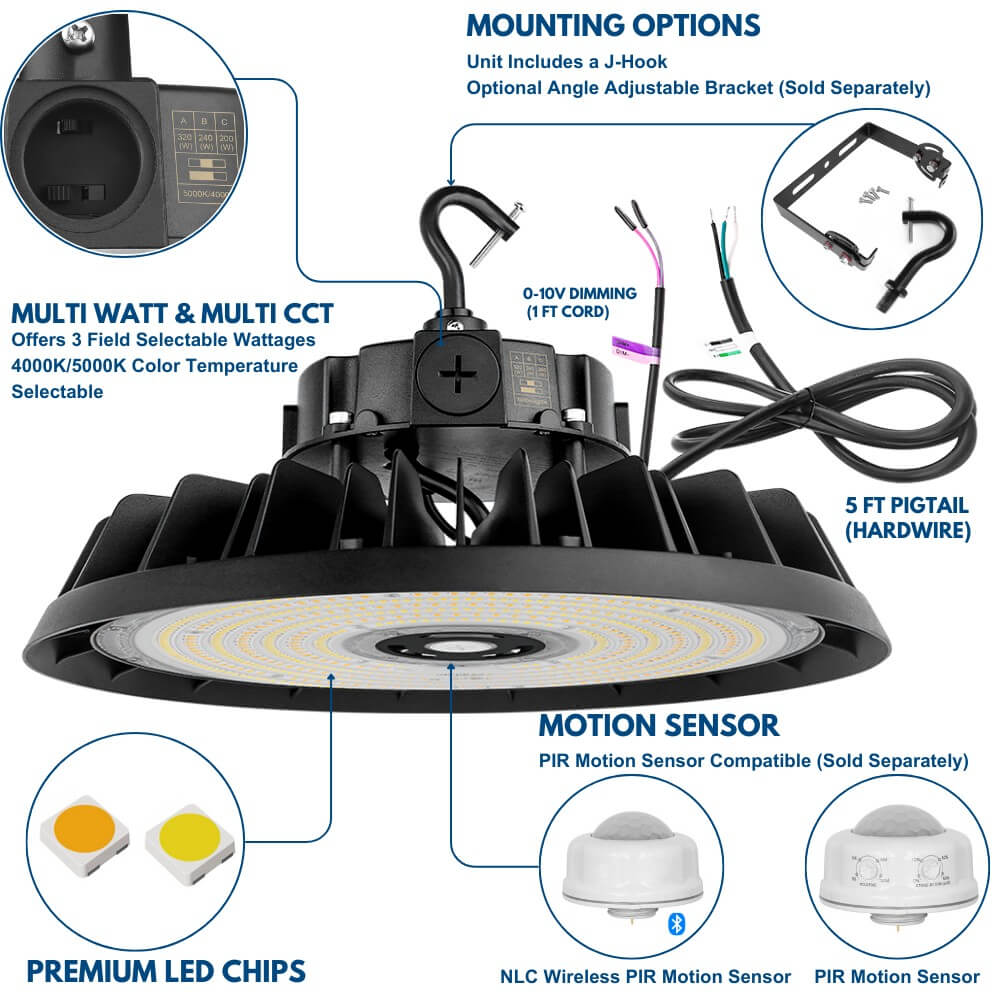

Product details of Konlite ECOMAX High Bay Ligh

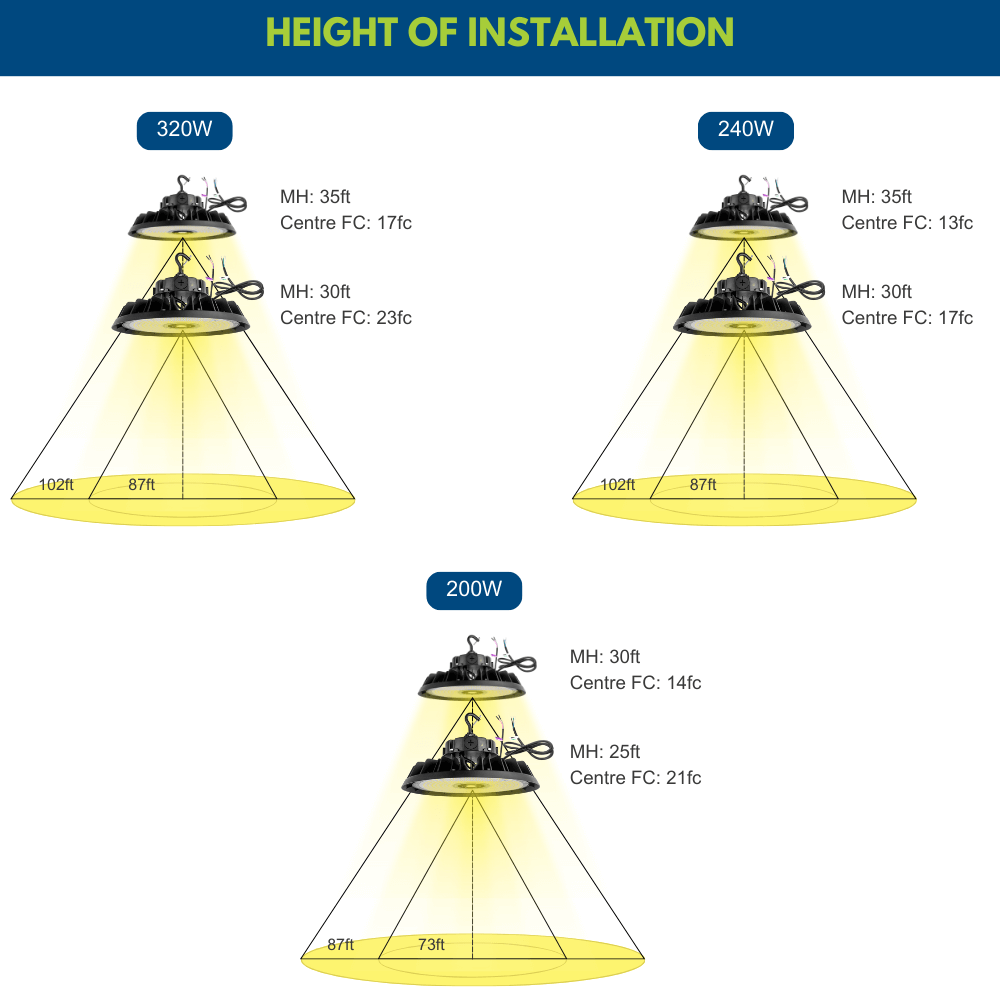

Konlite ECOMAX High Bay Light mounting heights

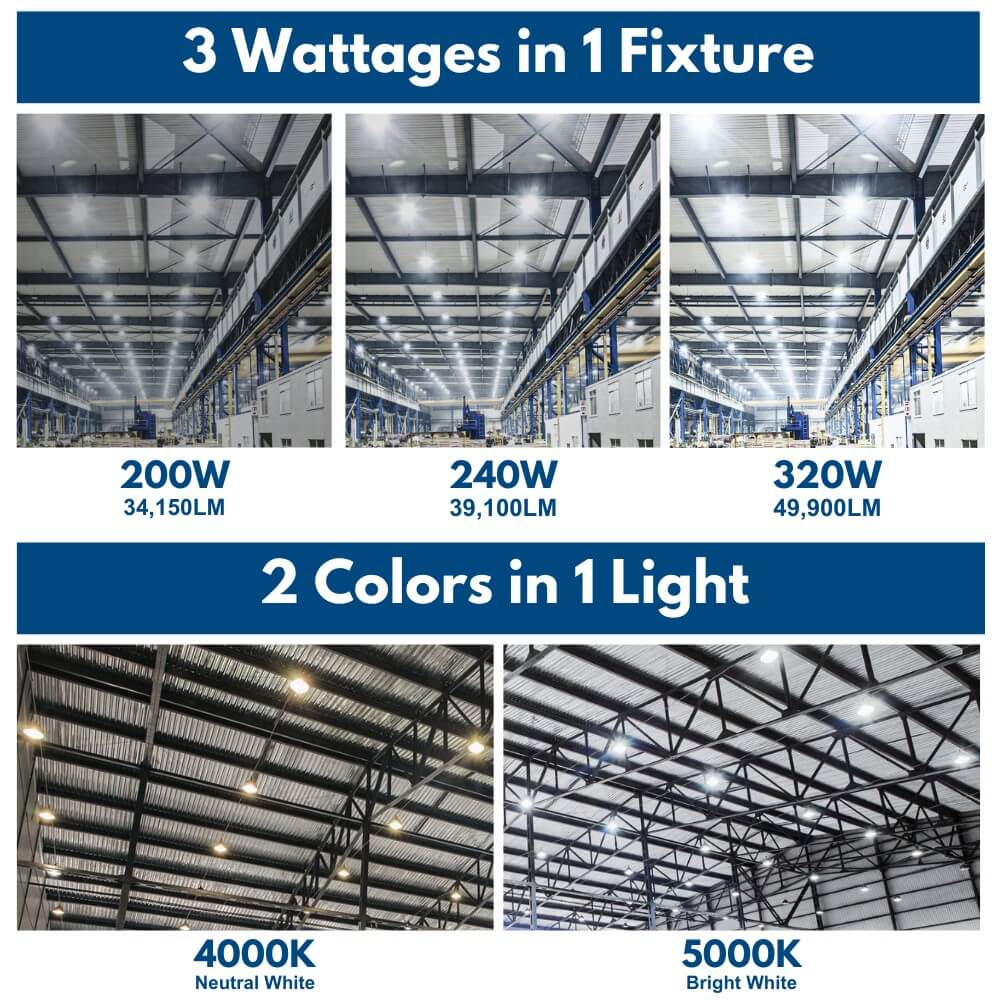

Wattage and CCT selections of a Konlite ECOMAX High Bay Light - 200W/240W/320W

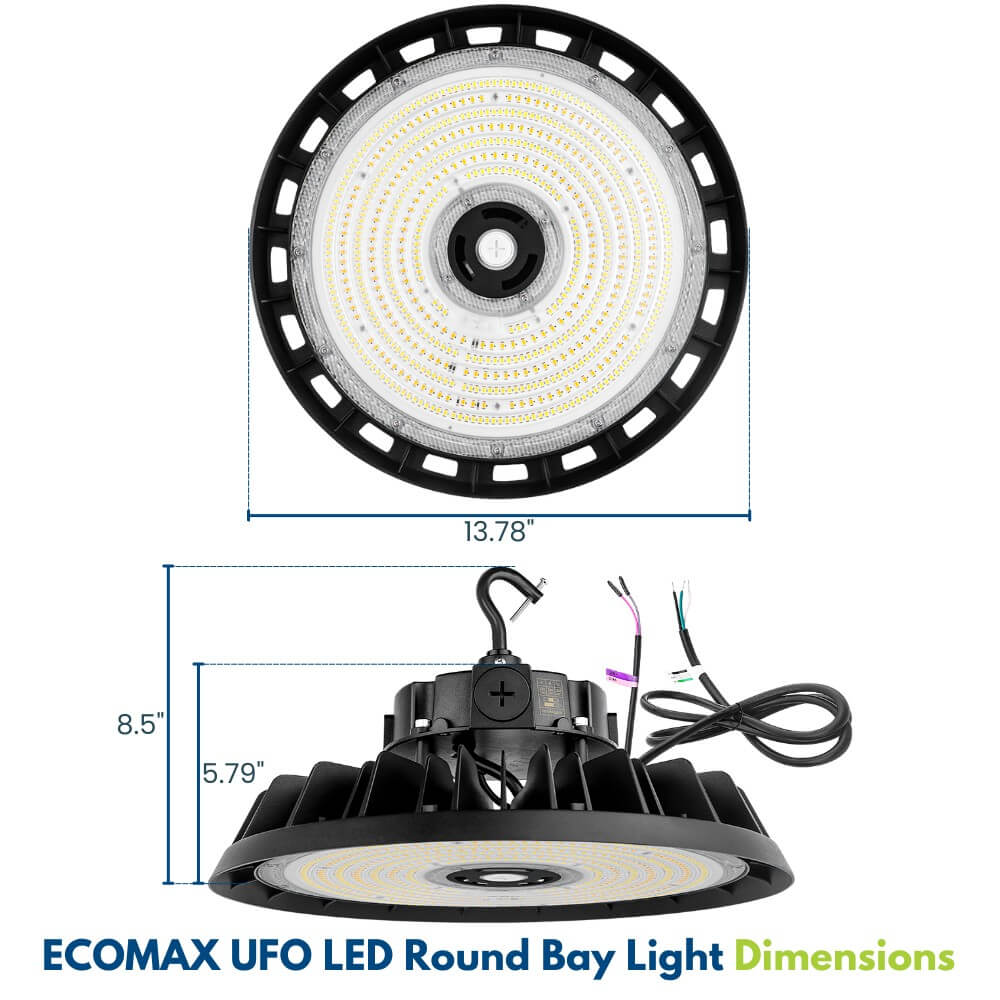

Dimensions of Konlite ECOMAX High Bay Light - 200W/240W/320W

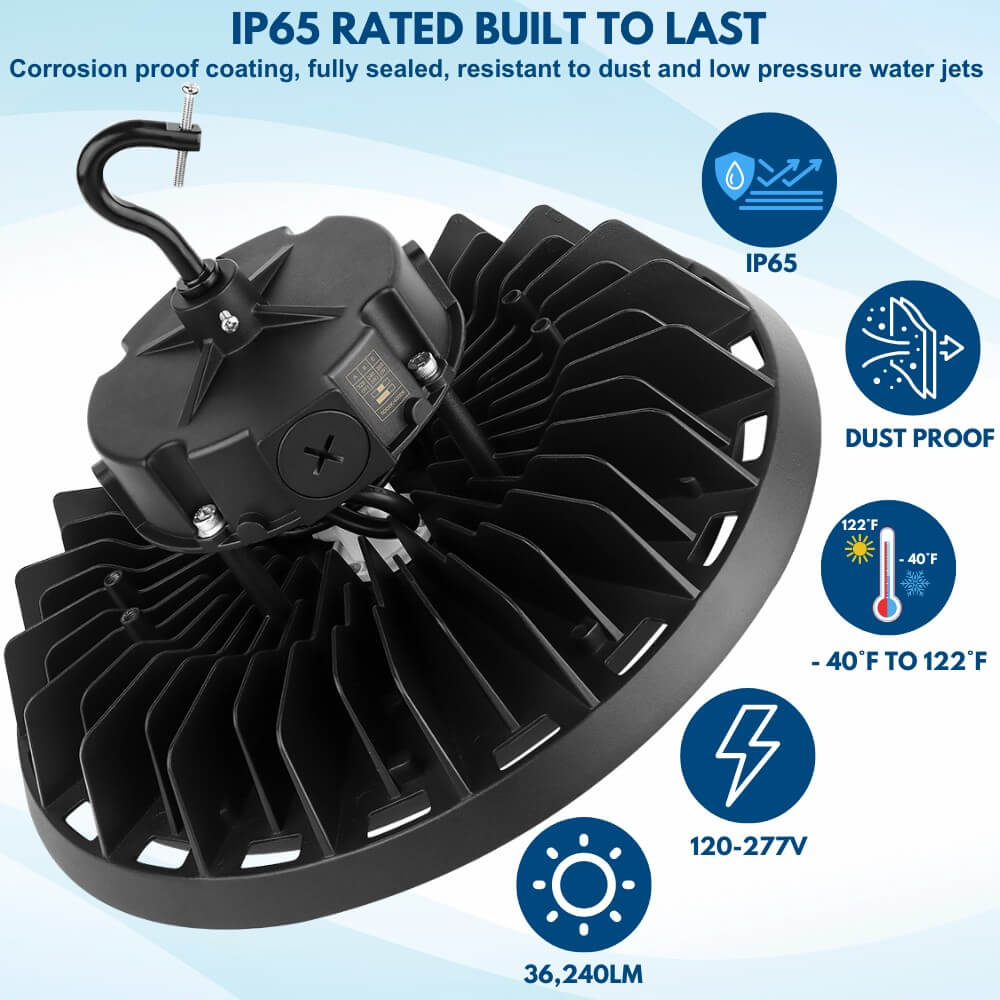

Ip65 rated Konlite ECOMAX High Bay Light - 200W/240W/320W

Motion sensor of a Konlite ECOMAX High Bay Light - 200W/240W/320W

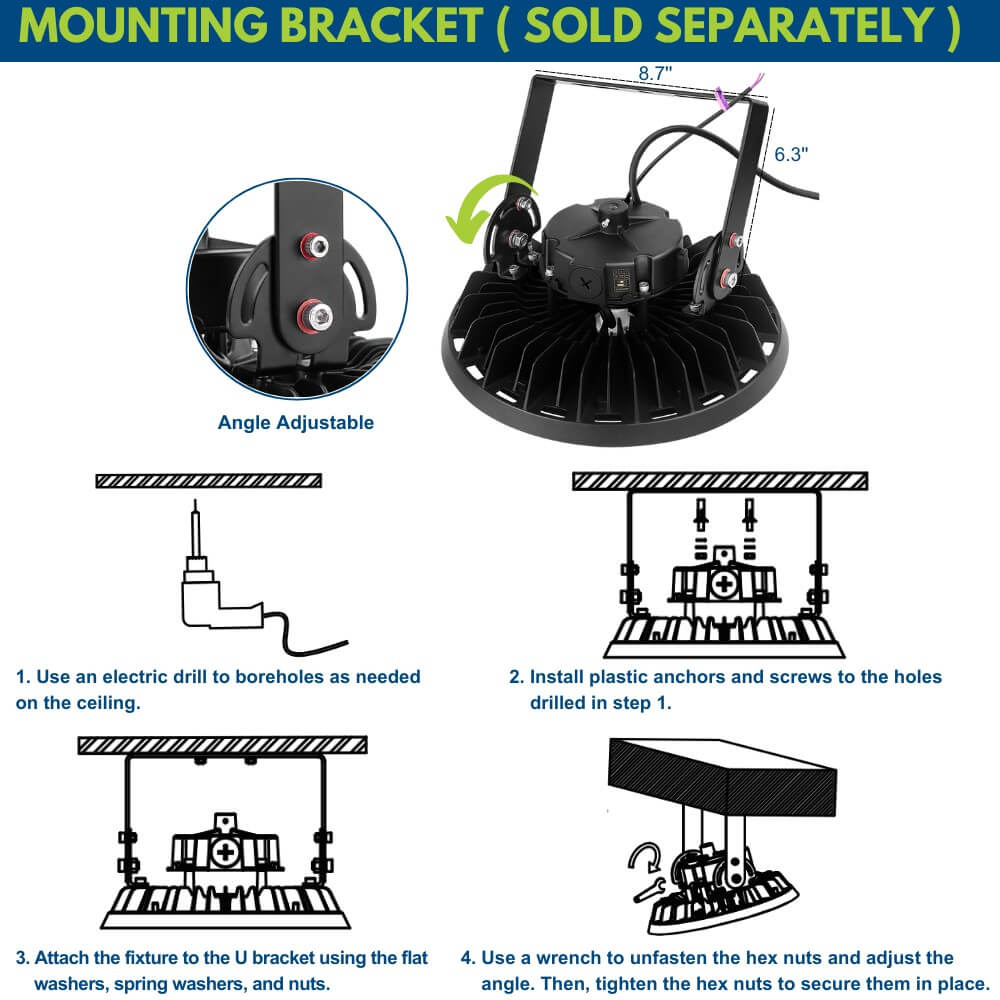

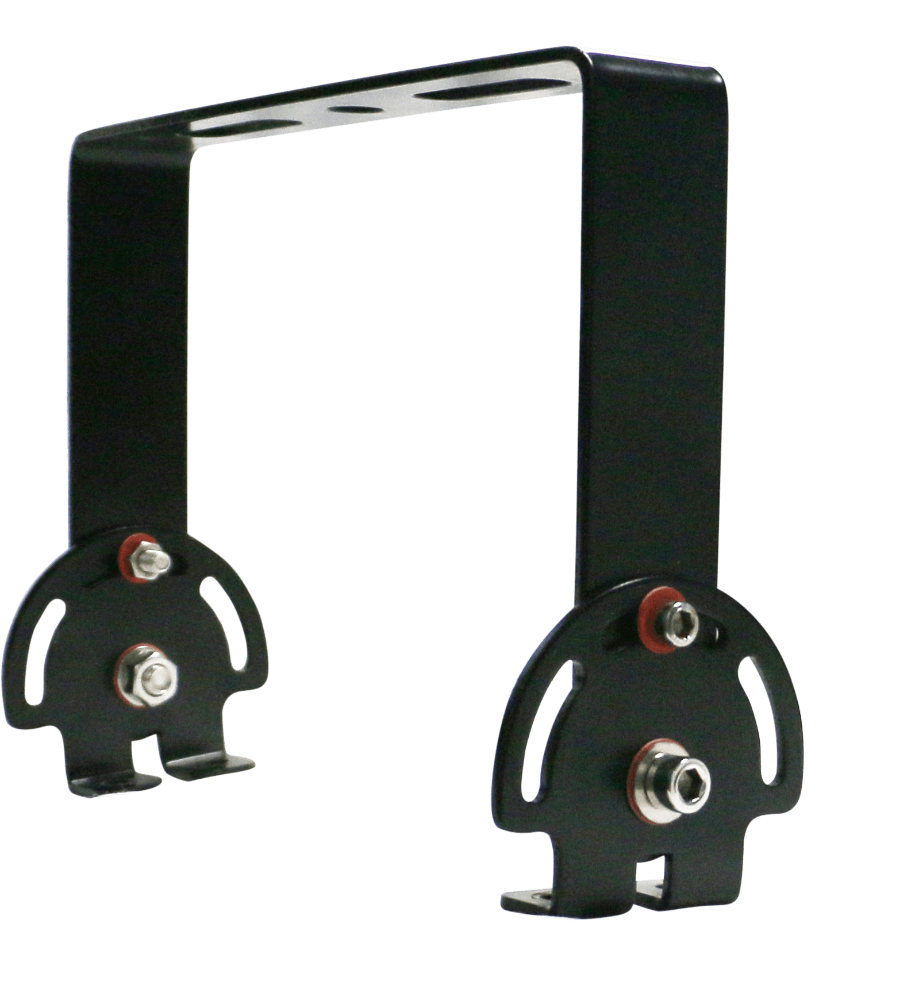

U shape bracket of Konlite ECOMAX High Bay Light - 200W/240W/320W

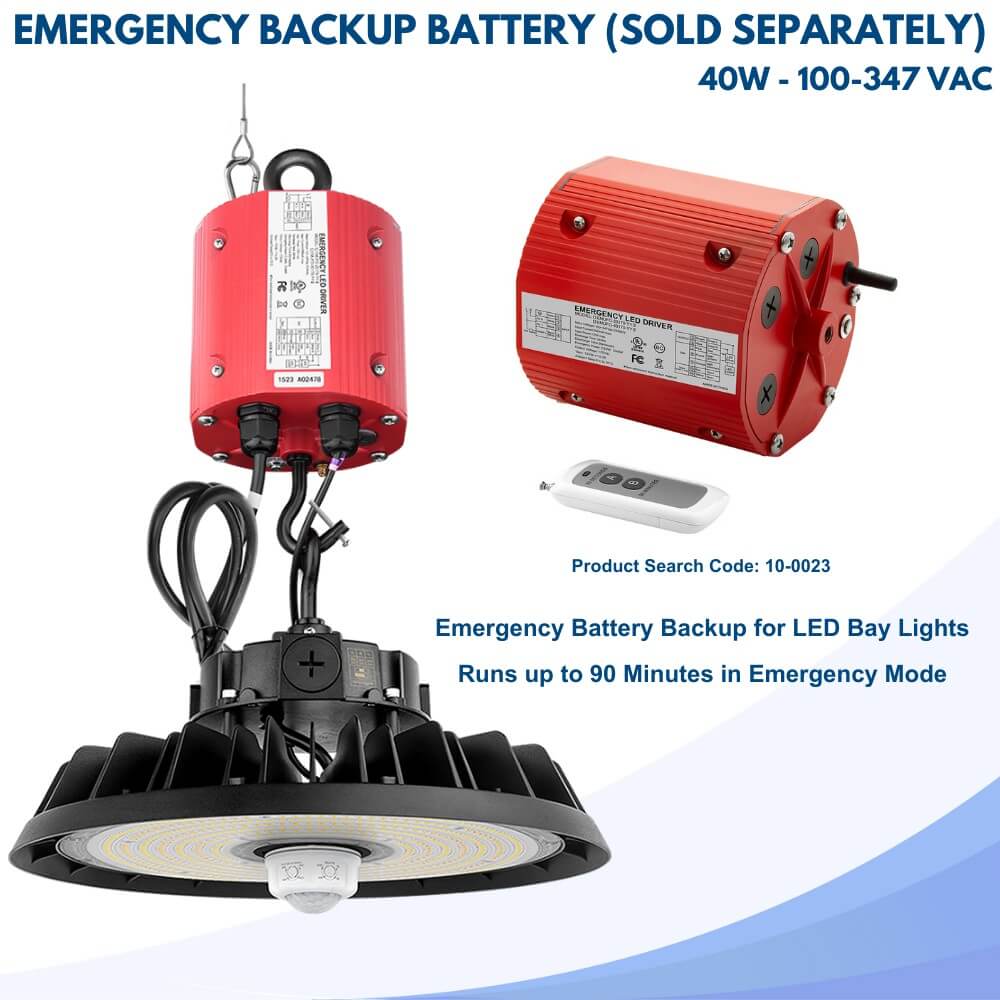

Emergency backup for a Konlite ECOMAX High Bay Light - 200W/240W/320W

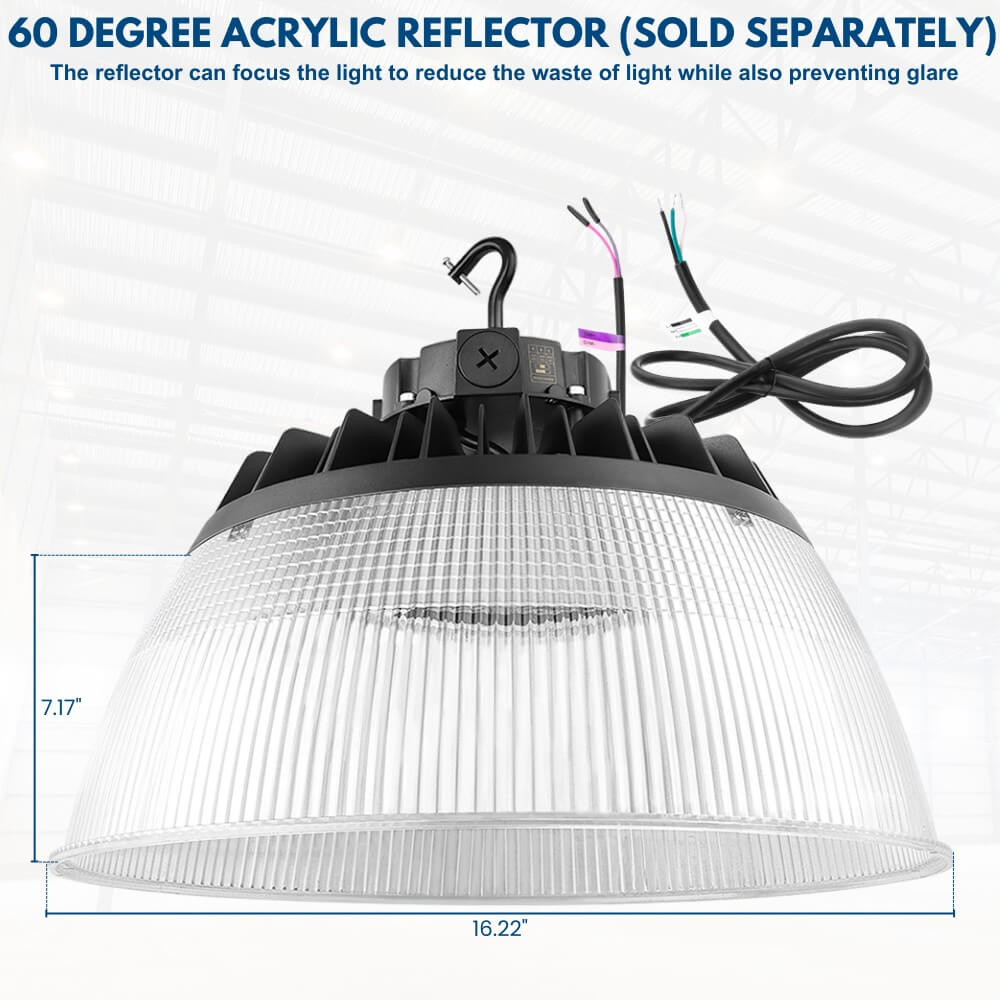

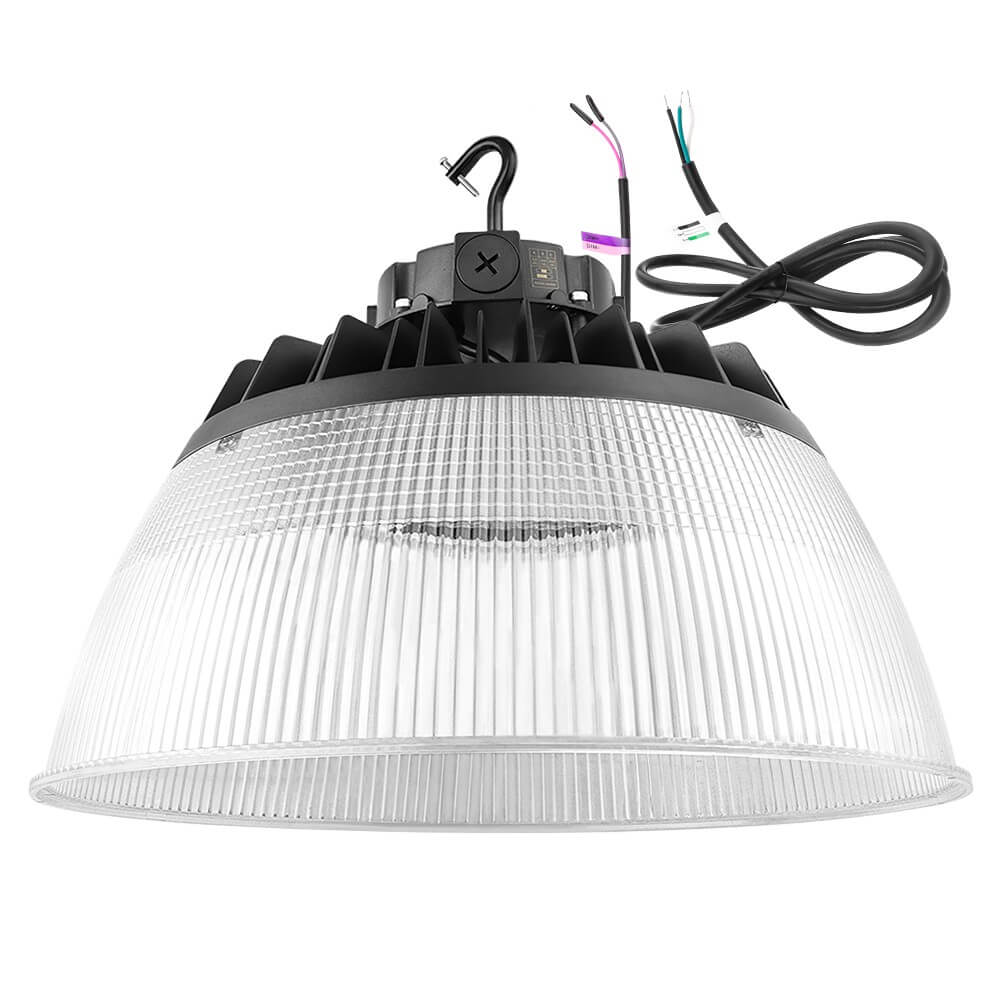

Konlite ECOMAX High Bay Light with a reflector

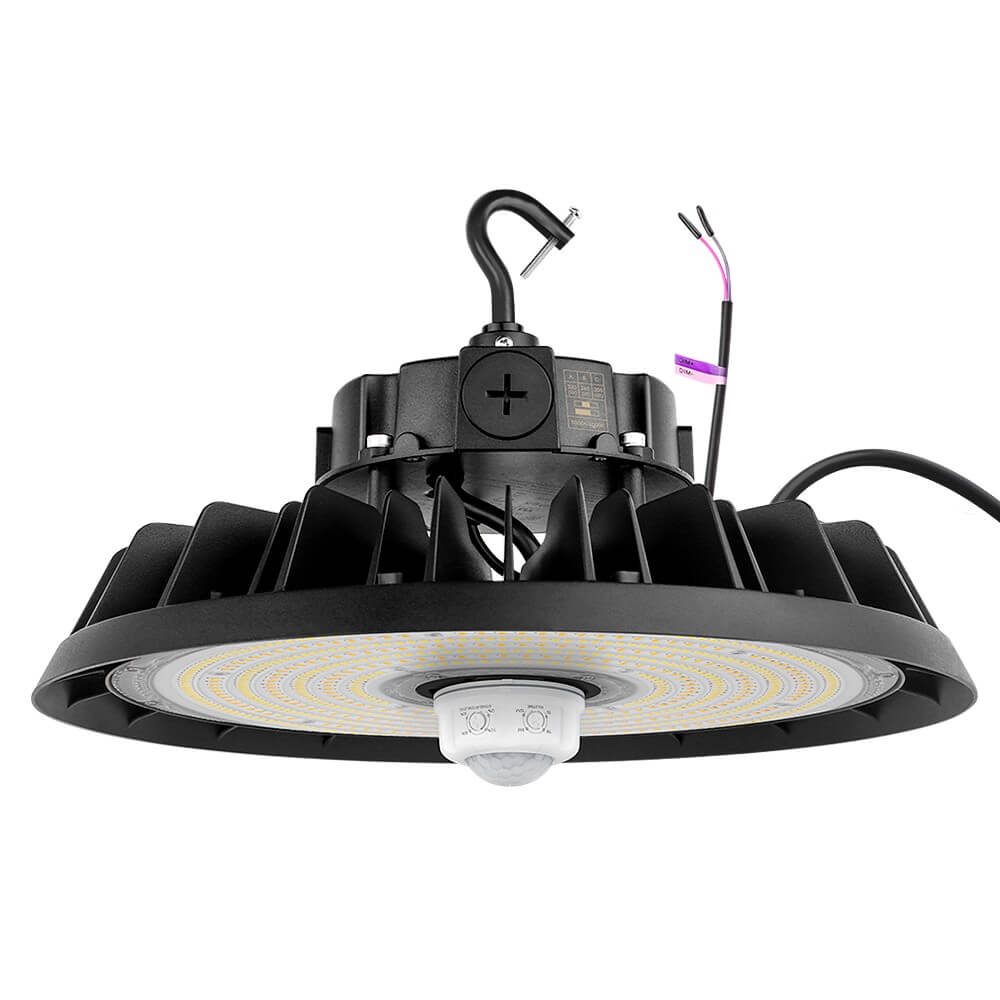

Konlite ECOMAX High Bay Light with a PIR motion sensor

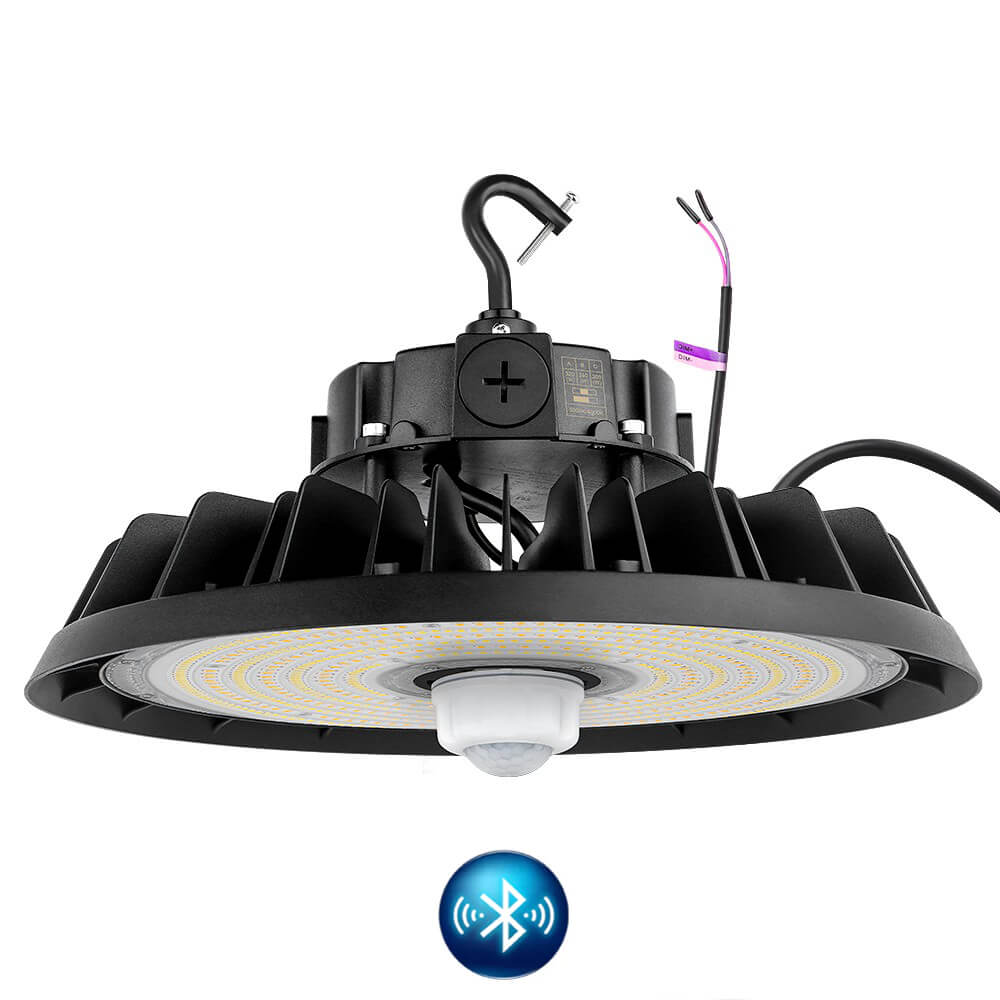

Konlite ECOMAX High Bay Light with a Bluetooth sensor

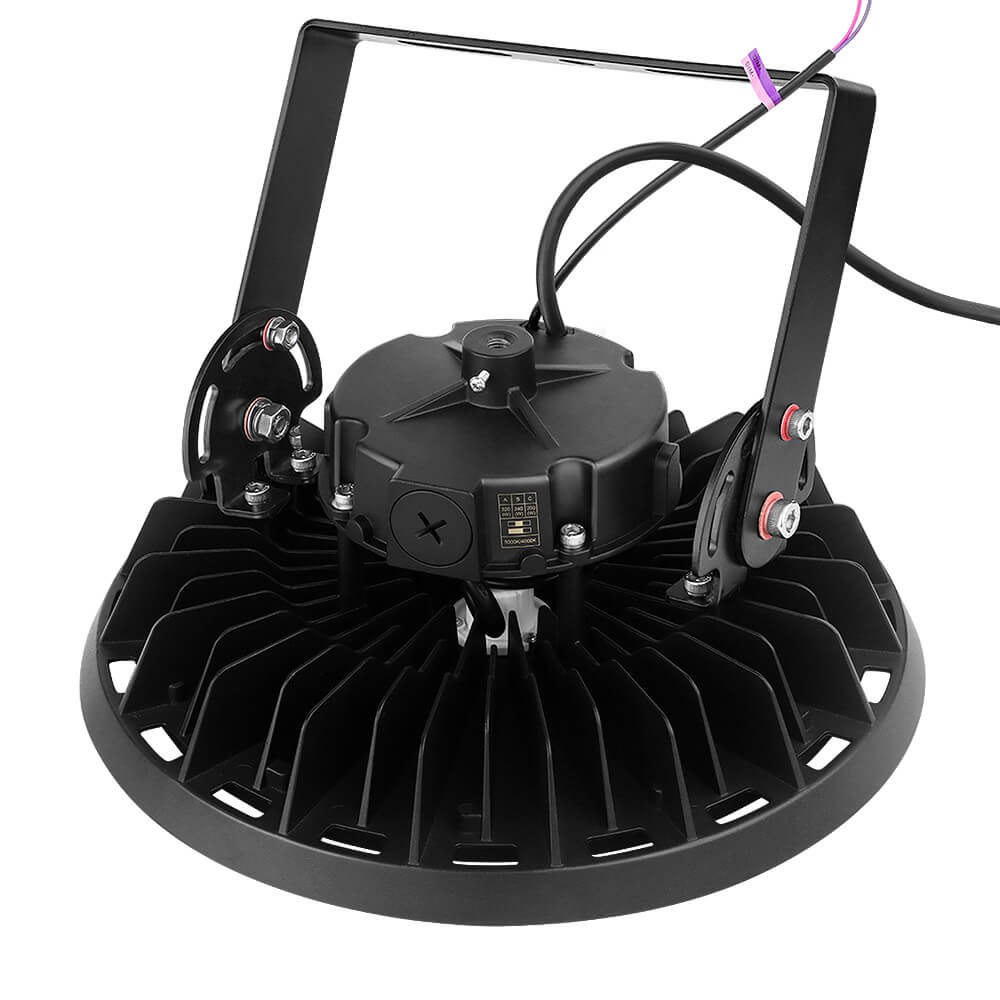

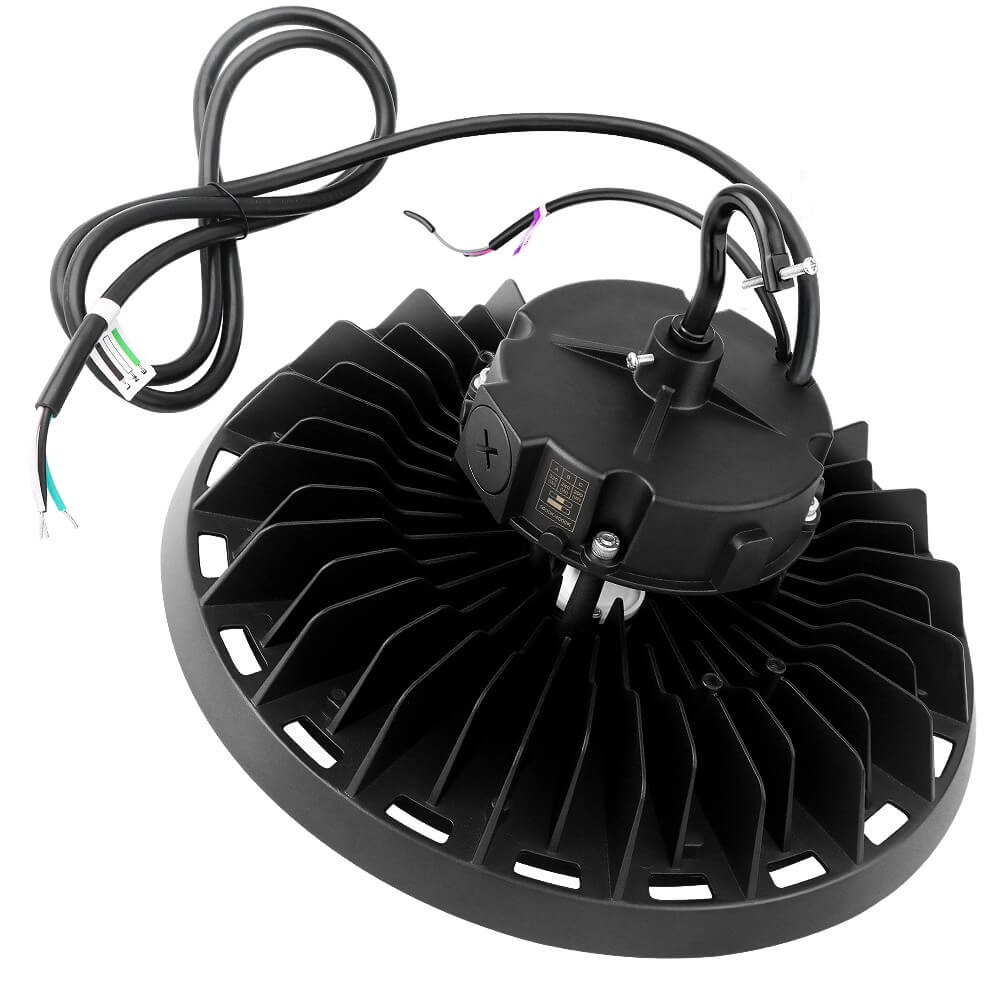

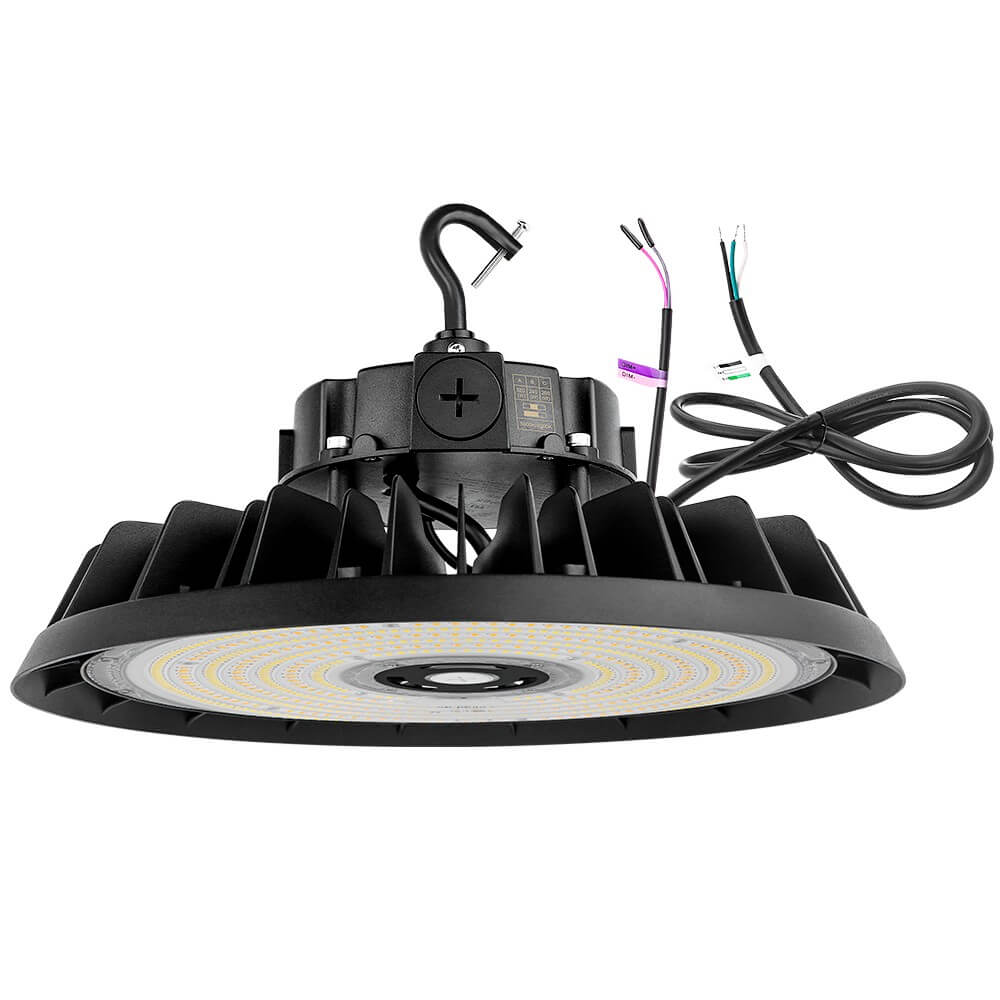

Back view of Konlite ECOMAX High Bay Light - 200W/240W/320W

Konlite ECOMAX High Bay Light with a U bracket

Wattage and CCT Selections of Konlite ECOMAX High Bay Light

Roll over image to zoom in

Same day shipping from Atlanta Warehouse

IN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

EcoMAX LED High Bay Light - 320W/240W/200W - 120-277V - 49,900 Lumens - 5000K/4000K - 1000W Equal

Name: EcoMAX LED High Bay Light - 320W/240W/200W - 120-277V - 49,900 Lumens - 5000K/4000K - 1000W Equal
Brand: Konlite
SKU: KEM320SMCLVGB
Price: 142.65 USD
Availability: OutOfStock

Product Search Code: 10-0128

KonliteSKU: KEM320SMCLVGB

$189.99 $142.65

Replaces 750-1000 Watt Metal Halide
0-10V Dimmable
CRI>80
5 Ft Pigtail Power Cord
Certificates: UL, DLC Premium 5.1,NLC
5 Years Warranty
Watts and Lumens Selectable:
- 320w = 48,320 (Preset)
- 240w = 37,900
- 200w = 33,100

Controls:

Glare Controls:

Variant

Quantity

Replaces 750-1000 Watt Metal Halide
0-10V Dimmable
CRI>80
5 Ft Pigtail Power Cord
Certificates: UL, DLC Premium 5.1,NLC
5 Years Warranty
Watts and Lumens Selectable:
- 320w = 48,320 (Preset)
- 240w = 37,900
- 200w = 33,100

This Konlite EcoMax series LED High Bay light is ideal for new construction or replacement of 1000W. Delivers top energy savings and maintenance free durability for a wide range of applications.

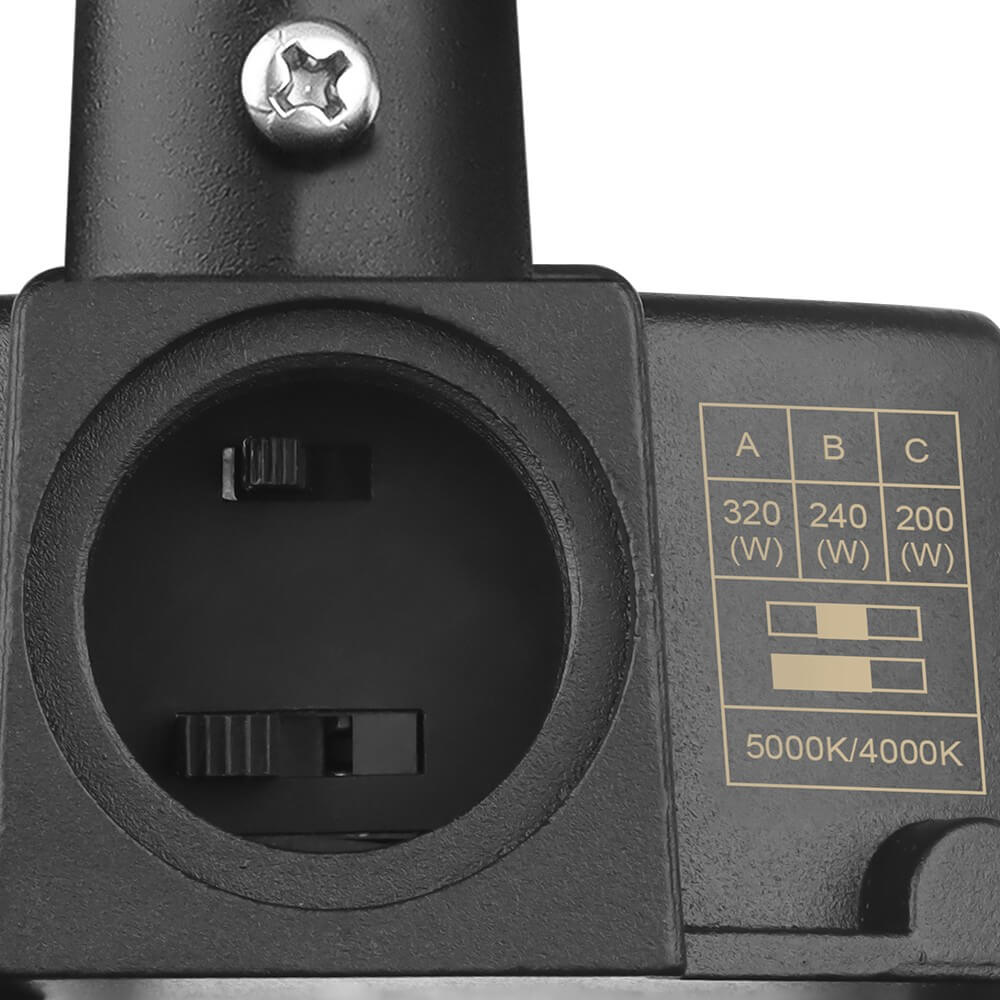

Offers 3 Field Selectable Wattage/Brightness Settings and 5000K/4000K Color Temperatures.

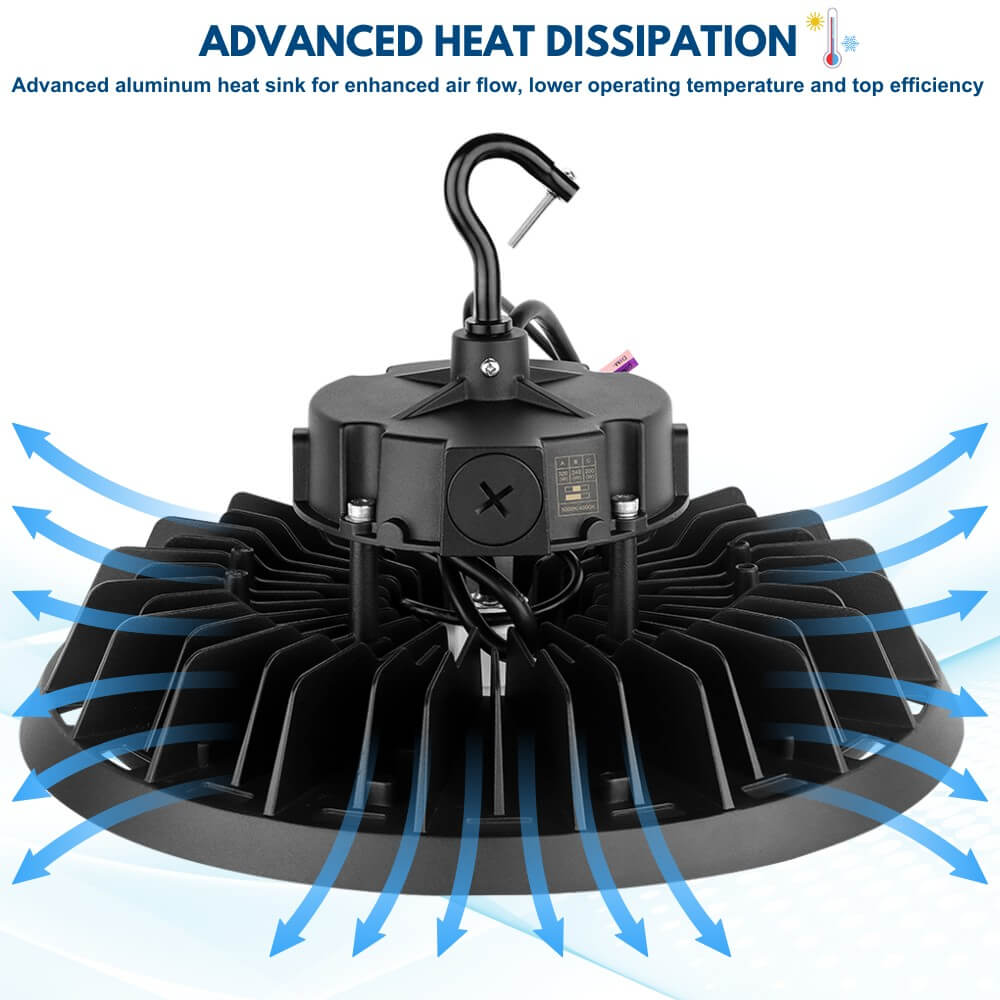

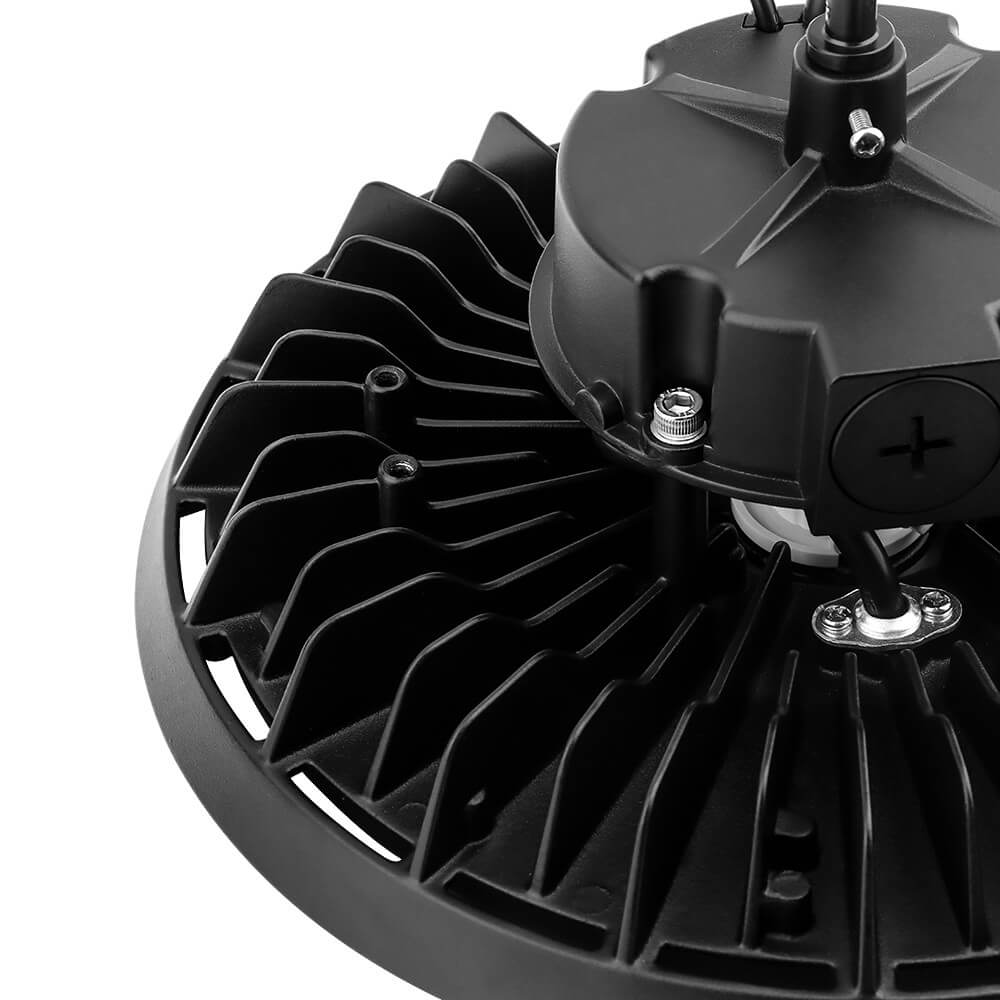

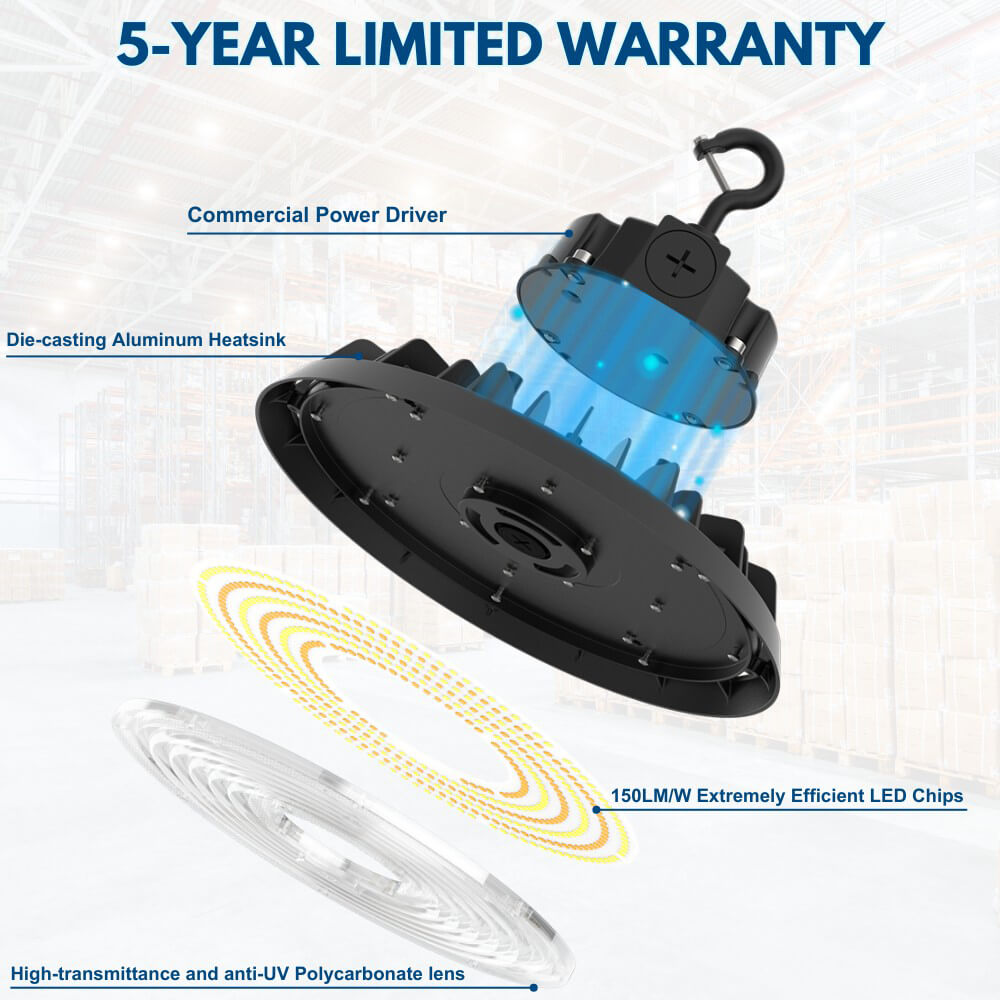

Advanced aluminum heat sink for enhanced air flow, lower operating temperature and top efficiency

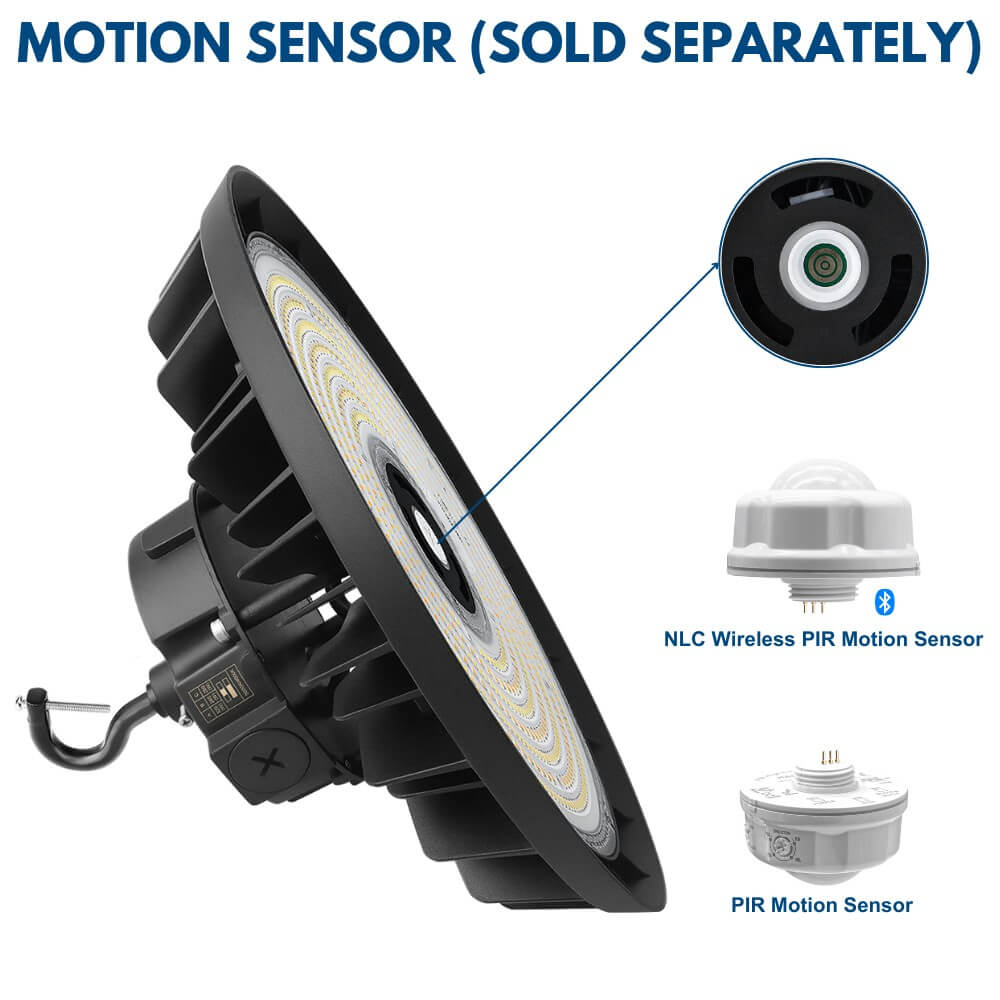

Increase energy savings with optional integrated PIR sensor.

$189.99 $142.65

Controls:

Glare Controls:

Variant

Quantity

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

This Konlite EcoMax series LED High Bay light is ideal for new construction or replacement of 1000W. Delivers top energy savings and maintenance free durability for a wide range of applications.

Offers 3 Field Selectable Wattage/Brightness Settings and 5000K/4000K Color Temperatures.
Advanced aluminum heat sink for enhanced air flow, lower operating temperature and top efficiency
Increase energy savings with optional integrated PIR sensor.

Product Details

Downloads

Reviews

Q&A

Product Overview

Introducing the powerful EcoMax High Bay Light—your ideal solution for high ceilings up to 45 feet. Available in three wattage options, 320W (48,320 lumens), 240W (37,900 lumens), and 200W (33,100 lumens), this high-performance fixture provides superior brightness for even the largest spaces, making it perfect for warehouses, factories, and large commercial and industrial settings.

With selectable wattage and CCT options, you can easily customize the brightness and color temperature to suit your specific needs. Whether for retrofits or new construction, the EcoMax High Bay Light enhances productivity and safety, making it ideal for multi-zone facilities. Available in 5000K for cool light or 4000K for a warmer ambiance, this fixture delivers optimal lighting for any space.

Built to last, the EcoMax features 6KV surge protection, a 5’ power cord, 0-10V dimming, and an IP65 rating, ensuring it remains sealed against dust and moisture. Its durable construction makes it ideal for long-term performance in challenging environments.

Certified to meet DLC 5.1 Premium, DLC NLC, and UL standards, and backed by a 5-year warranty, the EcoMax guarantees premium quality and rebate eligibility. Optional PIR sensors enable advanced lighting control, including brightness, daylight harvesting, and standby dimming via remote.

For ultimate control, upgrade to the Haisen Blue Network Lighting Controls (NLC), offering flexible, Bluetooth-enabled management, perfect for businesses and facilities of all sizes.

Choose the EcoMax High Bay Light for unmatched power, efficiency, and durability—making it the go-to lighting solution for high-ceiling spaces.

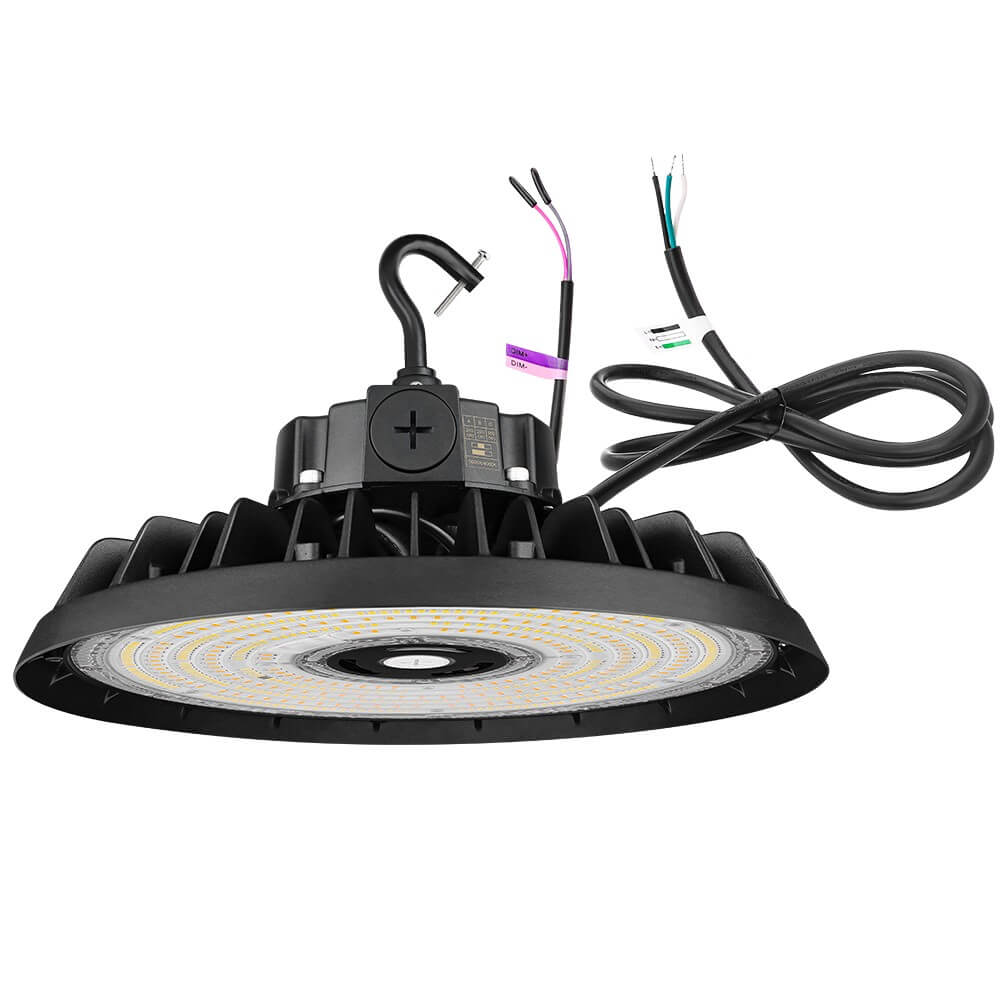

See similar 150-watt and 240-watt Highbay versions.

Applications

•Warehouses	•Workshops
•Convention Centers	•Low Bays
•Storage Facilities	•Distribution Centers
•Factories	•Supermarkets
•Retails	•Gymnasiums

Color Temperature Selectable 4,000k & 5,000k color temperature

Certifications

Specification

Warranty	Limited 5 Years	MPN	KEM320SMCLVGB
Input Voltage	120-277V	Equal to	1000W
Input Wattage	320W/240W/200W	Dimmable	0-10V
Lumens	49,900 Max.	CRI	>80
Efficacy	155 LM/W	Available CCT	5000K/4000k
Rated Life	>50,000 hrs	THD	<15%
Power Factor	>0.9	IP Rating	IP65
Operating Temperature	-40° to 122° F	Dimensions	13.78" x 8.5"
Certifications	UL, Damp Locations, DLC Premium	Weight	15 lbs

Motion Sensor Specification

Brand	Haisen	MPN	HD09VR-PH/HD09VR-PHB (Network Lighting Controls )
Control	On/off / 1-10V Dimming	Setting tool	Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones
Detection area	25%/50%/75%/100%	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
Stand-by period	0s/10s/30s/1min/5min/10min/30min/+∞	Stand-by dimming level	10%/20%/30%/50%
Motion detection	0.5~1.5m/s	Daylight threshold	Disable / 8 settings from 2Lux to 400Lux
Mounting height	Max. 39ft	Detection range	Max. 32.8ft
Operating Voltage	10.5-15V DC	IP rating	IP65
Current	<15mA	Warranty	3 Years

*Stand-By Period need to be set to 0s while using with dimmer switch.

*Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
