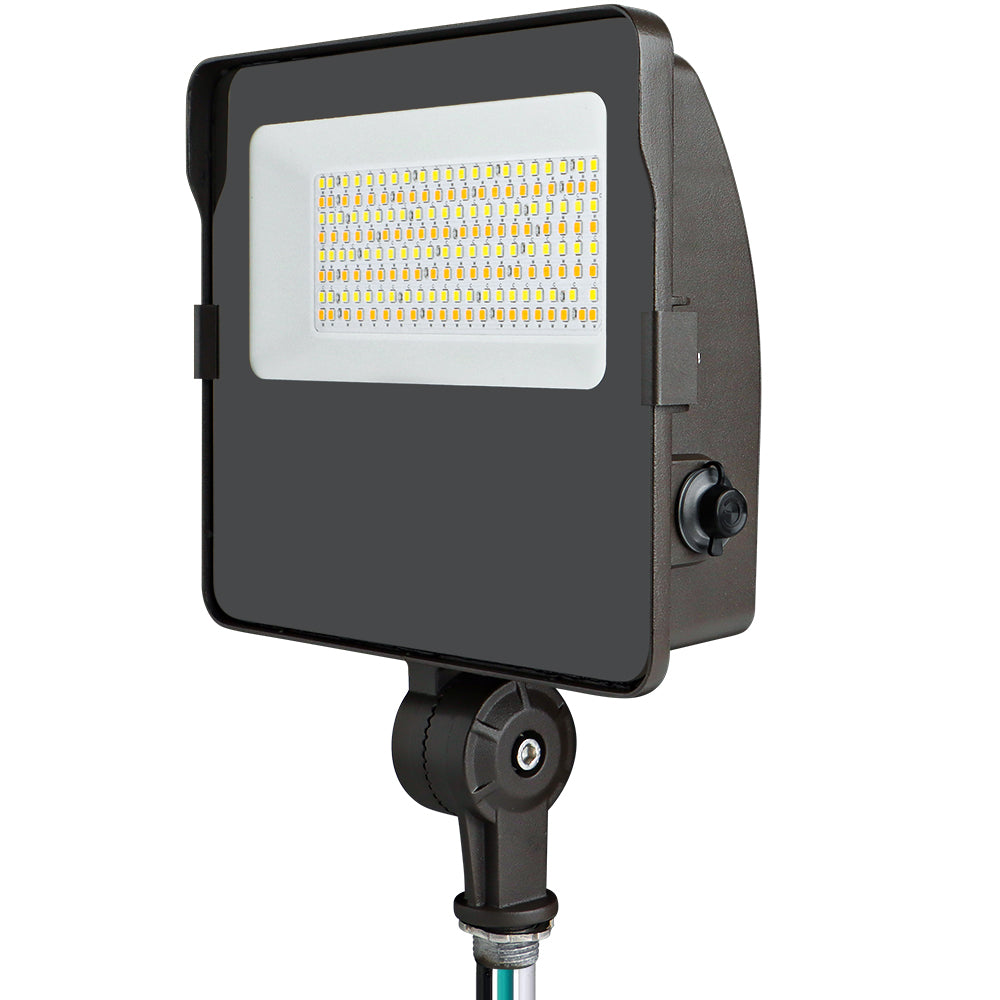

63W NAVI LED Flood Light with Knuckle Mount

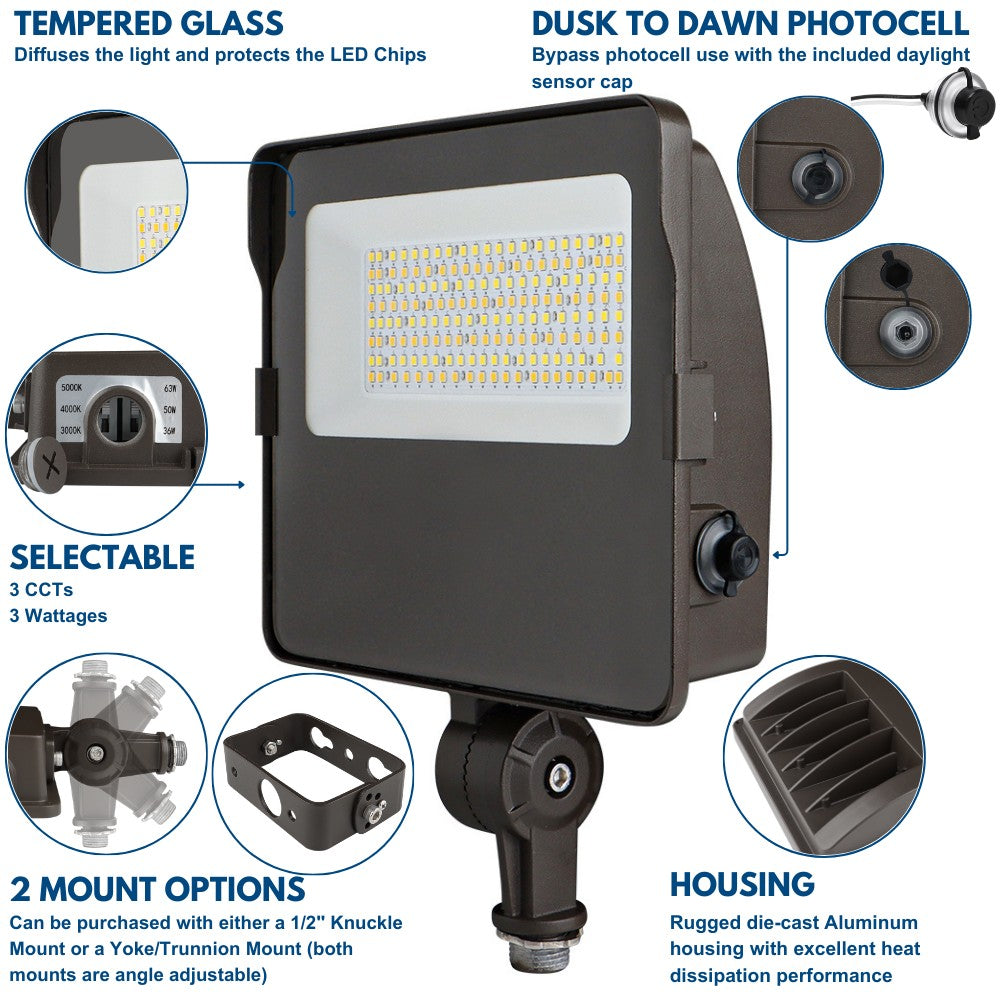

63W NAVI LED Flood Light product details

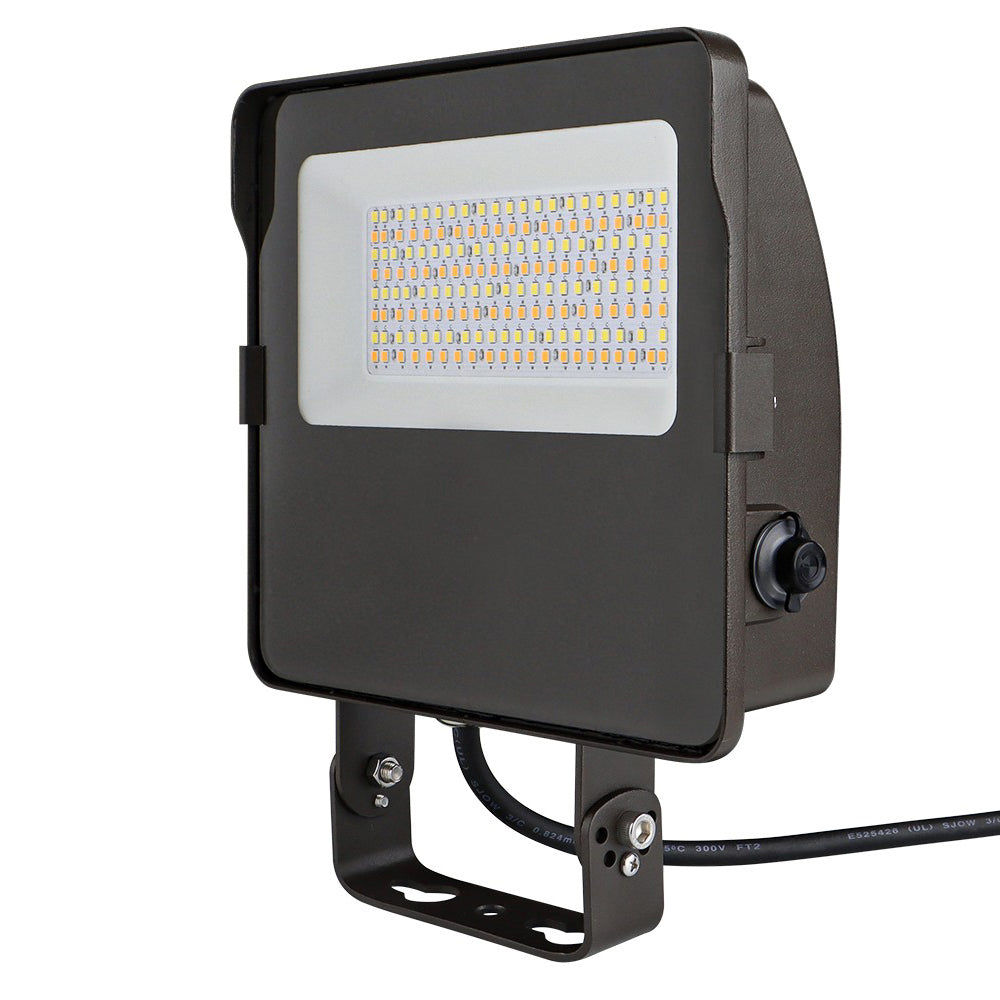

63W NAVI LED Flood Light with Trunnion Mount

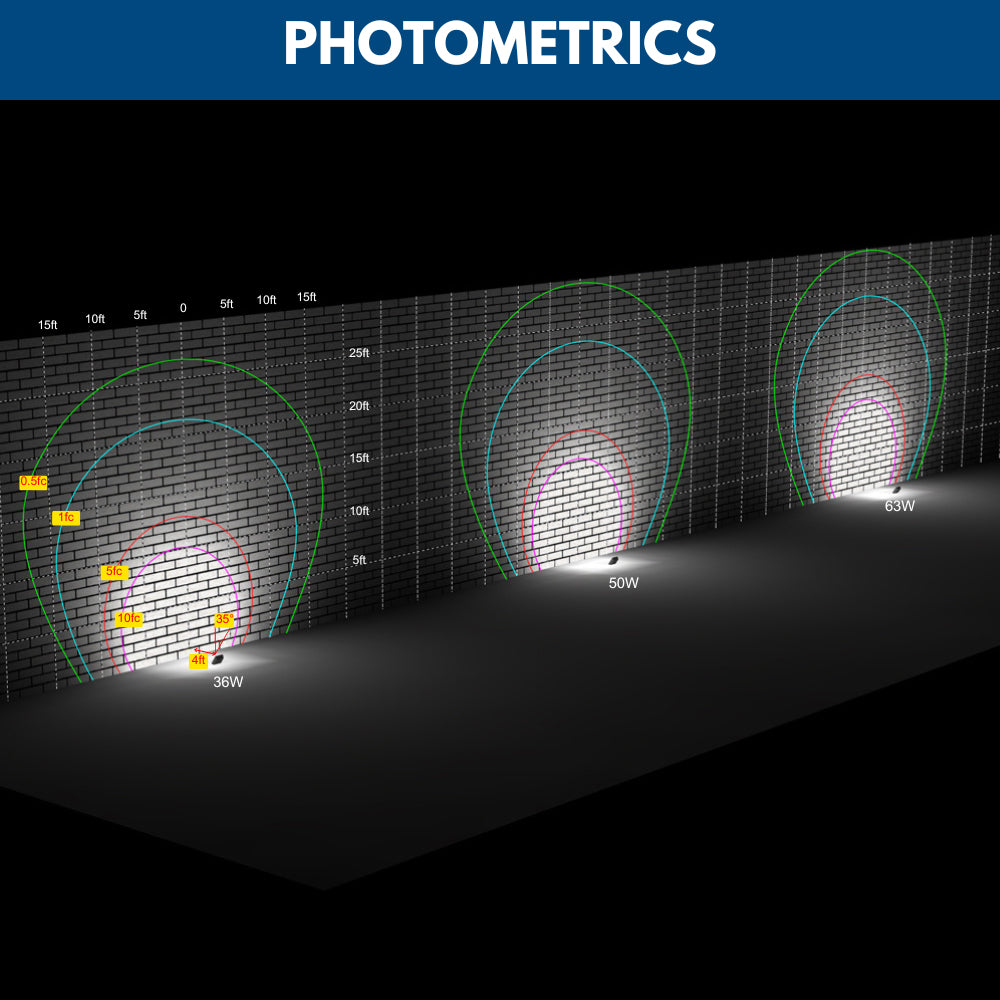

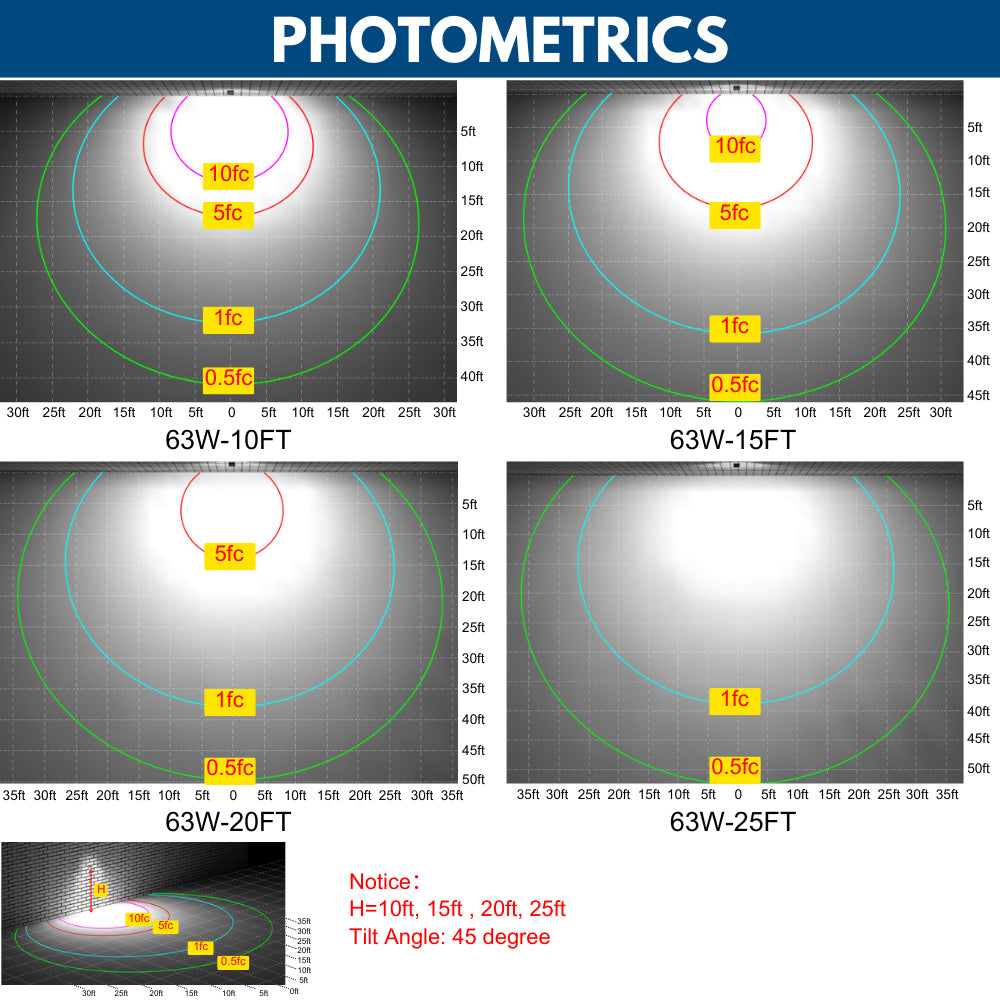

63W NAVI LED Flood Light Photometric
63W NAVI LED Flood Light Photometric
63W NAVI LED Flood Light Photometric
63W NAVI LED Flood Light Photometric
3 Watts and 3 CCT selectable NAVI LED Flood Light

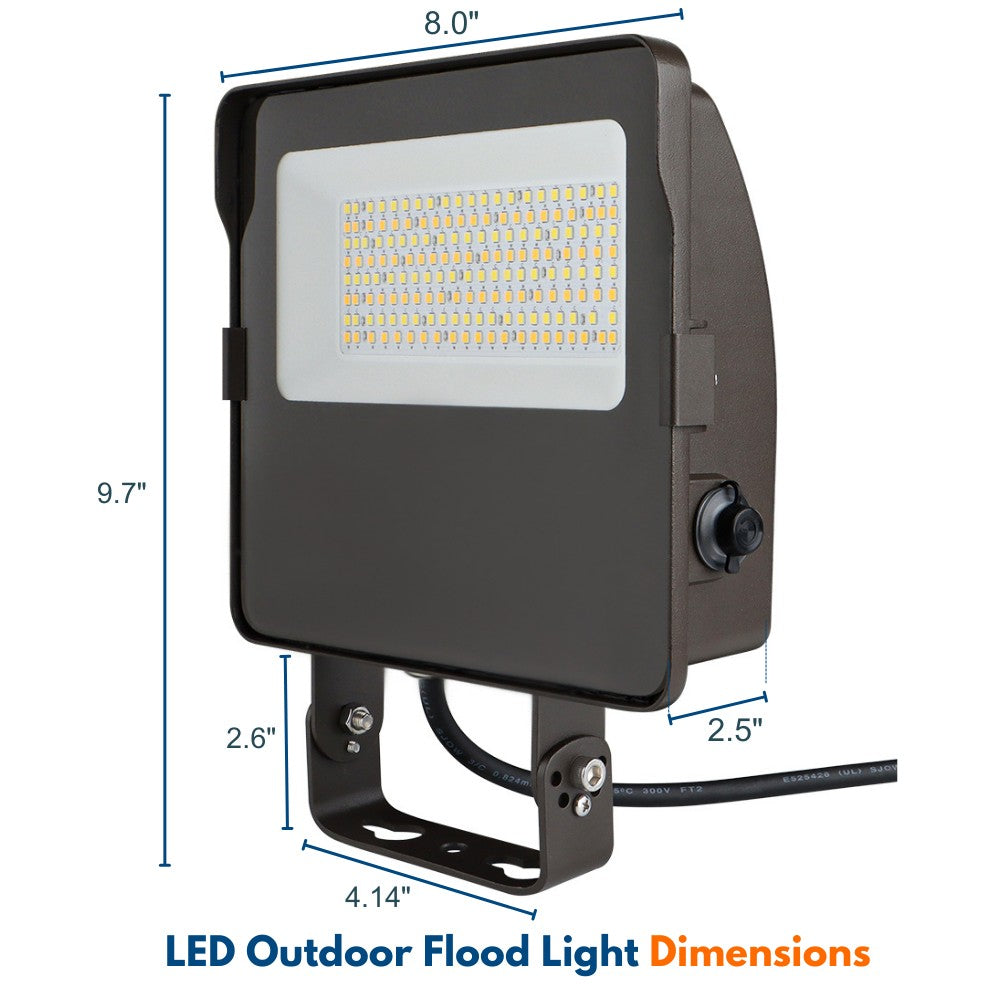

Dimensions of a 63W NAVI LED Flood Light with Trunnion Mount

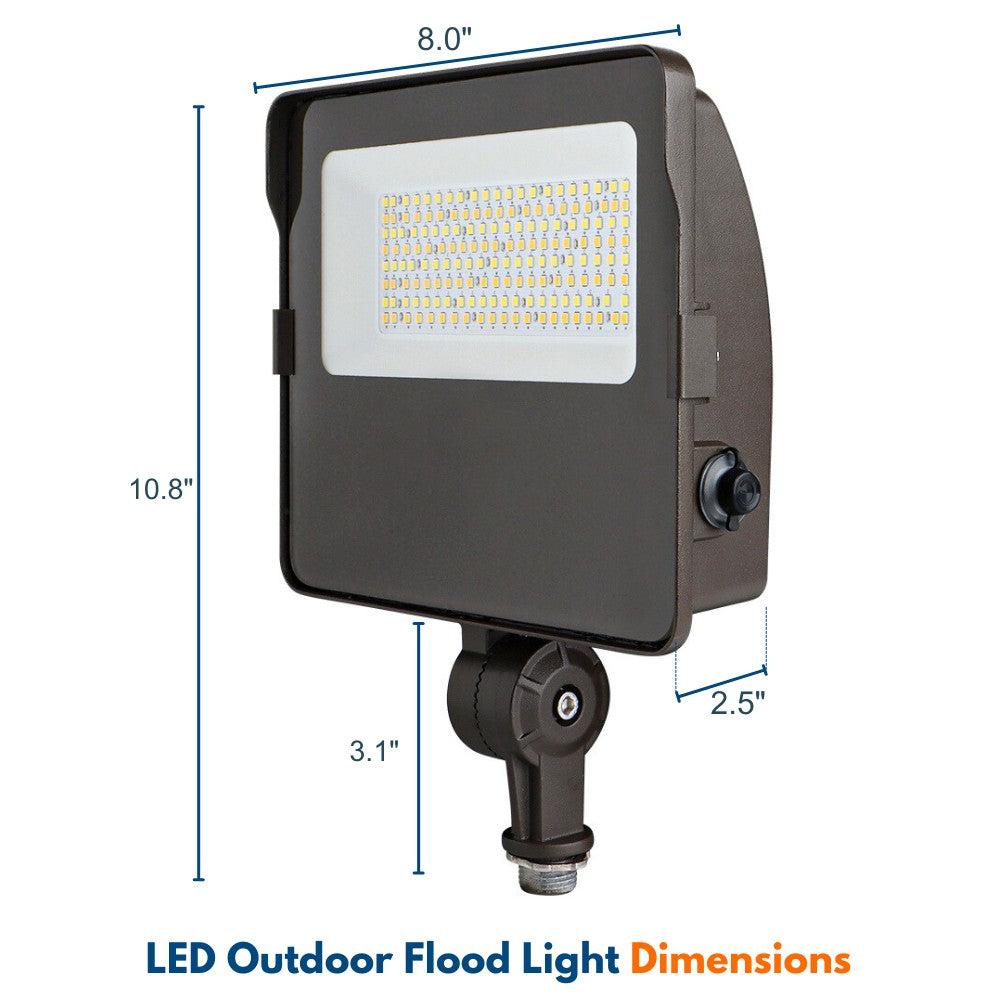

Dimensions of a 63W NAVI LED Flood Light with Knuckle Mount

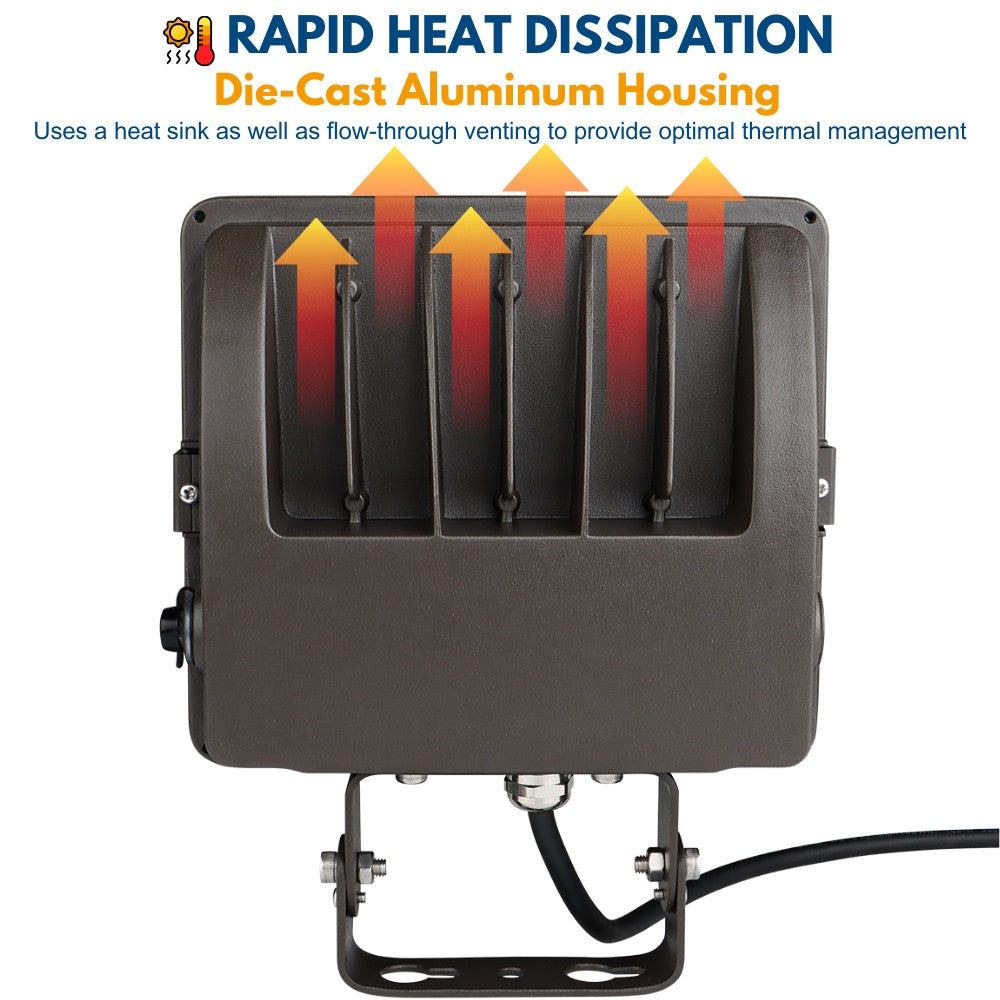

Back of a 63W NAVI LED Flood Light demonstrating rapid heat dissipation

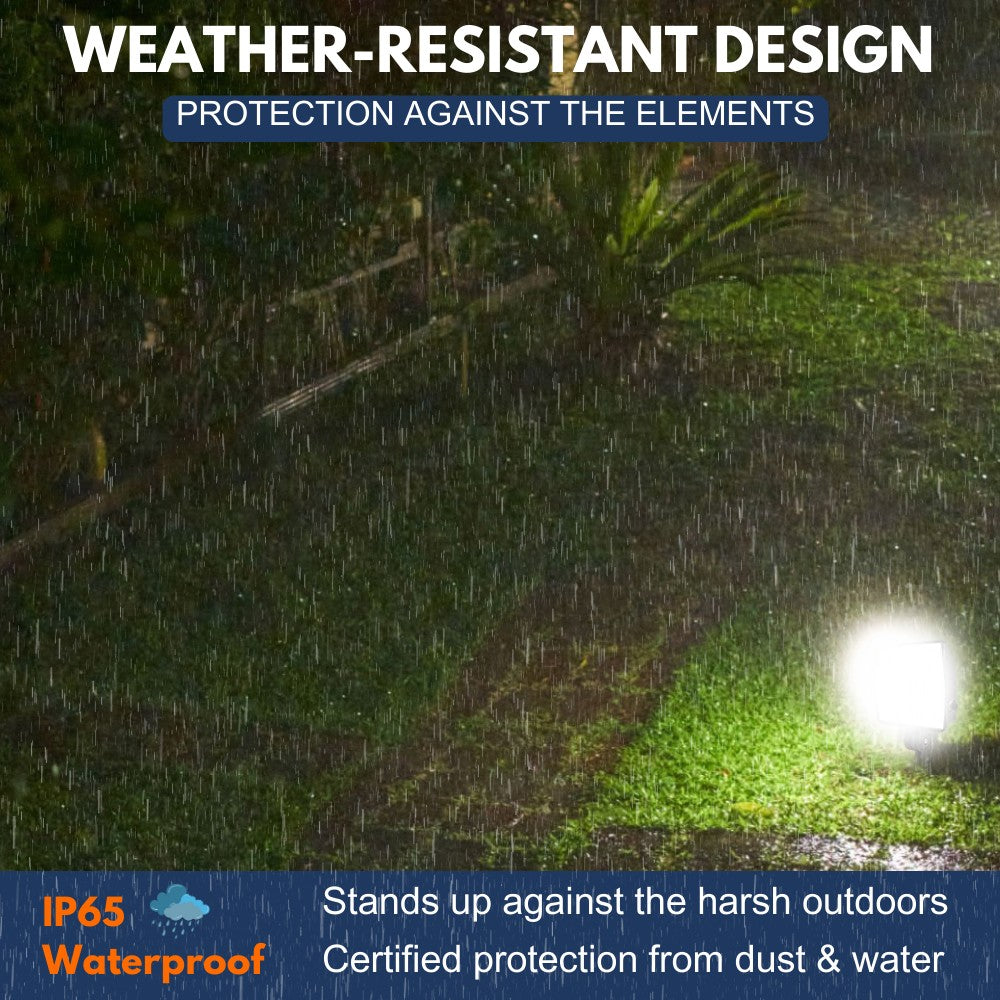

A 30W NAVI LED Flood Light in wet location
Dusk to Dawn Photocell of Dimensions of NAVI LED Flood Light
NAVI LED Flood Light
Roll over image to zoom in Click on image to zoom
63W NAVI LED Flood Light with Knuckle Mount63W NAVI LED Flood Light product details63W NAVI LED Flood Light with Trunnion Mount63W NAVI LED Flood Light Photometric63W NAVI LED Flood Light Photometric63W NAVI LED Flood Light Photometric63W NAVI LED Flood Light Photometric3 Watts and 3 CCT selectable NAVI LED Flood LightDimensions of a 63W NAVI LED Flood Light with Trunnion MountDimensions of a 63W NAVI LED Flood Light with Knuckle MountBack of a 63W NAVI LED Flood Light demonstrating rapid heat dissipation A 30W NAVI LED Flood Light in wet locationDusk to Dawn Photocell of Dimensions of NAVI LED Flood LightNAVI LED Flood Light

This Konlite NAVI LED flood light is designed with optical versatility and a slim, low profile design. Provides constant light that improves overall visibility, providing added security for commercial or residential locations.

  • NEMA type: 7H x 7V wide beam spread
  • Installation options: ½” Knuckle Mount or Trunnion
  • Die cast aluminum housing with tempered glass cover
  • Fully sealed to keep out moisture and environmental contaminants
What's in the box
1 Flood light fixture - 1 Mount Kit – 1 Installation Guide
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

NAVI LED Flood Light - 63W/50W/36W - 10,100 lumens - 5000K/4000K/3000K - 120-277V - 250W Equal

Konlite SKU: KNV063MCPLV77KN SEARCH CODE: 21-0215
    • Replaces up to 250W HID/MH
    • Integrated Photocell with a Cap
    • Watt: 63/50/36W
    • CCT: 5000K/4000K/3000K
    • Brightness: 10,750/9,050/6,800 LM
    • 2Ft Pigtail (Hardwire)
    • 5-Year Warranty
$68.65

  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

This Konlite NAVI LED flood light is designed with optical versatility and a slim, low profile design. Provides constant light that improves overall visibility, providing added security for commercial or residential locations.

  • NEMA type: 7H x 7V wide beam spread
  • Installation options: ½” Knuckle Mount or Trunnion
  • Die cast aluminum housing with tempered glass cover
  • Fully sealed to keep out moisture and environmental contaminants
What's in the box
1 Flood light fixture - 1 Mount Kit – 1 Installation Guide
63W NAVI LED Flood Light with Knuckle Mount
NAVI LED Flood Light - 63W/50W/36W - 10,100 lumens - 5000K/4000K/3000K - 120-277V - 250W Equal
$68.65
What's in the box
1 Flood light fixture - 1 Mount Kit – 1 Installation Guide

NAVI LED Flood Light - Selectable Wattages & CCT - Dusk to Dawn Photocell

Illuminate your outdoor spaces with our versatile and high-performance NAVI LED Flood Light. This innovative lighting solution offers selectable wattages and color temperatures, providing ultimate flexibility for any application.

Key Features:

  1. Three Wattages Selectable: Customize your lighting with ease by choosing from three different wattage settings. Whether you need 63W, 50W, or 36W, this LED flood light adapts to your specific needs.

  2. Three CCT Selectable: Adjust the color temperature to suit your environment. With options of 5000K (daylight), 4000K (neutral white), or 3000K (warm white), you can create the perfect ambiance for any setting.

  3. UL and DLC Premium Certified: NAVI flood light is UL listed and DLC Premium certified, ensuring top-tier quality, safety, and energy efficiency. Trust in a product that meets the highest industry standards.

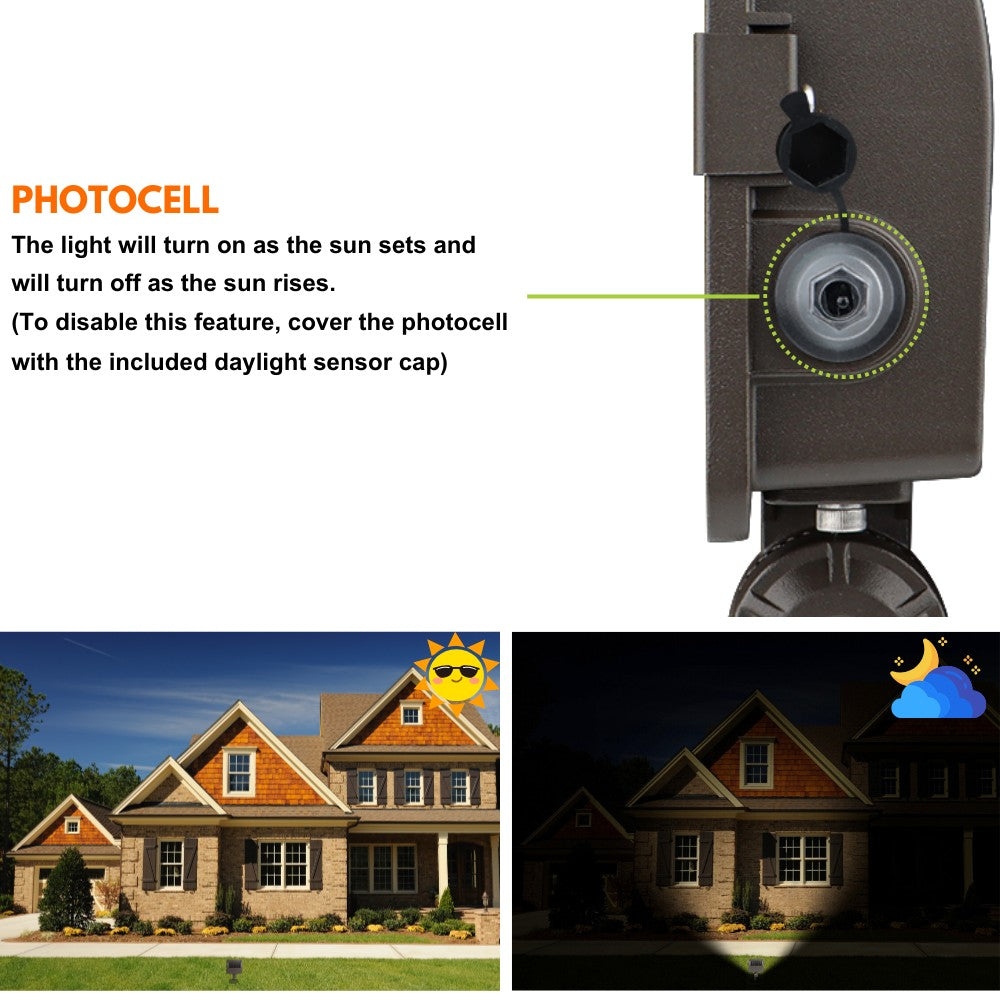

  4. Dusk to Dawn Photocell Integrated: Enjoy automatic lighting with the integrated dusk to dawn photocell sensor. This feature ensures your light turns on at dusk and off at dawn, providing seamless operation without manual intervention.

  5. Daylight Sensor Cap: For situations where you prefer to bypass the photocell sensor, simply leave the daylight sensor cap on. This easy-to-use feature allows you to control the light manually when needed.

  6. Mounting Options: Available with two mounting choices – Knuckle mount or Trunnion mount. Please ensure you select the appropriate mounting option during checkout to suit your installation needs.

  7. Durable and Weather-Resistant: Built to withstand the elements, this LED flood light features a robust design that ensures long-lasting performance, making it perfect for outdoor use in various weather conditions.

Upgrade your lighting with our LED Flood Light, offering unmatched flexibility, efficiency, and reliability. Ideal for parking lots, building facades, and security lighting, this light is the perfect solution for all your outdoor illumination needs.

See similar 30-watt and 108-watt.

Applications

• Signs • Billboards
• Landscape Lighting

• Building Façade
• Storage Facilities • Security Lighting
• Warehouses • Gardens
• Flagpole Lighting • Architectural Lighting
• Tree Uplighting • Outdoor Common Areas
• Parks
Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyUL listedDLC PremiumFCC certificationIP65 rating

Specifications

BrandKonliteDLC Model #KNV063MCPLV77KN
Warranty5 YearsUPC659675100531
Input Voltage120-277VBeam7HX7V
Input Wattage63W/50W/36WEqual to250W/150W MH
Delivered Lumens11,000LMCRI>70
Efficacy165 LM/WAvailable CCT5000K/4000K/3000K
Rated Life>100,000 HrsTHD<20%
Power Factor>0.9IP RatingIP65
Operating Temp-40°F to 113°FDimensions7.0”x 9.8(KN)”x 2.3"
ControlPhotocellDimmableNo
CertificationsUL, Wet Locations, DLC PremiumUnit Weight2 lbs
